1. Introduction
Avoiding contamination is one of the greatest challenges in meat hygiene practice to prolong the shelf-life of meat and prevent food poisoning of consumer. A substantial microbial reduction of potentially contaminated fresh poultry can be achieved by decontamination with chlorines, acid and alkaline solutions. Besides general hygienic measures during the slaughter process sodium hypochlorite, lactic acid and trisodium phosphate (TSP) seemed to be the most promising substances to reduce the overall bacterial load. Chlorine is the most frequently used antimicrobial intervention in commercial poultry processing due to its availability, low cost, and efficacy (Northcutt and Jones 2004). In general, chlorine compounds are effective against Gram-positive, Gram-negative, and acid-fast bacteria, fungi, and viruses. However, chlorine reacts with organic materials relatively easily and can quickly lose effectiveness (Barbut, 2002, Bremner and Johnstone 1996). Trisodium Phosphate (TSP) is generally recognized as safe by the US (FDA) and has been approved by USDA-FSIS at levels of 8-12% as an antimicrobial agent on raw chilled poultry carcasses that have been passed for wholesomeness (USDA, 2002). Treatment of poultry carcasses with TSP is effective in reducing populations of food spoilage bacteria as well as foodborne pathogens including Salmonella, Escherichia coli O157:H7, Listeria, and Staphylococcus aureus (Capita et al., 2002). Lactic acid has a thoroughly studied mechanism of action and generally regarded as safe status; several studies demonstrated the effectiveness of lactic acid as an antimicrobial intervention in red meat processing (Hardin et. al., 1995), and lactic acid is commonly used in commercial beef slaughter operations. Other studies have evaluated lactic acid as a poultry processing intervention (Anang et. al., 2007, Bautista et al., 1997, Kanellos and Burriel, 2005 and Okolocha and Ellerbroek, 2005). However, most antimicrobials have not been studied under mobile poultry slaughter conditions. The mechanism of action of organic acids on the microbial cell is not completely understood, but it is hypothesised that it is the undissociated molecule of the acid that is responsible for the antimicrobial activity (Podolak et al., 1996). Therefore this study was planned out to investigate the antimicrobial effect of chlorine ( 30 , 50 ,70 ppm) , TSP( 3% , 5% , 8% 0 and lactic acid (0.75% , 1.25% , 2%) on chicken carcasses artificially inoculated with S.typhimurium, L.monocytogenes, E.coli O157:H7 and St.aureus .
2. Material and methods
2.1. Chicken carcasses:
A grand total of forty random samples of raw chicken carcasses were purchased directly from local markets. The samples were taken and transferred directly to the laboratory using an ice box under complete aseptic conditions without any delay. The samples were divided into four equal groups (10 samples each). All samples were washed in sterile distilled water.
2.2. Preparation of microbial suspension: Reference strains of S. typhimurium. , St. aureus, E.coli O157:H7 and L. monoctogens were obtained from Animal Health Research Institute. Four to five isolated colonies of the tested strains were picked up by sterile inoculating loop and inoculated in sterile peptone water 0.1% (Merck, Germany) and were then incubated at 37°C for 24 hrs.
2.3. Preparation of decontaminators:
2.3.1. Chlorine:
Sodium hypochlorite solution 4% (Oxford laboratory) was used to prepare 30 pmm, 50 pmm and 70 ppm by dissolving 0.75ml, 1.25ml and 1.75 ml in 100 ml sterile distilled water.
2.3.2. Trisodium phosphate:
Tri-sodium orthophosphate 98% (Alpha chemika) was used to prepare 3%, 5% and 8 % solution by dissolving 3.06 ml, 5.1 ml and 8.16 ml in 100 ml sterile distilled water.
2.3.3. Lactic acid:
Pure lactic acid (Oxford laboratory) was used to prepare 0.75%, 1.25% and 2% solution by dissolving 0.833 ml, 1.388 ml and 2.222 ml in 100 ml sterile distilled water.
2.4. Artificial contamination of samples of chicken carcasses with the tested microorganisms:
Forty chicken samples were dipped in 500 ml sterile peptone water 0.1% (Merck, Germany) containing 24 hrs-old cultures of the tested microorganisms (S. typhimurium, St. aureus , E.coli O157:H7 and L. monoctogens ) (10 samples for each microorganism). Subsequently, the inoculated chicken samples were left for 30 min. at room temperature (25οC) to allow attachment and absorption of the inoculated bacteria. Then, the tested microorganisms (S. typhimurium, St. aureus, E.coli O157:H7 and L. monoctogens) were enumerated in the artificially contaminated samples to get the initial load before dipping treatments were performed.
Salmonella typhimurium was enumerated on XLD agar, while, St.aureus was enumerated on Baird Parker agar media, E.coli O157:H7 was enumerated on sorbitol MacConkey agar media and finally L. monoctogens was enumerated on Oxford agar media.
2.5. Application of the tested decontaminators:
Every ten contaminated chicken sample with known load of the tested microorganisms (S. typhimurium, L. monoctogens, St. aureus and E. coli O157:H7) were dipped into containers containing 500 ml of chlorine 30 ppm, 50 ppm and 70 ppm, trisodium phosphate 3%, 5% an 8% and lactic acid 0.75%, 1.25% and 2% at room temperature (25 ± 1οC) for 15 min. The control samples were dipped in 500 ml sterile distilled water. All the containers were properly labeled. Solutions covered all surface of the chicken samples. After dipping in the microbial decontaminators, all samples were removed and left at room temperature for 15 min. to allow the decontamination effect. The experiment was repeated five times. Salmonella typhimurium, St. aureus, E.coli O157:H7 and L. monoctogens counts were conducted using the serial dilutions and spread plate technique after decontamination to determine the reduction percentages. The experiment was repeated five times.
2.6. Statistical analysis:
The data was statistically treated by one-way ANOVA using SPSS program for windows (Version 16) (SPSS Inc. Chicago, IL and USA) and Duncan’s post hoc test with p < 0.05 considered to be statistically significant.
3. Results
3.1. Reduction by Chlorine :
Table (1) reported that initial load of S. typhimurium was 7.34 log CFU/g, then it was reduced to 5.43±0.55, 5.39±0.44 and 5.20±0.45 log CFU/g when dipped in 30 ppm, 50 ppm and 70 ppm. Chlorine solutions, respectively, with a reduction percentages of 26.02 %, 26.57% and 29.16 % as shown in table (2) and figure (1). St.aureus initial count was 5.67 log CFU/g (1) , after dipping the counts were reduced to 4.86±0.12 , 4.78±0.13 and 4.56±0.21 log CFU/g , respectively, where the reduction percentages were 14.29% , 15.70 % and 19.58 % , respectively ( table 2 and figure 1). E.coliO157:H7 counts inoculated on chicken parts were reduced when dipped in 30 ppm, 50 ppm and 70 ppm. Chlorine solutions from 5.96 log CFU/g (initial load) to 5.39± 0.32 , 4.97±0.20 and 4.74±0.20 log CFU/g , respectively , with reduction percentages of 9.56 %, 16.61% and 20.47 % (table 2 and figure 1 ). Finally, following treatment with chlorine solutions, reduction in L. monocytoges counts was shown from 5.29 log CFU/g (initial load) to 4.41±0.33, 4.20±0.38 and 3.68±0.63 log CFU/g in case of 30 ppm, 50 ppm and 70 ppm. , respectively (Table 1). Moreover, the results shown in table (2) and figure (1) revealed that counts were reduced in percentages of 16.64 %, 20.60 % and 30.43 % when treated by 30 ppm, 50 ppm and 70 ppm. chlorine solutions, respectively.
3.2. Reduction by TSP :
Salmonella typhimurium initial count was 7.34 log CFU/g , which was decreased to 4.78±0.20 , 4.64±0.37 and 4.55±0.18 log CFU/g by using 3 , 5 and 8 % TSP, respectively, as shown in table (1). Regarding the results in table (2), the reduction percentages were 34.88%, 36.78% and 38.01 % when treated with 3%, 5% and 8 % TSP, respectively, which was shown in figure (1). Regarding E.coliO157:H7, the initial microbial count was 5.96 log CFU/g, when using TSP with concentrations of 3 %, 5 % and 8 % the counts decreased to 4.92±0.78, 4.68±0.23 and 4.30±0.30 log CFU/g, respectively (table 1). Moreover, the reduction percentages were 17.45%, 21.48 % and 27.85 %, respectively. (Table 2 and figure 1) Staphylococcus aureus initial count was 5.67 log CFU/g, which was reduced to 5.21±0.37, 5.07±0.37 and 4.10±0.36 log CFU/g, respectively (table 1). Results in table (2) and figure (1) showed that the reduction percentages in S. aureus count were 8.11, 10.58 and 27.69 %. While L. monocytogens was reduced from initial count of 5.29 to 4.14±0.24, 4.14±0.31 and 3.96±0.22 log CFU/g, respectively, table (1). Such concentrations reduced L.monocytogens in percentages of 21.74%, 21.74 % and 25.14 %, respectively, table (2), and figure (1).
3.3. Reduction by lactic acid :
Salmonella typhimurium count was 7.34 log CFU/g (initial count), it was reduced to 4.74±0.17, 4.34±0.23 and 3.34±0.23 log CFU/g, when inoculated chicken parts dipped in lactic acid solution in concentrations of 0.75 %, 1.25 % and 2 %, respectively. (table 1). On the other hand, the reduction percentages of S.typhimurium treated with the same concentrations were 35.42%, 40.87% and 54.50 %, respectively. (table 2, figure 1 ). St. aureus count was decreased from 5.67 log CFU/g to 4.69±0.26, 4.46±0.34 and 4.09±0.29 log CFU/g, respectively (table 1). Where the reduction percentages achieved in the experiment were 17.28 %, 21.34 % and 27.87 % for the 3 concentrations of lactic acid used, respectively (table 2 , figure 1) . Moreover, E.coliO157:H7 initial count was decreased from 5.96 log CFU/g to 4.88±0.07, 4.77±0.12 and 4.19±0.26 log CFU/g, respectively (table 1), where the counts were reduced in percentages of 18.12%, 19.97% and 29.70 %, respectively. (table 2, figure 1). Finally, L. monocytogenes count, the initial load was decreased from 5.29 log CFU/g to 4.08±0.39, 3.69±0.26 and 3.18±.27 log CFU/g, respectively (table 1). The reduction percentages were 22.87%, 30.24% and 39.89 %, respectively (table 2).

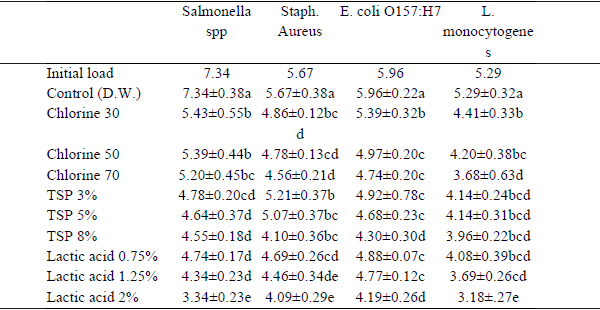

Table (1): Effects of various concentrations of decontaminators on counts of foodborne pathogens (log CFU/g) in chicken carcasses samples.
The values represent mean ± SD of three experiments. Mean values with different letters within the same column indicate significant difference (P < 0.05).

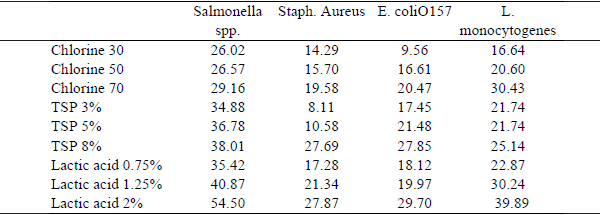

Table (2): Reduction % in foodborne pathogens chicken carcasses samples dipped in different concentrations of decontaminators
4. Discussion
Chlorines are powerful germicides where its molecules penetrate the bacterial cell wall and react with key enzymes to prevent normal respiration and carbohydrate metabolism (Chmielewski & Frank, 2003). Similar results were reported by Mart et al. (2013), where they reduced Salmonella contaminating chicken meat by 2.32 log cfu/g by treating inoculated parts with 50 ppm chlorine solution. On the other hand lower decontaminating effect was reported by Fabrizio et al. (2002), where salmonella counts were reduced 0.86 log CFU/g by 20 to 50 ppm. chlorine solution . On contrary, higher reduction of Salmonella contaminating chicken meat was achieved by Whyte et al. (2001), where the mean count was 1.04 log cfu /g, 25 ppm. chlorine solution caused complete decontamination, where Salmonella was not detected after dipping. The same reduction in St. aureus count achieved by 70 ppm chlorine solution in this study ( from 5.67±0.38 to 4.56±0.21 log cfu/g) was reported by Aksoy (2003), although they used 200 ppm chlorine solutions . On the other hand, Hecer et al. (2007) reduced 28.57% of St. aureus on chicken carcasses using 30 ppm chlorine solution. Higher reduction percent of E.coliO157:H7 was reported by Hecer et al. (2007), where 30 ppm chlorine solution could reduce 31.25% of E.coli on chicken carcasses. Moreover, Sheen et al. (2012) indicated that permanent damage may have occurred to some E. coli O157:H7 cells, with chlorine exposure. The E. coli O157:H7 count reduction was around 3.0 log cfu/ml at chlorine levels of 25 - 50 ppm. On contrary, Northcutt et al. (2005) reported that adding chlorine at 50 mg/l to the water in a broiler inside–outside bird spray wash station did not have any effect on the numbers of E. coli. Regarding reduction of L.monocytogenes, higher decontaminating effect was reported by Sheen et al. (2011) who stated that chlorine levels of 25 ppmto 50 ppm reduced L. monocytogenes by 2.5 log cfu/mL in vitro. Moreover, in the presence of 45 ppm chlorine, L. monocytogenes counts in chicken breast meat were reduced by about 0.12 log most probable number/g (Goncalves et al., 2005). Another study made by Tsai et al. (1992) indicated that 40 ppm chlorine reduced L. monocytogenes in poultry by only 37% to 50% in 3 to 5 min. Lower reduction in L. monocytogenes count was achieved by Oh et al. (2014), where the bacterial populations were reduced by 0.03, 0.06, and 0.22 log cfu/g after treatments of 50 ppm, 100 ppm, and 200 ppm chlorine. At the cell membrane level, TSP at a high pH (pH 12) helps to remove fat films and exerts surfactant or detergent effect. The loss of cell viability, membrane integrity and disruption of cytoplasmic and outer membranes of the microorganisms (Capita et. al., 2002). Lower reduction in salmonella count was reported by Del Rio et al. (2006) where S. typhimurium initial count was 5.5 log cfu/g, which was reduced to 3.5 log cfu/g during decontamination using 12 % TSP. Moreover, Fabrizio et al. (2002) reduced 1.41 log10 Salmonella count by decontaminating chicken meat by 10 % TSP. Lillard (1994) found that dipping chicken carcasses in a 10% TSP solution for 15 minutes reduced Salmonella levels by 2 log10 cycles. On the other hand complete decontamination of Salmonella inoculated on chicken meat was achieved by Whyte et al. (2001), where Salmonella count was 1.04 log cfu/g which in not detected after application of 10 % TSP dipping. On the other hand, nearly similar results were achieved by Capita et al. (2002), where they reduced L. monocytogens count from 7.02 to 5.78 log cfu/g using 8% TSP solution. Moreover, higher reduction in count was reported by Aksoy (2003) where the initial St. aureus count was 5.74 log cfu/g, which was decreased to 2.58 log cfu/g by dipping inoculated chicken meat in 12 % TSP solution. While in case of E.coliO157, Somers et al. (1994) reported that E. coli O157:H7 (105 cfu/cm2 of biofilm cells) was eliminated by a 30-second treatment with 1% TSP. On contrary, lower reduction in L.monocytogens count was reported by Del Rio et al. (2006), where the initial count was 6.25 log cfu/g, which was decreased to 5.25 log cfu/g by dipping inoculated chicken meat in 12% TSP solution. The antimicrobial activity occurs through the diffusion of lactic molecules in to microbial cells until equilibrium is reached, in accordance with the pH gradient, causing membrane disruption, inhibition of essential metabolic reactions, stress on intracellular pH homeostasis and accumulation of toxic anions and ultimate death of microbial cells (Ibrahim et al. 2008) . Similar results of S. typhimiurium reduction were reported by Dan et al. (2012), who reduced 2.89 log10 of salmonella typhimurium count by dipping chicken meat in 1 % and 2 % lactic acid. While 100 % reduction percent was achieved in the same study when the sample was treated by 3 % lactic acid. Moreover, Sudershan et al. (2011) examined the decontaminating effect of 0.5%, 1%, 2% and 3% lactic acid on Salmonella, where the count was reduced from 2.17 log cfu/g to not detectable level. Moreover, Mulder et al., (1978) reported 2 log cfu/g reductions in Salmonella count on chicken meat treated by 1% lactic acid. Moreover, higher reduction percentages were achieved by Hecer and Guldas (2011), where E. coliO157 counts were reduced as 16% and 56% with lactic acid solution (0.5 and 1.0%). On the other hand, relatively higher reduction percentage was achieved by Aksoy (2003) who decreased St. aureus count on chicken meat from 5.74 to 2.93 log cfu/g by dipping inoculated samples in 2 % lactic acid solution. While, nearly similar results were reported by Sudershan et al (2011) where they examined the effect of different concentration of lactic acid (0.5%, 1%, 2% and 3%) on St. aureus contaminating chicken meat , where counts reduced from 3.08 log cfu/g to 1.79 log cfu/g . Finally, higher reduction in L. monocytogens count was reported by Dan et al. (2012), where the counts decreased 1.56 to 4.45 log10 after dipping chicken meat in 1% and 2% lactic acid solutions. From the obtained results, it could be realized that S.typhimurium was the most reduced microorganism, followed by L. monocytogenes, then E.coliO157 and finally S. aureus, which was the least reduced microorganism. On the other hand this study proved that lactic acid 2% was the best decontaminator (among the examined decontaminators), where it achieved the highest reduction percentage.
This article was originally published in Benha Veterinary Medical Journal, Vol. 28, No. 2:83-90, 2015.
5. References
Aksoy, A. 2003. Evaluation of surface decontamination applications in some uncooked chicken meat and fresh cut vegetables. Graduate thesis. Istanbul Technical University Faculty of Science.
Anang, D. M., Rusul, G., Bakar, J., Ling, F. H. 2007. Effects of lactic acid and lauricidin on the survival of Listeria monocytogenes, Salmonella enteritidis and Escherichia coli O157:H7 in chicken breast stored at 4uC. Food Control 18:961–969.
Barbut, S. 2002. Microbiology and sanitation, p. 315–378. In S. Barbut, Poultry products processing, an industry guide. CRC Press, Boca Raton, FL.
Bautista, D.A., Sylvester, N., Barbut, S., Griffiths, M.W. 1997. The determination of efficacy of antimicrobial rinses on turkey carcasses using response surface designs. Food Microbiol. 34:279– 292.
Bremner, A., Johnston, M. 1996. Control of microbial hazards in poultry processing, p. 125–148. In A. Bremmer and M. Johnston, Poultry. W. B. Saunders Company Ltd., London.
Capita, R., Alonso-Calleja, C., Garcia- Fernandez, M., Moreno, B. 2002. Activity of trisodium phosphate compared with sodium hydroxide wash solutions against Listeria monocytogens attached to chicken skin during refrigeration storage. Food microbiology, 19: 57-63
Chmielewski, R.A.N., Frank, J.F. 2003. Biofilm formation and control in food processing facilities. Comprehensive Reviews in Food Science and Food Safety, 2:22 – 32.
Dan, S.D., Mihaiu, M., Mihaiu, R., Jecan, C., Lapusan, A. 2012. The Effect of Acetic and Lactic Acid for Reducing the Prevalence of Pathogen Load on Poultry. Bulletin USAMV serie Medicina Veterinara. 69:1-2.
Del Ri´o, E., Capita, R., Prieto, M., Alonso- Calleja, C. 2006. Comparison of pathogenic and spoilage bacterial levels on refrigerated poultry partsfollowing treatment with trisodium phosphate. Food Microbiology 23:195–198
Fabrizio, K.A., Sharma, R.R., Demirci, A., Cutter, C.N. 2002. Comparison of Electrolyzed Oxidizing Water with Various Antimicrobial Interventions to Reduce Salmonella Species on Poultry. Poultry Science 81:1598– 1605.
Goncalves, A.C., Almeida, R.C.C., Alves, M. A. O., Almeida, P. F. 2005. Quantitative investigation on the effects of chemical treatments in reducing Listeria monocytogenes populations on chicken breast meat. Food Control 16:617–622
Hardin, M. D., Acuff, G. R., Lucia, L. M., Oman, J. S., Savell, J. W. 1995. Comparison of methods for decontamination from beef carcass surfaces. J. Food Prot. 58: 368–374.
Hecer, C., Balci, F., Udum, C. D. 2007. The Effects of Ozone and Chlorine Applications on Microbiological Quality of Chickens During Processing. J. BIOL. ENVIRON. SCI., 1(3):131-138
Hecer, C., Guldas, M. 2011. Effects of lactic acid, fumaric acid and chlorine dioxide on shelf life of broiler wings during storage. African Journal of Microbiology Research. 5(23):3880- 3883, 23.
Ibrahim, S. A., Yang, H., Seo, C. W. 2008. Antimicrobial activity of lactic acid and copper on growth of Salmonella and Escherichia coli 0157:H7 in laboratory medium and carrot juice. Food Chem. 109: 137-143
Kanellos, T. S., Burriel, A. R. 2005. The in vitro bactericidal effects of the food decontaminants lactic acid and trisodium phosphate. Food Microbiol. 22:591–594.
Lillard, H. S. 1994. Effect of trisodium phosphate on salmonellae attached to chicken skin. J. Food Protect. 57(6): 465-469.
Mart, S., Williams, S. K., Sharma, C. S. 2013. Reduction of Salmonella Typhimurium on Poultry Skin Utilizing Sodium Metasilicate in Prechill and Postchill Applications. International J. of Poultry Science 12 (9):501-504
Mulder, R. W. A. W., Van der Hulst, M.C., Bolder, N. M. 1978. Salmonella decontamination of broiler carcasses with lactic acid, Lcysteine and hydrogen peroxide. Poultry Sci. 66: 1555-1557.
Northcutt, J. K., Jones. D. R. 2004. A survey of water use and common industry practices in commercial broiler processing facilities. J. Appl. Poult. Res. 13:48–54.
Northcutt, J. K., Smith, D. P., Musgrove, M. T., Ingram, K. D., Hinton, A. Jr. 2005. Microbiological Impact of Spray Washing Broiler Carcasses Using Different Chlorine Concentrations and Water Temperatures. Poultry Science 84:1648–1652
Oh, S.R, Park, S.Y., Ha, S. D. 2014. Combined effects of chlorine and thiamine dilauryl sulfate on reduction of Listeria monocytogenes in chicken breast and development of predictive growth models. Poultry Science 93:1503–1510
Okolocha, E. C., Ellerbroek, L. 2005. The influence of acid and alkaline treatments on pathogens and the shelf life of poultry meat. Food Control 16:217–225.
Podolak, R. K., Zayas, J. F., Kastner, C. L., Fung, D. Y. C. 1996. Reduction of bacterial populations on vacuumpackaged ground beef patties with fumaric and lactic acids. Journal of Food Protection. 59:1037-1040.
Sheen, S., Hwang, C. A., Juneja, V. K. 2011. Modeling the impact of chlorine on the behavior of Listeria monocytogenes on ready-to-eat meats. Food Microbiol. 28:1095– 1100.
Somers, E. B., Schoeni, J. L.,Wong, A. C. L. 1994. Effect of trisodium phosphate on biofilm and planktonic cells of Campylobacter jejuni, Escherichia coli O157:H7, Listeria monocytogenes and Salmonella typhimurium. Int. J. Food Microbiol. 22(4):269-276.
Sudershan, R.V., Kumar, N. R., Kashinath, L., Bhaskar, V., Polasa, K. 2011. Antimicrobial Activity of Lactic acid on the Growth of Selective Foodborne Pathogens in Raw Chicken. Internet Journal of Food Safety, 13:124-130
Tsai, L. S., Schade, J. E., Molineux, B. T. 1992. Chlorination of poultry chiller water: Chlorine demand and disinfection efficiency. Poult. Sci. 71:188–196.
USDA, 2002. The use of trisodium phosphate as an antimicrobial agent in poultry processing in the United States. USDA-FSIS, Office of International Affairs.
Whyte, P., Collins, J. D., Gill, K. M, Monahan, C., Mahony, H. O. 2001. Quantitative Investigation of the Effects of Chemical Decontamination Procedures on the Microbiological Status of Broiler Carcasses during Processing. J. of Food Protection. 64 (2): 179–183.
