Ventilation Rates for poultry

Simple Chart to Help Determine Minimum Ventilation Rates

Published: January 9, 2012
By: Dr. Mike Czarick, Dr. Brian D. Fairchild (The University of Georgia)
One of the keys to controlling poultry house litter moisture is to simply remove the same amount of moisture the birds are adding each day. If you remove less than they are adding, moisture will start to build-up and eventually you will end up with caked litter and ammonia. If you remove more, over time you will tend to over dry the litter resulting in dusty conditions and high heating costs.
To accurately determine how much ventilation it takes to remove a gallon of water you first need to know both inside and outside temperature and relative humidity. A psychometric chart can then be used to determine the precise amount of moisture there is in the air inside and outside the house (Figure 1). Once these values are known it is just a matter of doing some simple math to calculate how much air you need to exchange to remove each gallon of water the birds are adding to a house. Though highly accurate, this method is simply too time consuming and complicated to be used on most poultry farms.

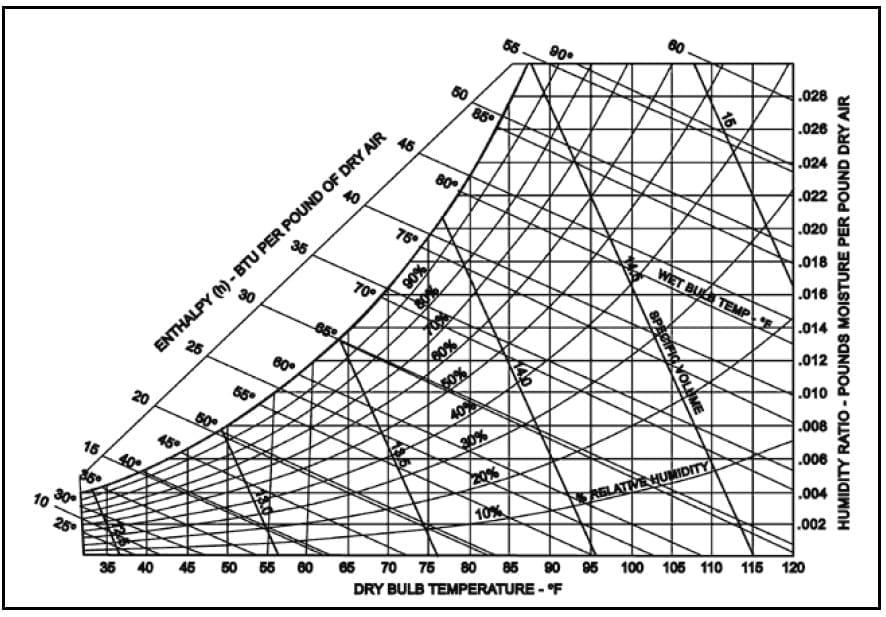

Figure 1. Psychometric chart allows determination of the amount of moisture in the air.
The calculation process can be dramatically simplified if a few assumptions are made. First, since we are primarily concerned with moisture control during cold weather, it is best to assume fairly typical wintertime conditions; for instance, 30oF and 50% Rh. Second, we may assume an inside relative humidity of 60%, which is generally recommended for optimal bird health.

Last, but not least we need to assume that roughly 80% of the water the birds drink is put back into the litter and air in a house. With these three assumptions a simple table can be developed to determine the runtime of two or four 36" fans (9,000 cfm per fan) to remove the moisture the birds add to a house for every 100 gallons consumed (Table 1).
Simple Chart to Help Determine Minimum Ventilation Rates - Image 3

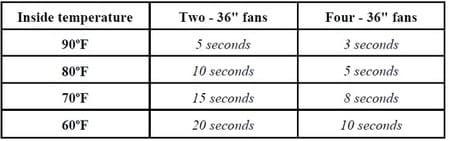

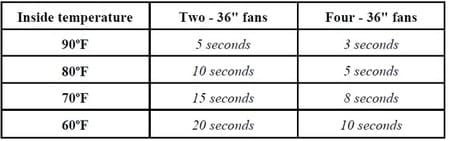

Table 1. Fan runtime (out of 300 seconds) for every 100 gallons of water consumed.

Table 1 makes it very easy to quickly determine ventilation rates to control house moisture. For instance:

1) Broiler-breeder house consuming 500 gallons of water (inside temperature = 60oF). Two 36" fans need to operate 20 seconds out of 300 for every 100 gallons of water consumed. Therefore, if the birds are drinking 500 gallons then the fans need to operate 100 seconds out of 300 (20 seconds X 5 hundred gallons).

2) Broiler house consuming 1,200 gallons of water (inside temperature = 80oF). Two 36" fans need to operate 10 seconds out of 300 for every 100 gallons of water consumed. Therefore, if the birds are drinking 1,200 gallons then the two fans need to operate 120 seconds out of 300 (10 seconds X 12 hundred gallons).

3) Broiler house consuming 500 gallons of water (inside temperature = 90oF). Two 36" fans need to operate 5 seconds out of 300 for every 100 gallons of water consumed. Therefore, if the birds are drinking 500 gallons then the two fans need to operate 25 seconds out of 300 (5 seconds X 5 hundred gallons).

4) Pullet house consuming 700 gallons of water (inside temperature = 70oF). Two 36" fans need to operate 15 seconds out of 300 for every 100 gallons of water consumed. Therefore, if the birds are drinking 700 gallons then the two fans need to operate 105 seconds out of 300 (15 seconds X 7 hundred gallons).

5) Turkey house consuming 2,000 gallons of water (inside temperature = 70oF). Four 36" fans need to operate 8 seconds out of 300 for every 100 gallons of water consumed. Therefore, if the birds are drinking 2,000 gallons then the four fans need to operate 160 seconds out of 300 (8 seconds X 20 hundred gallons).

It is important to keep in mind that minimum ventilation rates provided by the chart are only an estimate. To insure you are ventilating enough to control house moisture levels it is best to continually monitor house relative humidity. If the relative humidity is above 70%, litter moisture levels are on the rise and ventilation rates should be increased. If the relative humidity is consistently running below 50% you may be removing excessive moisture from the litter and over time the house can become dusty. Furthermore, for younger birds ventilation rates may have to be greater to manage ammonia, carbon dioxide and carbon monoxide levels.
This article was originally published at UGA Cooperative Extension Poultry Housing Tips Vol. 23 no.12, December 2011. Engormix.com thanks the authors for this contribution.
Related topics:
Authors:
Mike Czarick
University of Georgia
University of Georgia
Dr. Brian D. Fairchild
University of Georgia
University of Georgia
Recommend
Comment
Share
Mike Czarick
University of Georgia
University of Georgia
12 de enero de 2012

When using diesel heaters connected to a duct I like to put a number of fogging nozzles very close to the heater outlet. The air is the hottest in this location and the water tends to evaporate quickly.

Recommend
Reply
Mike Czarick
University of Georgia
University of Georgia
12 de enero de 2012

The primary time a producer needs to be concerned about a very low humidity is during brooding. A very low humidity can lead to chilled chicks and dehydration. It is important that the house humidity is raised to acceptable levels before the chicks arrive. This typically involved spraying the walls and ceiling with water prior to preheating. It is equally important that the house is not overventiled due to excessive fan run times or because the house house is very loose and the wind over ventilates the house.

Mike Czarick

Recommend
Reply
Mike Czarick
University of Georgia
University of Georgia
12 de enero de 2012

We have written a couple of newsletters on the subject of foot pad dermatitis that I think will answer your questions:

Read: Minimizing Foot Pad Dermatitis & Maintaining Dood Paw Quality

The Relationship between Litter Moisture and Foot Pad Dermatitis

Bird migration is typically a response to air movement in a tunnel house. The birds will tend to walk in to the directio of air movement over time. The key to managing migration of any type is the installation of migration fences.

Read: Migration Fences Should be used during cold weather

Mike Czarick

Recommend
Reply
Mike Czarick
University of Georgia
University of Georgia
11 de enero de 2012

When it is very humid and cold outside ventilation rates may need to be increased 20% to remove sufficient moisture. It is important to keep in mind that it is still more moist inside the house than outside and that ventilation, if done properly, will remove moisture from the house.

Newsletters that address this subject:

Read: Condensation Cloud

http://www.poultryventilation.com/sites/default/files/tips/1990/vol2n15.pdf

Mike Czarick

Recommend
Reply
Mike Czarick
University of Georgia
University of Georgia
10 de enero de 2012

When the relative humidity is below 50% minimum ventilation rates can often be decreased. The amount to which they can be decreased depends on house carbon dioxide concentrations. In general carbon dioxide levels should typically be kept below 5000 ppm ideal 3500. Though there are some charts that provide an approximation of how much you need to ventilate to control co2

Read Minimum Ventilation Rates

The best way is to measure both Rh and CO2 and adjust minimum ventilation rates accordingly.

Mike Czarick

Recommend
Reply
Maqsood Jaffery
10 de enero de 2012

Good article at right time. I request the authers that they shall further guide about the minimum ventilation rates where the humidity in shed/house is less than 50% .
Regards,
Dr. Mqsood Haider Jaffery

Recommend
Reply
Dr Wisal M.Khan
5 de febrero de 2012

Thank you for a very informative Article about Ventilation Rates for poultry, it is realy clearify all the informations and especialy the Chart gives more detail for it .
for the Diseal heaters it will be more good that some need to install them in the service roomof the house and if Plastic tube is used for Heating the internal house it is a good Practice too , and for the Humidity in this case installing a few Fogers in the house will be more good to run time automatically or manually operated as it will save the Laboring etc too .
Thank and Regards

Dr wisal Khan







Recommend
Reply
Waqar
23 de enero de 2012

but i know there are many controllers in the market which have this feature to increase ventilation level after a preset level of humidity is in excess

Recommend
Reply
Munawar Ali
Islamabad Group
Islamabad Group
12 de enero de 2012
Dear Mike Czaric Very nice and informative article as your other articles are. You exactly pointed out that due to heating humidity levels during brooding, especially, first few days are low. In Pakistan most of the producers are using diesel fired heaters. We put plastic duct in front of heater and it goes to the end of house. We make small holes in duct so hot air comes through these holes and shed temperature is uniform. To increase humidity we put water in duct at different intervals. When hot air touches this water the humidity level in the shed is increased. Waiting your new articles Best wishes and regards Dr. Munawar Ali
Recommend
Reply
Mohammad Shahid Javed
12 de enero de 2012
What to do If RH falls 30% if you have not installed fogging nozzles
