Subtyping of Salmonella enterica Subspecies I Using Single-Nucleotide Polymorphisms in Adenylate Cyclase

Introduction

A 42-year history of information on Salmonella enterica serotypes indicates it is essential to rapidly determine serotype and subtype of isolates from contaminated products to improve the safety of food (Liu et al., 2011; Fabre et al., 2012; CDC-NCEZID, 2013; Lettini et al., 2014). Recently, a sequence-based method called dkgB-linked intergenic sequence ribotyping (ISR) became available to producers who want to independently screen for serotypes of S. enterica present on-farm, in processing facilities, and to make decisions about vaccination strategies (www.neogen. com/FoodSafety/NS_Sal.asp) (Guard et al., 2012). However, methods that provide additional information about subtype in addition to serotype have not yet been developed to specifically complement ISR. Therefore, the goal of this research was to design and optimize a single-nucleotide polymorphism (SNP)-based hybridization assay using an increasingly available approach, namely allele-specific primer extension (ASPE) (Dunbar and Jacobson, 2007; Dunbar et al., 2015). ASPE is conducted within a multiplexed bead-based capillary system requiring custom instrumentation (xMAP; Luminex, Austin, TX). A method that supports ISR by providing subtype should provide poultry food safety researchers and the industry with a rapid cost-effective pipeline that provides phage type and other information about genomic lineages occurring within serotype. By coupling ISR with a more sophisticated DNA-based method with a potential for multiplexing, such as ASPE, cost efficiency of processing hundreds to thousands of samples within a year should be facilitated, in part, because redundant processing of highly prevalent serotypes can be minimized.

Other genome-based methods have been developed to serotype the salmonellae in addition to ISR, and these include pulsed-field gel electrophoresis (Swaminathan et al., 2001; Ji et al., 2006), amplified fragment length polymorphism (Liebana et al., 2002), multilocus sequence typing (MLST) (Sukhnanand et al., 2005; Ji et al., 2006; Liu et al., 2011), multiple-locus variable-number tandem repeats (Lindstedt et al., 2004), CRISPR analysis (Fabre et al., 2012), and repetitive extragenic palindromic polymerase chain reaction (PCR) (Versalovic and Lupski, 2002). However, most of these methods do not correlate specific biological properties with SNPs that emerge between closely related strains within serotypes. For S. enterica, examples of using SNPs to pathotype S. enterica include (1) association of 16 SNPs with transition from an invasive phenotype to one that is environmentally prevalent, but epidemiologically inconsequential (Guard et al., 2011), (2) impact on the predicted epitopes of flagella (McQuiston et al., 2011), and (3) impact on antibiotic resistance (Song et al., 2010). The importance of SNPs is emphasized by a fundamental concept of microevolution; specifically, a single base pair change can have as much impact on the ability of a pathogen to cause disease as does an exchange of chromosomal DNA of thousands of base pairs. An example of such microevolution is in Listeria monocytogenes, where SNPs were used to identify outbreak strains and to determine their incidence in ready-to-eat foods relative to environmental strains (Ducey et al., 2007; Ward et al., 2008; Van Stelten et al., 2010).

One physiologically important gene that is suggested as a target for microevolutionary studies in S. enterica serotypes is adenylate cyclase (cyaA) ((Zhang et al., 1996; Morales et al., 2007). It has been associated with evolutionary trends in avian-adapted serotypes, such as Salmonella serotypes Pullorum and Gallinarum (Morales et al., 2007). Several other factors make cyaA an attractive gene target for subtyping. These factors are as follows: (1) cyaA is central to energy production and metabolism (Lory et al., 2004), (2) required for virulence (Curtiss III and Hassan, 1996), (3) it is present as one copy, and (4) it is associated with physiological change when mutated (i.e., reduced lethality, growth, and environmental persistence) (Kennedy et al., 1996; Zhang et al., 1996). In addition, the mutations within cyaA gene have potentially evolved as a coping mechanism during changing environmental conditions, allowing S. enterica serotypes to maintain critical functions required for baseline survival and infection potential (Aravind and Koonin, 1999; Wolfgang et al., 2003; Baker and Kelly, 2004). To further understand if there is any impact by selecting cyaA over other genes for developing SNP analysis supporting ISR serotyping, BLAST analyses were used to collect pertinent information for characterization of three other sets of genes. Set 1 included 20 tRNA transferases (Ogle and Ramakrishnan, 2005), set 2 included 13 diguanylate cyclases (DGC) ( Jenal and Malone, 2006), and set 3 included 23 genes commonly included in other genome studies. Results suggest that cyaA has characteristics favorable for supporting ISR and for being a reference gene for assessing heterogeneity occurring between strains associated with outbreaks.

Materials and Methods

BLAST for recovery of available S. enterica subspecies I sequences

A strategy for BLAST analysis was followed to find only unique cyaA sequences and then to translate those sequences into unique amino acid sequences. The reference genome for all BLAST searches was Salmonella enterica serovar Typhimurium LT2 (NC_003197.1). Specifically, gene STM3939 was used in BLAST searches of complete and draft genomes to obtain all cyaA sequences of record within S. enterica subspecies I between August 15 and September 20, 2015. The National Center for Biotechnology Information (NCBI, www. ncbi.nlm.nih.gov) was the database searched. The 175 entries for serovar Enteritidis from NCBI separated into three cyaA sequences, and other serovars also had multiple cyaA sequences. One other cyaA sequence for serotype Enteritidis is available, but it was not used in BLAST search calculations although it was included for development of the assay.

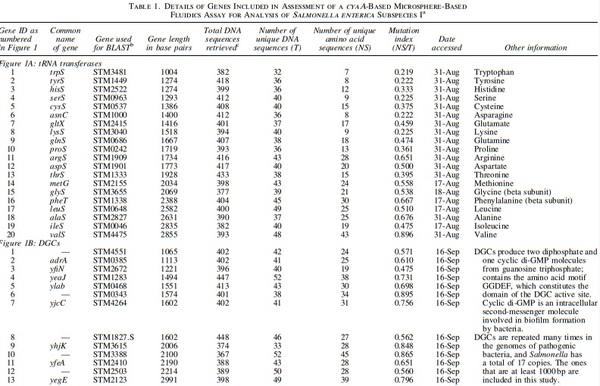

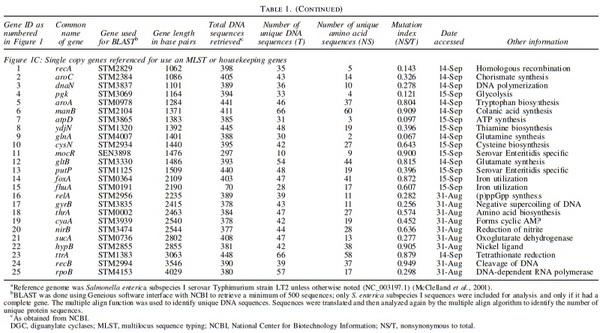

Gene cyaA is highly conserved within the genome of S. enterica, and there is only one copy (McClelland et al., 2001). To determine how the nonsynonymous to total (NS/T) index of other genes compared to cyaA, three sets of genes were similarly analyzed (Fig. 1), and details for each gene are listed in Table 1. The tRNA transferases (Ogle and Ramakrishnan, 2005) and DGCs ( Jenal and Malone, 2006; Romling, 2015) were selected because they are replicated in the genome of S. enterica several times (McClelland et al., 2001). For the third set, genes were used that had been incorporated into various methods such as MLST (Fakhr et al., 2005; Alcaine et al., 2006; Tankouo-Sandjong et al., 2007; Han et al., 2010; Bell et al., 2011; Stepan et al., 2011; Seong et al., 2012; Fresno et al., 2014), as housekeeping genes in transcription assays (Csonka et al., 1994; Galitski and Roth, 1997; Hensel et al., 1999; Tedin and Norel, 2001; Olson et al., 2007; Gilberthorpe and Poole, 2008; Malcova et al., 2009; Chan et al., 2012), or that were found to be part of a set of naturally mutated genes in S. enterica (Guard et al., 2011). Geneious 8.1.6 software was used to conduct BLAST searches, multiple alignments, and translations. After conducting BLAST searches, the parameters for keeping a hit for further analysis included being within S. enterica subspecies I, showing no indication of truncation, and having an appropriate gene length.

S. enterica strains used for ASPE and microsphere-based fluidics analysis of SNPs

The five reference S. enterica strains used for initial development were Enteritidis PT4 22079, Enteritidis PT13a 21046 (PT13a-wt), Enteritidis 13a 21027 (PT13a-bf), Typhimurium

Subtyping of Salmonella enterica Subspecies I Using Single-Nucleotide Polymorphisms in Adenylate Cyclase - Image 1

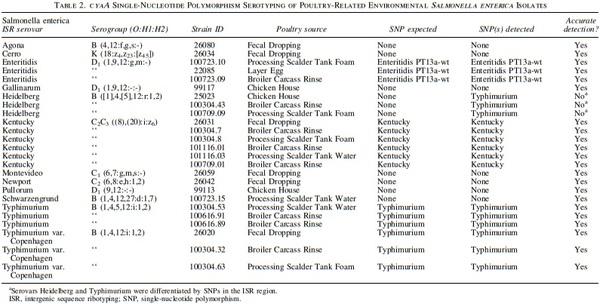

LT2, and Kentucky CDC191 (Guard et al., 2012). These strains and the other 25 S. enterica poultry-associated isolates shown in Table 2 were maintained according to previously described protocols (Guard et al., 2012). Of the serovars that were poultry associated and used to validate cyaA-targeted ASPE, serovars Typhimurium, Enteritidis, Newport, and Heidelberg are the first through fourth most common isolated from people (CDC-NCZEID, 2013). Serovars Montevideo, Schwarzengrund, and Agona often cause disease in people and have respective rankings of 7th, 23rd, and 30th (CDC-NCZEID, 2013). Serotype Kentucky is at most an infrequent cause of human disease, but there is concern that it carries a transmissible plasmid encoding antibiotic resistance (Le Hello et al., 2013). Serovars Gallinarum and Pullorum do not cause human disease, but they are closely related to serovar Enteritidis and are important avian pathogens that are subject to regulatory activities (Feng et al., 2013). Together, the isolates that were recovered in association with poultry and used here to validate ASPI cover a broad range of serovars and pathotypes.

Cell cultures were revived from frozen stock on brilliant green agar (Neogen, Lansing, MI) overnight at 37°C. One colony was transferred to brain-heart infusion broth (Neogen) and grown overnight at 37°C with shaking at 150 rpm. DNA was isolated from 1 mL of culture diluted to an optical density of 1.0 at wavelength = 600 nm with the PureLink Genomic DNA Mini Kit (Invitrogen, Grand Island, NY) following the manufacturer’s instructions, including the RNase digestion step. Genomic DNA, 50 ng, was used as the template for the initial cyaA PCR. The cyaA PCR, ASPE hybridization, and

Subtyping of Salmonella enterica Subspecies I Using Single-Nucleotide Polymorphisms in Adenylate Cyclase - Image 2

Subtyping of Salmonella enterica Subspecies I Using Single-Nucleotide Polymorphisms in Adenylate Cyclase - Image 3

Subtyping of Salmonella enterica Subspecies I Using Single-Nucleotide Polymorphisms in Adenylate Cyclase - Image 4

SNP detection protocols were used as described for subtyping of all S. enterica isolates.

PCR assay design for gene cyaA

Entire cyaA genes (_˜3 Kb) for the five S. enterica reference strains were retrieved from GenBank (Benson et al., 2013) and aligned using the MEGA 5.0 software package (Tamura et al., 2011). The resultant alignment file was truncated to a 300- basepairs (bp) region (bp 1900–2199 in STM3939) that was found to contain descriptive SNPs. General PCR cyaA primers were designed against conserved regions among all five reference strains: SAL-cyaA-F1 (5′-CCGGATAGCGTGGAGG TGTT-3′) and SAL-cyaA-R2 (5′-CACCACTGACGGCAATT TCACC-3′). The thermocycler used was a Realplex 4S (Eppendorf, Hauppauge, NY). The optimized cyaA PCR consisted of 50 ng DNA, AccuStart PCR 2· ToughMix (Quanta Biosciences, Gaithersburg, MD), and 400 nM each SAL-cya-F1 and SAL-cya-R2 primers (Biosearch, Novato, CA). The PCR program was 95°C for 10 min; 35 cycles of 95°C for 20 s, 60.6°C for 30 s, 72°C for 1 min; 72°C for 10 min.

To determine the specificity of the cyaA PCR assay to S. enterica, genomic DNA was extracted from a panel of negative controls (Campylobacter lari strain 43675, Campylobacter coli strain 33559, Campylobacter jejuni strain 14544, Escherichia coli strain EDL 933, and L. monocytogenes strain Li23). To determine the limit of detection for each reference strain, cyaA amplicons were generated using 0.001 pg–50 ng of template genomic DNA. For both the specificity and limit of detection tests, the cyaA PCR protocol described above and the hybridization and detection protocols described below were used as described.

ASPE primer design, cyaA amplicon hybridization, and SNP detection

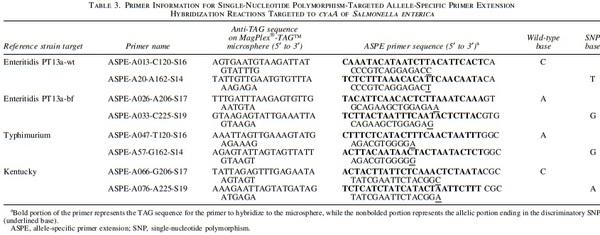

The initial cyaA PCR assay used final primer concentrations = 400 nM, Tm = 60.6°C to produce amplicons for the ASPE reaction at genomic DNA template concentrations ‡0.001 ng per cyaA PCR. The ASPE primers (Table 3) were designed to contain both the reverse complement of the ANTI-TAG sequence attached to the MagPlex-TAG-coupled microspheres (Luminex), and a cyaA gene sequence with the 3¢ terminal end representing the discriminatory SNP. Primers were designed for both the SNP and wild-type sequence for the reference S. enterica strains, and each primer was coupled to a unique MagPlex-TAG-coupled microsphere to perform multiplexed ASPE.

Using the cyaA amplicons from the initial PCR step, 5 μL of that PCR was mixed with 2 μL ExoSAP-IT reagent (Affymetrix, Santa Clara, CA) and incubated at 37°C for 30 min, then 80°C for 15 min. The ASPE reaction was performed using 0.75 U Tsp DNA polymerase, ASPE reaction buffer (20 mM Tris-HCl, pH 8.4, 50 mM KCl), 1.25 mM MgCl₂, 5 μM each of dATP, dTTP, dGTP, 5 μM biotin-14-dCTP, 25 nM each TAGASPE primer, and 5 μL ExoSAP IT-treated PCR template amplicon. All reagents used were from Invitrogen. The ASPE cycling program consisted of 96°C for 2 min; 30 cycles of 94°C for 30 s, 55°C for 1 min, 74°C for 2 min.

MagPlex-TAG-coupled microspheres were supplied by the manufacturer at a concentration of 2.5 x 10⁶ microspheres/mL. A hybridization mixture was made of 1 μL of each of the eight MagPlex-TAG-coupled microspheres (equal to 2500 micro spheres of each), 17 μL 2x Tm Hybridization Buffer (0.2 M Tris-HCl, pH 8.0, 0.4 M NaCl, 0.16% Triton X-100), 5 μL ASPE reaction, and 20 μL PCR water for a final volume of 50 μL. The hybridization was carried out at 96°C for 90 s and then 37°C for 30 min. The hybridized microspheres were pelleted by a magnetic separator (Perkin Elmer, Shelton, CT), washed with Tm Hybridization Buffer, and incubated with streptavidin-R-phycoerythrin (Invitrogen) at a final concentration of 2 μg/mL in 75 μL Tm Hybridization Buffer at 37°C for 15 min. Fifty microliters were analyzed at 37°C in the MAGPIX instrument (Luminex).

Sample data were analyzed using the xPONENT^® ver. 4.2 software package (Luminex), and positive and negative signals for each microsphere bead pair (SNP and wild type) were determined in the following manner. The average median fluorescence intensity (MFI) of the two no template control (NTC) wells was subtracted from the MFI of a sample to yield the net MFI for each sample well. For each bead pair, a net MFI from the non-SNP-associated bead that was at least 30% higher than the SNP-associated bead indicated a negative signal for that SNP. Conversely, 30% higher from the SNP bead than the non-SNP bead indicated a positive for the SNP. A background sample consisted of a NTC from the PCR that had undergone ASPE and hybridization.

Validation of cyaA-targeted ASPE for analyzing S. enterica

The set of five Salmonella reference strains was tested in various combinations to determine the specificity of the method. Genomic DNA of a single strain was used as input to the initial PCR, followed by ASPE with one set of primers (one set of two primers, one primer for each allele) and hybridization with the two corresponding MagPlex-TAGcoupled microspheres; each strain was tested in this manner. First, 50 ng of genomic DNA of a single strain was used as input to the initial PCR, followed by ASPE with every possible combination of the four primer sets (two to four sets in various combinations) and hybridization with the corresponding MagPlex-TAG-coupled microspheres; each strain was tested in this manner. Finally, genomic DNA from the reference strains was mixed in every possible combination of two to five strains. For these combinations, two series were done: in one, the initial input to the PCR was 50 ng of each strain, regardless of the number of strains, and in another, the total input was 50 ng (two strains at 25 ng/strain, three strains at 16.7 ng/strain, four strains at 12.5 ng/strain, or five strains at 10 ng/strain). The resulting PCR amplicons from these combinations were used in ASPE reactions with all four primer sets and hybridization with all eight MagPlex-TAGcoupled microspheres. The panel of 25 S. enterica isolates encompassing 12 serotypes was analyzed using the optimized cyaA SNP method (Table 2). Genomic DNA was extracted from these isolates as explained before in the PCR Assay Design for Gene cyaA section.

Results

Review of cyaA SNPs present in the NCBI database

BLAST search using sequence from Salmonella enterica serotype Typhimurium LT2 (NC_003197.1) cyaA gene STM3939 recovered 378 sequences of cyaA from NCBI

Subtyping of Salmonella enterica Subspecies I Using Single-Nucleotide Polymorphisms in Adenylate Cyclase - Image 5

Subtyping of Salmonella enterica Subspecies I Using Single-Nucleotide Polymorphisms in Adenylate Cyclase - Image 6

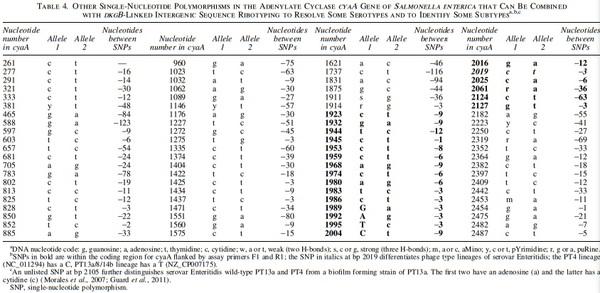

(Line 64 in S1). The set of cyaA sequences available was heavily weighted toward two serotypes. Of the 378 sequences in the set as of August 2015, 175 (46.3%) were from serotype Enteritidis and 116 (30.7%) were from serotype Paratyphi A. Other serotypes with more than three entries included serotypes Typhimurium with 21 (5.6%), Newport with 12 (3.2%), and Heidelberg with 5 (1.3%). All other serotypes had fewer than five representative strains. Percent GC content of cyaA within S. enterica subspecies I ranged from 54.2% to 54.7%, percent identical sites ranged from 98.6% to 100%, and reported gene lengths were from 2543 to 2547 bp. Gene length depended on inclusion of terminating codons, and thus, all sequences were trimmed to a length of 2540 bp. Among the 378 sequences meeting parameters of the cyaA BLAST, 42 DNA sequences were unique, and these translated into 19 unique amino acid sequences. The NS/T change thus gave a mutation index of 19/42 or 0.452 (Fig. 1). In other words, a little less than one amino acid was altered for approximately every two differences in nucleotides.

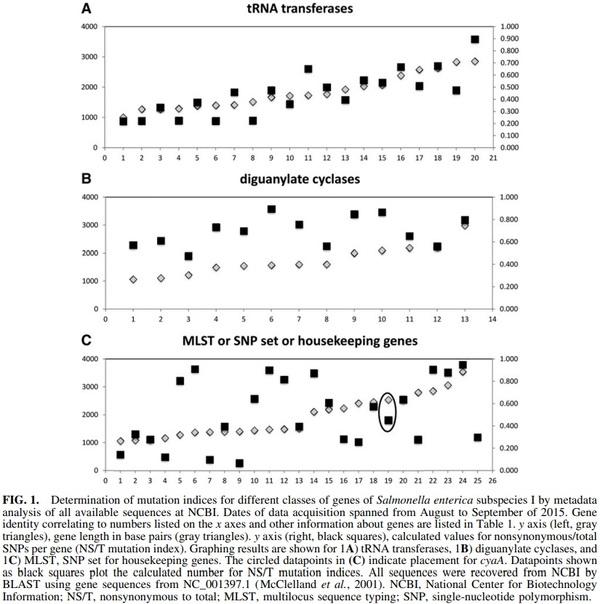

To compare the NS/T of cyaA to other genes, a set of 20 tRNA transferases greater than 1000 bp was analyzed, and there was one gene analyzed per common amino acid. This set of genes was chosen because it was hypothesized to be highly evolved and thus likely to have a fairly stable NS/T mutation index. Figure 1A indicates that the NS/T index may be impacted by the size of the gene, so results are listed relative to increasing gene size. For tRNA transferases between 1000 and 2000 bp, the average NS/T index was 0.359 and the standard deviation was 0.1421. For genes between 2000 and 3000 bp, the average NS/T index was 0.617 and the standard deviation was 0.1444. Thus, NS/T indices for the tRNA transferases are an example of SNP variation increasing proportionately to gene size. The five tRNA transferases least likely to generate amino acid sequence variation were serS, asnC, lysS, leuS, and ileS, and the entire class had an average NS/T index of 0.449. The NS/T index for cyaA of 0.452 suggests that cyaA has an amino acid sequence about as stable as that of an average tRNA transferase.

Results from analysis of the DGC differed (Fig. 1B). For genes between 1000 and 2000 bp, the average NS/T index was 0.662 and the standard deviation was 0.1337, whereas respective values for genes greater than 2000 bp were 0.744 and 0.1329. Although NS/T indices for shorter versus longer genes for tRNA transferases were significantly different ( p = 0.0009), the same parameter for the DGC genes was not ( p = 0.3055). These results suggest that DGC genes of S. enterica subspecies I are significantly more likely to generate amino acid sequence variation than the tRNA transferases, regardless of gene size ( p = 0.0003). All of the genes in the DGC class appear to undergo significantly frequent amino acid substitution in comparison to the tRNA transferases.

The third set of genes analyzed was chosen with no emphasis on relatedness of function, but they were used in other genomic investigations. The cyaA gene was included in this set (Fig. 1C, circled datapoint). Results indicate that NS/T indices did not differ significantly according to the length of the gene ( p = 0.2907). The standard deviation in NS/T indices for this third set of genes was 0.299, whereas it was 0.185 and 0.134 for tRNA transferases and DGC genes, respectively. Twelve genes in set 3 had NS/T indices less than cyaA, and 12 genes had NS/T indices that were greater (Table 1). These results suggest that random selection of genes is likely to generate some variation between selected gene targets that is due to innate differences in mutation index. The gene cyaA appears to be located at a midpoint of variation.

Accuracy and sensitivity of cyaA SNP detection by ASPE for S. enterica strains

For the four SNP-containing reference strains (Enteritidis PT13a-wt, Enteritidis PT13a-bf, Typhimurium, Kentucky), all possible combinations (from singleplex to five-plex) yielded expected SNP patterns and always matched the actual patterns determined by the assay with 100% accuracy. The fifth strain, Enteritidis PT4, was used as a negative control since it does not possess an SNP within this 300-bp region of the cyaA gene. However, Table 4 shows the large number of SNPs that could detect Enteritidis PT4 and other phage types as a positive reaction in future assays. The 100% SNP pattern detection accuracy did not change based on the two different ways in which the template combinations were created (50 ng DNA for each strain or 50 ng DNA total). These results highlight the specificity and accuracy of cyaA SNP detection using this optimized assay against the reference strains used to develop the ASPE primers and MagPlex-TAG magnetic microspheres.

Validation of ASPE for poultry-related Salmonella enterica serotype Enteritidis environmental isolates

The cyaA SNP assay demonstrated high agreement between the expected and actual SNP pattern observed for the different serotypes within the environmental isolate panel (89%; Table 2). It was expected that serotype Heidelberg would not be differentiated from serovar Typhimurium, because it lacked an SNP in the region under investigation. As expected, poultry-related serotypes not used to design the assay (Heidelberg, Agona, Cerro, Gallinarum, Infantis, Montevideo, Newport, Pullorum, Schwarzengrund) did not have SNPs for any of the target bases. However, review of available cyaA sequences revealed that many other SNPs could be used to target other serotypes (Table 4). Two pathotypes of Phage Type 13a serotype Enteritidis, namely the egg-contaminating strain (PT13a-wt 21046) and a biofilm-forming non-egg contaminating strain (PT13a-bf 21027), had discriminatory SNPs in the cyaA gene (Morales et al., 2007). When used to group a panel of poultry-related environmental Enteritidis isolates, the correct SNP pattern was found for the two known subtypes of PT13a. PT13a and PT8 belong in the same evolutionary lineage and vary by plasmid content, so they would be expected to group together (Threlfall et al., 1993; Liebana et al., 2004). One PT14b grouped with the PT13a wt strain 21046, which is a finding supported as correct by results from NCBI bioproject 219482 (Rehman et al., 2014). As expected, two PT4 isolates did not have either of the SNPs associated with the PT13a/PT8 lineage (Thomson et al., 2008). These results indicated that the cyaA SNP assay worked well for distinguishing between previously characterized PT13a pathotypes and could distinguish the PT4 lineage from PT13a/8.

Conclusions

These analyses suggest that cyaA SNPs targeted by ASPE will support and extend the use of ISR applied as a screening method for assigning serotype to S. enterica. It will help distinguish between serovars that might share the same ISR sequence (e.g., ISR group UN0006), provide some information about phage type and pathotype, and ultimately achieve some subtyping within serotype. An incidental finding is that tRNA transferases and cyaA give a conservative assessment of subtype in comparison to DGC genes. Thus, DGC genes might be most valuable for identifying strains rapidly emerging within subtypes even within a single outbreak. Given the ability of the Luminex MagPlex system to identify up to 150 custom beads within a single well, assays can be developed and optimized to detect up to 75 different SNPs. Thus, finding at least 84 SNPs across a gene that is 2540 bp suggests that cyaA is an ideal target for assay development. Cost per sample for bead-based capillary systems has been quoted to range from $40 to $50 per sample, but the ability to process multiple SNPs within single wells might make it an affordable confirmatory assay for properly equipped laboratories. Other methods that do not require specialized equipment or intensive maintenance regimens, such as ISR, appear less costly for conducting routine screening for serotype and field investigations of on-farm ecology (Guard et al., 2012; Jean-Gilles Beaubrun et al., 2014).

Comparative whole genome analyses have revealed a large number of potentially discriminatory SNPs among many different genes (Zheng et al., 2014). In this instance, SNP analysis was done within the context of how likely cyaA is to mutate compared to different sets of genes, and it was assessed for the number of target sites it has that are amenable to analysis by xMAP technology. As information is assessed by whole genome analysis from hundreds of strains, target sites will be identified that provide optimal genomic information about sources of outbreaks that will facilitate protecting the safety of the food supply.

This article was originally published in Foodborne Pathogens and Disease, Volume 13, Number 7, 2016. DOI: 10.1089/fpd.2015.2088. This is an Open Access article distributed under the terms of the Creative Commons Attribution Noncommercial License (http://creativecommons.org/licenses/by-nc/4.0/).
