Highly Variable Microbiota Development in the Chicken Gastrointestinal Tract

A range of studies have investigated the structure of the microbiome in the gut of broiler chickens. Comparison across studies has proven difficult because of the variety of different methods used; e.g. culture based studies [1], G+C profiling analysis [2], quantitative PCR [3], and 16S rRNA based studies. The 16S-based methods have used a number of different approaches including terminal restriction fragment length polymorphism analysis [4], temporal temperature gradient gel electrophoresis [5], denaturing gradient gel electrophoresis (DGGE) [6], low throughput clone analysis [7] or multivariate curve resolution [8]. More recently high throughput next generation sequence based studies have been performed [9]. Inter-study comparisons are also complicated by the different ways that results have been reported, with some papers detailing populations down to the class and genus level whereas other studies simply demonstrate similarities or differences, for example in DGGE gel profiles, without any detailed quantitative taxonomic information.

Compounding these difficulties are different approaches to sample analysis with some studies looking at results from individual birds and others using pooled samples [10]. The analysis of individual bird samples has demonstrated significant variation in microbiota structure within single treatment groups [11] and the use of pooled samples does not allow the characterization of this potentially important variation. Further complicating any cross-study analysis is the wide variation in experimental or field conditions investigated with variation across the birds (source, breed, age, sex, history), feed, environmental conditions, and different treatments investigated.

Accepting that there are obvious limitations to cross-study comparison, an underlying issue is that there appears to be a high degree of variation in the overall structure of the microbiota observed in different studies. The current study is directed at addressing this finding to determine if the apparent microbiota variation across trials is real or simply an artifact of different experimental designs or analysis methods. This issue is important because the outcome would influence the design of future research into ways in which we might aim to manipulate the microbiota to improve health and productivity. Scientific rigor requires a hypothesis to be supported by replicated results. However, most published studies investigating changes in the microbiota of chickens and other animals have used single trials, usually contrasting the microbiota in two or more treatment groups. In some studies the results of multiple trials with different variables have been reported but only rarely have results been reported for replicated trials. In a previous study we investigated microbiota changes associated with a Clostridium perfringens infection and although some key changes in microbiota could be replicated across trials an important finding was that there were large differences in the microbiota in the control groups between trials [12].

We were concerned that even with the carefully controlled conditions applied previously there were significant differences seen from trial to trial. We have now sought to understand and characterize the amount of variation seen in the cecal microbiota of birds across a set of three trials in which the chicken source, feed, and growing conditions were all tightly controlled and replicated as far as practically possible. The results highlight the variability in microbiota structure found across replicate trials and also shows the significant microbiota variation seen between animals within a single uniformly derived and treated group.

The protocol used to perform the animal trials was as described [9] but with a slightly modified feed formula. Briefly, one-day old male Cobb 500 broiler chickens were transferred from a commercial hatchery (Baiada Hatchery, Willaston, SA, Australia) to a rearing pen in a temperature-controlled room. At the hatchery the chicks received the vaccines that are routinely used in broiler chicks in Australia; Marek’s, Newcastle Disease and Infectious Bronchitis. The feed supplied ad libitum, comprised of 44.4% of wheat, 17% soybean meal, 15% barley, 10% canola meal, 5% peas, 3.2% meat meal, 3% tallow, 1% limestone, 0.5% vitamin mix, and traces of salt, lysine HCl, DL-methionine and threonine. All of the feed for the replicate trials came from the same batch of commercially prepared crumbles and was stored in cool dry conditions for five months between the first and last trial. The lighting regime for the trials started with 22–23 hours per day gradually reducing to 12 hours per day by day 9 and for the rest of the trial period. For the first 13 days post-hatch the birds were housed together in a single concrete floored pen with fresh, untreated, sawdust and shavings for bedding material. After day 13 the chickens were transferred in pairs to 48 open wire metabolism cages located in a temperature-controlled room (23– 25°C). Birds were initially placed in pairs for an acclimation period to minimize stress associated with separation and were then moved into individual cages on day 15. The individual housing prevents competition for feed, minimises behavioural issues and allows for the precise feed intake of each individual chicken to be measured. Birds were culled on day 25 and cecal luminal contents were collected from one ceca from each bird for microbial analysis. Feed Conversion Ratio (FCR) was calculated as a ratio of feed consumed and weight gained. Therefore, lower ratios indicate that the bird is more efficient at converting food into body mass. Three identical trials, trials 1, 2, and 3, were performed over a 5-month period.

All animal work was been conducted according to the national and international guidelines for animal welfare. The animal trials were approved and monitored by the Animal Ethics Committees of the University of Adelaide (Approval No. S-2010-080) and the Department of Primary Industries and Resources, South Australia (Approval No. 08/10).

DNA was prepared as detailed by Stanley et al. [9]. Briefly, total DNA was isolated using the method of Yu and Morrison [13] except that homogenization was done using a Precellys 24 tissue homogenizer (Bertin Technologies) at maximum speed of 6500 rpm, twice, 3 x 10 seconds each time. Quantity and quality of DNA was inspected on a NanoDrop ND-1000 spectrophotometer. DNA was amplified using Bio-Rad iProof DNA polymerase. The primers used amplified the V1–V3 region of the 16S rRNA gene (forward primer [14], 5' AGAGTTTGATCCTGG 3'; reverse primer, a truncated version of W31 [15], 5' TTACCGCGGCTGCT 3') and both primers also incorporated sequences for 454 sequencing. The reverse primers consisted of a set of primers that included a barcode sequence unique to each specific bird sample in a given amplicon pool. Amplification of products was performed in an Eppendorf Mastercycler.

16S rRNA gene amplicons were sequenced using a Roche/454 FLX Genome Sequencer, according to the manufacturer’s instructions. Sff files were split into fasta and qual files using PyroBayes [16] and chimeric sequences removed using pintail [17]. Sequence quality trimming settings were: sequence length 300–600 bases, no ambiguous sequences, minimum average quality score of 25 and maximum homopolymer run of 6 nucleotides, using Qiime v1.3.0 [18]. OTUpipe [19], combining USEARCH and UCLUST scripts [20,21], was used to perform denoising error-correction, abundance and amplicon estimation and OTU picking. After OTUs were assigned, using 97% sequence similarity, all of the remaining analysis used Qiime v1.3.0 software using Qiime defaults for that version, unless stated otherwise. Taxonomy was assigned using a Blast method against the GreenGenes database [22] and further confirmed using the EzTaxon database [23]. All samples represented by less than 1000 sequences were removed from the analysis. After this step, samples collected from 207 different birds remained; 70, 74 and 63 samples for trials 1, 2, and 3 respectively. Rare OTUs with less than 10 sequences and present in less than 5 samples were removed from further consideration. Normalization of OTU table counts was done by performing multiple rarefactions 100 times and averaging counts. The resulting multiple rarefied OTU table was used for all further analysis including making OTU network tables in Qiime. Networks were visualised in Cytoscape 2.8.0. Significance of between trial differences was inspected using the R package ade4 (Analysis of Data functions for Ecological and Environmental data in the framework of Euclidean Exploratory) [24]. The sequence data and sample metadata have been submitted to the MG-RAST public database under ID No.’s 4537568.3 to 4537776.3.

FCR is the most widely used performance measure in the poultry industry; it represents a measure of how efficiently a bird uses feed towards growth. Since FCR is calculated as the ratio of consumed feed and gained weight, flocks with the lowest FCR values, that need lowest amount of food per kg of weight, are regarded as the best performing. As we measured the FCR of each individual bird we were able to characterize the overall flock performance and build up a detailed profile of the performance of individual birds within each flock (Figure 1). Based on the three distribution plots, it is apparent that the flock from trial 2 had the most desirable FCR distribution. Trial 1 had the lowest mean FCR value, however, trial 2 had a similar mean but a narrower distribution and fewer birds with undesirable extremely high FCR. Trial 3 had the least desirable profile with the highest mean and the highest standard deviation from the mean.

A total of 627,613 quality trimmed sequences were produced with an average number of sequences per sample of 2,565, 2,899 and 3,705 for trials 1, 2 and 3, respectively. ANOVA (p-value <0.05) was used as a statistical measure to define OTUs that were in differential abundance between trials. This showed that 58% of all OTUs were differentially abundant. Reducing the p-value to 0.001 resulted in 30.3% of all OTUs being identified as differentially abundant between the three trials. The lowest Bonferoni corrected Qiime ANOVA p-value was 2.47e^-27, indicating that the differences were highly statistically significant.

Alpha and beta diversity were inspected using all the metrics available in the Qiime package. Alpha diversity metrics showing significant difference between trials were: Chao1 (Figure 2A), Observed Species, PD Whole Tree and Singles with all curves resembling the plot given in Figure 2A. The alpha diversity metrics show the difference in the number of OTUs at chosen phylogenetic levels. Each of the metrics demonstrated that trial 3 had the highest number of species and, based on the Singles alpha metric, also the highest number of low abundance OTUs. There were only slight differences in alpha diversity identified using Simpson, Reciprocal Simpson, Shannon (Figure 2B), Dominance, Doubles or Equitability protocols. This group of alpha diversity metrics reveal the distribution of OTU abundance to determine if a few species dominate or there is more equal species distribution. Based on these results all samples from the three trials had similar OTU distribution with no strongly dominant taxa. Non-phylogenetic beta diversity metrics grouped samples from the three trials into three fully separated groups; the Spearman metric completely separated samples from trial 3 from two separated but close groups of samples originating from trials 1 and 2. Unweighted (Figure 3A) and Weighted (Figure 3B) Unifrac also showed some but not total separation of the samples from each trial. Between trials PCA analysis (Figure 4) performed in the R ade4 phylogenetic package, demonstrated that the microbiota structure of the birds in each trial are different with Monte Carlo p-value of 0.001. Based on the PCA component loadings, the PC1 axis is most influenced by Lactobacillus crispatus and Lactobacillus helveticus and in the opposite direction Lactobacillus reuteri. PCA2 is most determined by Parabacteroides distasonis, Lactobacillus taiwanensis and an unknown Clostridiales in one direction and Bacteroides fragilis in the opposite direction. Generally, OTUs driving the difference between the trials were Lactobacillus, Clostridium and Bacteroidesrelated as demonstrated in OTU bar-plots provided in Figure S1. This is further emphasized by the weighted network diagram (Figure 5) which not only shows the separation of birds across trials but also confirms that trial 3 had much more diverse samples, many elements of which are not shared with the birds in trials 1 and 2. The differences at an OTU level can be clearly seen in the bar chart (Figure 6). Trial 3 birds had higher bird to bird variation and more diverse microbiota. Even at a high taxonomic level there were differences between the trials; for example, the ratio of Bacteroidetes to Firmicutes was 0.41, 0.13 and 0.22 for trials 1, 2, and 3 respectively, indicating large differences in the microbiota of each trial.

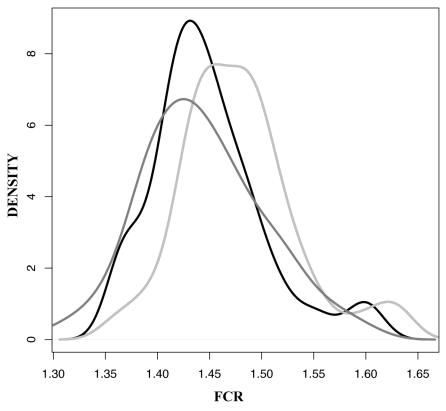

Figure 1. Distribution of FCR values given as a probability density function across the three trials. Trial 1 grey, trial 2 black, and trial 3 light grey. doi:10.1371/journal.pone.0084290.g001

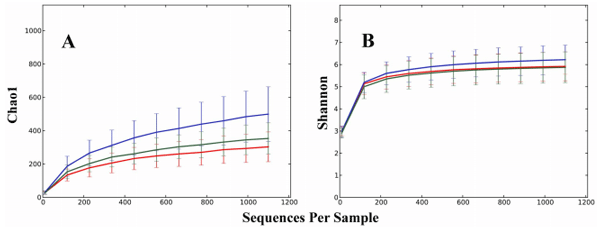

Figure 2. Alpha diversity plots across the three trials. Rarefaction plots for samples from trial 1 (red), trial 2 (green) and trial 3 (blue), based on Chao1 (A) and Shannon index (B). doi:10.1371/journal.pone.0084290.g002

This study has, for the first time, analysed the cecal microbiota of a large number of individual birds distributed across a series of repeated trials conducted over a 5-month period. The three replicate trials used healthy birds, sourced from the same hatchery, fed the same food and reared under similar conditions, to investigate batch effects from one trial to another. Access to such a large data set, across multiple replicated trials and many birds, has allowed us to make some interesting comparative observations about the structure of chicken gut microbiota across and within trials. The data presented shows unexpectedly high differences in the microbiota between the three trials. Clearly there is a high degree of variability in the establishment and maintenance of the microbiota and this may influence the health and productivity of birds as suggested by the different FCR performance profiles seen for each flock. Studies in humans [25] and other animals [26] have previously demonstrated that despite the possible presence of a core microbiota there are large variations in overall microbiota composition when comparing individuals from different populations and from different environments but the current study shows that even under carefully controlled conditions large variations in microbiota composition can occur.

The advances in technology for microbiota analysis have resulted in a flood of new studies linking microbiota to various health outcomes. Intestinal microbiota has recently been identified as a major determinant of health and wellbeing in experimental animal model systems and in humans. The microbiota can influence the host in a range of different ways including (i) providing a source of digestive enzymes and thus enhancing nutrient availability, (ii) outcompeting and destroying potential pathogens and (iii) ensuring development of a healthy immune system [27]. Aberrant microbiota development, resulting in alterations of intestinal microbial colonisation have been associated with allergies, obesity, diabetes and altered immune system development [27]. Differences in intestinal microbiota between batches of newly hatched chickens may account for different responses to antibiotic treatment and different susceptibility to disease [28,29]. Thus, across the animal kingdom, development of a healthy intestinal microbiota is a crucial step in the first days of life that may determine future health and fitness.

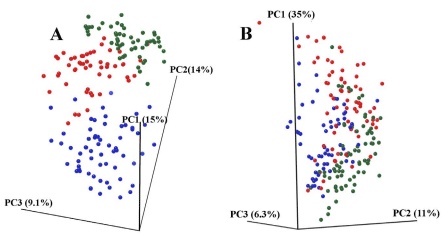

Figure 3. Beta diversity plots across the three trials. 3D PCoA plots based on unweighted (A)and weighted (B) UniFrac from trial 1 (red), trial 2 (green) and trial 3 (blue). doi:10.1371/journal.pone.0084290.g003

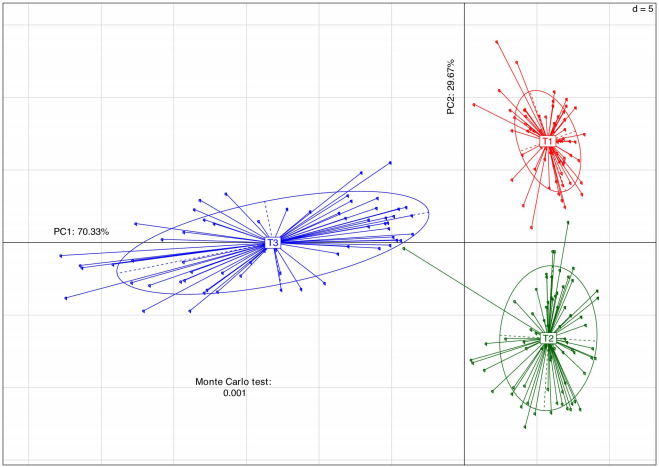

Figure 4. Multivariate analysis PCA plot. The plot is based on between groups (trials) analysis using the ade4 R phylogenetic package. Monte Carlo testing was applied using 999 permutations. doi:10.1371/journal.pone.0084290.g004

Because of the potential health and productivity influences of the gut microbiota it is important to consider the possible causes of the high level of variation seen across replicated trials and how this variation could be controlled and reduced. In humans it has been reported that deprivation of maternal microbiota during caesarean birth produces aberrant microbiota in infants that is more representative of microbiota derived from skin and environmental bacteria rather than vaginally derived bacteria [30]. The spread of fecal bacteria is diminishing in modern infants. For example, establishment of common fecal bacteria is delayed in western countries, while in countries in the middle east and Africa even caesarean section delivered infants acquire stable fecal populations within a week [31]. Adlerberth et al [31] suggested that excessive hygiene limits circulation of fecal bacteria today, thus altering microbiota composition in newborns. The same authors suggested that the recorded increase, over the last decade, in Staphylococci, a bacterium not previously regarded as intestinal, occurs due to lack of competition from ‘‘professional’’ gut microbiota. The fact that colonization with microbiota previously foreign to the gut is facilitated by standard hygienic measures may cause some concern. We speculate that we may be seeing a somewhat similar effect in the trials reported here, with the chickens randomly colonised by bacteria originating from the wider environment rather than predominantly from maternally derived bacteria.

Arriving into the world by hatching from an egg is very different to mammalian birth but they share in common the almost immediate exposure of the young to maternal microbiota. In mammals the newborn are immediately exposed to vaginal bacteria during birth. In birds the hatching chick is exposed to bacteria on the surface of the egg and in the immediate nest environment; the bacteria on the egg surface and in the nest are largely derived from the parents. However, in modern commercial chicken hatcheries high hygiene levels are generally maintained; eggs are usually washed and fumigated to remove bacterial contamination, and hence chicks are not exposed to the same bacteria that they would likely see in a natural setting. Rather, they must be colonized by bacteria encountered in the wider environment, for example in the boxes that they are transported in, from the first feed that they receive, and from the people handling them. We hypothesize that this somewhat random exposure to bacteria, from a variety of different sources, is the basis for the wide batch to batch variation seen in the structure of gut microbiota that we have observed in the trials reported here.

Figure 5. OTU network map. The network represents OTU interactions between multiple rarified samples originating from trial 1 (red), trial 2 (green) and trial 3 (blue) and OTUs (black). Edges (lines) join a sample and an OTU present in that sample and are colored according to sample are derived from. doi:10.1371/journal.pone.0084290.g005

Figure 6. Bar chart showing distribution of OTUs at 5% divergence. Each individual OTU is represented with a different colour. The chart demonstrates differences in microbial profiles between the trials. doi:10.1371/journal.pone.0084290.g006

Apajalathi et al. [2] have demonstrated that the first days of a chicks life are critical in establishing a normal stable microbiota [2]. This indicates that young chicks are often well advanced in establishing a stable microbiota before they leave the hatchery. A future goal, which was beyond the scope of this study, is to determine whether microbiota variability in chicks can be controlled by deliberate exposure to adult microbiota.

The high cost of both animal trials and sequencing has resulted in most published microbiota studies in different experimental and production animals originating from a single trials. The data present here strongly point to problems in reproducing this kind of data even when using near identical conditions. Moreover, the high within batch animal to animal variation suggests a need for high numbers of samples if the microbial profile investigated is to be faithfully represented, even within a trial. These considerations should be taken into account when designing experiments to study animal microbiota.

Figure S1 Boxplots of the OTUs most differentially abundant (p<10^-10) between the 3 trials.Generated using R phylogenetic package ade4 and Qiime analysis outputs. The pvalues are calculated using Qiime ANOVA. For OTUs with similarity to closest type strain in EzTaxon database >95%, taxonomy is given as EzTaxon strain and similarity, for OTUs with lower similarity taxonomy is given at an order level. (DOCX)

We would like to thank Honglei Chen for operation of the Roche/454 FLX genome sequencer and Aaron Ingham and Paraic O’Cuiv for comments on the manuscript. We wish to thank Aaron McDonough, Peter Campbell, Ondrej Hlinka and CSIRO Advanced Scientific Computing for their continuous help and support.

Conceived and designed the experiments: DS MSG RJH RJM. Performed the experiments: DS MSG RJH RJM. Analyzed the data: DS MSG RJH SED RJM. Contributed reagents/materials/analysis tools: DS MSG RJH SED RJM. Wrote the paper: DS MSG RJH SED RJM.

1. Salanitro JP, Fairchilds IG, Zgornicki YD (1974) Isolation, culture characteristics, and identification of anaerobic bacteria from the chicken cecum. Appl Microbiol 27: 678–687.

2. Apajalahti J, Kettunen A, Graham H (2004) Characteristics of the gastrointestinal microbial communities, with special reference to the chicken. World’s Poultry Science Journal 60: 223–232.

3. Wise MG, Siragusa GR (2007) Quantitative analysis of the intestinal bacterial community in one- to three-week-old commercially reared broiler chickens fed conventional or antibiotic-free vegetable-based diets. J Appl Microbiol 102: 1138–1149.

4. Crhanova M, Hradecka H, Faldynova M, Matulova M, Havlickova H, et al. (2011) Immune response of chicken gut to natural colonization by gut microflora and to Salmonella enterica serovar enteritidis infection. Infect Immun 79: 2755– 2763.

5. Zhu XY, Zhong T, Pandya Y, Joerger RD (2002) 16S rRNA-based analysis of microbiota from the cecum of broiler chickens. Appl Environ Microbiol 68: 124–137.

6. Cressman MD, Yu Z, Nelson MC, Moeller SJ, Lilburn MS, et al. (2010) Interrelations between the microbiotas in the litter and in the intestines of commercial broiler chickens. Appl Environ Microbiol 76: 6572–6582.

7. Gong J, Si W, Forster RJ, Huang R, Yu H, et al. (2007) 16S rRNA gene-based analysis of mucosa-associated bacterial community and phylogeny in the chicken gastrointestinal tracts: from crops to ceca. FEMS Microbiol Ecol 59: 147–157.

8. Sekelja M, Rud I, Knutsen SH, Denstadli V, Westereng B, et al. (2012) Abrupt temporal fluctuations in the chicken fecal microbiota are explained by its gastrointestinal origin. Appl Environ Microbiol 78: 2941–2948.

9. Stanley D, Denman SE, Hughes RJ, Geier MS, Crowley TM, et al. (2012) Intestinal microbiota associated with differential feed conversion efficiency in chickens. Appl Microbiol Biotechnol 96: 1361–1369.

10. Danzeisen JL, Kim HB, Isaacson RE, Tu ZJ, Johnson TJ (2011) Modulations of the chicken cecal microbiome and metagenome in response to anticoccidial and growth promoter treatment. PLoS One 6: e27949.

11. Callaway TR, Dowd SE, Wolcott RD, Sun Y, McReynolds JL, et al. (2009) Evaluation of the bacterial diversity in cecal contents of laying hens fed various molting diets by using bacterial tag-encoded FLX amplicon pyrosequencing. Poult Sci 88: 298–302.

12. Stanley D, Keyburn AL, Denman SE, Moore RJ (2012) Changes in the caecal microflora of chickens following Clostridium perfringens challenge to induce necrotic enteritis. Veterinary Microbiology 159: 155–162.

13. Yu Z, Morrison M (2004) Improved extraction of PCR-quality community DNA from digesta and fecal samples. Biotechniques 36: 808–812.

14. Lane DJ, editor (1991) 16S and 23S rRNA sequencing.: John Wiley & Sons. 1152174 p.

15. Snell-Castro R, Godon JJ, Delgenes JP, Dabert P (2005) Characterisation of the microbial diversity in a pig manure storage pit using small subunit rDNA sequence analysis. FEMS Microbiol Ecol 52: 229–242.

16. Quinlan AR, Stewart DA, Stromberg MP, Marth GT (2008) Pyrobayes: an improved base caller for SNP discovery in pyrosequences. Nat Methods 5: 179– 181.

17. Ashelford KE, Chuzhanova NA, Fry JC, Jones AJ, Weightman AJ (2005) At least 1 in 20 16S rRNA sequence records currently held in public repositories is estimated to contain substantial anomalies. Appl Environ Microbiol 71: 7724– 7736.

18. Caporaso JG, Kuczynski J, Stombaugh J, Bittinger K, Bushman FD, et al. (2010) QIIME allows analysis of high-throughput community sequencing data. Nat Methods 7: 335–336.

19. Edgar RC (2011) Otupipe - OTU clustering pipeline for next-gen reads. Available: http://drive5.com/otupipe/otupipe_manual1.1.pdf. Accessed 2013 June 18.

20. Edgar RC (2010) Search and clustering orders of magnitude faster than BLAST. Bioinformatics 26: 2460–2461.

21. Edgar RC, Haas BJ, Clemente JC, Quince C, Knight R (2011) UCHIME improves sensitivity and speed of chimera detection. Bioinformatics 27: 2194– 2200.

22. DeSantis TZ, Hugenholtz P, Larsen N, Rojas M, Brodie EL, et al. (2006) Greengenes, a chimera-checked 16S rRNA gene database and workbench compatible with ARB. Appl Environ Microbiol 72: 5069–5072.

23. Chun J, Lee JH, Jung Y, Kim M, Kim S, et al. (2007) EzTaxon: a web-based tool for the identification of prokaryotes based on 16S ribosomal RNA gene sequences. Int J Syst Evol Microbiol 57: 2259–2261.

24. Chessel D, Dufour AB, Thiolouse J (2004) The ade4 package -I: One table methods. R News 4: 5–10.

25. Li K, Bihan M, Methe´ BA (2013) Analyses of the stability and core taxonomic memberships of the human microbiome. PLoS One 8: e63139.

26. Durso LM, Harhay GP, Smith TPL, Bono JL, DeSantis TZ, et al. (2010) Animal-to-animal variation in fecal microbial diversity among beef cattle. Appl Environ Microbiol 76: 4858–4862.

27. Martin R, Nauta AJ, Ben Amor K, Knippels LM, Knol J, et al. (2010) Early life: gut microbiota and immune development in infancy. Benef Microbes 1: 367– 382.

28. Sekirov I, Tam NM, Jogova M, Robertson ML, Li Y, et al. (2008) Antibioticinduced perturbations of the intestinal microbiota alter host susceptibility to enteric infection. Infect Immun 76: 4726–4736.

29. Lee KW, Lillehoj HS, Jang SI, Li G, Lee SH, et al. (2010) Effect of Bacillusbased direct-fed microbials on Eimeria maxima infection in broiler chickens. Comp Immunol Microbiol Infect Dis 33: e105–110.

30. Dominguez-Bello MG, Costello EK, Contreras M, Magris M, Hidalgo G, et al. (2010) Delivery mode shapes the acquisition and structure of the initial microbiota across multiple body habitats in newborns. Proc Natl Acad Sci U S A 107: 11971–11975.

31. Adlerberth I, Lindberg E, Aberg N, Hesselmar B, Saalman R, et al. (2006) Reduced enterobacterial and increased staphylococcal colonization of the infantile bowel: an effect of hygienic lifestyle? Pediatr Res 59: 96–101.
