Introduction
Inert digestibility index markers are the anchor of many feeding trials designed to analyse nutrient utilisation and amino acid digestibility along the gastrointestinal tract of animals. Marker use is widely accepted as a method less laborious than total tract retention.
Additionally, it enables the determination of digestibility along intestinal sections in ruminant and non-ruminant animals [1]. Digestibility markers, chromium dioxide, CrO2, or chromic oxide, Cr2O3, titanium dioxide, TiO2 and acid-insoluble ash are commonly used at inclusion level of 0.1 to 0.5%, though the choice of marker in individual studies is rarely qualified. A meta-analysis of poultry studies revealed substantive differences in ileal amino acid digestibility coefficients between CrO2-, TiO2- or acid-insoluble ash-normalized feeding trials [2]. A few studies have compared the use of chromic oxide (Cr2O3), a widely accepted digestibility index marker in ruminant animals, with the commonly used inert marker TiO2 in monogastrics, for effect on apparent ileal digestibility of gross energy and nitrogen or recovery of the marker itself. The effects can be diet-dependent [3]. Nevertheless, the reproducibility of measurements of TiO2, post recovery, and the safety of TiO2 compared to the carcinogenic properties of Cr2O3, have positioned TiO2 as the most suitable marker for use in most animal feeding trials. However, the interest in the comparison of different digestibility index markers [2,3] has brought to the fore the disparities in results with different markers which implies they may have matrix-specific and/or gut segment-specific interactions.
Quite separately the employ of TiO2 has grown in a parallel field of research, intracellular cell biology, where it has been used as a solid phase extraction medium for concentration of inositol phosphates. The phosphate adsorbing properties of titanium were first documented in 1990 [4], but only in recent years Wilson and colleagues [5] reported how TiO2 enabled enrichment of inositol phosphates, present at micromolar levels in cell lines and animal tissues, allowing their detection by polyacrylamide gel electrophoresis. Even before this, TiO2 had been widely adopted for pre-purification of phosphopeptides for LC-MS analysis of protein phosphorylation [6]. More recently, extremely sensitive detection of inositol phosphates and inositol pyrophosphates has been achieved by combination of TiO2-enrichment with mass spectrometry methods [7]. While there are remarkably few comparative studies of inositol phosphate speciation of different organs or effect of diet thereon, we recently described the use of TiO2 as solid phase extraction medium with high performance liquid chromatography (HPLC)-based separations for measurements of inositol phosphates in poultry tissues [8]. The much higher levels of inositol phosphates in avian erythrocytes allow similar measurement without recourse to TiO2 by employ of HPLC methods that are widely used in poultry nutrition studies for analysis of gizzard and ileal contents [9,10]. The use of TiO2 to provide complementary inositol phosphate measurements in tissues and organs, beside more commonly reported measurements of inositol phosphate levels in digesta, provides opportunities to broaden understanding of animal response to dietary phytase supplementation. We may expect an extension of understanding of the benefits of phytases beyond the widely reported liberation of phosphate and inositol and the reduction of antinutritive properties of InsP6 within the digestive tract [11]. The increasing industry practice of phytase ‘super-dosing’ (where phytase is added to feed at a dose that exceeds the standard level used to release phytate-bound P) has heightened the importance of using a marker capable of accurately measuring nutrient digestibility.
The use of TiO2 to enrich inositol phosphates in cell biology [5] raised concerns over the potential interference of TiO2 in inositol phosphate measurements in poultry digesta when TiO2 is employed as a digestibility index marker. The employ of TiO2 for purification of inositol phosphates and phosphopeptides requires incubation at an acidic pH for adsorption to the surface of the TiO2 particles before subsequent elution at basic pH. These conditions closely resemble the transit time and pH changes witnessed by feed in different segments of the digestive tract of broiler chickens [12], raising the theoretical possibility that the digestive tract provides opportunity for interactions between TiO2 as a marker and InsPs in the digestive tract. To confirm or deny the efficacy of the use of TiO2 digestibility index marker in studies of phytate digestion, this study aimed to investigate whether the inclusion of TiO2 as a digestibility index marker at 0.5% in the diet of broilers had any interaction with supplemented phytase on the recovery of inositol phosphate species (and sum thereof) from digesta taken from gizzard and ileum. We also tested feed and ‘cell biological’ grade TiO2 products for their ability to retain a mixed population of inositol phosphates, here obtained from an acid-hydrolysate of InsP6. The two issues are, in combination, of relevance to discussion of the mechanisms by which phytase ‘super-dosing’ imparts benefits in poultry nutrition: much of the guidance offered for dosing of phytase is derived from measurements of the profiles of inositol phosphates recovered from specific segments of the gut [10,13–15].
Materials and methods
Care and use of animals
The study was performed at the Poultry Research Unit, School of Animal, Rural and Environmental Sciences, Nottingham Trent University (NTU). Ethical approval to conduct the study was obtained by the NTU animal ethics review committee (internal code ARE202134) and institutional and UK national NC3R ARRIVE guidelines for the care, use and reporting of animals in research were followed during the study. Birds had ad libitum access to feed and water throughout the study period.
Animals, diet and experimental design
The investigation was carried out using 8 treatment groups, in which half of the diets were supplemented with 5 g/kg TiO2 (Titanium, Ti) and the other half were not (Table 1). Within each Ti factor, diets were labelled as Control (no further supplementation), Ins (2 g/kg 12C/13C inositol, containing 13C inositol at d30‰), Phy500 or Phy6000 where either 500 or 6000 FTU/kg phytase were added respectively. The phytase used was Quantum Blue, a thermo-tolerant modified E. coli 6-phytase (EC 3.1.3.26) supplied by AB Vista (Marlborough, UK). 480 male Ross 308 hatchlings were obtained from a commercial hatchery (PD Hook, Cote, Oxford, UK) and allocated randomly to 48 floor pens on day 1. For each of the 8 treatment groups, 10 birds were allocated to 6 replicate pens with birds in each pen fed one of the 8 diets for the duration of the trial (1 to 21 days). Data for mean gizzard and ileal inositol contents in responses to phytase addition with N and standard error reported by Walk et al. (2018) [16] was used to conduct a power calculation indicating 6 replicates per treatment were sufficient to identify treatment differences at a power setting of 80% and a type 1 error rate of 5%.
The composition of the basal diet is given in S1 Table. The basal diet was formulated to contain adequate levels of all nutrients according to the Ross Management Manual 2018. The 21-day study was made up of one diet phase–a starter–offered as a mash diet. The basal diets were supplemented or not with TiO2 at 5g/kg. Animals, animal husbandry and basal diet composition of this trial have been described previously in an accompanying study of effect of dietary phytase on tissue inositol phosphates [8].

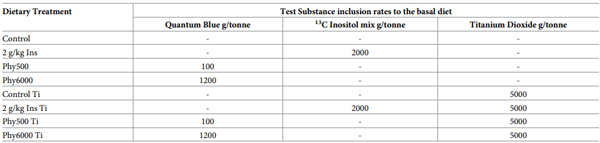

Table 1. Dietary treatments and Test Substance inclusion rates.
Sampling and analytical methods
Animals. Two birds per pen were randomly selected for sampling on d 21 post-hatch and were euthanised by cervical dislocation without prior stunning in accordance with the Welfare of Animals at the Time of Killing (England) Regulations (2015) guidelines for poultry. For each bird, the gizzard was excised, opened and the contents scraped into a container as a pooled sample from both birds. Ileal digesta were collected from the same two birds by gentle digital pressure, pooled and stored at -20˚C prior to freeze-drying, and were freeze dried at -50˚C for 7 days or until constant weight [17]. Once dried, samples were finely ground using a coffee grinder and stored at 4˚C until analysis.
Analysis of inositol phosphates in digesta. Diets, gizzard and ileal digesta were extracted as described [8]. In brief, 100 mg samples of milled, dry feed or digesta were extracted in 5 mL of 100 mM NaF, 20 mM Na2EDTA (pH 10) for 30 minutes shaking, followed by 30 minutes in a chilled bath sonicator and a further 2 hours standing at 4˚C. The extract was centrifuged at 9000 x g for 15 minutes at 4˚C and 1 mL was filtered through a 13-mm 0.45μm PTFE syringe filter (Kinesis, UK). Aliquots (20 μL) were analysed by HPLC with UV detection at 290 nm after post-column complexation of inositol phosphates with ferric ion [8].
Analysis of inositol phosphates recovered from TiO2.. Comparison of recovery of mixed inositol phosphates from an acid-hydrolysate of InsP6 by feed grade and ‘cell biological’ grade TiO2 was carried out as described [8]. Briefly, 500 μL of 2 mM InsP6, as hydrolysate (pH 1, in 1M HClO4) was mixed with 5mg of either titanium dioxide (TiO2) beads (Titansphere1 TiO2 5 μM, Hichrom) or feed grade TiO2 (Target Feeds Ltd, UK, particle size ranging 1 to 150 nm) and incubated at 4˚C for 30 minutes with mixing on a rotator. Samples were centrifuged at 3500 x g for 5 minutes to pellet the TiO2 and the HClO4 supernatant was discarded. Inositol phosphates bound to the TiO2 beads were eluted by two 5-minute washes at 4˚C in 200 μL 3% ammonium hydroxide solution (pH 10). The eluates were pooled, vacuum evaporated until dry and resuspended in 100 μL of 18.2 MOhm.cm water. Aliquots (20 μL) were analysed by HPLC with UV detection at 290 nm after post-column complexation of inositol phosphates with ferric ion [8]. The elution order of inositol phosphates was established using a set of standards prepared by acid-hydrolysis of InsP6, with concentration established by reference to UV detector response to injection of InsP6 (Merck).
Statistical analysis
For all 8 treatments (Control, 2 g/kg inositol, 500 FTU/kg and 6000FTU/kg Quantum Blue phytase; with and without 5 g/kg TiO2) inositol phosphates and their aggregated totals were compared by two-way ANOVA. The interaction term between diet/treatment and TiO2 was removed in favour of an additive model as the sum of squared errors between the two models are not significantly different. All analyses carried out with R v 4.1.3 [18]. The level of significance for all tests was set at α ≤ 0.05.
Results
To test whether feed grade TiO2 (Target Feeds, UK) retains the same property for binding phosphate-containing compounds as Titansphere1 TiO2 used for phosphopeptide and inositol phosphate purification and enrichment, the materials were compared for ability to capture a mixed population of inositol phosphates in an acid-hydrolysate of inositol hexakisphosphate (InsP6) sample (Fig 1).

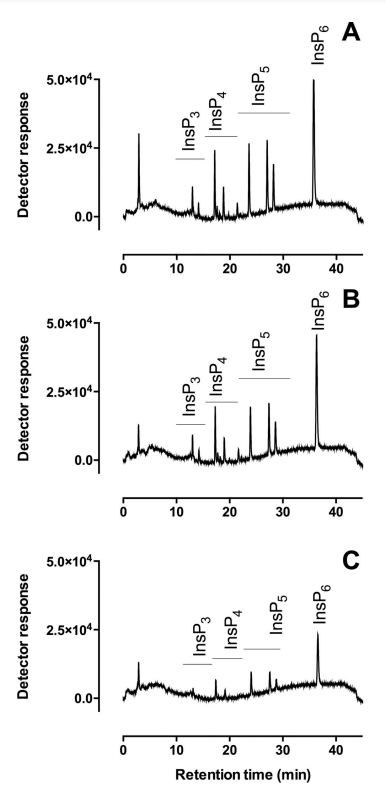

Fig 1. Recovery of inositol phosphates using titanium dioxide. (A) An acid hydrolysate of InsP6 with HPLCresolvable lower inositol phosphates, (B) Inositol phosphates recovered from ‘cell biological’ grade Titansphere TiO2, (C) Inositol phosphates recovered from feed grade TiO2. The retention times of the different classes of inositol phosphates are shown
With comparison to the known spiked concentration of an inositol hexakisphosphate hydrolysate used as a model sample, ‘cell biological’ grade Titansphere1 TiO2 showed greater than twice the binding capacity of the feed grade TiO2, with calculated recovery of inositol phosphates following extraction of 79% and 32%, respectively. The ability of the feed grade TiO2 to bind inositol phosphates, recovering almost identical profiles of inositol phosphates therefrom, suggests that the material used is not as inert as considered. It retains the chemical ability to interact with phosphate-containing compounds under acid conditions that might be experienced in vivo in the gizzard.
The previously published extraction of inositol phosphates using TiO2 [5,8] employs incubation at an acidic pH for an extended period for TiO2 to bind phosphate-containing compounds before subsequent brief elution of these at basic pH. This transition from binding in acidic to elution in basic conditions mirrors the transit time [19] and pH changes measured in different segments of the digestive tract of broiler chickens, from acidic pH (2.5–3.5) in the proventriculus/gizzard to neutral to mildly basic in the terminal ileum and cecum/colon (pH 6–8) [12], though more extreme conditions have been monitored in vivo in gizzard [19]. Clearly, these bolus-witnessed pH changes raise the possibility that dietary phytate and released inositol phosphates bind to TiO2 in the gizzard and may be partially eluted therefrom in distal parts of the gut where pH reaches more basic conditions. By corollary, we might expect complex interactions between feed phytate, calcium, phytase dose, TiO2 and gut segment. To test the potential interaction of feed grade TiO2 with inositol phosphates in the gut lumen, we compared extractable inositol phosphate concentrations from gizzard (a low pH segment) and ileal (a higher pH segment) digesta of birds fed identical diets with and without the presence of 5g/kg TiO2 as a marker and phytase at three doses (Tables 2 and 3). We also included inositol at a level anticipated of complete dephosphorylation of phytate.
Inositol phosphates present in gizzard digesta of d21 broilers (Table 2) were extracted and measured in replicate treatment groups with and without 5 g/kg TiO2 as a digestibility index marker, to ascertain whether its inclusion impacted the analysis of inositol phosphates. Analysis by two-way ANOVA showed no significant interaction of the factors, diet and titanium (F3,40 = 0.744, p = 0.5322), with interaction accounting for only 0.99% of the total variance. The analysis was repeated, removing interaction from the model, but we found no evidence for an effect of TiO2 on total extractable inositol phosphates in the gizzard digesta (F1,43 = 0.75, p = 0.39), accounting for only 0.40% of total variance, despite numerical differences between paired treatment groups with and without titanium. Dietary treatment by provision of phytase was found to be a significant source of explained variance (F3,43 = 61.7, p < 0.001), and the significant reduction in total inositol phosphates in the gizzard digesta at inclusion of these phytase levels has been previously reported [8].

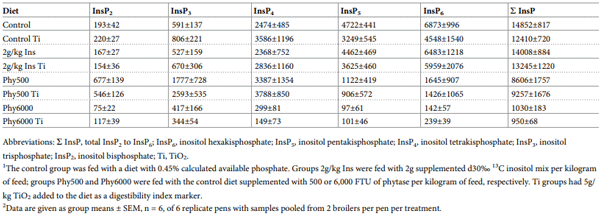

Table 2. Inositol phosphate (InsP2-6) levels (nmol/g dwt) in gizzard digesta of day 21 broilers1,2.
As presented above for gizzard digesta (Table 2), inositol phosphates were measured in ileal digesta (Table 3) at graded phytase levels with and without titanium dioxide as a digestibility index marker. The data was compared by two-way ANOVA to determine whether inclusion of TiO2 was a source of variance in the measurable inositol phosphates. Interaction between diet (phytase inclusion, inositol or control) and inclusion of TiO2 accounted for only 1.89% of the total variance, and the interaction was considered not significant (F3,40 = 2.209, p = 0.1019). Analysis of total extractable inositol phosphates in the ileal digesta by two-way ANOVA showed no significant effect of TiO2 on the recovery of mixed inositol phosphates (F1,43 = 0.71, p = 0.4), whereas dietary treatment by way of inclusion of phytase was highly significant (F3,43 = 93.51, p < 0.001). The effect of phytase in significantly reducing inositol phosphates measured in the ileal digesta of d21 broilers in the treatment groups presented here has been described [8].

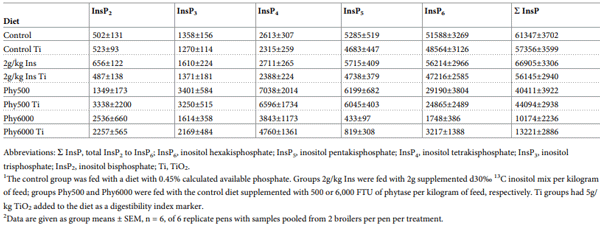

Table 3. Inositol phosphate (InsP2-6) levels (nmol/g dwt) in ileal digesta of day 21 broilers1,2.
Discussion
While TiO2 has been used in cell biology for phosphopeptide research for many years [4,6], its recent employ as a pre-concentration matrix for the extraction of inositol phosphates [5,8] was tested in an animal nutrition context, poultry, only recently [8]. In contrast, use of TiO2 as a digestibility index marker in the animal feed industry is longstanding [3]. A recent study conducted a meta-analysis of open science practice in animal research [20] and cited the reluctance and/or difficulty in publishing ‘negative’ or null-hypothesis results as a structural problem of scientific publishing, particularly in animal research. While TiO2 remains a digestibility index marker of choice in animal feeding trials in poultry and swine following studies showing its ease of measurement and reduced risk compared to Cr [21,22], supported by a body of global feeding trial studies containing its use [reviewed, 3], studies such as this may offer reassurance of the efficacy of approach in reporting this ‘negative’ result. The boundaries of improved animal performance gained by phytase addition remain those revealed in critical meta-analysis [2]. We conclude that despite the demonstrable ability of feed grade TiO2 to bind inositol phosphates under acidic conditions, in this study the activity of adjunct phytase, as measurable soluble total inositol phosphates in digesta, was not impacted by TiO2 at an inclusion rate of 5 g/kg TiO2, while the reduction of InsPs in digesta with phytase inclusion followed the pattern reported in previous studies [10,11,13–15]. The same may or may not hold true for different feed matrices, for other digestibility index markers or for swine [22,23]. Even so, phytases continue to provide resource-efficiencies for sustainable animal production. The data presented here vouchsafes historic use of TiO2 as digestibility index marker and its use in contemporary feeding trials where tissue inositol phosphate analysis is itself enabled by use of TiO2 to enrich inositol phosphates before analysis [8]. In short, TiO2 may be used to further elucidate tissue-specific mechanisms by which phytase benefits animal performance.
This article was originally published in PLoS ONE 18(6): e0284724. https://doi.org/10.1371/journal.pone.0284724. This is an Open Access article distributed under the terms of the Creative Commons Attribution License.
