Salmonella control

Salmonella control in the food chain (Part III)

Published: September 30, 2011
By: By Christian Lückstädt* and Sarah Mellor (Addcon)
Part III- Simple strategies to avoid Salmonella outbreaks
Salmonella is a pernicious pathogen and eradicating it entirely from the food chain is difficult. Despite our best efforts to eradicate it from the food chain, it can still cause expensive and devastating losses - of productivity and of human life.
Yet another case of human salmonellosis has been reported in the US recently, traced back to ground turkey meat. The fact that this contamination was found in meat from a major poultry integrator further emphasises the need for effective control measures from farm to fork.
Central to Salmonella control in the food chain is proper biosecurity. However, biosecurity alone has not proved sufficient to prevent infection. There are numerous routes of infection in the poultry production chain (outlined in Figure 1) - and Salmonella can take full advantage of them. Therefore, integrated approaches are needed. In the past, antibiotic growth promoters played an important role, as discussed previously ("Antibiotic resistance from farm to fork"), but the issue of resistance is making this strategy increasingly less effective, not to mention controversial.
However, the concept of protecting the animal from infection through the feed should not be discarded. Progressive research shows that other feed additives, among them organic acids, are both reliable and safe.
Since the 1980´s, reports have shown organic acids, and formic acid in particular, to be especially effective against Salmonella, when used in poultry diets. The use of pure formic acid in breeder diets reduced the contamination of tray liners and hatchery waste with S. enteritidis drastically (Humphrey and Lanning, 1988). By 1990, researchers in the US found significantly reduced levels of Salmonella spp. in carcass and caecal samples, after including calcium formate in broiler diets (Izat et al., 1990). Further research (Kovarik and Lojda, 2000) reported that formic acid at 0.5% in the diet can be successfully used on farms to reduce salmonella contamination in feed, excretion of Salmonella spp. and re-infection of chicken populations.
The scientific literature is full of such reports, but in practice, a number of more practical issues will sort out the effective acidifiers from the rest. Pure formic acid, however effective in feed, is also corrosive, hazardous, as well as volatile - it is literally too difficult to handle in the feed mill. Furthermore, while producing pelleted poultry feed, you can expect losses of more than 20% of the acid. Often, these liquid and volatile acids have also only antibacterial effects in the feed and the foregut of the birds. More recently, research has focused on overcoming these limitations. Chemical compounds which are heat-stable, non-corrosive and yet still effective are the way forward. Diformates, like sodium diformate (Formi NDF, ADDCON) satisfy these industry requirements. An organic acid salt by nature, it combines the strength of formic acid, but its physical properties (crystalline, non-volatile) mean that it can be used safely in the feed mill, as well as being effective in the feed and in the animal.
Furthermore, tests against intestinal pathogens, including Salmonella, have shown diformates to have significant antimicrobial activity in broiler chickens (Table 1). Keeping bacterial pathogens under control reduced the probability of causing a disease outbreak, but given that intestinal infections are one of the major causes of productivity loss in the poultry industry, it is no surprise that sodium diformate has also proved effective in improving growth performance and reducing mortality in broilers.

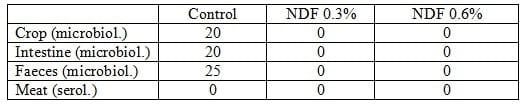

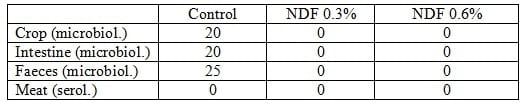

Table 1. Results of various sodium diformate (Formi NDF) dosages on Salmonella inhibition (% positive samples). Lückstädt and Theobald, 2009.
Salmonella control in the food chain (Part III) - Image 1

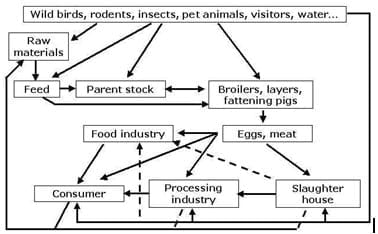

 Figure 1. Infection routes of Salmonella in animal production (Adapted from Oostenbach, 2004)
Salmonella control in the food chain (Part III) - Image 2
To read Part II- "Antibiotic resistance from farm to fork  please",  click here
Related topics:
Authors:
Christian Lückstädt
ADDCON
Recommend
Comment
Share
Christian Lückstädt
ADDCON
8 de noviembre de 2011
Dear Dr. Mulik, please contact me directly under christian.lueckstaedt@addcon.com. I wil lbe than able to forward you to my collueague in India. Thanks!
Recommend
Reply
Christian Lückstädt
ADDCON
8 de noviembre de 2011

Dear Dr. Hettiarachchi,
only the undissociated form of organic acids are able to pass through the cell membrane of gram-negative bacteria. Thus only the structure HCOOH (for formic acid) is able to pass the membrane and not H+ and COO- (the dissociated form). Since diformates are double salts of organic acids (a diformate molecule combines formic acid and formate) it is possible for the molecule (the formic acid part) to have the direct anti-bacterial effect. This also holds true for other acids, provided the fact that they arrive in the intestine, where the bacteria proliferate. And as stated before, diformate have been found to reach the intestine in animals with 85% of its ingredient still active, thus much higher than pure organic acids may reach.

Recommend
Reply
Christian Lückstädt
ADDCON
7 de noviembre de 2011

Dear Dr. Hettiarachchi,
you mentioned a number of limitations organic acids or organic acid blends may have. True, buffer capacity has to be kept in mind - most buffering effect comes from minerals as well as from the protein content; hence diets with a high mineral loas and/or protein content should receive higher dosages of acidifier in order to maintain a low pH in the sotmach/proventriculus. Another limitiation of organic acids is that they are readiuly available to the metabolism of the bird and only limited amounts will reach the intestine (duodenum(jejunum...) where pathogenic bacteria may proliferate. Here, the effect of organic acids cannot be the reduction of the surrounding pH per se, but rather the direct anti-microbial effect of the undissociated part of the acid (which is able to enter through the membrane of gram-negative bacteria - this causes an energy expenditure of the bacteria which will lead utlimately to bacteria cell death). Diformates have shown to be active in the intestine of animals - up to 85% of the product have still been found here, whereas pure, volatile acids may reach only in single digit percent levels the same place in the GI-tract of birds.

Recommend
Reply
Christian Lückstädt
ADDCON
7 de noviembre de 2011

Dear Mr. Emmanuel,
yes - organic acid salt - like potassium diformate; and you mentioned an available tradename - Aquaform, can also be used to enhance performance and digestibility in catfish. As of now there are trials available for the Asian catfish - Pangasius. Since the digestive system of the "catfish range" is rather similar you can expect a beneficial impact of potassium diformate in clarias as well.

Recommend
Reply
Christian Lückstädt
ADDCON
5 de octubre de 2011

Dear Dr. Anant,
due to a different mode of action (the undissociated form of the organic acid is able to enter the gram-negative bacteria cell and causes loss of energy...which will weaken/kill the bacteria) resistance of bacteria against organic acids has not been described/published. The case of using low levels of acidifier is often reported in Asia. I guess in this forum the MIC - minimal inhibitory concentration - has been discussed already. There are simple rules when an acidifier can work - among them is the dosage: if you are going to kill bacteria you have to supply acids in a dosage which is at least as high as the MIC-level. Different acids have different MIC-levels. Formic acid is among the strongest, and you need at least 1.5 kg/t of formic acid to successfully counteract for instance Salmonella. But please mind! These data are from labs under controlled conditions and the pure acid is used! Therefore under the wide variety of conditions in a commercial farm with several verctors from where Salmonella could "attack" plus products on the market which contain between 20-100% acids you can guess that an effective dosage will be considerably higher than the aforementioned level. My suggestion - check your product for the amount of active ingredients and test your biosecurity/management for possible "entrance points"...

Recommend
Reply
Dr Jaydip Mulik
8 de noviembre de 2011
Dear Dr .Christian Lückstädt , We will expect to elaborate the mode of action for Formic Acid as well as for its Salt as Diformate with the help of chemical formulas. Diagrammatic briefing will be welcomed. regards, Dr Jaydip
Recommend
Reply
Christopher Hettiarachchi
Maxies
8 de noviembre de 2011
08.11.2011, Dear Dr. Ganesh Kumar Dahad Yes, comparatively, a significant growth performance could be expected from acidifiers when there is a heavy load of unwanted bacteria present in the gut (with a poor hygienic condition in the farm). A farm with a good biosecurity and hygienic condition, the benefit could be marginal. Under such condition, Salmonella could be easily controlled with acidifiers. D.C.Hettiarachchi - Sri Lanka
Recommend
Reply
Christopher Hettiarachchi
Maxies
8 de noviembre de 2011
08.11.2011, Dear Dr. Christian Thank you for throwing more lights on the mechanisms of organic acids in controlling Salmonella and other gram negative bacteria. I still have a question, diformates as the name implies, should be salts of formic acid. When negatively charged formate ions enter and accumulate within the cytoplasm, as it is already in the ionic form, there will not be a generation of hydrogen ions. As there is no accumulation of H+ ions, the bacterial won't have to spend extra energy to expel them. If the formic acid enters the cytoplasm, yes, the alkaline nature of the cytoplasm will dissociate formic acid in to H+ and formate ion. The argument is true if diformate enters cytoplasm as formic acid. I would like to get cleared whether diformate enters the cyctoplasm of bacteria as formic acid. D.C.Hettiarachchi - Sri Lanka
Recommend
Reply
Akinwale Emmanuel
Aquapro Agro Industry
6 de noviembre de 2011
i want to know if growth promoter like organic salts aquaform benefit catfish (african catfish)
Recommend
Reply
Christopher Hettiarachchi
Maxies
4 de noviembre de 2011
Dear Dr. Christian, Good strategic finding "use of organic acid salt" instead of the volatile formic acid in the feed to control Salmonella in poultry associated food chain. Is the action of sodium diformate pH dependent? or do the ions diffuse through the membrane as ions, if so, generation of excess proton ions does not take place within the cytoplasm. If the action is pH dependent, application of the product through the feed has to be well monitored in broiler operations where several vaccinations are done against IBD and NCD as low pH in the gut interferes with vaccines. My experience with 14 close house broiler operation, a commercially available blend of organic acids application (maintaining a pH of 4) failed to reduce mortality due to E.coli infections. I concluded, it was probably the acid blend could not reduce the pH enough due to the high buffering capacity of the feed ingredients. D.C.Hettiarachchi - Sri Lanka
Recommend
Reply
