Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach

Published: September 6, 2018
By: Victor Naranjo. Andreas Lemme
Conclusion
  • The present study conducted at Schothorst Feed Research resulted in an average bioavailability of MHA-FA and diluted DLM65 of 65% and 61%, respectively compared to MetAMINO® considering the overall growth and carcass parameters.
  • These results demonstrate that the relative bioavailability of MHA-FA is significantly lower than its active content of 88% and consistent with the 2018 EFSA scientific opinion of 66% on product basis (75% on equimolar basis).
  • The average RBA of 61% for DLM65 was close to the expected value of 65% (because of dilution to 65% purity) and thus confirming the appropriateness of using simultaneous dose-response approach to determine the RBA of nutrient sources.

Introduction and objective
Commercial poultry diets are routinely supplemented with methionine (Met) sources to precisely meet their Met+Cys specifications. Around two thirds of the global market is covered with DL-methionine (DLM) and one third with DL-methionine hydroxy analogue products which are mainly in the liquid free acid form (MHA-FA). Despite the fact that DLM is the most used Met source globally, the question about the nutritive value being characterised by the relative biological availability (RBA) of liquid MHA-FA – or in other words, the replacement ratio of these products in feed –is always a critical factor for cost-effective purchasing and optimization of feed costs.
Various literature reviews have reported a RBA of about 65% for liquid MHA-FA compared to DLM in broilers on product-to-product basis (Jansman et al., 2003; Sauer et al., 2008; Lemme et al., 2012). More recently, the European Food Safety Authority (EFSA, 2018) released a scientific opinion on liquid MHA-FA and its calcium salt, confirming a RBA of 75% on equimolar basis which is equivalent to 66% on product-to-product basis for liquid MHA-FA. While this 65% RBA of MHA products compared to DLM has been challenged and confirmed in many field and university trials (Hoehler et al., 2005; Lemme et al., 2012; Sangali et al. 2014), the experimental setup to determine the RBA has been matter of recent discussion (Vazquez-Anon et al, 2006). In order to provide further evidence that the methodology of a simultaneous dose-response feeding trial is a valid approach and also the methodology of choice, a product can be included from which the RBA is known a priori. Diluting DLM with e.g. starch to a purity of 65% (65 parts DLM, 35 parts starch - DLM65) would be such a product in which the RBA would be assumed to be close to 65% because of its respective dilution. Although several experiments with this approach in poultry have already been published (Lemme et al., 2002; Hoehler et al., 2005, Elwert et al., 2008), data with modern broiler genetics are needed. Therefore, a study was conducted at Schothorst Feed Research, the Netherlands to determine the RBA of MHA-FA relative to MetAMINO® (DLM) for common performance parameters and to validate the suitability of the multi-exponential regression analysis for estimating the RBA by including 65%-diluted DLM (DLM65) as an internal standard.
Material and Methods

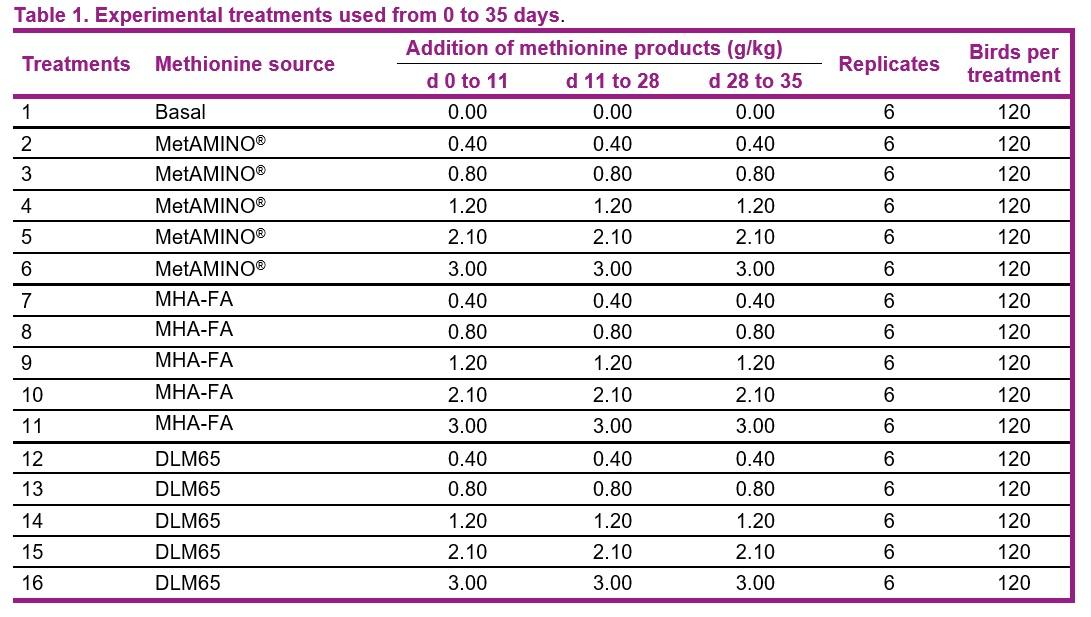

A total of 1,920 d-old male Ross 308 were allocated to 96 floor pens of 20 broilers each. Each pen (2m2) had one feeder, line of drinking nipples and wood shavings as bedding material. Ambient temperature was gradually decreased from 34°C at arrival of chicks to 20°C at 35 days of age. Light was continuously on for the first 24 hours to give birds the opportunity to readily find feed and water. After that, the light schedule was 22L:2D during one day, and then changed to 8L:4D:10L:2D during the remaining experimental period, complying the EU legislation of a minimum of six hours of darkness from the second day onwards. Diets were formulated to meet or exceed the ideal AA profile of AMINOChick® 2.0, except for digestible Met and Met+Cys. Main ingredients were analyzed by AMINONIR® and results were used for diet formulation. Broilers were fed starter (d 0 to 11), grower (d 11 to 28), and finisher diets (d 28 to 35). Each phase comprised16 treatments including a basal diet deficient in dig. Met+Cys without supplemental Met, and 5 increasing levels of either MetAMINO®, MHA-FA and DLM65. Starch was used to dilute MetAMINO® to a Met content of 65% in DLM65. Met sources were added in all phases on weight/weight basis at 0.40, 0.80, 1.20, 2.10 and 3.00 g/kg (Table 1). Starter feeds were produced in crumbles while grower and finisher diets (3.0 mm) were steam pelleted. Salinomycin was added to the starter and grower feeds as anticoccidial agent while no coccidiostat was added to the finisher diets. Feed and water were supplied ad libitum throughout the experimental period.

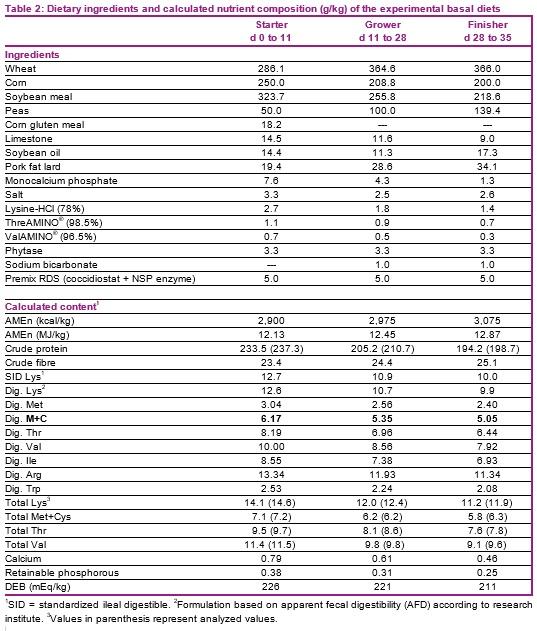

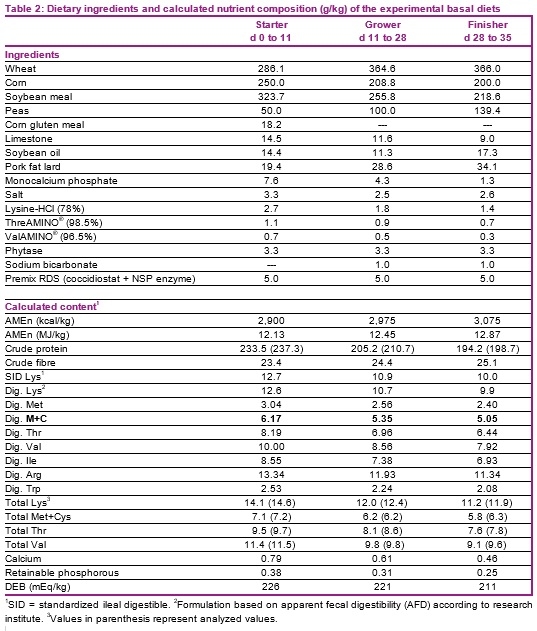

Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 1The dig. Met+Cys levels of the starter, grower, and finisher basal diets were 0.62, 0.54 and 0.51%, respectively (Table 2). Growth performance parameters were evaluated for each phase. On day 35, two birds per pen which were close to the average BW of the pen, were selected for carcass evaluation and individually weighed. The carcasses were chilled for 4 hours before cutting up. Carcass weight (kg) was defined as plucked, bled and eviscerated carcasses without head, neck and feet. Carcass yield (CY) was expressed as % of BW at day 35. Breast meat weight included both musculus pectoralis major and minor (without skin). Breast meat yield was expressed as % of BW at day 35 (BMY-BW) and also as % of the carcass weight (BMY-CW). Growth performance and carcass data were subjected to multi-exponential regression analysis using the nonlinear-regression procedure described by Littell et al. (1997).
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 2
Results
Analyzed values of the experimental diets from all phases were in close agreement with the calculated values (Table 2). Recovery rates ranged from 97 to 109% for total Met+Cys and Lys. The high accuracy in the analytical results was accomplished by formulating diets based on the analyzed values of the main ingredients (AMINONIR®) and manufacturing feeds in a specialized research feed mill with confirmed dosing accuracy and mixing quality. Therefore, the calculated levels of Met product additions were used for RBA determinations.

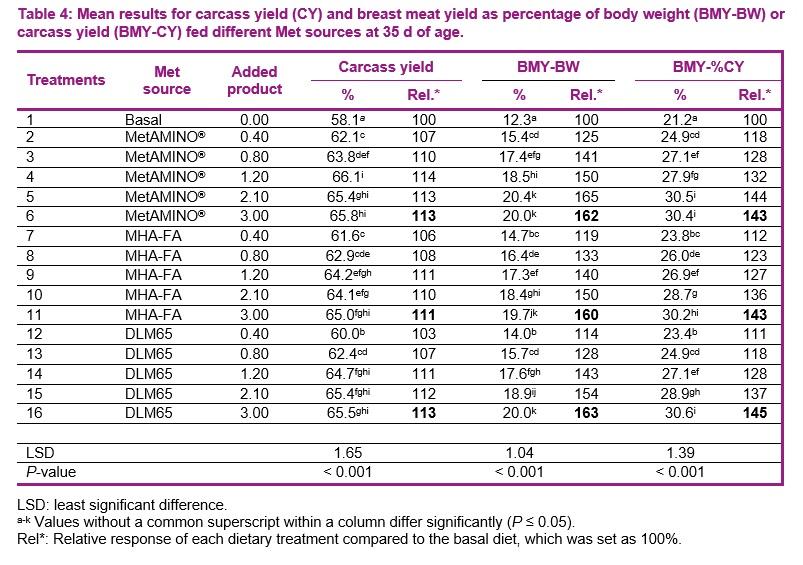

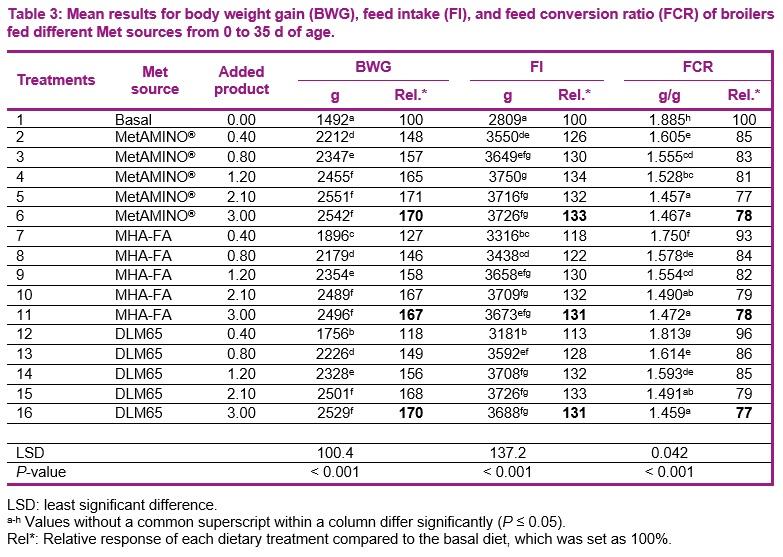

Increasing levels of either MetAMINO®, MHA-FA and DLM65 improved growth performance (Table 3) and carcass yields (Table 4) compared to the basal diet. Relative to the basal diet, the highest Met addition (3.00 g/kg) improved BWG by 70, 67, and 70% and reduced FCR by 22, 22, and 23% for MetAMINO®, MHA-FA, and DLM65 respectively. Similarly, CY was improved by 13, 11 and 13%, BMY-BW by 62, 60 and 63% and BMY-CY by 43, 43 and 45% for MetAMINO®, MHA-FA, and DLM65, respectively. These relative responses confirm that the main pre-requisites for an appropriate RBA determination were successfully met such as:1) a common starting point (basal) was clearly deficient in dietary Met+Cys, 2) three or more supplementation levels of each test product that had data points in the sensitive (curve-linear) range of the response curve and 3) all products showed a common plateau which was confirmed by the non-significant differences among Met sources for any of the performance parameters at the highest Met addition. The latter point also indicates that incorrect interpretations of the bioavailability of Met sources can occur if comparison of Met sources are done only at the asymptotic part of the curve. At this level no greater improvements to Met additions are expected (law of diminishing returns) and could lead to incorrect and costly conclusions. Using this approach, data from this trial will suggest that a diluted DLM to 65% purity is equally effective as MetAMINO® with 99% purity and certainly, this is not correct. To overcome this limitation, dose-response trials with subsequent multi-exponential regression analysis have been widely used to determine the bioavailability of not only Met sources but for different nutrient sources (eg. P, Se, Fe, Lys).
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 3

Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 4
Relative bioavailability (RBA)

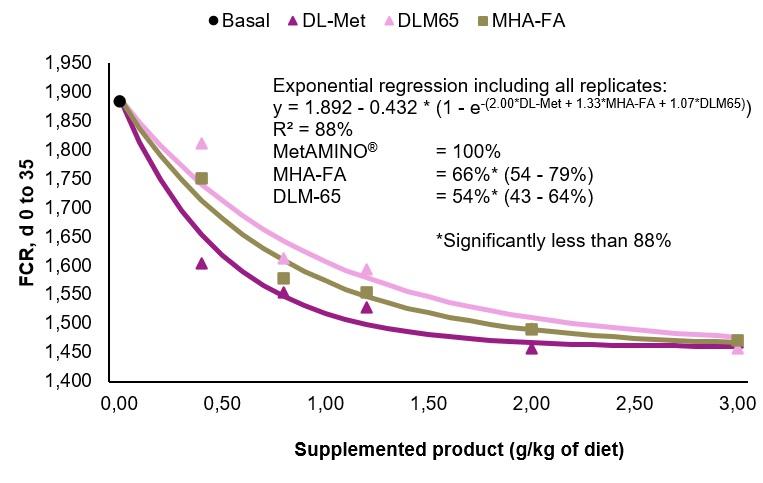

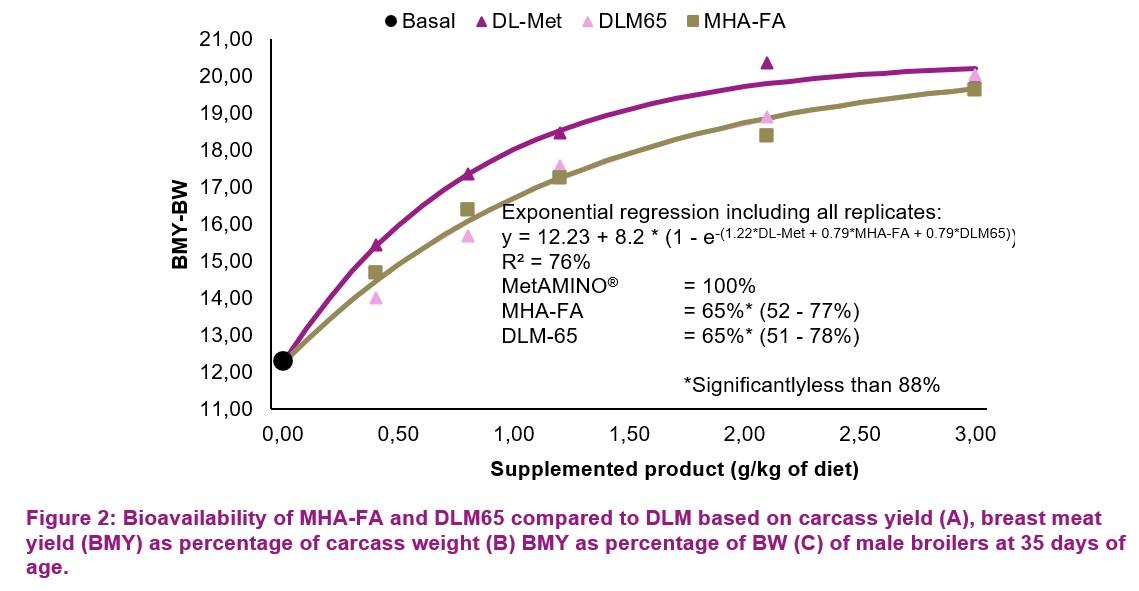

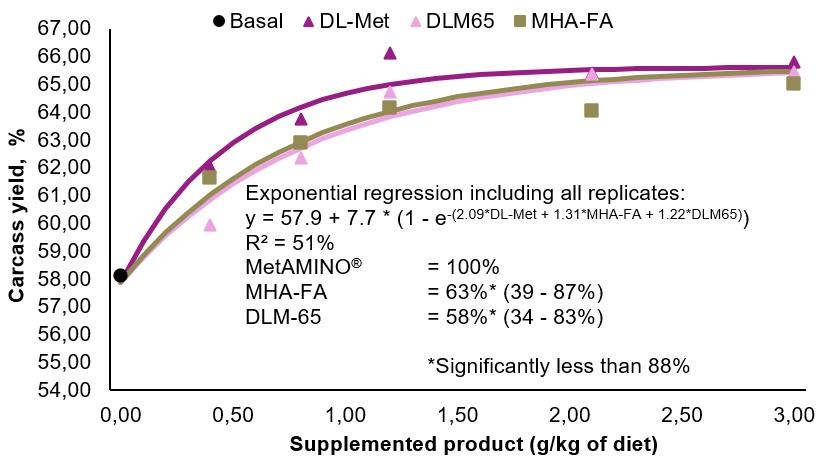

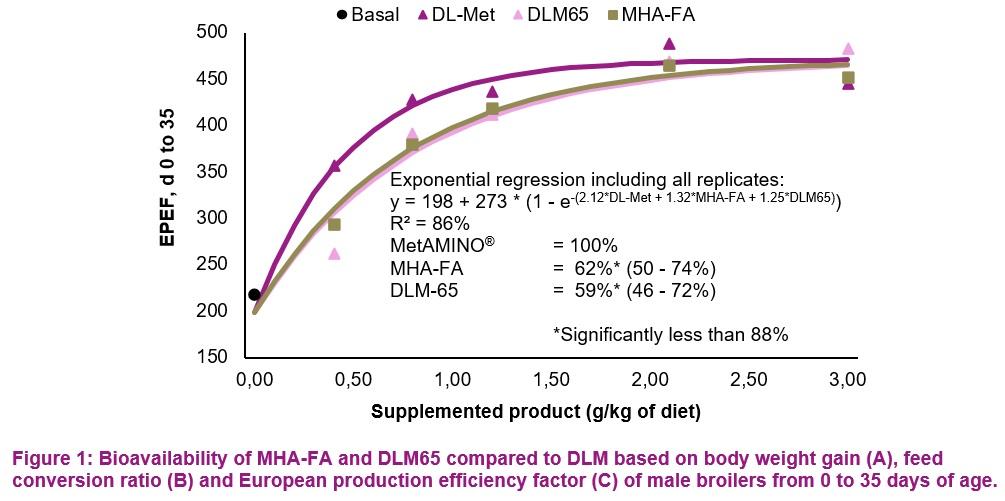

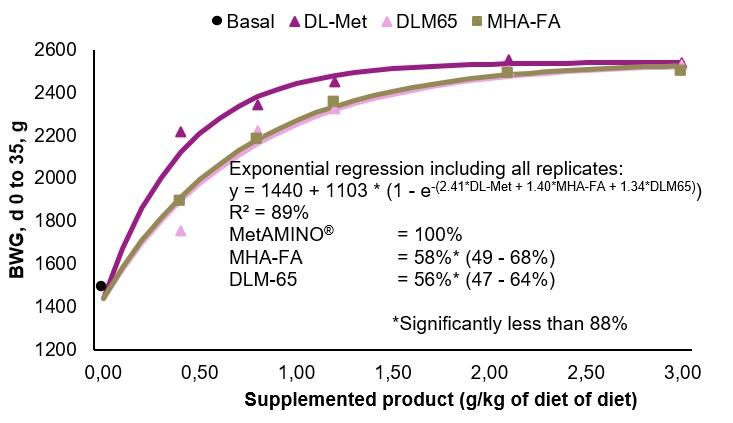

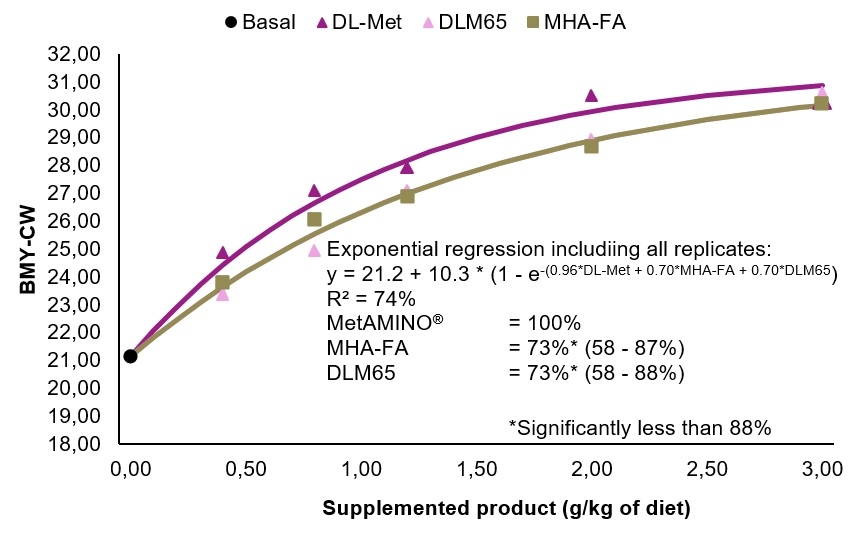

Responses to increasing levels of MetAMINO®, MHA-FA and DLM65 are shown in Figures 1 and 2 for growth performance and carcass yield parameters, respectively. Multi-exponential regression analysis revealed that MHA-FA was 58, 66 and 62% as efficacious as MetAMINO® for BWG, FCR and EPEF (European production efficiency factor), respectively. Similarly, the estimated RBA of DLM65 were 56, 54 and 59 for BWG, FCR and EPEF, respectively. Based on carcass traits, MHA-FA was estimated to be 63, 65 and 73% as efficacious as MetAMINO® for CY, BMY-BW and BMY-CW. Correspondingly, the estimated RBA of DLM65 were 58, 65 and 73% for the previous parameters.
 A)
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 5
 B)
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 6
C)
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 7

 A)
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 8
 B)
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 9
 C)
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 10

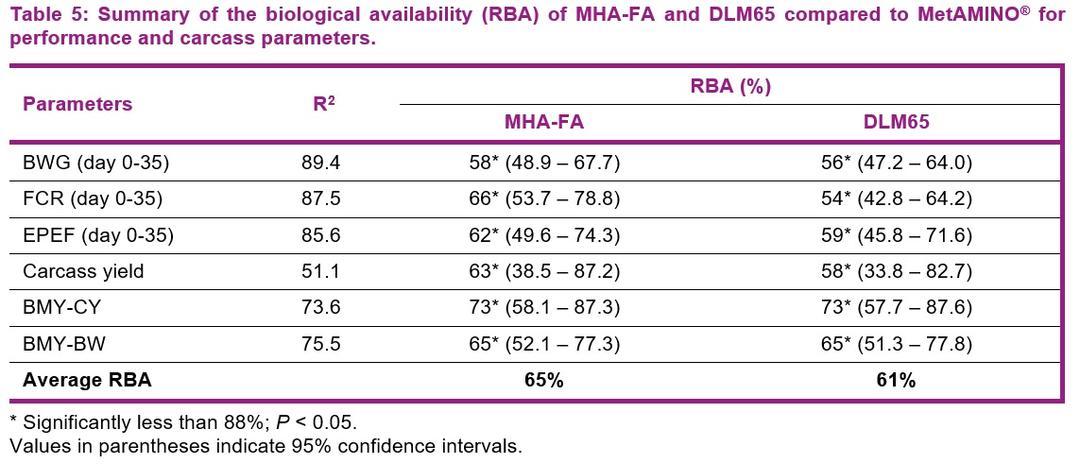

As summarized in Table 5, all RBA estimates were significantly (P < 0.05) lower than 88%, which is the active substance content in MHA-FA. Based on all the evaluated parameters, the average RBA of MHA-FA and DLM65 compared to MetAMINO® was 65% and 61% respectively. Moreover, the corresponding RBA estimates for liquid MHA-FA and DLM65 for the performance criteria did not differ suggesting similar nutritional value. The average RBA of 61% for DLM65 was close to the expected value of 65% (because of dilution to 65% purity) confirming the appropriateness of using simultaneous dose-response approach to determine the RBA of nutrient sources. Moreover, the results of this study are in line with earlier findings by Lemme et al. (2002), Hoehler et al. (2005), and Elwert et al. (2008) and therefore confirm the suitability of the experimental approach as well as the determined RBA of liquid MHA-FA.
Broiler trial in the Netherlands confirms 2018 EFSA scientific opinion on methionine sources while validating the experimental approach - Image 11
Conclusions
These results demonstrate that the RBA of MHA-FA is significantly lower than its active content of 88% and close to 65% in agreement with previous publications. The inclusion of diluted DLM65 confirmed that the multi-exponential regression analysis is a valid approach to estimate the bioavailability of Met sources and resulted in a similar RBA (61 vs. 65%) as liquid MHA-FA.
Results from this experiments were presented at:
Naranjo, V., Lemme, A., Agostini, P., and P. van der Aar. 2018. Bioavailability of dl-methionine hydroxy analogue relative to dl-methionine and validation of the multi exponential regression approach by using 65%-diluted dl-methionine in broilers. Poult. Sci. 97(Suppl. 1):242(Abstr.)


 European Food Safety Authority (EFSA), 2018: Safety and efficacy of hydroxy analogue of methionine and its calcium salt (ADRY+®) for all animal species, EFSA Journal 16(3): 5198 .

Jansman, A.J.M., C.A. Kan, and J. Wiegenga, 2003: Comparison of the biological efficacy of DL-methionine and hydroxy-4-methylthiobutanoic acid (HMB) in pigs and poultry, CVB documentation report nr. 29, Centraal Veevoederbureau (CVB, Lelystad, The Netherlands.

Hoehler, D., A. Lemme, K. Roberson and K. Turner, 2005a: Impact of methionine sources on performance in turkeys, Journal of Applied Poultry Research 14: 296-305.

Hoehler, D., A. Lemme, S.K. Jensen, and S.L. Vieira, 2005b: Relative effectiveness of methionine sources in diets for broiler chickens, Journal of Applied Poultry Research 14: 679-693.

Lemme, A., D. Hoehler, J.J. Brennan, and P.F. Mannion, 2002: Relative effectiveness of methionine hydroxy analog compared to DL-methionine in broiler chickens, Poultry Science 81: 838-845.

Lemme, A.. A. Helmbrecht, and S. Mack, 2012: Commercial methionine sources in poultry, AMINONews® Review: pp 39.

Littell, R.C., P.R. Henry, A.J. Lewis and C.B. Ammermann, 1997: Estimation of relative bioavailability of nutrients using SAS procedures, Journal of  Animal Science 75: 2672-2683.

Sauer, N., K. Emrich, H.-P. Piepho, A. Lemme, M.S. Redshaw, and R. Mosenthin, 2008: Meta-analysis of the relative efficiency of methionine-hydroxy-analogue-free-acid compared with DL-methionine in broilers using nonlinear mixed models, Poultry Science 87: 2023-2031.

Sangali, C.P., Giusti Bruno L.D., Vianna Nunes, R., Oliveira Neto, A.R., Pozza, P.C., Oliveira, T.M., Frank, R. and Schone, R.A., 2014. Bioavailability of different methionine sources for growing broilers. Revista Brasileira de Zootecnia, 43: 140–145.

Vazquez-Anon, M., D. Kratzer, R. Gonzalez-Esquerra, I.G. Yi, and C.D. Knight, 2006: A multiple regression model approach to contrast the performance of 2-hydroxy-4-methylthio butanoic acid and DL-methionine supplementation tested in broiler experiments and reported in the literature, Poultry Science 85: 693-705.
