Effect of Bacillus Subtilis-based Direct-fed Microbials on Immune Status in Broiler Chickens Raised on Fresh or Used Litter

INTRODUCTION

In the modern intensive production environment, multiple broiler flocks are commonly raised on a single batch of litter where day-old chickens are placed directly on used litter (Volkova et al., 2009). Litter is mainly composed of the bedding materials, feather, manure, the spilled feed and microbiota. Bolan et al. (2010) stated that microbial populations in poultry litter can exceed 10¹⁰ cells per g of litter and gram positive bacteria account for almost 90% of the microbial diversity. It is suggested that poultry litter provides stable environment for newly-placed chickens for colonizing adult-type microbiota (Torok et al., 2009; Cressman et al., 2010). In contrary, it also acts as a reservoir for several pathogens including Eimeria spp., Salmonella spp., Clostridium perfringens, Campylobacter jejuni, and Escherichia coli (Bolan et al., 2010; Chinivasagam et al., 2010; Lee et al., 2012b). In addition to the interrelation between the type of litter and gut microbiota (Torok et al., 2009; Cressman et al., 2010), we have recently reported the influence of fresh or used litter on the development of immune systems in broiler chickens (Lee et al., 2011), highlighting close interplay between the quality of litter used during chicken growth and the development of immune cells.

Direct-fed microbials (DFMs) are beneficial live microorganisms which when administered in adequate amounts confer a health benefit on the host by balancing its intestinal microbes (FAO/WHO, 2002). Although the concept of DFMs is not new, it has been recently gained much attention as a prophylactic agent against bacterial diseases presumably either by balancing gut microbiota, or by modulating host immunity, or both (Callaway et al., 2008). In our laboratory, DFM-based immunomodulation as an alternative coccidiosis control strategy has been documented (Lee et al., 2010c). For example, it has been shown that dietary Bacillus subtilis-based DFMs reduced the clinical signs of experimental avian coccidiosis with concomitant increase in protective immunity in broiler chickens (Lee et al., 2010a). In addition, Bacillus-based DFMs modulated various parameters of inflammation, and humoral and cellular immunities in broiler chickens (Lee et al., 2010b). It may be that primary modes of action by DFMs are balancing gut microbiota community and/or modulating host immunity (Flint and Garner, 2009; Applegate et al., 2010; Lee et al., 2010c), presumably acting singly or in combination.

In this study, we examined the interaction of two factors, i.e., type of litter (fresh vs used) and dietary DFMs, which are considered driving forces affecting gut microbiota and immune responses.

MATERIALS AND METHODS

Experimental design

The experiment was conducted at the University of Delaware research facility. The experiment had a 3x2 factorial arrangement of 3 litter treatments with fresh or used litter and two dietary regimens with or without DFMs. Used litter was obtained from two different broiler farms with (GD litter) or without (used litter) a history of gangrenous dermatitis (GD), where at least 10 broiler flocks had already been grown. Our previous study showed that GD typically occurs at 4 to 7 weeks of age in broiler chickens and is associated with C. perfringens and C. septicum (Li et al., 2010a,b). In the US, GD is one emerging disease of concern and it has been proposed that disrupted gut microbiota may play a role in the development of field GD infection (Ritter, 2006; Dumas et al., 2011). The fresh wood shavings were used as the fresh litter.

Basal diet was a nonmedicated mash-type diet consisting of corn, soybean meal, poultry and animal byproducts, and distiller’s dried grains soluble. The experimental DFM diet was formulated by mixing the basal diet with commercially available DFMs (Avicorr, Danisco/Agtech Products Inc., Waukesha, WI) to contain 150,000 cfu per gram of diet as the manufacturer recommended. Control diet was formulated by mixing the base diet with carrier only.

One hundred fifty 1-d-old broiler chickens (Ross breed) were used in this study. All broiler chickens used in this study had received normal vaccinations including Marek’s disease (turkey herpes virus (HVT), SB-1 and Rispen) in ovo at 18 d of incubation, and Newcastle disease (ND) and infectious bronchitis (IB) via coarse spray after hatch at the local hatchery. Upon arrival, they were vaccinated orally with Pfizer Inovocox vaccine, randomly placed (n = 25/group) on fresh, used, or GD litter, and fed a diet containing DFM-enriched or DFM-free diet. Diet and water were provided ad libitum basis. All experimental protocols were approved by the Small Animal Care Committee of Beltsville Agricultural Research Center and the University of Delaware.

Sampling

At d 14, 28, and 42, five birds from each group were randomly sampled for blood after euthanasia. Sera were obtained by gentle centrifugation and stored at -20°C until use. For measurement of cytokine mRNA expression levels, 5-cm segments from mid-jejunum and -ileum were sampled and used for RNA isolation.

Serum antibodies against Eimeria spp. or C. perfringens

Serum antibodies against Eimeria spp. and C. perfringens were measured by in-house ELISA using recombinant coccidia EtMIC2 (Lillehoj et al., 2005) and C. perfringens α-toxin proteins (Lee et al., 2012a). The EtMIC2 gene was originally cloned from E. tenella and known to encode a microneme adhesion involved in parasite motility and host cell invasion by the parasite (Lillehoj et al. 2005). α-toxin, a zinc metalloenzyme with phospholipase, sphingomyelinase, and hemolytic activities, is produced by C. perfringens strains and is a major virulence factor of the pathogen (Lee et al., 2012a). In brief, 96-well microtiter plates were coated overnight with 1 μg/well of purified recombinant proteins. The plates were washed with PBS containing 0.05% Tween (PBS-T), and blocked with PBS containing 1% BSA for 1 h at room temperature. Then, diluted serum samples were added (100 μL/well), incubated with gentle agitation for 2 h at room temperature, and washed with PBS-T. Bound antibodies were then detected with peroxidase-conjugated rabbit antichicken IgY (Sigma, St. Louis, MO) and peroxidase specific substrates. A value of OD₄₅₀ was determined with a microplate reader (Bio-Rad, Richmond, CA).

Cytokine mRNA assay

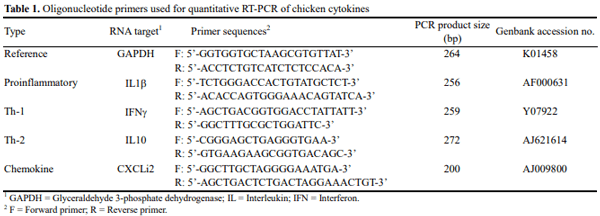

Total RNA was extracted from intestine using TRIzol (Invitrogen) as described (Hong et al., 2006; Park et al., 2008). Five micrograms of total RNA were treated with 1.0 U of DNase I and 1.0 μL of 10x reaction buffer (Sigma), incubated for 15 min at room temperature, 1.0 μL of stop solution was added, and the mixture was heated at 70°C for 10 min. RNA was reverse transcribed using the StrataScript first-strand synthesis system (Stratagene, La Jolla, CA) according to the manufacturer’s recommendations. Quantitative RT-PCR oligonucleotide primers for chicken cytokines, chemokines, and GAPDH are listed in Table 1. Amplification and detection were carried out using equivalent amounts of total RNA from intestine using the Mx3000P system and Brilliant SYBR Green QPCR master mix (Stratagene) as described (Hong et al., 2006; Park et al., 2008). Standard curves were generated using log10 diluted standard RNA and the levels of individual transcripts were normalized to those of GAPDH using the Q-gene program (Muller et al., 2002). Each analysis was performed in triplicate. To normalize RNA levels between samples within an experiment, the mean threshold cycle (C_t) values for the amplification products was calculated by pooling values from all samples in that experiment.

Effect of Bacillus Subtilis-based Direct-fed Microbials on Immune Status in Broiler Chickens Raised on Fresh or Used Litter - Image 1

Statistical analysis

The data were evaluated by two-way ANOVA using the program SPSS 15.0 for Windows (SPSS Inc., Chicago, IL), with litter type and DFMs as main factors. The individual chicken was considered as the experimental unit. Treatment means for type of litter were tested for statistically significant differences using Duncan’s multiple range test in SPSS 15.0 for Windows. A value of p<0.05 was considered significant.

RESULTS

Antibody levels against Eimeria and C. perfringens

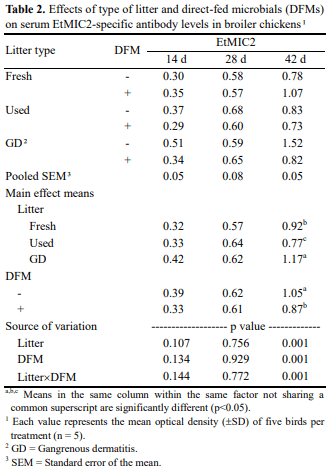

Anti-EtMIC2-specific antibody levels were not affected (p>0.05) by any of treatments at d 14 and 28 (Table 2). On the other hand, chickens raised on the GD litter exhibited highest (p<0.05) serum antibody titers to Eimeria compared with those raised on fresh or used litter at d 42. Dietary DFMs significantly (p<0.05) reduced antibody levels at d 42. Significant interaction between DFMs and litter type on antibody levels was detected at d 42, i.e., dietary DFMs raised the antibody levels when chickens were raised on fresh litter while lowered the levels when chickens were raised on GD litter.

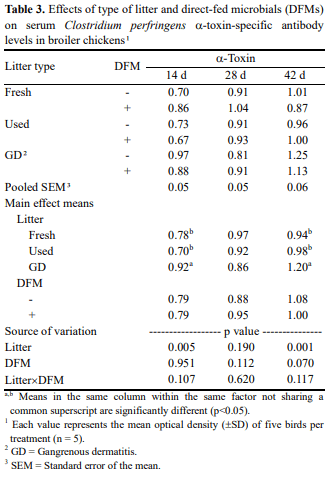

In this study, serum antibodies to C. perfringens α-toxin, were affected by the type of litter (p<0.05), i.e., birds grown on GD litter had elevated antibody levels compared with those grown on fresh or used litter, especially at d 14 and 42 (Table 3). DFM did not have any effects on clostridial antibody levels, nor interacted with the type of litter. Although substantial amounts of antibodies against Eimeria spp. or C. perfringens α-toxin were detected, Eimeria- or C. perfringens-associated gut lesions were not observed upon necropsy.

Effect of Bacillus Subtilis-based Direct-fed Microbials on Immune Status in Broiler Chickens Raised on Fresh or Used Litter - Image 2

Effect of Bacillus Subtilis-based Direct-fed Microbials on Immune Status in Broiler Chickens Raised on Fresh or Used Litter - Image 3

Cytokine mRNA transcripts

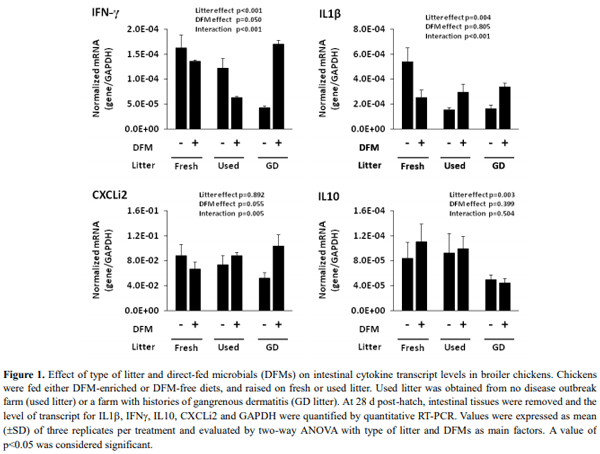

Effect of litter type on cytokine mRNA expression was clearly observed. Especially, birds raised on GD litter had lowest (p<0.05) levels of cytokine interferon (IFN)γ, interleukin (IL)1β, and IL10 transcripts compared with those raised on fresh litter. DFM-fed birds had increased IFNγ transcripts (p<0.05) compared with birds fed DFMfree diet (Figure 1). Significant interaction between the type of litter and DFMs was observed with IL1β, IFNγ, and CXCLi2 transcripts. Of note, birds fed DFM diet and raised on fresh litter lowered the levels of IL1β, IFNγ, and CXCLi2 transcripts compared with those fed DFM-free diets and raised on fresh litter. In contrast, birds fed DFM diet and raised on GD litter increased IL1β, IFNγ, and CXCLi2 mRNAs compared with those fed DFM-free diets and raised on GD litter.

DISCUSSION

It is well documented that dietary DFMs modulate various aspects of immunity in broiler chickens (Lee et al., 2010a,b,c). Also, we have recently reported that the exposure of growing chickens to used poultry litter stimulated humoral and cell-mediated immune responses, presumably due to contact with contaminating enteric pathogens (Lee et al., 2011). Given that dietary DFM or the type of litter influences host immunity, their interaction on developing post-hatch immunity is expected. However, to our knowledge, those expectations have never been answered. Thus, the present study was conducted to investigate whether dietary DFMs modulate immune response, with respect to humoral antibody response to Clostridium and Eimeria, and cell-mediated immunity as measured by cytokine production in broiler chickens raised on fresh, used or GD litter.

In this study, higher serum antibodies against Eimeria or C. perfringens were observed in chickens raised on GD litter compared with those on the fresh or used litter, indicating that GD litter served as a consistent source of antigenic exposure to Eimeria spp. and C. perfringens. Interestingly, dietary supplementation with DFMs (B. subtilis) significantly lowered Eimeria-specific antibodies, but did not lower serum antibodies against C. perfringens α-toxins. There was significant interaction between DFMs and the type of litter on Eimeria-specific antibody levels. Our result indicates that dietary DFMs modulate postinfection humoral antibody response in chickens exposed to naturally infected litter, albeit that the exact mechanisms are not available at this time.

As to cytokine response, broiler chickens raised on GD litter showed significantly decreased expression levels of IL1β, IFNγ, and IL10 compared with those raised on the fresh litter. Broiler chickens raised on used litter exhibited significant decrease in IL1β transcripts compared with the fresh litter-raised chickens. Putatively, these observations on the reduced expression of the cytokines may reflect overall immune-suppression, especially in broiler chickens raised on GD litter. An earlier study found that GD-afflicted broiler chickens demonstrated reduced expression potentials of most cytokines in skin or gut tissues compared with the GD-free healthy chickens (Li et al., 2010b). Contrary to our study, Shanmugasundaram et al. (2012) reported that broiler chickens raised on used litter had an increase in IL1β and IL4 transcripts, but a decrease in IL10 transcripts in cecal tonsils compared with those raised on fresh litter. Different cytokine levels seen in these two studies may reflect different genetic background of chickens, age of chickens, gut commensals, and other environmental factors such as diets and litter contaminants. Especially, the latter study suggested that higher IL1β mRNA expression was indicative to a low level of chronic inflammation in the cecal tonsil that was exposed to pathogenic or nonpathogenic bacteria. Furthermore, we sampled mid-intestine of 28-d-old chickens raised on litter where 10 broiler flocks had already been grown while Shanmugasundaram et al. (2012) sampled cecal tonsils of 10- or 35-d-old chickens raised on litter where 3 broiler flocks had been grown. In any event, further studies are needed to clarify the discrepancy.

Effect of Bacillus Subtilis-based Direct-fed Microbials on Immune Status in Broiler Chickens Raised on Fresh or Used Litter - Image 4

Dietary DFMs moderately increased the expression patterns of IL1β, IFNγ, and CXCLi2 in chickens raised on GD litter, but decreased those expression patterns in chickens raised on fresh litter. In addition, dietary DFMs increased IL1β, but lowered IFNγ transcripts in chickens raised on used litter. Overall, significant interaction between DFM and type of litter on cytokine response was observed. It is well known that dietary DFMs can modulate various aspects of innate and acquired immunity in broiler chickens (Lee et al., 2010a,c). Our study clearly shows that dietary DFMs alter cell-mediated immunity in terms of cytokine responses in chickens raised on the different types of litter. The underlying immunomodulatory mechanism(s) by dietary DFMs is clearly linked to the DFM-mediated shift in gut microbiota (Neumann et al., 2011a,b) or type of litter used (Cressman et al., 2010; Neumann et al., 2011b).

In conclusion, the present study demonstrated how the type of litter and dietary DFMs influence host immune response to pathogens, especially antibodies against Eimeria spp. or Clostridium spp., and cytokine mRNA expression, in commercially raised broiler chickens. This is the first study showing clear association among the type of litter, dietary DFMs, and host immunity. Collectively, our study provides clear evidence that dietary DFMs possess the counteracting, immune-modulating properties in broiler chickens that are exposed to different types of litter.

ACKNOWLEDGEMENTS

This project was supported by a Trust agreement established between ARS-USDA and Danisco and partially by the ARS in-house project 1245-32000-097-00. We thank Marjorie Nichols and Stacy O'Donnell for their technical assistance.

This article was originally published in Asian-Australasian Journal of Animal Sciences. Vol. 26, No. 11: 1592-1597 November 2013 http://dx.doi.org/10.5713/ajas.2013.13178. This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/).
