Background
Egg quality has received more attention due to increased demands for safety and high-quality eggs by consumers. Internal egg quality involves functional, aesthetic and microbiological properties of the egg yolk and albumen. Internal inclusions (blood and meat spots) in the egg have been recognized as quality defects since 1899 [1]. In addition to being an aesthetic and ethical problem, there is indication that blood or pieces of tissue inside the egg may increase the risk of infections such as salmonella [2] and reduce hatchability of eggs [3].
Blood spots are droplets of blood found usually on the surface of the yolk [4,5]. Meat spots appear as red, brown or white spots in the albumen. They are either pieces of tissue from reproductive organs or blood spots that have changed colour due to dilution. The factors causing inclusions are unknown. They emerge during the ovulation process in the ovary or later in the oviduct. Blood on the yolk originates from bleeding of the small vessels in the ovary or in the oviduct [5]. When blood is found adhering to the yolk, bleeding has occurred in the ovary at the time when the yolk was released from the follicle. The follicle has a dense network of blood vessels, aside from an avascular area of the follicular wall, called the stigma. The follicle sac ruptures at the stigma during ovulation. If any blood vessels cross the stigma, a small drop of blood may be deposited on the yolk as it is released from the follicle. Alternatively, bleeding may occur before ovulation on the vitelline membrane, the structure directly adjacent to the outer surface of the yolk. In that case, blood spots are found in the space between the follicular wall and the vitelline membrane [4]. Blood in the albumen indicates bleeding shortly after the release of the yolk into the oviduct, at the time when the yolk is coated with albumen. Meat spots in the albumen can be formed from a bit of reproductive tissue while the egg is passing through the oviduct. As an egg ages, the yolk takes up water from the albumen, which in turn dilutes blood spots and makes them look like meat spots.
In general, the frequency of blood and meat inclusions is less than 1% in all eggs laid in present commercial lines [2]. However, the incidence of spots varies greatly: it is about 18% in brown layers, whereas it is only 0.5% in white egg layers [6]. In some brown layer lines the frequency can be as high as 30% [6]. The incidence of spots seems to increase when the hen ages [7]. Increased frequency also appears at the start of laying.
Different types of factors, including nutritional, environmental and hereditary factors, trigger the incidence of spots. Probably the most important nutritional factor is a lack of vitamins A and D [3, 8, 9, 10]. There is a physiological threshold for the amount of vitamin A. When the supply is sufficient, the chicken has a low probability of having blood spots [11]. Environmental factors, like sudden loud noises, temperature changes and infections, induce an increase in the incidence of spots [4,6,12]. Furthermore, the problem has a genetic background. The estimates of heritability for inclusion traits range from 0.07 up to 0.6 [11,13,14]. In conventional breeding practices, selection against inclusions is usually done by eliminating families that have increased incidence of inclusions from the breeding population (Schmutz, M., personal communication).
Internal inclusions are detected via mass candling. This process reveals most of the spots, but occasionally faulty eggs pass the control checks and end up in the consumer’s hands. This has been a problem, especially in brown layer lines, because brown shells hamper spot detection.
Increased interest in safety and high-quality eggs motivated us to study the genetic background of the incidence of blood spots in chicken eggs. So far, there have been no attempts to map QTL for internal inclusions. The ultimate objective was to find markers suitable for use in a commercial selection programme and to identify genes affecting the defect.
Results
Histopathologic study
In the analyzed broiler eggs, the spots that were collected close to the surface of the yolk, macroscopically looking like blood stains, were accumulations of erythrocytes surrounded by a thin eosinophilic acellular membrane. Spots found in the albumen, macroscopically looking like a greyish mass, were accumulations of necrotic material surrounded by a thin acellular membrane. The necrotic material consisted of fine granular eosinophilic and brown debris.
Genetic parameters, heritabilities and genetic correlations
The heritability estimates in pure lines for blood spot score and blood spot combination (number*size) were 0.05 and 0.04, respectively, in Lohmann Brown. In White Rock the heritability of blood spot score was 0.01. The heritability for meat spot combination (number*size) was evaluated to be 0.01 in Lohmann Brown (no data available for White Rock). The genetic correlation between inclusion traits varied greatly: it was highly negative (-0.90) between two blood spot traits (score and combination) and between blood spot score and meat spot combination (-0.70), whereas it was positive (0.83) between blood spot combination and meat spot combination (see additional file 1, Table S1).
Genome scan

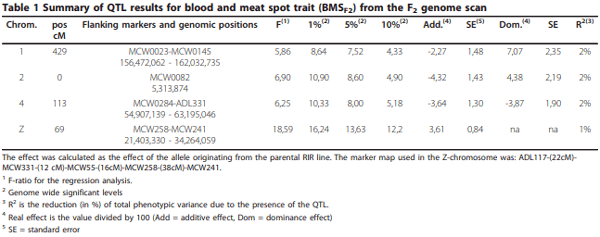

One genome-wide significant QTL affecting incidence of internal inclusions was discovered (Table 1). The highest F-ratio, 18.59, occurred at 69 cM, in the area flanked by markers MCW258 and MCW241 (21,403,330- 34,264,330 Mb) on chromosome Z. The additive effect was 3.61 with 0.84 SE, corresponding to a difference of 0.036 in the average score from three consecutive eggs (this trait has an average of 1.02, with a standard deviation of 0.24). It explains 1% of the total phenotypic variance.
Other suggestive (genome-wide 10% significance) QTL were found on chromosome 1 at the position of 429 cM between markers MCW23 and MCW145 (156,472,062- 162,032,936 Mb), on chromosome 2 at the beginning of the linkage map at the marker MCW82 (5,313,874- 5,313,971 Mb), and on chromosome 4 at the marker ADL331 (63,195,046-63,195,223 Mb). The QTL effect on chromosome 1 is dominant while it is additive for the other two regions.
Sequencing of ZO-2

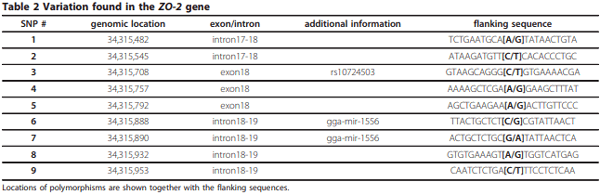

A putative candidate gene, ZO-2 (NP_990249), a key gene controlling adhesion between neighbouring epithelial cells, was found to be located within the QTL region on chromosome Z. The marker MCW241 showing significant association to blood and meat inclusions was located inside this gene. We sequenced a fragment of 549 bp from several individuals from this candidate gene among Lohmann Brown and Hy-Line populations (106 and 20, respectively). We discovered nine polymorphic sites (Table 2). Three of the variations were located in exon 18. One of the previously reported SNPs, rs10724503 http://www.ensembl.org/Gallus_gallus/ was confirmed and used as a marker (ZO-2 snupe) in the following association study. The other reported frameshift mutation rs16767170 http://www.ensembl. org/Gallus_gallus/) was not detected among this material. Two new intronic variations (SNP6, position 34,315,888 and SNP7, position 34,315, 890 in Table 2) were found to be located within a microRNA (gga-mir1556). These polymorphisms were located in the predicted stem-loop structure of the microRNA (Figure 1). Such variation might affect the stability of the stem-loop structure and thus also the function of the miRNA in gene regulation. One of these variations was used in the association study (SNP7, ‘miRNA’). The variations have been submitted to GeneBank (BankIt 1438826, JF509397).
Fine-mapping of chromosome Z

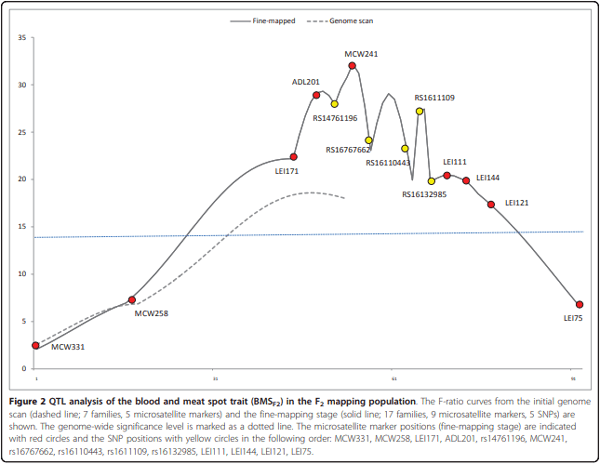

When a larger sample of animals was genotyped for a dense map of the QTL region on chromosome Z, a genome-wide highly significant QTL (F-ratio 32.9) was seen at the marker position MCW241, at the position 54 cM on the linkage map (genomic location Z: 34.26 Mb) with the additive effect of 3.75 units (Figure 2). Compared to the initial QTL scan, more markers were added to the distal end of the map to flank the QTL. As a result, the highest peak for F-ratio shifted outside of the previously mapped area, but it was successfully flanked with new markers. The effect of the QTL was now estimated to be 2% of the phenotypic variance.
Association

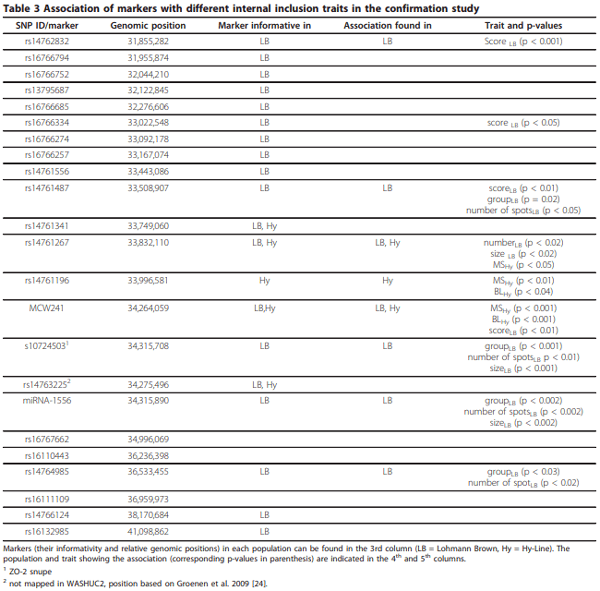

Association was studied with a set of SNP markers (including miRNA variation) and the most significant microsatellite marker MCW241 (Table 3). The studied SNP markers were located between bp 31,855,282 and 36,533,455 of chromosome Z. Associations were found mainly in a 0.8 Mb-wide chromosomal area located between 33,508,907 - 34,315,890 of GGAZ (Table 3). The associated loci varied according to the studied phenotype and population. For instance, in the Hy-Line population only the meat spot trait was found to be associated to SNP ‘rs14761267’, whereas SNP ‘rs14761196’ was linked to both the meat and blood spot traits. Most of the associations were related to the prevalence of the spots (score or number of the spots). The allelic effects varied between 0.13 and 0.5 SD, depending on both trait and population.
Discussion and conclusions
There have been no reports so far of QTL for blood and meat inclusions in eggs of laying hens. This paper describes the first results of detailed analyses of the internal inclusion traits in chickens. QTL were first localized through linkage analysis in a genome scan. This analysis revealed one highly significant QTL on chromosome Z and three suggestive QTLs on chromosomes 1, 2 and 4. The QTL on chromosome Z was fine mapped and validated with a confirmation study in two independent commercial populations. The association of markers with the trait in these independent samples supported the location of the QTL on chromosome Z. Markers MCW241 and rs14761267 showed most congruent association to inclusion traits in the two tested commercial populations. Thus these markers could be considered as having the best potential for selecting against internal inclusions.
The correct definition of inclusion phenotype is usually demanding if eggs are not studied soon after laying. Sometimes the two types can have similar appearance (i.e. dilution of blood spots to paler meat spots). Combining meat and blood spots to a single variable is a common procedure in breeding companies. However, in QTL mapping this may introduce a bias, especially when one of the components is weighted more than the other variable. According to our results, blood and meat spots are separate entities. The origin of blood spots is red cells, and meat spots are cell masses of epithelium. Distinct sources of the two spot types are supported by their separate locations within the egg. Similar conclusions can be found from [15] or [16]. Campo et al. [6] suggested that internal inclusions are related to shell pigmentation. In another study, a protoporphyrin mutant that reduced shell color significantly also showed a reduction in meat spots [17]. However, according to our results, there are no signs of pigmented cells in the inclusions.
Our results from the F2 and LB data (treating blood and meat spots as one trait, with weight on blood spots), might be pulled towards loci affecting blood spots instead of meat spots. Yet, the results in Hy-Line, where those two traits are treated separately, are indicating that the same chromosomal area has an impact on both spot types.
Numerous identified genes can be found from the Ensembl genome database in the QTL region. ZO-2 was one of these genes. It was chosen for further studies because of its known biological function together with co-location of microsatellite marker MCW241. ZO-2 belongs to the tight junction protein family, which is involved in the organization of epithelial and endothelial intercellular junctions. It has an important role in barrier formation. Blood spots in the eggs may be due to the fragility of blood vessel walls in the ovaries.
Symptoms like clotting and bleeding are caused by a genetic defect called familial hypercholanemia (FHAC, OMIM ID#607748) in humans [18], which is caused by a mutation in the tight junction protein ZO-2. Compared to our sequencing findings, the mutation in humans is located elsewhere on the ZO-2 gene.

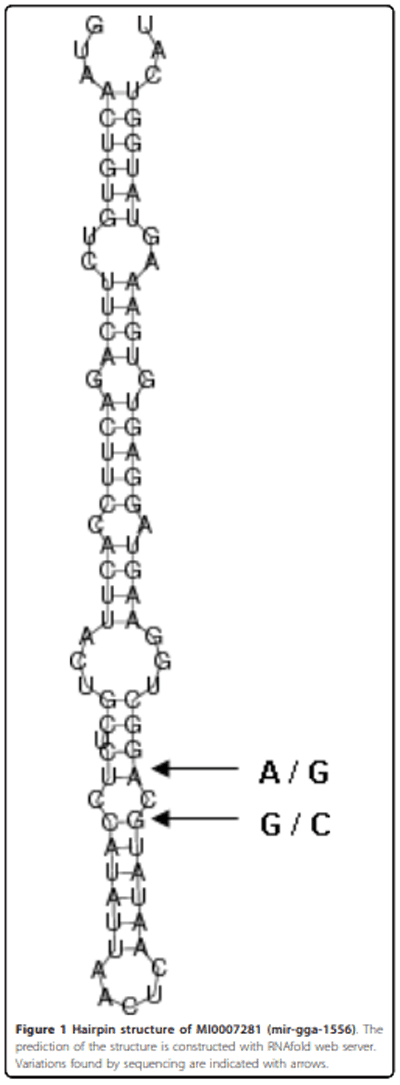

The role of the microRNA identified inside the ZO-2 gene intron 18 is also interesting. Some reports have demonstrated that miRNAs are transcriptionally linked to the expression of their host genes and processed from the same primary transcript [19]. Thus in addition to regulating its own target genes, gga-mir-1556 might also affect the expression of ZO-2.
Target prediction and functional annotations search gave 80 predicted targets for gga-mir-1556 (http:// mirdb.org/). Among the target genes is AGT, angiotensinogen (located on GGA3 at 42.30 Mb). Angiotensinogen is a precursor of angiotensin, which increases blood pressure. The action of this hypothetical gene would be compatible with the findings of Fry et al. [20] who demonstrated that blood pressure is a factor in susceptibility to blood spot incidence.
According to eQTL studies, a polymorphism explaining gene expression variance may be located either near the gene (cis-eQTL) or further apart on the genome (trans-eQTL)[21]. It has been proposed that trans-eQTL have smaller phenotypic effects than cis-eQTL. In this study, we found polymorphism in the miRNA stem-loop that may affect its binding affinities to target genes. Thus the effect could be similar to a trans-acting eQTL. This is supported by the fact that although the effect of the QTL was very significant, it was quite small, approximately 2% of the phenotypic variance.
The heritability of internal inclusions is high enough for the trait to be influenced by conventional breeding [11], but it has not been possible to completely eliminate it by means of selection. We have identified one of the genomic areas influencing the incidence of blood and meat inclusions. In addition, we have confirmed this association in two commercial breeding populations. The actual causative gene or regulatory mechanism still remains unknown. Further investigations are needed before decisions can be made on using the results in marker-assisted selection. The genetic gain is relative to the magnitude of the effect of the locus, and in this case, the effect of the QTL is moderate. However, combining the allele information with conventional selection schemes would yield more information for use in selection decisions.
Methods
Mapping populations and genotyping
Three independent egg layer chicken populations were used for different stages in this study. Mapping was done in a two-step approach; first a subset of the F2 population was used to a sparse genome scan and thereafter the entire mapping population was used in a consequent fine-mapping step with denser marker map of the most significant QTL region. Two independent pure commercial lines, Lohmann Brown (LB) and HyLine (Hy) were used for confirming the QTL result with association analysis. The phases of the study are illustrated in Table 4.
F2 cross
For the genome scan, an F2 cross between two commercial brown pure breeding lines from Lohmann Tierzucht, Rhode Island Red and White Rock, described earlier in Tuiskula-Haavisto et al. [22] was used. The entire mapping population consisted of a total of 1783 individuals, including 30 grandparental males, 47 grandparental females, 16 F1 males, 90 F1 females, and 1599 F2 hens. Rearing and management practices were similar to those in the previous QTL study, see [23].
Commercial lines
The Lohmann Brown population consisted of 767 purebred hens from paternal half-sib families with an average of 9.7 offspring per family. Different numbers of individuals were included in analyses depending on the marker used (see Table 4). In the LB, 17 SNP markers, a miRNA polymorphism and one microsatellite marker (MCW241) were genotyped.
The Hy-Line population included a total of 290 males belonging to paternal half-sib families (3,5 males per family). Phenotypes represented sire-daughter averages. The Hy-Line population was analyzed with a microsatellite marker (MCW241) and 4 informative SNP markers within the QTL area (rs14761341, rs14761267, rs14761196 and rs14763225).
Genotyping

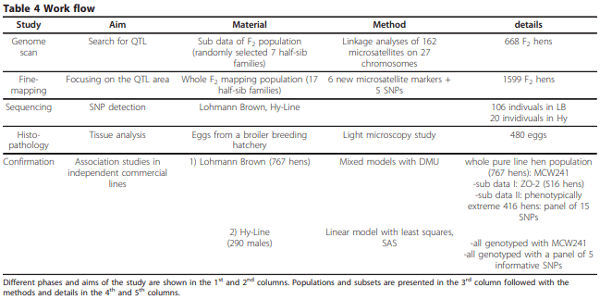

DNA preparation and genotyping of microsatellite markers have been described in [22]. The number of genotyped individuals in each population is shown in Table 4. For fine-mapping, we selected a set of SNP markers [24] from the QTL region (Table 3). Illumina BeadXpress (http://www.illumina.com) reader was used for genotyping multiplex SNPs (OPA), which were clustered with BeadStudio. The miRNA genotypes were typed by sequencing, and the SNP in the candidate gene by minisequencing (ZO-2 snupe), according to protocols in [25].
Phenotypes

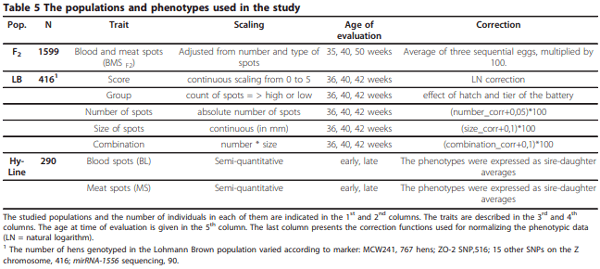

Blood and meat spot phenotypes were collected from three consecutive eggs for each hen between the ages of 35 and 41 weeks (Table 5). In contrast to other types of blood spot studies, the hens were fed with adequate feed; no challenge diet was used. Eggs were broken onto a glass sheet to detect the spots. In the F2 genome scan, blood and meat spot phenotypes were treated as one trait (BMSF2). Eggs were scored based on the presence and size of inclusions ("0” no inclusions, “1” and “2” small or big meat spot, “3”, “4” and “5” small, middle sized or large blood spot). The numeric value of BMSF2 was elicited by a transformation, where the average of three eggs was multiplied with 100; thereafter the ‘BMS F2 unit’ referred to a combination of number and severity of the inclusions.
Phenotypes were studied in more detail in the confirmation study of the commercial lines. Blood and meat spots were scored at 36, 40 and 42 weeks of age. For each hen and measurement, 3 consecutive eggs were collected and the spots were subjectively scored.
In the Lohmann Brown, the phenotype was recorded as five phenotypic variables of blood and meat spot (Table 5). First, SCORING: scoring scheme was as follows:
0 = no spots
1 = low number of small meat spots
2 = higher number of small meat spots or small number of medium sized meat spots
3 = high number and/or large sized meat spots
4 = low number of small blood spots
5 = higher number of small and/or large blood spots
Prior to QTL analyses the phenotypic mean of the 3 eggs from one hen for every age were corrected for the effect of hatch and position of the hen (tier of the battery). This environmental influence was estimated from a genetic model including the additive genetic effects of the animals. This analysis was done with the Software PEST [26].
Model : yij = µ + AHTi + aj + eij
where yij = phenotypic observation
AHTi = fixed effect of Age-Class, Hatch and Tier i (combined in a multicode)
aj = additive genetic effect of animal j
eij = residual
The corrected averages for every hen for the 3 observations at different age were then aggregated into one observation by arithmetic mean. Second, GROUP: based on the scoring, hens were divided into high (spots) or low (no spots). Third, NUMBER of spots. Fourth, SIZE of spots: diameter of the spots (in mm). Fifth, COMBINATION: the function of number and size of spots. The functions used for normalizing the phenotypic data are presented in Table 5.
In the Hy-Line population, eggs were processed within 24 hours of production at a centralized egg quality lab facility. Blood and meat inclusions were identified and treated as two separate traits. Both traits were measured in a semi-quantitative scale, using a score based on the presence and size of the inclusion (0 to 5: “0” if an inclusion was absent, to “5” if an approximately 5 mm inclusion was present). Phenotypes for males were expressed as sire-daughter averages. Descriptive statistics, such as distribution and genetic parameters in the parental lines of F2 mapping population is presented in the additional file, Tables S1-S3.
Histopathological studies
In order to examine the source of the inclusions, a histopathological study was conducted. Material for the histopathological study was collected from a total of 480 randomly selected eggs from a broiler-breeding hatchery. Fresh, distinct spots were fixed in 10% buffered formalin, routinely processed, embedded in paraffin and serially sectioned at 4 μm. The sections were stained with haematoxylin and eosin (H&E) and studied by light microscopy.
QTL mapping
The mapping was done in two stages. At first, a genome scan with 162 microsatellite markers on 27 chromosomes was conducted in a subset of seven half-sib families with 668 F2 individuals. Then the entire mapping population including 1599 F2 hens was used in the fine-mapping. A new linkage map for the Z-chromosome was calculated by CRI-MAP [27], including 9 microsatellite markers and 5 SNPs. QTL mapping was based on regression analysis using multiple marker information. Autosomes were analyzed with GridQTL [28] and the Z-chromosome by a custom-made program as described in [22,23]. From the Z-chromosome, only the additive effect could be estimated. The empirical significance levels were determined by a permutation test, also described in [22,23].
Candidate gene sequencing
A candidate gene was chosen based on its known function and the genetic map information obtained from QTL mapping. The tight junction protein 2 gene, TJP2, also known as ZO-2, was partially sequenced for a single genomic fragment, including two previously reported SNPs (rs10724503 and rs16767170) http:// www.ensembl.org/Gallus_gallus/. This area of 546 base pairs contains exon 18 and part of the following intron (genomic location of 34,315,438 - 34,315,986). The primer pair to amplify the fragment was designed with Primer3 http://frodo.wi.mit.edu/primer3/) (forward primer: 5’- AAGCTGCTTCGAAAAATGGA and reverse 5’-GTCACTTGGCAACACAAGGA). This primer pair was also used for sequencing. The sequencing and minisequencing protocols were conducted as described in [25]. For the minisequencing, primers to fragment amplification were forward 5’-CTGTACCGGCAGAACACTGA and reverse 5’- GAAGACACAGTTAC TTCCCCTGA. The oligo for minisequencing was 5’- AACCCAGACAGTAAGCAGGG.
Fine-mapping
Based on the result from the genome scan, nine more families were included in the QTL analysis. The full population was genotyped with a marker panel of nine microsatellite markers and five single nucleotide polymorphisms (SNPs) chosen from Groenen et al. [24] for the QTL area on chromosome Z. The initial genome scan was conducted with 5 microsatellite markers (ADL117-22cM-MCW331-12 cM-MCW55-16cMMCW258-38cM-MCW241). Markers used in the fine-mapping were: MCW331-15cM-MCW258-28cMLEI171-4cM-ADL201-3cM-rs14761196-2cM-MCW241- 4cM-rs16767662-7cM-rs16110443-1cM- rs1611109- 2cM-rs16132985-5cM-LEI111-1cM-LEI144-2cM-LEI 121-17cM-LEI75.
Confirmation with association
To confirm the fine-mapping QTL result for blood and meat spots, association was tested in two independent commercial pure lines with more detailed phenotypic traits. Different sets of SNP markers were used depending on their information content in the respective population. In the Lohmann Brown (LB) population, hens were genotyped for the microsatellite MCW241 and minisequenced for a candidate gene SNP (rs10724503) (called herein ZO-2 snupe). Additional analyses with 15 SNPs were done with a subset of phenotypically extreme hens from the LB (Table 3). From Hy-Line, a White Plymouth Rock pure line, 290 sires were genotyped with one microsatellite marker (MCW241) and 5 SNP markers from the QTL area. The marker associations with different inclusion traits were conducted separately for each marker (Table 5). The associations in the LB population were estimated with the software package DMU [29], which enabled exploitation of a mixed linear model and inclusion of population structure.
In the Hy-Line population, the marker-trait association was analysed using a linear model with the method of least squares in SAS [30]. Depending on the trait tested T-test, Wilcoxon Rank Sum, or Fisher’s exact test was implemented to find association between phenotypic traits and markers.
