High fidelity CRISPR/Cas9 increases precise monoallelic and biallelic editing events in primordial germ cells

The chicken is a useful animal model for biological research and can be used to produce biopharmaceutical products that cannot be produced in mammalian bioreactor systems. Chicken meat and eggs derived from 70 billion chickens yearly are an important source of high quality protein, vitamins and minerals in the global economy. The ability to precisely edit the chicken genome to introduce or test genetic variants will aid the study of gene function, define combinatorial allelic contribution to disease resistance/resilience and production phenotypes and will lead to the uncovering of beneficial alleles which could be introduced into breeding programmes for the improvement of poultry welfare and sustainable production.

The application of precision genome editing to bird species has failed to keep pace with that of other mammalian species. In mammals, germline genetic engineering may be achieved through pronuclear injection of the zygote, injection of genetically modified embryonic stem cells into the blastocyst, and somatic cell nuclear transfer of genetically modified somatic cells (SCNT). These methods are not regularly practised in bird species because the single-cell zygote is difficult to access and manipulate and cultured avian embryonic stem cells do not contribute to the formation of the germ lineage. In contrast to other species, heritable genetic changes may be introduced into chicken through the genetic manipulation of primordial germ cells (PGCs), the stem cell precursors of the sperm and egg, which can be propagated in culture and will contribute to the germline when reintroduced into surrogate host chick embryos.

Targeted genetic modification in chicken PGCs was first demonstrated through classical gene targeting by homologous recombination (HR) to generate immunoglobulin-knockout chickens. The observation that DNA Double-stranded breaks (DSBs) stimulate and increase the frequency of HR led to the development of artificial site-specific nucleases including ZFNs, TALENs and CRISPR/Cas9 with the goal of improving the efficiency of site-specific gene targeting14,15. Artificial site-specific nucleases are guided to a specific genomic site by programmable DNA-binding modules where they create a DSB. Te cleaved DNA is immediately repaired by either non-homologous end-joining (NHEJ) or the HR pathway16–18. NHEJ is the predominant pathway that repairs DSBs that occur in all phases of the cell cycle and often leads to the generation of insertion/deletion (INDEL) mutations19. Te HR or homology-directed repair (HDR) pathway is active in the S and G2 phase of the cell cycle and is used to repair a double-stranded DNA break when there is an available DNA donor containing a region that is homologous to the region surrounding the severed DNA ends. The high fidelity of HDR is constrained by the nucleotide composition of the repair template and this constraint is exploited in genome engineering to introduce a desired nucleotide change. TALENs and CRISPR/Cas9-mediated NHEJ have been used to produce several knockout-chickens through the generation of INDELs in chicken PGCs. Homologous recombination mediated by TALENs and CRISPR/Cas9 have also been performed in chicken PGCs to introduce targeted transgenes. However, the use of site-specific nucleases to perform precision editing of a single to few nucleotides has not been demonstrated in avian species.

Genome editing mediated by CRISPR/Cas9 and short single stranded oligodeoxynucleotides (ssODN) donors has been used to perform small precise genetic changes in many cell types and organisms26–37 and in a chicken somatic cell line38. However, use of ssODN donors for gene correction can be toxic to cells by causing a G2/M cell cycle arrest39, and activating cellular immune responses40. HDR targeting, therefore, requires careful optimization for each cell type. Following CRISPR/Cas9-induced DSBs, DNA repair with ssODN donors occurs through the synthesis-dependent strand annealing (SDSA) pathway of HDR41. However, the accuracy of HDR editing may be distorted by the incorporation of INDELs at the target site in a second round of repair due to re-cleaving by CRISPR/Cas942,43. Previous studies have shown that the introduction of Cas9-blocking mutations in the PAM are effective in preventing re-editing of genetic loci while blocking mutations positioned in the gRNA target sequence have variable efcacy35.

High fidelity CRISPR/Cas9 nucleases with improved specificity have been developed to reduce the frequency of off-target events associated with wild type Streptococcus pyogenes Cas9 (SpCas9-WT)44–46. These high fdelity Cas9 variants harbour amino acid substitutions that significantly reduce activation of cleavage at target sites that are not perfectly complementary to the gRNA sequence. Here, we investigated a high fidelity Cas9 variant, SpCas9-HF145, for introducing defined nucleotide changes in chicken PGCs using ssODN donors. First, we optimised the use of ssODN donors as repair templates for CRISPR/Cas9-mediated HDR in cultured chicken PGCs. We then directly compared HDR editing between SpCas9-WT and SpCas9-HF1 using ssODN donors containing CRISPR/Cas9-blocking mutations positioned in the PAM and show that many loci in chicken PGCs can be efficiently edited using SpCas9-HF1. Using ssODN donors containing mutations in the guide sequence only, we also showed that SpCas9-HF1 is more efficient than SpCas9-WT in introducing precise genome edits in the absence of CRISPR/Cas9-blocking mutation in the PAM. We subsequently used a eGFP-to-BFP conversion assay47 to directly compare HDR mediated by SpCas9-WT and SpCas9-HF1 and found that SpCas9-HF1 increases the efficiency of accurate HDR editing while reducing INDEL formation at the target site. Finally, we combined SpCas9-HF1 and ssODN donors to demonstrate precise biallelic and monoallelic introduction of the chicken scaleless genetic variant associated with the heat tolerance featherless phenotype by introducing two defined nucleotide substitutions into the FGF20 gene48–50. Our results demonstrate the use of high fidelity CRISPR/Cas9 variants to perform precise HDR genome editing with high efficiency in chicken PGCs.

Results

High fidelity Cas9 variant, SpCas9-HF1, shows efficient HDR editing in chicken PGCs.

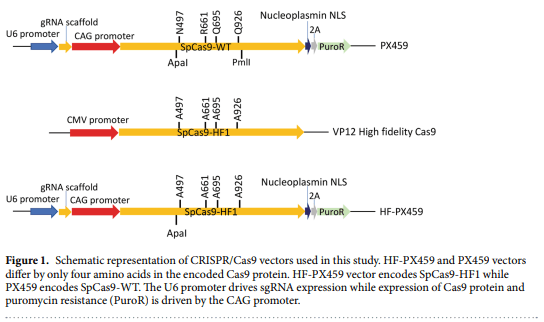

We first tested SpCas9-WT and high fidelity SpCas9-HF1 to edit multiple loci in chicken PGCs. SpCas9-HF1 contains 4 amino acid substitutions that prevent activation of the nuclease at mismatched targets45. To directly compare SpCas9-HF1 and SpCas9-WT, we transferred the codon-changing mutations from the VP12 vector which encodes SpCas9-HF1 into PX459 vector which encodes a mammalian-codon optimised SpCas9-WT as well as puromycin resistance33 (Fig. 1). We named this modified vector HF-PX459.

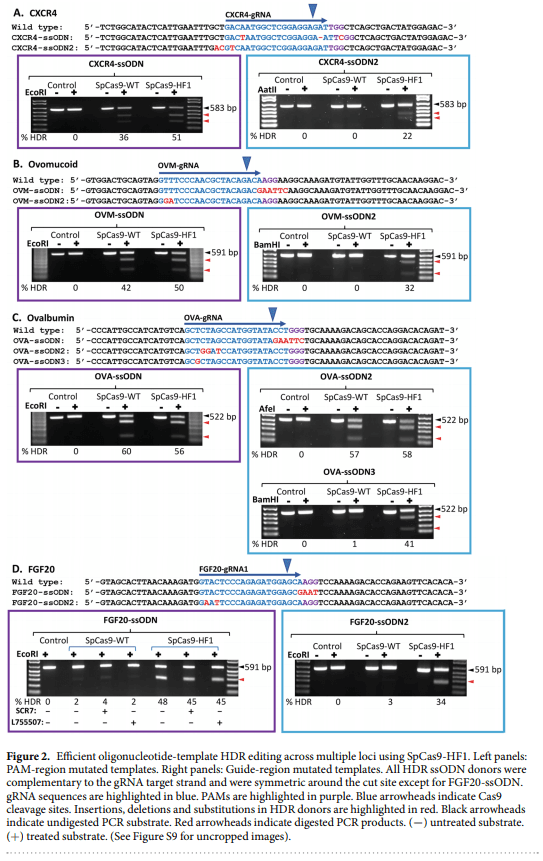

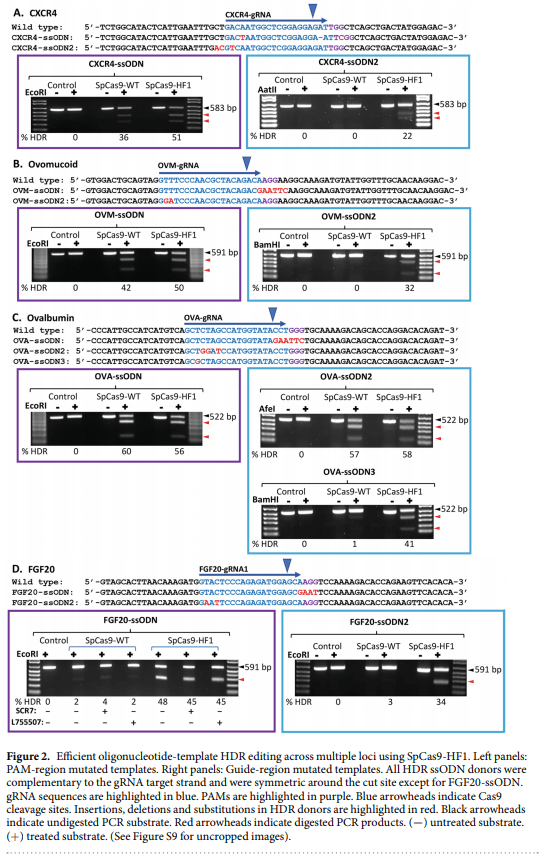

To compare HDR editing between SpCas9-WT and SpCas9-HF1 in chicken PGCs, we designed gRNAs to target exon 3 of FGF20 (FGF20-gRNA1) and exon 2 of CXCR4 (CXCR4-gRNA), and used previously described gRNAs to target exon 3 of ovalbumin (OVA) and exon 1 of ovomucoid (OVM) (OVA-gRNA for ovalbumin and OVM-gRNA for ovomucoid)23 (Fig. 2). In order to directly analyse HDR efficiency without sequencing PCR products, we used antisense repair templates that introduce an EcoRI recognition site for RFLP analysis51,52. CXCR4 is expressed in chicken PGCs while FGF20, ovalbumin and ovomucoid are transcriptionally inactive. To target each locus, we used ssODN donors containing mutations of the gRNA seed sequence and PAM to insert an EcoRI recognition sequence (122-nt CXCR4-ssODN for CXCR4, 126-nt FGF20-ssODN for FGF20, 127-nt OVA-ssODN for ovalbumin and 128-nt OVM-ssODN for ovomucoid; Fig. 2). We co-transfected the corresponding ssODN donor and gRNA with SpCas9-HF1 or SpCas9-WT into PGCs and then treated with puromycin to select for Cas9-transfected cells. We performed two independent targeting experiments for each locus. To analyse HDR, we PCR amplified the target site and performed EcoRI RFLP digest assay on the PCR products to estimate HDR efficiency. In CXCR4, we observed an average HDR efficiency of 50.5% in PGCs targeted with SpCas9-HF1 and 35.5% with SpCas9-WT (Fig. 2A and Supplementary Fig. S2). For ovomucoid, the average HDR efficiency was 42.5% using SpCas9-HF1 and 39.5% with SpCas9-WT (Fig. 2B and Supplementary Fig. S2), whereas the average HDR efficiency was 63.5% with SpCas9-HF1 and 62.5% with SpCas9-WT for ovalbumin (Fig. 2C and Supplementary Fig. S2). For FGF20, we also tested the NHEJ inhibitors, SCR7 and L755507, reported to increase HDR efciency34,53. We observed an average HDR efficiency of 48.5% and 3.5% with SpCas9-HF1 and SpCas9-WT respectively without using NHEJ inhibitors while no HDR improvement was observed with either SCR7 or L755507 treatment (Fig. 2D and Supplementary Fig. S2). Tus, NHEJ inhibitors do not increase targeting efficiency in PGCs and targeting efficiencies were equal or slightly better using SpCas9-HF1 in combination with donor containing PAM mutations.

High fidelity CRISPR/Cas9 increases precise monoallelic and biallelic editing events in primordial germ cells - Image 1

We next tested whether introducing single-nucleotide blocking mutations into the PAM-distal region of the gRNA target sequence was sufficient to achieve high HDR without introducing a blocking mutation in the PAM. Cleavage activity of Cas9 was shown to be severely reduced when mismatches are present in the seed region (first 8–12 nucleotides proximal of the PAM) of the gRNA target sequence54–57. However, mismatches were tolerated in the PAM-distal non-seed region of the gRNA target and are associated with off-target mutagenesis by SpCas9-WT58–60. To test the efficiency of accurate HDR when introducing single nucleotide mutations into the non-seed region of the gRNA target sequence, we designed ssODN donors containing one to three substitutions of the last 14–20 PAM-distal nucleotides (120-nt CXCR4-ssODN2 for CXCR4, 128-nt OVM-ssODN2 for ovomucoid, 127-nt OVA-ssODN2 for ovalbumin, 127-nt OVA-ssODN3 for ovalbumin and 126-nt FGF20-ssODN2 for FGF20; Fig. 2, right panels). The substitutions introduce a restriction site for RFLP analysis. We transfected and analysed cells as above. For CXCR4, we observed an average HDR efficiency of 17.5% using SpCas9-HF1 and 0.0% with SpCas9-WT when CXCR4-ssODN2 was supplied as repair template (Fig. 2A and Supplementary Fig. S2). For ovomucoid, the average HDR efficiency was 34.0% using SpCas9-HF1 and 0.5% with SpCas9-WT when OVM-ssODN2 was supplied as repair template (Fig. 2B and Supplementary Fig. S2). For ovalbumin, the average HDR efficiency was 58.5% using SpCas9-HF1 and 53.5% using SpCas9-WT when OVA-ssODN2 was supplied as repair template (Fig. 2C and Supplementary Fig. S2). When OVA-ssODN3 was used as a repair template containing a single base pair change in the PAM distal guide region, we observed an average HDR efficiency of 43.5% using SpCas9-HF1 and 1.0% using SpCas9-WT (Fig. 2C and Supplementary Fig. S2). For FGF20, we observed an average HDR efficiency of 37.5% with SpCas9-HF1 and 3.5% with SpCas9-WT when FGF20-ssODN2 was supplied as repair template (Fig. 2D and Supplementary Fig. S2). We also compared symmetrical and asymmetrical ssODNs as well as a double stranded repair template carried in plasmid but observed similar levels of HDR at FGF20 (data not shown). Our results show that SpCas9-HF1, in comparison to SpCas9-WT, is effective for achieving precise introduction of single nucleotide changes into the non-seed region of the gRNA target sequence. These results demonstrate the accuracy and versatility of SpCas9-HF1.

SpCas9-HF1 reduces INDEL formation at target site in comparison to SpCas9-WT.

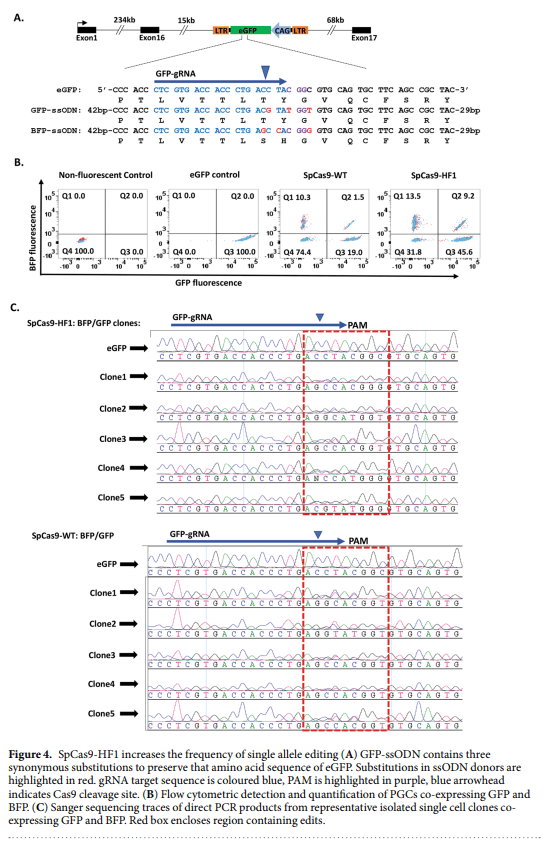

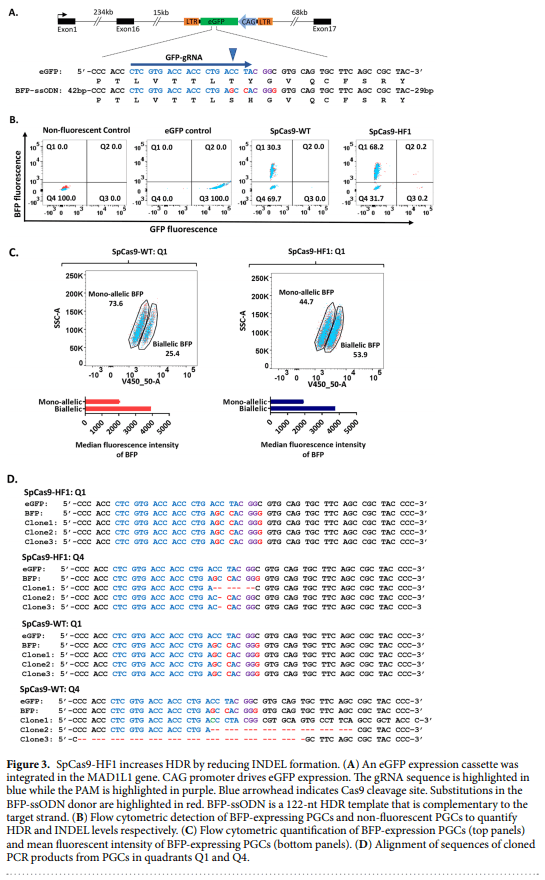

To better quantitate HDR and INDEL formation mediated by SpCas9-WT and SpCas9-HF1, we used an assay that converts enhanced green fluorescent protein (eGFP) to blue fluorescent protein (BFP) after editing events47. The eGFP-to-BFP conversion assay simultaneously quantifies total HDR and NHEJ events in a targeted population. We targeted PGCs isolated from homozygous transgenic chicken ubiquitously and constitutively expressing eGFP (GFP-PGCs; Fig. 3A) with a validated gRNA (GFP-gRNA) which was co-delivered with SpCas9-WT or SpCas9-HF1 and a ssODN donor carrying three nucleotide substitutions (BFP-ssODN; Fig. 3A) designed to convert eGFP to BFP47. In this case, the 20 nucleotide GFP-gRNA begins with a C nucleotide which reduces transcription from the U6 promoter61. BFP-ssODN donor contains a C-to-G substitution that converts Treonine (T) to Serine (S), a T-to-C substitution that converts Tyrosine (Y) to Histidine (H) and a synonymous T-to-G substitution. The C-to-G substitution (the 1st nucleotide of the gRNA seed sequence) and the T-to-C substitution (1st nucleotide of the PAM) serve as Cas9-blocking mutations to prevent re-editing and increase HDR accuracy of SpCas9-WT. eGFP is converted to BFP by a Y66H amino acid substitution. Error-free editing of the eGFP sequence will lead to the expression of BFP while the presence of INDELs, even after recombinational repair, will result in no BFP or eGFP expression due to a shift in the reading frame. Before transfection, 99.9% of gated living cells expressed eGFP. Transfection with SpCas9-WT vector resulted in 30.3% of PGCs expressing BFP and the remaining 69.7% did not express GFP indicating INDEL formation. In contrast, transfection with SpCas9-HF1 vector resulted in 68.2% of PGCs expressing BFP and the remaining 31.7% did not express eGFP (Fig. 3B). The HDR and INDEL levels obtained with SpCas9-WT in this assay are consistent with reports by other researchers using human cell lines47,62. Two distinct populations of BFP-expressing PGCs were observed for both SpCas9-WT and SpCas9-HF1 (Fig. 3C, top panel) and determined their median fluorescent intensity (MFI). We determined that the population with the lower MFI of approximately 2000 units was monoallelic for BFP and contained INDELs on the second GFP allele while the population with an MFI of approximately 4000 units was biallelic for BFP by TIDE analysis63 of the PCR sequencing traces of these populations (Fig. 3C, bottom panel, Supplementary Fig. S3). Interestingly, we noticed that the proportion of BFP PGCs transfected with SpCas9-HF1 that was biallelic for BFP was 53.9% while 44.7% was monoallelic for BFP. For PGCs transfected with SpCas9-WT, 25.4% of BFP PGCs was biallelic for BFP while 73.6% was monoallelic for BFP. This indicates that SpCas9-HF1 increases the efficiency of biallelic HDR by up to two-fold by reducing INDEL formation. Also, the absence of PGCs expressing only eGFP or co-expressing eGFP and BFP is indicative of the high mutagenic activity of CRISPR/Cas9 and is similar to previous observation47,62. Our results show that using SpCas9-HF1 with ssODN donors containing Cas9-blocking mutations positioned in the gRNA sequence increases HDR levels by more than 2-fold with a concomitant decrease in INDEL formation in comparison to SpCas9-WT.

High fidelity CRISPR/Cas9 increases precise monoallelic and biallelic editing events in primordial germ cells - Image 2

High fidelity CRISPR/Cas9 increases precise monoallelic and biallelic editing events in primordial germ cells - Image 3

SpCas9-HF1 efficiently introduces heterozygous biallelic edits in comparison to SpCas9-WT.

In the experiment above (Fig. 3), we observed that less than 0.2% of PGCs were heterozygous for eGFP and BFP using SpCas9-HF1 while no BFP-eGFP heterozygotes were obtained using SpCas9-WT. This observation reflects the experimental difficulty in generating specific heterozygous mutations since most CRISPR/Cas9 editing events are biallelic and cells with monoallelic HDR edits usually contain INDELs on the second allele35,64. A strategy that has been employed for editing single alleles in human IPS cells uses a mixture of two ssODN donor templates containing Cas9-blocking mutations with an observed efficiency of 0.1%35. Since SpCas9-HF1 increases HDR levels as well as the efficiency of biallelic HDR by reducing INDEL formation (Fig. 3B and C), we reasoned that SpCas9-HF1 could increase the efficiency of editing individual alleles using two ssODN donors. We compared SpCas9-WT and SpCas9-HF1 by performing eGFP-to-BFP editing of single eGFP alleles in GFP-PGCs to produce eGFP/BFP heterozygote cells. We designed a second repair template (GFP-ssODN) containing three synonymous nucleotide substitutions to preserve the amino acid sequence of eGFP (Fig. 4A). GFP-PGCs were then transfected with SpCas9-WT or SpCas9-HF1 vectors and equimolar amounts of GFP-ssODN and BFP-ssODN donors and then analysed by flow cytometry for expression of BFP and eGFP. The results from two independent experiments are shown in Fig. 4B. 1.5% of PGCs targeted with SpCas9-WT co-expressed eGFP and BFP while 9.2% of PGCs targeted with SpCas9-HF1 were eGFP/BFP co-expressing cells refecting an almost 7-fold increase in HDR frequency in comparison to SpCas9-WT. Direct sequencing of PCR products from single-cell clones co-expressing eGFP and BFP confirmed incorporation of nucleotide changes in ssODN donors into the individual eGFP alleles (Fig. 4C). Similar to our previous result (Fig. 3B), we observed that 74.4% of PGCs targeted with SpCas9-WT did not express eGFP or BFP in comparison to 31.8% for PGCs targeted with SpCas9-HF1 (Fig. 4B). These results illustrate that SpCas9-HF1 increases the frequency of editing individual alleles by increasing HDR efficiency while reducing INDEL formation.

Precise biallelic introgression of a genetic variant into chicken PGCs.

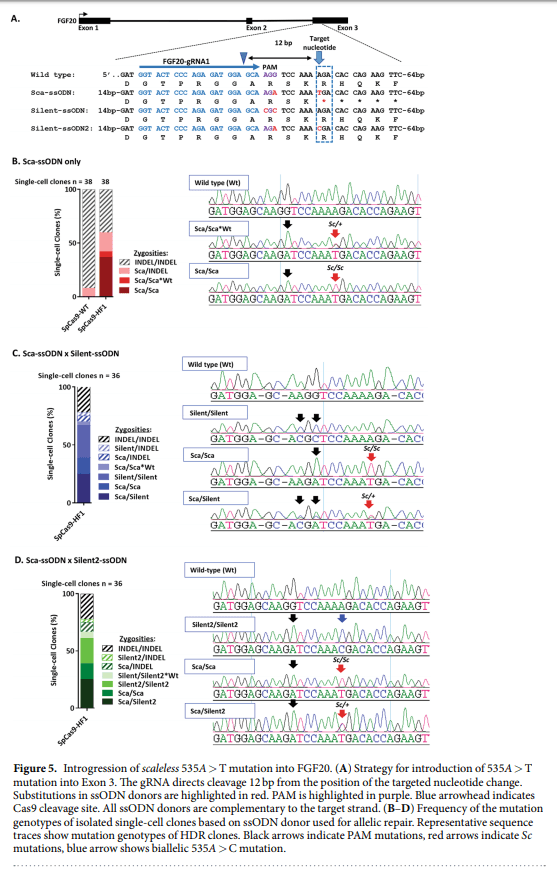

We next demonstrated the introgression of specific genetic variants into PGCs. The scaleless mutation (sc/sc) is a single A-to-T substitution in exon 3 of FGF20 (535A>T) which creates a premature stop codon resulting in a truncated FGF20 protein that leads to a complete loss of feather development48. We selected three gRNAs (Supplementary Fig. S1) targeting for the location of the scaleless variant but only gRNA1 (FGF20-gRNA1) containing a cut site that is 12bp away from the target nucleotide was active with both SpCas9-WT and SpCas9-HF1 (Fig. 5A and Supplementary Fig. S1). We designed an ssODN donor (Sca-ssODN) containing a Cas9-blocking synonymous point mutation in the PAM (AGG→AGA) and the scaleless mutation (535A >T) which was 6 bp downstream of the 3′ end of the PAM (Fig. 5A). We anticipated that the 12 bp distance from the cut site to the edit site (cut-to-edit distance) would reduce editing accuracy. It has previously been shown that the efficiency of heterologous DNA incorporation is reduced as the distance between the site of edit and Cas9 cleavage site increases and the highest efficiency is achieved within a distance of 8 to 10 bp27,35,65. To address the cut-to-edit distance, we used an asymmetric design for the ssODN donor containing a left homology arm (HA) of 36 bp and right HA of 91 bp to provide increased homology on the side containing the edited PAM and the 535A>T mutation. This asymmetric repair template design was previously described to increase HDR efficiency in human HEK293 and K562 cell lines by up to 60%66.

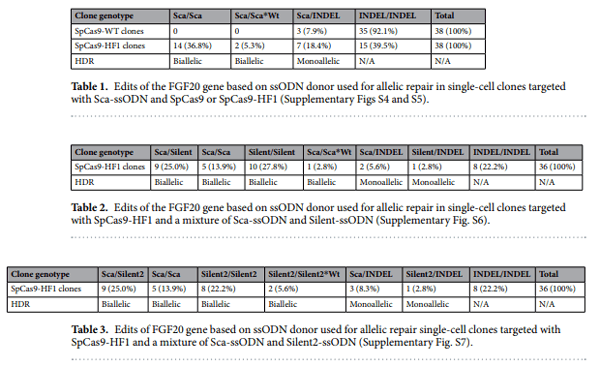

To introduce the 535A>T (sc/sc) gene variant, we transfected PGCs with FGF20-gRNA1 and SpCas9-HF1 or SpCas9-WT with Sca-ssODN and then sequenced PCR products directly from 38 single-cell clonal populations isolated from two independent experiments to analyse their mutational status and zygosity. The results are shown in Table 1 and Fig. 5B.

We found that 7.9% of isolated clones transfected with SpCas9-WT contained precise monoallelic introduction of the PAM substitution and the scaleless mutation on one chromosome while the other chromosome contained INDELs. The other 92.1% of isolated clones contained INDELs on both chromosomes with no incorporation of the scaleless mutation. We note that this frequency is much higher than the INDEL frequency measured for this guide using the T7 endonuclease I assay (Fig. S1). We attribute this difference to inefficiencies of the T7 endonuclease I assay67. In contrast, 41.8% of single-cell clones transfected with SpCas9-HF1 were precise biallelic HDR clones. We discovered that 36.8% of the SpCas9-HF1 clones contained accurate biallelic incorporation of the PAM substitution and the 535A>T (sc/sc) mutation (Fig. 5B). We also noted that the PAM and 535A>T mutation was incorporated into only one chromosome (sc/+) in two SpCas9-HF1 clones (5.3% of isolated clones), while the second chromosome only contained the PAM substitution. Furthermore, we observed that 18.4% of the total SpCas9-HF1 clones were precise monoallelic HDR clones containing the PAM substitution and 535A>T mutation on one chromosome while the other chromosome contained INDELs. The high rate of biallelic editing is similar to observations in human IPSCs and mouse ES cells targeted with SpCas9-WT35,64. We noted that the 535A>T mutation was incorporated into 37 out of 39 HDR alleles (94.9%) in SpCas9-HF1 clones.

We next attempted to introduce the 535A>T gene variant into a single allele (sc/+) by providing two repair templates. Our previous result (Fig. 4B) showed that SpCas9-HF1 increases the overall efficiency of editing individual alleles using two ssODN donors whereas isolation of biallelically edited heterozygotes was barely detectable when SpCas9 was used. Consequently, we only tested SpCas9-HF1 in the following experiment. We designed two donors to introduce silent mutations on one allele while incorporating the 535A>T mutation into the second allele using Sca-ssODN (Fig. 5A). The first silent donor (Silent-ssODN) contained 2 synonymous substitutions in the PAM (AGG→CGC) to preserve the FGF20 amino acid sequence. In the second silent donor (Silent2-ssODN), the PAM mutation was the same as in Sca-ssODN (AGG→AGA) while a synonymous substitution 535A>C was made in the same position as the 535A>T mutation 12 bp from the cleavage site to maintain the cut-to-edit distance between templates. Since Silent-ssODN showed more complementarity to the target region than Sca-ssODN due to the 535A>T substitution, we asked whether the two silent repair templates would be used at different frequencies for allelic repair when used with Sca-ssODN

High fidelity CRISPR/Cas9 increases precise monoallelic and biallelic editing events in primordial germ cells - Image 4

High fidelity CRISPR/Cas9 increases precise monoallelic and biallelic editing events in primordial germ cells - Image 5

High fidelity CRISPR/Cas9 increases precise monoallelic and biallelic editing events in primordial germ cells - Image 6

We transfected SpCas9-HF1 with FGF20-gRNA1 and an equimolar mixture of Sca-ssODN donor and Silent-ssODN (Sca-ssODN/Silent-ssODN mixture) or an equimolar mixture of Sca-ssODN and Silent2-ssODN (Sca-ssODN/Silent2-ssODN mixture) for comparison. We performed two independent experiments and isolated a total of 18 single-cell clonal populations in each experiment. The results are shown in Tables 2 and 3 and Fig. 5C,D.

Biallelic HDR editing with the co-incorporation of PAM mutations into the two alleles was observed in 69.5% of the clones targeted with the Sca-ssODN/Silent-ssODN mixture in contrast to 55.5% observed with the Sca-ssODN/Silent2-ssODN mixture (Fig. 5C). Remarkably, 25% of the clones contained the heterozygous edit for 535A>T (sc/+) in which the two alleles were independently repaired by the two ssODN templates (Sca/Silent and Sca/Silent2; Tables 2 and 3). 13.9% of the isolated clones targeted with the Sca-ssODN/Silent-ssODN mixture were biallelically repaired by Sca-ssODN (Sca/Sca) whereas 25.0% of the clones were biallelically repaired by Silent-ssODN (Silent/Silent) (Table 2 and Fig. 5C). One clone (Sca/Sca*Wt) was biallelically repaired by Sca-ssODN and was homozygous for the PAM substitution but heterozygous for 535A>T (sc/+) indicating partial introduction of edits in one chromosome (Table 2). We noted that 30 out of the 53 HDR alleles (56.6%) were repaired by Silent-ssODN when Sca-ssODN and Silent-ssODN were used together. Similarly, Silent2-ssODN repaired 57.7% of the 52 HDR alleles generated when it was used with Sca-ssODN. Using Sca-ssODN and Silent2-ssODN together, we also observed that 22.2% of the total isolated clones were biallelically repaired by Silent2-ssODN (Silent2/Silent2) while 13.9% were biallelically repaired by Sca-ssODN (Sca/Sca and Sca/Sca*Wt). We identified 2 clones biallelically harbouring the AGG→AGA PAM substitution on the two alleles but containing 535A>C mutation on only one allele indicating partial introduction of edits. While the proportion of biallelically edited heterozygous clones were the same using the two ssODN donor mixtures (Sca-ssODN/Silent-ssODN and Sca-ssODN/Silent2-ssODN mixtures), we observed that clones with monoallelic HDR contained INDELs on the other allele. The 535A>T substitution was incorporated into 22 out of 23 HDR alleles (95.7%) repaired by Sca-ssODN in clones targeted with Sca-ssODN/Silent-ssODN mixture. Similarly, the 535A>T substitution was incorporated into all 22 HDR alleles (100.0%) repaired by Sca-ssODN in clones targeted with Sca-ssODN/Silent2-ssODN mixture.

Discussion

The validation of many genotypes requires the accurate creation of specific biallelic or monoallelic combinations by the introduction of single to several nucleotide changes. Building on previous work, our results illustrate an efficient strategy for introducing defined sequence changes into PGCs using the CRISPR/Cas9 system. We show that ssODNs serve as efficient donors for precision genome editing in chicken PGCs. To the best of our knowledge, this has not been previously demonstrated for avian species or for germline stem cells. Following CRISPR/ Cas9-induced DSBs, DNA repair with ssODN donors occurs through the synthesis-dependent strand annealing (SDSA) pathway41. We observe that HDR efficiencies with ssODN donors in chicken PGCs are up to 5-fold higher than previously reported using double stranded templates24,25. Previous reports show that Cas9 activity may be repressed in transcriptionally inactive targets in heterochromatin and nucleosomal DNA68–70. We found that HDR efficiency was unaffected by the transcriptional state of the targeted gene in PGCs (Fig. 2).

Similar to a recent report in human cells71, we observed using the GFP-to-BFP conversion assay that SpCas9-HF1 increases HDR levels while reducing INDEL formation (Figs 3 and 4). Since enhanced specificity Cas9 variants discriminate against targets bearing mismatches in the non-seed region of the gRNA target and prevent nuclease activation44–46, the higher HDR efficiency observed with SpCas9-HF1 in our results can be attributed to the high fidelity of the nuclease which proof-reads the gRNA target sequence before activating cleavage, thereby reducing re-editing of the repaired target site and leading to higher levels of HDR in the two alleles and lowering INDEL formation. As a consequence, base pair changes can be efficiently introduced into the non-seed sequence of the guide region using SpCas9-HF1 without introducing a blocking mutation into the neighbouring PAM site (Fig. 2). This enhancement in HDR accuracy by SpCas9-HF1 directly increases the efficiency of editing single alleles to generate PGCs with specific heterozygous genotypes (Figs 4 and 5C,D).

In human IPS cells, use of SpCas9-WT and ssODN donors containing appropriate CRISPR/Cas9-blocking mutations positioned in the PAM site increased HDR levels by up to a 100-fold while mutations positioned in the gRNA target sequence showed variable efcacy35. At this observed efficiency, one correctly edited homozygous clone was isolated for every 20 to 40 single-cell clones targeted using a single ssODN template, whereas hundreds of single cell clones were needed to isolate a biallelically edited heterozygous clone repaired using two ssODN templates35. In contrast to these results, using a single ssODN repair template containing CRISPR/Cas9-blocking PAM mutations and SpCas9-HF1 to introduce the scaleless mutation into the FGF20 locus, we found that 4 to 5 correctly edited clones were isolated for every 10 clones screened. In contrast, we were unable to isolate a clone with precise biallelic HDR using SpCas9-WT from the number of clones that we screened which suggests that many more clones will need to be picked. In our attempt to introduce the scaleless mutation into one allele (sc/+), we were able to isolate 2 correctly edited clones containing heterozygous biallelic edits for every 10 clones screened. It must be noted that we performed single cell culturing in a growth-factors-optimised, serum-free and feeder-free culture medium11. In our protocol, chicken PGCs proliferate more rapidly (21-hr doubling time) than the PGCs cultured in high-serum chicken PGC medium10.

A major requirement for the use of SpCas9-HF1 is that the 20-nt gRNA sequence must be perfectly complementary to the genomic target to achieve high on-target editing efciency45. When using the U6 promoter to drive sgRNA expression, the requirement for a 5′- G base in the sgRNA sequence limits the use of SpCas9-HF1 in targets that do not have a 5′G, and adding an extra G significantly reduces on on-target efciency45,72. However, it has been shown that using alternative promoters such as the U3 promoter to express sgRNA, expressing sgRNAs from synthetic tRNA-sgRNA constructs or using hammerhead ribozyme-linked sgRNAs leads to similar levels of on-target efficiencies SpCas9-WT72,73.

In targeting the FGF20 gene with SpCas9-HF1, we found that the scaleless 535A>T nucleotide change located 6bp downstream of the PAM and 12 bp away from the cut site of the gRNA was incorporated biallelically at a rate of >90% in isolated HDR clones containing PAM mutations. In comparison to our results, a 12 bp cut-to-edit distance was shown to result in <20% biallelic incorporation of the edit in biallelic HDR clones in human IPS cells35. Surprisingly, we also observed that all INDEL clones targeted using SpCas9-WT and Sca-ssODN did not contain the 535A>T substitution or PAM mutation suggesting that these clones never underwent HDR editing event. The only CRISPR/Cas9-blocking mutation in the Sca-ssODN template is a single nucleotide substitution in the PAM (AGG→AGA) which may not be sufficient to block re-cutting of the repaired site by Cas9. It has been shown in human cells that NGA PAMs may have up to 40% activity in some loci74,75. Interestingly, we also observed that some clones contained the 535A>T substitution on only one allele while the PAM mutation was present on the two alleles suggestive of partial or incomplete HDR and has been reported by others27,31,35. This may be indicative of a cut-to-distance dependence mechanism in the incorporation of single nucleotide edits in chicken PGCs as previously reported in human cells and mouse zygotes27,35. Furthermore, we observed that Silent-ssODN was used more frequently for allelic repair when it was mixed with Sca-ssODN whereas Silent2-ssODN and Sca-ssODN were used at almost equal frequency. The absence of the distal mutation 12 bp away from the cut site in Silent-ssODN may have favoured this donor and has been previously observed in human cells35. Also, we did not see any evidence of template switching for allelic repair between Sca-ssODN and Silent-ssODN which has been reported to occur in human cells41. While we used an asymmetric ssODN donor to introduce scaleless 535A>T nucleotide change into FGF20 (Fig. 5A) based on the reported ability of this template design to increase HDR66, we are unable to tell from our results if asymmetric repair templates are more efficient than symmetric templates in enhancing HDR in chicken PGCs and therefore may require further investigation. We also tested the use of SCR7 and L755507 to increase HDR in PGCs but we did not observe any improvement or toxicity. SCR7 and L755507 are small molecules reported to increase CRISPR-mediated HDR by inhibiting NHEJ in some cell types34,53. Concentration of these inhibitors may need to be optimised for PGCs. Use of these inhibitors and other reported HDR enhancers such as RS-176 merit further investigation in PGCs.

Why we do observe such high HDR rates in avian PGCs using SpCas9-HF1? It is possible that many PGCs targeted with SpCas9-WT do not survive due to the induction of another round of cleavage of the HDR-edited site. Germ cells from many vertebrate species have been shown to undergo programmed cell death when exposed to reagents causing DSBs as a mechanism to protect the integrity of the germline genome77–81. In our experiments, we used plasmid delivery of SpCas9-WT which has been shown to have some toxicity in human embryonic stem cells compared to ribonucleoprotein (RNP) delivery82. In human pluripotent stem cells, it has been reported that the induction of a single DSB by SpCas9-WT is toxic even in the absence of the induction of multiple DSBs or off-target mutagenesis83. This toxicity is P53-dependent and the induction of P53 by Cas9 leads to apoptosis or cell cycle arrest in the G1 phase where NHEJ is predominant thereby reducing the efficiency CRISPR/Cas9 precision genome editing83,84. Depending on the gRNA and loci, the sustained expression of SpCas9-WT from a plasmid increases the potential for re-cleaving of HDR-edited chromosomal targets as well as off-target mutagenesis.

Since the SpCas9-WT nuclease spends up to 6 hrs tightly bound to the cut ends of the DNA duplex66, the long residence time coupled with the high cleavage activity of SpCas9-WT probably increases the severity of genotoxic insult by preventing DNA repair, which may result in a stalled replication fork leading to cell cycle arrest or apoptosis and a decrease in overall HDR events. Indeed, inhibition of P53, a pro-apoptotic protein that is activated by DNA damage85, has been shown to increase the rate of HDR in human cells by preventing DNA damage response that results in apoptosis and allowing the cell cycle to progress83,84.

Conclusion

Our results demonstrate possible rapid introgression of specific haplotypes into primordial germ cells. These genomic tools will allow the validation of SNP and other chromosomal changes in poultry.

This article was originally published in Scientific Reports (2018) 8:15126. DOI:10.1038/s41598-018-33244-x. This is an Open Access article licensed under a Creative Commons Attribution 4.0 International License.
