Biocontrol of Fusarium graminearum sensu stricto, Reduction of Deoxynivalenol Accumulation and Phytohormone Induction by Two Selected Antagonists

Published: October 6, 2020
By: Juan Palazzini 1, Pablo Roncallo 2, Renata Cantoro 1, María Chiotta 1, Nadia Yerkovich 1, Sofía Palacios 1, Viviana Echenique 2, Adriana Torres 1, María Ramirez 1, Petr Karlovsky 3 and Sofía Chulze 1.
Summary

Author details:

1 Department of Microbiology and Immunology, Faculty of Exact Sciences, National University of Río Cuarto, Route 36 Km 601, Río Cuarto, Córdoba 5800, Argentina; 2 CERZOS-CONICET, Department of Agronomy, UNS–CCT CONICET Bahía Blanca, Camino de la Carrindanga Km 7, Bahía Blanca 8000, Argentina; 3 Molecular Phytopathology and Mycotoxin Research, Georg-August-University, Grisebachstrasse 6, 37077 Goettingen, Germany.

Fusarium head blight (FHB) is a devastating disease that causes extensive yield and quality losses to wheat and other small cereal grains worldwide. Species within the Fusarium graminearum complex are the main pathogens associated with the disease, F. graminearum sensu stricto being the main pathogen in Argentina. Biocontrol can be used as part of an integrated pest management strategy. Phytohormones play a key role in the plant defense system and their production can be induced by antagonistic microorganisms. The aims of this study were to evaluate the effect of the inoculation of Bacillus velezensis RC 218, F. graminearum and their co-inoculation on the production of salicylic acid (SA) and jasmonic acid (JA) in wheat spikes at different periods of time under greenhouse conditions, and to evaluate the effect of B. velezensis RC 218 and Streptomyces albidoflavus RC 87B on FHB disease incidence, severity and deoxynivalenol accumulation on Triticum turgidum L. var. durum under field conditions. Under greenhouse conditions the production of JA was induced after F. graminearum inoculation at 48 and 72 h, but JA levels were reduced in the co-inoculated treatments. No differences in JA or SA levels were observed between the B. velezensis treatment and the water control. In the spikes inoculated with F. graminearum, SA production was induced early (12 h), as it was shown for initial FHB basal resistance, while JA was induced at a later stage (48 h), revealing different defense strategies at different stages of infection by the hemibiotrophic pathogen F. graminearum. Both B. velezensis RC 218 and S. albidoflavus RC 87B effectively reduced FHB incidence (up to 30%), severity (up to 25%) and deoxynivalenol accumulation (up to 51%) on durum wheat under field conditions.

Keywords: biocontrol; durum wheat; phytohormones; wheat defense modulation.

Key Contribution: Biocontrol agents reduce FHB incidence, severity and deoxynivalenol production on durum wheat; Biocontrol agents modulate resistance to Fusarium graminearum through phytohormone production.

1. Introduction
Wheat is the cereal most consumed worldwide. Both bread wheat (Triticum aestivum L.) and durum wheat (Triticum turgidum L. var. durum) can be affected by Fusarium head blight (FHB). Within the Fusarium graminearum species complex, Fusarium graminearum sensu stricto is the main pathogen associated with FHB in Argentina. During the last 60 years, several epidemics of FHB of varying degrees of severity have occurred in Argentina. During 2012, a severe FHB outbreak occurred in the main wheat growing area, with estimated losses of up to 70% [1]. The concern of this disease is due to the reduction in grain yield and quality and the potential for contamination with mycotoxins, mainly trichothecenes such as deoxynivalenol (DON) and its acetylated derivatives 3-acetyl-deoxynivalenol (3-ADON) and 15-acetyl-deoxynivalenol (15-ADON) and deoxynivalenol 3 –D-glucoside (DON-3-G) [2]. When humans or animals ingest food contaminated by this mycotoxin, DON can inhibit protein synthesis, cause immunomodulation, have reproductive effects and interfere with intercellular signaling [3,4].
Durum wheat, with a worldwide production of around 33 million tons, is an important small grain cereal, used for human consumption [5]. In Argentina, durum wheat is mainly used for pasta production. At the regional level, Argentina ranks second among pasta manufacturers in Latin America, behind Brazil and ahead of than Mexico. In the last few years, the national production of pasta has increased to 40% and in 2016 it reached 345,000 tons. The pasta consumption per capita was estimated as 8.95 kg year -1 [6]. Maximum permitted limits for deoxynivalenol in row and processed wheat have been established by the Commission Regulation and its amendments [7]. In particular, in durum wheat for human consumption the European Commission established that the maximum permitted levels of DON are 1750 g kg -1 for unprocessed grains and 750 g kg -1 for pasta.
Fusarium head blight is caused by infection during anthesis, which is facilitated under humid weather conditions. Different strategies are used to control the disease. The use of resistant cultivars is partially effective, but a resistant cultivar does not always show good agronomic traits. Fungicide application is another important strategy available for the management of FHB. The fungicides most widely used against FHB are triazoles such as metconazole, propiconazole, prothioconazole, and tebuconazole [8]. Although some fungicides can reduce FHB and the resulting accumulation of DON, the narrow time window for the application and the constraints of spraying technology limits the efficiency of the treatment [9,10]. Besides, the resistance of the Fusarium species to fungicides can reduce the effect of fungicide treatment [11].
Anthesis is the stage of the greatest susceptibility to FHB, as anthers are the common entry route into the plant [12]. Different biocontrol agents (BCAs) have been evaluated to reduce FHB, including bacteria of the genera Bacillus [13–18], Pseudomonas [17,19], Streptomyces [20] and Lysobacter [21]. Also, Cryptococcus species have shown antagonistic activity towards FHB pathogens [22,23]. Biocontrol of pathogens can be achieved through antibiosis, mycoparasitism, competition, and the induction of resistance in the host plant [24]. Recently, antagonistic activity of wheat endophytes against F. graminearum under in vitro assays was observed [25]. In previous studies, the biocontrol activity of Bacillus velezensis RC 218 and Streptomyces albidoflavus RC 87B under field conditions was demonstrated, but the performance of these BCA on durum wheat had not been evaluated [16,20,26].
The resistance responses of the active defense of plants against pathogens are mediated by phytohormones such as jasmonic acid (JA) and salicylic acid (SA) through a complex signaling pathways. JA-regulated mechanisms primarily trigger defense responses against necrotrophic pathogens while SA mechanisms are primarily activated by biotrophic pathogens. The mechanisms underlying resistance to necrotrophic and hemi-biotrophic pathogens are complex. The SA and JA defense pathways generally interact antagonistically in the resistance response [27]. The response of the phytohormone pathway in wheat to infection with F. graminearum has been evaluated [28,29] but the role of phytohormones in interactions involving pathogens, biocontrol agents and the host have been little explored [27].
The aims of this study were to evaluate the biocontrol activity of B. velezensis RC 218 and S. albidoflavus RC 87B on durum wheat to reduce FHB and the accumulation of DON and to study the roles of SA and JA in interactions between the host, antagonist (B. velezensis RC 218) and pathogen (F. graminearum).
2. Results

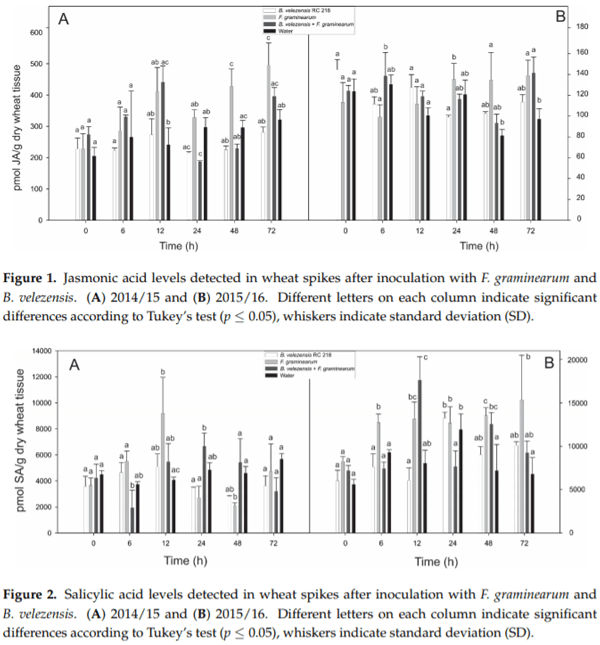

2.1. Jasmonic and Salicylic Acid Levels in Wheat Spikes Inoculated with Bacillus Velezensis RC 218 and Fusarium graminearum RC 276
Bacillus velezensis RC 218 (Bv) and F. graminearum RC 276 (Fg) were inoculated individually and co-inoculated (Bv+Fg) to spikes of a susceptible wheat variety BioInta 1005 during the anthesis period and the levels of jasmonic acid (JA) and salicylic acid (SA) were evaluated at different time points after inoculation. No differences in either JA or SA levels were observed when comparing spikes treated with B. velezensis (Bv) and water controls in both years (p > 0.05) (Figures 1 and 2).A significant increase of JA levels after inoculation with F. graminearum as compared to water controls was observed at 72 h after inoculation in the first year and at 48 h and 72 h after inoculation in the second year. Co-inoculation with Bv prevented this increase in both years (Figure 1).
Biocontrol of Fusarium graminearum sensu stricto, Reduction of Deoxynivalenol Accumulation and Phytohormone Induction by Two Selected Antagonists - Image 1
Early SA production was observed at 6 and 12 h in the Fg treatment in comparison to the water control, meanwhile lower levels were detected in the Bv+Fg treatment at the same time points. The early SA production at 6 and 12 h after Fg inoculation agree with the biotrophic stage of the pathogen. At the 72 h time point, no differences in SA levels were observed in the treatments evaluated (Figure 2). No clear response between Bv+Fg and Fg treatments was observed from 12 h and later sampling time points (Figure 2).

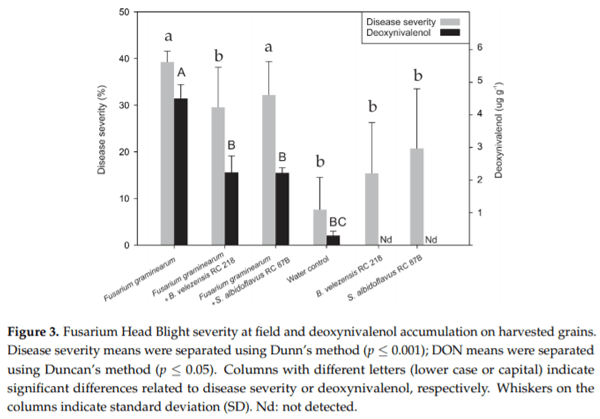

2.2. Biocontrol of Fusarium graminearum by B. Velezensis RC 218 and S. Albidoflavus RC 87B on Durum Wheat under Field Trial
The effectiveness of a formulated B. velezensis RC 218 product and S. albidoflavus RC 878B at reducing FHB incidence and severity, DON accumulation, F. graminearum DNA levels and Fusarium-damaged kernels (FDK) on harvested grains was evaluated under field trial. In the control treatment, F. graminearum showed 16 and 39% of FHB incidence and severity, respectively. Bacillus velezensis RC 218 biofungicide significantly reduced FHB incidence by 30% and FHB severity by 25% (p ≤ 0.05) (Figure 3). Streptomyces albidoflavus RC 87B reduced FHB incidence and severity at lower levels of 17 and 18%, respectively, in comparison with B. velezensis RC 218. About a 1.2% FHB incidence was observed in either the negative control (water inoculation) or biocontrol treatments (bacteria inoculation).
Biocontrol of Fusarium graminearum sensu stricto, Reduction of Deoxynivalenol Accumulation and Phytohormone Induction by Two Selected Antagonists - Image 2
Fusarium graminearum DNA levels on the positive control treatment (F. graminearum inoculation) averaged 60.7 pg DNA mg grain−1 . A significant reduction in DNA levels was observed when the biofungicide B. velezensis RC 218 was applied (60% reduction), meanwhile when S. albidoflavus RC 87B was applied only a 39% reduction was achieved (Table 1). In negative control plots, less than 5 pg DNA mg grain−1 were detected. A mean of 11% of FDK was observed in the treatment that was inoculated with F. graminearum. A significant reduction in the percentage of FDK was observed in the treatments where the biofungicides B. velezensis RC 218 and S. albidoflavus RC 87B where applied, with a reduction of 45 and 36%, respectively, p ≤ 0.05) (Table 1).
The deoxynivalenol content in harvested grains inoculated only with F. graminearum (positive control) averaged 4.43 μg g -1. The treatments where B. velezensis RC 218 or S. albidoflavus RC 87B were applied showed a significant reduction in DON levels of 50 and 51%, respectively (Figure 3, Table 1).
Biocontrol of Fusarium graminearum sensu stricto, Reduction of Deoxynivalenol Accumulation and Phytohormone Induction by Two Selected Antagonists - Image 3
2. Discussion
Fusarium head blight is caused by species within the F. graminearum complex. In Argentina, F. graminearum sensu stricto is the main pathogen associated with the disease [1,16]. In the pathosystem wheat–F. graminearum, it was demonstrated that both SA and JA signaling are associated with FHB resistance [28,29]. Bacteria and fungi can be applied to the soil or aerial parts of plants as an antagonist to improve plant growth or protect them against pathogens. These antagonist microorganisms can act through different modes of action, which can be direct, such as competition for nutrients, niche occupation, antibiosis and parasitism, or indirect by inducing resistance and plant growth promotion [24]. In a previous study, B. velezensis RC 218 genome mining demonstrated the presence of ten gene clusters comprising Non ribosomal peptide synthetases (NRPS) groups (Iturin A, fengycin, bacillibactin and basilysin) and polyketidesynthetase group [26]. The biocontrol activity of B. velezensis RC 218 could be related to the production of these secondary metabolites, which have shown antibacterial, antifungal and siderophore activities.
In the present study, we aimed to evaluate the relation between SA and JA levels in wheat spikes when B. velezensis RC 218 was inoculated individually and co-inoculated with the pathogen. This is the first report of the effect of a BCA that effectively reduces FHB and its interaction with F. graminearum and the phytohormones’ (SA and JA) signaling on wheat spikes in a susceptible wheat variety. During the first year’s experiment, F. graminearum applied alone induced early SA and late JA production on wheat spikes, which is in concordance with the biotrophic and necrotrophic stages of the pathogen, respectively [29]. These results agree with those observed by Ding et al. [28], who observed early (6 h) expression of genes activated by SA and late gene expression activated by JA. In our study, the co-inoculation treatment reduced SA accumulation after 6 h; meanwhile, the pathogen treatment was higher. A clear reduction in JA production was observed in the co-inoculated treatment after 24, 48 and 72 h, indicating a possible biocontrol effect on the pathogen that could reduce the plant defense response through phytohormone modulation. In contrast, Henkes et al. [30], working with the BCA Pseudomonas fluorescens CHA0 under in situ conditions, observed that the application of the bacteria to wheat roots induced a systemic resistance mechanism against F. graminearum, and concluded that the effect of the bacteria on plant defense was more important that the direct interaction of the bacteria with the pathogen.
Durum wheat is more susceptible to FHB than bread wheat [31]. On bread wheat, we showed that B. velezensis RC 218 and S. albidoflavus RC 87B effectively reduced FHB severity and DON accumulation on bread wheat by 39–76% and 69–100%, respectively. The present study provides data on the biocontrol ability of these two biofungicides to reduce FHB parameters on a susceptible durum wheat variety. The first report of FHB biocontrol on durum wheat was done by Schisler et al. [32]. The authors observed effective antagonistic activity of bacteria and yeasts in diminishing FHB severity by up to 90%, but no effect on DON reduction was observed. Finally, they concluded that field location influenced BCA activity more than the durum wheat cultivar. Bacillus velezensis RC 218 and S. albidoflavus RC 87B showed similar biocontrol performance both in bread and durum wheat and in different locations, indicating a better adaptation of the BCAs to different environments. In the case of B. velezensis RC 218, this fact could be attributed to the physiological improvement (based on the accumulation of betaine) performed to the BCA prior to formulation [33]. Also, Baffoni et al. [34] evaluated the interaction of Lactobacillus plantarum SLG17 and Bacillus amyloliquefaciens FNL13 on durum wheat. Despite the authors observing low FHB severity in the different treatments, a significant FHB index reduction was observed, although they reported needing repeated applications (Zadoks growth stage from GS 50 to GS 87) to obtain biocontrol activity and the DON level after harvest was not reported.
Deoxynivalenol is the predominant trichothecene when favorable conditions led to FHB outbreaks. In Argentina, Cendoya et al. [35] reported DON occurrence in durum wheat grains during the 2011/12 wheat harvest season, with values up to 15 μg g -1. Additionally, in another study carried out in 2012/13 and 2013/14, Palacios et al. [2] showed a natural occurrence of DON and DON-3-Glucoside on 84 durum wheat samples, with 30% of the samples exceeding the maximum levels established by the EC [7]. From a food safety point of view, the effectiveness of the evaluated BCAs in reducing DON levels by up to 50% is very important since durum wheat is used in the human diet through pasta consumption.
Real time PCR (qPCR) is an important tool that can be used to deduce FHB parameters that have occurred previously in the field. In our study, we found a positive correlation between qPCR and severity, incidence and DON (p ≤ 0.01; R = 0.65, 0.7 and 0.75, respectively). In addition, Horevaj et al. [36] evaluated F. graminearum fungal biomass by qPCR and found a positive correlation between FDK, disease severity and DON content on harvested grains and field samples. Demeke et al. [37] also found a positive correlation in quantified F. graminearum DNA, FDK and DON (R2 ≥ 0.83). These facts reveal the effectiveness and importance of correlating DNA levels by qPCR with FHB severity in the field and DON accumulation on harvested grains.
The wheat plant could assume that B. velezensis RC 218 is a beneficial microbe, without triggering any defense response, which does not happen with pathogen infection. When analyzing the bacterial-pathogen interaction, only a SA/JA modulation was observed. Further studies including gene expression analysis could clarify this situation when biocontrol, pathogen and wheat plants interact together. The biocontrol effect of B. velezensis RC 218 against F. graminearum could be mediated through antibiosis (secondary metabolite production), as it was previously evidenced [26]. Physiological improvement could be a key factor for BCA performance stability for the formulation to be used in different environments or locations. The biocontrol effectiveness of B. velezensis RC 218 and S. albidoflavus RC 87B on durum wheat strengthens the possibility of developing these BCAs as commercial products.
4. Materials and Methods
4.1. Salicylic and Jasmonic Acid in Wheat Spikes Inoculated with B. Velezensis RC 218 and F. Graminearum under Greenhouse Conditions

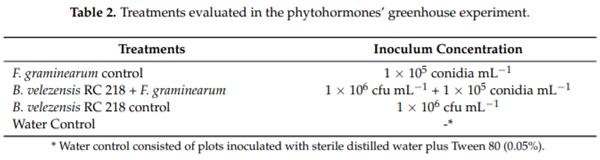

4.1.1. Greenhouse Conditions and Treatments Application
Five wheat seedlings (variety BioINTA 1005-susceptible to F. graminearum) in a 24-cm-diameter pot (containing soil, sand and river peat mixed in equal parts) were grown under greenhouse conditions for 12 weeks prior to inoculation. A bioformulate of B. velezensis RC 218 (described in Section 4.2.2) and F. graminearum RC 276 [16] were used to carry out the experiments. The treatments applied at anthesis stage were: (1) F. graminearum alone (5 mL); (2) the bioformulated suspension and F. graminearum (5 mL + 5 mL); (3) the bioformulated suspension (5 mL); and (4) sterile distilled water and Tween 80 (0.05% v/v -1) (5 mL). Inoculated spikes were maintained at 90% humidity with automatic foggers for three days to ensure pathogen colonization. In order to evaluate JA and SA profile production under the different treatments, spike sampling was performed at 0, 6, 12, 24, 48 and 72 h post inoculation. Each sample consisted of three spikes of each treatment at each sampling period. Treatments details are shown in Table 2 and were done in triplicate for two years.
Biocontrol of Fusarium graminearum sensu stricto, Reduction of Deoxynivalenol Accumulation and Phytohormone Induction by Two Selected Antagonists - Image 4
4.1.2. Phytohormone Extraction and Quantification by High Performance Liquid Chromatography-Tandem Mass Spectrometry
In each sampling period, sampled spikes were immediately frozen in liquid nitrogen, milled in a mortar and stored at –80 C until phytohormone extraction was done. Milled spike tissue (200 mg) was homogenized in 5 mL bi-distilled water and supplemented with 20 μL of a mixture of internal standards containing 50 ng [2H4]-SA and 50 ng [2H6]-JA. Centrifugation was performed at 5000 rpm for 15 min, the pellet was discarded, the pH of the supernatant was adjusted to 2.8 with acetic acid, and the supernatant was partitioned twice against an equal volume of diethyl ether [38]. The aqueous phase was discarded, and the organic fraction was evaporated. For the quantification of JA and SA, the samples were resuspended in 100 μL of acetonitrile/water (20:80, v/v) containing 0.3 mmol/L NH4HCOO (adjusted to pH 3.5 with formic acid). Afterwards, they were sonicated for 5 min and centrifuged at 16,000 g for 5 min. For analysis, the supernatant was 10-fold diluted in acetonitrile/water (20:80, v/v) containing 0.3 mmol/L NH4HCOO (adjusted to pH 3.5 with formic acid). Reversed phase separation of constituents was achieved by Ultra Performance Liquid Chromatography using an ACQUITY UPLC® system (Waters Corp., Milford, MA, USA) equipped with an ACQUITY UPLC® High Strength Silica T3 column (100 mm 1 mm, 1.8 m; Waters Corp., Milford, MA, USA). Aliquots of 10 L were injected in a partial loop with needle overfill mode. Elution was adapted to Balcke et al. [39]. Solvent A and B were water and acetonitrile/water (90:10, v/v), respectively, both containing 0.3 mmol/L NH4HCOO (adjusted to pH 3.5 with formic acid). The flow rate was 0.16 mL/min and the separation temperature was constantly at 40 C. Elution was performed isocratically for 0.5 min at 10% solution B, followed by a linear increase to 40% solution B in 1.5 min, this condition was held for 2 min, followed by a linear increase to 95% solution B in 1 min, this condition was held for 2.5 min. The column was re-equilibrated for start conditions in 3 min.
Nanoelectrospray (nanoESI) analysis was achieved using a chip ion source (TriVersa Nanomate®; Advion BioSciences, Ithaca, NY, USA). For stable nanoESI, 70 μL min -1 of 2-propanol/acetonitrile/water (70:20:10, v/v/v) containing 0.3 mmol/L NH4HCOO (adjusted to pH 3.5 with formic acid) delivered by a Pharmacia 2248 HPLC pump (GE Healthcare, Munich, Germany) were added just after the column via a mixing tee valve. By using another post column splitter, 502 nL min -1 of the eluent were directed to the nanoESI chip with 5 μm internal diameter nozzles. The ionization voltage was set to –1.7 kV. Phytohormones were ionized in a negative mode and determined in a scheduled multiple reaction monitoring mode with an AB Sciex 4000 QTRAP®tandem mass spectrometer (AB Sciex, Framingham, MA, USA). Mass transitions were as follows: 215/59 (declustering potential (DP) –35 V, entrance potential (EP) –8.5 V, collision energy (CE) –24 V) for D6-JA, 209/59 (DP –30 V, EP –4.5 V, CE –24 V) for JA, 141/97 (DP –25 V, EP –6 V, CE –22 V) for D4-SA and 137/93 (DP –25 V, EP –6 V, CE –20 V) for SA. The mass analyzers were adjusted to a resolution of 0.7 amu full width at half-height. The ion source temperature was 40 C, and the curtain gas was set at 10 (given in arbitrary units) [40].
4.2. Evaluation of Bacillus Velezensis RC 218 and Streptomyces Albidoflavus RC 87B as Biocontrol Agents against F. Graminearum in Durum Wheat under Field Conditions

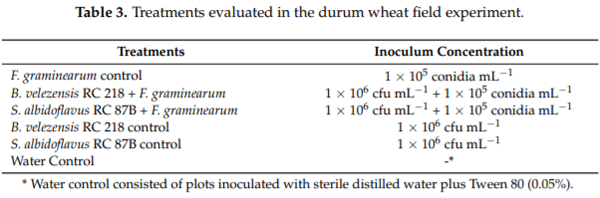

4.2.1. Field Trial on Durum Wheat
The field trial was carried out in Necochea, Buenos Aires province, Argentina, during the 2016/17 harvest season. The durum wheat (Triticum turgidum L. var durum) cultivar ACA 1901F (susceptible to F. graminearum) was sown at the end of July. Biocontrol assays took place from wheat flowering stage (end of October 2016) until crop harvest (mid-January 2017). A complete randomized design was used with three replicates (plots) per treatment. Each experimental plot consisted of three rows (2 m/row, 0.2 m between rows; 250 head per plot).
4.2.2. Culture Conditions of BCAs and Pathogen Production
The Bacillus velezensis RC 218 and S. albidoflavus RC 87B used in this study were originally isolated from wheat anthers as potential biocontrol agents against F. graminearum in Argentina [16,20,26]. These strains are maintained in the culture collection Department of Microbiology and Immunology at the Universidad Nacional de Río Cuarto; Río Cuarto, Córdoba, Argentina). Biomass of B. velezensis RC 218 and S. albidoflavus RC 87B was produced in liquid basic medium (sucrose 10 g/L, yeast extract 5 g/L) as was described by Costa et al. [41], incubated for 48 h at 28 C in a rotatory shaker (150 rpm). For B. velezensis RC 218 biomass production, the liquid media was modified with NaCl (water activity of 0.97) in order to obtain a physiological improvement of the strain by the intracellular accumulation of betaine [33]. After biomass production, cells were centrifuged at 10,000 rpm for 10 min, washed with sterile distilled water, centrifuged again and, finally, resuspended in sterile distilled water with the addition of a protectant. Finally, the B. velezensis RC 218 bioformulate was freeze-dried. Streptomyces albidoflavus RC 87B biomass was centrifuged as above and used as fresh cells. The viability of the biocontrol agents was evaluated by plate counting on agarized basic medium and adjusted to 1 x 106 colony-forming units per mL (cfu mL -1). Fusarium graminearum strains S-5 and S-17 were used as an inoculum mixture to inoculate the durum wheat at the anthesis stage. The toxigenic profile of the strains was determined in previous studies [42]. Fusarium graminearum conidia were produced in Mung bean broth [43] and after seven days of incubation at 25 C and 200 rpm on a rotatory shaker, cultures were centrifuged (7000 rpm; 5 min), resuspended in sterile distilled water plus Tween 80 (0.05%) and filtered through sterile gauze to obtain the macroconidia suspension. Macroconidia counting was performed in a haemocytometer chamber and the concentration was adjusted to 5 x 105 conidia mL -1 (1:1 mixture S-5 and S-17 strains).
4.2.3. Biocontrol Agents and Pathogen Applications
The application of the BCAs and the F. graminearum mixture inoculum was done at the anthesis stage period, when 50% of the heads in the plots were at the flowering stage (Feekes stage 10.5.2–10.5.3) [44]. Treatments are shown in Table 3. Before treatment applications, wheat heads were always misted with water for 2 min in order to increase its humidity. Either B. velezensis RC 218 or S. albidoflavus RC 87B were applied before F. graminearum inoculum mixture. Treatments were applied by using a commercial CO2 sprayer (30 psi) consisting of three linear sprinklers (Teejet twinjet TJ-60-6502) at a rate of 15 mL per linear meter. Positive control plots were only inoculated with the F. graminearum strain mixture and negative control plots were inoculated with sterile distilled water plus Tween 80 (0.05%). All treatments were done in triplicate. Humidity in the field was achieved using water sprinklers, and were turned on for 30 min every 2 h from 8 a.m. to 6 p.m. during the three days after inoculations.
Biocontrol of Fusarium graminearum sensu stricto, Reduction of Deoxynivalenol Accumulation and Phytohormone Induction by Two Selected Antagonists - Image 5
4.2.4. Fusarium Head Blight Incidence and Severity, DON Content, F. graminearum DNA Levels by qPCR and Fusarium-Damaged Kernels on Harvested Grains
FHB disease incidence and severity were evaluated 21 days after inoculations. FHB incidence was determined by counting symptomatic spikes and divided by the total spikes of the plot (treatment replicate); disease severity was evaluated by observing symptomatic spikelets (decoloured, browny) and visually compared with a 0–100% scale [45].
At the harvest time, wheat heads were collected to determine the DON concentration in the grains. Toxin extraction was done by mixing 15 g of milled grains and acetonitrile:water (84:16, 100 mL), shaken for 30 min, filtered by Whatman N 1 and 5 mL of the filtrated was passed through a clean-up column (Mycosep 225, Romer, Sandy Drive, DE, USA). Then, 2 mL of the filtrate was evaporated to dryness (N2, 50 C). DON concentration was determined by liquid chromatography as previously described [15]. Briefly, the HPLC system consisted of a Hewlett Packard model 1100 pump (Palo Alto, CA, USA) connected to a Hewlett Packard 1100 Series variable wavelength detector and a data module Hewlett Packard Kayak XA (HP ChemStation Rev. A.06.01, Palo Alto, CA, USA). Chromatographic separations were performed on a Luna™ C18 reversed-phase column (100 x 4.6 mm, 5 μm particle size, Phenomenex, Torrance, CA, USA) connected to a guard column SecurityGuard™ (Phenomenex, Torrance, CA, USA) (4 x 3.0 mm) filled with the same phase. The mobile phase consisted of methanol/water (12:88, v/v), at a flow rate of 1.5 mL min -1. The detector was set at 220 nm with an attenuation of 0.01 Absorbance Units Full Scale (AUFS). The injection volume was 50 μL and the retention time of DON was 800 s. Quantification was relative to external standards of 1 to 4 μg mL -1 in methanol/water (5:95). The quantification limit was 0.5 μg g -1.
Grains were pulverized in a mill with a 1 mm2 mesh (Cyclotech, Foss Tecator, West Sussex, UK) and total DNA (10 mg) was extracted by using the DNeasy 96 plant kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. TaqMan qPCR quantifications were done on an ABI Prism 7500 Sequence Detection System (Applied Biosystems, Lincoln Centre Drive Foster City, CA, USA). For F. graminearum DNA quantification, separate TaqMan reactions were performed in 25 μL, using 12.5 μL of TaqMan 2X universal PCR master mix (Applied Biosystems) and 100 nM of FAM-labeled probe and internal control probe and 400 nM of forward and reverse primer for F. graminearum target as well as an internal positive control were performed. Primers and probes information were described in Palazzini et al. (2013) [20]. qPCR reactions were performed on 2 μL of DNA preparations from grain samples and pure pathogen DNA. Thermal cycling conditions consisted of a single cycle of 10 min at 95 C, followed by 40 cycles of 95 C for 15 s and 60 C for 1 min. A standard curve was generated by using 10-fold serial dilutions of pure F. graminearum DNA in the range of 0.1 pg μL -1 to 1 x 104 pg μL -1 and pathogen quantifications were done by quintuplicate. During samples analyses, samples of the pathogen DNA were run in parallel using a 10-fold serial dilutions ranging 0.1 pg μL -1 to 1 x 104 pg μL -1 as reference. From the obtained Ct-values of qPCR for the pathogen DNA dilution series and for DNA extracts from wheat grain samples, the concentrations of F. graminearum DNA in the samples were calculated, expressed as pg of DNA of fungal pathogen per mg of grain.
Fusarium-damaged kernels (FDK) is another common parameter used as an indicator of disease severity. A total of 300 grains per treatment were analyzed and FDK was defined as the percentage of scabby grains (shriveled, pink-to-white grains, discolored) present in the sample.
4.2.5. Statistical Analyses of Phytohormone Values and FHB Parameters Evaluated
Phytohormone’s data were subjected to one way analysis of variance (ANOVA) and means were separated by Tukey’s method (p ≤ 0.05). FHB disease severity were subjected to ANOVA on ranks and means were separated by Dunn’s method (p ≤ 0.001). Deoxynivalenol accumulation data were subjected to a one way ANOVA and means were separated by Duncan’s method (p ≤ 0.05). DNA quantification and FDK data were subjected to a one way ANOVA and means were separated by the Fisher and Holm–Sidak methods, respectively (p ≤ 0.05). All statistical analyses were performed using SigmaStat for Windows version 3.5 (SPSS Inc., Chicago, IL, USA, 2007).
Acknowledgments: The present work received funding from the European Union’s Horizon 2020 Research andinnovation program under Grant Agreement No. 678781 (MycoKey).
Author Contributions: J.P. and S.C. designed the experiments; J.P., R.C., M.L.C., N.Y., S.P., P.R., and V.E.contributed to performing the greenhouse and field trials; J.P., R.C., P.K., M.L.R., A.T. and S.C. helped in the tools and data analysis; J.P., P.K. and S.C. wrote the manuscript.
Conflicts of Interest: The authors declare no conflict of interest.

This article was originally published in Toxins 2018, 10, 88; doi:10.3390/toxins10020088. This is an Open Access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) License (http://creativecommons.org/licenses/by/4.0/).

  1. Palazzini, J.; Fumero, V.; Yerkovich, N.; Barros, G.; Cuniberti, M.; Chulze, S. Correlation between Fusarium graminearum and deoxynivalenol during the 2012/13 wheat Fusarium head blight outbreak in Argentina. Cereal Res. Commun. 2015, 43, 627–637. [CrossRef]
  2. Palacios, S.; Erazo, J.; Ciasca, B.; Lattanzio, V.; Reynoso, M.; Farnochi, C.; Torres, A. Occurrence of deoxynivalenol and deoxynivalenol-3-glucoside in durum wheat from Argentina. Food Chem. 2017, 230, 728–734. [CrossRef] [PubMed]
  3. Pestka, J.J. Deoxynivalenol: Mechanisms of action, human exposure, and toxicological relevance. Arch. Toxicol. 2010, 84, 663–679. [CrossRef] [PubMed]
  4. Karlovsky, P. Biological detoxification of the mycotoxin deoxynivalenol and its use in genetically engineered crops and feed additives. Appl. Microbiol. Biotechnol. 2011, 91, 491–504. [CrossRef] [PubMed]
  5. Beccari, G.; Colasante, V.; Tini, F.; Senatore, M.; Prodi, A.; Sulyok, M.; Covarelli, L. Causal agents of Fusarium Head Blight of durum wheat (Triticum durum Desf.) in central Italy and their in vitro biosynthesis of secondary metabolites. Food Microbiol. 2018, 70, 17–27. [CrossRef] [PubMed]
  6. UIFRA. Unión de Industriales Fideeros de la República Argentina. Available online: http://copal.org.ar/wp-content/uploads/2017/06/pastas_secas_argentinas.pdf (accessed on 11 June 2017).
  7. Commission Regulation, EC N 1881/2006. Commission regulation no 1881/2006 of 19 December 2006 setting maximum levels for certain contaminants in foodstuffs. Off. J. Eur. Union L 2006, 364, 5–24.
  8. Wegulo, S.N.; Baenziger, P.S.; Hernandez Nopsa, J.; Bockus, W.W.; Hallen-Adams, H. Management of Fusarium head blight of wheat and barley. Crop Prot. 2015, 73, 100–107. [CrossRef]
  9. Edwards, S.; Godley, N. Reduction of Fusarium head blight and deoxynivalenol in wheat with early fungicide applications of prothioconazole. Food Addit. Contam. Part A 2010, 27, 629–635. [CrossRef] [PubMed]
  10. Mesterházy, Á.; Tóth, B.; Varga, M.; Bartók, T.; Szabó-Hevér, Á.; Farády, L.; Lehoczki-Krsjak, S. Role of fungicides, application of nozzle types, and the resistance level of wheat varieties in the control of Fusarium head blight and deoxynivalenol. Toxins 2011, 3, 1453–1483. [CrossRef] [PubMed]
  11. Dweba, C.; Figlan, S.; Shimelis, H.; Motaung, T.; Sydenham, S.; Mwadzingeni, L.; Tsilo, T. Fusarium head blight of wheat: Pathogenesis and control strategies. Crop Prot. 2017, 91, 114–122. [CrossRef]
  12. McMullen, M.; Bergstrom, G.; De Wolf, E.; Dill-Macky, R.; Hershman, D.; Shaner, G.; Van Sanford, D. A unified effort to fight an enemy of wheat and barley: Fusarium head blight. Plant Dis. 2012, 96, 1712–1728. [CrossRef]
  13. Crane, J.; Gibson, D.; Vaughan, R.; Bergstrom, G. Iturin Levels on Wheat Spikes Linked to Biological Control of Fusarium Head Blight by Bacillus amyloliquefaciens. Biol. Control 2013, 103, 146–155.
  14. Dunlap, C.; Bowman, M.; Schisler, D. Genomic analysis and secondary metabolite production in Bacillus amyloliquefaciens AS 43.3: A biocontrol antagonist of Fusarium head blight. Biol. Control. 2013, 64, 166–175. [CrossRef]
  15. Palazzini, J.; Ramirez, M.; Torres, A.; Chulze, S. Potential biocontrol agents for Fusarium Head Blight and deoxynivalenol production in wheat. Crop Prot. 2007, 26, 1702–1710. [CrossRef]
  16. Palazzini, J.M.; Alberione, E.; Torres, A.; Donat, C.; Köhl, J.; Chulze, S. Biological control of Fusarium graminearum sensu stricto, causal agent of Fusarium head blight of wheat, using formulated antagonists under field conditions in Argentina. Biol. Control 2016, 94, 56–61. [CrossRef]
  17. Schisler, D.A.; Khan, N.I.; Boehm, M.J.; Lipps, P.E.; Zhang, S. Selection and evaluation of the potential of choline-metabolizing microbial strains to reduce Fusarium head blight. Biol. Control 2006, 39, 497–506. [CrossRef]
  18. Zhao, Y.; Selvaraj, J.; Xing, F.; Zhou, L.; Wang, Y.; Song, H.; Tan, X.; Sun, L.; Sangare, L.; Folly, Y.; et al. Antagonistic action of Bacillus subtilis strain sg6 on Fusarium graminearum. PLoS ONE 2014, 9, e92486. [CrossRef] [PubMed]
  19. Khan, M.R.; Doohan, F. Bacterium-mediated control of Fusarium head blight disease of wheat and barley and associated mycotoxin contamination of grain. Biol. Control 2009, 48, 42–47. [CrossRef]
  20. Palazzini, J.M.; Yerkovich, N.; Alberione, E.; Chiotta, M.; Chulze, S. An integrated dual strategy to control Fusarium graminearum sensu stricto by the biocontrol agent Streptomyces sp. RC 87B under field conditions. Plant. Genet. 2017, 9, 13–18. [CrossRef]
  21. Jochum, C.C.; Osborne, L.E.; Yuen, G.Y. Fusarium head blight biological control with Lysobacter enzymogenes strain C3. Biol. Control 2006, 39, 336–344. [CrossRef]
  22. Schisler, D.A.; Core, A.B.; Boehm, M.J.; Horst, L.; Krause, C.; Dunlap, C.A.; Rooney, A.P. Population dynamics of the Fusarium head blight biocontrol agent Cryptococcus flavescens OH 182.9 on wheat anthers and heads. Biol. Control 2014, 70, 17–27. [CrossRef]
  23. Xue, A.G.; Chen, Y.; Voldeng, H.D.; Fedak, G.; Savard, M.E.; Längle, T.; Zhang, J.; Harman, G.E. Concentration and cultivar effects on efficacy of CLO-1 biofungicide in controlling Fusarium head blight of wheat. Biol. Control 2014, 73, 2–7. [CrossRef]
  24. Legrand, F.; Picot, A.; Cobo-Díaz, J.; Chen, W.; Le Floch, G. Challenges facing the biological control strategies for the management of Fusarium Head Blight of cereals caused by F. graminearum. Biol. Control 2017, 113, 26–38. [CrossRef]
  25. Comby, M.; Gacoin, M.; Robineau, M.; Rabenoelina, F.; Ptas, S.; Dupont, J.; Profizi, C.; Baillieul, F. Screening of wheat endophytes as biological control agents against Fusarium head blight using two different in vitro tests. Microbiol. Res. 2017, 202, 11–20. [CrossRef] [PubMed]
  26. Palazzini, J.M.; Dunlap, C.A.; Bowman, M.J.; Chulze, S.N. Bacillus velezensis RC 218 as a biocontrol agent to reduce Fusarium head blight and deoxynivalenol accumulation: Genome sequencing and secondary metabolite cluster profiles. Microbiol. Res. 2016, 192, 30–36. [CrossRef] [PubMed]
  27. Denancé, N.; Sánchez-Vallet, A.; Goffner, D.; Molina, A. Disease resistance on growth: The role of plant hormones in balancing immune response s and fitness costs. Front. Plant Sci. 2013, 4, 155. [CrossRef] [PubMed]
  28. Ding, L.; Xu, H.; Yi, H.; Yang, L.; Kong, Z.; Zhang, L.; Xue, S.; Jia, H.; Ma, Z. Resistance to hemi-biotrophic F. graminearum infection is associated with coordinated and ordered expression of diverse defense signaling pathways. PLoS ONE 2011, 6, e19008. [CrossRef] [PubMed]
  29. Makandar, R.; Nalam, V.; Lee, H.; Trick, H.; Dong, Y.; Shah, J. Salicylic Acid Regulates Basal Resistance to Fusarium Head Blight in Wheat. Mol. Plant-Microbe Interact. 2012, 25, 431–439. [CrossRef] [PubMed]
  30. Henkes, G.; Jousset, A.; Bonkowski, M.; Thorpe, M.; Scheu, S.; Lanoue, A.; Schurr, U.; Ro, U. Pseudomonas fluorescens CHA0 maintains carbon delivery to Fusarium graminearum-infected roots and prevents reduction in biomass of barley shoots through systemic interactions. J. Exp. Bot. 2011, 62, 4337–4344. [CrossRef] [PubMed]
  31. Rossi, V.; Manstretta, V.; Ruggeri, M. A multicomponent decision system to manage Fusarium head blight and mycotoxin in durum wheat. World Mycotoxin J. 2015, 8, 629–640. [CrossRef]
  32. Schisler, D.A.; Khan, N.I.; Boehm, M.J.; Slininger, P. Greenhouse and field evaluation of biological control of Fusarium head blight on durum wheat. Plant Dis. 2002, 86, 1350–1356. [CrossRef]
  33. Palazzini, J.; Ramirez, M.L.; Alberione, E.J.; Torres, A.M.; Chulze, S. Osmotic stress adaptation, compatible solutes accumulation and biocontrol efficacy of two potential biocontrol agents on Fusarium head blight in wheat. Biol. Control 2009, 51, 370–376. [CrossRef]
  34. Baffoni, L.; Gaggia, F.; Dalanaj, N.; Prodi, A.; Nipoti, P.; Pisi, A.; Biavati, B.; Di Gioia, D. Microbial inoculants for the biocontrol of Fusarium spp. in durum wheat. BMC Microbiol. 2015, 15, 242. [CrossRef] [PubMed]
  35. Cendoya, E.; Monge, M.; Palacios, S.; Chiacchiera, S.; Torrea, A.; Farnochi, M.; Ramirez, M. Fumonisin occurrence in naturally contaminated wheat grain harvested in Argentina. Food Control 2014, 37, 56–61. [CrossRef]
  36. Horevaj, P.; Milus, E.; Bluhn, B. A real-time qPCR assay to quantify Fusarium graminearum biomass in wheat kernels. J. App. Microbiol. 2011, 111, 396–406. [CrossRef] [PubMed]
  37. Demeke, T.; Grafehan, T.; Clear, R.; Phan, A.; Ratnayaka, I.; Chapados, J.; Patrick, S.; Gaba, D.; Lévesque, A.; Seifert, K. Development of a specific TaqMan® real-time PCR assay for quantification of Fusarium graminearum clade 7 and comparison of fungal biomass determined by PCR with deoxynivalenol content in wheat and barley. Int. J. Food Microbiol. 2010, 141, 45–50. [CrossRef] [PubMed]
  38. Durgbanshi, A.; Arbona, V.; Pozo, O.; Miersch, O.; Sancho, J.; Gomez-Cadenas, A. Simultaneous determination of multiple phytohormones in plants extracts by liquid chromatography electrospray tandem mass spectrometry. J. Agric. Food Chem. 2005, 53, 8437–8442. [CrossRef] [PubMed]
  39. Balcke, G.; Handrick, V.; Bergau, N.; Fichtner, M.; Henning, A.; Stellmach, H.; Tissier, A.; Hause, B.; Frolov, A. An UPLC-MS/MS method by highly sensitive high-throughput analysis of phytohromones in plant tissues. Plant Methods 2012, 8, 47. [CrossRef] [PubMed]
  40. Iven, T.; König, S.; Singh, S.; Braus-Stromeyer, S.; Bischoff, M.; Tietze, L.; Braus, G.; Lipka, V.; Feussner, I.; Dröge-Laser, W. Transcriptional Activation and Production of Tryptophan-Derived Secondary Metabolites in Arabidopsis Roots Contributes to the Defense against the Fungal Vascular Pathogen Verticillium longisporum. Mol. Plant 2012, 5, 1389–1402. [CrossRef] [PubMed]
  41. Costa, E.; Usall, J.; Teixidó, N.; Delgado, J.; Viñas, I. Water activity, temperature and pH effects on growth of the biocontrol agent Pantoea agglomerans CPA-2. Can. J. Microbiol. 2002, 48, 1082–1088. [CrossRef] [PubMed]
  42. Palacios, S.; Giaj Merlera, G.; Erazo, J.; Reynoso, M.; Farnochi, C.; Torres, A. Trichothecene genotype and genetic variability of Fusarium graminearum and F. cerealis isolated from durum wheat in Argentina. Eur. J. Plant Pathol. 2017, 149, 969–981. [CrossRef]
  43. Rosewich Gale, L.; Chen, L.; Hernick, C.; Takamura, K.; Kistler, H. Population analysis of Fusarium graminearum from wheat fields in eastern China. Phytopathology 2002, 92, 1315–1322. [CrossRef] [PubMed]
  44. Wiese, N. Compendium of Wheat Diseases; American Phytopathology Society Press: St. Paul, MN, USA, 1987.
  45. Stack, R.; McMullen, M. A Visual Scale to Estimate Severity of Fusarium Head Blight of Wheat. NDSU Extension Service, North Dakota. 1995, p. 1095. Available online: https://books.google.com.ar/books?id= s4vRGwAACAAJ (accessed on 15 October 2016).
