Environmental distribution and genetic diversity of vegetative compatibility groups determine biocontrol strategies to mitigate aflatoxin contamination of maize by Aspergillus flavus

Introduction

Maize is an important staple food in most countries in Africa including West Africa (Shiferaw et al., 2011) where infants being weaned off mothers’ milk rely mostly on maize flour for nutrition. Maize is often invaded by Aspergillus fungal species before and after harvest and in storage. Aspergillus species are commonly found in the soil, which acts as source of primary inoculum for infecting developing maize kernels during the growing season (Horn, 2007). Aspergillus flavus, in particular, is distributed globally with a high frequency of occurrence in warm climates (Cotty et al., 1994), which favour the growth of the fungus. The fungus produces aflatoxin, a mycotoxin that is a potent carcinogen. Aflatoxin is also toxic to some domesticated animals and has been implicated in human aflatoxicosis (Peraica et al., 1999).

Isolates of A. flavus with different aflatoxin-producing ability can interact in maize kernels to influence the rate of aflatoxin production by toxigenic isolates (Mehl and Cotty, 2011). In addition, Aspergillus communities inhabiting different substrates, fields and regions can vary widely in their ability to produce aflatoxin. Aflatoxin-nonproducing genotypes, known as atoxigenic isolates, are common within A. flavus communities (Cotty and Sobek, 1997). Knowledge of these subpopulations in each region can be useful in identifying local management practices to reduce aflatoxin contamination. Biologically, A. flavus isolates produce only B-aflatoxins and can be divided into two morphotypes; S-strain, which forms numerous small sclerotia that average < 400 μm in diameter and produce high levels of aflatoxin, and the L-strain, which forms fewer but large sclerotia measuring > 400 μm in diameter, and, on average, produce less aflatoxin (Bayman and Cotty, 1991a,b). Most of the atoxigenic isolates of A. flavus belong to the latter group. Depending on the geographic origin, some isolates with S-strain morphotype produce both B-aflatoxins and G-aflatoxins, whereas others produce only B-aflatoxins (Cotty and Cardwell, 1999). Although the B- and G-aflatoxin producers with S-strain morphotype have been placed in different species (Varga et al., 2011), most isolates from West Africa with this chemotype have been classified to the SBG taxon (Probst et al., 2014).

Exposure of humans and domesticated animals to aflatoxins is limited in the US and the EU, where regulations limiting the amount of aflatoxin in foods and feeds have been established (van Egmond et al., 2007) and are enforced. However, in developing countries, especially in Africa, regulations of aflatoxin in food and feed are either nonexistent or not enforced because much of the agricultural produce never enter official commercialization channels, but moves through local markets (Bandyopadhyay et al., 2007). This lack of regulation often results in severe aflatoxin poisoning as evidenced with the outbreak of acute aflatoxicosis associated with aflatoxin contaminated maize in Kenya that resulted in several human fatalities (Lewis et al., 2005). In Nigeria, aflatoxin-monitoring schemes are rare, although high levels of aflatoxin contamination in maize at harvest and after storage have been reported (Udoh et al., 2000).

Toxigenic and atoxigenic isolates of A. flavus can be subdivided genetically by their vegetative incompatibility (Bayman and Cotty, 1991a). In plant pathogenic fungi, these subdivisions are often correlated with morphological features and pathogenicity (Puhalla, 1985). It has been suggested that recombination events of fungal isolates could lead to re-assortment of the vegetative compatible alleles to yield new vegetative compatibility group (VCG) phenotypes (Leslie, 1996). Vegetative compatibility tests have clarified genetic relationships within many asexual fungal species including Fusarium oxysporum (Cai et al., 2003) and Verticillium species (Correll et al., 1988) and several Aspergillus species (Bayman and Cotty, 1991b). In A. flavus, VCGs are clonal lineages and no evidence for gene flow among VCGs has been reported in natural habitats (Grubisha and Cotty, 2010). Identification of differences in the toxigenicity and genetic diversity of A. flavus populations through VCGs may help in understanding the population dynamics and provide important information that could be used to improve the efficacy of biocontrol (Pildain et al., 2004). Further, a recent study using experimental crosses in the laboratory suggested that cryptic sexual reproduction can occur in A. flavus between individuals belonging to different VCGs, a process that can potentially generate diversity in aflatoxin chemotypes (Moore et al., 2013). Thus, information on VCG diversity ensures that biocontrol agents applied in the field will be genetically similar to local populations of A. flavus and thereby limit the potential for any cryptic sexual recombination, if it occurs in nature.

Application of biocontrol products in agricultural fields does not increase the overall quantities of A. flavus on the crop at harvest and there is a negative relationship between the incidence of the applied atoxigenic isolate and aflatoxin concentration (Cotty and Bayman, 1993). The most important mechanism for this type of biocontrol is the displacement of toxigenic isolates in the crop environment through founder effects and differential sporulation on substrates (Mehl et al., 2012). Crops are typically infected by multiple genotypes of A. flavus (e.g., Horn and Greene, 1995) and applied atoxigenic isolates may compete with toxigenic isolates during co-infection and also interfere with aflatoxin contamination. For certain atoxigenic isolates, competitive exclusion is sufficient in explaining aflatoxin reduction during co-infection (Hruska et al., 2014), a process that is aided by initial host contact (Mehl and Cotty, 2011). However, other atoxigenic isolates reduce aflatoxin significantly more during co-infection than predicted by competitive exclusion alone. This occurs through unknown mechanisms and typically provides an additional 10–20% reduction in aflatoxin (Mehl and Cotty, 2010). Potential mechanisms for the latter include thigmo-downregulation of aflatoxin biosynthesis (Huang et al., 2011) and differential ability among isolates to use nutrient resources (Mehl and Cotty, 2013). Wicklow and colleagues (2003) concluded that physical exclusion and/or competition for nutrients could be due to the inability of the competing isolates to form a cooperative mycelial network due to vegetative incompatibility. Subsequent work showed that the strength of VCG reactions between isolates belonging to the same VCG was negatively correlated with reduction in aflatoxin production (Wicklow and Horn, 2007). More research on a myriad of adaptive factors related to microbial dominance in ecosystems (Cray et al., 2013) is needed to enhance understanding of competitive exclusion in Aspergillus section Flavi.

The use of atoxigenic VCGs of A. flavus as biocontrol agents of toxigenic isolates to reduce aflatoxin contamination of agricultural commodities is a common practice in the US (Cotty et al., 2008; Dorner, 2008). However, systematic studies to improve the use of indigenous atoxigenic isolates of A. flavus in Africa to reduce aflatoxin contamination in maize are still lacking. Such studies are needed to facilitate practical use of biocontrol within the continent (Bandyopadhyay and Cardwell, 2003). Previously, several atoxigenic isolates of A. flavus were identified as potential biocontrol agents of toxigenic isolates to reduce aflatoxin contamination in maize in Nigeria (Atehnkeng et al., 2008a). We further characterized these atoxigenic isolates using molecular techniques (Donner et al., 2010) to provide information on the stability of the atoxigenic phenotype to facilitate the selection of potential biocontrol agents. Environmental distribution and genetic diversity of A. flavus can influence the effectiveness of atoxigenic isolates in mitigating aflatoxin contamination in maize. However, no studies have been conducted to determine the VCG diversity of the A. flavus populations in different agro-ecological zones in Nigeria. Understanding the environmental distribution and genetic diversity of VCGs can greatly facilitate identification of potential biocontrol agents and their deployment at a local or regional scale (Mehl et al., 2012; Ehrlich, 2014). For example, atoxigenic VCGs that are widely distributed are likely to be effective in reducing aflatoxin contamination when deployed either locally or on a regional scale. Further, use of atoxigenic VCGs that are genetically similar to local soil populations of Aspergillus communities minimizes the potential for sexual recombination and can increase efficacy of biocontrol and result in sustainable biocontrol of toxigenic isolates (Lewis et al., 2013). Thus, the objective of the study was to determine the VCG diversity of selected isolates of A. flavus and establish their distribution across different locations and agro-ecological zones in Nigeria to inform selection of atoxigenic isolates and deployment of biocontrol to reduce aflatoxin contamination in maize.

Results

Toxigenicity and aflatoxin profiles

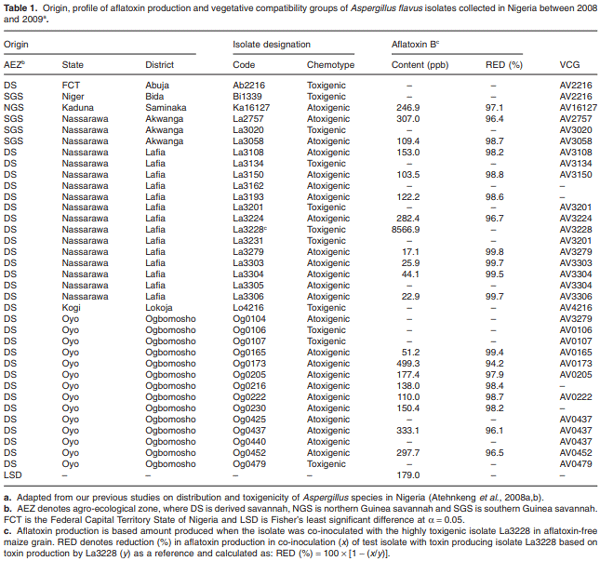

Out of the 35 A. flavus isolates tested, 11 isolates produced aflatoxin and were classified as toxigenic, whereas 24 isolates did not produce any aflatoxin and were grouped as atoxigenic (Table 1). Atoxigenic isolates occurred in different locations in the three agro-ecological zones, but a majority (83.3%) was found in the derived savannah (DS) zone (Table 1). Aflatoxin production in co-inoculation experiments involving atoxigenic isolates and the highly toxigenic La3228 ranged from 17.1 to 499.3 ppb (Table 1). The corresponding reduction in aflatoxin in the co-inoculation experiments was very high with the atoxigenic isolates reducing aflatoxin concentration in maize grain by > 96% (Table 1).

Environmental distribution and genetic diversity of vegetative compatibility groups determine biocontrol strategies to mitigate aflatoxin contamination of maize by Aspergillus flavus - Image 1

Sclerotia size and number

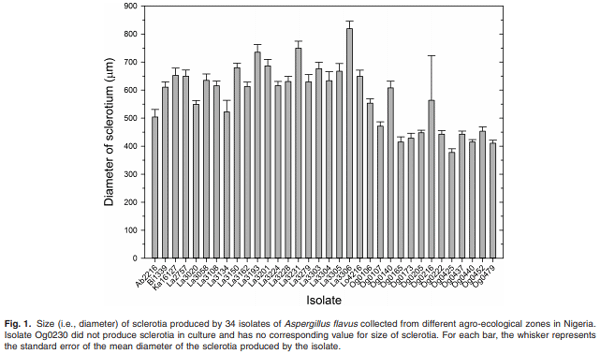

All evaluated fungal isolates produced sclerotia except Og0230, for which no sclerotia were observed in culture on solid amended Czapek Dox medium. The diameter of sclerotia produced by fungal isolates was > 400 μm for all isolates that produced sclerotia except Og0425 that had a mean diameter of 377.5 μm (Fig. 1). Subsequent culturing of Og0425 on 5/2 medium did not result in sclerotia production, and thus, all isolates were identified to belong to the L-strain morphotype of A. flavus. Highly significant differences in the number of sclerotia (P = 0.0084) and diameter of sclerotia (P = 0.0175) were observed between evaluated fungal isolates (Fig. 1). Isolate Og0173 obtained from Ogbomosho district in the DS zone produced the highest number of sclerotia, with a total of 121.8 sclerotia per square centimetre, whereas isolate Lo4216 from Lokoja district in the DS zone produced the fewest number of sclerotia, with a total of 16 sclerotia per square centimetre (data not shown). The largest sclerotia were produced by isolate La3306 from Lafia district in the DS zone, with a mean diameter of 819.0 μm, whereas the smallest sclerotia were produced by Og0425 from Ogbomosho district in the DS agro-ecological zone, with a mean diameter of 377.5 μm (Fig. 1).

Tester-pair development for VCGs

Tester-pairs, cnx− (defective in the molybdenum cofactor) and niaD− (defective in the structural gene for nitrate reductase) mutants were obtained for 31 isolates out of the 35 isolates that were initially selected. Fungal isolates for which testers were obtained generated spontaneous nit− mutants 5–15 days after inoculating solid Czapek– Dox–chlorate medium plates. Four isolates, La3162, La3193, Og0216 and Og0230, did not generate compatible tester-pairs after more than 10 tester development efforts and were thus not assigned to any VCG (Table 1). Additional studies were not conducted to determine whether these four isolates were either members of a single VCG or whether they belonged to multiple VCGs.

A total of 25 VCGs were inferred from the 31 isolates for which tester-pairs were obtained (Table 1). These VCGs were designated with an AV prefix denoting Aspergillus VCG followed by the number of the type isolate within the VCG, as new VCGs were discovered. Of the 25 identified VCGs, 20 consisted of a single isolate of A. flavus, whereas only 5 (AV0437, AV2216, AV3201, AV3279 and AV3304) were represented by either 2 or 3 more fungal isolates (Table 1). VCGs that were represented by more than one isolate were either toxigenic (e.g., AV2216 or AV3201) or atoxigenic (e.g., AV0437 or AV3279) and no identified VCG had both toxigenic and atoxigenic isolates.

Nine toxigenic VCGs were identified in this study, of which seven were represented by a single isolate and two were represented by two isolates. Of the 16 atoxigenic VCGs identified, 13 consisted of only 1 isolate, whereas 3 VCGs consisted of 2 or 3 fungal isolates (Table 2). Only one toxigenic VCG, AV2216, was found in two agroecological zone, whereas most of the toxigenic or atoxigenic VCGs were found primarily in the DS zone (Table 2).

Inter-location complementation

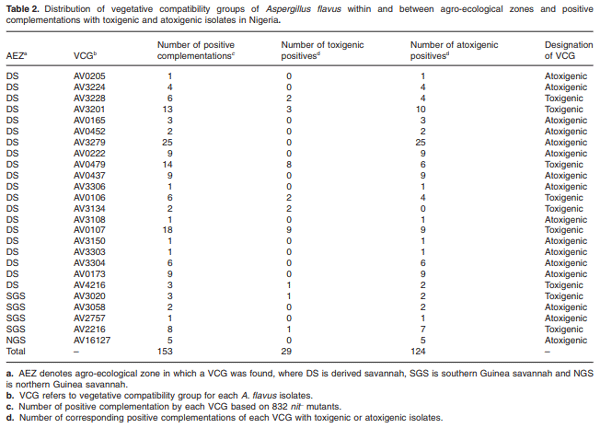

Out of 20,800 complementation tests (832 nit− mutants × 25 VCGs) performed in this study, 153 positive complementations were recorded, of which about 19% and 81% were accounted for by toxigenic and atoxigenic VCGs respectively (Table 2). A total of 62 positive complementations (40.5%) occurred between tester-pairs and unknown A. flavus isolates from the same district. At other hierarchical levels, 49 positive complementations (32.0%) occurred between tester-pairs and unknown isolates from different districts, whereas 38 (24.8%) positive complementations occurred between isolates in different agro-ecological zones. Among atoxigenic VCGs, AV3279 was the mostly widely distributed with 25 positive complementations (16.3% of the total) (Table 2). AV3279 was also found in five locations and four districts and in two agro-ecological zones, DS and southern Guinea savannah (SGS) zones (Fig. 2). The next most widely distributed atoxigenic VCGs were AV0173, AV0222, AV0437, AV3304 and AV16127, which had six to nine atoxigenic positive complementations (Fig. 2).

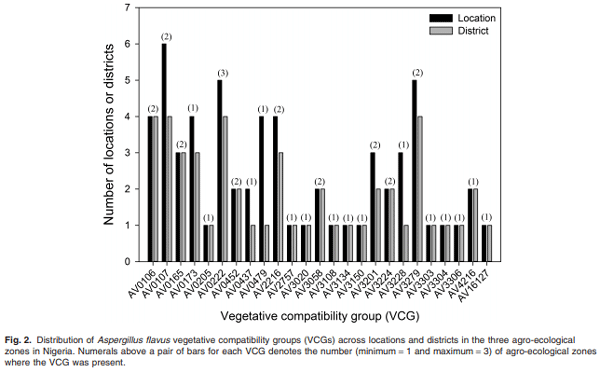

AV0107 was the most widely distributed toxigenic VCG with 18 positive complementations, out of which 9 were toxigenic positives (Table 2). AV0107 was present in six locations and four districts and was also present in both DS and SGS zones (Fig. 2). Ten VCGs (40%) were restricted to only one location, five VCGs (20%) were found in two locations, three (12%) in three locations, four (16%) in four locations, two (8%) in five locations, and one (4%) in six locations (Fig. 2). VCGs identified in this study were distributed in different proportions within the 11 surveyed districts. There were 13 VCGs (52%) that complemented with nits− from one district, five (20%) with nits− from two districts, three (12%) with nits in three districts, and four (16%) complemented with nits− in four districts. One VCG (4%), AV0222, originated from 3 agroecological zones, 9 VCGs (36%) were found in 2 agroecological zones, whereas 15 (60%) originated from 1 agro-ecological zone (Fig. 2).

Relative physical distances between members of VCGs

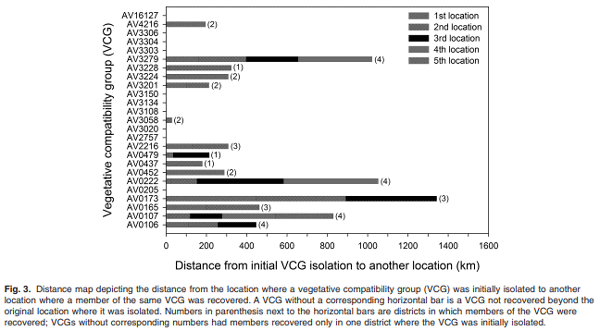

Fifteen VCGs had A. flavus members that were recovered from multiple locations besides the original location where the same VCG was isolated, whereas 10 VCGs had no members recovered elsewhere (Fig. 3). Linear distances between members of the same VCG recovered in different locations ranged from 8 km for AV0479, to 481 km for AV0173 (Fig. 3). VCGs AV0173, AV0222 and AV3279 had members that were recovered from a total distance spanning 1,000–1,400 km. Ten VCGs (40%) had members restricted to their original point of isolation. One VCG (4%) had members distributed across less than 100 km, seven VCGs (28%) had members recovered between 100 and 200 km, two VCGs (8%) had members recovered between 200 and 300 km, three VCGs (12%) had members recovered between 300 and 400 km, and two VCGs had members (8%) distributed across > 400 km. The atoxigenic AV3279 was the most frequently detected VCG, with members found in other locations that were 368 km apart. The widely distributed toxigenic AV0107 was found in five locations spanning 288 km (Fig. 3).

Genetic diversity of VCGs

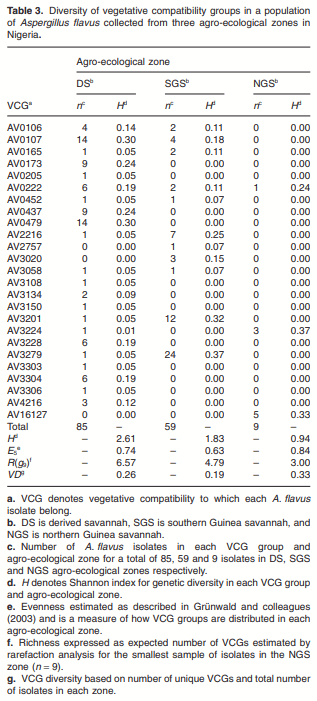

The overall Shannon index of VCG diversity across the three agro-ecological zones was 2.60 for VCGs identified in this study. The DS zone had the highest VCG diversity index (H = 2.61) compared with the SGS (H = 1.83) and northern Guinea savannah (NGS) (H = 0.94) agroecological zones (Table 3). Given that the number of unique VCGs across the region was 25, the maximum possible level of richness, H_max, was 3.22. Evenness of VCGs in the agro-ecological zones was low and ranged from E₅ = 0.63 in the SGS zone to E₅ = 0.84 in the NGS zone (Table 3). The overall evenness of VCGs across the three agro-ecological zones was E₅ = 0.96. VCG richness based on rarefaction analysis was lowest in the NGS zone (E[_g9] = 3.00) and highest in DS zone (E[_g9] = 6.57).

VCG diversity across the three agro-ecological zones, expressed as the number of VCGs divided by the total number of fungal isolates in each VCG, was low to moderate, with VCG diversity higher in DS (VD = 0.26) and NGS (VD = 0.33) zones, but lower in the SGS (VD = 0.19) agro-ecological zone. Overall, different indices indicated that the diversity of A. flavus VCGs was high in the DS zone, but low in the NGS and SGS agro-ecological zones (Table 3).

Discussion

This study represents the first documentation of the VCG structure of A. flavus and the diversity of toxigenic and atoxigenic VCGs of A. flavus associated with maize grain in major maize production areas in Nigeria. A major goal of this study was to generate quantitative information on the diversity of A. flavus VCGs and their distribution in the region, and integrate VCG diversity results with molecular characterization data to inform identification, selection and deployment of atoxigenic VCGs for biocontrol of toxigenic isolates to reduce aflatoxin contamination in maize. Our results indicate that the diversity of VCGs in A. flavus communities in Nigeria is high, and widely distributed indigenous atoxigenic VCGs of A. flavus present a unique opportunity to deploy potential biocontrol agents across different agro-ecological zones to reduce aflatoxin contamination in maize.

Some of the widely distributed atoxigenic VCGs reported in the present study were previously identified for field testing (Atehnkeng et al., 2014) using data on efficacy in reducing aflatoxin under laboratory conditions (Atehnkeng et al., 2008b) and deletion patterns in the aflatoxin gene cluster (Donner et al., 2010). However, quantitative data on environmental distribution and genetic diversity of A. flavus VCGs and application of this information to facilitate selection and deployment of atoxigenic VCGs to mitigate aflatoxin contamination in maize was lacking prior to the present study. Knowledge of the environmental distribution and VCG diversity presented in this paper together with information on molecular characterization (Donner et al., 2009) and field efficacy (Atehnkeng et al., 2014) generated earlier have been used to select VCGs to constitute the multi-strain biocontrol product Aflasafe™ for commercial use in Nigeria (Bandyopadhyay and Cotty, 2013; Grace et al., 2015). VCGs represent naturally occurring multilocus genotypes that are helpful to characterize genetic structure in fungal communities (Bayman and Cotty, 1993). Fungal isolates belonging to the same VCG are typically more closely related than isolates that belong to different VCGs, and there is no evidence to suggest that gene flow occurs between VCGs in nature (Grubisha and Cotty, 2010; 2015). Thus, VCG analysis is a useful tool to estimate genetic diversity and understand population dynamics and provides a means of identifying and characterizing diversity and distribution of A. flavus populations (Bayman and Cotty, 1991b; 1993; Barros et al., 2006). In the present study, we categorized locally adapted and endemic atoxigenic A. flavus VCGs to identify unique members within a given VCG that meet the criteria for selection as potential biocontrol agents. For safe application in the field, atoxigenic isolates of A. flavus selected as potential biological control agents should ideally be indigenous, genetically stable and must belong to a VCG that do not have toxigenic members (Cotty, 2006; Cotty et al., 2008; Mehl et al., 2012).

Diversity of VCGs across the region as estimated by Shannon’s index of diversity (H = 2.60) was high, indicating that considerable diversity of A. flavus isolates is present in Nigeria. This high level of diversity is comparable with values reported for A. flavus in Italy where Shannon’s indices of diversity ranged from 2.4 to 3.2 (Mauro et al., 2013). However, the overall diversity value reported in the present study is considerably higher than diversity values reported in Georgia, H = 0.69 (Papa, 1986), Argentina, H = 0.64 (Pildain et al., 2004) or Arizona, H = 0.54 (Bayman and Cotty, 1991b). Further, diversity was higher in the DS, compared with SGS and NGS agro-ecological zones of Nigeria. As reported by Grünwald and colleagues (2003), genetic diversity depends on both the number of genotypes in a sample genetic (i.e., richness) and the distribution of genotypes in a population (i.e., evenness), with a higher level of genetic diversity being observed for a larger sample size. A similar trend was also observed in this study where the DS zone that had a larger sample size had a higher diversity compared with NGS zone that had a smaller sample size and a lower diversity. The SGS zone that had an intermediate sample size was associated with a corresponding intermediate level of diversity. In contrast, evenness was higher in NGS zone that had a lower sample size compared with DS zone, which had a larger sample size. The lower sample size in NGS was due to the limited maize production in this zone, which is warmer and drier and less suitable for maize production. A larger sample size not only increases genetic richness but also reduces evenness by increasing the probability of sampling several isolates belonging to the same genotype. Thus, the higher H value in DS zone was probably affected by the larger sample size, whereas the evenness values indicate a more uniform distribution of A. flavus genotypes in NGS zone compared with DS or SGS agro-ecological zone.

The genetic richness value of H = 2.60 across the region represents 80.7% of the maximum possible value (Hmax), which strongly indicates a higher degree of diversity of A. flavus population in Nigeria. In addition, the high overall evenness of isolates across the region (H = 0.96), which is indicative of the presence of very few dominant VCGs in the population, also supports our observation on the high degree of diversity for A. flavus population in this study. A similarly high degree of diversity was also reported in populations of A. flavus in Louisiana (Sweany et al., 2011). Although cryptic sexual reproduction has been reported in A. flavus (Moore et al., 2013), population studies have indicated that the fungus propagates in nature through asexual production of conidia that are readily dispersed aerially over a large area (Grubisha and Cotty, 2010). Thus, the high degree of diversity reported in this study may be explained in part by the introduction of previously isolated and genetically distinct individuals and a high rate of mutation events over very long periods as has been reported for rust pathogens (Keiper et al., 2006).

In this study, all isolates were classified as belonging to the L-strain morphotype of A. flavus. However, the analysis of variance showed significant differences in the number and size of sclerotia within and between VCGs. These observations are similar to those of Novas and Cabral (2002) who also found differences in the number and size of sclerotia between isolates belonging to the same VCG. Thus, although it is clear that distinct VCGs are clonal lineages, individuals within VCGs are likely to continue to accumulate genetic mutations (Grubisha and Cotty, 2010). These accumulated mutations can give rise to varying phenotypes, such as differences in number and size of sclerotia, and differences in toxin production within a VCG. Indeed there is significant evidence for the potential for rapid divergence among individuals within clonal lineages of other fungi and oomycetes, resulting in changes in virulence and host range (Goss et al., 2009).

Sixteen atoxigenic VCGs with varying levels of positive complementations with atoxigenic isolates ranging from 1 to 25 were identified in this study. Membership in a VCG with only atoxigenic members is one of the critical criteria for selecting isolates of A. flavus that are intended for use as biocontrol agents. Although concerns over potential recombination events between endemic atoxigenic biocontrol and endemic toxigenic isolates of A. flavus have been expressed (Geiser et al., 1998), population genetic analyses have failed to detect gene flow between different VCGs (Grubisha and Cotty, 2010). Vegetative incompatibility barriers suggest that the exchange of genetic material is more likely to occur between isolates within a VCG than between isolates in different VCGs. Thus, atoxigenic isolates that belong to VCGs with toxigenic members should not be selected as potential biocontrol isolates. In this study, VCGs such AV0222, AV0437, AV3279 and AV16127, had a high number of positive complementations for which none were with toxigenic isolates. Thus, atoxigenic isolates such as La3279, Og0222, Og0437 or Ka16127 that belong to these specific VCGs are potential candidate isolates for use in biocontrol of aflatoxin in maize in the region.

Deployment of an atoxigenic biocontrol isolate that belongs to a widely distributed atoxigenic VCG is one of the key elements in the sustainable use of biocontrol. In this study, we identified atoxigenic VCGs that had members found in several locations in different agroecological zones. For example, A. flavus isolates that were members of AV3279 and AV0222 were found in two and three agro-ecological zones, across a linear distance of 368 km and 470 km respectively. This observation suggests that atoxigenic members of AV3279 and AV0222 may be adapted to a wide geographical range and could be used for region-wide biocontrol of aflatoxin in maize in Nigeria. Atoxigenic isolates that are naturally adapted and belonging to a widespread VCG are likely to be better competitors when applied in the field as biopesticides. In this study, mutants of four isolates were unable to complement with any other mutants derived from the same isolate. This failure of complementation could be due to heterokaryon self-incompatibility, in which fungi are unable to form stable heterokaryon with themselves as reported in Fusarium species and other imperfect fungi (Brooker et al., 1991; Clark et al., 1995; Harveson and Rush, 1997). Such isolates usually complicate population genetic analysis because it is difficult to assign them to any VCG. In this study, isolates La3162, La3139, Og0216 and Og0230 had nit− mutants that did not complement with other mutants derived from the same isolates and were thus not assigned to a VCG. An isolate that is unable to complement with mutants derived from the same isolate is not potentially useful for biocontrol because of the difficulty of tracking them in the field.

Atoxigenic VCGs such as AV0222, AV3279, AV3304 and AV16127 were widely distributed across the region. Thus, A. flavus isolates belonging to these VCGs could further be characterized for use as potential biocontrol agents for the suppression of aflatoxin in maize. To understand the nature of atoxigenicity for members within these atoxigenic VCGs, we compared the aflatoxin biosynthesis gene cluster (Donner et al., 2010) for the 16 atoxigenic VCGs with that of two toxigenic isolates from Nigeria and an isolate belonging to the VCG group of AF36, a commercial biocontrol product in the US. In that study (Donner et al., 2010), sequences from 14 genes from the aflatoxin gene cluster were generated to assess nucleotide polymorphism and 8 additional cluster genes were polymerase chain reaction-amplified to determine the presence or absence of the genes. Further, relationships among the examined isolates were assessed with phylogenetic analyses that included two additional protein-coding loci outside the aflatoxin gene cluster, pecA and taka amylase. Isolates of A. flavus in AV0222 had deletion of the entire aflatoxin gene cluster, whereas isolates in AV0452 and AV0173 had large deletions that included the 5′end but with remnants of the norB-cypA region (Donner et al., 2010). Isolates in AV0165 contained large lesions extending to ordB and hypA, at the distal end of the aflatoxin gene cluster. As was the case with the AF36 isolate, fungal isolates in AV3279, AV3304 and AV16127 also lacked deletions in portions of the aflatoxin biosynthesis gene cluster examined. Based on VCG diversity and molecular data, atoxigenic A. flavus isolates belonging to the widely distributed VCGs such as AV0173, AV0222, AV3279 and AV3304 can be selected as biocontrol agents for region-wide deployment in Nigeria. Atoxigenic isolates belonging to AV0222, AV3279, AV3304 and AV16127 have previously been selected and constitute the active ingredients in Aflasafe™, a recently commercialized product for biocontrol of aflatoxin in Nigeria (Bandyopadhyay and Cotty, 2013; Schmidt, 2013). The high diversity of VCGs in A. flavus communities in this study suggests that a single atoxigenic isolate is likely to be less effective in reducing aflatoxin contamination in maize in different regions in Nigeria. An alternative strategy would be to use a mixture of atoxigenic isolates belonging to widely distributed VCGs such as AV0173, AV0222, AV3279 and AV3304. The use of a mixture of atoxigenic isolates that belong to widely distributed VCGs can overcome challenges that plague biocontrol such as specificity of efficacy in limited agroecological zones and thus result in increased efficacy across complex cropping systems (Probst et al., 2011).

The present study established that A. flavus communities across three agro-ecological zones in Nigeria are genetically very diverse. Genetic diversity in A. flavus can be generated by a variety of mechanisms and has important implications on the selection and deployment of atoxigenic isolates in the biocontrol of aflatoxin. Sexual recombination can generate diversity in A. flavus (Moore et al., 2013), but there is no direct evidence to indicate that it occurs under natural conditions in the field (Grubisha and Cotty, 2010). We identified indigenous atoxigenic isolates that are widely distributed and adapted to local farming systems, target crops and environments; and these atoxigenic isolates can be useful in aflatoxin biocontrol programmes. These atoxigenic isolates were members of specific atoxigenic VCGs that were widespread across DS, SGS and NGS agro-ecological zones. Deployment of members of indigenous atoxigenic VCGs that are widely distributed and genetically similar to the local soil populations of Aspergillus communities and thus adapted to the target region will increase the efficacy of biocontrol (Mehl et al., 2012; Lewis et al., 2013) and in the process result in an ecologically sustainable biocontrol of aflatoxin contamination in maize. Recent studies conducted under laboratory conditions have shown that stress biology-related factors such as solutes, temperature, humidity and water activity can impact growth and aflatoxin production in Aspergillus species (de Lima Alves et al., 2015; Medina et al., 2015; Stevenson et al., 2015). An improved understanding of the impact of these environmental factors on the stress biology of A. flavus under field conditions could also be useful in improving the efficacy of biocontrol of toxigenic isolates (Cray et al., 2015).

Experimental procedures

Fungal isolates and quantification of aflatoxin production

A total of 35 isolates of A. flavus were obtained from maize grains collected from farmers’ stores in SGS, DS and NGS agro-ecological zones of Nigeria in 2008 and 2009 and subjected to detailed analyses (Table 1). Temperatures increase and precipitation decreases with increasing latitude with the DS being the southernmost, followed by the SGS and the NGS in the north. These 35 isolates were selected (at least one from each agro-ecological zone) from 4,237 Aspergillus section Flavi isolates collected from maize samples from 52 locations in 11 administrative districts across the three agroecological zones (Atehnkeng et al., 2008b). The 35 selected isolates that were atoxigenic in the initial assessment of aflatoxin-producing ability were retested by inoculating aflatoxin-free maize grain and analyzing the extracts for aflatoxin content 7 days after inoculation as described by Probst and colleagues (2014). Confirmed atoxigenic isolates were tested for their inability to produce aflatoxin by running the aflatoxin production assay at least three times for each isolate. Selected atoxigenic isolates were further co-inoculated with a highly toxigenic A. flavus L-strain isolate La3228, previously obtained from maize in Nigeria, to determine their relative competitiveness in aflatoxin reduction in maize grain. Briefly, co-inoculations were conducted in the laboratory by inoculating 30 sterilized maize kernels in a vial with 10 μl of inoculum containing 1 × 10⁶ conidia ml⁻¹ each of the selected atoxigenic isolate and La3228. Isolate La3228 is highly toxigenic and produces high quantities of aflatoxin in the order of 24,000 ppb (Atehnkeng et al., 2008a). Vials were then shaken in a Vortex mixer for 30 s to ensure complete and uniform coating of kernels with the inoculum and then incubated at 31°C for 7 days. Thereafter, vials were thereafter oven dried at 45°C for 1 day to halt any fungal activity, and kernels were prepared for aflatoxin extraction and analysis. Dry extracts from test kernels and aflatoxin standards were separated on thin-layer chromatography (TLC) plates (silica gel 60, 250 μm) using the diethyl ether–methanol–water (96:3:1) solvent (Cotty, 1997). The level of aflatoxin in the test samples was quantified as described by Atehnkeng and colleagues (2008a) using a scanning densitometer, CAMAG TLC Scanner 3 with WINCATS 1.4.2 software (Camag AG, Muttenz, Switzerland) with 0.1 ng g⁻¹ detection limit.

Size and number of sclerotia

Aspergillus flavus isolates can morphologically be classified into either an S- or L-strain depending on the size and number of sclerotia and production of sclerotia on 5/2 medium. Typically, S-strain isolates produce smaller sclerotia with a mean diameter of < 400 μm on Czapek–Dox medium with 3% NaN0₃, and they also produce sclerotia on 5/2, whereas L-strains produce larger sclerotia on amended Czapek–Dox medium with a mean diameter of > 400 μm, but do not produce sclerotia on 5/2 medium or Czapek–Dox medium lacking NaN0₃ (Cotty, 1989). To determine the production of sclerotia, Petri plates (dia. 9 cm) containing Czapek–Dox medium, were inoculated with spore suspension adjusted to 1 × 10⁶ conidia ml⁻¹ of each of the 35 A. flavus isolates (i.e., treatments). Sclerotia were obtained by modifying the method described by Barros and colleagues (2006) by pouring 10 ml of water containing Tween 20 (0.01%) per plate, washing off the spores and rinsing the surface of culture plates with tap water 5–7 days after inoculation. Cultures were incubated in the darkness at 31°C for 14 days (Novas and Cabral, 2002; Pildain et al., 2004). Inoculated plates were laid out in the incubator in a complete randomized design and with three replications. Each isolate was then scored for the presence or absence of sclerotia 2 weeks after incubation.

Counts of the number of sclerotia were recorded using a grid method (Novas and Cabral, 2002; Pildain et al., 2004). Briefly, lines were marked at the bottom of 9 cm Petri plate to form 1 cm² grids and the number of sclerotia was obtained by counting sclerotia in three arbitrarily selected grids for each replication. The spheroid sclerotia were then spread out on a microscope slide and the diameter of 20 randomly selected sclerotia per replicate was recorded under a calibrated microscope (Leitz Laborlux S, Germany) at a 10× magnification.

Tester-pair development for VCGs

To determine the diversity and distribution of VCGs across different agro-ecological zones, 35 isolates of A. flavus described above were used for VCG tester-pair development. Nitrate non-utilizing (nit− ) mutants were generated using a modified method of Bayman and Cotty (1991a). Briefly, fungal isolates were grown on a selective medium [Czapek–Dox broth (Difco)] containing 25 g l⁻¹ potassium chlorate, 50 mg l⁻¹ rose Bengal and 20 g l⁻¹ agar with pH adjusted to 7. The selective medium was inoculated with a conidial suspension of A. flavus in a well at the centre of a 9 cm Petri plate. Cultures were incubated at 31°C, and margins of colonies with restricted growth were periodically examined for fast-growing sectors containing sparse mycelium. Hyphal tips from sectors arising from different colonies were transferred to Petri plates containing Czapek–Dox broth with 15 g l⁻¹ potassium chlorate and 20 g l⁻¹ agar with pH adjusted to 7 to stabilize the mutants and confirm their inability to utilize nitrate. The nit− mutant phenotypes, niaD− (defective in the structural gene for nitrate reductase), nirA− (defective in the nitrate reductase) and cnx− (defective in the molybdenum cofactor) were determined by growing the mutants on a medium with nitrite, hypoxanthine or ammonium as sources of nitrogen as previously described (Cove, 1976; Bayman and Cotty, 1991a). A complementary pair of nitrate non-utilizing auxotrophs composed of either a niaD− and a cnx− or a niaD− and a nirA− mutant was obtained for each isolate, and complementary pairings were first conducted to establish self-compatibility (Bayman and Cotty, 1991a). Complementary pairs of mutants from an isolate were used as tester pairs and complementation with one or both of the tester mutants of a VCG-defined membership in that VCG.

Frequencies of VCGs within A. flavus populations

To determine the distribution of VCGs in the areas surveyed, nit− mutants were developed from 16 isolates in all of the 52 locations, which resulted in a total of 832 mutants. All the nit− mutants were used to perform complementation test with each VCG tester-pair. Complementation tests were conducted by placing 10 μl of a spore suspension of each member of a VCG-defining tester-pair and a nit− mutant (unknown phenotype) of 1 of the 832 isolates in 3 mm wells cut into complementation medium. The wells were arranged approximately 15 mm apart in a triangular pattern so that each tester may react with both the nit− mutant and the other tester. The Petri plates were incubated at 31°C from 7 to 10 days. Compatibility was identified by a line of prototrophic growth, where the mycelia interacted. This interaction was frequently associated with formation of sclerotia.

Inter-location complementation

Distance between a VCG that was found in other locations apart from the location where the VCG was initially isolated was estimated to determine the distribution of the VCG within the surveyed locations. These distances were estimated using coordinates of the sampled locations obtained from a hand-held Global Positioning System device (eTrex GPS, Garmin Corporation, Olathe, KS, USA).

Statistical analyses

Aflatoxin concentration from experiments involving co-inoculation of atoxigenic isolates and the toxigenic isolate La3228, and number of sclerotia and diameter of sclerotia for each VCG, were subjected to statistical analysis using the MIXED procedure of SAS (version 9.2; Cary, NC, USA). Means for aflatoxin concentration, number of sclerotia and diameter of sclerotia were separated using Fisher’s protected least significant difference test to determine differences between fungal isolates and VCGs. Linear distances between the original location where a VCG was isolated and other locations where the same VCG was found were used to indicate the extent to which a given VCG was distributed within the surveyed region. Diversity of VCGs in the three agro-ecological zones was estimated using different approaches. First, VCG diversity was estimated based on Shannon’s index (Shannon and Weaver, 1949) using the formula: H = [−Σ(ni/N) × ln(ni/N)], where ni is the number of isolates in the ith VCG cluster, and N is the total number of isolates, which was 85, 59 and 9 in DS, SGS, and NGS agro-ecological zones respectively. The maximal value for Shannon’s index (Hmax) was estimated as Hmax = ln(g), where g denotes the number of unique VCGs (Grünwald et al., 2003). Two other diversity indices were also calculated; genetic evenness (E5) was calculated as: E5 = (G − 1)/ (N1 − 1), where G = 1/[Σ(ni/N) 2 ] and N1 = eH (Grünwald et al., 2003). Given that the total number of isolates in the three agro-ecological zones was different, rarefaction analysis was conducted to compare VCG richness across zones. In this case, VCG richness was expressed as the expected number of VCGs, i.e., E = [g9], in a random sample of 9, the smallest sample of isolates in the NGS zone. Rarefaction analysis was conducted in R using the package poppr (Kamvar et al., 2014), which is specifically designed for analysis of populations that are clonal, admixed and/or sexual. VCG diversity was also estimated as the number of VCGs divided by the number of isolates (Mauro et al., 2013), with values ranging between 0 and 1, where a value of 1 indicates maximum diversity, whereby each isolate represents a distinct VCG.

Conflict of interest

None declared.

This article was originally published in Microbial Biotechnology (2016) 9(1), 75–88. doi:10.1111/1751-7915.12324. This is an Open Access article under the terms of the Creative Commons Attribution License.
