Field Application of a Subunit Vaccine against an Enteric Protozoan Disease

Introduction

Coccidiosis is a major global veterinary health problem impacting on the production of domesticated sheep, cattle, poultry and even fish. It is a particularly problematic disease in chickens (due to their intense rearing conditions), costing the industry £38 million per year in the UK alone and, extrapolating from this, over 2 billion US dollars to the world’s farmers and poultry industries annually [1]. It is caused by various species of the genus, Eimeria, which are ubiquitous parasites of the Phylum Apicomplexa. In chickens, there are several species that cause the disease, the three most important being Eimeria tenella, Eimeria maxima and Eimeria acervulina. Infection with Eimeria begins with the ingestion of sporulated oocysts, which are found in the floor litter of any typical poultry house. Sporozoites are liberated from the oocysts and rapidly invade the host intestinal epithelium, commencing the first of several asexual rounds of reproduction that rapidly amplify the number of parasites infecting individual birds. Ultimately, the asexual parasites (merozoites) develop into macro- and microgametocytes, the latter fertilising the former to produce oocysts, which are shed in the faeces of chickens, contaminating the environment of whole flocks of birds. For each oocyst ingested by a naive chicken, several hundred thousand new oocysts are produced. The oocyst possesses an extremely hardy protective wall – the oocyst wall – that protects the parasites contained within it and facilitates their successful transmission from one host to the next [2]. The oocyst wall originates from the fusion of specialized organelles – the wall forming bodies – found in the macrogametes of the parasite [3]. We have previously provided evidence that proteins within these organelles are processed and cross-linked via dityrosine bonds to form the essential structure of the oocyst wall [4]. Two of the key proteins of this process are gam56 and gam82, the main components of a vaccine comprised of antigens from the gametocytes of Eimeria maxima [4–6]. It is believed that antibodies stimulated by vaccination interfere with the formation of crosslinks between these proteins and, hence, inhibit oocyst wall formation, effectively interrupting the parasite’s lifecycle at the transmission stage [2,4–6].

We [4–7] and others [8–10] have previously shown that immunization of breeding hens – either with purified gametocyte antigens or via deliberate infection with E. maxima – results in the passive maternal transfer of large quantities of anti-parasite IgG from hen to egg yolk and, hence, to young chicks, protecting those chicks against infection. In laboratory-controlled conditions, the level of protection is very high, with complete abrogation of oocyst shedding being observable [5–7]. This maternal immunity is able to give protection against multiple species of Eimeria [11], unlike direct immunity, which is species-specific [12,13]. Furthermore, in floor pen trials designed to mimic field conditions, chicks originating from vaccinated hens shed 60–70% fewer oocysts over their lifetime than did chicks from unvaccinated hens [14]. This resistance to infection outlasts the life of maternal antibodies in the growing birds and is presumed to be a result of the fact that maternal immunity induced by vaccination reduces, without totally eliminating, transmission of oocysts between birds, allowing individual birds to develop their own natural, anti-asexual stage immunity on top of the maternal immunity arising from vaccination with gametocyte antigens. (Anti-asexual stage immunity to Eimeria has long been recognised to be extremely strong and effective and is the basis for the success of attenuated live vaccines against coccidiosis [12,13,15]). This explanation for the effectiveness of maternal immunization with purified gametocyte antigens has never been tested formally. Furthermore, to date, the commercial performance (ie weight gain, feed conversion, survival) of the progeny of vaccinated hens has not been reported. Thus, in the experiments reported here, we examined the effect of vaccination with purified gametocyte proteins on (i) the health and egg production of breeding hens, (ii) antibody levels in commercial breeding hens, (iii) reduction of parasite reproduction in the offspring of vaccinated hens at a variety of times after hatching, and (iv) weight loss, feed conversion rate and mortality caused by challenge infection with several species of Eimeria.

Results and Discussion

Safety and immunogenicity of vaccination with purified gametocyte antigens in breeding hens

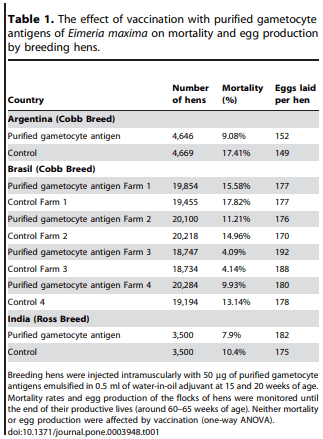

We evaluated the performance of breeder hens (Cobb, Ross, ANAK and others) vaccinated with purified gametocyte antigens in broiler breeder farms around the world. Breeding hens were vaccinated twice prior to the start of their laying period (ie, at 15 and 20 weeks of age). We tested the null hypotheses that immunization with purified gametocyte antigens has no deleterious effects on hen mortality or egg production. The hens suffered no adverse reactions, no damage at the site of injection, and no impairment of performance as a result of vaccination with purified gametocyte antigens. Furthermore, in every farm where these trials were conducted, the survival rate and the number of eggs laid was not significantly different for vaccinated versus unvaccinated, control hens (Table 1). Thus, we must accept the null hypothesis that immunization does not have any adverse affects on maternal health or egg production. Indeed, on several farms there actually appeared to be a slight (albeit not statistically significant), unanticipated improvement in the performance of breeding flocks that were vaccinated. Furthermore, the total number of chicks hatched per hen was improved. In, for example, the Argentine trial 119 eggs hatched in the vaccinated group vs. 116 in the control group, for a total of 13,473 extra live chicks from the 4,646 vaccinated hens versus the 4,669 unvaccinated hens.

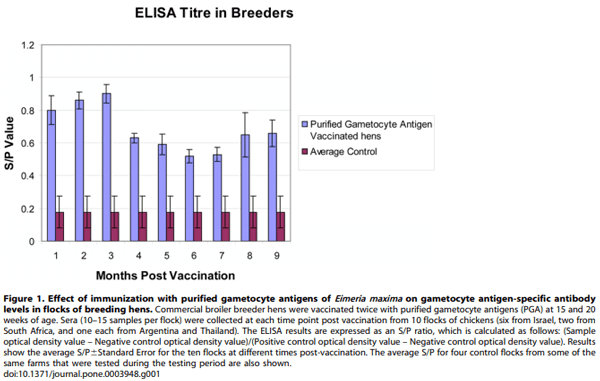

Hens were bled and ELISA carried out at various time points post-vaccination. The commercial ELISA kit contains 96-well plates coated with affinity purified gametocyte antigens, as well as positive and negative control sera. The ELISA test results are recorded as an S/P ratio, calculated as follows: (Sample optical density value – Negative control optical density value)/(Positive control optical density value – Negative control optical density value). A cut-off S/P value of 0.4 has been determined by the manufacturers (ABIC Ltd, Israel) to indicate a sufficiently high antibody level to confer protective maternal immunity against coccidiosis and is used as a key parameter in the quality control of the commercial ELISA kit. As an example of our typical results, ten breeder flocks from various countries (six from Israel, two from South Africa, and one each from Argentina and Thailand) were monitored throughout their entire laying period (Figure 1). In these immunized flocks, the average ELISA S/P ratio was 0.8 or higher for the first 3 months post-immunization, dropped to 0.6 at 4 months and remained well above the ELISA kit cut-off S/P ratio of 0.4 throughout the hens’ laying period. In contrast, control flocks had S/P values of less than 0.4 (0.1860.1, average6S.D.) throughout the laying period of the hens’ life, most often in the 0.1–0.2 range. We believe that the maintenance of the high specific IgG antibody levels in the vaccinated flocks is due to the boosting effect of oocysts that are naturally encountered in every chicken house worldwide. It is conceivable that, on some farms, natural exposure by itself can lead to increased maternal antibody levels, however, without vaccination, these natural titres are likely to be variable, unreliable and relatively non-specific.

Field Application of a Subunit Vaccine against an Enteric Protozoan Disease - Image 1

In summary, these field trials on breeding hens demonstrate the long-term safety and immunogenicity of vaccination with purified gametocyte antigens from E. maxima. The antibody levels maintained in vaccinated flocks are sufficient to ensure the transmission of protective antibodies to offspring throughout the egg laying lifetime of the hens.

Field Application of a Subunit Vaccine against an Enteric Protozoan Disease - Image 2

Resistance to coccidiosis and the development of natural immunity by the progeny of hens vaccinated with purified gametocyte antigens

Commercial broiler breeder hens were vaccinated twice (at 15 and 20 weeks of age) with purified gametocyte antigens and eggs were collected from 43 week old hens and incubated to hatching. At different time points, the hatchlings were moved into clean cages and challenged with various doses of E. tenella oocysts, depending on the age of the hatchlings. Peak and total oocyst excretion, assessed by daily faecal oocyst counts, was used to determine resistance to infection induced by vaccination (see Table 2).

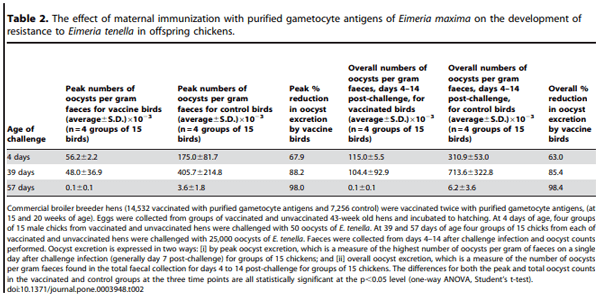

Unchallenged, 4 day old control chicks shed no detectable oocysts, as expected. Peak oocyst excretion by chicks from gametocyte antigen vaccinated hens was reduced by 67.9% compared with oocyst excretion by chicks from unvaccinated hens (significant at p,0.05, Student’s t-test; Table 2), which is similar to our previous results in laboratory-based trials [5,6,7,11]. A similar reduction was found in the comparison of total oocyst counts, where we observed a 63% reduction in the progeny of vaccinated hens (significant at p,0.05, Student’s t-test; Table 2)

Field Application of a Subunit Vaccine against an Enteric Protozoan Disease - Image 3

Field Application of a Subunit Vaccine against an Enteric Protozoan Disease - Image 4

At 39 days of age, peak oocyst excretion by birds from purified gametocyte antigen vaccinated hens was reduced by 88.2% compared with oocyst excretion by chicks from unvaccinated hens (significant at p,0.05, Student’s t-test; Table 2). The same type of experiment was conducted when the birds were 57 days old and, in this experiment, peak oocyst excretion by chickens from the vaccinated group was reduced by 98.0% (significant at p,0.05, Student’s t-test; Table 2). Similar results were found in comparing total oocyst counts, where we found 85.4% and 98.4% reduction at 39 days and 57 days of age, respectively (significant at p,0.05, Student’s t-test; Table 2).

To sum up, we have shown that, not only does vaccination with purified gametocyte antigens confer protection against Eimeria species in the early life of chicks via maternal transfer of antibodies, it also facilitates the development of active immunity in older birds at 8 weeks of age. This is a significant milestone because meat birds (broilers) typically live for only 5–7 weeks before being slaughtered for market.

Growth and performance of the progeny of hens vaccinated with purified gametocyte antigens

Weight gain is the most important performance parameter for a chicken meat farmer and coccidiosis is recognised as one of the major causes of weight loss in broilers. To test the effect of maternal immunization with purified gametocyte antigens on growth of broiler chickens, we raised groups of 100 broilers of the Ross breed on litter that was deliberately seeded with oocysts of E. maxima, E. tenella, E. acervulina and E. mitis (see Figure 2). We chose this approach as a prelude to larger scale field trials because we can control the level of seeding of the litter to guarantee an exposure level that will have an affect on weight gain, whilst otherwise mimicking commercial conditions. We were also able to include negative control groups of chickens in these experiments, which was not possible for the large-scale field trials (see below).

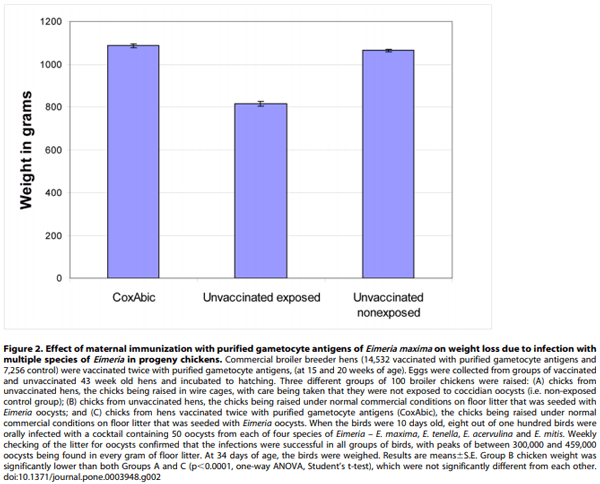

At 34 days of age (ie, 24 days after exposure), the progeny of unvaccinated hens raised on litter weighed more than 200 grams less than either the progeny of vaccinated hens or the non-exposed birds, that is, an effective weight loss of more than 20% as a result of exposure to the four species of Eimeria (significant at p,0.0001, one-way ANOVA; Figure 2). The hatchlings from vaccinated hens were slightly, though not statistically significantly, heavier than the non-exposed birds, confirming that maternal immunization with purified gametocyte antigens protects broilers against one of the most serious effects of coccidiosis, namely, weight loss.

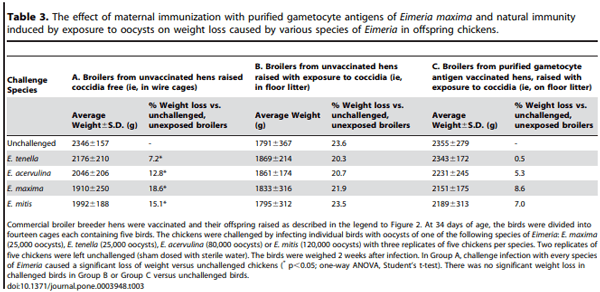

At 34 days of age, chickens were challenged by infecting individual birds with high doses of oocysts of one of the following species of Eimeria: E. maxima, E. tenella, E. acervulina or E. mitis (see Table 3). Oocyst counts were performed on faeces collected from individual birds on days 4–14 post infection and the birds were weighed 2 weeks after infection (i.e. at 49 days of age). As expected, birds from vaccinated and unvaccinated hens raised on floor litter (and, therefore, exposed to coccidial infection which induces active immunity) excreted greatly reduced numbers of oocysts of all species compared with the birds raised coccidia-free in wire cages – in both of these exposed groups of birds, whether challenged with E. maxima, E. tenella, E. acervulina or E. mitis, oocyst excretion was at least 97% less than that seen in nai¨ve birds (data not shown).

Infection with the various coccidia caused significant weight loss in the cage-reared, previously unexposed birds, varying from 7% in the case of E. tenella to 13% for E. acervulina, to 19% for E. maxima and 15% for E. mitis as compared to the unchallenged control group (significant at p,0.05, one-way ANOVA; Table 3). In contrast, the broilers from vaccinated hens that were floor-reared and previously exposed to Eimeria species, lost only between 0.5–8.6% of their weight (statistically these differences were not significant from the unchallenged group of progeny of vaccinated hens) as a result of challenge infection (Table 3). Broilers from unvaccinated hens that were previously exposed to Eimeria in the floor litter, did not show a significant loss of weight due to challenge, however, these broilers went through an infection during the seeding phase, immunizing them against reinfection. In addition, this unvaccinated, exposed group started out more than 200 grams lighter than their gametocyte antigen vaccinated counterparts and ended between 500 and 600 grams lighter (i.e. there was no weight compensation after the initial effect of the seeding with Eimeria oocysts in the control group). Thus, as a result of combined passive and active immunization, at 49 days of age the progeny of purified gametocyte antigen vaccinated hens were substantially heavier than both the cage-reared and floor reared broilers from unvaccinated hens.

Our results showing protection against weight gain in smallscale floor-pen trials, led to large-scale field trials that were conducted on commercial farms in Brazil, Thailand, Israel and South Africa. As it is not possible to ask poultry farmers to compromise their profit margins by raising large numbers of broilers without any protection against coccidiosis, our large-scale field tests of the gametocyte antigen vaccine were evaluated against a ‘‘gold standard’’ positive control, either anti-coccidial drug incorporated into the feed of the broilers or a known, effective live vaccine regimen. Thus, our null hypothesis was that the growth and survival rates of offspring of hens vaccinated with purified gametocyte antigens are no less than the ‘‘gold standard’’ positive control chickens

The trials involved at least 1 million progeny of vaccinated hens and at least 1 million positive control birds in each country, allowing us to do a robust assessment of performance of these broiler chickens on four continents, with distinct climates and also different rearing conditions (eg, in Israel and South Africa, litter is always cleaned out between each flock, whereas in Brazil litter is occasionally reused). The trials that were carried out in Israel were particularly extensive, involving 60 million progeny of vaccinated hens and 112 million positive control birds.

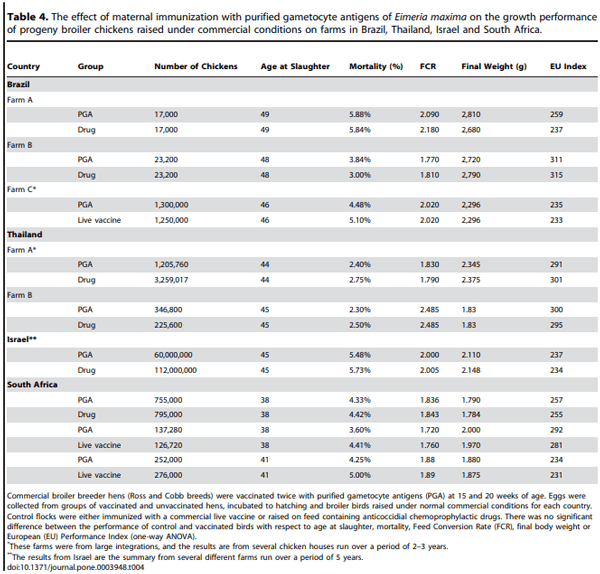

Table 4 summarises the results in terms of country, age of slaughter, weight, feed conversion ratio (FCR = kg feed consumed/net weight gain; the lower the FCR the better), mortality and the EU performance index. The EU index was calculated using the following formula: (Body weight (g)610)/(FCR6slaughter age in days) and gives a powerful measure of overall flock performance and profitability (the higher the EU index the better). In all trials, in all countries, the performance of offspring broilers from gametocyte antigen vaccinated hens was not significantly different to that of medicated or live vaccine control groups; this is true for all aspects of broiler growth. Thus, we must accept the null hypothesis that the growth and survival rates of progeny from hens vaccinated are the same as those of positive control chickens. Indeed, though the differences are not statistically different, in all but two trials (Fram B, Brazil and Farm A, Thailand) the EU Index was slightly higher in the progeny of vaccinated hens.

Outcomes and General Conclusions

In the present study, involving 180 million broiler chickens, we have demonstrated the effectiveness of the first antiparasitic subunit vaccine of any kind used on a commercial scale worldwide. This vaccine contains antigens purified in native form from the gametocytes of E. maxima. It induces the production of high levels of protective IgG antibodies that are transferred from hens to egg yolks and, thence, to offspring broiler chickens. As a result of this maternal immunity, chickens can be raised without the need for any in-feed anti-coccidial drugs. This vaccination strategy reduces transmission between birds or, in other words, controls the level of overall infection in any given flock of chickens rather than preventing infection of individual birds, per se. It achieves this by stimulating production of antibodies that target proteins destined to be processed and cross-linked to form the oocyst wall of the parasite, a structure that is absolutely essential for the survival of the parasites outside of their host and, therefore, vital for transmission of parasites from host to host [2]. Importantly, because of the conserved, functional importance of oocyst wall formation in the parasites’ lifecycle, immunization with the gametocyte antigens confers protection against a range of coccidial parasites even though it is composed of antigens from the gametocytes of E. maxima only. Another major benefit of this transmission-blocking immunity is that, in addition to the protection conferred by the maternal transfer of the IgG antibodies, individual chickens are additionally able to develop their own strong, natural immunity to the asexual stages of the parasite, which protects them in later weeks, well after maternal antibody levels have waned.

Field Application of a Subunit Vaccine against an Enteric Protozoan Disease - Image 5

Field Application of a Subunit Vaccine against an Enteric Protozoan Disease - Image 6

Materials and Methods

Production of purified gametocyte antigens

Purified gametocyte antigens were produced by ABIC Ltd, Bet Shemesh, Israel as described previously [6], and according to the manufacturer’s standard operating procedures, from the highly enriched gametocyte stages of Eimeria maxima.

Vaccination with purified gametocyte antigens

Affinity purified gametocyte antigens were emulsified in a water-in-oil emulsion and tested for sterility, stability and safety. Vaccine efficacy was tested by immunising Specific Pathogen Free chickens with a given batch and demonstrating by ELISA that the antibody titre induced was above the cut-off level required for providing protective immunity (see below). These tests were carried out at ABIC Ltd., Israel under the rules for animal ethics in accordance with Israeli law and those of the Veterinary Laboratory Agency, United Kingdom (the VLA is bound by the Animals (Scientific Procedures) Act 1986, which is administered by the Home Office, UK). Each 0.5 ml dose of vaccine contained 50 mg of gametocyte antigen. Hens were vaccinated twice by intramuscular injection - at 15 and 20 weeks of age – that is, just prior to the start of their laying period. All experiments were monitored by qualified scientists, veterinarians and the farmers themselves. Feed was provided by commercial companies that were instructed to clean out the chutes used for preparing our batch from any remaining anticoccidial drugs prior to preparation of the drug-free feed used in the trial. In order to be absolutely certain that no errors were made at the feed mill, the feed was tested for the presence (in the case of feed used as a drug containing control group) or absence (used for the vaccinated group) of the coccidiostats being used at that time in that particular feed mill. In the rare event there was an error made in preparing the feed, the experiment was aborted.

Measurement of antibody levels

Sera were taken on the day of the first vaccination and then commencing 4 weeks post immunization. Sera were collected periodically until the end of the laying period and antibody levels measured by ELISA. The ELISA kit was produced by ABIC Ltd, Bet Shemesh, Israel, and was used exactly as recommended by the manufacturers. The kit contains ELISA plates coated with affinity purified macrogametocyte antigen from E. maxima, plus known positive and negative control sera and all the reagents needed for performing the test. The ELISA results are expressed as an S/P ratio, which is calculated as follows: (Sample optical density value – Negative control optical density value)/(Positive control optical density value – Negative control optical density value). A cut-off S/ P value of 0.4 has been determined by the manufacturers to indicate a sufficiently high antibody level to confer protective maternal immunity against coccidiosis.

Oocyst counts

Faecal oocyst counts or litter oocyst counts from samples collected weekly from individual chicken houses were performed as described previously [16]. For litter counts, samples were collected at a variety of points within the shed, the litter was well mixed, a sample was weighed, water was added and left overnight at 4uC. The sample was then mixed well, filtered through a strainer, spun at 1500 rpm for 5 minutes and brought back to the original volume with a saturated salt solution. Oocyst counting was performed using a McMaster flotation chamber. The number of oocysts per gram litter or faeces was calculated by dividing the number of oocysts counted microscopically by 0.15, multiplying by the dilution factor and then dividing by the weight in grams of the sample.

Assessment of performance of chickens

For breeder farms, hens were kept in separate but very similar houses, and monitored for mortality, morbidity, egg laying and hatchability of chicks. Calculations were made as far as the number of eggs laid per hen and the number of chicks hatched per hen in the vaccinated versus control groups.

For the broiler chicks, houses were monitored for chicken mortality, weight gain and feed conversion. The feed conversion ratio (FCR) was calculated by Feed(kg)/BW(kg). The EU performance index was calculated using the following formula: (Body weight (kg)610,000)/(FCR6slaughter age in days). All of the studies using commercial breeder and broiler chickens were carried out in accordance with commercial growing and animal experimentation rules governing their care & welfare in each of the countries where tests were performed (Thailand, India, South Africa, Israel, Argentina and Brazil).

Acknowledgments

We wish to thank Dr. Ralph Marshall from the Veterinary Laboratory Agency, UK and all of the farmers, veterinarians and laboratory managers and technicians from Thailand, India, South Africa, Israel, Argentina and Brazil for their assistance in the conduct of the various experiments and trials and the collection of data.

Author Contributions

Conceived and designed the experiments: MW AM. Performed the experiments: MW UA AM. Analyzed the data: MW UA AM NCS. Contributed reagents/materials/analysis tools: MW. Wrote the paper: MW AM NCS.

This article was originally published in PLoS ONE 3(12): e3948. doi:10.1371/journal.pone.0003948. This is an Open Access article distributed under the terms of the Creative Commons Attribution License.
