Development and characterization of mouse monoclonal antibodies reactive with chicken CXCLi2

1. Introduction

The CXC chemokine family consists of two subfamilies, delineated by the presence or absence of the tripeptide Glu-Leu-Arg (ELR) motif located in the NH2-terminal region and designated as ELRþ or ELR CXC chemokines, respectively (Fernandez and Lolis, 2002). CXCL8, also known as interleukin-8 (IL-8), belongs to the ELRþ CXC chemokine subfamily and functions as a neutrophil chemoattractant and potent angiogenic factor (Modi et al., 1990). Additionally, CXCL8 plays an important role in inflammation and wound healing. Elevated IL-8 expression and neutrophil infiltration are observed in many inflammatory and recovery responses (Bickel, 1993; Heidemann et al., 2003).

For chicken homologues of human CXCL8 (huCXCL8), 9E3 (Sugano et al., 1987) and pCEF-4 (Bedard et al., 1987) (referred to as chCXCLi2 by Kaiser et al. (2005) were identified in RSV-transformed chicken embryonic fibroblasts (CEF) as the first non-mammalian cytokine. Subsequently, another chicken homologue, K60 (also referred to as chCXCLi1) whose share 67% amino acid sequence identity with chCXCLi2 was identified in lipopolysaccharide (LPS)- induced chicken macrophage cell line (Sick et al., 2000). With high sequence homology with huCXCL8 (48% and 46.5% for chCXCLi1 and chCXCLi2, respectively), adjacent genomic location on chicken chromosome 4 and sharing chemokine receptor chCXCR1, it has suggested that they have evolved by gene duplication (Kaiser et al., 1999, 2005; Poh et al., 2008). Similar to huCXCL8, cxCXCLi2 has chemotactic activity, mainly attracting monocytes, while huCXCL8 is the major chemokine necessary for attracting neutrophils (Barker et al., 1993; Martins-Green and Feugate, 1998). Moreover, chCXCLi2 is involved in angiogenesis and fibroblast mitogenesis (Barker and Hanafusa, 1990). Unlike chCXCLi2, the major type of cells migrated by chCXCLi1 was heterophils, avian equivalent to mammalian neutrophils suggesting the different role of chicken CXCL8 homologues in immune system (Poh et al., 2008).

Although use of monoclonal antibodies (mAbs) has become routine in mammalian research and diagnosis, detecting and quantifying bioactive chemokines/cytokines in avian species is limited by the lack of specific antibodies and reliable bioassays. Therefore, this study was undertaken to develop mAbs against chCXCLi2, to characterize their ability to neutralize chicken macrophage cell line (HD11) proliferation, and to enable their use as reagents for basic and applied poultry research. Unfortunately, we could not detect cross-reactivity of mAbs between chCXCLi1 and cxCXCLi2 in any assays used in this study.

Development and characterization of mouse monoclonal antibodies reactive with chicken CXCLi2 - Image 1

Development and characterization of mouse monoclonal antibodies reactive with chicken CXCLi2 - Image 2

2. Materials and methods

2.1. Recombinant chCXCLi2 production

In order to produce antigens for generating mAbs, we used recombinant chCXCLi2 protein expressed in Escherichia coli. The cDNA encoding chCXCLi2 (GenBank accession: NM_205498) was cloned into the pET32a bacterial expression vector (Novagen, Madison, WI, USA) incorporating an NH2-terminal polyhistidine epitope tag using the following primers: 50 eGATCGGATCCGCTCTGTCGCAAGGTAGGAe30 and 50 eGATCAAGCTTCACGTGGTGCATCAGAATe3'. Primers contained BamHI and HindIII restriction enzyme sites (underlined). Recombinant chCXCLi2/pET32a was transformed into E. coli BL21(DE3) cells (Life Technologies, Grand Island, NY, USA) and induced in 2X TY liquid culture medium (16 g/L BD Bacto Tryptone (BD Biosciences, San Jose, CA, USA), 10 g/L yeast extract, 6 g/L NaCl) with 0.5 mM isopropyl-1-thio-b-d-galatopyranoside during the mid-log phase (OD₆₀₀ ¼ 0.4) at 37 C for 3 h. The recombinant chCXCLi2 expressed in E. coli (E. coli chCXCLi2) fusion protein was purified using Ni2 þ-NTA His•bind Resin (Merck Millipore, Billerica, MA, USA) column chromatography. Another chCXCLi2 protein produced from Pichia pastoris (yeast chCXCLi2) for bioactivity assays was obtained from Kingfisher Biotech, Inc. (St. Paul, MN, USA). The concentration of purified E. coli chCXCLi2 protein and yeast chCXCLi2 protein were determined using the Bradford assay and purity was confirmed by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDSPAGE) and Western blot analysis. To test cross-reactivity of mAbs, another homologue of huCXCL8, chCXCLi1 was cloned into pcDNA3.1 vector (Invitrogen, USA) with DYKDDDDK tag at the C-terminus and produced in COS-7 cells. The collected supernatant from COS-7 cells transfected with pcDNA3.1/chCXCLi1-DYK was concentrated by Amicon ultrafiltration using 3-kDa cutoff filters (Millipore, USA) and used in Western blot analysis with rabbit antiDYKDDDK tag antibody (Cell signaling, USA) and ELISA to determine the cross-reactivity.

2.2. Production of chCXCLi2 mAb and validation of antigen specificity

All animal protocols were approved by the Beltsville Agricultural Research Center Institutional Animal Care and Use Committee. BALB/c mice (National Cancer Institute, Frederick, MD, USA) were immunized biweekly by intraperitoneal and subcutaneous injections with 50 mg purified E. coli chCXCLi2 protein in Freund's adjuvant (Sigma, St. Louis, MO, USA), as previously described (Lee et al., 2011). Booster injections of 25 mg chCXCLi2 without adjuvant were administered intravenously three days prior to cell fusion. Splenic lymphocytes were fused with mouse SP2/ 0 cells (ATCC, Manassas, VA, USA) and hybridomas selected in RPMI-1640 medium supplemented with hypoxanthine, aminopterin, and thymidine (all from Sigma). Hybridomas secreting chCXCLi2 mAbs were selected by enzyme-linked immunosorbent assay (ELISA), as previously described (Min et al., 2002). Briefly, 96- well microtiter plates were coated overnight at 4 C with 1.0 mg/ well purified E. coli CXCLi2 protein. Plates were blocked with phosphate-buffered saline (PBS) containing 1.0% bovine serum albumin and washed with PBS (pH 7.2) containing 0.05% Tween 20 (PBS-T). Undiluted hybridoma culture supernatant (100 mL/well) was added, incubated with agitation at room temperature for 1 h, and washed with PBS-T. A mAb detecting recombinant chIL-10 was used as a negative control. Bound mAbs were detected using horseradish peroxidase (HRP)-conjugated rabbit anti-mouse IgG secondary Ab (1/1000 dilution), 3,30 ,5,5'-tetramethylbenzidine (TMB) substrate, and H2O2 (all from Sigma). Optical density at 450 nm (OD450) was determined by a microplate reader (Bio-Rad, Richmond, CA, USA). Hybridoma supernatant containing mAbs that reacted with E. coli CXCLi2 only were selected for limiting dilution and further characterization. The monoclonal antibodies were purified from hybridoma supernatant by Protein G agarose chromatography then the purified antibodies were conjugated with HRP by using peroxidase labeling kit (Roche, Germany) according to the manufacturer's instructions. Immunoglobulin isotypes were determined using a mouse mAb isotyping kit (Sigma), according to the manufacturer's instructions.

Development and characterization of mouse monoclonal antibodies reactive with chicken CXCLi2 - Image 3

2.3. Western blot analysis

All samples were mixed with an equal volume of sample buffer (0.125 M TriseHCl (pH 6.8), 4.0% SDS, 20% glycerol, 10% 2- mercaptoethanol, and 0.004% bromophenol blue) and heated at 95 C for 5 min. Each protein (2 mg/lane) was resolved on a 15% SDSpolyacrylamide gel and electroblotted onto nitrocellulose (Immobilon-P, Millipore, Bedford, MA, USA). The membrane was blocked with 1X PBS (pH 7.2) containing 5.0% non-fat dry milk, washed with 1X PBS-T, and incubated with mAb chCXCLi2 #97 and chCXCLi2 #100 (1.0 mg/mL). Bound mAbs were incubated with HRPconjugated rabbit anti-mouse IgG secondary Ab (1/1000 dilution), visualized using a Clarity Western ECL Substrate (Bio-Rad), and detected using the ChemiDoc imaging system (Bio-Rad).

2.4. Capture ELISA for determining serum chCXCLi2 concentrations

An antigen-capture ELISA was developed using the two mAbs specific for chCXCLi2 and the two antibodies were subsequently used for both capture and detection. The chCXCLi2 #97 or chCXCLi2 #100 used as capture antibodies were coated in carbonate buffer at 0.1 mg/well into 96-well microtiter plates overnight at 4 C. The plates were blocked and washed, as previously described (Lee et al., 2013). Chicken sera from the control, Eimeria maxima-infected, or necrotic enteritis (NE)-infected groups (n ¼ 4/group) -derived by infecting E. maxima and Clostridium perfringens (Lee et al., 2013)- were diluted 1:2 (v/v) in PBS-T, and a 100 mL of this solution was added to the wells and incubated for 2 h at room temperature. NE was induced as previously described (Park et al., 2008). The plates were washed with PBS-T, and a 100 mL/well of peroxidase-conjugated chCXCLi2 #100 or chCXCLi2 #97 (1 mg/mL) detection antibody was added. The plates were incubated for 30 min and then developed with TMB substrate. Optical densities at 450 nm were measured and serum chCXCLi2 concentrations determined using a standard curve generated with known E. coli CXCLi2 concentrations.

Development and characterization of mouse monoclonal antibodies reactive with chicken CXCLi2 - Image 4

2.5. Immunostaining of chCXCLi2

CEF cells grown on glass coverslips were stimulated with 10 mg/ mL LPS in the presence of GolgiPlug (BD Bioscience) for 2 h. The cells were fixed in 2% paraformaldehyde (Sigma) for 10 min, permeabilized in 0.1% Triton X-100 in PBS for 15 min, blocked in 10% normal horse serum for 20 min, and incubated with chCXCLi2 #97 or chCXCLi2 #100 (10 mg/mL) for 1 h at room temperature. After washing three times with 0.1% Tween 20 in PBS, the coverslips were incubated with anti-mouse IgG Alexa 488 secondary antibodies (Life Technologies) for 1 h. After three washes with 0.1% Tween 20 in PBS, the coverslips were air dried and mounted using Gold Antifade Mountant with 40 ,6-diamidino-2-phenylindole (DAPI, Life Technologies) and examined using an Eclipse 80i fluorescence microscope (Nikon, Tokyo, Japan), using a fixed shutter speed to allow for fluorescence intensity comparison.

2.6. Chemotaxis assay

The chemotaxis of peripheral blood mononuclear cells (PBMC) was determined using ChemoTx 96-well disposable chamber (3 mm pore size filter) (Neuroprobe Inc., Gaithersburg, MD, USA) according to the manufacturer's instruction. PBMC were prepared from 2- weeks old healthy chickens by density gradient methods (Kim et al., 2014) and viability was 98%. Recombinant chCXCLi2 or fMLP (Sigma) as a positive control were added to the lower chamber, and isolated PBMC (1 x 10⁵ /mL) were suspended in RPMI-1640 supplemented with 1% FBS (HyClone, USA) and 1% Penicillin/Streptomycin (Sigma) and seeded in the upper compartment. Then chamber was incubated for 2 h at 41 C, 5% CO2. The cells migrated into the bottom chamber were counted by Cellometer X2 cytometer (Nexcelom Bioscience, Lawrence, MA, USA). Each sample assayed in triplicate and pooled for counting.

2.7. Neutralization of chCXCLi2 by chCXCLi2 mAbs

To identify chCXCLi2 mAbs inhibition of HD11 proliferation, the HD11 cells (5 x 10⁶ /mL) were incubated with medium, 10 ng/mL yeast chCXCLi2, or E. coli chCXCLi2 pretreated with chCXCLi2 mAbs at the indicated concentrations at 41 C for 48 h. Cell proliferation was measured using 2-(2-methoxy-4-nitrophenyl)-3-(4- nitrophenyl)-5-(2,4-disulfophenyl)-2H-tetrazolium (WST-8, Dojindo Molecular Technologies, Gaithersburg, MD, USA) at OD450, as previously described (Lee et al., 2011). To confirm chCXCLi2 mAbs neutralization, CEF cells were incubated with yeast chCXCLi2 at ranges between 312.5 ng/mL and 5000 ng/mL and chCXCLi2, chCXCLi2 #97, and chCXCLi2 #100 mAbs at 41 C for 24 h. Cell were lysed into radioimmunoprecipitation assay buffer and centrifuged at 15,000 x g for 20 min. The supernatant was mixed with sample buffer and heated at 95 C for 5 min. Western blot analysis was performed, as previously described, using mouse anti-a-SMA antibody (1A4, Thermo Scientific, Waltham, MA, USA) or rabbit anti-b-actin antibody (Cell Signaling Technology, Danvers, MA, USA) as a loading control.

2.8. Statistical analysis

Each sample was analyzed in triplicate using an ELISA and a cell proliferation assay. All data were subjected to one-way analysis of variance using SPSS version 15.0 for Windows (SPSS Inc., Chicago, IL, USA) and were expressed as mean ± SD values. The differences in mean values between control and samples treated with different concentrations of chCXCLi2 or chCXCLi2 mAbs were analyzed using the t-test and variations considered significant at p < 0.05.

3. Results

3.1. Production of chCXCLi2 mAbs

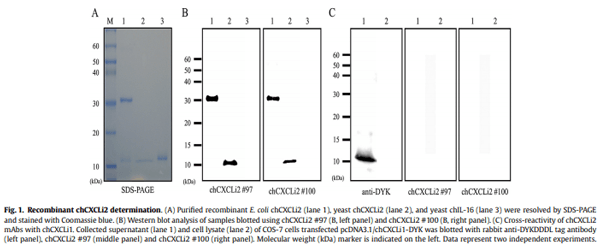

Two mouse hybridomas (chCXCLi2 #97 and chCXCLi2 #100) secreting mAbs specific for chCXCLi2 protein were identified and cloned based on their strong ELISA reactivity to E. coli and yeast chCXCLi2. Isotype analysis of mAbs secreted from these clones revealed that both chCXCLi2 mAbs were IgG1. SDS-PAGE analysis described the specific size of chCXCLi2 and chIL-16 proteins and chCXCLi2 antigen purity for generating mAbs (Fig. 1A). Both mAbs recognize around 30 kDa protein produced in E.coli (Fig. 1B, lane 1), which corresponded to the predicted molecular weight of a fusion protein with epitope tag encoded by the pET32a vector, and around 10 kDa protein expressed as a yeast chCXCLi2 (Fig. 1B, lane 2). Neither mAbs reacted with chCXCLi1 or chIL-16 (Fig. 1B and C), suggesting that their binding activity was specific for chCXCLi2. chCXCLi1 is the another chicken homologue of human CXCL8 with sequence homology of 48% and the chCXCLi1-DYK produced in COS-7 cells was detected in supernatant by using anti-DYKDDDK antibody with expected size of 12 kDa. However, both chCXCLi2 mAbs we develop could not detect chCXCLi1 although it has 67% sequence homology with chCXCLi2 (Fig. 1C).

3.2. Serum chCXCLi2 concentration determination

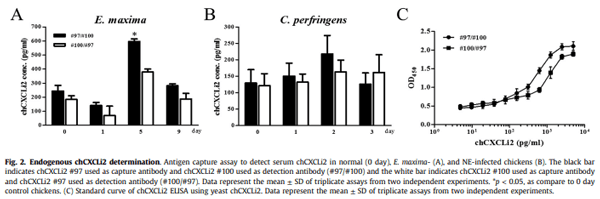

Lymphocytes from E. maxima-infected chickens produce high levels of chCXCLi2 transcript (Hong et al., 2006a; 2006b) and C. perfringens-induced NE upregulates chCXCLi2 expression in intestinal tissue (Park et al., 2008). Thus, higher serum chCXCLi2 mRNA levels are expected in E. maxima- and NE-infected chickens relative to uninfected controls. The absolute quantification of chCXCLi2 was performed based on standard curves with yeast chCXCLi2 (Fig. 2C). Results from the capture assay using both chCXCLi2 mAbs indicated that serum chCXCLi2 concentrations increased in Eimeria- and NE-infected chickens relative to uninfected controls. On day five following E. maxima infection, serum chCXCLi2 protein concentrations reached 600 pg/mL (p < 0.05) (Fig. 2A). Compared to E. maxima infection, NE-infected chickens displayed lower chCXCLi2 serum levels throughout infection (Fig. 2B). Importantly, similar patterns were observed in the ELISA results, using either chCXCLi2 #97 or chCXCLi2 #100 as the capture antibody. These results indicate that both chCXCLi2 mAbs are capable of recognizing endogenous chCXCLi2 in serum and can be used as both capture and detection antibodies.

3.3. Immunostaining of chCXCLi2 by chCXCLi2 mAbs

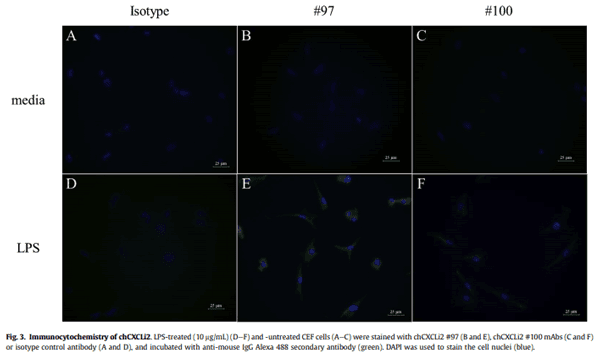

Binding of chCXCLi2 mAbs to endogenous chCXCLi2 was evaluated using immunocytochemistry. Since LPS treatment induces chCXCLi2 mRNA expression in CEF cells (Barker and Hanafusa, 1990), we used this method to investigate chCXCLi2 detection by chCXCLi2 mAbs. Immunocytochemical study using both mAbs revealed that fluorescence-positive cells were detected in LPStreated CEF cultures, with specific staining for chCXCLi2 localized to the cytoplasm (Fig. 3).

3.4. Neutralization by chCXCLi2 mAbs

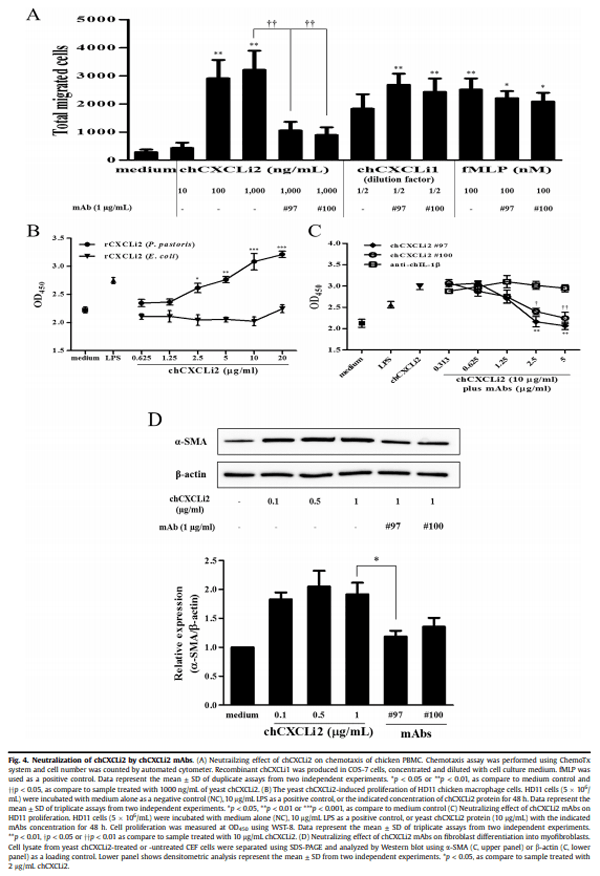

The main role of chemokines is to attract the lymphocytes to inflamed tissues. chCXCLi2 highly induce chemotaxis of PBMC at concentration of 500 ng/mL (Barker et al., 1993). To determine the ability of CXCLi2 mAbs to neutralize the chemotactic activity, Boyden-chamber-based chemotaxis assay was performed. In our study, yeast chCXCLi2 showed highest migration of PBMC at concentration of 1 mg/mL (Fig. 4A). It also shows the migration of PBMC induced by COS-7 cell supernatant containing chCXCLi1. This chemotactic activity of chCXCLi2 was abolished in presence of chCXCLi2 mAbs, #97 or #100 but no inhibition was detected in response to chCXCLi1 or fMLP. It is indicated that the chCXCLi2 mAbs neutralize the ability of yeast chCXCLi2 to attract the lymphocytes into the inflamed tissues. Moreover, yeast chCXCLi2 induced HD11 proliferation in a dose-dependent manner as consistent with chemotaxis (Fig. 4B). The proliferation of HD11 induced by chCXCLi2 was measured by a WST assay to support their neutralizing activity. The yeast chCXCLi2-stimulated HD11 cells cultured in the presence of both chCXCLi2 mAbs exhibited suppressed proliferation in a dose-dependent manner relative to untreated cells whereas mAb against chicken interleukin-1b showed no inhibition of proliferation in any dose used (Lee et al., 2014) (Fig. 4C). Although E. coli CXCLi2 was used for mAb development, no bioactivity was identified throughout the study. It seems like that the inactivity of bacterially produced chCXCLi2 may attributed by unremoved fusion protein such as tag protein or incomplete folding of recombinants from bacterial system. Additionally, chCXCLi2 mAbs inhibition of CEF myofibroblast differentiation was investigated by measuring myofibroblast marker expression using Western blot analysis. IL-8 induces myofibroblast differentiation in the presence of elevated a-SMA concentrations (Gharaee-Kermani et al., 2012). Given that chCXCLi2 stimulation also produces high a-SMA expression levels (Feugate et al., 2002), we treated yeast chCXCLi2-rich CEF cells with an a-SMA-specific antibody and revealed that chCXCLi2 inhibition by treatment with both antibodies abrogated increased a-SMA expression (Fig. 4D). These results suggest that chCXCLi2 mAbs are capable of inhibiting fibroblast differentiation into myofibroblasts.

4. Discussion

In this study, we described two new mAbs, chCXCLi2 #97 and chCXCLi2 #100, developed against chCXCLi2 with no crossreactivity with chCXCLi1, which can be used to detect endogenous chCXCLi2 using capture ELISA and allow specific measurement of protein levels for the first time in chickens. Although high homology between chCXCLi1 and chCXCLi2, both mAbs that were developed here did not cross-react with chCXCLi1. Regarding this phenomenon, we speculated that chickens might use different site to interact with its receptors. In humans, it has been known that CXCL8 signaling is mediated by binding of chemokine to two CXC chemokine receptors, CXCR1 and CXCR2 and that the C-X-C motif in CXCL8 is important role in activation of its receptors (Joseph et al., 2010). The avian species like chickens have some degree of similarity in chemokine binding patterns including the binding of chCXCLi1 and chCXCLi2 with chCXCR1 (Poh et al., 2008). Unfortunately, the complete sequence of chicken CXCR2 homologue has not elucidated yet. Both mAbs successfully detected chCXCLi2 in Western blot and immunocytochemistry assays. Furthermore, these mAbs are capable of neutralizing chCXCLi2-induced chemotaxis of PBMC, proliferation of chicken macrophages and differentiation of fibroblasts into myofibroblasts. Interestingly, beside of chemotactic property of chCXCLi2 it has found that chCXCLi2 has diverse role depending on the type of responder cells as PBMC, HD11 and CEF cells were used for assessment of chemotaxis, proliferation and SMA expression, respectively. So far, it has not discovered if chCXCLi2 uses different receptor set for multiple activities but it would be interesting to investigate in further studies. We expect that these new chCXCLi2 mAbs will serve as valuable immune reagents for basic and applied research in poultry.

Acknowledgments

This project was supported, in part, by the NIFA Immune Reagent Grant (GRANT12211227) and the NIFA/USDA, US Veterinary Immune Reagent Network Grant (NIFA #2010-65121-20649, USDACSREES #2005-01812).

This article was originally published in Developmental and Comparative Immunology 72 (2017) 30-36. This is an Open Access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).
