Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions

INTRODUCTION

Sows in transition from gestation to lactation are in a period of dramatic physiological change due to high nutrient demands of rapidly growing fetuses in utero, parturition, and lactation. These physiological changes require coordinated hormonal, nutritional, and management transitions to optimize piglet viability and postnatal growth (Theil, 2015). Inadequate preparation for these massive physiological changes could lead to increased stillbirth rate, increased number of low birth weight pigs (<1 kg birth weight), and increased preweaning mortality of piglets. Preweaning mortality can be attributed to many factors such as low viability, trauma from crushing, starvation, or disease (Vaillancourt et al., 1990; Lay et al., 2002; Edwards and Baxter, 2015). Commercial swine farms commonly experience preweaning mortality rates between 12% to 25% (Alonso-Spilsbury et al., 2007; Nuntapaitoon and Tummaruk, 2018; PigCHAMP, 2019).

Birth weight significantly influences lifetime growth performance and subsequent carcass characteristics of market pigs (Lay et al., 2002; Douglas et al., 2013). Piglets weighing less than 1 kg at birth typically are at greater risk for mortality and poor lifetime growth performance compared with pigs with normal birth weights (Foxcroft et al., 2006; Calderon Diaz et al., 2017). Therefore, sows that produce pigs with birth weights greater than 1 kg have greater economic value for pork producers because they have enhanced postnatal piglet survival and pig growth performance. Postnatal management, environment, and nutritional interventions to improve piglet viability and growth have resulted in varying degrees of success (Deen and Bilkei, 2004; Douglas et al., 2014; Edwards and Baxter, 2015). A more effective strategy might be to intervene prenatally to better prepare piglets for life outside the sow’s uterus.

Increasing dietary zinc supplementation may be a useful prenatal intervention. Previously, zinc deficiency has been associated with intrauterine growth retardation, subsequent decrease in birth weight, lack of competent immune and neurological system development, and increased preweaning mortality in rats and humans (Hurley et al., 1973; Simmer and Thomson 1985). In swine, elevated dietary zinc concentrations can reduce the incidence of stillborn pigs (Hill et al., 1983) and increase litter birth weight (Payne et al., 2006). Researchers have demonstrated that zinc, copper, and manganese accumulate in high concentrations in the conceptus (Hostetler et al., 2003). Furthermore, after day 90 of gestation, maternal liver zinc concentrations decrease, yet, fetal liver zinc increases (Hostetler and Kincaid, 2004). Impaired accumulation of these trace minerals may negatively affect the piglet’s chance of survival. Vallet et al. (2014) demonstrated, with a limited number of gilts (n=56), that elevated dietary zinc concentration during late gestation reduced preweaning mortality of low birth weight pigs, but this observation has not been verified under large-scale commercial conditions. Therefore, we hypothesized that preweaning survival and lifetime performance of pigs weighing less than 1 kg at birth would improve by feeding sows increasing levels of dietary Zn during the last 30 d prepartum. Our objective was to evaluate this hypothesis under commercial conditions present in a large-scale sow farm.

MATERIALS AND METHODS

The experimental protocol was reviewed and approved by the University of Minnesota Institutional Animal Care and Use Committee (IACUC# 1083-35724A). The experiment began in May 2018 and concluded in February 2019. This experiment was conducted in a commercial sow facility (1,200 sows; Schwartz Farms, Inc.) located in Comfrey, MN.

Animals, Housing, and Treatments

Three consecutive weeks of production that included 339 females (parity 0 to 7; PIC Camborough, Hendersonville, TN) were assigned based on parity to 1 of 3 dietary treatments at 85 ± 3 d of gestation.

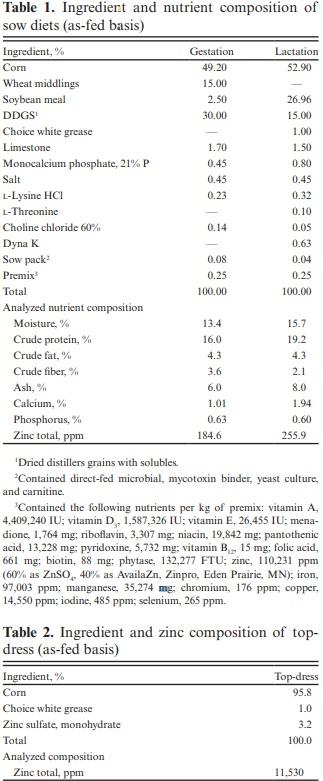

Dietary treatments consisted of 1) Control— sows fed a corn–soybean meal-based diet containing 125 ppm total supplemental Zn supplied by ZnSO4 (75 ppm Zn) and amino acid complexed Zn (50 ppm Zn; AvailaZn; Zinpro Corp., Eden Prairie, MN; CON); 2) Intermediate—as Control + 240 ppm supplemental Zn as ZnSO4 (INT); and 3) High—as Control + 470 ppm supplemental Zn as ZnSO4 (HI). Final supplemental Zn concentrations of the 3 dietary treatments were 1) CON— 125 ppm; 2) INT—365 ppm; and 3) HI—595 ppm. Composition of gestation and lactation diets was based on the farm’s standard operating procedures (Table 1). Dietary treatments were imposed by adding 60 mL (45 g; INT) or 120 mL (90 g; HI) of the Zn supplement to feed hoppers once daily for sows assigned to INT or HI treatments, respectively (Table 2). The Zn top-dress provided 519 mg or 1,038 mg of additional Zn per day, respectively, for sows assigned to INT and HI treatments. Control sows did not receive any top-dressed Zn supplement. Sows remained on their assigned dietary treatment and received 2.2 kg of feed once daily

Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions - Image 1

until parturition. Immediately after parturition, all sows were fed a common lactation diet and allowed ad libitum access to feed and water.

Sows were housed individually in stalls during gestation on partially slatted concrete floors. Feed for sows was dropped once daily into a trough at the front of each stall that was connected to adjacent stalls. Because of this connected trough, treatments were assigned to a block of gestation stalls to avoid cross-contamination of treatments from 1 sow to adjacent sows. One “buffer” sow was placed at the end of each block of stalls to receive the same dietary treatment but was not included in the experiment. At about day 110 of gestation, sows were moved to individual farrowing stalls within farrowing rooms until weaning of litters. Each farrowing room contained 39 stalls. Farrowing stalls were equipped with 1 stainless steel feeder and 1 nipple waterer on a partially slatted floor over a deep manure collection pit. An independent controller within each farrowing room operated all heaters and ventilation fans. One heat lamp was placed in the creep area of each farrowing stall as a supplemental heat source for piglets.

Sow and Piglet Performance

Sows were identified individually using ear tags. Body condition and lameness scores were recorded at initiation of dietary treatments, at about day 110 of gestation, within 24 h of expected parturition, and at weaning. Body condition scores were determined using a body condition caliper placed at the last rib of the sow (Knauer and Baitinger, 2015). Visual lameness scores were recorded and assigned as sows stood up within stalls according to the following scale: 1) Normal: sow standing with weight equally distributed on all feet; or 2) Lame: sow with arched back, weight unequally distributed on feet, and difficulty or inability to stand.

Sow reproductive performance measurements included total number of piglets born, born alive, stillborn, mummified, and weaned per litter. Within 12 h of birth and prior to cross-fostering, all piglets were weighed individually and ear tagged. In some circumstances, although uncommon, ear tags were not retained by piglets. As a result, only pigs that retained ear tags throughout the entire lactation period were included in the final data analysis to ensure correct piglet identification. Ear tags were color-coded to match that of their dam’s assigned dietary treatment. Litter sizes were standardized to 12 or 13 piglets per sow by cross-fostering within 24 h of farrowing. Cross-fostering of piglets within assigned gestation dietary treatments was attempted, but not strictly controlled throughout lactation. All piglets were processed according to the standard operating procedure established by the farm within 24 to 48 h of birth. Piglet processing included tail docking, needle teeth clipping, administering injectable iron, and castration of male piglets. Incidence of stillborn and mummified piglets was recorded at birth but birth weight of these piglets was not recorded. Any pigs that died shortly before or during parturition, due to asphyxia or dystocia, were classified as stillborn. Piglets were monitored daily for instances of morbidity and mortality. Any dead piglets were weighed and date of death, piglet eartag identification, sex, and treatment were recorded. One day before weaning, individual piglet body weights were determined and recorded to calculate total weight gain during the nursing period. Piglets were weaned at about 18.1 ± 0.1 d of age.

A subset of about 15 litters per treatment (n = 140 pigs/treatment) of both low birth weight (n = 30 pigs/treatment) and normal to heavy birth weight (n = 110 pigs/treatment) pigs were selected at weaning to monitor postweaning growth performance and subsequent carcass characteristics. Selected pigs were fed common, corn–soybean meal-based diets that met or exceeded NRC (2012) requirements throughout the entire growing-finishing period. All instances of mortality were recorded. Pigs were tattooed individually before shipment and were harvested at JBS USA Holdings, Inc. (Worthington, MN). Hot carcass weight, backfat depth measured between the third and fourth rib, and loin depth were recorded for each pig. An optical probe (Fat-O-Meat’er, Frontmatec Group, Denmark) was used to determine backfat thickness and loin depth of all carcasses. The following equation, as determined by JBS USA, was used to calculate percentage carcass lean: Percentage carcass lean = 58.86 − 0.61 × (backfat depth, in.) + 0.12 × (loin depth, in.). The following equations reported by NPPC (2000) were used to calculate percentage fat-free carcass lean, and lean gain per day: Percentage fat-free carcass lean (FFL) = [15.31 − (31.277 × backfat depth, in.) + (3.813 × loin depth, in.) + (0.51 × hot carcass weight, pounds)]/hot carcass weight × 100; and Lean gain/day = (FFL at ending weight − FFL in feeder pig)/days on test.

Sample Analysis

Two random samples of the zinc top-dress and gestation diet were collected at initiation and throughout feeding of dietary treatments to each farrowing group. One random sample of the lactation diet was collected at the midpoint of the trial. All samples were stored at −20 °C until shipment for analysis. Diet and top-dress samples were sent to Minnesota Valley Testing Laboratories, Inc. (New Ulm, MN) for proximate analysis and determination f zinc concentration. Standard procedures (AOAC International, 2006) were followed for analysis of moisture (Method 930.15), ash (Method 942.05), crude fat (Method 2003.05), crude fiber (Method BA6A-05), crude protein (Method 990.03), calcium (Method 985.01), phosphorus (Method 985.01), and zinc (Method 985.01) concentrations.

Statistical Analysis

Experimental data were analyzed using the PROC GLIMMIX procedure of SAS (Version 9.4, SAS Institute Inc., Cary, NC) with a Gaussian distribution. Sow was considered the experimental unit. Postweaning data considered pig as the experimental unit. The statistical model included fixed effects of dietary treatment, farrowing group (cohorts that farrowed within 1 wk), and their interaction. Farrowing group was tested as a fixed effect for all variables but did not influence performance or mortality variables, so it was removed from the final statistical model. Treatment means were separated using the PDIFF option with the Tukey–Kramer adjustment for multiple comparisons.

Chi-square analyses were used to determine the influence of gestation dietary treatments on categorical response variables such as preweaning and postweaning piglet mortality, lameness scores, and incidence of stillbirths and mummies. Pigs were categorized into Low (< 1.00 kg), Normal (1.01 to 1.75 kg), and Heavy (> 1.76 kg) birth weight groups. The threshold of 1.0 kg was selected to define Low birth weight pigs because piglets weighing less than 1.0 kg at birth experience increased pre-wean mortality than heavier littermates at birth (Calderon Diaz et al., 2017; Zeng et al., 2019). Furthermore, 1.0 kg represented one standard deviation below the mean birth weight of all piglets observed in the study. The Heavy birth weight threshold was selected because it represented one standard deviation above the mean birth weight of piglets in the study. All data were reported as least square means and considered statistically significant at P < 0.05 with P < 0.10 considered a trend.

RESULTS AND DISCUSSION

Sow Performance

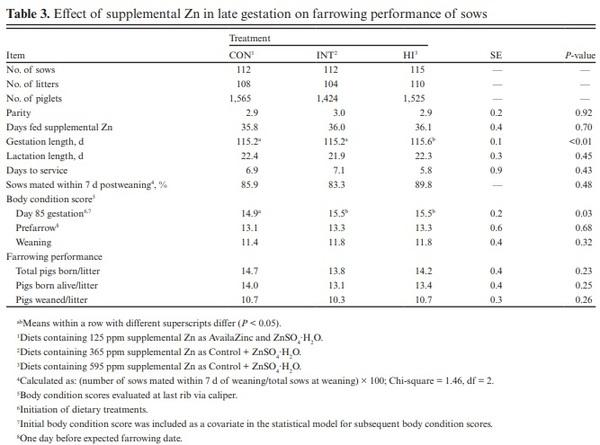

Average sow parity and days of feeding supplemental Zn were not different across dietary treatments (Table 3). Average gestation length was greater (P < 0.05) for HI sows compared with sows

Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions - Image 2

fed INT and CON. However, lactation length and days to first service were not different across treatments. At initiation of the experiment, body condition caliper scores were lower (P < 0.05) for CON sows compared with sows fed INT and HI diets. Body condition scores 1 d before farrowing and at weaning were not different across treatments. Sow farrowing performance including total number of pigs born, born alive, and weaned per litter was not different regardless of dietary treatment throughout the experiment. Sows farrowed about 14 total pigs per litter, of which 13 to 14 pigs were born alive, and sows averaged slightly less than 11 piglets weaned per litter. Sows utilized in this experiment performed similar regarding litter size farrowed and weaned to that of many US commercial swine production systems (Knox et al., 2013; Stalder, 2018). Instances of lameness throughout the experiment were rare and ranged from 0% to 2% among the 3 treatments at 3 assessment points (day 85 of gestation, 1 d before expected parturition, and weaning). Incidence of lameness was not different across treatments. The National Pork Board’s Pork Quality Assurance Plus program (PQA Plus, version 4.0; National Pork Board,

Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions - Image 3

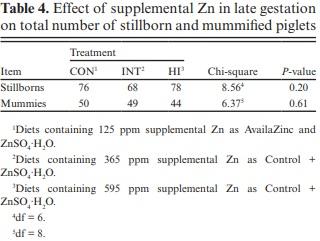

2019) set the acceptable incidence of severe lameness at 2%. Therefore, sows involved in this experiment displayed an incidence of lameness at or below the threshold set by the PQA Plus program. When further evaluating farrowing performance of sows, there were no differences across treatments regarding the total number of stillborn or mummified pigs (Table 4).

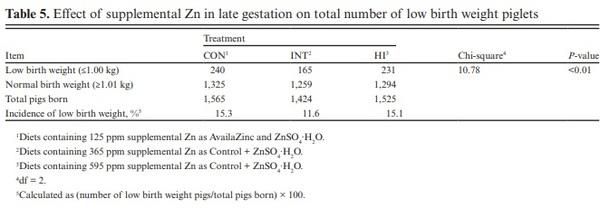

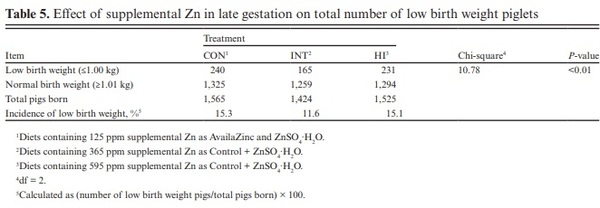

Sows consuming the INT diet were less likely (P < 0.01) to produce pigs with low birth weights (≤1 kg) compared with sows consuming CON or HI treatments (Table 5). Sows producing litters of pigs with a high proportion of low birth weight piglets are typically at greater risk of preweaning mortality (Milligan et al., 2002; Kapell et al., 2011). The number of low birth weight pigs for sows consuming CON or HI treatments in this experiment was greater than those observed in a previous experiment conducted by Bergstrom et al. (2009), where incidence of small pigs per litter weighing less than 1 kg ranged from 8% to 13%. However, the number of low birth weight pigs for sows fed CON and HI treatments was similar to the 14.9% reported by Feldpausch et al. (2019). Overall, it appears that sows used in this experiment produced pigs similar to herds studied previously and were representative of commercial swine production in the United States.

Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions - Image 4

Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions - Image 5

Piglet Growth Performance

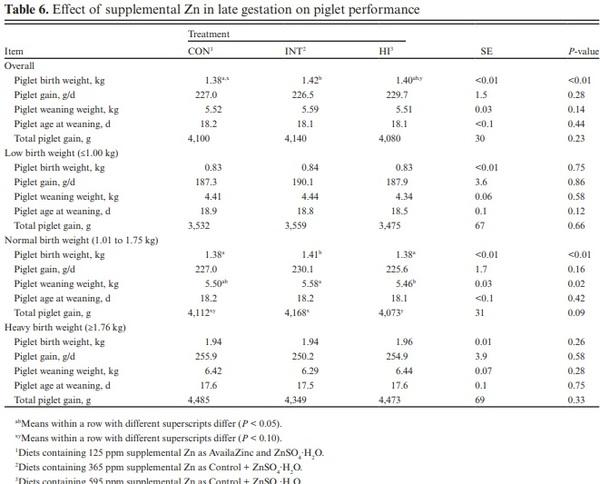

Overall, piglets from sows fed the INT treatment had heavier birth weights than piglets from sows receiving CON treatment (Table 6). Although piglets from sows fed INT were heavier at birth, there were no differences in weaning weight or total piglet gain across treatments. As a result, the advantage in initial birth weight for INT piglets was not maintained throughout the nursing period until weaning.

Growth performance of piglets was evaluated in 3 birth weight categories: Low, Normal, and Heavy. Of all piglets initially identified at birth, 106 pigs did not retain ear tags throughout the entire lactation period, so they were not included in the final data analysis. Therefore, preweaning growth performance and survivability data represent 97.7% of all pigs initially identified (4,514 pigs in total). Total weight gain and weaning weight of low birth weight pigs were similar across dietary treatments. Furthermore, growth rate of heavy birth weight pigs was not different, regardless of the sow’s dietary treatment. However, considering the normal birth weight category, piglets from sows fed INT in late gestation had heavier birth weights compared with piglets from CON or HI sows. The advantage of heavier birth weights for INT pigs (P < 0.05) was maintained at weaning compared with pigs farrowed by HI sows, with pigs produced by CON sows being intermediate to the 2 treatments. As a result, preweaning growth performance of piglets tended to improve when sows consumed diets containing 365 ppm of supplemental Zn in late gestation, in contrast to growth rate of pigs from sows consuming diets with 595 ppm of supplemental Zn.

Preweaning Piglet Mortality

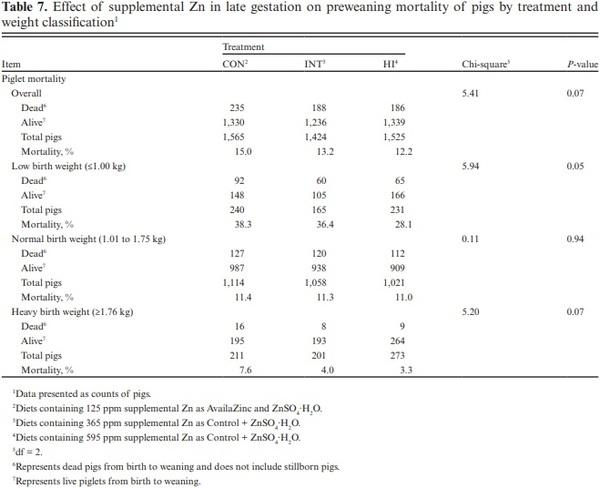

Preweaning mortality of piglets tended to decrease when sows were fed increasing levels of supplemental Zn in late gestation (P < 0.10; Table 7). Mortality of low birth weight pigs decreased by 10 percentage points (38.3% to 28.1%)

Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions - Image 6

when supplemental Zn was included at 595 ppm compared with 125 ppm (P = 0.05). Vallet et al. (2014) also reported reduced preweaning mortality of low birth weight piglets when they fed high dietary Zn to gilts in late gestation. Our results appear to confirm that high supplemental Zn in late gestation may play a role in enhanced survivability of small piglets. Not only did mortality of low birth weight piglets decline, but mortality of heavy birth weight pigs also decreased (P < 0.10) due to increased Zn supplementation of sows. Although we hypothesized that survival of low birth weight pigs would improve, we did not expect to observe improvements in survival of heavy piglets.

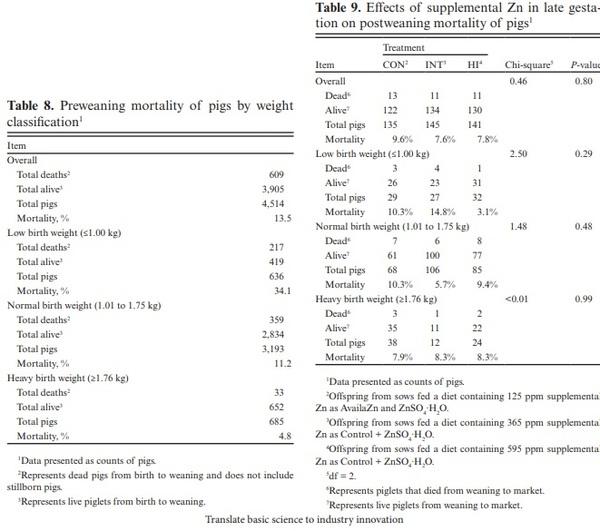

The overall preweaning mortality of pigs in this trial was 13.5%, which is similar to that observed in other commercial facilities (Feldpausch et al., 2019), and 34.1% for low birth weight piglets (Table 8). Mortality of low birth weight piglets was slightly greater than that observed in other commercial facilities, but was not unusual (Bergstrom et al., 2009; Zeng et al., 2019).

Zinc is a structural component in many enzymes and metabolic pathways essential for healthy pregnancy and proper function of maternal components such as placental and fetal development. Superoxide dismutase, a Zn-dependent enzyme, provides antioxidant defense for the placenta (Mistry and Williams, 2011), which may have reduced activity during instances of pregnancy complications such as stillbirth in humans. Furthermore, Zn ions are present at the active site of carbonic anhydrase, which is necessary for transport and regulation of carbon dioxide (Tu et al., 2012). Vallet et al. (2014) hypothesized that additional Zn may increase carbonic anhydrase activity which may, in turn, build resistance to high CO2 concentrations during birth, and potentially improve chance of survival for piglets that would otherwise be stillborn. Piglets born at the end of the litter are at greater risk for asphyxiation or oxygen deficiency compared with piglets born earlier. Uterine contractions toward the end of parturition reduce the supply of oxygen to the fetus (AlonsoSpilsbury et al., 2005). Vallet et al. (2014) also theorized that additional dietary Zn fed to the dam may potentiate brain myelination of piglets and enhance

Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions - Image 7

preweaning piglet survival, but they did not detect any such differences. Researchers and producers are aware that newborn piglets are iron deficient at birth (Matrone et al., 1960; Ullrey et al., 1960), but optimal Zn status of piglets at birth has not been established. Therefore, high supplemental Zn in late gestation may affect Zn status of low birth weight pigs such that chances of survival improve.

High supplemental Zn in late gestation may increase concentrations of metallothionein, an intracellular Zn binding protein, in red blood cells. Metallothionein may be an indicator for assessing Zn status during pregnancy or in periods of stress or trauma (Golden, 1989; Caulfield et al., 2008). Caulfield et al. (2008) suggested that increased erythrocyte concentrations of metallothionein

Effects of supplementing late-gestation sow diets with zinc on preweaning mortality of pigs under commercial rearing conditions - Image 8

might support rapid proliferation and differentiation of red blood cells and provide protection from oxidative stress that is typically associated with increased oxygen demand during pregnancy. These responses may play a role in mitigating some of the detrimental effects of reduced oxygen supply to the fetus, so that there might be less overall oxygen deprivation. Therefore, the pig may be better prepared for survival outside of the maternal environment.

Most studies have compared clinical presentation of zinc deficiencies during the entire gestation period, but fetal zinc demand may vary throughout gestation. Concentration of fetal liver zinc (about 130 ppm) is greater than sow liver zinc (about 50 ppm). Furthermore, concentration of fetal liver zinc declines until day 70 of gestation and then increases as maternal liver zinc decreases around day 90 of gestation (Hostetler and Kincaid, 2004). Transitory reduced zinc intake during midgestation (0 vs. 100 ppm) decreased litter size and increased postnatal mortality of rat pups (Hurley and Mutch, 1973). Consequently, additional zinc is likely necessary to meet zinc demand of developing fetuses. Investigating effects of high dietary Zn in late gestation on piglet and sow metallothionein concentrations and immunocompetence throughout pregnancy and at birth may guide scientists to answers regarding Zn status of piglets and the observed reduction in mortality of small and heavy birth weight piglets.

Postweaning Pig Performance and Carcass Characteristic

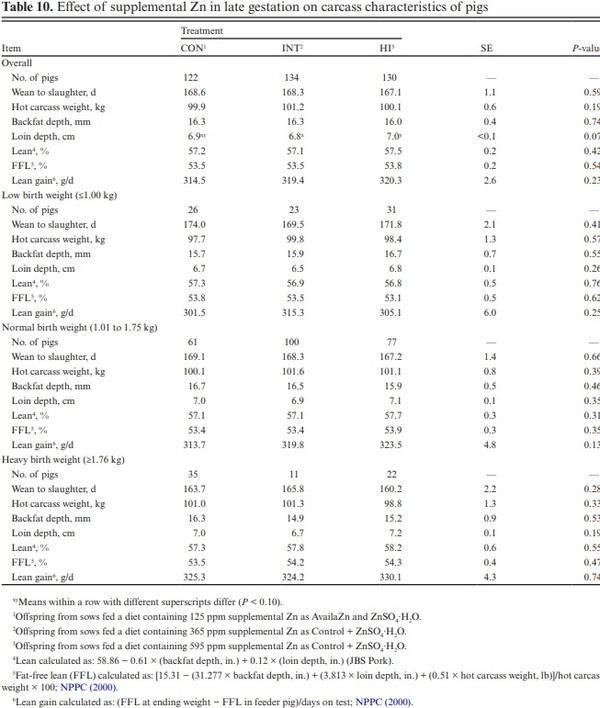

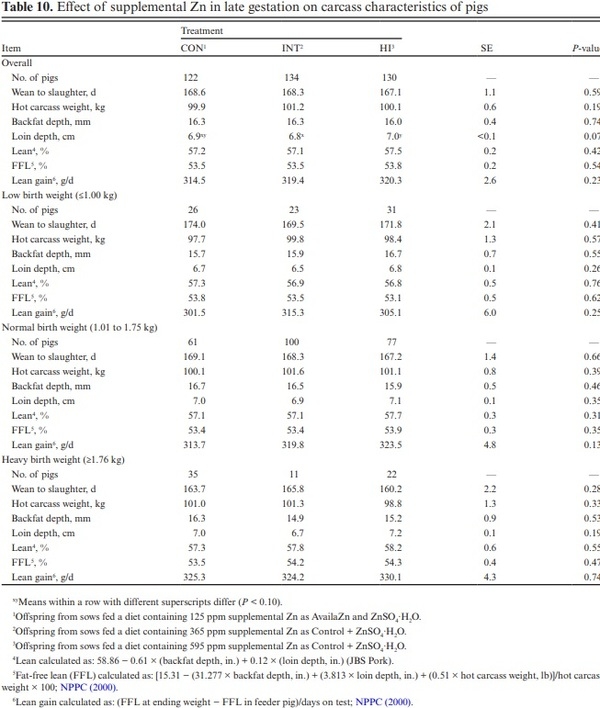

Postweaning mortality of pigs ranged from 7.6% to 9.6%, similar to wean-to-finish mortality observed in commercial swine facilities (Stalder, 2018). But, postweaning mortality was not different across treatments (Table 9). Late gestation dietary Zn treatments had no effect on carcass characteristics of pigs, regardless of birth weight category (Table 10). There were no significant interactions between dietary Zn treatments in late gestation and birth weight categories for any postweaning performance traits or carcass characteristics. No studies have fully investigated the effects of increased supplemental Zn in late gestation on lifetime performance of offspring. Nonetheless, it appears that additional Zn in late gestation did not affect postweaning lean gain or carcass characteristics. Pigs born at low birth weights often exhibit reduced carcass quality and value at harvest (Rehfeldt et al., 2008; Fix et al., 2010). However, low birth weight pigs from this study performed similar to contemporary pigs of normal birth weights, regardless of dietary treatment. Clearly, increased survival of low birth weight pigs in this experiment did not compromise carcass composition or risk economic losses that one may expect to occur with low birth weight pigs.

Feeding very high concentrations of zinc to sows in late gestation could potentially increase excretion of Zn in feces, which has been previously established for nursery and finishing pigs (Creech et al., 2004). High Zn concentrations in slurry that is later applied to cropland can be detrimental to soil and water quality (Carpenter et al., 1998; Jongbloed and Lenis, 1998; Long et al., 2003). Therefore, utilizing supplemental Zn sources in gestating sow diets that minimize Zn excretion and optimize Zn utilization should be considered.

CONCLUSION

Results of this experiment indicate that increasing supplemental dietary Zn intake of sows in the last 30 d of gestation decreased overall piglet mortality, mortality of low birth weight piglets, and mortality of heavy birth weight piglets. Subsequent growth performance and carcass characteristics of low birth weight pigs were similar to pigs from sows that did not receive increased supplemental Zn in late gestation. Therefore, there may be substantial value in utilizing increased supplemental Zn in late-gestation sow diets to maximize piglets’ chance of survival. However, further research evaluating sources of supplemental Zn that minimize fecal excretion and total barn output of fecal Zn must be considered.

This article was originally published in Translational Animal Science. 2020.4:519-530. doi: 10.1093/tas/txaa010. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0/).
