Frequency of Detection and Phylogenetic Analysis of Porcine circovirus 3 (PCV-3) in Healthy Primiparous and Multiparous Sows and Their Mummified Fetuses and Stillborn

Forty-two PCR positive samples were selected for the phylogenetic analysis, being 8 serum samples from primiparous sows, 16 tissues from mummified fetuses (8 brains and 8 lungs), and 18 tissues from stillborn (8 brains and 10 lungs). It was possible to achieve 39 complete genome sequences out of the 42 selected samples. The sequence from the remaining 3 samples (brain and lung from one stillborn and the lung from another one) showed bad quality. The nucleotide identity of these 39 samples ranged from 99.2% to 100%. When possible, PCV-3 sequences from fetuses of the same litter, as well as the respective sow, were compared. This comparison was done in four cases, and the identity of the viral sequences obtained ranged from 99.30% to 100%. Moreover, sequences from fetuses of the same litter of three other cases were compared showing an identity between 99.7% and 100%.

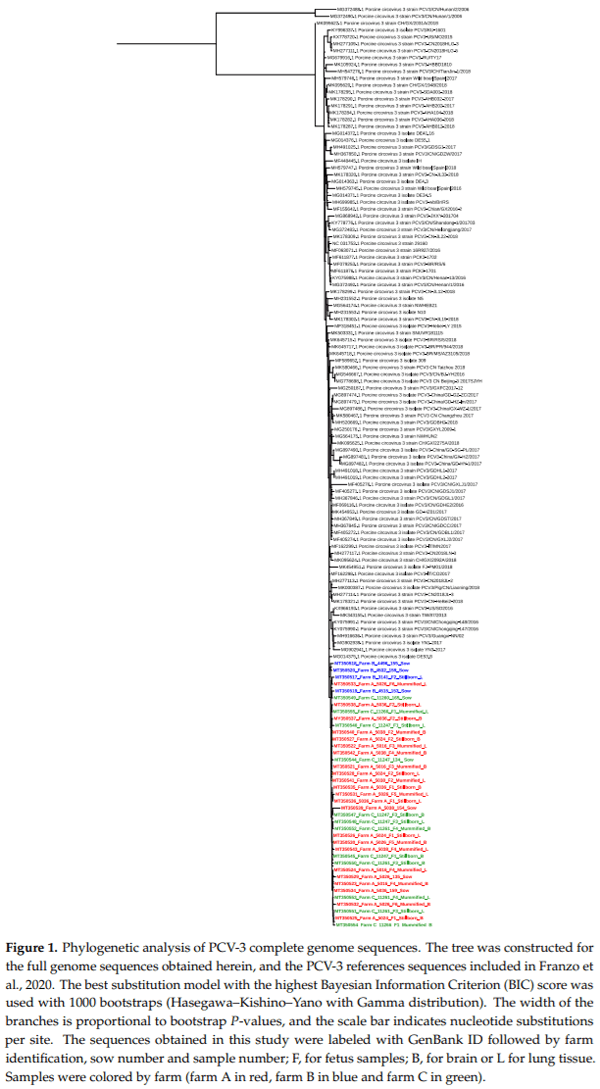

The phylogenetic analyses performed with the complete PCV-3 genome sequences showed two main clusters (Figure 1). All sequences analyzed herein belonged to Cluster 1, together with the reference sequences previously genotyped as PCV-3a [21]. Similar results were found when only the cap region was analyzed (Figure S1). The overall nucleotide identity with the PCV-3a reference sequences used for the complete genome phylogenetic tree was 97.75% to 100%. When the aa sequence inferred from the ORF2 gene was phylogenetically analyzed (Figure S2), all samples were also classified as PCV-3a [21], although with a different pattern of distribution among the reference sequences used. The aa identity of the inferred ORF2 protein was high, ranging from 98.9% to 100% among all the sequences obtained herein, supporting the fact that they all belong to the same cluster.

The first description of PCV-3 infection was linked with reproductive losses with high viral loads in aborted fetuses [4]. Since then, this potential association has been reported in different countries. In China, a study found a higher frequency of the PCV-3 genome in sera from sows with a reproductive failure history (39/85, 45.9%) compared to healthy ones (23/105, 21.9%) [15]. In a study from Brazil, PCV-3 viral DNA was found in pooled sera from sows delivering stillbirths, while it was absent in pool sera from sows with no stillbirth delivered [14]. In one study from South Korea, the virus was suggested as the potential cause of an increased abortion and death rates of suckling piglets, since they could not demonstrate evidence of another pathogen in the tested animals [13]. A Hungarian newly populated farm experienced an increase of abortions and acute losses of neonatal piglets from the primiparous sows as well as an increase of stillborn and mummified fetuses compared to previous cycles; PCV-3 was the only pathogen found in these cases [12]. However, the most unequivocal association to date of PCV-3 association with reproductive disease has been reported from the USA [22]. The authors found the presence of PCV-3 nucleic acids by means of in situ hybridization within the lesions of mummified and stillborn fetuses, especially from low-parity sows. Specifically, the PCV-3 genome was found in the smooth muscular cells of arteries of both the heart and kidney and in inflammatory cells in the heart.

However, taking into account that PCV-3 is a ubiquitous virus worldwide [7], the mere detection of PCV-3 is not a clue to establish a potential association with disease. Therefore, in such scenarios, it is important to elucidate to which extent and in which frequency PCV-3 does circulate in normally performing farms. In fact, most of these studies reporting an association between PCV-3 and reproductive losses lack proper negative controls with standard reproductive parameters [12,13,16,22]. Therefore, the aim of the present study was to evaluate the frequency of PCV-3 in samples from farms with good reproductive parameters. It is noteworthy that the sampled farms had the reproductive parameters within the Catalan and Spanish averages in regard to stillbirths (BDPork, Available at: http://bdporc.irta.es/informes/PartPublica/Datos%20publicos%20Anyo%202016.htm, accessed on 1 July 2020). The fact that the farms had good reproductive parameters did not completely exclude the possibility of unnoticed reproductive problems in some sows (apparently primiparous ones) that may have caused few stillbirth and mummifications.

In the present study, PCV-3 DNA was only detected in sera from primiparous sows, mainly close to farrowing time. These results are in accordance with a study from Thailand that showed a higher viral load of PCV-3 in sera from low-parity sows when compared to older parity ones [23]. These results were further confirmed by another study from the same research group, where 71% of the analyzed primiparous sows were positive to PCV-3 through the colostrum, while multiparous dams showed a shedding frequency of 33–43% [24]. Interestingly, in the last study, the viremic and non-viremic sows did not show a significant different rate of total born or born-alive piglets [24], which is also in accordance with the present work where despite the presence of the virus in the herd, no reproductive losses were observed. Specifically, the mean of total piglets born per litter in farms A, B, and C were 14.39, 14.15, and 14.79, respectively.

A wide range of PCV-3 loads was found in positive fetuses in the current work, being the highest loads similar to the ones found in studies in which the presence of the virus in fetuses was attributed to reproductive losses, as well as associated to lesions [4,22,25]. In the present study, primiparous sows had a significantly higher number of PCV-3-infected fetuses with higher PCV-3 loads compared to those coming from multiparous sows. These findings may suggest that multiparous sows may have previously developed immunity that is able to prevent PCV-3 infection in their litters. In contrast, it is hypothesized that primiparous sows started gestation immunologically naïve against PCV-3, and the potential lack of immunity to the virus may have favored viral circulation in the herd and eventual transplacental transmission [26]. This situation would resemble the one observed in PCV-2, as piglets from primiparous sows are usually more susceptible to PCV-2 and PRRSV co-infection than piglets from multiparous sows [27].

The significantly higher PCV-3 detection rate in mummified than in stillborn fetuses found in the present study is also in agreement with the results obtained by Dal Santo et al. (2020), where almost 97% of the tested mummies were PCR-positive to the virus in commercial farms from Brazil [11]. However, in this latter study, most of the infected mummies came from farms experiencing reproductive losses; moreover, the fetuses also had co-infection close to 93% with other pathogens such as Porcine parvovirus, PCV-2, or Leptospira spp. The presence of co-infecting pathogens would also explain the reproductive losses [11], thus compromising the putative association with PCV-3 in the absence of alternative diagnostic methods [22]. An Italian study from farms experiencing reproductive failure in different stages of pregnancy demonstrated a high viral load of PCV-3 in tissues from stillborn and from aborted fetuses, while the most common pathogens that can cause reproductive disease were absent [25]. Similarly, mirroring with PCV-2, it is known that vertical transmission can happen at various stages of pregnancy, being able to cause reproduction losses as well as asymptomatic outcomes, depending on the timing of the virus infection and the degree of viral replication [28]. Based on obtained results here, it may happen that PCV-3 infection mainly occurred earlier in the gestation, which would explain the higher percentage of infected mummified fetuses in comparison to stillborn.

Therefore, it is important to use additional diagnostic methods such as in situ hybridization (ISH) in order to confirm the involvement of PCV-3 in the fetal lesions. Arruda et al. (2019) found messenger RNA matching with histological findings of multisystemic inflammation in a number of different tissues, including lung and brain. These features suggest that the virus might be replicating in these tissues, thus being the most probable cause of the disease. On the contrary, Faccini et al. (2017) observed that lungs from PCV-3 PCR-positive aborted fetuses did not show histological lesions despite having found high amounts of this virus in pools of tissues. Unfortunately, due the lack of available fixed tissue in the present study, histopathological evaluation and ISH were not able to be performed.

The phylogenetic analysis of the herein obtained sequences showed an extremely high percentage of nucleotide identity, as also observed in many other studies [17,21,22,29,30]. The nucleotide identity was slightly higher when analyzing the virus found in fetuses from the same litter as well as from the respective sows, which further suggest the vertical transmission of the virus.

Through the phylogenetic analysis of the complete genome and the translated aa sequence from the ORF2 gene, it was possible to classify the 39 sequences recovered herein as PCV-3a [21]. All 39 samples clustered together in a different branch from the available reference sequences when analyzed either the complete genome or the cap region (ORF2) tree, showing a highly similarity between them. However, when the translated Cap sequence was evaluated, some samples clustered separately, suggesting that some of the mutations found within this region were non-synonymous, leading to different changes in the aa tree.

The present study demonstrated the presence of the PCV-3 genome in mummies and stillborn fetuses, supporting PCV-3’s ability to cause intrauterine infections, even in farms with standard reproductive parameters. Moreover, a higher frequency of infection was found in primiparous sows and in mummified fetuses compared to multiparous dams and stillborn piglets, respectively. This study will help establish the ‘infection background’ of PCV-3 in standard farms without overt reproductive disorders. Although these results reinforce the vertical transmission of PCV-3, it is already too early to speculate about the importance of these findings, and further investigations are needed to ascertain the pathogenesis of PCV-3 infection.

Sera from 121 sows belonging to 3 different farms (A, n = 44; B, n = 37; and C, n = 40) were collected at two time points; the first one (S1) close or at pre-mating and the second sampling (S2) close or at farrowing time. These farms showed good reproductive parameters as farms A, B, and C presented means of 0.38, 0.29, and 0.56 mummies out of 14.39, 14.15, and 14.79 mean of piglets born per litter, respectively. These values are considered even lower than the average of the mummies/stillborn of Spanish pig farms included in the BDPorc database (http://www.bdporc.irta.es/index.jsp). All farms were conventional ones, seropositive against porcine reproductive and respiratory syndrome virus (PRRSV), porcine parvovirus (PPV), and PCV-2, but negative to Aujeszky’s disease virus (ADV). The normal vaccination schedule included PRRSV and PPV/erysipelas vaccination of sows by cycle, as well ADV vaccination in a blanket fashion. Gilts were vaccinated against PRRSV and PPV/erysipelas during the acclimation period. The performed study was approved by The Zoetis Olot Animal Welfare Committee prior to the start of the experiment, with reference number 382, and it was notified to and approved by Spanish Authorities.

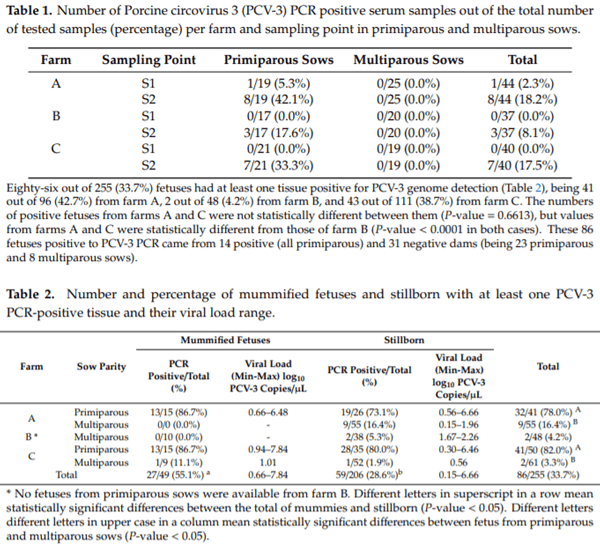

From the 121 total sampled sows, 57 were primiparous and 64 were multiparous ( second parity) (Table 1). All dams, primiparous and multiparous, were sampled at two time points (S1 and S2). Additionally, tissues (brain and lung) from a total of 255 mummified or stillborn piglets from the respective sampled sows were also included in this study, except for primiparous ones from farm B, from which the fetuses were not available for the study (Table 2). The number of collected fetuses ranged from 1 to 18 animals per litter. The time of gestation at which the fetuses died was determined by its body size at delivery and physical aspect [31]. Thus, by the physical aspect, the fetuses were classified as mummified (n = 49) or stillborn (n = 206) [32]. Noteworthy, all fetuses (mummified and stillborn) were collected at the expected farrowing time.

Tissue samples from the fetuses (brain and lungs) were homogenized separately. DNA extraction from 200 μL of macerated tissue supernatant as well as 200 μL of sera from sows was performed using a MagMAx™ Pathogen RNA/DNA Kit (Applied Biosystems^®) according to the manufacturer’s protocol.

A conventional PCR targeting the PCV-3 rep gene region (ORF1) was performed as previously described [8]. The PCR products were checked by electrophoresis on 1.5% TAE agarose gel.

To quantify the amount of virus in the PCR positive samples, a real-time quantitative PCR (qPCR) was performed also as previously described [8,33]. The qPCR results were expressed in log₁₀ of PCV-3 DNA copies/ L of serum or supernatant of macerated tissues sample.

Those qPCR positive samples with the highest amount of virus in both fetal tissue supernatant (from 2.74 to 7.84 log₁₀ copies/μL) and sow serum samples (from 0.88 to 1.91 log₁₀ copies/μL) were selected to be sequenced by means of PCRs amplifying the whole PCV-3 genome [17]. When possible, samples from sows and fetuses from the same litter (with a high amount of virus) were selected. The PCR reaction contained 1 PCR buffer, 0.4 μM of dNTPs, 0.2 μM of each primer, 1 Unit of DNA polymerase Platinum™ SuperFi™ (Invitrogen™), and water to bring the final volume up to 50 μL. The thermal conditions included 98 C for 5 min followed by 40 cycles of 98 C for 30 s, 55 C for 1 min and 72 C for 2 min, plus the final elongation at 72 C for 7 min. The obtained amplicons were purified with an ExoSAP-IT^®Express PCR product Cleanup (Thermo Fisher Scientific) Kit according to the manufacturer’s protocol and sequenced by the Sanger method (ABI 3730XL - Macrogen Europe, Madrid, Spain). The quality of the sequences was analyzed by the Finch TV software and trimmed in BioEdit vs. 7.2.6 [34]. Obtained amplicons were assembled using the reference mapped-based strategy [35] to achieve PCV-3 complete genomes. The Integrative Genomics Viewer software [36] was used for visualizing the assembly and extracting the consensus sequence. The complete genome sequences were aligned in BioEdit vs. 7.2.6 [35] with summarized collected reference samples according to a previously published method [21], as well as the ORF2 gene and the translated ORF2 region with the standard genetic code (using MEGAX). The best substitution method was selected based on the lowest Bayesian Information Criterion (BIC) score calculated on MEGAX software [37], either for the complete genome analysis as for the ORF2 aa analysis. The Maximum Likelihood tree with Hasegawa–Kishino–Yano (HKY) model [38] plus Gamma distribution phylogenetic was used to construct the phylogenetic tree for the complete genome and the tree for the ORF2 gene both with 1000 bootstrap replicates using MEGAX software [37]. The translated ORF2 region was used to build a Neighbor Joining (NJ) phylogenetic tree constructed using the Jones–Taylor–Thornton’s model [39] with 1000 bootstraps. The identity among nucleotide sequences was compared using Clustal Omega [40].

All PCV-3 sequences generated in this study were deposited at the NCBI GenBank with the accession numbers MT350517–MT350555.

The frequency of PCV-3 DNA detection in serum samples from primiparous and multiparous sows was compared globally, per farm (only from primiparous) and per sampling point. The frequency of detection as well as the median PCV-3 viral load in fetal samples were analyzed considering the type of tissue (lung or brain), the type of fetus (mummies or stillborn), their dam (primiparous or multiparous), and the farm of origin. The frequencies of detection were analyzed using the Pearson’s Chi-squared test or Fisher´s exact test. The median PCV-3 viral loads were compared using the Mann-Whitney test. These analyses were carried out using GraphPad software (GraphPad software Inc.) and GraphPad Prism 8, where P-value < 0.05 was considered statistically significant.

Supplementary Materials: The following supplementary material is available online athttp://www.mdpi.com/2076-0817/9/7/533/s1, Figure S1. PCV-3 phylogenetic ML tree constructed with ORF2 gene using the Hasegawa–Kishino–Yano (HKY) model with Gamma distribution at 1000 bootstrap (the width of the branches is proportional to bootstrap P-values) and with GenBank reference samples included in Franzo et al., 2020. The 39 PCV-3 ORF2 sequence samples were labeled with GenBank ID followed by farm identification, sow number, and sample number; F, for fetus samples; B, for brain; or L for lung tissue. Samples were colored by farm (farm A in red, farm B in blue, and farm C in green). Figure S2. Phylogenetic NJ tree of aa of CAP gene constructed using Jones–Taylor–Thornton’s model at 1000 bootstrap (the width of the branches is proportional to bootstrap P-values) and with GenBank reference samples included in Franzo et al., 2020. The 39 PCV-3 ORF2 aa sequences were labeled with GenBank ID followed by farm identification, sow number, and sample number; F, for fetus samples; B, for brain; or L for lung tissue. Samples were colored by farm (farm A in red, farm B in blue, and farm C in green.

Author Contributions: Conceptualization, J.S., M.S. and M.B.; methodology, V.S., S.M., T.F.C., F.K., F.C.-F., M.S.;software, V.S., F.C.-F.; validation, S.M., M.B., M.S.; formal analysis, V.S., F.C.-F., M.S.; investigation, V.S., S.M., T.F.C., F.K., F.C; resources, M.S., J.S., M.B.; data curation, V.S., S.M., M.B., M.S., J.S.; writing—original draft preparation, V.S.; writing—review and editing, J.S., M.S. and F.C.-F.; supervision, all authors; All authors have read and agreed to the published version of the manuscript.

Funding: This research was funded by E-RTA2017-00007-00-00 INIA Project from the Instituto Nacional deInvestigación y Tecnologia Agraria y Alimentaria (Spanish Government) and CERCA Programme/Generalitat de Catalunya. The research also had the financial support from Zoetis. T.F.C was granted by the São Paulo Research Foundation (FAPESP) (grant number 2017/26649-4).

Acknowledgments: We also thank the veterinarians involved in the present work that allowed the study to becarried out by collecting the samples.

Conflicts of Interest: The authors declare no conflict of interest.
