Some Heavy Metals Status in Ashtoum El-Gamil Protected Area

Ashtoum El-Gamil and Tenis Island was declared as a protected area by Prime Minister's decree No. 459 / 1988 with an area of about 30 km², later was amended with decree No. 2780 /1998 to extend its area to be about 180 km². Ashtoum El-Gamil is located in the western north corner of Lake Manzalah, Egypt  including new and old El-Gamil inlets; as well as the historical Tenis Island, with an area of about 8 km 2, that lies on the south west of Port Said city. The historical Tenis hill surrounded with water at a distance of about 300 m from all sides. Two types of water intrude with the lake: salty water from the Mediterranean, through the two inlets of El-Gamil in the North and fresh water from the South through number of agricultural drainages (such as El-Serw - Hados - Ramses) in addition to sanitary sewage drainages such as Bahr El-Baqar and El-Aninia drainages. Bahr El-Baqar daringe is one of the most important sources of pollution in the lake, as it discharge more than 1.5 million m ³ of wastewater daily, including more than 1.25 million m ³ from greater Cairo. All of these drainages located outside boundaries of Ashtoum El-Gamil protected area and can not be controlled by Ashtoum El-Gamil authority (Abd El-Karim, 2008). One of the important functions of the Ashtoum El-Gamil protected area is the protection of gravid fish and fry during their passage to and from the Mediterranean from Manzalah. Ashtoum El-Gamil represents a modest example of a highly threatened and rapidly disappearing habitat in Egypt and the Mediterranean basin (Ahmed et al., 2000 and EEAA, 2003).The objective of the present work was to tracing the pollution status of this protected area, including its water, fish (Nile tilapia and mullet) and sediments, concerning their heavy metals content (Cd, Pb, Cu, Zn and Fe).

LakeManzalahis the largest of the Nile Delta lakes. It is located in the northeastern part of Egypt. It is bounded on the east by the Suez Canal and on the west by Damiettabranch of the Nile and is separated from the Mediterranean Seaby a narrow sandy fringe at the north. The lake is connected to the Mediterranean Seathrough a narrow channel (Boughaz El-Gamil). The islands and reed beds divide the lake into well defined basins each is known as Bahr having more or less distinctive ecological conditions (Abdel-Baky et al., 1991). Samples were collected from five stations, being:  station 1:  inlet of El-Gamil old in the north-east, station 2:  inlet of El-Gamil new in the north-west, station 3: Sea Kassab near to the middle, station 4: Sea Bashtier in the south-west and station 5: Sea Kur in the south-east, as illustrated in Fig. 1.

Nile tilapia and mullet fish were selected for the present study and collected from four sites in Ashtoum El-Gamil protectorate during the four seasons from May 2010 to January 2011, where this species has a wide range of distribution in the aquatic habitat inEgypt. Fish samples were transported immediately to the laboratory in an ice-box for chemical analyses.

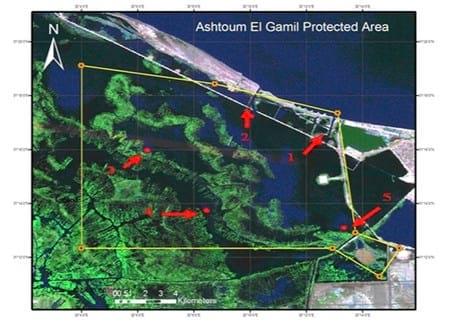

Water samples were collected (seventy five samples for each season, fifteen samples / location / season). The water samples were collected in clean 1 liter polyethylene bottles from a depth of 50 cm of the sampling locations. Each sample was divided for the chemical and the bacteriological examinations. For heavy metal detection, samples were fixed with 10% formalin solution. Samples were kept for analysis in a refrigerator at + 4°C.

Samples of sediments were collected from the same locations (seventy five samples seasonally). A dredge was used for collecting these superficial sediment samples which were transported in polyethylene bags into the laboratory. They were kept at room temperature for analysis.

Fish samples were homogenized. Three grams of each homogenized samples were transferred into acid washed screw - capped digestion tube with a polyethylene stopper. Ten ml of pure Analar concentrated nitric acid (99.9% -Merck) were added and thoroughly mixed then kept over night at room temperature. The mixture was heated in a shaking water bath at 65 - 70°C for 6 hours. The mixture was cooled at room temperature then few drops of 30% hydrogen peroxide were added. The tubes were reheated with the same previous manner but for 3 hours only. After cooling, 10 ml of deionized water were added, to dilute the digests. The dilute digests were filtered and the clear filtrates were kept in screw - capped tubes in a refrigerator, and then were used for detection of heavy metals. One-hundred ml of each collected water sample were transferred into clean glass bottles with 0.3 ml of pure concentrated nitric acid (99.9% - Merck) according to Polprasert (1982).

For preparing the sediment samples, the procedure outlined by Medina et al. (1986) was performed. The sediment samples were air dried at room temperature till complete dryness. After that, the samples were ground in a porcelain mortar. Five grams of each homogenized sample were transferred into a screw - capped digestion tube. Ten ml of pure concentrated nitric acid (99.9% - Merck) were added for digestion. The tubes were left over night at room temperature, and then transferred into a shaking water bath at 65 - 70°C for 6 hours. The tubes were left to cool to room temperature. Few drops of 30% hydrogen peroxide were added. The sediment digests were diluted with deionized water, and then filtered through Whattmann filter papers No. I, and kept in closed 30 ml - screw capped tubes in a refrigerator.

Perkin Elmer atomic absorption spectrophotometer (AAS) model 2380 equipped with MHS-10 hydride generation system was used for the quantitative determination of the studied elements (Fe, Cu, Pb, Cd, and Zn) according to Abdallah and Mostafa (1980), Welz and Meleher (1985), Medina et al. (1986) and Abdallah et al. (1993).  Fe, Cu, Cd, Pb and Zn irons were analyzed using an air/acetylene (flow rate of 5.5/1.1 Vm) flame atomic absorption spectrophotometer. The burner height was 8 cm, fuel flow 30, oxidant flow 60, and slide width 0.7 nm. Blank samples from the used chemicals as well as specked samples (internal standards) were undertaken to correct the obtained data.

Chemical (proximate) analysis of fish samples from different sampling locations [mullet from sampling locations No. 1 and 2 (marine water fish) and Niletilapia from sampling locations No. 3 and 4 (fresh water fish)], and seasons of sampling were analyzed according to A.O.A.C. (2000) for dry matter, crude protein, ether extract, and ash.

Using S.A.S. (2001) and Duncan (1955), numerical data collected were statisticallyanalyzed for analysis of variance and least significant difference as well as Pearson correlation.

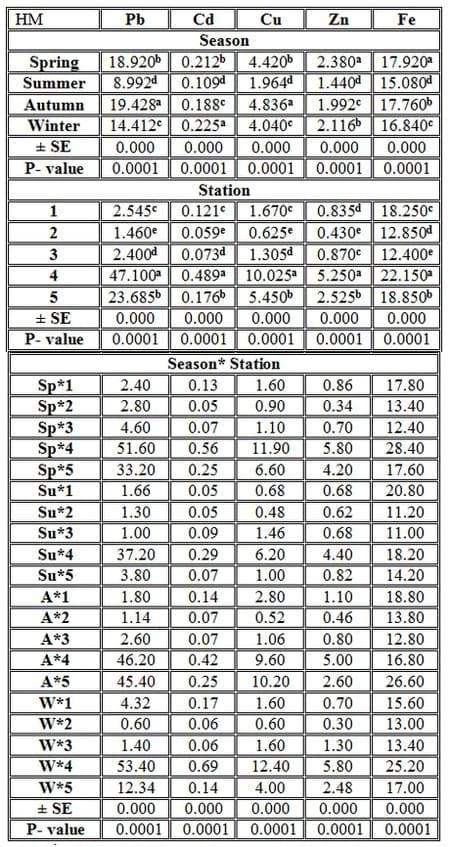

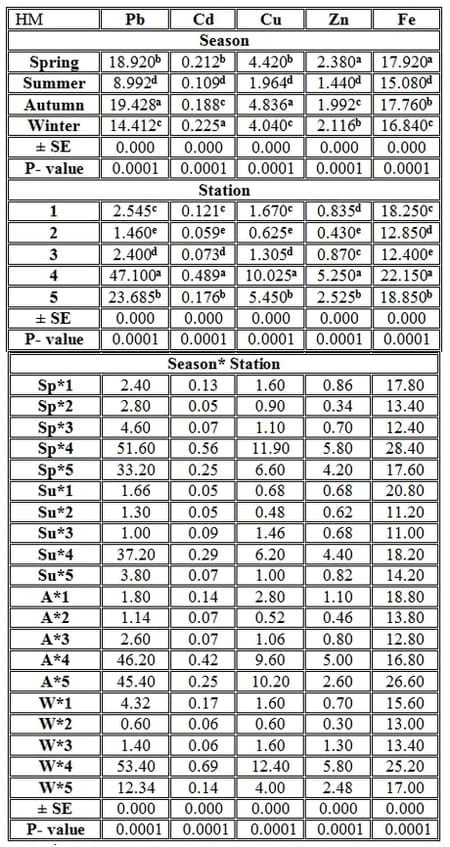

Table 1 presents mean values for the effects of both collection seasons and collection stations of the fish rearing water as well as their interaction on some heavy metals (Pb, Cd, Cu, Zn and Fe). It reflects their significant (P≤0.0001) effects on these elements' contents in the water. The significant (P≤0.0001) high values were found in spring samples (for Zn), summer samples (for Pb and Cd), autumn samples (for Cu and Fe) and in station No. 2 (for Zn), station No.3 (for Cd), station No. 4 (for Pb), and station No.5 (for Cu and Fe). Samples of station No.4 during summer season gave the highest Pb and Cd values, being 1.0 and 1.4 ppm, respectively. The highest Cu level (0.160 ppm) was found in samples of station No.4 in autumn season. The highest Zn value (3.200 ppm) was given in water samples from station No.4 collected in spring season. Fe level was highest (0.300 ppm) in samples from station No.5 collected in autumn season. Generally, these studied elements took the following descending order: Zn ≥ Cd ≥ Pb ≥ Fe ≥ Cu in water. Therefore, assuming that average Zn level (1.805 ppm) is 100, then mean Pb level is 20.85%, Cd 28.95%, Cu 4.71%, and Fe 7.15% of Zn mean level. However, Pb, Cd, Cu, Zn, and Fe took the following ranges in the water: 0.08 – 1.00, 0.3 – 1.40, 0.04 – 0.16, 0.80 – 3.20, and 0.03 – 0.30 ppm , respectively.

Similar results, concerning seasonal and location effects were reported before by Abdelhamid et al. (2006b) who mentioned that Marsa Matroh water was the highest in Pb contents (in both seasons) among the different sampling locations.  They added that other two elements (Fe and Cd) had variable trends from location to another. They found also, in summer season, Pb was > Fe > Cd; but in winter, Fe was > Cd > Pb. Also, Abdelhamid et al. (1997 and 2000) registered significant variations in heavy metals concentration in the natural fisheries water due to sampling locations. Heavy metals pollution of the Egyptian aquatic media was reviewed by Abdelhamid (2006).

However, Pb content was significantly higher in feedstuffs, water and blood in winter than in summer (Abdelhamid and El-Ayouty, 1989). Lead causes hemorrhages and congestion of the gastrointestinal tract and kidneys of fish (Abdelhamid and El-Ayouty, 1991). The no effect level of Cd, Pb and Fe in water for growing aquatic life are 0.03, 0.10 and 1.00 ppm, respectively (Yokokawa, 2000).  Comparing these standards with the levels obtained herein, it would be indicated that there is water pollution with heavy metals (Pb and Cd) in all tested locations and seasons.

Zyadah (1997) reported significant effects on water mineral contents (containing Cd and Pb) due to different locations and seasons.  Also, he found high levels of heavy metals in the sediment and fish, exceeded the allowable limit. Yet, Aboul-Naga (2000) confirmed that sediment samples from Abu-Qir Bay and in front of El-Maadiya channel indicate a non-polluted environment with trace elements including Cd, Fe and Pb.  However, he reported high trace metal concentrations in front of El-Tabia Pumping Station.  Iron was the dominant metal in all humic acids and sediments examined.  Humic acids are trace metals holders in the sediments, therefore humic acids play a major role in the geochemical cycling of the elements in the aquatic environment. Moreover, Radwan (2000) reported average values of dissolved heavy metals (Cd, Fe and Pb) in Lake Burullos water as 1.93, 2.46 and 2.67 mg/l, respectively.  He added that, levels of heavy metals are correlated with salinity changes due to the discharge of water. Hussein and Mekkawy (2001) revealed that fish reflect further mechanisms to avoid lead impacts such as the secretion of intestinal mucus that bind lead.

Cd in water negatively affected fish growth and feed and vitamin C utilization.  Fe also is toxic for fish, since it damages fish gills and their function.  Pb reduces hemoglobin content and red blood cells count of fish (Abdelhamid, 2003).  However, any degree of poisoning will weaken the fish, making it vulnerable towards disease. Heavy metals can create problems and be concentrated in waterway organisms up to 9100 times more than the surrounding environment’s levels, so may lead to acute or chronic effects (WRC, 2005).

Abdelhakeem et al. (2002) cited the tolerance limits of Pb, Fe and Cd in fish water as 0.10, 0.35 and 0.10 ppm, respectively and in fish body as 2, 30 and 0.5 ppm, respectively.   Heavy metal concentrations in fish varied significantly depending on the type of the tissue, fish species and sampling location. Yet, there was no significant seasonal variation in marine water metal (Cd and Pb) concentrations (Kucuksezgin et al., 2006).However, heavy metal contamination of water is one of the environmental stressors affecting significantly and negatively lysozyme activity of fish serum, intestinal scrapping and skin mucus as well as serum hemolytic activity, leukocytes count, packed cell volume, hemoglobin concentration, plasma protein and glucose concentrations (Abdelhamid et al., 2006a).

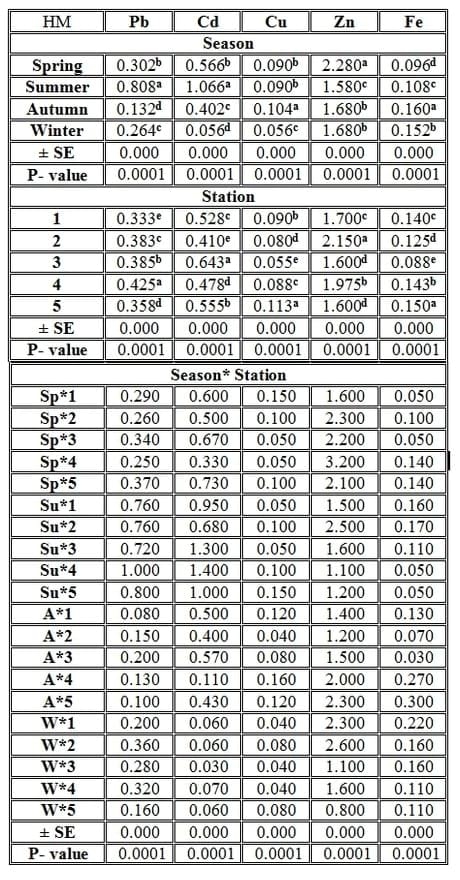

Mean values of the heavy metals tested (Pb, Cd, Cu, Zn and Fe) in sediments of Ashtoum El-Gamil protected area are given in Table 2, which reflects significant (P≤0.0001) effects on these elements' contents in the sediment due to season and station of sampling as well as to their interaction (season X station of collecting samples). The significant (P≤0.0001) high values were found in autumn samples (for Pb and Cu), winter samples (for Cd), and spring samples (for Zn and Fe) and in station No. 4 (for the five elements). Samples of station No.4 during winter season (for Pb, Cd, and Cu) and the same station during spring (for Zn and Fe) gave the highest values, being 53.4, 0.69, 12.40, 5.80 and 28.40 ppm, respectively. Generally, these studied elements took the following descending order: Pb ≥ Fe ≥ Cu ≥ Zn ≥ Cd in the sediment. Therefore, assuming that mean Fe level (16.9 ppm) is 100, so Pb mean level is 91.36%, Cd 1.09%, Cu 22.57%, and Zn 11.73% of the average Fe level. However, the elements ranged 0.60 – 53.40, 0.05 – 0.69, 0.48 – 12.40, 0.30 – 5.80, and 11.00 – 26.60 ppm for Pb, Cd, Cu, Zn, and Fe, respectively.

 Table 2: Mean values for effect of collection season and station on some heavy metals content in sediments (ppm, dry matter basis) of Ashtoum El-Gamil protected area

Similar results, concerning seasonal and location effects were reported before by Abdelhamid et al. (2006b), who found that sediments from the same sampling locations reflected higher concentrations in winter (0.049-0.284 and 5.879-500.0 ppm) than in summer (0.030-0.047 and 24.85-28.60 ppm) for Cd and Fe, respectively (except the 2^nd location in Fe) but the opposite was true for Pb (0.841-2.780 and 0.064-0.739 ppm in summer and winter, respectively) in all locations. Generally, they added that sediment samples from the four locations tested contained concentrations of Fe > Pb > Cd.  There was no specific trend for these elements level in the sediments as affected by the sampling locations. However, Abdelhamid et al. (1997) registered significant variations in heavy metals concentration in the natural fisheries sediments due to sampling locations.

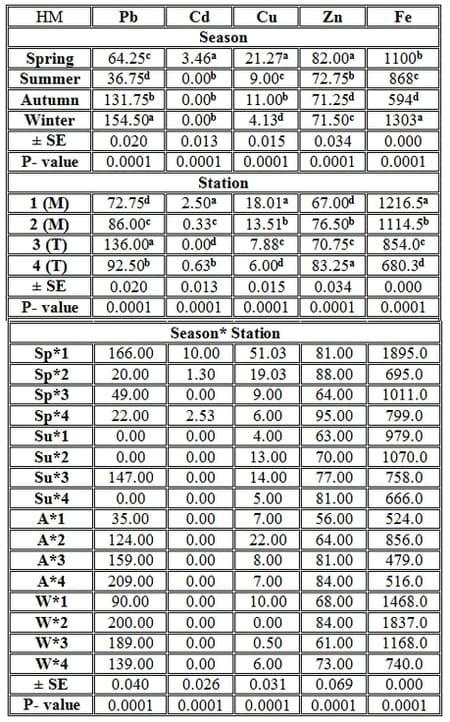

Data presented in Table 3 illustrate mean values of heavy metals ( Pb, Cd, Cu, Zn and Fe) concentrations in fish (mullet and tilapia) carcass from different sampling seasons and stations (locations) in the Ashtoum El-Gamil protected area. Differing sampling seasons and stations (4 locations only for the similarity between locations No. 4 & 5, therefore No. 5 was escaped) as well as their interactions and fish species also were responsible for significant (P≤0.0001) effects on these elements' concentrations in fish carcass. The significant (P≤0.0001) high values were found in winter samples (for Pb and Fe) and spring samples (for Cd, Cu and Zn) and in station No. 3 (for Pb in tilapia fish), station No. 1 (for Cd, Cu and Fe in mullet fish) and station No. 4 (for Zn in tilapia fish). Samples of station No.4 during autumn season (for Pb), the same station during spring (for Zn) and station No. 1 during spring (for Cd, Cu and Fe) gave the highest values, being 209, 95, 10, 51.03 and 1895 ppm, respectively.

Generally, these studied elements took the following descending order: Fe ≥ Pb ≥ Zn ≥ Cu ≥ Cd in the fish carcass. Therefore, assuming that Fe mean concentration in fish body (966.25 ppm) is 100, so average Pb concentration is 10.02%, Cd 0.09%, Cu 1.17%, and Zn 7.69% of Fe level. However, the element's concentrations took the following ranges: 0.00 – 209.00, 0.00 – 10.00, 0.00 – 51.03, 56.00 – 95.00, and 479 – 1895 ppm, respectively. This reflects that the presence of a heavy metal in a fish body may not be followed its presence in the surroundings sediments or water. It may depend on its solubility, target medium, site of its deposition, as well as on different water quality criteria (salinity, pH, alkalinity, dissolved oxygen, microbial load….etc), sediment composition and fish species (differing in the metabolism).  So, in the present study, tilapia fish tended to contain more Pb and Zn, but mullet fish contained more Cd, Cu and Fe than tilapia. Also, Cd was at least in sediments and fish, but Cu was at least in water. This may be interpretable by calculating the bio-accumulation factors (BAF, by dividing the element level in fish by the same element level in the water and multiplying by 100) of these elements which were 2.57x10⁴, 1.66x10², 1.33x10⁴, 4.12x10³ and 7.49x10⁵ for Pb, Cd, Cu, Zn and Fe, respectively, i.e. Fe was the heaviest element in the fish body, followed by Pb, Zn, Cu and at least Cd as mentioned before.

In this respect, the bioaccumulation factors (BAF, of different heavy metals tested) in the M. cephalus studied from four sampling locations during two seasons showed significantly highest BAF in fish from Alexandria, Port Saied and El-Bardaweel for Pb, Fe and Cd, respectively. Winter Pb–BAF and summer Fe–BAF were significantly higher than those of the other season; yet, Cd – BAC did not influence by sampling seasons.  These BAFs of heavy metals in fish did not influence by the level of these metals in the fish rearing waters, but were correlated with the level of Pb and Fe in winter sediment samples from Port Saied and Cd level in summer sediment samples from El-Bardaweel. The highest BAF of Fe in Port Saied fish samples was related also to the highest Fe contents in fish of this location.  The same relation was confirmed for Cd in El-Bardaweel fish samples, but not for Pb (Abdelhamid et al., 2006b).

However, the commission regulation setting maximum Pb level for muscle meat of fish, released from the European communities, as 0.2 mg/Kg wet weight.  Yet, the Egyptians’ standards are 0.1 ppm Pb and Cd in food fish (ES, 1993). Comparing these standards with the levels obtained herein, it would be indicated that there is a water pollution with heavy metals in all tested locations, particularly with Pb in summer, Fe in winter (locations No. 2 and 4) and Cd in both seasons and all locations. Abdelhakeem et al. (2002) cited the tolerance limits of Pb, Fe and Cd in fish water as 0.10, 0.35 and 0.10 ppm, respectively and in fish body as 2, 30 and 0.5 ppm, respectively.   Heavy metal concentrations in fish varied significantly depending on the type of the tissue, fish species and sampling location.

Generally, Mugil cephalus L. showed higher levels of Fe and Pb concentrations than Sparus aurata L. (Yilmaz, 2005).  Yet, there was no significant seasonal variation in marine water metal (Cd and Pb) concentrations (Kucuksezgin et al., 2006). This may be due to the store tissue of each metal in/or on the fish, i.e. Pb was probably an external pollutant (Rashed and Awadallah, 1994), whereas Fe and Cd were internal pollutants. Therefore, Fe and Cd contents of fish affected positively their BAFs, but Pb was not. The same note is available for the effect of season, since BAF of Pb did not influence by its level in/or on the fish, whereas BAF of Fe was correlated with its level in fish, being the highest in summer season. Also, there were remarkable effects on microelements of fish muscles as well as their bioaccumulation factors due to sampling seasons and locations and fish species (Abdelhamid and El-Zareef, 1996).

Seasonal and location variations as well as fish species' effects were reported before by Abdelhamid et al. (2006b), who found that the highest (P≤0.05) levels of the tested heavy metals were found in fish collected from Marsa Matroh (0.851 ppm Pb), Port Saied (2.40 ppm Fe) and El-Bardaweel (0.081 ppm Cd).  This may be related to the high content of Pb in water and sediments collected from location No. 1 during both seasons.  Also, Fe level of the summer diet and winter collected sediments from Port Saied were the highest.  Cd level in El-Bardaweel sediment collected in summer was also the highest. The Fe concentrations range (1.3 – 2.4 ppm) of fish tested was higher than that of Pb (0.172 – 0.851 ppm) than Cd (0.016 – 0.081 ppm), regardless to the sampling locations.

However, Abdelhamid et al. (1997) registered significant variations in heavy metals concentrations due to different fish species from the natural fisheries and to sampling locations too. They found that the elements’ concentrations in the sediments and fishes were much higher than the corresponding values in the water, particularly for iron. Lead and cadmium levels in fish muscles were concentrated more in fish, while iron was highest in sediments followed by fish tissues.  Mugil cephalus samples were more frequently contaminated than Liza ramada and Sparus aurata (Abdelhamid et al., 1997). The effects of varying sampling locations and fish parts on the heavy metal level or presence were reported also by Abdelhamid et al. (2000).

Anyhow, Cd is known to be human carcinogen (Mandel et al., 1995), Bahr El-Bakar drain water contained 0.910 and 0.0242 mg/l Pb and Cd, respectively, whereas its M. cephalus fish flesh contained 0.9376 and 0.0324 mg/Kg Pb and Cd, respectively (Galhoom et al., 2000). Cd reduced fish growth, feed efficiency and mitotic index and led to abnormal chromosomal behavior (Magouz et al., 1996).  Additionally, Salem (2003) found that Cd and Pb caused significant reduction in fish performance, survival, and muscular area.  Cd and Pb ions were able to induce metallothionein gene expression in fish tissues, e.g. liver and gills (Cheung et al., 2004).  Its residues in fish flesh increased by dose increase.  The protein banding patterns fluctuated in numbers and intensities by Cd concentrations.  Cd residues affected the DNA nucleotide sequences (El-Fadly et al., 2006). Generally, Mugil cephalus L. showed higher levels of Fe and Pb concentrations than Sparus aurata L. (Yilmaz, 2005).

To interpret the collective death of fish in Domietta region, it was proved that the water of the studied area (El-Bostan village – Kafr El-Batiekh) has suffered from increase of iron concentrations.  This picture is very harmful to fish life and production.  Pollution of water was reflected in the form of heavy metal accumulation in different fish tissues.  The lowest bioaccumulation factors were calculated in fish muscles; therefore, muscles only are suitable for human consumption.  The bioconcentration of iron was higher than that of lead in fish muscles (Abdelhamid et al., 2000).

Cd in water negatively affected fish growth and feed and vitamin C utilization.  Fe also is toxic for fish, since it damages fish gills and their function.  Pb reduces hemoglobin content and red blood cells count of fish (Abdelhamid, 2003).  However, any degree of poisoning will weaken the fish, making it vulnerable towards disease.  Heavy metals can create problems and be concentrated in waterway organisms up to 9100 times more than the surrounding environment’s levels, so may lead to acute or chronic effects (WRC, 2005).

Hovanec (1998) mentioned that metals are involved in many aspects of fish keeping and aquarium water metals are acutely toxic while others are necessary for the life of the fish nitrifying bacteria.  Still others are responsible for such basic water hardness.  For a metal to be toxic, it almost always has ionized or free form.  Water hardness can have a drastic effect on metal toxicity. Since the toxicity and biological activity of many metals and metalloids is profoundly influenced by their chemical form. The metabolism of ingested metals could significantly modify their toxicity. The micro-organisms in lakes, rivers and soil could biotransform metallic compounds (Rowland,1981).

Also, it is a fact that body adaptive balance mechanisms for lead impacts were evident in different organ tissues of fish.  Yet, Mzimela et al. (2002) reported that lead negatively affected the blood hematology and acid-base balance of the groovy mullet, Liza dumerili. Usero et al. (2004) reported that heavy metal concentrations in the water, sediment and fish were variable from site to another.  Significant correlations were obtained for the levels of numerous metals in water, sediment and fish. The results of Xie andKlerks (2004) suggest that reduced uptake and accumulation of Cd accounted for approximately two-third of the increased resistance in the Cd-adapted lines of fish.  However, Cd has been found to accumulate in reproductive organs of fish and disrupt important endocrine processes.

Moreover, responses along the hypothalamus – pituitary – gonadal axis were more sensitive to Cd exposure (Tilton et al., 2003). Metal concentrations in the sediment at each site depended more on the general characteristics of the sediment, such as the percentage of fine grained sediments and Fe content, than on whether or not there was replanted (Paulson et al., 2001). Siam (2001) found high level of accumulation of Cd, Fe and Pb in the different organs (gills, liver, stomach and brain) of Alexandria coast fish, with respect to their corresponding in the muscle tissues.  He added that the accumulation factors for these metals were higher in the herbivorous fish (Siganus rivulatus) than in the carnivorous ones (Mugil capito).  Fe was the more pronounced one reflecting increase the trophic level of the fish.  Cd level was generally lower than that of Pb in various organs while brain gained the highest values.  Pb concentration ranged from 1.2 to 3.5 mg/kg in the stomach and brain while it ranged from 0.4 to 0.9 mg/kg in fish muscles.

Most of the fish generally showed levels of Cd in the organs, which are close to that of the recommended standard (2.0 mg/kg) of the National Health and Medical Council in Australia.  However, none of them contained Cd concentrations above 0.5 mg/kg in their muscle tissues. Total length, body weight and age are mostly correlated biometric parameters with metallothionein and soluble metal concentrations in striped red mullet and golden grey mullet (Filipovic and Raspor, 2003). Cadmium and lead were higher in muscular tissue from mullet (Mugil sp.) than snook (Centropomussp.) and higher in summer than in winter (Joyeux et al., 2004). Kirby et al. (2001) mentioned that mullet are directly exposed to trace metal concentrations as a result of feeding and the ingestion of contaminated sediment and detritus.  Lower metal concentrations found in mullet tissues are attributed to the burial of highly contaminated sediment with material containing lower trace metal concentrations.  Little of the variations in trace metal concentrations between mullet were explained by mass, gender, or age.

Geochemical controls of metal assimilation from contaminated sediment are relatively apparent for Cd.  The influences of metal speciation on metal bioavailability can be confounded by the degree to which sediments are contaminated with metals (Fan et al., 2002). Heavy metals (Cd, Fe, and Pb) strongly inhibit the enzyme activity and the hexobarbital metabolism (Medline Repository, 2001).  They alter the immune system and lead to increased susceptibility to autoimmune diseases and allergic manifestations (Bernier et al., 2005). Suciu et al. (2005) reported that Cd-bioaccumulation factor was increased by age.  Cd and Pb were accumulated more in males than female sturgeon.  However, liver microsomal 7-ethoxyresorufin O-deethylase (EROD) activity of leaping mullet inhibits the toxicity of divalent metal ions through the inhibitory effect of the glutathione (GSH) on Cd inhibition of EROD activity indicating the protective action of GSH (Bozcaarmutlu and Arinc, 2004).

Staniskiene et al. (2005) found high concentrations of Fe in 15 fish species as a direct result of water contamination with heavy metals.  Metal concentrations were found to be influenced by fish type. Cadmium – binding protein level in the cells of the intestine was increased after exposure to Cd, so it appears that this protein is synthesized as a response to Cd exposure.  This is a mechanism of the regulation of Cd levels (Demuynck et al., 2004).

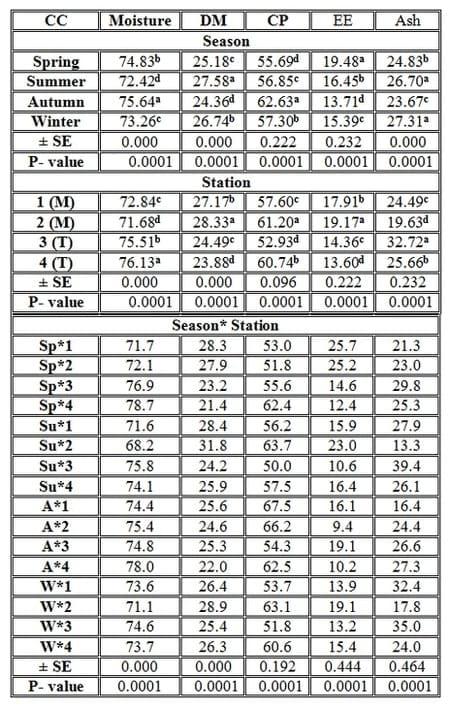

Proximate chemical analysis of Nile tilapia and mullet fish body as percent on dry matter basis is given in Table 4 which shows significant (P≤0.0001) effects of each of sampling seasons and stations (4 locations only for the similarity between locations No. 4 & 5, therefore No. 5 was escaped) in the Ashtoum El-Gamil protected area as well as their interactions and fish species also on the chemical analysis of the tested fish. However, the highest Dm percent in fish carcass was in summer samples, whereas the highest CP and lowest EE and ash percentages were in autumn samples. Mullet fish contained higher DM and EE and lower ash than tilapia.

Generally, the highest DM (31.8%) and lowest ash (13.3%) were found in summer mullet fish samples from location (station) No. 2; yet, the highest CP (67.5%) and lowest EE (9.4%) were recorded in autumn mullet fish samples collected from stations No. 1 and 2, respectively. Actually, sometimes there were positive relationships between DM on one side and each of CP, EE, and ash percentages on the other side. Also, there were negative relationships between CP on one hand and either EE or ash percentages on the other hand. These relationships were reported too by many authors (El-Ebiary and Zaki, 2003 and Abdelhamid et al., 2005a & b and 2006b).

Abdelhamid et al. (2006b) reported also significant effects of sampling locations and seasons on all proximate analysis of fish body. They found that Port Saied and Marsa Matroh fish reflected higher (P≤0.05) protein thanAlexandria and El-Bardaweel fish. Yet, the fat and ash contents differed also but not in a clear trend. However, winter fish contained more protein and less fat percentages (P≤0.05) than those of summer. They attributed the elevated protein content in winter to the lower (P≤0.05) heavy metals content (Pb and Fe) in fish flesh during this season than in summer.

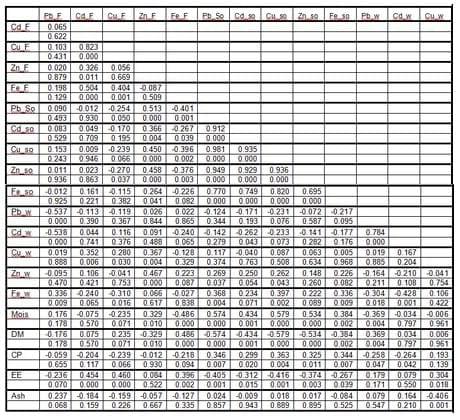

However, some significant correlations were calculated among heavy metals (in water, sediments, and fish) and chemical composition of the fish as shown from the following Table 5.



Zn_so

Cd_F     0.065
             0.622

Cu_F    0.103   0.823
            0.431   0.000

Zn_F    0.020   0.326   0.056
             0.879   0.011   0.669

Fe_F    0.198   0.504   0.404  -0.087
            0.129   0.000   0.001   0.509

Pb_So   0.090  -0.012  -0.254   0.513  -0.401
             0.493   0.930   0.050   0.000   0.001

Cd_so   0.083   0.049  -0.170   0.366  -0.267   0.912
             0.529   0.709   0.195   0.004   0.039   0.000

Cu_so   0.153   0.009  -0.239   0.450  -0.396   0.981   0.935
             0.243   0.946   0.066   0.000   0.002   0.000   0.000

Zn_so   0.011   0.023  -0.270   0.458  -0.376   0.949   0.929   0.936
             0.936   0.863   0.037   0.000   0.003   0.000   0.000   0.000

Fe_so  -0.012   0.161  -0.115   0.264  -0.226   0.770   0.749   0.820 0.695
             0.925   0.221   0.382   0.041   0.082   0.000   0.000   0.000  0.000

Pb_w   -0.537  -0.113  -0.119   0.026   0.022  -0.124  -0.171  -0.231  - 0.072
              0.000   0.390   0.367   0.844   0.865   0.344   0.193   0.076      0.587

Cd_w   -0.538   0.044   0.116   0.091  -0.240  -0.142  -0.262  -0.233  - 0.141
              0.000   0.741   0.376   0.488   0.065   0.279   0.043   0.073      0.282

Cu_w    0.019   0.352   0.280   0.367  -0.128   0.117  -0.040   0.087      0.063
              0.888   0.006   0.030   0.004   0.329   0.374   0.763   0.508       0.634

Zn_w   -0.095   0.106  -0.041   0.467   0.223   0.269   0.250   0.262       0.148
              0.470   0.421   0.753   0.000   0.087   0.037   0.054   0.043       0.260

Fe_w    0.336  -0.240  -0.310   0.066  -0.027   0.368   0.234   0.397       0.222
             0.009   0.065   0.016   0.617   0.838   0.004   0.071   0.002         0.089

Mois      0.176  -0.075  -0.235   0.329  -0.486   0.574   0.434   0.579       0.534
             0.178   0.570   0.071   0.010   0.000   0.000   0.001   0.000         0.000

DM       -0.176   0.075   0.235  -0.329   0.486  -0.574  -0.434  -0.579  -    0.534
             0.178   0.570   0.071   0.010   0.000   0.000   0.001   0.000        0.000

CP       -0.059  -0.204  -0.239  -0.012  -0.218   0.346   0.299   0.363        0.325
             0.655   0.117   0.066   0.930   0.094   0.007   0.020   0.004         0.011

EE      -0.236   0.454   0.460   0.084   0.396  -0.405  -0.312  -0.416  -       0.374
           0.070   0.000   0.000   0.522   0.002   0.001   0.015   0.001           0.003

Ash     0.237  -0.184  -0.159  -0.057  -0.127   0.024  -0.009   0.018         0.017
            0.068   0.159   0.226   0.667   0.335   0.857   0.943   0.889          0.895

        Fe_so    Pb_w    Cd_w    Cu_w    Zn_w    Fe_w    Mois      DM

CP
Pb_w   -0.217
              0.095

Cd_w   -0.177   0.784
              0.176   0.000

Cu_w    0.005   0.019   0.167
              0.968   0.885   0.204

Zn_w    0.226  -0.164  -0.210  -0.041
              0.082   0.211   0.108   0.754

Fe_w    0.336  -0.304  -0.428   0.106   0.421
              0.009   0.018   0.001   0.422   0.001

Mois    0.384  -0.369  -0.034  -0.006   0.111   0.196
            0.002   0.004   0.797   0.961   0.397   0.134

DM     -0.384   0.369   0.034   0.006  -0.111  -0.196  -1.000
            0.002   0.004   0.797   0.961   0.397   0.134       *

CP      0.344  -0.258  -0.264   0.193   0.160   0.283   0.141  -0.141
           0.007   0.047   0.042   0.139   0.221   0.029   0.283   0.283

EE     -0.267   0.179   0.079   0.304   0.081  -0.383  -0.753   0.753  - 0.267
           0.039   0.171   0.550   0.018   0.536   0.003   0.000   0.000    0.039

Ash    -0.084   0.079   0.164  -0.406  -0.202   0.061   0.475  -0.475  -0.647
            0.525   0.547   0.210   0.001   0.122   0.646   0.000   0.000     0.000

           EE
Ash    -0.563
            0.000

Aboul-Naga, W.M. (2000).  Role of humic acids on the occurrence of metals inAbu-QirBaynearshore sediments.  Bull. Nat. Inst. Oceanogr. & Fish., A.R.E., 26: 365 – 383.

Abdallah, A. M. and Mostafa, M.A. (1980). Aflame molecular emission method for the determination of strontium in fresh waters. Annali dichimica by Societa Chimica Italibana, 70: 1 – 8.

Abdallah, A.M., El-Dafrawy, M.M., Nazar, N. and El-Shamy, M. (1993).  Elimination of the interfering of transition metals in the hydride generation atomic absorption spectrometric determination of tin.  J. Atomic Absorption Spectrophotometer, 8: 759.

Abdel-Baky, T. E., S. H. Hasan and K. A. H. Shallof (1991). Growth of Cichild species inLake Manzala,Egypt. Bull. Fac. Sci.,MansouraUniv., 18: 442-453.

Abdelhakeem, N.F., Bakeer, M.N. and Soltan, M.A. (2002).  Aquatic Environment for Fish Culture.  Deposit No. 4774/2002.

Abdelhamid, A.M. (2003).  Scientific Fundamentals of Fish Production and Husbandry. 2^nd Rev. Ed.,MansouraUniv. Press, Deposit No. 1424/ 2003.

Abdelhamid, A.M. (2006).  Heavy metals pollution of the Egyptian aquatic media.  The 2nd Inter. Si. Cong. For Environment, 28 – 30 March, South Valley Univ.

Abdelhamid, A.M. andEl-Ayoty,S.A.(1989).  Lead contents in feedstuffs, blood and milk of buffaloes inDakahlia,Egypt.BuffaloBulletin, 8: 13 – 14 & 19 – 20.

Abdelhamid, A.M. and El-Ayoty, S.A.(1991).  Effect of catfish (Clarias lazera) composition of ingestion rearing water contaminated with lead or aluminum compounds.  Arch. Anim. Nutr.,Berlin, 41: 757 – 763.

Abdelhamid, A.M. and El-Zareef, A.A.M. (1996).  Further studies of the pollution status on the southern region ofEl-ManzalahLake.  Proc. Food Borne Contamination and Egyptian’s Health Conference, 26 – 27 Nov., pp: 141 – 150.

Abdelhamid, A. M., A. A. Abdelghaffar and A. A. El-Kerdawy (2000).  Towards causative interpretation of the repeatedly sudden and collective death of fish inDamiettaregion.  J. Agric. Sci. Mansoura Univ., 25: 1947-1962.

Abdelhamid, A. M., A. A. El-Kerdawy, A. A. M. El-Mezaein and H. A. Meshref (1997). Study on pollution in the western-north region ofEl-Manzalah Lake,Egypt. II. Heavy metals [Iron, zinc, lead and cadmium] in water, soil, and fish. J. Agric. Sci. Mansoura Univ., 22: 1877-1885.

Abdelhamid, A.M., B.R, Nemetallah, M.A. Abd Allah and T.A.E. Mousa (2006a). Hemolytic activity in blood serum of Oreochromis niloticus under different types of stress.  The 3^rd Int. Conf. for Develop. and the Env. In the Arab world, March, 21 – 23, Assiut, pp: 153 – 169.

Abdelhamid, A.M., M.F.I. Salem and A.E. Tolan (2005-a).  Evaluation of linseed meal as feed ingredient in diets of growing Niletilapia (Oreochromisniloticus). J. Agric. Res. Tanta Univ., 31(3): 385–402.

Abdelhamid, A.M., M.F.I. Salem and A.E. Tolan (2005-b).  Utilization of black seed meal (Nigella sativa) in Nile tilapia (Oreochromis niloticus) diets. J. Agric. Res. Tanta Univ., 31(3): 403-419.

Abdelhamid, A. M., M. M. M. Gawish and K. A. Soryal (2006b). Comparative study between desert cultivated and natural fisheries of mullet fish inEgypt, I- concerning heavy metals. J. Agric. Sci. Mansoura Univ., 31: 5665 – 5680.

Abd El-Karim, S.M. (2008).  Monthly Variations of Phytoplankton Communities inLakeManzala. Global Veterinaria, 2: 343-350.

Ahmed, M. H., O. E. Frihy, and M. A. Yehia (2000) . Environmental management of the Mediterranean coastal lagoons ofEgypt. Annals Geol. Surv.Egypt. XXIII: 491-508.

A.O.A.C. (2000).  Official Methods of Analysis of the Association of Official Analytical Chemists. Washington,D.C.

Bernier, J., Brousseau, P., Krzystyniak, K., Tryphonas, H. and Foal, M. (2005). Immunotoxicity of heavy metals in relation toGreat Lakes. Environ. Health Perspect., 113(9).

Bozcaarmutlu, A. and Arinc, E. (2004).  Inhibitory effects of divalent metal ions on liver microsomal 7-ethoxyresorufin O-deethylase (EROD) activity of leaping mullet.  Mar. Environ. Res., 58(2-5): 521 – 524.

Cheung, A.P.L., Lam, T.H.J. and Chan, K.M. (2004).  Regulation of tilapia metallothionein gene expression by heavy metal ions.  Marine Environmental Research, 58: 389 – 394.

Demuynck, S., Muchembled, B.B., Delaffre, L., Grumiaux, F. and Leprêtre, A. (2004).  Stimulation by cadmium of myohemerythrin-like cells in the gut of the annelid Nereis diversicolor.  J. Experime. Biol., 207: 1101 – 1111.

Duncan, D.B. (1955). Multiple range and multiple F-test. Biometrics, 11: 1-42.

El-Ebiary, E.H. and Zaki, M.A. (2003).  Effect of supplementing active yeast to the diets on growth performance, nutrient utilization, whole body composition and blood constituents of mono-sex tilapia (O. nilaticus).Egypt. J. Aquat. Biol. & Fish., 7(1): 127 – 139.

ES, Egyptian standards 2360 (1993).  Maximum levels for heavy metal contaminants in food.  EOFS, ES: 2360 – 1993.

EEAA (2003). Efforts made by the State Ministry for Environmental Affairs to improve the environmental conditions of El Manzala Lake. EEAA,Cairo,Egypt.

El-Fadly, G.B., Abou-Shosha, A.A., Magouz, F.I. and Omar, S.A.(2006).  Biochemical and molecular effects of some heavy metals residues on Oreochromis niloticus flesh.  The 3^rd Int. Conf. for Develop. and the Env. In the Arab World, March 21 – 23,AssiutUniv.

Fan, W., Wang, W.X. and Chen, J. (2002).  Geochemistry of Cd, Cr, and Zn in highly contaminated sediments and its influences on assimilation by marine bivalves. Environ. Sci. Technol., 36(23): 5164 – 5171.

Filipovic, V. and Raspor, B. (2003).  Metallothionein and metal levels in cytosol of liver, kidney and brain in relation to growth parameters of Mullussurmuletus and Liza aurata from theEastern Adriatic Sea. Water Res., 37(13): 3253 – 3262.

Galhoom, K.I., Rizk, L.G. and El-Azzaway, M.H. (2000).  Some biochemical and haematological parameter in mugil fish (Mugil cephalus) reared in Bahr El-Bakar drain.Egypt. J. Agric. Res., 78(1): 1- 13.

Hussein, S.Y. and Mekkawy, I.A.A. (2001).  The effects of lead-exposure and lead-clay interaction on the growth performance, biochemical and physiological characteristics and histopathology of Tilapia zillii.  Bull. Fac. Sci.,AssiutUniv., 30 (1-E): 65 – 97.

Hovanec, T.A. (1998).  What is metal toxicity?  Aquarium Fish Magazine, Mar.

Joyeux, J.C., Filho, E.A.C. and de Jesus II, H.C. (2004).  Trace metal contamination in estuarine fishes from Vit?ria Bay, ES,Brazil. Braz. Arch. Biol. Technol., 47(5): 1 – 11.

Kirby, J., Maher, W. and Harasti, D. (2001).  Changes in selenium, copper, cadmium, and zinc concentrations in mullet (Mugil cephalus) from the southern basin ofLake Macquaric,Australia, in response to alteration of coal-fired power station fly ash handling procedures.  Arch. Environ. Contam. Toxicol., 41(2): 171.

Kucuksezgin, G., Kontas, A., Altay, O., Uluturhan, E. and Darilmaz, E. (2006). Assessment of marine pollution inIzmirbay: nutrient, heavy metal and total hydrocarbon concentrations.  Environment International, 32: 41 – 51.

Magouz, F.I., El-Gamal, A.A., El-Telbany, M.M., Hammad, M.E.and Salem, M.F. (1996).  Effect of some heavy metals on growth performance and chromosomal behaviour of blue tilapia (Oreochromis aureus).  Proc. Conf. Foodborne Contamination & Egyptian’s Health, Mansoura, Nov. 26 – 27, pp: 181 – 196.

Mandel, J.S., McLaughlin, J.K., Schlehofer, B., Mellemgaard, A., Helmert, U., Lindblad, P., McCredie, M. and Adamie, H.-O. (1995).  International Renal-Cell Cancer Study.  IV. Occup. Int. J. Cancer, 61: 601 – 605.

Medina, J., Hernadez, F., Pastor, A. and Beforull, J.B. (1986).  Determination of mercury, cadmium, chromium and lead in Marine organisms by flameless atomic absorption spectrophotometer.  Mar. Pall. Bull., 17: 41 – 44.

Medline Repository (2001). Heavy metal. file: //D:\DR_MAHA\CO~Heavy_ meta.htm.

Mzimela, H.M., Wepener, V. and Cyrus, D.P. (2002).  The sublethal effects of copper and lead on the haematology and acid-base balance of the groovy mullet, Liza dumerili.  Afr. J. Aqua. Sci., 27(1): 39 – 46.

Paulson, A.J., Zdanowicz, V.S., Sharack, B.L., Leimburg, E.A. and Packer, D.B. (2001).  II. Trace metal contaminants in sediments and ribbed-mussels (Geukens demissa).  TM 167, Part II htm.

Polprasert, C. (1982). Heavy metal pollution in the Chaephraya river estuary, Thailand Water Res., 16: 775 – 784.

Radwan, A.M.R. (2000).  Discharges on the concentrations of some heavy metals inLakeBurullos. Bull. Nat. Inst. Oceanogr. & Fish., A.R.E., 26: 355 – 364.

Rashed, M.N. and Awadallah, R.M. (1994).  Cadmium and lead level in fish (Tilapia nilotica) scales as biological indicator for lake water pollution.  Proc. Nat. Conf. on the River Nile, 10 – 14 Dec.,AssiutUniv., pp: 265 – 277.

Rowland,I.(1981).  The influence of the gut microflora on food toxicity.  Proc. Nutr. Soc., 40: 67 – 73.

Salem, M.F.I. (2003).  Effect of cadmium, copper and lead contamination on growth performance and chemical composition of Niletilapia (O. niloticus).  J. Agric. Sci. Mansoura Univ., 28: 7209 – 7222.

SAS (2001).  SAS/STAT Guide for personal computer. SAS Inst. Cary, N. C.

Siam, E.E. (2001).  Evaluation of heavy metals concentration in fish romAlexandria Coast,Egypt. file: //D:\DR_MAHA\vol_4_2.htm.

Staniskiene, B., Palavinskas, R. and Boes, C. (2005).  Study of concentration of heavy metals in fish. File: //D;\DR-MAHA\staniskiene_en.htm.

Suciu, R., Tudor, D., Paraschiv, M. and Suciun, M. (2005).  Heavy metal bioaccumulation in tissues of sturgeon species of the lowerDanube River,Romania. Sci. Ann. Danube Delta Inst., Tulcea, 11 (in press).

Tilton, S.C., Foran, C.M. and Benson, W.H. (2003).  Effects of cadmium on the reproductive axis of Japanese medaka (Oryzias latipes).  Comp. Biochem. Physiol. C. Toxicol. Pharmacol., 136(3): 265 – 276.

Usero, J., Izquierdo, C., Morillo, J. and Gracia, I. (2004).  Heavy metals in fish (Soleavulgaris, Anguilla anguilla and Liza aurata) from salt marshes on the southern Atlantic coast ofSpain. Environ. Int., 29(7): 949 – 956.

Welz, B. and Meleher, M. ( 1985). Decomposition of marine biological tissues for determination of arsenic, selenium, and mercury using hydrids-generation and cold – vopor atomic absorption spectrometries. Anal. Chem., 57: 427 – 431.

WRC (2005).  Albany Waterways Resource Book: Water quality, Water quality Parameters. //H:\fish\WRC % 20Albany% 20 Waterways % 20 Resource % 20 Book % 20 Water % 20.

Xie, L. and Klerks, P.L. (2004).  Changes in cadmium accumulation as a mechanism for cadmium resistance in the least killifish Heteradriaformosa.  Aquat. Toxicol., 66(1): 73 – 81.

Yilmaz, A.B. (2005).  Comparison of heavy metal levels of grey mullet (Mugil cephalus L.) and sea bream (Sparus aurota L.) caught inIskenderunBay(Turkey).  Turk. J. Vet. Anim. Sci., 29: 257 – 262.

Yokokawa, T. (2000).  Water Quality for Coastal Aquaculture.  Training Manual on Marine Finfish Net cage Culture inSingapore.

Zyadah, M.A. (1997).  A study on levels of some heavy metals in River Nile estuary – Damiettabranch, Egypt. J. Egypt. Ger.Soc. Zool., 23(A): 149 – 160.
