Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy

Published: June 30, 2021
By: Vishnu Kiran M. and Murugesan S. / Unit of Algal Biotechnology and Bio-Nanotechnology, PG and Research Department of Botany, Pachaiyappa’s College, Chennai, India.
Algae are simple photosynthetic eukaryotes which owing to their colonization of the oceans are responsible for up to 50% of the planet’s atmospheric carbon fixation (1), secondary and primary metabolites produced by these algae may be good potential bioactive compounds of interest in pharmaceutical industry (2). Many bioactive and pharmacologically active substances have been isolated from algae. Diabetes is one of the most challenging diseases increasing in its prevalence worldwide. Type-1 diabetes characterized by absolute deficiency of insulin secretion and associated with auto-immune destruction of pancreatic β-cells is likely to be prevalent among relatives of the affected person (3) whereas Type-2 diabetes which accounts for 90% of cases was caused by combination of resistance to insulin action and impaired insulin secretion (4) α–amylase and α-glucosidase enzymes play a key role in the degradation of starch and oligosaccharides to glucose and if suppressed would in turn delay the glucose absorption in the intestine. Eventually, the postprandial blood sugar is controlled (5). A number of approaches are available for the synthesis of silver nanoparticles for example, reduction in solutions (6), Chemical and photochemical reactions in reverse micelles (7), thermal decomposition of silver compounds (8), radiation assisted (9), electrochemical (10), Sonochemical (11), microwave assisted process (12) and recently via green chemistry route (13, 14, 15). In the present study silver nanoparticles biosynthesized from marine red alga Halymenia poryphyroides were investigated for their antidiabetic activity.
Bio–synthesis of silver nanoparticles
Silver nanoparticle synthesis was carried out by taking 500 mg of dry seaweed powder in 250 ml Erlenmeyer flask with 10-3 M aqueous (AgNO3 - ) solution and incubated at room temperature. The pH was checked during the course of reaction and it was found to be 5.09. Around 95% of the bio-reduction of AgNO3- ions occurred within 24 h at stirring condition. The present study includes time dependent formation of silver nanoparticles employing UV–Vis nanophotometer, size and morphology by employing SEM, structure from X-ray diffraction (XRD) technique and understanding of cell wall polysaccharide–silver nanoparticles interaction from Fourier transform infrared (FT-IR) spectroscopy.
Anti-diabetic activity
Inhibition of α-amylase enzyme
A starch solution (0.1 % w/v) was obtained by stirring 0.1 g of potato starch in 100 ml of 16 mM of sodium acetate buffer. The enzyme solution was prepared by mixing 27.5 mg of alpha amylase in 100 ml of distilled water. The calorimetric reagent is prepared by mixing sodium potassium tartrate solution and 3, 5 di nitro salicylic acid solution 96 mM. Both Control and silver nanoparticles were added with starch solution and left to react with alpha-amylase solution under alkaline conditions at 25ºC. The reaction was measured over 3 minutes and the experiment was repeated thrice consecutively. The generation of maltose was quantified by the reduction of 3, 5 di nitro salicylic acid to 3-amino-5-nitro salicylic acid. This reaction is detectable at 540 nm (16).
Inhibition of α–glucosidase enzyme
The inhibitory activity of α–glucosidase enzyme was determined by incubating a solution of starch substrate (2% w/v maltose or sucrose) 1 ml with 0.2 M Tris buffer pH 8.0 and various concentrations of silver nanoparticle for 5 min at 37ºC. The reaction was initiated by adding 1 ml of alpha glucosidase enzyme (IU/ml) to it followed by incubation for 40 min at 35ºC.Then the reaction was terminated by the addition of 2 ml of 6N HCl. Finally the intensity of colour was measured at 540 nm (17).The experiment was repeated thrice consecutively.
% of Inhibition = (Enzyme activity of control – Enzyme activity of SNP) Enzyme activity of control
Statistical analysis
Statistical significance was analyzed by one-way analysis of variance (ANOVA) followed by the Duncan post hoc test of significance using SPSS. Version 16.0.P-(< 0.05) values of < 0.05 were considered as statistically significant.

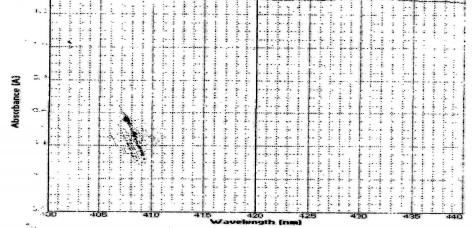

Silver nanoparticles are formed by the reduction of Ag+ during exposure to the extract at 60°C color change from pale yellow to brown color formation indicates the formation of silver nanoparticles in the solution and this may be due to the excitation of surface plasmon vibrations in the silver metal nanoparticles. Fig.1 shows the UV–Nano photometer from the biosynthesized silver nanoparticles obtained from the extract of the marine red alga H.poryphyroides. It is observed that the silver surface plasmon resonance band occurs at 420 nm, the frequency and width of surface plasmon absorption depends upon the size and shape of the metal nanoparticles.

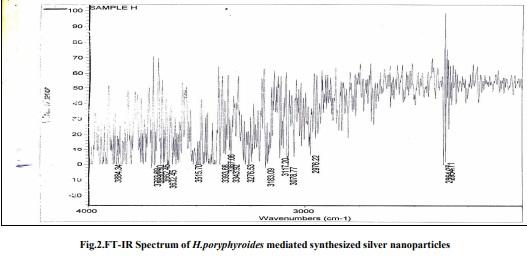

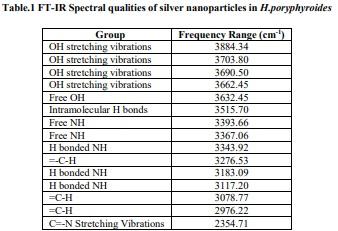

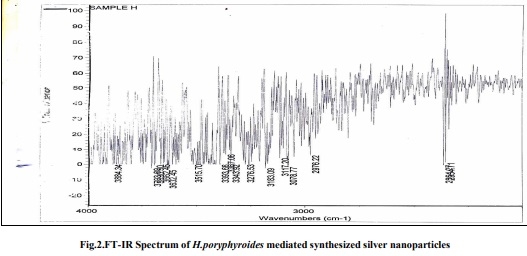

The FT-IR spectrum analysis of silver nanoparticles manifests absorption peaks. The possible potential biomolecules responsible for the reduction of silver ions to silver nanoparticle were identified using FT-IR analysis. Figure 2 shows the FT-IR spectrum of algal assisted silver nanoparticles. The spectral bands were interpreted for identification of functional moieties of organic compounds adhering to the silver nanoparticles (Table.1). The band at 3662.45 to 3884.34 cm-1 represents O-H stretching groups of amides plane bending respectively. The band at 3632.45 cm-1 corresponds to a free alcohol group, and the band at 3515.70 cm-1 corresponding to intramolecular hydrogen bonds. The band at 3367.06 to 3393.66 -1 free amine. The band at 3117.20 to 3343.92 cm-1 assigned to be H bonded NH. The band at 2976.22 to 3276.53 cm-1 assigned to be =-C-H. The band at 2354.71 cm-1 assigned to be C=-N stretching vibrations. The groups of polysaccharides which are found in the H.poryphyroides have their interaction in the synthesis process of silver nanoparticle. The biological molecules such as secondary metabolites could possibly play a major role in the synthesis and stabilization of the metal nanoparticles was proved. The result revealed that the capping ligand of the Ag-NPs may be an aromatic compound or alkanes or amines.
Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy - Image 1
Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy - Image 2
 The SEM analysis of silver nanoparticles, besides being present in colloidal form in solution, was also micro precipitated on the surface of the biomass particles of H.poryphyroides. The Figure 3 shows the magnified view of algal assisted silver nanoparticles with the spherical shape and average size of the nanoparticle. The more stable spherical shape and isotropic nanoparticles was formed by the action of a large number of biomolecules ranged in the solution. The silver nanoparticles seemed to be coated with the cell wall polysaccharide on the micrograph represented metallic silver which is reflected due to the diffraction of the electron beam from the metallic surface. It is known that the shape of the metal nanoparticles has considerably changed their optical and electronic properties.
Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy - Image 3
Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy - Image 4

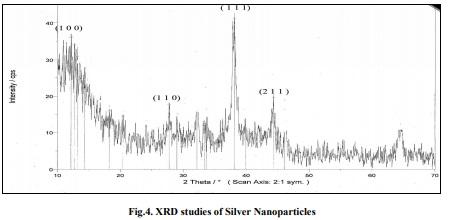

Figure 4 shows the XRD patterns obtained from biosynthesized silver nanoparticles which illustrates the characteristic peaks at (2θ =22°), marked with {1 1 1}. Bragg reflections corresponding to {1 0 0}, {1 1 0}, {1 1 1} and {2 1 1} sets of lattice planes are observed in powder XRD pattern, which may be indexed based on the FCC structure of silver. The XRD pattern thus clearly shows that the silver nanoparticles are crystalline in nature. The value of pure silver lattice constant has been estimated to be α = 4.081, a value that is consistent with α =4.0862 A0 reported by the JCPDS file no 4-0783. This estimation confirmed the hypothesis of particle monocrystallinity. The sharpening of the peaks clearly indicates that the particles are in nanoregime. The size of the silver nanoparticles as estimated from the FWHM of the {1 1 1}, peak of silver using the Scherrer formula was reported as 34-80 nm.
Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy - Image 5
Antidiabetic activity

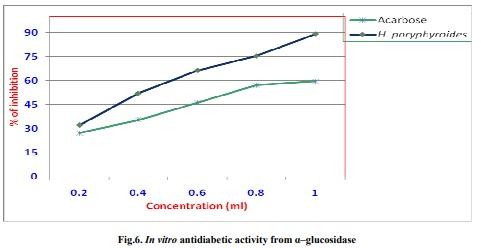

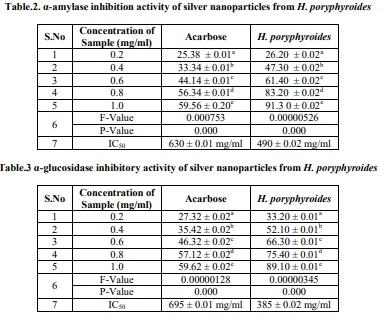

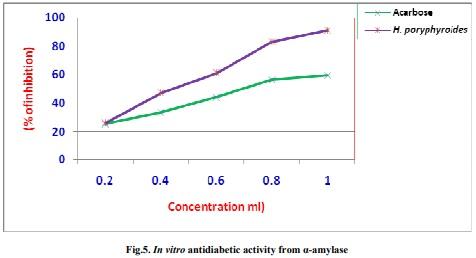

The silver nanoparticles showed a dose dependent significantly (P<0.005). The increase in percentage inhibitory activity against α–amylase enzyme, at a concentration of 0.2 ml 26.20 ± 0.02% inhibition was seen and at 1.0 ml 91.30 ± 0.02% inhibition was observed, similarly dose dependent significantly (P<0.005) increase in percentage inhibitory activity against α-glucosidase enzyme was also observed where in at lower concentration of 0.2 ml 33.20 ± 0.01% of inhibition and at higher concentration of 1.0 ml 89.10 ± 0.01 % inhibition were recorded respectively. The Figures 5 and 6 shows the % of inhibition (mg/ml) of α-amylase and α-glucosidase against standard acarbose respectively. The α-amylase and α-glucosidase inhibitor effectiveness of silver nanoparticle from red algae were compared on the basis of their resulting IC50 values. Inhibited the activity of α-amylase with an IC50 value of 490 ± 0.02 mg/ml and α-glucosidase with an IC50 value of 385 ± 0.02 mg/ml. The IC50 value of standard drug Acarbose against α-amylase 630 ± 0.01 mg/ml was α-glucosidase was found to be 695 ± 0.01 mg/ml. (Tables.2, 3).
Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy - Image 6
Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy - Image 7
Biogenic silver nanoparticles by Halymenia poryphyroides and its in vitro anti-diabetic efficacy - Image 8
The silver nanoparticles were obtained by a green synthesis method; Seaweeds were used as the bio-reductant for the reduction of the silver salt to form silver nanoparticles. The formation of the silver nanoparticles was confirmed with the dark brown color development (18). The attribute surface plasmon absorption bands were noticed at 420 nm and rising of nanoparticles size in turn can also affect the SPR band broadening (19). Based on the high intensity, the surface plasmon resonance was eminent and the frequency depends upon the size and shape of the metal nanoparticles as well as on the dielectric constant of the metal itself or the surrounding metal (20, 21). It is recognized that UV -Nanopahotometer was used to examine the size of controlled nanoparticles in aqueous suspensions (22).
On the whole in the H. poryphyroides have a lot of polysaccharide compounds, the use of carbohydrates for the synthesis of nanoparticles fabrication was also proved (23, 24). Fig.2 Illustrated the FT-IR transmittance spectrum of the dried silver nanoparticles, after 24 hours of incubation with the pure algal extract. FT-IR measurements were carried out to identify the possible biomolecules such as secondary metabolites responsible for the reduction of the Ag+ ions and capping of the Ag-NPs synthesized by the seaweed H. poryphyroides (25).
The SEM image, obtained from the biosynthesized silver nanoparticles with red alga H. poryphyroides extract showed that high density of silver nanoparticles and further confirmed the development of silver nanostructures. The SEM micrographs of nanoparticle obtained in the filtrate showed that Ag-NPs are spherical shaped, well distributed without aggregation which considerably changes their electronic and optical properties (26).
The XRD spectra of our experiment indicated the formation of silver nanoparticles which were crystalline in nature and aggregation was formed due to the fewer action of stabilizing agents in the algal extract.
Many natural resources have been reported for their antidiabetic activities in Ayurveda for the antidiabetic activities have not gained much importance as medicines due to the lack of sustained scientific evidence. Kurikara et al., (1995) (27) reported α-glucosidase inhibitory effects of brown and red seaweeds. In the present study, the red alga H. poryphyroides was screened for their invitro α-amylase and α-glucosidase inhibitors potential as a pre-requisite for the in vivo studies further. Several possible mechanisms of algae can control the blood glucose level (28), the inhibition activity of alpha amylase and alpha glucosidase would delay the degradation of carbohydrate, resulting in the decrease of glucose absorption as a result of postprandial of blood glucose level elevation (29). The α-amylase and α-glucosidase inhibitor effectiveness of silver nanoparticle from the red alga were compared on the basis of their resulting IC50 values. The silver nanoparticles inhibited the activity of α-amylase with an IC50 value of 490 ± 0.02 mg/ml and α-glucosidase with an IC50 value of 385 ± 0.02 mg/ml. The IC50 value of standard drug Acarbose against α-amylase was 630 ± 0.01 mg/ml and for α-glucosidase was found to be 695 ± 0.01 mg/ml.
The mechanism by which exerted action may be due to its activity on carbohydrate binding regions of α-glucosidase enzyme, α-amylase, endoglucanases that catalyze the hydrolysis of internal α-1, 4 glucosidic linkages in starch and other related polysaccharides have also been targeted for the suppression of postprandial hyperglycemia. This enzyme is responsible in hydrolyzing dietary starch into maltose which was then broken down to glucose prior to absorption.
Seaweeds are known to contain α-glucosidase and α-amylase inhibitors (30). Red seaweeds of the family Rhodomelaceae contain bromophenols with α-glucosidase inhibitory activity; and bear a 3, 4-dihydroxybenzyl skeleton (31, 32). The extracts from some macro algae such as Rhodomela confervoides, Gracilaria textorti, plocamium telfairiae, Dictyopteris divaricata, Ulva pertusa and Enteromorpha intestinalis reported for the strong inhibitory activity against alpha-glucosidase (33). In the present study, we investigated the α-amylase and αglucosidase inhibitory effect of seaweeds and elucidated the possible use of seaweed compounds as antihyperglycemic agent. This inhibitory property of the extract may be attributed to the presence of phytochemicals. A detailed research is needed to identify the active principle responsible for antidiabetic activity of H. poryphyroides.
The use of marine red algae seaweed for the biosynthesis of silver nanoparticle is a viable method because of its eco friendly and low cost effectiveness. The biomolecules extracted from the alga H.poryphyroides finds its applications in the field of medical biochemistry. The present findings suggest that biosynthesized silver nanoparticles from H.poryphyroides effectively inhibit both α-amylase and α–glucosidase enzymes in vitro in a dose dependent manner which paves a way for the in vivo studies further. The synthesized silver nanoparticles proved to exhibit better antidiabetic efficacy against standard Acarbose. Therefore, green synthesis methods of silver nanoparticles are a good source of all these inhibitors and leading a pathway for further use of silver nanoparticles for pharmacological activities.
This article was originally published in Journal of Chemical and Pharmaceutical Research, 2013, 5(12):1001-1008.

1] CB Field; M Behrenfeld; JT Randerson; and P Falkowski. Science., 1998, 281, 237-240.

[2] CI Febles; A Arias et al. In vitro study of antimicrobial activity in algae (Chlorophyta, Phaeophyta and
Rhodophyta) collected from the coast of Tenerife (in Spanish). Anuario Del Estudios Canarios., 1995, 34, 181-192.

[3] N Bottini; T Vang; F Cucca; T Mustelin. Seminars in Immunology., 2006, 18, 207- 213.

[4] EW Roderick. Diabetes Research and Clinical Practice., 2004, 65, 53-58.

[5] H Gin and V Rigalleau. Diabetes and Metabolism., 2000, 26, 265-272.

[6] DV Goia; ENJ Matijevic. Chem., 1998, 22, 1203.

[7] C Taleb; M Petit; P Pileni. Chem. Mater., 1997, 9, 950.

[8] K Esumi; T Tano; K Torigoe; K Meguro. Chem.Mater., 1990, 2, 564.

[9] A Henglein. Langmuir., 2001, 17, 2329.

[10] L Rodriguez-Sanchez; MC Blanco; MA Lopez – Quintela. J. Phys. Chem., B 2004, 104, 9683.

[11] JJ Zhu; SW Liu; O Palchik; Y Koltypin; A Gedanken. Langmuir., 2000, 16, 6396.

[12] Pastoriza- Santos; LM Liz – Marzan. Langmuir., 2002, 18, 2888.

[13] NA Begum; S Mondal; S Basu; RA Laskar; D Mandal. Colloids and Surfaces B: Biointerferaces., 2009, 71 (1), 113-118

[14] H Bar; DK Bhui; GP Sahoo; P Sarkar; SP De; A Misra. Colloids and Surfaces A: Physichemical and
Engineering Aspects., 2009, 339, 134-139.

[15] JY Song; BS Kim. Bioprocess Biosyst. Eng., 2009, 32, 79-84.

[16] CP Malik and MB Singh. Plant Enzymology and Histoenzymology,Kalyani publishers, New Delhi, 1980, 278.

[17] S Krishnaveni; B Theymoli and S Sadasivam. Food Chem., 1984, 15, 229.

[18] M Sastry; V Patil; SR Sainkar. J Phys Chem B., 1998, 102, 1404.

[19] P Mulvaney. Langmuir., 1996, 12, 788.

[20] P Mukherjee; S Senapati; D Mandal; A Ahmad; MI Khan; R Kumar & M Sastry. Chem. Bio. Chem., 2002, 3,

[21] J Gonzalo; R Serna; J Sol; D Babonneau & CN Afonso. J. Phys : Condens. Matter., 2003, 15, 3001.

[22] I Sondi and B Salopek- Sondi. J. Colloid Interface Sci., 2004, 275, 177.

[23] C Nabanita; T Ghosh; S Sinha; C Kausik; P Karmakar and Bimalendu Ray. Food Chemist., 2010, 118(3), 823-

[24] S Murugesan; M Elumalai and R Dhamotharan. Biosci.Biotech. Res. Comm., 2011, 4(1), 105-110.

[25] Inbakandan; Venkatesan and Ajmal Khan. Colloids and Surfaces B: Biointerface., 2010, 81(2), 634–639.

[26] H Xu; M Kall. J.Nanosci.Nanotechnol., 2002, 4, 254.

[27] H Kurihara; J Ando; M Hatano; J Kawabata. Bioorg.Med. Chem Lett., 1995, 5, 1241-1244.

[28] L Xiancui; N Rough; F Xiao; H Lijun; Z Lixin. Chin. J. Oceanol. Limmol., 2005, 23, 354-356.

[29] B Harekrishna; KB Dipak; PS Gobinda; S Priyanka; P Santanu; M Ajay. Colloids and Surfaces A:
Physicochem. Eng. Aspects., 2009, 348, 212-216.

[30] N Xu; X Fan; X Yan; X Li; R Niu and CK Tseng. Phytochemistry., 2003, 62, 1221–1224.

[31] H Kurihara; T Mitani; J Kawabata and K Takahashi. Fish Sci., 1999a, 65, 300–303.

[32] H Kurihara; T Mitani; J Kawabata and K Takahashi. J Nat Prod., 1999b, 62, 882–884.

[33] L Xiancui; L Rough; N Xiao; H Lijun; Z Lixin. Chin. J. Oceanol. Limmol., 2005, 23, 354-356.
