Classification of infectious bursal disease virus into genogroups

Published: September 7, 2020
By: Linda O. Michel 1; Daral J. Jackwood 1, 2. / 1 Food Animal Health Research Program, The Ohio State University/Ohio Agricultural Research and Development Center, 1680 Madison Ave., Wooster, OH 44691, USA; 2 Department of Veterinary Preventive Medicine, The Ohio State University/Ohio Agricultural Research and Development Center, 1680 Madison Ave., Wooster, OH 44691, USA.
Summary

Infectious bursal disease virus (IBDV) causes infectious bursal disease (IBD), an immunosuppressive disease of poultry. The current classifcation scheme of IBDV is confusing because it is based on antigenic types (variant and classical) as well as pathotypes. Many of the amino acid changes diferentiating these various classifcations are found in a hypervariable region of the capsid protein VP2 (hvVP2), the major host protective antigen. Data from this study were used to propose a new classifcation scheme for IBDV based solely on genogroups identifed from phylogenetic analysis of the hvVP2 of strains worldwide. Seven major genogroups were identifed, some of which are geographically restricted and others that have global dispersion, such as genogroup 1. Genogroup 2 viruses are predominately distributed in North America, while genogroup 3 viruses are most often identifed on other continents. Additionally, we have identifed a population of genogroup 3 vvIBDV isolates that have an amino acid change from alanine to threonine at position 222 while maintaining other residues conserved in this genogroup (I242, I256 and I294). A222T is an important mutation because amino acid 222 is located in the frst of four surface loops of hvVP2. A similar shift from proline to threonine at 222 is believed to play a role in the signifcant antigenic change of the genogroup 2 IBDV strains, suggesting that antigenic drift may be occurring in genogroup 3, possibly in response to antigenic pressure from vaccination.

Introduction
Outbreaks of infectious bursal disease (IBD), a significant contagious immunosuppressive disease of poultry, are still reported throughout the world despite efforts to control the disease through vaccination. Control efforts are complicated by the fact that the causative agent, infectious bursal disease virus (IBDV), an avibirnavirus consisting of two segments of double-stranded RNA [1], is subject to frequent genetic mutations, reassortment of genome segments, and genomic recombination events that can potentially increase virulence and alter antigenicity, rendering vaccines less effective [2, 3]. Eradication of the virus on infected farms is not practical, since the virus is highly contagious and very resistant to chemical and heat inactivation [4, 5].
The financial losses experienced by the poultry industry due to IBD are not only a result of morbidity and mortality but also from the dramatic decrease in overall flock performance. The bursa of Fabricius (BF) of chickens is the primary target organ of IBDV. The virus replicates in immature B-lymphocytes and causes a depletion of these cells in the BF, resulting in suppression of the humoral immune system. Cellular immunity is also compromised during an IBDV infection [6]. Young birds that survive the disease can be permanently immune suppressed; affected flocks typically have poor growth rates, poor feed conversion, decreases in egg production and egg quality, and impaired efficacy of vaccination. The irreversible immune suppression of IBD in young chickens increases their susceptibility to a multitude of opportunistic avian pathogens that are normally non-pathogenic in healthy flocks [7]. This results in a major economic impact on the broiler and layer chicken industries. A recent study in Saskatchewan estimates that the broiler industry there loses about 3.9 million kg of meat per year, a market value of over $14 million, from IBD infections [8]. This figure could also increase as consumer demand for antibiotic-free chicken increases because many of the opportunistic bacterial infections that occurred in immune suppressed chicken flocks have been controlled by antibiotics [9].
The disease causing serotype 1 IBDV are classified into three groups based on their virulence: sub-clinical (sc), classical virulent (cv), and very virulent (vv) IBDV [10]. The two major antigenic groups within serotype 1 are commonly called classical and variant, but antigenic drift has contributed to the formation of several subtypes within these groups. The antigenic phenotype of IBDV is determined by the hypervariable sequence region of VP2 (hvVP2) [11–14], specifically by amino acids located at the apex of loop structures designated PBC, PDE, PFG, and PHI [15–17]. Even single point mutations in these regions have been found to contribute to antigenic drift in IBDV [2, 17], which can render currently available IBD vaccines ineffective.
The goal of our study was to identify IBDV strains that continue to cause disease in commercial chicken flocks. Although pathogenicity is important with regard to severity of the disease and degree of immune suppression, we focused our study on mutations located in the hvVP2.
Materials and methods
Viral samples
Bursas from domestic and international flocks suspected of having IBDV were collected during the years 2013 to 2017. Bursas were cut in half, and the cut face was pressed onto Whatman FTA cards (GE Healthcare Life Sciences, Pittsburgh, PA). Foreign samples were imported into our laboratory under import permit #44226 from the U.S. Department of Agriculture Animal and Plant Health Inspection Service (Riverdale, Maryland, USA). During this study, we examined 90 samples from Algeria, Colombia, Ecuador, Egypt, Fiji, France, Guatemala, India, Indonesia, Iraq, Jordan, Kazakhstan, the Kingdom of Saudi Arabia (KSA), Kuwait, Malaysia, Mexico, Morocco, Philippines, Russia, United Arab Emirates (UAE), the United Kingdom (UK), the United States, and Vietnam.
RNA extraction
Viral RNA was extracted from bursa samples on FTA cards as follows: Eight FTA card punches per sample were vortexed with 300 µl of RNase-free TE buffer pH 8.0 (Invitrogen, Carlsbad, CA) containing 1 mg of proteinase K (Invitrogen) per ml and 0.5% SDS (Sigma-Aldrich, St. Louis, MO) and incubated at 56 °C for 60 min. A 300-µl volume of RNA Lysis Buffer (Zymo Research, Irvine, CA) was then added and the sample was vortexed and incubated at room temperature for 9 min. RNA was purified using a QuickRNA™ MiniPrep (Zymo Research) according to the manufacturer’s instructions. RNA was then precipitated from samples with 0.1 volume of 3 M sodium acetate buffer solution (Sigma-Aldrich) and 2.5 volumes of ethanol (SigmaAldrich) and resuspended in 25 µl of 90% dimethyl sulfoxide (Sigma-Aldrich).
RT-PCR
RT-PCR was conducted using an AgPath-ID™ One-Step RT-PCR Reagents Kit (Applied Biosystems). Primers 743-F (5´-GCCCAGAGTCTACACCAT-3´) and 1331-R (5´-ATGGCTCCTGGGTCAAATCG-3´) were used to amplify a 579-bp fragment of the hypervariable region of the VP2 gene (hvVP2). RT was performed at 48 °C for 30 min and terminated by incubation at 95 °C for 10 min, and this was followed by 35 cycles of PCR at 95 °C for 30 s, 57 °C for 1.5 min and 72 °C for 1.5 min. A final extension at 72 °C for 5 min followed the PCR. Primers B-Univ-F (5’- AATGAGGAGTATGAGACCGA-3’) and B-Univ-R (5’-CCTTCTCTAGGTCAATTGAGTACC-3’) [18] were used to amplify a 1051-bp fragment (nt 319-1369) of the VP1 gene. RT was performed at 45 °C for 30 min, followed by 35 cycles of PCR at 95 °C for 30 s, 58 °C for 1.5 min and 72 °C for 1.5 min. A final extension at 72 °C for 7 min followed the PCR.
Nucleotide sequence analysis
The RT-PCR products were prepared for sequencing using a Wizard SV Gel and PCR Clean-Up System (Promega, Madison, WI). Cycle sequencing was conducted at the University of Wisconsin Biotechnology Center DNA Sequencing Facility (Madison, WI). DNA sequences were submitted to GenBank (accession numbers MF142502-MF142591, PopSet 1229404744 for VP2 and MF142461-MF142501, PopSet 1229404662 for VP1). Nucleotide and predicted amino acid sequences were aligned with those of reference strains from GenBank (Table 2) using Geneious® 8.1.8 [19]. The evolutionary history was inferred using the neighbor-joining method [20] with 1000 bootstrap replicates [21]. The evolutionary distances were computed using the maximum composite likelihood method (MCL) [22] for nucleotide sequences and the Poisson correction method [23] for deduced amino acid sequences. Molecular phylogenetic analysis was also performed using the maximum-likelihood method based on the Kimura 2-parameter model [24]. Initial tree(s) for the heuristic search were obtained automatically by applying Neighbor-Join and BioNJ algorithms to a matrix of pairwise distances estimated using the MCL approach, and then selecting the topology with superior log likelihood value. A discrete gamma distribution was used to model evolutionary rate differences among sites (five categories (+G, parameter = 1.2420)). The rate variation model allowed for some sites to be evolutionarily invariable ([+I], 25.14% sites). All positions containing gaps and missing data were eliminated. Evolutionary analysis was conducted in MEGA7 [25].
Results
In this study, we used RT-PCR followed by nucleotide sequencing of the hvVP2 of IBDV to determine phylogenetic relationships between global strains of the virus. The distribution of samples among genogroups and countries is shown in Table 1. We sequenced a total of 90 samples from 23 countries located in North and South America, Europe and Asia. Because we are prohibited from importing live virus, it was not possible to confirm the pathogenicity of the viruses. Thus, we used molecular characteristics to assign these samples to a particular genogroup.

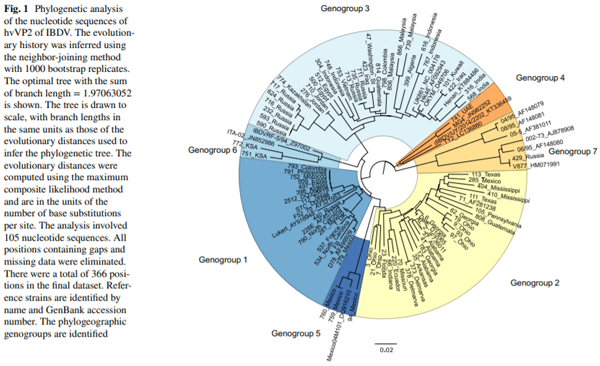

Phylogenetic analysis of hvVP2
The hvVP2 sequences were aligned, and a phylogenetic tree was constructed using the neighbor-joining method (Fig. 1). The isolates clustered into seven major genogroups, which generally corresponded to their serotype or pathotype classification (Table 2). Genogroup 1 (generally classical viruses) were found worldwide, genogroup 2 (primarily antigenic variant viruses) are still predominately distributed in the Americas, and genogroup 3 (vvIBDV pathotype and vvIBDV reassortants) were found worldwide but most often identified outside North America. Some viral isolates, however, did not clearly ft into any of the three major genogroups and were classified separately. A genogroup 4 sample from United Arab Emirates (741_UAE) was most closely related to the distinct IBDV lineage that is prevalent in South America [26]. Genogroup 5 strains consisted of viruses from Mexico that were postulated by Jackwood [27] to be the result of a recombination between classical and variant viruses. These viruses have variant type amino acid sequences in the PBC loop, whereas the PFG loop is more similar to the classical viruses. The PDE loop sequence is also similar to classical viruses in that it has 249Q; however, it also has N251 and N254, a pattern we have also seen in variant strains from Guatemala and the southern US (data not shown). The PHI loop of these viruses shows two unique substitutions, S317K and A321P. Genogroup 6 consisted of samples from the Kingdom of Saudi Arabia (751_KSA and 772_KSA) that did not have identical matches in GenBank but showed 92.26-93.64% identity to the ITA genotype observed in Italy (characterized by 220H, 222Q, 253E, 254S and 321V) [28] and 94.02-95.40% identity to isolate IBDVRF-5/94 from Russia [29]. Genogroup 7 was composed of viruses from Australia as well as a sample from Russia (429_Russia). A phylogenetic tree of the isolates was also constructed using the maximum-likelihood method and presented similar branching (Online Resource 1). The deduced amino acid sequences of representatives of each genogroup were also determined and are aligned in Online Resource 2.

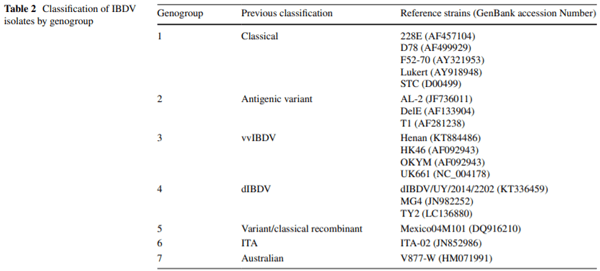

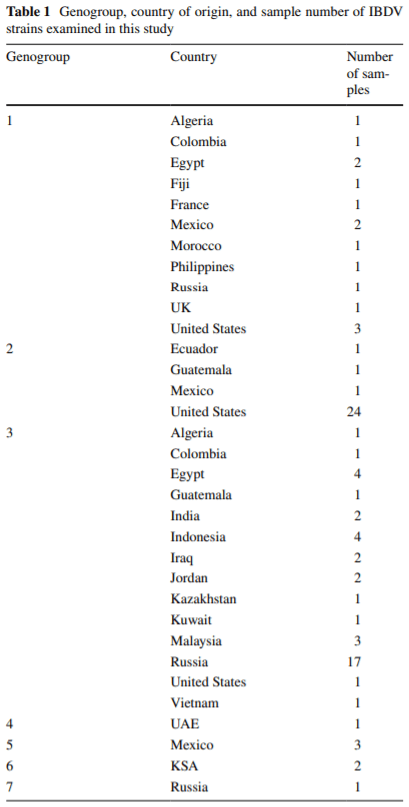

Classification of infectious bursal disease virus into genogroups - Image 1

Classification of infectious bursal disease virus into genogroups - Image 2

Classification of infectious bursal disease virus into genogroups - Image 3

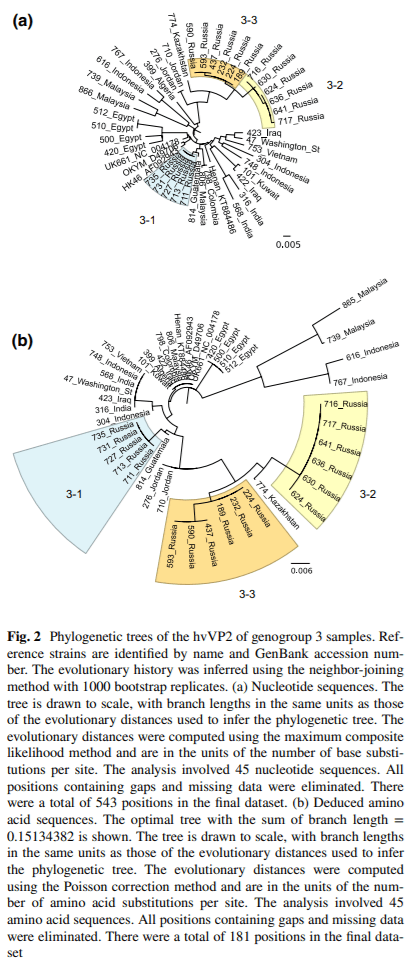

Evolution of genogroup 3 strains
While the majority of our genogroup 3 isolates contained the conserved residues that define the vvIBDV pathotype (A222, I242, I256, and I294), we noted some genetic heterogeneity among the strains grouping with vvIBDV reference strains HK46, Henan and UK661 in this study. Therefore, a phylogenetic tree of nucleic acid sequences of genogroup 3 samples and reference strains was prepared and is shown in Figure 2a. Several distinct branches contained viruses from specific geographic regions such as Egypt, India and Malaysia/Indonesia. Viruses isolated from Russia were found to form three distinct branches (Fig. 2a, groups 3-1, 3-2, and 3-3).
Classification of infectious bursal disease virus into genogroups - Image 4
In order to determine if the nucleic acid substitutions were altering VP2 amino acid composition and possibly affecting the antigenicity of the genogroup 3 strains, deduced amino acid sequences were determined, and a phylogenetic tree was created (Fig. 2b). While many samples were closely related to UK661, distinct groups of viruses from Egypt, Malaysia/Indonesia, and the 3-1 to 3-3 groups from Russia were again evident. The specific amino acid changes in the hvVP2 region can be seen in Online Resource 3. Of the differences noted, we focused on ones that occurred on the tips of the projection domain loops of VP2. Significant amino acid differences noted in the PBC loop include Y220F in Egyptian samples, A222T in 866_Malaysia and Group 3-2 of the Russian samples, and A222S in 616_Indonesia and 767_Indonesia. In the PDE loop, G254D (found in Egyptian samples and groups 3-2 and 3-3 from Russia) or G254S (in the Egyptian samples) were identified. Additionally, samples from Malaysia and Indonesia also had amino acid changes in the PHI loop, including A321E and, in 739_Malaysia and 866_Malaysia, S317R and D323N. A T359K substitution was found in samples in genogroups 2, 4, 5 and 6 but in only one sample (866_Malaysia) in genogroup 3. This 866_Malaysia virus also had an A222T substitution, but otherwise, it was nearly identical to 739_Malaysia. Other substitutions were noted outside the loops. For example, a number of samples, including every Russian sample tested, were found to contain the mutation D279N. Additionally, groups 3-2 and 3-3 of the Russian samples were found to have a pair of mutations: S328K and S332N. This was not observed in any other samples outside Russia, although a sample from Kazakhstan was found which had only the S332N mutation.

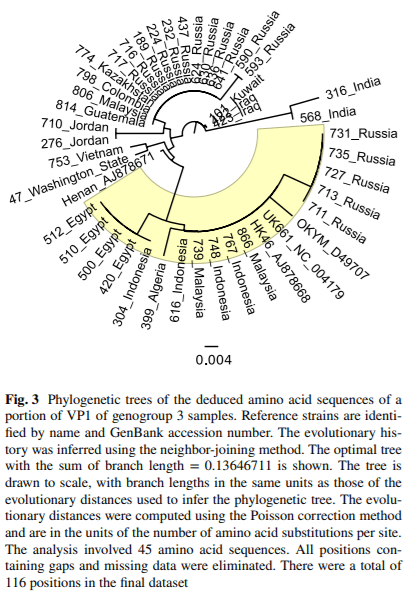

Phylogeny of VP1
The nucleotide sequences of a portion of the VP1 gene were determined for the genogroup 3 strains, and a phylogenetic tree was created from the deduced amino acid sequences (Fig. 3). The samples were grouped on the basis of the presence or absence of the conserved TDN tripeptide (aa 145–147) found in the vvIBDV pathotype. Roughly 1/3 of the samples possessed this tripeptide and are highlighted in Figure 3. Although the TDN triplet was conserved in all of the vvIBDV sequences, other changes were noted, including V141I in Egyptian and Indonesian samples and D161A in Russian samples. The remaining non-vvIBDV VP1 gene sequences had D146E and N147G with some variation at the first position (T145N, T145D or T145S), indicating that these were likely reassortants between vvIBDV and non-vvIBDV strains. Some regional changes were also observed among the non-vvIBDV segment B sequences, including V141I, E143D and A163V in Indian samples, V141I in samples from Kuwait and Iraq, and T153A in some Russian samples.
Classification of infectious bursal disease virus into genogroups - Image 5
As indicated above, the 866_Malaysia sample in genogroup 3 has an A222T substitution. This was the only strain we found with that mutation that also contained the TDN tripeptide in the VP1 gene, which is typical of the vvIBDV pathotype.
Discussion
Infectious bursal disease is presently one of the most significant contagious immunosuppressive diseases of poultry. Research focused on improved management of this economically devastating disease is of critical importance to the global poultry industry. The irreversible immune suppression caused by IBDV in young chickens increases their susceptibility to a multitude of opportunistic avian pathogens that are normally non-pathogenic in healthy flocks [7]. IBDV control has only been possible through the use of efficacious vaccines, but vaccination efforts are complicated by the fact that frequent viral genetic mutations, reassorting of genome segments, and recombination can potentially increase virulence and alter antigenicity, rendering vaccines and vaccine protocols less effective [2, 3].
This global survey used RT-PCR followed by nucleotide sequencing of a portion of the gene encoding the VP2 capsid protein to classify IBDV strains that continue to cause disease in commercial chicken flocks. Although pathogenicity is important with regard to severity of the disease and degree of immune suppression, we were not able to determine the pathogenicity of these imported samples. We instead focused on the hvVP2 region as mutations in the loops of this region, particularly the apexes of the PBC and PHI loops, have been found to play important roles in antigenicity [17]. Sequencing of this region allows us to quickly determine phylogenetic relationships among strains [30]. Although Petkov et al. [31] pointed out the usefulness of sequencing the entire genome of IBDV for phylogenetic characterization, it is impractical to do this for a large number of isolates. Based on our results, we propose to classify IBDV into genogroups, similar to the classification of another birnavirus, infectious pancreatic necrosis virus, a pathogen of salmonid species [32]. Representatives of each genogroup will be subject to full genome sequence analysis in future studies.
The majority of the IBDV strains we identified grouped within one of three major genogroups, which were designated genogroup 1 (predominantly classical), genogroup 2 (predominantly variant) and genogroup 3 (predominantly vvIBDV pathotype or vvIBDV reassortant) [10]. One argument for the use of genogroups rather than phenotypic nomenclature can be found in genogroup 3, which contains viruses that based on the VP2 sequence most would consider to be the vvIBDV pathotype. But some genogroup 3 viruses are reassortants that do not have a vvIBDV segment B and are not true vvIBDV strains [33]. In addition, some of these viruses do not have the typical amino acids A222, I242, I256, I294 and S299 found in the vvIBDV type strains [34]. The use of genogroups is a more precise way to classify such viruses. Additionally, continued evolution of the three major genogroups was evident in the distinct branches observed within each. Geographic constraints on the evolution of viruses were noted in, for example, the formation of two subgroups of viruses limited to Ohio [35] located in genogroup 2 (Fig. 1). With time, these subgroups may change enough that they will necessitate reclassification into a new genogroup. Finally, viruses that do not fit within any of the three major genogroups were identified in this study. The genogroup classification method allowed us to classify these into four new genogroups, 4 – 7, the characteristics of which are discussed below.
Genogroup 4 is composed of the distinct IBDV, characterized by 222S, 272T, 289P, 290I and 296F. Viruses in this genogroup have been found worldwide but are most commonly isolated from Latin America [26]. Another virus (TY2) that appears to fit in this genogroup was recently identified in Japan [36]. Pathogenicity studies of TY2 found that while it was of low pathogenicity, infection resulted in severe bursal damage, even in vaccinated birds. We observed this lineage in UAE (741_UAE) among a flock in which variant IBDV was suspected due to low pathogenicity.
Genogroup 5 included Mexican recombinant samples [27] that seem to be firmly established in Mexico, having been reported there since before 2002 [37]. This genogroup shows amino acid changes in both PDE and PHI. The PDE loop differs from reference variant and classical strains with the presence of 251N and 254N. We have, however, observed this pair of mutations in variant viruses isolated from the southeastern United States (410_Mississippi), so they are unlikely to be a significant characteristic of genogroup 5. The PHI loop of genogroup 5 shows two unique substitutions: S317K and A321P. While strains with a similar mutation at 317, S317R, have been identified [38], a GenBank search did not identify other strains with the A321P mutation. Letzel et al. [17] found that residue 321 was important for recognition by virus-neutralizing Mab 67; therefore, this mutation could have an effect on antigenicity.
Genogroup 6 consisted of samples from Saudi Arabia (751_KSA and 772_KSA). These samples came from flocks with suspected non-vvIBDV infections and showed little similarity to other IBDV sequences in GenBank. They appeared to be most closely related (>97% amino acid sequence identity) to viruses of the Italian ITA genotype [28] and Russian isolate IBDVRF-5/94 [29]. The ITA genotype is characterized by 220H and 222Q in PBC, 253E and 254S in PDE, and 321V in PHI. Although lacking 220H, the KSA viruses both have 222Q, 253E and 254S. One of the samples, 772_KSA, also has the A321V mutation. The relationship between the ITA viruses and those from KSA is unknown. Lupini et al. [28] hypothesized that the ITA viruses arose under selective pressure exerted by vaccines, since similar viruses are being isolated with greater frequency in Italy, while vvIBDV has been circulating at a lower level. The relationship between these two observations is unknown at the present time.
Finally, genogroup 7 consisted of Australian reference strains as well as an isolate from Russia (429_Russia). There are two distinct groups of IBDV present in Australia, classical strains that are similar to V877 and 002-73 and antigenic variant strains that are similar to 05-5 and 08/95 [39]. These strains grouped together on our tree. 429_Russia showed 100% identity to the Australian 877 vaccine strain [40], suggesting that vaccine virus was used and persisted in those flocks.
In this study, we were particularly interested in the continuing evolution of the genogroup 3 viruses. We noted changes among these isolates in amino acids 222 and 254, two residues that have been found to contribute to antigenic drift in IBDV [2, 17]. Viruses isolated within a 100-square mile region of Russia and neighboring Kazakhstan were found to contain T222 along with the other residues typically conserved in vvIBDV (I242, I256 and I294 [41]) and showed >98% amino acid sequence identity to each other. Virus 866_Malaysia was nearly identical to 739_Malaysia, a vvIBDV with A222, except that 866 has T222 and K359, amino acids typically found in variant strains. A GenBank search identified only three other vvIBDV-like A222T viruses: two from Malaysia (GenBank accession numbers GQ131540 and GQ131541) and one from Nigeria (accession number KP152268). These viruses do not appear to be closely related to each other, however, because they were on different branches of the phylogenetic tree (Fig. 3). Whereas GQ131540 and GQ131541 had >98% amino acid sequence identity to 739_Malaysia and 866_ Malaysia, they had only 93% amino acid sequence identity to the T222 Russian isolates. Similarly, the T222 Nigerian virus had >98% identity to reference strain UK661 but only 96 and 97% amino acid sequence identity to the Russian and Kazakhstan T222 isolates, respectively. For this reason, it is likely that these T222 viruses arose independently of each other.
An amino acid change at position 222 is important because this residue is located at the tip of the PBC loop. A similar shift from Pro to Thr at 222 is believed to have played a role in the significant antigenic change of the classical viruses to variant IBDV strains in the 1980s [41]. This P222T mutation likely contributed to many of the vaccine failures reported in the U.S. during that period. Another change at this position, A222S, was observed in viruses isolated from Indonesia (616 and 767). The S222 viruses have been identified previously in Indonesia and were found to cause similar levels of mortality as viruses with A222 [42]. However, the S222 viruses we identified also contained a change in the PHI loop, A321E, as well as G280R, S299N, E300A and I305V. We identified a similar virus from Indonesia in GenBank (KT259046), indicating that this is likely a regional lineage. The effects of these amino acid changes, if any, on antigenicity and pathogenicity of these viruses are unknown.
We found a number of vvIBDV strains that had mutations at residue 254, located in the PDE loop. The reference vvIBDV strains have a glycine at 254, and we identified strains that contained either a serine or aspartic acid at this position. A G254D mutation was identified in samples from Russia, Kazakhstan, Jordan and Malaysia and has been reported in vvIBDV strains from Brazil [43]. Interestingly, the G254D mutation was found in Russian samples that all had an additional pair of mutations, S328K and S332N, located in the serine-rich heptapeptide region adjacent to the PHI loop [44]. We were unable to identify other viruses in GenBank with both of these mutations. The G254D, S328K and S332N mutations were found in both A222 and T222 Russian viruses, suggesting that these mutations likely occurred before the change at amino acid 222. The G254S mutations were identified in vvIBDV isolated from Egypt. These strains had an additional mutation in the PBC loop, Y200F; similar viruses have been isolated previously in South Africa [45] as well as Egypt (GenBank PopSet: 1016563382). Additional vvIBDV isolates with only the G254S mutation have been reported in Tanzania [46], Nigeria [47, 48] and Ethiopia [49]. The antigenic effect of these changes is unknown; however, a change of S254N in the Delaware E strain was proven to contribute to antigenic drift of this strain [2], and Hoque et al. [50] found that a vvIBDV strain with G254S and A270E had reduced virulence, thus reinforcing the importance of these changes in the evolution of the vvIBDV.
Since VP1 plays a role in the pathogenicity of vvIBDV [34, 51], we also sequenced a phylogenetic marker of the VP1 gene of vvIBDV [52] and found that reassortment is continuing to play a role in the evolution of these strains. The phylogenetic tree results (Fig.  3) broadly divided vvIBDV into two groups: those with a vvIBDV-like segment B and reassortants with a non-vvIBDV-like segment B. The VP1 of vvIBDV is characterized by the amino acid triplet TDN at 145/146/147 [53]; very little VP1 sequence variation was seen among these viruses. Two residues that did show some variability were 141, with either Ile or Val, and a D161A mutation present in the branch containing 711_ Russia. More variation was seen among the non-vvIBDV segment B sequences. A number of amino acid substitutions occurred at the triplet codon region including DEG, IEG, NEG, SEG, and TEG. There was not, however, as much diversity in these vvIBDV reassortants as was observed in the segment B sequences of variant and classical strains [54]. It appears that N147 is a significant predictor of the vv phenotype since 145T and 146D are seen in non-vv strains (TES, TEG, TDS, etc). We have not observed a 147N in a non-vvIBDV segment B.
We found it was impossible to predict the presence of a vvIBDV-like segment B based on any particular features of a virus’s hvVP2 sequence. For example, the hvVP2 of 422_Iraq, 101_Kuwait and 798_Colombia all show 100% amino acid sequence identity to UK661 (data not shown), but they all have non-vvIBDV-like segment B sequences. In contrast, the hvVP2 of 739_Malaysia and 616_Indonesia each have only 95.6% amino acid sequence identity to UK661, but both have vvIBDV-like segment B sequences (99.4% amino acid sequence identity to UK661). Three different groups of Russian hvVP2 sequences were identified (3-1, 3-2, and 3-3, Fig. 2). Group 3-1 had vvIBDV-like segment B, while 3-2 and 3-3 did not. While differences were noted among the three Russian groups (such as the 328K and 332N mutations present in 3-2 and 3-3), there was no clear indication that the presence or absence of a vvIBDV-like segment B plays a role in mutations occurring in the hvVP2.
While analyzing the genetic mutations that we were seeing in IBDV, we noted that certain sites of the protein, most of which were located in the loop structures, were able to tolerate a number of residues. For example, at position 222, we found viruses with Pro, Thr, Ala, Gln, and Ser. The amino acid Leu has also been found at this site [55]. The PHI loop seems particularly tolerant of amino acid changes. Multiple mutations have been found at four residues of this nine-residue loop. Residue 321 seems to be a particular hot spot for mutations, with Ala, Glu, Gln, Val, Pro, and Thr, all being found at this location. (Online Resource 4). Residues 222 and 321 have been shown to be critical for recognition by the virus neutralizing Mab 67 [17]. Therefore, these residues may be playing some role in antigenicity. While we cannot speculate on the reason for high tolerance of amino acid changes at these residues, we can tell that they are being selected for, and changes in these areas, particularly in the PHI loop, seem to be increasing the fitness of the virus, which provides it with a selective advantage.
In conclusion, our data support the use of genogroups to classify global IBDV strains, because the classical, variant and vvIBDV phenotype classifications are narrow and do not adequately describe IBDV found worldwide. We found that many IBDV do not fit in the major genogroups 1-3. These viruses, which we classified into genogroups 4 - 7, have mutations that are likely to contribute to altered antigenicity. Due to importation restrictions, it is not possible for most diagnostic laboratories to determine the antigenicity and pathogenicity of foreign IBDV strains, further supporting the use of genogroups to characterize these viruses. The IBDV strains identified in this study are persisting despite vaccination efforts. Current IBDV vaccines do not appear to offer effective protection against IBDV in these newly emerging genogroups and regional lineages within the major genogroups 1-3. Custom autogenous vaccines or vaccines produced from virus-like-particles [56] that can keep pace with the changes occurring in IBDV will be needed to control these evolving viruses, and genogroup classification and characterization will be required for the production of such vaccines.
This article was originally published in Archives of Virology (2017) 162:3661–3670 DOI 10.1007/s00705-017-3500-4. This is an Open Access article distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/).

1. Dobos P, Hill B, Hallett R, Kells D, Becht H, Teninges D (1979) Biophysical and biochemical characterization of five animal viruses with bisegmented double-stranded RNA genomes. J Virol 32:593–605

2. Jackwood DJ, Sommer-Wagner SE (2011) Amino acids contributing to anitgenic drift in the infectious bursal disease birnavirus (IBDV). Virology 409:33–37

3. Jackwood DJ, Sreedevi B, LeFever LJ, Sommer-Wagner SE (2008) Studies on naturally occurring infectious bursal disease viruses suggest that a single amino acid substitution at position 253 in VP2 increases pathogenicity. Virology 377:110–116

4. Benton WJ, Cover MS, Rosenberger JK, Lake RS (1967) Physiochemical properties of the infectious bursal agent. Avian Dis 11:438–445

5. Mandeville WFI, Cook FK, Jackwood DJ (2000) Heat lability of fve strains of infectious bursal disease virus. Poult Sci 79:838–842

6. Rautenschlein S, Yeh H, Njenga MK, Sharma JM (2002) Role of intrabursal T cells in infectious bursal disease virus (IBDV) infection: T cells promote viral clearance but delay follicular recovery. Arch Virol 147:285–304

7. Saif YM (1991) Immunosuppression induced by infectious bursal disease virus. Vet Immunol Immunopathol 30:45–50

8. Zachar T, Popowich S, Goodhope B, Knezacek T, Ojkic D, Willson P, Ahmed KA, Gomis S (2016) A 5-year study of the incidence and economic impact of variant infectious bursal disease viruses on broiler production in Saskatchewan, Canada. Can J Vet Res 80:255–261

9. Kurukulsuriya S, Ahmed KA, Ojkic D, Gunawardana T, Gupta A, Goonewardene K, Karunaratne R, Popowich S, Willson P, Tikoo SK, Gomis S (2016) Circulating strains of variant infectious bursal disease virus may pose a challenge for antibiotic-free chicken farming in Canada. Res Vet Sci 108:54–59

10. Van Den Berg TP, Morales D, Eterradossi N, Rivallan G, Toquin D, Raue R, Zierenberg K, Zhang MF, Zhu YP, Wang CQ, Zheng HJ, Wang X, Chen GC, Lim BL, Muller H (2004) Assessment of genetic, antigenic and pathotypic criteria for the characterization of IBDV strains. Avian Pathol 33:470–476

11. Bayliss CD, Spies U, Shaw K, Peters RW, Papageorgiou A, Muller H, Boursnell MEG (1990) A comparison of the sequences of segment A of four infectious bursal disease virus strains and identifcation of a variable region in VP2. J Gen Virol 71:1303–1312

12. Brandt M, Yao K, Liu M, Heckert RA, Vakharia VN (2001) Molecular determinants of virulence, cell trophism, and pathogenic phenotype of infectious bursal disease virus. J Virol 75:11974–11982

13. Eterradossi N, Arnauld C, Toquin D, Rivallan G (1998) Critical amino acid changes in VP2 variable domain are associated with typical and atypical antigenicity in very virulent infectious bursal disease viruses. Arch Virol 143:1627–1636

14. Eterradossi N, Toquin D, Rivallan G, Guittet M (1997) Modifed activity of a VP2-located neutralizing epitope on various vaccine, pathogenic and hypervirulent strains of infectious bursal disease virus. Arch Virol 142:255–270

15. Coulibaly F, Chevalier C, Delmas B, Rey F (2010) Crystal structure of an aquabirnavirus particle: insights into antigenic diversity and virulence determinism. J Virol 84:1792–1799

16. Coulibaly F, Chevalier C, Gutsche I, Pous J, Navaza J, Bressanelli S, Delmas B, Rey FA (2005) The Birnavirus crystal structure reveals structural relationships among icosahedral viruses. Cell 120:761–772

17. Letzel T, Coulibaly F, Rey FA, Delmas B, Jagt E, van Loon A, Mundt E (2007) Molecular and structural bases for the antigenicity of VP2 of infectious bursal disease virus. J Virol 81:12827–12835

18. Islam MR, Rahman S, Noor M, Chowdhury EH, Müller H (2012) Diferentiation of infectious bursal disease virus (IBDV) genome segment B of very virulent and classical lineage by RTPCR amplifcation and restriction enzyme analysis. Arch Virol 157:333–336

19. Kearse M, Moir R, Wilson A, Stones-Havas S, Cheung M, Sturrock S, Buxton S, Cooper A, Markowitz S, Duran C, Thierer T, Ashton B, Mentjies P, Drummond A (2012) Geneious basic: an integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics 28:1647–1649

20. Saitou N, Nei M (1987) The neighbor-joining method: a new method for reconstructing phylogenetic trees. Mol Biol Evol 4:406–425

21. Felsenstein J (1985) Confidence limits on phylogenies: an approach using the bootstrap. Evolution 39:783–791

22. Tamura K, Nei M, Kumar S (2004) Prospects for inferring very large phylogenies by using the neighbor-joining method. Proc Natl Acad Sci USA 101:11030–11035

23. Zuckerkandl E, Pauling L (1965) Evolutionary divergence and convergence in proteins. Evol Genes Proteins 97:97–166

24. Kimura M (1980) A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J Mol Evol 16:111–120

25. Kumar S, Stecher G, Tamura K (2016) MEGA7: molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol Biol Evol 33:1870–1874

26. Hernández M, Tomás G, Marandino A, Iraola G, Maya L, Mattion N, Hernández D, Villegas P, Banda A, Panzera Y, Prez R (2015) Genetic characterization of South American infectious bursal disease virus reveals the existence of a distinct worldwide-spread genetic lineage. Avian Pathol 44:212–221

27. Jackwood DJ (2012) Molecular epidemiologic evidence of homologous recombination in infectious bursal disease viruses. Avian Dis 56:574–577

28. Lupini C, Giovanardi D, Pesente P, Bonci M, Felice V, Rossi G, Morandini E, Cecchinato M, Catelli E (2016) A molecular epidemiology study based on VP2 gene sequences reveals that a new genotype of infectious bursal disease virus is dominantly prevalent in Italy. Avian Pathol 45:458–464

29. Shcherbakova LO, Lomakin AI, Borisov AV, Drygin VV, Gusev AA (1998) Comparative analysis of the VP2 variable region of the gene from infectious bursal disease virus isolates. Mol Gen Mikrobiol Virusol 1:35–40

30. Le Nouen C, Rivallan G, Toquin D, Eterradossi N (2005) Signifcance of the genetic relationships deduced from partial nucleotide sequencing of infectious bursal disease virus genome segments A or B. Arch Virol 150(2):313–325

31. Petkov D, Linnemann E, Kapczynski DR, Sellers HS (2007) Full-length sequence analysis of four IBDV strains with diferent pathogenicities. Virus Genes 34:315–326

32. Blake S, Ma JY, Caporale DA, Jairath S, Nicholson BL (2001) Phylogenetic relationships of aquatic birnaviruses based on deduced amino acid sequences of genome segment A cDNA. Dis Aquat Organ 45:89–102

33. Escafre O, Le Nouen C, Amelot M, Ambroggio X, Ogden KM, Guionie O, Toquin D, Muller H, Islam MR, Eterradossi N (2013) Both genome segments contribute to the pathogenicity of very virulent infectious bursal disease virus. J Virol 87:2767–2780

34. Van Den Berg TP (2000) Acute infectious bursal disease in poultry: a review. Avian Pathol 29:175–194

35. Jackwood DJ, Stoute ST (2013) Molecular evidence for a geographically restricted population of infectious bursal disease viruses. Avian Dis 57:57–64

36. Yamazaki K, Ohta H, Kawai T, Yamaguchi T, Obi T, Takase K (2017) Characterization of variant infectious bursal disease virus from a broiler farm in Japan using immunized sentinel chickens. J Vet Med Sci 79:175–183

37. Banda A, Villegas P, El-Attrache J (2003) Molecular characterization of infectious bursal disease virus from commercial poultry in the United States and Latin America. Avian Dis 47:87–95

38. Jackwood DJ, Sommer SE, Knoblich HV (2001) Amino acid comparison of infectious bursal disease viruses placed in the same or diferent molecular groups by RT/PCR-RFLP. Avian Dis 45:330–339

39. Ignjatovic J, Sapats S (2002) Confrmation of the existence of two distinct genetic groups of infectious bursal disease virus in Australia. Aust Vet J 80:689–694

40. Proftt JM, Bastin DA, Lehrbach PR (1999) Sequence analysis of Australian infectious bursal disease viruses. Aust Vet J 77:186–188

41. Brown MD, Green P, Skinner MA (1994) VP2 sequences of recent European ‘very virulent’ isolates of infectious bursal disease virus are closely related to each other but are distinct from those of ‘classical’ strains. J Gen Virol 75:675–680

42. Parede L, Sapats SI, Gould G, Rudd MF, Lowther S, Ignjatovic J (2003) Characterization of infectious bursal disease virus isolates from Indonesia indicates the existence of very virulent strains with unique genetic changes. Avian Pathol 32:511–518

43. Fernandes MJ, Simoni IC, Vogel MG, Harakava R, Rivas EB, Oliveira MB, Kanashiro AM, Tessari EN, Gama NM, Arns CW (2009) Molecular characterization of Brazilian infectious bursal disease virus isolated from 1997 to 2005. Avian Dis 53:449–454

44. Heine HG, Haritou M, Failla P, Fahey K, Azad AA (1991) Sequence analysis and expression of the host-protective immunogen VP2 of a variant strain of infectious bursal disease virus which can circumvent vaccination with standard type I strains. J Gen Virol 72:1835–1843

45. Jackwood DJ, Sommer-Wagner SE (2007) Genetic characteristics of infectious bursal disease viruses from four continents. Virology 365:369–375

46. Kasanga CJ, Yamaguchi T, Wambura PN, Maeda-Machang’u AD, Ohya K, Fukushi H (2007) Molecular characterization of infectious bursal disease virus (IBDV): diversity of very virulent IBDV in Tanzania. Arch Virol 152:783–790

47. Adamu J, Owoade AA, Abdu PA, Kazeem HM, Fatihu MY (2013) Characterization of feld and vaccine infectious bursal disease viruses from Nigeria revealing possible virulence and regional markers in the VP2 minor hydrophilic peaks. Avian Pathol 42:420–433

48. Nwagbo IO, Shittu I, Nwosuh CI, Ezeifeka GO, Odibo FJ, Michel LO, Jackwood DJ (2016) Molecular characterization of feld infectious bursal disease virus isolates from Nigeria. Vet World 9:1420–1428

49. Negash T, Gelaye E, Petersen H, Grummer B, Rautenschlein S (2012) Molecular evidence of very virulent infectious bursal disease viruses in chickens in Ethiopia. Avian Dis 56:605–610

50. Hoque MM, Omar AR, Chong LK, Hair-Bejo M, Aini I (2001) Pathogenicity of SspI-positive infectious bursal disease virus and molecular characterization of the VP2 hypervariable region. Avian Pathol 30:369–380

51. Islam MR, Zierenberg K, Muller H (2001) The genome segment B encoding the RNA-dependent RNA polymerase protein VP1 of very virulent infectious bursal disease virus (IBDV) is phylogenetically distinct from that of all other IBDV strains. Arch Virol 146:2481–2492

52. Alfonso-Morales A, Rios L, Martinez-Perez O, Dolz R, Valle R, Perera CL, Bertran K, Frias MT, Ganges L, Diaz de Arce H, Majo N, Nunez JI, Perez LJ (2015) Evaluation of a phylogenetic marker based on genomic segment B of infectious bursal disease virus: facilitating a feasible incorporation of this segment to the molecular epidemiology studies for this viral agent. PLoS One 10:e0125853

53. Gao L, Li K, Qi X, Gao H, Gao Y, Qin L, Wang Y, Shen N, Kong X, Wang X (2014) Triplet amino acids located at positions 145/146/147 of the RNA polymerase of very virulent infectious bursal disease virus contribute to viral virulence. J Gen Virol 95:888–897

54. Jackwood DJ, Crossley BM, Stoute ST, Sommer-Wagner SE, Woolcock PR, Charlton BR (2012) Diversity of genome segment B from infectious bursal disease viruses in the United States. Avian Dis 56:165–172

55. Owoade AA, Mulders MN, Kohnen J, Ammerlaan W, Muller CP (2004) High sequence diversity in infectious bursal disease virus serotype 1 in poultry and turkey suggests West-African origin of very virulent strains. Arch Virol 149:653–672

56. Jackwood DJ (2013) Multivalent virus-like-particle vaccine protects against classic and variant infectious bursal disease viruses. Avian Dis 57:41–50
