Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing

Introduction

Footpad dermatitis (FPD) is a type of skin inflammation that causes necrotic lesions on the plantar surface of footpads in broilers and turkeys (Shepherd and Fairchild, 2010). Chicken feet or paws are considered a culinary delicacy in many cultures and have become the third most important economic part of the chicken (chicken breast and wings are the first and second, respectively), with chicken paws accounting for approximately $280 million a year (US Poultry and Egg Export Council, 2009). In addition to causing downgrade of paw quality and economic loss, the occurrence of footpad lesions is now used as an audit criterion in welfare assessments of poultry production systems in Europe and U.S. (Martland, 1985; Mayne, 2005). Footpad lesions are also a source of microorganisms that can enter the blood streamand cause systemic infection of broilers and turkeys, so they are also a food safety issue (Martland, 1985; Campo et al., 2005; Manangi et al., 2012). FPD is characterized by inflammation and necrotic lesions, from superficial to deep, on the plantar surface of footpads and toes (Mayne, 2005). FPD is a multifactorial symptom that can be caused by many factors, such as diet, nutritional deficiencies, wet litter, litter material types, genetic strain, sex, bird weight, stock density, season, and management (Harms et al., 1977; Martland, 1985; Nagaraj et al., 2007). Among those factors, wet litter has been reported to be the most dominant predisposing factor to cause FPD in poultry (Martland, 1984; Wang et al., 1998; Mayne et al., 2007). Replacement of wet litter with dry litter recovered the footpad lesions in about 2 weeks (Nagaraj et al., 2007; Taira et al., 2014). However, in commercial poultry, sometimes it is not practical or economically likely to frequently replace litter material; therefore, alternative practices should be considered.

Trace minerals such as Zn, Cu, and Mn are known to play a role in maintaining the structural integrity of different tissues, such as skin (Iwata et al., 1999; Marincola, 2003; Berger et al., 2007; Lansdown et al., 2007; Manangi et al., 2012; Vieira et al., 2013). Feed additives, such as enzymes, that improve digestion and help to maintain a stable intestinal microbiota and heathy gut wall barrier could improve fecal consistency and litter quality, therefore reducing footpad lesions (Van Der Aa and Additives, 2008). Nevertheless, there are no current tools or biomarkers that can be used to quantitatively measure the development and wound healing of FPD. Although the sequence of events leading to wound repair has been described at the cellular and, to a limited extent, at the protein level, this complex process is not completely interpreted. Several studies in mammal models have shown that genome transcriptional analysis tools promise to further understand the progression of events that take place during wound healing (Martin, 1997; Marincola, 2003; Gill and Parks, 2008; Kaczorowski et al., 2008). The primary goal of this study was to develop a model to induce high incidence of moderate footpad lesions and to identify biomarkers for footpad lesion development and wound healing, which could help to provide strategies to prevent and intervene FPD and promote wound healing in commercial poultry.

Materials and methods

Animals and Diets

A total of 264 hatchling Ross 308 male broiler chickens were randomly assigned to 3 groups, housed in battery cages with 11 chicks per cage, in environmentally controlled rooms. Cages measure about 61 × 71 cm and provide a floor area per bird of about 394 and 619 cm2 at the start and end of the study, respectively. Temperature was maintained at 34?C for the first 5 d and then gradually reduced according to normal management practices, until a temperature of 23?C was achieved. Hours of light (L) and dark (D) were provided as follows: d 1–3, 23L:1D; d 4–12, 18L:6 D; d 13–30, 16L: 8D. Birds were fed crumbled starter diets from d 0 to 12, switched to pelleted grower diet from d 12 to 26, and pelleted finisher diet from d 26 to 30 (Table 1). Birds had free access to feed and water at all times.

Experimental diets were formulated to approximate nutritional requirements of broiler chickens (National Research Council, 1994). All research procedures were reviewed and approved by a licensed veterinarian. All studies performed by Novus International, Inc. are in accordance to the standards of theGuide for the Care and Use of Agricultural Animals in Research and Teaching (FASS, 2010).

Experimental Design

To identify biomarkers for FPDdevelopment and wound healing, a battery cage trial was conducted in which an absorbent paper sheet was put on the bottom of cages to hold feces and induce FPD of broilers. Papers used have a polyethylene lining on the bottom (BenchkoteR , GE Healthcare Life Sciences, Pittsburgh, PA) to provide accumulation of excreta and moisture; papers were not changed during the study unless otherwise indicated. Chickens were assigned to 3 treatments with 8 cages per treatment and 11 birds per cage. Cages without paper sheets were used as a negative control (NEG). Cages with paper sheets during the entire growth period (d 0–30) were used as a positive control (POS) to continually induce FPD. Cages with a paper sheet during d 0–13 and without a paper sheet during d 14– 30 were used to examine the dynamic of FPD development and lesion wound healing (LWH). At 12 and 30 d, body weight, body weight gain, and feed intake were recorded in each cage to calculate feed conversion.

Lesion Score and Sample Collection

At 13, 21, 26, and 29 d-of-age, right and left chicken paws fromall birds were scored for presence and severity of FPD gross lesions by the same scorer throughout the study. Score was performed by modification of visual ranking on a scale of 1–5 (1, no lesions; 2, lesions of 2mm or less; 3, lesions of 2 to 7mm; 4, lesions larger than 7mm; 5, lesions larger than 7mm, including toe lesions) (Nagaraj et al., 2007). This scoring was accomplished by first dipping the feet in a bucket of water and removing all adhering material from the foot pad. At 14, 22, 27, and 30 d-of-age, one representative chicken from each pen with lesions most close to pen average lesion score was chosen to collect footpad skin samples for total collagen protein and gene expression analysis as describe below.

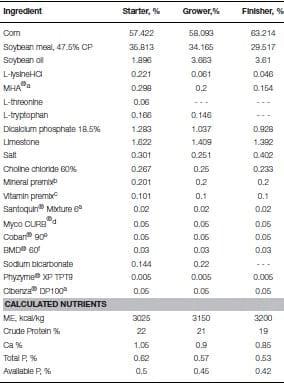

Table 1 | Diet formulation and nutrient composition.
Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 1

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 1

^a MHA, Santoquin, and Cibenza are registered marks of Novus International, Inc., St. Charles, MO.
^b Vitamin premix supplied per kilogram of diet: retinol, 9.2 mg; cholecalciferol, 100μg; dl-a-tocopherol, 90mg;menadione, 6mg; thiamine, 6.2mg; riboflavin, 26.5mg; pantothenic acid, 39.7 mg; niacin, 100 mg; pyridoxine, 11 mg; folic acid, 4 mg; biotin, 0.3 mg; cyanocobalamin, 0.1 mg.
^c Mineral premix supplied per kilogram of diet: Mn, 64 mg; Zn, 64 mg; Fe, 37 mg; Cu, 16 mg; I, 0.7 mg; Se, 0.3 mg.
^d Myco CURB is a registered mark of Kemin Industries, Inc., Des Moines, IA.
^e Coban is a registered mark of Elanco Animal Health, Indianapolis, IN.
^f BMD is a registered mark of Zoetis, Inc., Florham Park, NJ.
^g Phyzyme is a registered mark of Danisco Animal Nutrition, Marlborough, UK.

Total Collagen Analysis

One piece of the left footpad of each bird per pen was collected and flash frozen on dry ice for collagen analysis. Hydroxyproline (Hyp) plays a key role for collagen stability and is present in only a few proteins, such as collagen and elastin. Therefore, Hyp has been used for many years as a marker to determine the amount of collagen present in a tissue. Footpad skin Hyp content was analyzed to estimate collagen content (Ignat’eva et al., 2007) with some modifications. For the assay, about 100mg of tissue was homogenized in 6ml of 6N HCl in a glass tube using a Cole Parmer Lab Gen 700 (Cole-ParmerNorth America, VernonHills, IL) for about 30 s, and hydrolyzed at 110?C for 24 h after adding an additional 6ml of HCl. One milliliter of hydrolyzed sample was neutralized with 2ml of 3N NaOH and diluted 2× with distilled H2O. Serial dilutions of 0.1mg/ml trans-4-hydroxy-Lproline were used as standard to generate standard curve. A 0.25- ml aliquot of 0.01M CuSO4, 0.25ml 2.5 N of NaOH, and 0.25ml of 6% H2O2 were added in succession into glass tubes with 0.5ml of diluted samples or standards. After vortex for 1min, tubes were incubated in water bath at 80?C for 5min with frequent shaking. After cooling tubes on ice, 1ml of 3N H2SO4 and 0.5ml of 4-dimethyl-amino-benzaldehyde were added in succession into glass tubes followed by incubation in water bath at 70?C for 16min with slight shaking. Supernatants was transferred into cuvettes and read at 560 nm. Hyp content per gram of tissue was determined according to a standard curve. Total collagen content was calculated by multiplication of the Hyp content by 7.5 (Bonifer and Froning, 1996; Ignat’eva et al., 2007).

Quantitative Reverse-Transcription Polymerase Chain Reaction

One piece of each of the left footpad skin samples (stratum corneum, epidermis, dermis, and a very thin layer of subcutaneous tissue) was stored in RNAlaterR (Life Technologies, Grand Island, NY) at 4?C for 24 h and then at −20?C until total RNA isolation. Total RNA was isolated from footpad skin samples using MagMAXTM-96 for Microarrays Kit (Life Technologies, Grand Island, NY) after homogenization in TrizolR (Life Technologies, Grand Island, NY). One microgram of total RNA, 11-mer oligo mix from Fluoresentric, and M-MLV Reverse Transcriptase (Life Technologies, Grand Island, NY) were used to synthesize cDNA according to the manufacturers’ instructions. Primers used for qRT-PCR are described in Table 2.

Levels of mRNA were measured by quantitative PCR using Applied BiosystemsR SYBRR Green PCR Master Mix (Life Technologies, Grand Island, NY) and a 7500 Fast Real-Time PCR System. Results were expressed as the level relative to the corresponding housekeeping gene actin. All primers were verified for the efficiency (100 } 10%) and linearity (r2 ≥ 0.99) of amplification.

Statistical Analyses

All data were tested for normality and subjected to analysis of variance as a completely randomized design using the procmixed procedure of SAS 9.4 (SAS Institute Inc., 2002, Cary, NC). Each cage was used as the experimental unit for the analysis. Growth performance including BW, BWG, and FCR used the average data per cage. qRT-PCR used individual measurement from one representative bird per cage. Data are expressed as mean } standard error (SE). Statistical differences among means were determined by using Duncan’s multiple-range test.

Results

Growth performance parameters among NEG, POS, and LWH broiler chickens at 12 and 30 d-of-age are summarized in Table 3. At 12 d-of-age, no differences were determined among experimental groups (P > 0.30); however, at the end of the trial at d 30, a reduction (P < 0.03) in body weight, body weight gain, and feed conversion was determined in POS, compared with NEG and LWH groups, suggesting that direct contact of chicken feet with excreta compromised growth performance. In the present study, no differences (P > 0.14) in cumulative mortality were determined among groups at 12 or 30 d (Table 3).

Figure 1 shows the footpad lesion score in NEG, POS, and LWH broiler chickens at 13, 21, 26, and 29 d-of-age. Covering paper sheet in POS and LWH induced 99% incidence of G3 footpad lesions on d 13, compared with NEG (i.e., cages without paper sheet), which remains without lesions throughout the study. After removing the paper sheet at d 13 in cages of the LWH group, footpad lesions showed progressive recovery, and by d 21 this segregation was different (P < 0.0001) from birds in POS group (Figure 1).

Figure 2 shows results of total collagen among NEG, POS, and LWH broiler chickens at 14, 22, 27, and 30 d-of-age. Chickens in the NEG group without footpad lesions had the highest concentration of total collagen at each time point of evaluation.

However, when birds in both groups (POS and LWH) with the paper sheet in cages developed footpad lesions, there was a reduction (P < 0.0001) of total collagen protein at d 14. Nevertheless, it was remarkable to visually quantify that with gradual healing of footpad lesions (Figure 1), the total collagen protein levels in LWH chickens gradually increased and were higher (P < 0.0001) than POS at d 27, and 30. By d 30, the concentration of total collagen in LWH was almost the same (P = 0.87) as that in healthy footpads in NEG group (Figure 2), indicating a full recovery of FPD.

Out of 22 genes evaluated by qRT-PCR, 8 genes showed differential expression (P < 0.004) among treatments and the age of birds, 2 genes (TNC and ITGB1) showed marked differences (P < 0.03) among treatments within the same age of birds. The mRNA levels of tenascin X (TNX), type I alpha 1 collagen (COL1A1), type III alpha 1 collagen (COL3A1), tissue inhibitor of metalloproteinase 3 (TIMP3), integrin a2 (ITGA2), and integrin b1 (ITGB1) were reduced (P < 0.03) in POS group at almost all points of evaluation when compared with NEG (Figures 3, 4). Both groups with a paper sheet (POS and LWH) had similar levels of these biomarkers at d 14; however, after removing the paper sheets in the LWH group, their levels were gradually or rapidly increased to levels close to NEG group, indicating a recovery of FPD (Figures 3, 4). On the other hand, the mRNA levels of tenascin C (TNC, P < 0.0001), and tumor necrosis factor alpha (TNFa, P = 0.001) were increased in footpads with lesions in both POS and LWHgroups, compared to healthy footpads in NEG on d 14 (Figure 5). After removing the paper sheet in LWH treatment, with recovery of footpad lesions (Figure 1), mRNA levels of TNC, TNFa, and TLR4 were reduced when compared with POS chickens at d 22 (P < 0.06), 27 (P < 0.02), and 30 (P < 0.002) (Figure 5).With development of more severe footpad lesions in POS treatment (Figure 1), the mRNA levels of TNC, TNFa, and TLR4 continued to increase over time and were markedly higher (P < 0.06) than both NEG and LWH (Figure 5). The mRNA levels of VEGF were increased (P < 0.07) in footpads with moderate lesions (POS and LWH treatments) at d 14, and markedly increased (P < 0.006) at d 22, 27, and 30 in footpad with severe lesions of POS compared with the healthy footpads of NEG (Figure 5). After the healing of footpad lesions, VEGF mRNA levels in LWH group were reduced (P < 0.003) compared to the POS group at d 22 and 27 (Figure 5).

The mRNA levels of IL-1b and MMP2 on d 14 and d 27 were alsomeasured. IL-1bmRNA levels weremarkedly increased (P < 0.04) in footpads with moderate lesions (POS and LWH) on d 14 and remained at high levels in POS with continuous development ofmore severe lesions in POS. IL-1bmRNA levels decreased (P < 0.005) in LWH to levels comparable to those of healthy footpads (i.e., NEG) on d 27 (Table 4). The gene expression of MMP2 was not different (P > 0.44) among treatments on d 14 or d 27, but it increased (P < 0.0001) with age. Compared to healthy footpads in NEG, on d 14, ratios of MMP2 to TIMP3 and TIMP (TIMP2 + TIMP3 + TIMP4) were increased (P < 0.03) in footpads with moderate lesions (POS and LWH treatment); on d 27, ratios of MMP2 to TIMP2, TIMP3, TIMP4, and TIMP (TIMP2 + TIMP3 + TIMP4) were increased (P < 0.05) in footpads with severe lesions (POS). However, with healing of footpad lesions in LWH treatment, all ratios decreased to levels comparable (P > 0.16) to NEG treatment on d 27(Table 4).

Regression analysis using all data in three treatments was employed to determine the correlation of parameters measured in this study with footpad lesion scores. There were quadratic relationships (P < 0.03) among all genes shown in Table 5 and footpad lesion scores.

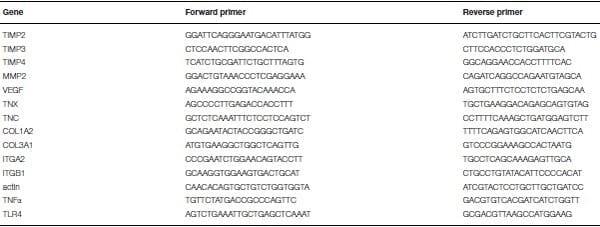

Table 2 | List of primers used for qRT-PCR.

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 2

Table 3 | Growth performance parameters among negative (NEG) and positive (POS) controls, and development and lesion wound healing (LWH) in broiler chickens at different ages.

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 3

Cages without paper were used as a NEG. Cages with papers during the entire growth period (d 0–30) were used as a POS to continually induce footpad dermatitis. Cages with paper during d 0–13 and without paper during d 14–30 were used to examine the dynamic of FPD development and wound healing (LWH). a,b Means within a row with different superscripts differ at P < 0.05. Reported SEM is the average SEM of the individual least-square means.

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 4

Figure 1 | Footpad lesion score among negative (NEG) and positive (POS) controls, and development and lesion wound healing (LWH) in broiler chickens at different ages. Means with different letters differ at P < 0.05.

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 5

Figure 2 | Total collagen protein levels in negative (NEG) and positive (POS) controls, and in lesion wound healing (LWH) broiler chickens at different ages. Means with different letters differ at P < 0.05.

Discussion

FPD is characterized by inflammation and necrotic lesions, ranging from superficial to deep, on the plantar surface of footpads and toes. Deep ulcers may lead to abscesses and thickening of underlying tissues and structures (Martland, 1985; Shepherd and Fairchild, 2010). In the present study, at d 30, POS chickens had the worst performance compared to NEG and LWH (Table 3 and Figure 1). These results indicate that when birds were directly in contact with their excreta (paper sheet in the cage held the excreta), they could have been enterically challenged, behaviorally affected, or a combination of factors that led to poor growth performance. On d 13, 75– 100% of birds developed footpad lesions in cages that had a paper sheet, indicating that direct contact with excreta and moisture accumulation was very effective to irritate footpad skin and induce footpad lesions in such a short period of time (13 d). Once the paper sheet was removed on d 14 in the LWH group, and there was no direct contact of footpad with excreta, footpad lesions started to heal with significant reduction of footpad lesion scores on d 21 and 26 when compared with POS group. By d 29 in LWH treatment, footpad lesions were almost completely healed with lesion score of 1.2, and performance parameters were recovered and similar to the NEG chickens. These results suggest that the paper insult used in this study induced footpad lesions and compromised growth performance in broilers.

Collagen is the main and most abundant structural protein in the extracellular space in various connective tissues, such as tendons, ligaments and skin in animals, making up to 35% of the whole-body protein content (Opsahl et al., 1982; Martin, 1997; Marincola, 2003). Birds grown in cages covered with a paper sheet had lower total collagen levels on d 14 than birds grown in cages without paper sheets. Once paper sheets were removed on d 14, a significant decrease of footpad lesion score (healing of lesions), and a gradual increase of collagen levels was observed on d 22 and 27, and by d 30 the total collagen levels increased to the same levels as birds grown without a paper sheet (NEG), suggesting that total collagen levels were associated with the footpad wound-healing process.

During the initial response to a cutaneous wound, powerful transcriptional activation of pro-inflammatory stimuli alert the host defense. This complex process requires the collective efforts of different cell lineages during phases of proliferation,migration, matrix synthesis, and contraction, as well as the growth factor and matrix signals present at a wound site (Chebassier et al., 2004).

Subsequently, and in the absence of infection, inflammation subsides and is then replaced by angiogenesis and remodeling. Some of these cells, including immune cells, endothelial cells, keratinocytes, and fibroblasts, endure discernible changes in gene expression and phenotype (Xu et al., 2013). In mammalian species, genome-wide transcriptional analysis tools have helped to define this multifaceted progression of events (Martin, 1997; Marincola, 2003). In the present study, we focused on relative mRNA levels of 22 genes potentially involved in wound healing in mammalian species and found that 10 were associated with footpad lesion development and wound healing.

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 6

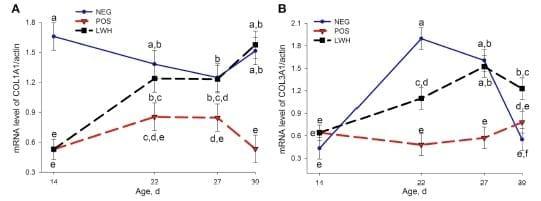

Figure 3 | Gene expression of COL1A1 (A) and COL3A1 (B) in negative (NEG) and positive (POS) controls, and in development and lesion wound healing (LWH) broiler chickens at different ages. Means with different letters differ at P < 0.05.

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 7

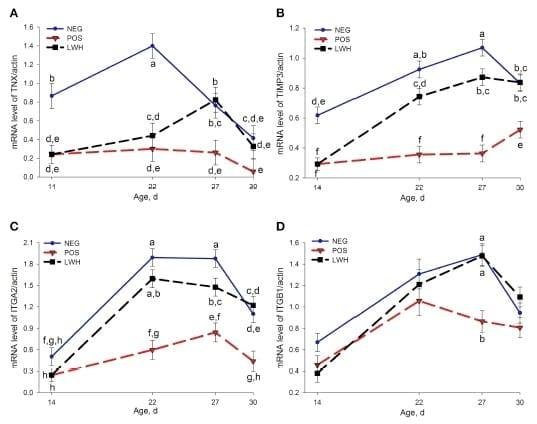

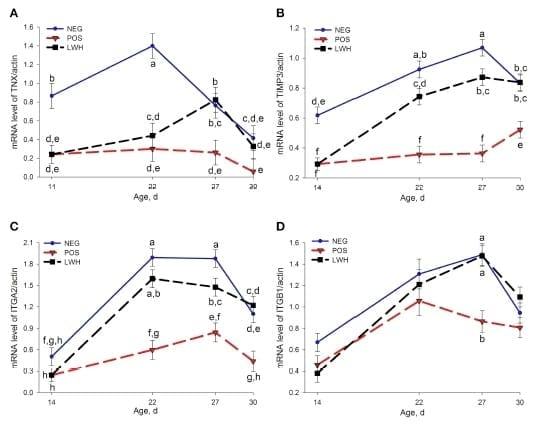

Figure 4 | Gene expression of TNX (A), TIMP3 (B), ITGA2 (C) and ITGB1 (D) in negative (NEG) and positive (POS) controls, and in development and lesion wound healing (LWH) broiler chickens at different ages. There was no interaction between treatments and age for ITGB1 (D), treatment differences in birds at same age were shown in (D). Means with different letters differ at P < 0.05.

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 8

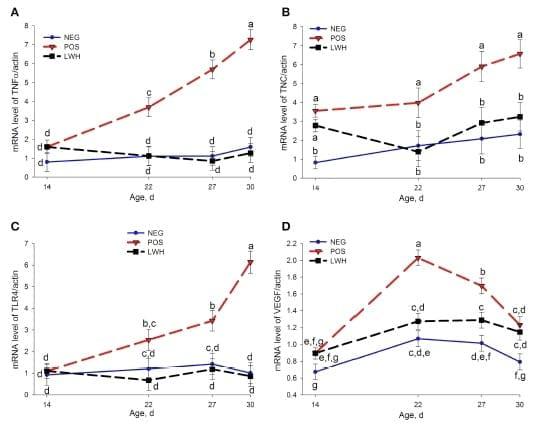

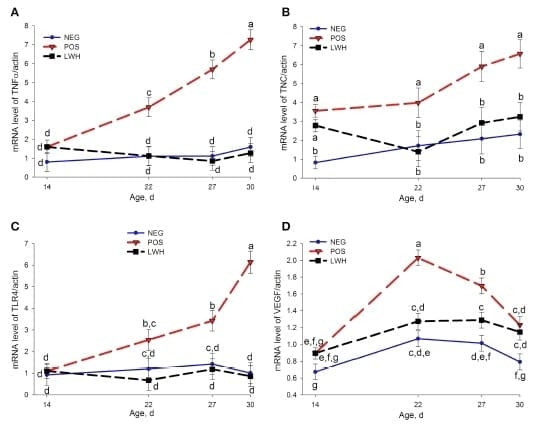

Figure 5 | Gene expression of TNFa (A), TNC (B), TLR4 (C), and VEGF (D) in negative (NEG) and positive (POS) controls, and in development and lesion wound healing (LWH) broiler chickens at different ages. There was no interaction between treatments and age for TNC (B), treatment differences in birds at same age were shown in (B). Means with different letters differ at P < 0.05.

Consistent with the loss of total collagen protein in lesioned footpads and the recovery of total collagen protein in healing footpads, mRNA levels of COL1A1 but not COL3A1 were significantly decreased in footpads with moderate lesions on d 14, both COL1A1 and COL3A1 remained at lower levels in POS than NEG but were gradually increased in LWH on d 22 and 27 to similar levels as healthy footpads in NEG. On d 30, when footpad lesions were almost completely healed, COL1A1 mRNA levels were similar to NEG and higher than POS, but COL3A1 mRNA levels were higher than both NEG and POS, indicating that COL3A1 is not required in healthy footpads in later stages of footpad maturation and development, but highly demanded during the wound-healing process.

Integrins are heterodimeric glycoproteins that contain noncovalently associated a and b subunit. They are expressed in basal layer keratinocytes in vivo and responsible for intercellular or cell-substrate adhesion and sensing mechanical stress (Tuckwell et al., 1995; Tenaud et al., 1999; Boo and Dagnino, 2013).

Integrin a2 binds types I, II, III, and XI collagen (Leask, 2013). Integrin b1 is an essential mechanosensory receptor in dermal fibroblasts, necessary for fibroblasts to maximally sense mechanical tension, modulate collagen deposition, and promote connective tissue homeostasis (Leask, 2013). Integrin a2 subunit forms a heterodimer with integrin b1 subunit and acts as a functional cellular receptor for type I collagen fibrils to facilitate both cell spreading on type I collagen matrix and contraction of type I collagen gel (Tuckwell et al., 1995; Jokinen et al., 2004). In the present study, the expression of integrin a2 and b1 was lower in footpads with moderate lesions in POS and LWH than NEG on d 14, and remained lower than NEG in footpads with severe lesions in POS on d 22, 27, and 30. After removing the paper sheet, with gradual healing of footpad lesions, the expression of integrin a2 and b1 rapidly increased to, and maintained at, similar levels as healthy footpads in NEG. The decrease of integrin a2 and b1 in lesioned footpads and increase of integrin a2 and b1 in healing footpads is consistent with reduction of COL1A in lesioned footpads and increase of COL3A1 in healing footpads. It suggests the loss of collagen content and extracellular matrix (ECM) adhesion during lesion development, restoration of collagen deposition, and cell-ECM adhesion during wound healing process. These findings further underlined the important role of integrin a2b1 in collagen deposition and organization.

Tenascins are ECM glycoproteins that are abundant in the ECM of various organs, such as mammary gland and hair follicles, of developing vertebrate embryos, absent or expressed at very low levels in adult mammary gland, and reappear around healing of wounds (Mackie et al., 1988; Seifert et al., 2012).

These glycoproteins contribute to ECM structure and influence the physiology of cells in contact with the tenascin-containing environment (Chiquet-Ehrismann and Tucker, 2004). There are four members of the tenascin gene family: tenascin-C (TNC), tenascin-R, tenascin-X (TNX), and tenascin-W. TNX regulates structure and stability of elastic fibers and organizes collagen fibrils in the ECM, and is thought to function in matrix maturation during wound healing (Wu et al., 2014). Tenascin X deficiency in humans leads to a recessive form of Ehlers-Danlos Syndrome, an inherited connective tissue disorder characterized by hypermobile joints, fragile skin, and reduced dermal collagen content (Burch et al., 1997; Zweers et al., 2004; Lindor and Bristow, 2005).

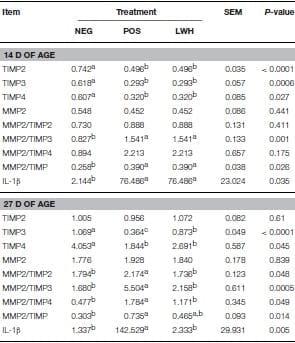

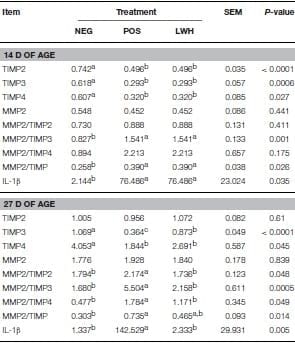

Table 4 | Gene expression of TIMP2, TIMP3, TIMP4, MMP2, IL-1b, and the ratio of MMP2 to TIMP2, TIMP3, TIMP4, and TIMPs in negative (NEG) and positive (POS) controls, and development and lesion wound healing (LWH) in broiler chickens at different ages.
Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 9

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 9

^a,b,c Means within a row with different superscripts differ at P < 0.05.

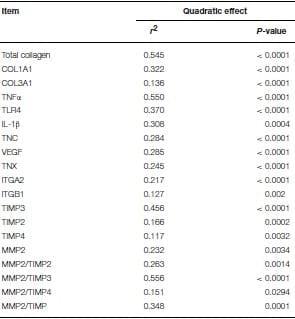

Table 5 | Correlation of total collagen protein and mRNA levels of COL1A1, COL3A1, TNFa, TLR4, IL-1b, TNC, VEGF, TNX, ITGA2, ITGB1, TIMP3, TIMP2, TIMP4, MMP2, MMP2/TIMP2, MMP2/TIMP3, MMP2/TIMP4, and MMP2/TIMPs with footpad lesion score.
Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 10

Identification of Biomarkers for Footpad Dermatitis Development and Wound Healing - Image 10

TNX gene expression was significantly reduced in both POS and LWH groups on d 14 and 22, when compared to NEG group, and remained significantly lower in POS than NEG on d 27 and 30. These results suggest that significant reduction of TNX gene expression is an indication of necrosis occurring in the connective tissue of footpad skin. The study in TNX-null mice showed that TNX is not involved in matrix deposition in the early phase of wound healing, but is required in the later phase of matrix remodeling and maturation (Egging et al., 2007). Consistent with TNX-null mice study, after removing paper sheet on d 14 in LWH, TNX gene expression in healing footpads did not increase on d 22 but significantly increased on d 27 to the similar levels as healthy footpads in NEG. These results suggest TNX expression was not needed during early healing phase (d 22), but was required during the later matrix remodeling and maturation phase. Therefore, we can conclude that reduction of TNX gene expression is an indication of footpad lesion development, and restoration of TNX gene expression is an indication of late phase FPD wound healing (Figure 3). These findings further demonstrate the important role of TNX in structural integrity of connective tissue.

TNC gene expression is regulated by mechanical stress (Chiquet-Ehrismann and Tucker, 2004). It is highly expressed in connective tissue surrounding tumors, in wounds, and in inflamed tissues where it may regulate cell morphology, growth, and migration (Chiquet-Ehrismann and Tucker, 2004). TNC gene expression was up-regulated in lesioned skin compared to non-lesioned skin in patients with atopic dermatitis (Ogawa et al., 2005). In this study, consistent with the increase of TNC expression in lesioned skin in atopic dermatitis patients, we found TNC gene expression was dramatically increased in lesioned footpads, but was rapidly decreased to similar levels as in healthy footpads of NEG once lesions started to heal on d 22, which indicates upregulation of TNC gene expression is an indicator of footpad skin lesions and the downregulation of TNC gene expression is an indicator of the early phase of wound healing.

TIMP regulates cell migration in wound healing by modulating the activity of specific metalloproteinases (MMP) (Gill and Parks, 2008). The balance between MMP and TIMP is critical for the normal wound-healing process (Martins et al., 2013). A low MMP/TIMP ratio has been used as a good predictor of successful wound healing in diabetic foot ulcers (Muller et al., 2008). In diabetic patients, the expression of MMP-9, MMP-2, and MMP-8 were increased, while TIMP-2 was decreased, which creates an unfavorable ratio of MMP/TIMP (Uemura et al., 2001; Lobmann et al., 2002). The abnormally elevated level of MMP and reduced levels of TIMP may impair cell migration, and result in sustained inflammation with net increased tissue destruction. In chronic diabetic foot lesions, local administration of protease inhibitors reduces the ratio of MMP/TIMP and improves wound healing (Jokinen et al., 2004; Fadini et al., 2005).

In the present study, TIMP3 gene expression was significantly decreased in POS on d 14 and remained low on d 22 and 27, when compared to NEG footpads. Interestingly, after removing the paper sheet on d 14 in LWH treatment, and as lesions started to heal, TIMP3 gene expression gradually increased, returning to the same levels as NEG chickens in healed footpads on d 30 (Figure 3). These results suggest that in footpad with lesions, the amount of TIMP3 was not sufficient to inhibit MMPs-mediated matrix degradation, and the degradation of ECM protein leads to necrotic skin lesions on footpads, during the wound healing period (i.e., after removing paper sheet) TIMP3 expression was increased to inhibit matrix protein degradation, therefore promoting the wound-healing process. In addition, the ratio of MMP2 to TIMP2, TIMP3, TIMP4, and TIMP (TIMP2 +TIMP3 +TIMP4) were numerically or significantly increased in footpads with moderate lesions (d 14) and footpads with severe lesions (d 30) compared to healthy footpads in NEG, but returned to normal levels as healthy footpads in healing footpads in LWH. These results suggest that TIMP3 and the ratio of MMP2 to TIMP could be used as a biomarker of footpad lesion development and wound healing.

Wound healing, whether initiated by trauma, microbes, or foreign materials, proceeds via an overlapping pattern of events including coagulation, inflammation, epithelialization, formation of granulation tissue, and matrix and tissue remodeling, that is mediated in large part by interacting molecular signals, primarily cytokines (Xu et al., 2013). Clearance of debris, foreign agents, and/or infectious organisms promotes resolution of inflammation, apoptosis, and the ensuing repair response that encompasses overlapping events involved in granulation tissue, angiogenesis, and re-epithelialization (Rodero and Khosrotehrani, 2010). Within hours, epithelial cells begin to proliferate, migrate, and cover the exposed area to restore functional integrity of the tissue (Xu et al., 2013). TLR4 plays a critical role in pathogen recognition, activation of innate immunity (Lynn et al., 2003), early inflammatory response after traumatic injury (Ozinsky et al., 2000; Huebener and Schwabe, 2013; Keestra et al., 2013), tissue repair, and regeneration (Suga et al., 2014).During wound healing, the activation of TLR by their ligands leads to initiation of signaling cascades, which results in expression of proinflammatory cytokines, chemokines, adhesion molecules, antimicrobial peptides, and proteolytic enzymes that all take part in the complex wound-healing process, especially during the inflammatory stage (Eslani et al., 2014).

Proinflammatory cytokines, such as IL-1b, IL-6, IL12, and TNFa, are often elevated shortly after wounding in both human wounds and animal wound models (Marincola, 2003). Some proinflammatory cytokines and chemokines are essential for normal skin wound-healing processes (Martin, 1997). It is critical that TLR4 responses are tightly regulated to prevent excessive inflammatory responses that could cause tissue damage (Eslani et al., 2014). During normal wound healing, the highest levels of TNFa arise anywhere from 12 to 24 h after wounding (Iizuka and Konno, 2011). After completion of the proliferative phase of wound healing, TNFa returns to basal levels (Xu et al., 2013). It has been reported that the injury to the corneal epithelium induced the expression of TLR4, which stimulated the production of inflammatory cytokines, such as TNFa and IL-6, in the injured corneal epithelium (Kostarnoy et al., 2013).

In the present study, both TLR4 and TNFa gene expression were continuously increased during lesion development from d 14 to d 30, but remained at similar levels in healing footpads of LWH as in healthy footpads of NEG. IL-1b mRNA levels were also increased in footpads with lesions on d 14 and reduced in healing footpads on d 27. The five-fold increase of TLR4 in footpads with most severe lesions (d 30) indicates the activation of immune response to fight against pathogens that attack footpads, which leads to inflammatory response and production of inflammatory cytokines, such as TNFa and IL-1b.

The prolonged increase of TNFa and IL-1b in lesioned footpads in POS treatment suggests that inflammation was excessively and intensely occurring on footpads with lesions, which impaired wound healing, leading to tissue damage. This is consistent with the impaired wound healing of diabetic foot ulcers by diabetesenhanced elevated or prolonged expression of TNFa in diabetic patients (Xu et al., 2013). In contrast, the decrease of TNFa, IL-1b, and TLR4 in LWH treatment suggests inflammation and immune activation was diminished upon healing of footpad lesions.

Angiogenesis, the growth of new blood vessels from preexisting vessels, is an important aspect of cell-proliferation phase during wound healing process. This process leads to a temporary increase in the number of blood vessels at the site of injury, which provides oxygen and nutrients to support the growth and function of cells involved in wound healing (Jokinen et al., 2004). VEGF is one of the most potent proangiogenic growth factors in skin that significantly impacts wound healing.

Appropriate levels of VEGF are needed for efficient wound repair (Frank et al., 1995; Johnson and Wilgus, 2014). The expression of VEGF was numerically increased in mild-lesioned footpads in both POS and LWH treatment on d 14, suggesting the demand of angiogenesis in response to skin damage on footpads. With development of more severe footpad lesions, the gene expression of VEGF was continuously increased and much greater than healthy footpads (NEG), indicating the increased demand of angiogenesis to repair the wound.However, in healing footpads (LWH), VEGF expression was lower than in severe lesioned footpads (POS), indicating less demand of angiogenesis in healing footpads. These results suggest the gene expression of VEGF indicates the need of angiogenesis, which could be used as a valid biomarker for lesion development and wound-healing process in footpads of broilers.

In summary, direct exposure of chicken feet to excreta by including paper sheets in battery cages induced very high incidence of moderate footpad lesions in 13 d. Removal of paper sheets allowed footpad lesions to almost completely heal in 16 d. Regression analyses indicated the total amount of collagen protein and mRNA levels of TNX, TNC, COL1A1 COL3A1, TIMP3, ITGA2, ITGB1, TNFa, TLR4, VEGF, and the ratio of MMP2 to TIMP were all quadratically associated with footpad lesion scores. It indicates that these parameters are interrelated with dynamic changes of footpad lesion scores.

Therefore, they may be used as potential biomarkers for footpad lesion development and wound healing process. The evaluation of FPD has been focused on subjective scoring of lesions present on the plantar surface of footpad. The identification of these biomarkers for footpad lesion development and wound healing may be used to better understand the pathology and etiology of FPD, and find strategies to intervene or prevent the development of footpad lesions and promote the wound-healing process.

Author contributions

JC and JE designed experiments and wrotemanuscript; GT wrote manuscript.

Funding

This study was funded by Novus International Inc.

References

1. Berger, M. M., Binnert, C., Chiolero, R. L., Taylor, W., Raffoul, W., Cayeux, M.-C., et al. (2007). Trace element supplementation after major burns increases burned skin trace element concentrations and modulates local protein metabolism but not whole-body substrate metabolism. Am. J. Clin. Nutr. 85, 1301–1306.

2. Bonifer, L., and Froning, G. (1996). Chicken skin composition as affected by aqueous washing. J. Food Sci. 61, 895–898. doi: 10.1111/j.1365- 2621.1996.tb10897.x

3. Boo, S., and Dagnino, L. (2013). Integrins as modulators of transforming growth factor beta signaling in dermal fibroblasts during skin regeneration after injury. Adv.Wound Care 2, 238–246. doi: 10.1089/wound.2012.0394

4. Burch,G. H.,Gong, Y., Liu,W.,Dettman, R.W., Curry, C. J., Smith, L., et al. (1997). Tenascin-X deficiency is associated with Ehlers-Danlos syndrome. Nat. Genet. 17, 104–108. doi: 10.1038/ng0997-104

5. Campo, J. L., Gil, M. G., Dávila, S. G., and Muñoz, I. (2005). Influence of perches and footpad dermatitis on tonic immobility and heterophil to lymphocyte ratio of chickens. Poult. Sci. 84, 1004–1009. doi: 10.1093/ps/84.7.1004

6. Chebassier, N., El Houssein, O., Viegas, I., and Dréno, B. (2004). In vitro induction of matrix metalloproteinase-2 and matrix metalloproteinase-9 expression in keratinocytes by boron and manganese. Exp. Dermatol. 13, 484–490. doi: 10.1111/j.0906-6705.2004.00197.x

7. Chiquet-Ehrismann, R., and Tucker, R. P. (2004). Connective tissues: signalling by tenascins. Int. J. Biochem. Cell Biol. 36, 1085–1089. doi: 10.1016/j.biocel.2004.01.007

8. Egging, D., van Vlijmen-Willems, I., van Tongeren, T., Schalkwijk, J., and Peeters, A. (2007).Wound healing in tenascin-X deficient mice suggests that tenascin-X is involved in matrix maturation rather than matrix deposition. Connect. Tissue Res. 48, 93–98. doi: 10.1080/03008200601166160

9. Eslani, M., Movahedan, A., Afsharkhamseh, N., Sroussi, H., and Djalilian, A. R. (2014). The role of toll-like receptor 4 in corneal epithelial wound healing. Invest. Ophthalmol. Vis. Sci. 55, 6108. doi: 10.1167/iovs.14-14736

10. Fadini,G. P.,Miorin,M., Facco,M., Bonamico, S., Baesso, I.,Grego, F., et al. (2005). Circulating endothelial progenitor cells are reduced in peripheral vascular complications of type 2 diabetes mellitus. J. Am. Coll. Cardiol. 45, 1449–1457. doi: 10.1016/j.jacc.2004.11.067

11. FASS (2010). Guide for the Care and Use of Agricultural Animals in Research and Teaching, 3rd Edn. Champaign, IL: Federation of Animal Science Societies.

12. Frank, S., Hübner, G., Breier, G., Longaker, M. T., Greenhalgh, D. G., andWerner, S. (1995). Regulation of vascular endothelial growth factor expression in cultured keratinocytes. Implications for normal and impaired wound healing. J. Biol. Chem. 270, 12607–12613. doi: 10.1074/jbc.270.21.12607

13. Gill, S. E., and Parks, W. C. (2008). Metalloproteinases and their inhibitors: regulators of wound healing. Int. J. Biochem. Cell Biol. 40, 1334–1347. doi: 10.1016/j.biocel.2007.10.024

14. Harms, R., Damron, B. L., and Simpson, C. F. (1977). Effect of wet litter and supplemental biotin and/or whey on the production of foot pad dermatitis in broilers. Poult. Sci. 56, 291–296. doi: 10.3382/ps.0560291

15. Huebener, P., and Schwabe, R. F. (2013). Regulation of wound healing and organ fibrosis by toll-like receptors. Biochim. Biophys. Acta 1832, 1005–1017. doi: 10.1016/j.bbadis.2012.11.017

16. Ignat’eva, N. Y., Danilov, N. A., Averkiev, S. V., Obrezkova, M. V., Lunin, V. V., and Sobol, E. N. (2007). Determination of hydroxyproline in tissues and the evaluation of the collagen content of the tissues. J. Anal. Chem. 62, 51–57. doi: 10.1134/S106193480701011X

17. Iizuka, M., and Konno, S. (2011). Wound healing of intestinal epithelial cells. World J. Gastroenterol. 17:2161. doi: 10.3748/wjg.v17.i17.2161

18. Iwata, M., Takebayashi, T., Ohta, H., Alcalde, R. E., Itano, Y., and Matsumura, T. (1999). Zinc accumulation and metallothionein gene expression in the proliferating epidermis during wound healing in mouse skin. Histochem. Cell Biol. 112, 283–290. doi: 10.1007/s004180050449

19. Johnson, K. E., and Wilgus, T. A. (2014). Vascular endothelial growth factor and angiogenesis in the regulation of cutaneous wound repair. Adv.Wound Care 3, 647–661. doi: 10.1089/wound.2013.0517

20. Jokinen, J., Dadu, E., Nykvist, P., Käpylä, J., White, D. J., Ivaska, J., et al. (2004). Integrin-mediated cell adhesion to type I collagen fibrils. J. Biol. Chem. 279, 31956–31963. doi: 10.1074/jbc.M401409200

21. Kaczorowski, D. J., Mollen, K. P., Edmonds, R., and Billiar, T. R. (2008). Early events in the recognition of danger signals after tissue injury. J. Leukoc. Biol. 83, 546–552. doi: 10.1189/jlb.0607374

22. Keestra, A. M., de Zoete, M. R., Bouwman, L. I., Vaezirad, M. M., and van Putten, J. P. M. (2013). Unique features of chicken Toll-like receptors. Dev. Comp. Immunol. 41, 316–323. doi: 10.1016/j.dci.2013.04.009

23. Kostarnoy, A. V., Gancheva, P. G., Logunov, D. Y., Verkhovskaya, L. V., Bobrov, M. A., Scheblyakov, D. V., et al. (2013). Topical bacterial lipopolysaccharide application affects inflammatory response and promotes wound healing. J. Interferon Cytokine Res. 33, 514–522. doi: 10.1089/jir.2012.0108

24. Lansdown, A. B., Mirastschijski, U., Stubbs, N., Scanlon, E., and Ågren, M. S. (2007). Zinc in wound healing: theoretical, experimental, and clinical aspects. Wound Repair Regen. 15, 2–16. doi: 10.1111/j.1524-475X.2006.00179.x

25. Leask, A. (2013). Integrin beta 1: a mechanosignaling sensor essential for connective tissue deposition by fibroblasts. Adv. Wound Care 2, 160–166. doi: 10.1089/wound.2012.0365

26. Lindor, N. M., and Bristow, J. (2005). Tenascin-X deficiency in autosomal recessive Ehlers-Danlos syndrome. Am. J. Med. Genet. A 135, 75–80. doi: 10.1002/ajmg.a.30671

27. Lobmann, R., Ambrosch, A., Schultz, G.,Waldmann, K., Schiweck, S., and Lehnert, H. (2002). Expression of matrix-metalloproteinases and their inhibitors in the wounds of diabetic and non-diabetic patients. Diabetologia 45, 1011–1016. doi: 10.1007/s00125-002-0868-8

28. Lynn, D. J., Lloyd, A. T., and O’Farrelly, C. (2003). In silico identification of components of the Toll-like receptor (TLR) signaling pathway in clustered chicken expressed sequence tags (ESTs). Vet. Immunol. Immunopathol. 93, 177–184. doi: 10.1016/S0165-2427(03)00058-8

29. Mackie, E. J., Halfter,W., and Liverani, D. (1988). Induction of tenascin in healing wounds. J. Cell Biol. 107, 2757–2767. doi: 10.1083/jcb.107.6.2757

30. Manangi, M., Vazquez-Anon, M., Richards, J., Carter, S., Buresh, R., and Christensen, K. (2012). Impact of feeding lower levels of chelated trace minerals versus industry levels of inorganic trace minerals on broiler performance, yield, footpad health, and litter mineral concentration. J. Appl. Poult. Res. 21, 881–890. doi: 10.3382/japr.2012-00531

31. Marincola, F. M. (2003). Translational medicine: a two-way road. J. Transl. Med. 1:1. doi: 10.1186/1479-5876-1-1

32. Martin, P. (1997). Wound healing-aiming for perfect skin regeneration. Science 276, 75–81. doi: 10.1126/science.276.5309.75

33. Martins, V. L., Caley,M., and O’Toole, E. A. (2013).Matrix metalloproteinases and epidermal wound repair. Cell Tissue Res. 351, 255–268. doi: 10.1007/s00441- 012-1410-z

34. Martland, M. (1984). Wet litter as a cause of plantar pododermatitis, leading to foot ulceration and lameness in fattening turkeys. Avian Pathol. 13, 241–252. doi: 10.1080/03079458408418528

35. Martland, M. (1985). Ulcerative dermatitis dm broiler chickens: the effects of wet litter. Avian Pathol. 14, 353–364. doi: 10.1080/03079458508436237

36. Mayne, R. (2005). A review of the aetiology and possible causative factors of foot pad dermatitis in growing turkeys and broilers. Worlds Poult. Sci. J. 61, 256–267. doi: 10.1079/WPS200458

37. Mayne, R. K., Else, R. W., and Hocking, P. M. (2007). High litter moisture alone is sufficient to cause footpad dermatitis in growing turkeys. Br. Poult. Sci. 48, 538–545. doi: 10.1080/00071660701573045

38. Muller, M., Trocme, C., Lardy, B., Morel, F., Halimi, S., and Benhamou, P. (2008). Matrix metalloproteinases and diabetic foot ulcers: the ratio of MMP- 1 to TIMP-1 is a predictor of wound healing. Diabet. Med. 25, 419–426. doi: 10.1111/j.1464-5491.2008.02414.x

39. Nagaraj,M.,Wilson, C., Saenmahayak, B., Hess, J., and Bilgili, S. (2007). Efficacy of a litter amendment to reduce pododermatitis in broiler chickens. J. Appl. Poult. Res. 16, 255–261. doi: 10.1093/japr/16.2.255

40. National Research Council (1994). Nutrient Requirements of Poultry. 9th Edn. Washington, DC: National Academic Press.

41. Ogawa, K., Ito, M., Takeuchi, K., Nakada, A., Heishi, M., Suto, H., et al. (2005). Tenascin-C is upregulated in the skin lesions of patients with atopic dermatitis. J. Dermatol. Sci. 40, 35–41. doi: 10.1016/j.jdermsci.2005.06.001

42. Opsahl, W., Zeronian, H., Ellison, M., Lewis, D., Rucker, R. B., and Riggins, R. S. (1982). Role of copper in collagen cross-linking and its influence on selected mechanical properties of chick bone and tendon. J. Nutr. 112, 708–716.

43. Ozinsky, A., Underhill, D. M., Fontenot, J. D., Hajjar, A. M., Smith, K. D.,Wilson, C. B., et al. (2000). The repertoire for pattern recognition of pathogens by the innate immune system is defined by cooperation between toll-like receptors. Proc. Natl. Acad. Sci. U.S.A. 97, 13766–13771. doi: 10.1073/pnas.250476497

44. Rodero, M. P., and Khosrotehrani, K. (2010). Skin wound healing modulation by macrophages. Int. J. Clin. Exp. Pathol. 3, 643–653.

45. SAS Institute Inc. (2002). SAS User Guide. Version 9.1. Cary, NC: SAS Institute Inc.

46. Seifert, A. W., Monaghan, J. R., Voss, S. R., and Maden, M. (2012). Skin regeneration in adult axolotls: a blueprint for scar-free healing in vertebrates. PLoS ONE 7:e32875. doi: 10.1371/journal.pone.0032875

47. Shepherd, E. M., and Fairchild, B. D. (2010). Footpad dermatitis in poultry. Poult. Sci. 89, 2043–2051. doi: 10.3382/ps.2010-00770

48. Suga, H., Sugaya, M., Fujita, H., Asano, Y., Tada, Y., Kadono, T., et al. (2014). TLR4, rather than TLR2, regulates wound healing through TGF-b and CCL5 expression. J. Dermatol. Sci. 73, 117–124. doi: 10.1016/j.jdermsci.2013.10.009

49. Taira, K., Nagai, T., Takeshi, O., and Takase, K. (2014). Effect of litter moisture on the development of footpad dermatitis in broiler chickens. J. Vet. Med. Sci. 76, 583. doi: 10.1292/jvms.13-0321

50. Tenaud, I., Sainte-Marie, I., Jumbou, O., Litoux, P., and Dréno, B. (1999). In vitro modulation of keratinocyte wound healing integrins by zinc, copper and manganese. Br. J. Dermatol. 140, 26–34. doi: 10.1046/j.1365-2133.1999. 02603.x

51. Tuckwell, D., Calderwood, D. A., Green, L. J., and Humphries, M. J. (1995). Integrin alpha 2 I-domain is a binding site for collagens. J. Cell Sci. 108, 1629–1637.

52. Uemura, S., Matsushita, H., Li, W., Glassford, A. J., Asagami, T., Lee, K.-H., et al. (2001). Diabetes mellitus enhances vascular matrix metalloproteinase activity role of oxidative stress. Circ. Res. 88, 1291–1298. doi: 10.1161/hh1201.092042

53. US Poultry and Egg Export Council (2009). US Chicken Feet Kicked Out of China. Available online at: http://www.thepoultrysite.com/poultrynews/18142/ us-chicken-feet-kicked-out-of-china (Accessed July 9, 2009).

54. Van Der Aa, A., and Additives, O. (2008). Clay minerals to fight footpad lesions. World Poult. 24, 15–17.

55. Vieira, M., Ribeiro, A., Kessler, A., Moraes, M., Kunrath, M., and Ledur, V. (2013). Different sources of dietary zinc for broilers submitted to immunological, nutritional, and environmental challenge. J. Appl. Poult. Res. 22, 855–861. doi: 10.3382/japr.2013-00753

56. Wang, G., Ekstrand, C., and Svedberg, J. (1998). Wet litter and perches as risk factors for the development of foot pad dermatitis in floor-housed hens. Br. Poult. Sci. 39, 191–197. doi: 10.1080/00071669889114

57. Wu, P., Alibardi, L., and Chuong, C.-M. (2014). Regeneration of reptilian scales after wounding: neogenesis, regional difference, and molecular modules. Regeneration 1, 15–26. doi: 10.1002/reg2.9

58. Xu, F., Zhang, C., and Graves, D. T. (2013). Abnormal cell responses and role of TNFa in impaired diabetic wound healing. Biomed. Res. Int. 2013:754802. doi: 10.1155/2013/754802

59. Zweers, M. C., van Vlijmen-Willems, I. M., van Kuppevelt, T. H., Mecham, R. P., Steijlen, P. M., Bristow, J., et al. (2004). Deficiency of tenascin-X causes abnormalities in dermal elastic fiber morphology. J. Invest. Dermatol. 122, 885–891. doi: 10.1111/j.0022-202X.2004.22401.x

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
