Humoral immune responses of pregnant Guinea pigs Immunized with live attenuated Rhodococcus equi

Rhodococcusequi formerly named Corynebacterium equi is a gram-positive, facultative, intracellular pleomorphic bacterium initially described as a veterinary pathogen that caused a pyogranulomatous lung disease in young foals between 1 and 5months of age (Al-Salihi, et.al.2013; Al-Salihi, 2011; Horowitz et al., 2001). It also recognized as a pathogen of human that the organism is being isolated with increasing frequency from sputum and blood cultures of individuals with AIDS and patients undergoing immune-suppressive therapy (Prescott, 1991). Thus, prevention of infection remains a desirable goal. Affected foals require costly and prolonged antibiotic therapy that is not always successful (Giguère et al., 2011), and foals that recover may have decreased potential of starting a racing career (Ainsworth et al., 1998, Dawson, et.al., 2010).

Passive transfer of immunity plays a critical role in the foal’s resistance to a variety of infectious agents and the failure of passive transfer is associated with increased susceptibility to infections (Kohn et al., 1989). Opsonisation with antibodies against capsular components has been demonstrated in the past, with significant enhancement of R. equi killing by alveolar macrophages exposed to immune serum (Hietala and Ardans, 1987). Opsonising IgG antibodies appear to promote R. equi phagocytosis and participate in the down-regulation of intracellular growth by enhancing bacterial killing, involving phagosome –lysosome fusion (Cauchard et al., 2004).The clearance of R. equi in the horse also coincides with IgG production (Lopez et al., 2002). No vaccines are available, although several immunization strategies have been tested to prevent rhodococcosis (Giguère et al., 2003). Various strategies have been proposed for the development of a safe and effective vaccine against rhodococcosis. For instance, the passive immunization with hyperimmune plasma (Prescott, et.al.1997), vaccination procedures with inactivated R. equi strains (Varga,et.al.1997),VapA DNA vaccine (Haghighi,et.al.,2005) and, more recently, attenuated R. equi vaccine have been reported (van der Geize,et.al.,2011).Among the different strategies of vaccination for intracellular pathogens, a promising approach may be the use of live vaccines (Lopez et al., 2008).

This study was designed to determine the stimulation and passive transfer of humoral immunity due to immunization of pregnant G. pigs with attenuated R. equi that aimed to protect their offspring against challenge infection with virulent R.equi.

Rhodococcus equi was isolated from foals suppurative bronchopneumonia in R.equi endemic farm .The isolate was identified according to potassium tellurite, gram staining, catalase and oxidase reactions, nitrate test, urease production and fermentation of sugars (glucose, lactose, maltose, rhamnose, sucrose and xylose) as described by Nakazawa, (1980). Colonies stained red on Congo red containing media (Berkhoff and Vinal, 1986) were described as Congo red positive strain (CR+) and were used for challenge; its lethal dose ₅₀ (LD₅₀) in mice was 2x107bacteria by intravenous (IV) route(Reed and Muench1938). A Congo red negative R.equi (CR-) kindly provided by Al-Azzawi, W. A., its attenuation was previously described (Al-Azzawi,et.al 2000).This strain used to prepare attenuated autogenous vaccine.

A CR-R.equi strain was used to prepare attenuated autogenous vaccine by inoculation three to five colonies into nutrient broth incubated for 24 hours at 37°C and stored in aliquot at 20°C. A flask containing 250 ml of nutrient broth inoculated with one aliquot incubated at 37° C for 24 hours. This bacterial suspension was used to inoculate Roux bottles containing nutrient agar, then after 48 hours of growth at 37°C bacteria were harvested by suspending the growth from the agar surface in phosphate buffered saline (PBS)PH.7.2. The bacteria were washed three times by centrifugation using PBS. PH.7.2, then resuspended in PBS. Serial dilutions were prepared for viable bacterial counts according to Cruickshank et al. (1975). Bacterial suspension was adjusted at a concentration of (1x10⁹/ml) viable bacteria and was determined by standard plate techniques. The potassium alum sulphate (KAL (SO₄)2 1.1/2 H₂O, Fluka) was used as adjuvant. The vaccine tested for sterility, safety, and potency prior to vaccination.

The antigen used for tube agglutination test (TA) was prepared according to Nakazawa, (1980),

Antigen used for passive haemagglutination (PH) was prepared according to Prescott et al., (1979). Protein content was determined using the method of Lowry et al, (1951).

4-Experimental animals Two groups of apparently healthy pregnant guinea pigs of similar age (6-9 months) weighing about 400 grams were brought to the animal experimental house of the College of Veterinary Medicine and kept there for three weeks for acclimatization before starting the experiment. The animals were examined serologically for the detection of any antibody titer to R.equi prior to vaccination. Several fecal samples were taken from each guinea pig for bacterial isolation. These tests proved that these guinea pigs were R.equi free and were not exposed previously to this organism .They were reared in the separated cages and fed commercial assorted pellets and alfalfa.

Twelve pregnant guinea pigs vaccinated twice five and three weeks prior the expected parturition date s.c with attenuated vaccine prepared from a CR- R.equi, the first dose 1ml containing 1X10⁹ bacteria \ml and boosted two weeks later with 0.5 ml of the same vaccine containing 1X10⁹ bacteria\ml (Al-Azzawi ,1995 ).only offspring from dams which parturited 2-3 weeks after booster vaccine were used.

Six pregnant guinea pigs injected s.c twice with PBS instead of antigen plus adjuvant only . The offspring of vaccinated and control groups were challenged intra-pulmonary with twenty LD50 of CR+ R.equi three weeks after birth.

vaccinated and control groups were examined daily for the appearances of clinical signs including temperature, pulse and respiration and any observation of distress or discomfort along seven days laterafter vaccination.Also the offspring of both groups were examined daily till two weeks post challenge.Blood samples were collected from the vaccinated and control groups at zero time and weekly thereafter till birth. Also afterbirth, samples were obtained from the dams and their offspring till two weeks after challenge. Serum samples were separated and frozen at -20 for further investigation.

In addition to the resistance of newborn G.pigs from the vaccinated dams to challenge, vaccine was evaluated for humoral immune response in the dams and their offspring by TA according to method described previously by (Nakazawa, 1980) and PH according to method described previously by (Prescott et al., 1979).

Ethical approval: This study was approved by the Ethical and Research Committee of the College of Veterinary Medicine – University of Baghdad.

The pregnant guinea pigs were slightly depressed and listless 72 hours after vaccination. Transient elevation of temperature (39.2 ± 0.2 C), pulse rate (160 ± 5 beat/min) and respiration rate (88 ± 4 breath/min) were recorded for three to five days and returned to normal range in the 6th day post vaccination. Localized swelling was detected during palpation of injected sites after 48 hours, some of them developed to small abscesses and disappeared within two weeks. R.equi CR- was isolated from these abscesses. There were no adverse effects in vaccinated pregnant guinea pigs, birth of normal and healthy offspring’s were given.

The means of body temperature, pulse and respiration rates remained within the normal ranges in the control group, except localized swelling was detected during palpation of the injected sites with adjuvant and PBS which developed to small nodule and disappeared within 10 days. No bacteria were isolated from these nodules.

All vaccinated and control pregnant guinea pigs had no antibody titer to R.equi prior to vaccination. R.equi specific antibodies were detected during the third week of the first immunizing , reached their peak three weeks after boosting then declined gradually by the seventh week. Antibody titers to R.equi were not detected in control groups (Figure.1).

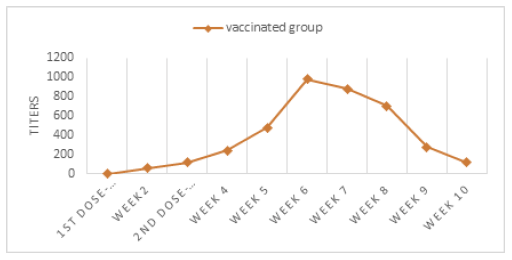

Figure 1. Antibody titer of vaccinated pregnant G.pigs.



Body temperature, pulse and respiratory rates were within normal ranges during the first three weeks of life of the offspring born from both vaccinated and control dams. After challenge, the offspring of vaccinated group showed slight increase in body temperature (39.1±0.21°C). Pulse rate (167± 3.3 beat/min) and respiration rate (88± 2.9 breath/min) with mild signs of illness without death .The offspring of control dams showed marked increase in the body temperature (40 ± 0.3° C), pulse rate (180 ± 6.04 beat/min) and respiratory rate (98 ± 2.1 breath/min) and decreased physical activity, depressed and anorexic by 36 hours post challenge, then showed hunched posture, weight loss, rough hair coat and rapid labored breathing by day four post challenge. All the offspring of the control dams died during 5-16days after challenge. At necropsy the predominant lesions were restricted to the lungs animals. The affected lungs were extensively consolidated with multiple yellowish creamy exudates. Liver, spleen, kidney and lymph nodes were enlarged and congested.

The R.equi antibody titers in sera of offspring from vaccinated dams which reflected maternal immunity are shown in (Figure.2). Low titers of antibodies were detected in sera of offspring from control dams two weeks post challenge only.

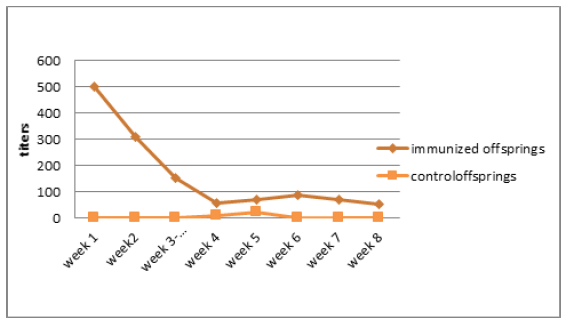

Figure 2.Antibody titers in newborn G. pigs of vaccinated and control dams by PHA.

Rhodococcus equi is a facultative, intracellular, gram-positive pathogen that survives and replicates within macrophages causing granulomatous inflammation (Hondalus, and Mosser, 1994). Effective immunization against intracellular pathogens such as mycobacteria requires the use of live organism rather than killed one to promote immunity. The reasons are unclear but may be related to the requirement for antigen persistence, the activation of different pathways within phagocytic cells or least likely, the secretion of specific protective antigens by live organisms (Collins, 1988).

As the Congo red reaction provides a simple and efficient means of screening virulence, ability to bind Congo red appeared to be encoded by virulence associated plasmid (Berkhoff and Vinal, 1986) and loss of virulence which accompanied loss of pigmentation appeared to be related to deletion of DNA from plasmid (Maurellie at.al.,1984).Takai et al.(1991) have demonstrated the association of large plasmids and 15 to 17 kDa antigens with the virulence of R.equi in mice and foals, while mutants cured of the large plasmids, lacked the antigens and showed a loss of virulence. The Congo red negative isolate used in the present study for vaccination probably lost its virulence associated antigen and plasmids as indicated by its pathogenicity in guinea pigs.

Subcutaneous vaccination of pregnant guinea pigs with prepared vaccine did not manifest adverse systemic reactions except slight depression and listless for 72 hours and transient elevation in body temperature, increased pulse and respiratory rates for three to five days, which might be the expression of immunological and inflammatory reactions and was consistent with those observed by others (Prescott et al. 1979, Chirino- Trejo et al.1987, Martens et al.1989 and Al-Azzawi, et.al.2000). The localized swelling at site of vaccine injection was probably attributable to the local action of adjuvant that was clear in the control group, whereas S.C inoculation with live R.equi caused abscessation (Prescott, 1991). The vaccination procedure appeared safe for the pregnant guinea pigs and without any adverse effects. The vaccinated pregnant guinea pigs with the prepared vaccine revealed elevated levels of R.equiantibody titer, which might provide passive protection to their offspring against experimental challenge with the virulent organism. In the present study, antibodies were higher than those determined by Nakazawa, (1980). The discrepancy might be due to the difference between bacterial isolates, dose of R.equi exposure, the age and immunological status of animals and the time of exposure relative to serological test. The results of this study were compatible with those of previous studies (Chirino-Trejo et al. 1987; and Al-Azzawi, et.al.2000). They reported that oral and parentral administration of foals and guinea pigs with attenuated R.equi isolates resulted in high titer of R.equi antibody which protected foals and guinea pigs against R.equi challenge.

The offspring of vaccinated dams appeared sick for four to six days post challenge, they exhibited rise in body temperature, pulse and respiratory rates. These offspring withstood challenge and returned to normal condition from the second week onwards, and did not excrete the organisms in their feces beyond ten days. These clinical findings were in agreement with those reported by Al-Azzawi et.al.,(2000).While the systemic response was more severe and of longer duration in offspring of control dams. These offspring continued to excrete challenge organisms until death which usually occurred during (5-16) days post challenge. Similar results were observed in guinea pigs infected with R.equi (Ishino et al. 1987). The isolation of R.equi from the visceral organs of dead offspring can be explained on the basis of the bacteriaemic nature of the R.equi infection (Al-Salihi, 1993).

The offsprings of the vaccinated pregnant dams have high titers of R.equi antibody which reflected maternal immunity. The passive transfer of humoral immunity is relied upon to protect offspring from many neonatal diseases (Martens et al. 1989). Antigen specific IgG plays a significant role in opsonisation, promoting phagocytosis of virulent R. equi by alveolar macrophages and down-regulation of intracellular growth through enhanced bacterial killing capacity ( Cauchard et al., 2004).

It appeared that vaccination of pregnant guinea pigs with attenuated R.equi vaccine resulted in the production of humoral immunity which was transferred to their offspring and protected them against the challenge with virulent R.equi.

We would like to thank Al-Azzawi, W. A. and Al Salihi, K.A for technical support.

The authors of this paper have no financial or personal relationships with people or organizations that could inappropriately influence or bias the content of this paper.

Ainsworth, D.M.; Eicker, S.W.; Yeagar, A.E.; et al. (1998 ). Associations between physical examination, laboratory, and radiographic findings and outcome and subsequent racing performance of foals with Rhodococcus equi infection: 115 cases (1984-1992). J Am Vet Med Assoc; 213:510–515.

Al-Azzawi,W.A. (1995) .Immunization of foals against the infection with Rhodococcusequi. Ph.D. thesis. University of Baghdad.

Al-Azzawi,W.A.; Al-Izzi,S.A.; Khalifa,K.A.(2000). Production of Rhodococcus equi suggested vaccines. Dirasat Agricultural Sciences Vol. 27 No. 3 pp. 366-374.

Al-Salihi,K.A.; Al-Izzi,S.A. and Al-Darraji,A.M. (2013). The Pathology of Experimental Rhoodococcus equi infection in foals. Mirror of Research in Veterinary Sciences and Animals. MRVSA 2(1), 50-60.

Al-Salihi,K. A. (2011).Potency of Rhodococcus equi filtrate supernatant proteins antigen for the skin in the diagnosis Rhodococcus equi in foals. Eurasian J Vet. Sci. 27,3,161-165.

Al-Salihi, K.A. (1993). Clinico-pathological study of naturally occurring and experimentally infected foals with Rhodococcus equi in Baghdad province. Ph.D. thesis. University of Baghdad.

Berkhoff, H.A. and Vinal, A.C. (1986) .Congo red medium to distinguish between invasive and non-invasive Escherichia coli pathogenic for poultry. Avian disease 30(1):117-121.

Cauchard, J.; Sevin, C.; Ballet, J.; Taouji, S.(2004).Foal IgG and opsonising anti-Rhodococcus equi antibodies after immunization of pregnant mares with a protective VapA candidate vaccine. Vet. Microbiol. 104, 73–81.

Chirino-Trejo, J.M., Prescott, J.F., Yager, J.A., (1987). Protection of foals against experimental Rhodococcus equi pneumonia by oral immunization. Canadian Journal of Veterinary Research. 51 (4), 444–447.

Collins,F.M. (1988).AIDS-related mycobacterial disease. Springer Semin. Immunopathol . 10;375-391.

Cruickshank,R.; Dugaid, J.P.; Marmion, B.P.; and Swain, R.H.A.(1975).Medical Microbiology ,12th.ed.Longman group limited.

Dawson, T.R.; Horohov, D.W.; Meijer, W.G.; Muscatello, G. (2010). Current understanding of the equine immune response to Rhodococcus equi. An immunological review of R. equi pneumonia". Veterinary Immunology and Immunopathology, vol. 135, 1–2, p.1-11

Giguere, S.; Hernandez, J.; Gaskin, J.; Prescott, J.F.; Takai, S.; Miller, C. (2003). Performance of five serological assays for diagnosis of Rhodococcus equi pneumonia in foals. Clin. Diagn. Lab. Immunol. 10, 241–245.

Giguère, S.; Cohen, N.D.; Chaffin, M.K.; Hines, S.A.; Hondalus, M.K.; Prescott, J.F.; et al. (2011). Rhodococcus equi: clinical manifestations, virulence, and immunity. Journal of Veterinary Internal Medicine .25(6):1221–30.

Haghighi, H.R.; Prescott, J.F. (2005). Assessment in mice of VapA-DNA vaccination against Rhodococcus equi infection. Veterinary Immunology and Immunopathology.104:215–25.

Hietala, S.K.; Ardans, A.A. (1987). Interaction of Rhodococcus equi with phagocytic cells from R. equi-exposed and non-exposed foals. Vet.Microbiol. 14, 307–320.

Hondalus, M.K.; Mosser, D.M. (1994). Survival and replication of Rhodococcus equi in macrophages. Infection and Immunity. 62 (10), 4167–4175.

Horowitz, M.L.; Cohen, N.D.; Takai, S.; et al. (2001). Application of Sartwell's model (lognormal distribution of incubation periods) to age at onset and age at death of foals with Rhodococcus equi pneumonia as evidence of perinatal infection. Journal of Veterinary Internal Medicine .15:171–175.

Ishino,S.; Nakazawa,M. and Matsuda,I. (1987).Pathological findings of G.pigs infected intratracheally with Rhodococcus (Corynebacterium) equi. Jpn. J.Vet. Sci.49: 395-402.

Kohn, C.W.; Knight, D.; Hueston, W.; Jacobs, R.; Reed, S.M. (1989) . Colostral and serum IgG, IgA, and IgM concentrations in Standardbred mares and their foals at parturition. J. Am. Vet. Med. Assoc. 195, 64–68.

Lopez, A.M.; Hines, M.T.; Palmer, G.H.; Alperin, D.C.; Hines, S.A. (2002). Identification of pulmonary T-lymphocyte and serum antibody isotype responses associated with protection against Rhodococcus equi. Clin. Diagn. Lab. Immunol. 9, 1270–1276.

Lopez, A.M.; Townsend, H.G.; Allen, A.L.; Hondalus, M.K.(2008). Safety and immunogenicity of a live-attenuated auxotrophic candidate vaccine against the intracellular pathogen Rhodococcus equi . Vaccine, Vol. 26, 7, p.998-1009

Lowry, O.H.; Rosebrough, N.J.; Farr, A.L.; Randall, R.J.(1951). Protein measurement with the Folin phenol reagent . The Journal of Biological Chemistry. Vol. 193, 1, p. 265-275.

Martens, R.J.; Martens, J.G.; Fiske, R.A.; Hietala, S.K.(1989). Rhodococcus equi foal pneumonia: protective effects of immune plasma in experimentally infected foals. Equine Vet. J. 21, 249–255.

Maurelli, A.T.; Elackmon,B. and Curitiss, R. (1984). Loss of pigmentation in Shigella flexneri is correlated with loss of virulence and virulence associated plasmid. Infect. and Immun. 45:397-401.

Nakazawa,M. (1980 ).Detection of colt serum antibody against Corynebacterium equi by agar gel diffusion.J.Vet. Med.Sci.42:551-555.

Prescott, J.F.; Markham,R.J. and Johnson,J.A. (1979).Cellular and humoral immune response of foals to vaccination with Corynebacterium equi. Can. J. Comp. Med. 43: 356-364.

Prescott, J.F. (1991). Rhodococcus equi: An animal and human pathogen. Clinical Microbiology Review. 4, pp. 20–34.

Prescott, J.F; Nicholson, V.M.; Patterson, M.C.; Zandona Meleiro, M.C.; Caterinode Araujo, A.; Yager, J.A .(1997).Use of Rhodococcus equi virulence-associated protein for immunization of foals against R. equi pneumonia. American Journal of Veterinary Research ;58:356–9.

Reed, L. J.; and H. Muench. (1938). A simple method of estimating fifty per cent end points. Am. J. Hyg. 27:493-497.

Takai, S.; Koike, K.; Ohbushi, S.; Izumi, C.;Tsubaki, S. (1991). Identification of 15- to 17-kilodalton antigens associated with virulent Rhodococcus equi. J. Clin. Microbiol. 29, 439–443.

Varga J, Fodor L, Rusval M, Soos I, Makrai L.(1997).Prevention of Rhodococcus equi pneumonia of foals using two different inactivated vaccines. Veterinary Microbiology ;56:205–12.

van der Geize, R.; Grommen, A.W.F.; Hessels, G.I.; Jacobs. A.A.C.; Dijkhuizen L. (2011).The steroid catabolic pathway of the intracellular pathogen Rhodococcus equi is important for pathogenesis and a target for vaccine development. PLoS Pathogens ; 7(8):e100218.
