Determination of dietary Ca and P levels and their equivalence values of phytase and vitamin D3 for improved growth performance in weanling pigs

Published: November 1, 2021
By: Oketch Elijah Ogola, Jun Seung Choi, Jun Seon Hong, Yu Bin Kim, Shan Randima Nawarathne, Myunghwan Yu, Jung Min Heo / Department of Animal Science and Biotechnology, Chungnam National University, Daejeon 34134, Korea.
Introduction
Minerals make up a small but vital percentage of swine diets with profound impacts on animal health, growth performance, feed cost and the general environment. Calcium and phosphorus are the two most abundant minerals in the body, and they exist largely (about 98%) in the form of carbonated hydroxyapatite (Ca10(PO4)6(OH)2) in the skeleton (Mahamid et al., 2010). They are required for a wide variety of functions ranging from the maintenance of the skeletal structure through bone mineralization, lean tissue deposition, blood buffering, energy utilization to many other metabolic roles (Pravina et al., 2013; Oster et al., 2016; Murshed, 2018). It is well established that perhaps their most important role in the body is the development and maintenance of the skeletal system and that due to antagonistic mineral interactions, their accumulation in the skeletal tissue is interdependent of each other (LétourneauMontminy et al., 2015). Therefore, an oversupply or deficiency of one mineral will affect the utilization of the other (Gonzalez -Vega et al., 2016).
Ca and P nutrition for swine production has been determined to be heavily reliant on; (i) sufficient supply of either element in a utilizable form in the diet, (ii) maintenance of the required ratio of Ca and P and (iii) the provision of enough vitamin D (Peo, 1991; NRC, 1998, 2012). Corn-soybean meal diets are the mainstay for modern-day feed formulations. However, they are characteristically low in calcium as compared to animal sources (NRC, 2005), in addition to the fact that 20 - 30% of Ca in plant tissues is bound to oxalate, thus it is relatively unavailable (NRC, 2001). The majority of phosphorous on the other hand is also bound to phytate (Ravindran et al., 1994; Pallauf and Rimbach, 1996). This renders the phytate-bound P (PP) unavailable for utilization without the intervention of microbial phytase (Selle and Ravindran, 2007).
The use of inorganic mineral sources or animal sources presents a viable option to provide sufficient required amounts of Ca and P in diets but such an approach could negatively impact the environment due to P excretion in manure; costly feeds and lastly, it could lead to the depletion of global reserves of rock phosphate (Kiarie et al., 2013). Alternatively, the use of exogenous enzyme systems such as phytase presents a better approach to alleviating P deficiency due to phytate with reduced environmental effects. It has been shown to improve the digestibility of P up to 60 - 80% in a dose-dependent manner (Selle and Ravindran, 2008). The improvement in P digestibility consequently results in a direct decrease in P excretion to the environment (Singh, 2008; Kiarie et al., 2016). Phytase use has also been attributed to other “Extra-phosphoric effects” such as the improved digestibility of phytate-bound nutrients including Ca, Na, amino acids, and energy (Ravindran et al., 2008; Walk et al., 2016).
Vitamin D on the other hand plays a vital role in skeletal growth and development since it is actively involved in the regulative mechanism for calcium and phosphorus homeostasis (Dittmer and Thompson, 2011; Tousignant et al., 2013). It additionally takes part in the development and functioning of the immune system (Adam and Hewison, 2010; Lopez et al., 2020). Vitamin D can be obtained from the diet either as vitamin D2 or vitamin D3. Pigs have been shown to readily utilize the latter in the form of 25-hydroxy-cholecalciferol (25-OH-D3) also known as calcidiol which is the main circulating form of vitamin D in the body (Horst et al., 1981). The 25-OH-D3 that is formed in the liver proceeds to the kidney where it is hydroxylated to a Ca and P mobilizing hormone namely 1, 25 dihydroxy-cholecalciferol (1, 25-(OH)2-D3). This process is strongly regulated by the need for either Ca or P (DeLuca, 1976a, 1976b). Moreover, according to DeLuca (1979), the synthesis of vitamin D in the body can also be through exposure to sunlight. However, with modern shifts in swine production towards intensification and the use of confined settlements, vitamin D-related rickets has been reported in farms with negative implications such as weakness, lameness, bone fractures or sudden death (Madson et al., 2012). Therefore, adequate vitamin D supplementation in diets could become vital especially for confined piglets since they have a rapid growth rate and are innately born with low levels of plasma vitamin D3 (Horst and Littledike, 1982)
Thus, the current study investigated the influence on weaned piglet growth performance brought about by feeding diets that had different levels of Ca and P with or without supplemental use of super dose phytase or vitamin D3 over three weeks post-weaning. Experiment 1 determined the impact of using diets that had reduced levels of Ca but were sufficient in P with or without supplemental phytase use. Experiment 2 on the other hand, assessed the impact on piglet growth performance brought about by using three different Ca/P ratios with or without the addition of vitamin D3.
Materials and Methods
The Animal Care and Use Committee of Dankook University reviewed and approved the experimental protocol utilized in both studies (Protocol No. DK-1-2030-1 and DK-1-2030-2). The pigs used in both experiments were the offspring of three-way crossbred LYD (Landrace × Yorkshire dam × Duroc Jersey sire) boars. Both experiments were conducted in mechanically ventilated and environmentally controlled facilities at the experimental farm of Dankook University, Sejong farm, South Chungcheong province.
Animals, housing, diets and feeding
Experiment 1
A total of one hundred and twelve weaned piglets were used to determine the impact of using diets that had reduced levels of Ca but sufficient in P on growth performance with or without supplemental phytase. Piglets were weaned at day 21 and fed a standard piglet creep feed that met all standard nutrient requirements for one week. From d 7 post-weaning (d 1), piglets were weighed and in such a way that the initial average body weight was 8.26 ± 0.25 kg, they were then allotted to one of the four treatments in a completely randomized design. Four piglets per pen and seven replicate pens per diet were used.
The Experimental Animal Allotment Program (Lindemann and Kim, 2007) was used to allot the pigs to the experimental diets. They were raised in pens (1.6 × 1.8 m) that had fully slatted floors and were fitted with a feeder and a nipple drinker for ad-libitum access to feed and water. The temperature was maintained at 28℃ for the first week and was lowered by 1℃ for every following week thereafter. All ingredients used in the study were chemically analyzed for Ca and P then used at a commercial feed mill (DH Vital Feed, Pyeongtaek, Korea) to manufacture the diets used in this study

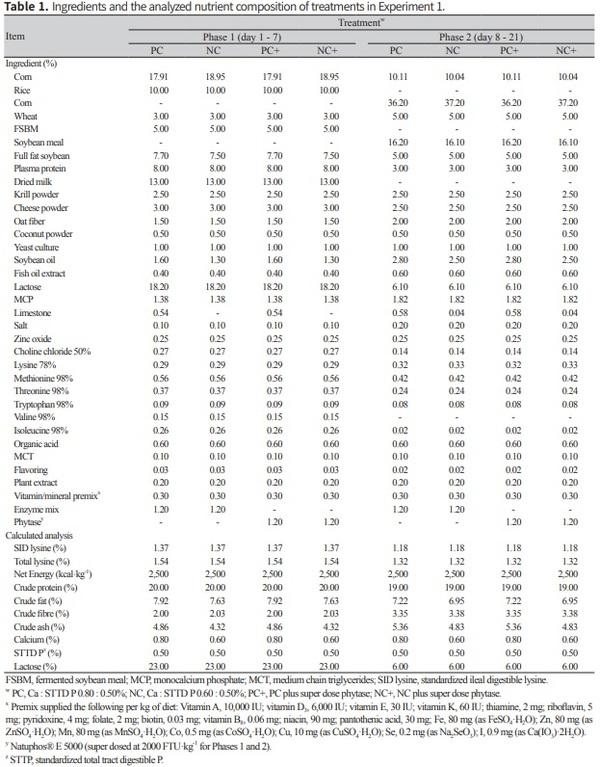

Dietary treatments were corn-soybean meal-based and were formulated to meet or exceed the recommended nutrient levels as per NRC (2012), except for Ca (see Table 1). Monocalcium phosphate monohydrate (MCP) and limestone were added to obtain the calculated total Ca : standardized total tract digestible (STTD) P ratios. The use of MCP to exceed the P requirement ensured that the study evaluated the response to phytase irrespective of meeting the P requirement for the pigs.
The diets included a positive control (PC) diet having total Ca : STTD P ratios of 0.80 : 0.50%. The PC diet was formulated to meet or exceed the NRC (2012) total Ca : STTD P standards for piglets weighing between 7 - 25 kg. The NC diet had Ca : STTD P ratios of 0.60 : 0.45%. The last two treatments were the PC and NC together with the commercially available phytase. They are denoted as PC+ and NC+ respectively, in Table 1. All the diets were fed in two Phases of day 1 to day 7 then from day 8 to day 21.
The phytase was super dosed from the industry recommended level of 1,000 Phytase units (FTU)·kg-1 to 2,000 FTU·kg-1 (super dose level). Phytase activity is normally expressed in phytase units (FTU). One FTU being defined as the amount of phytase that liberates one micromole per minute (1 μmol·min-1) of inorganic phosphate from 0.0051 mol·L-1 sodium phytate at temperatures of 37℃ and pH of 5.50 (Engelen et al., 1994). The phytase used was Natuphos® E 5000 (BASF Corporation, Florham Park, New Jersey, USA).
Experiment 2
A total of 96 weaned piglets were used to determine the effect on growth performance of using diets that had different Ca : STTD P ratios with or without supplemental use of vitamin D3. With an initial average body weight of 7.44 ± 0.27 kg, the piglets were randomly allotted to one of the four treatments having six replications per diet and four pigs per pen. Similar housing conditions as those in Experiment 1 were used, together with ad-lib access to feed and water.
Determination of dietary Ca and P levels and their equivalence values of phytase and vitamin D3 for improved growth performance in weanling pigs - Image 1

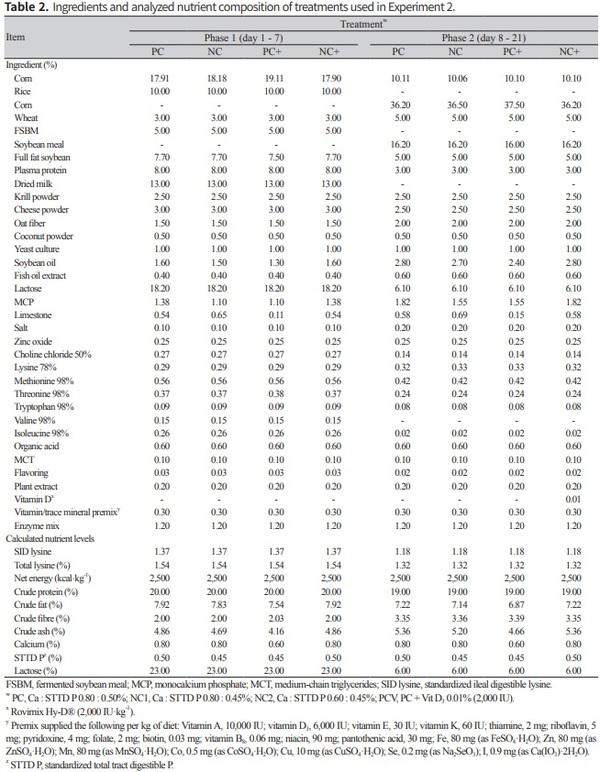

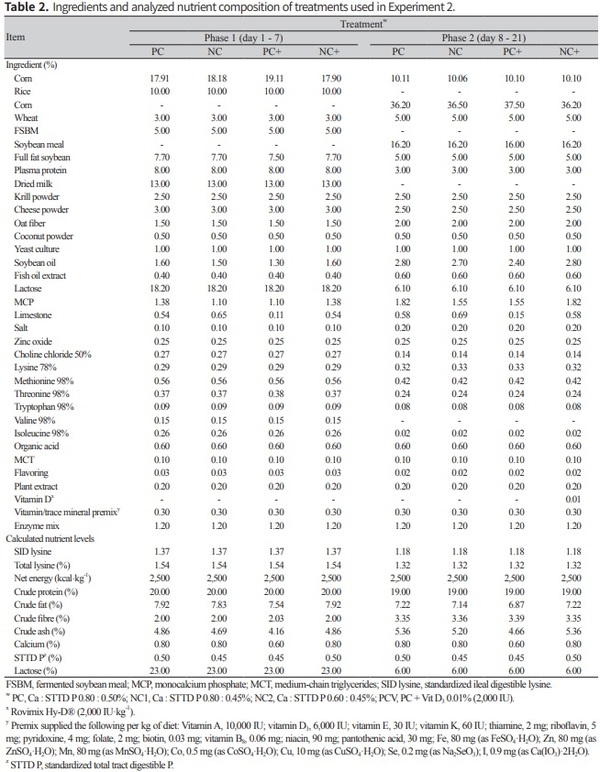

Treatments included three diets of PC, NC1 and NC2 having total Ca : STTD P ratios of 0.80 : 0.50, 0.80 : 0.45 and 0.60 : 0.45% respectively as shown in Table 2. The PC met all the Ca/P standards for pigs weighing 7 - 25 kg as per NRC (2012); the NC1 diet had reduced levels of P while both Ca and P were reduced for the NC2 diet. The fourth diet (PCV) was the PC supplemented with a commercially available 25-hydroxy-cholecalciferol (25-OH-D3) additive offered at 0.01% (2,000 IU·kg-1). The additive used was Rovimix Hy-D® (DSM Nutritional Products Ltd., Kaiseraugst, Switzerland).
Growth performance and statistical analyses
The feed samples were analyzed for dry matter, crude protein, ether extract, crude fibre, crude ash, calcium, phosphorous and amino acids as per the procedures detailed in AOAC (2005). The feed allotments and health status of the pigs were monitored twice daily throughout the entire experimental period for disease problems, mortality, and feed insufficiency. The body weight (BW), and feed consumed were measured weekly (d7, 14, and 21). Using the body weight and feed consumed data, the average daily gain (ADG), average daily feed intake (ADFI) and finally, the feed conversion ratio (FCR) to depict the efficiency of converting feed to lean muscle mass was calculated (Oketch et al., 2021). The growth performance data was then analyzed using the General Linear Model (GLM) procedures in the SPSS software package (Version 26, IBM SPSS, Chicago, USA). One-way ANOVA analysis was performed to ascertain the difference between the test groups and P-value < 0.1 was used to indicate significant results. The tukey’s multiple range test was used to compare the significant differences between the varying pairs of means. A further analysis using two-way ANOVA was conducted for Experiment 1 to determine the interactive effect between the different Ca : P ratios and super dose phytase.
Results
Experiment 1

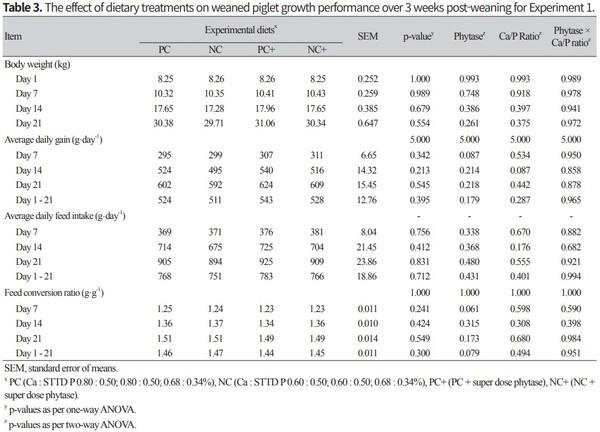

The effect of lowering the Ca in P adequate diets in addition to, the impact of supplementing phytase at a super dose level in such diets was assessed. All pigs subjected to the experiment willingly consumed their diets and no disease incidences were recorded. Results are presented in Table 3. No significant differences in the body weight, ADG, ADFI and FCR were exerted by lowering the Ca while retaining STTD P ratios as well as super-dosing phytase as per the one-way aNOVA analysis. At the end of phase 1, pigs fed the NC (Ca : P of 0.60 : 0.50%) diet without phytase relative to the PC diet, consumed more feed and tended to gain more weight with a 9.02% markedly lower FCR though no significant differences were observed. After phase 1, there was a shift with an improved (p > 0.1) ADG and ADFI being recorded with the use of the PC diet relative to the NC diet. A substantially lower FCR (p = 0.241) was also recorded.
The addition of phytase at a super dose level in the PC+ and NC+ diets resulted in higher ADG, ADFI and lower FCR values as compared to the PC and NC diets although the results were not statistically significant. The NC+ diet led to the improved values recorded for the ADG (p = 0.342) which was the result of the higher values of ADFI (p = 0.576) that were noted at the end of week 1. However, by the end of the three weeks (day 21), better numerically higher values were observed with the PC+ (PC + phytase) diet for the ADG and the ADFI although the results were similarly not of statistical relevance (p < 0.1)
Determination of dietary Ca and P levels and their equivalence values of phytase and vitamin D3 for improved growth performance in weanling pigs - Image 2
Determination of dietary Ca and P levels and their equivalence values of phytase and vitamin D3 for improved growth performance in weanling pigs - Image 3
A further analysis using two-way ANOVA was conducted to determine the interactive effect of the different Ca : P ratios alongside the super dosing effect on the indices measured. Results showed that significant improvements (p < 0.1) were recorded for the overall FCR (day 1 - 21) with the use of phytase at a super dose level even though no major interactive effects (P < 0.1) were exerted by the phytase and Ca/P ratios on the ADG, ADFI, and the overall body weights.
Experiment 2

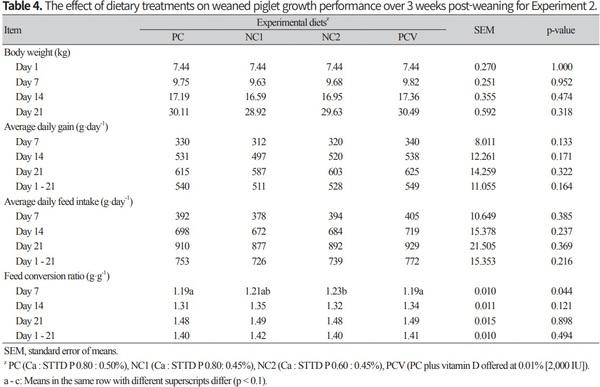

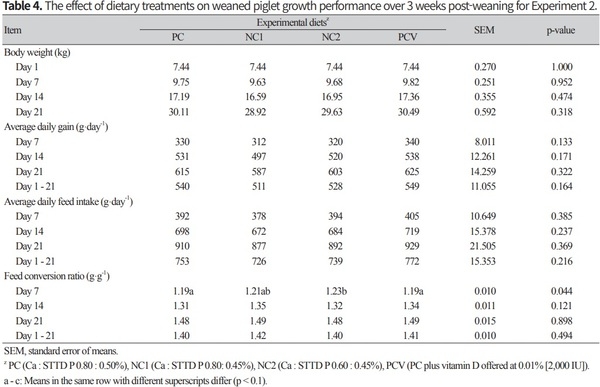

The impact of varying the Ca : STTD P ratios and the effect of providing supplemental vitamin D3 was investigated. The initial BW (7.44 ± 0.27 kg) was the same across all the treatments. After each successive phase, the BW and feed consumed were measured and the ADG, ADFI and FCR were subsequently calculated. The results for Experiment 2 are presented in Table 4. Better growth performance was recorded in pigs fed the PC diet (Ca : STTD P of 0.80 : 0.50%) relative to the NC1 (Ca : STTD P of 0.80 : 0.45%) and the NC2 (Ca : STTD P at 0.60 : 0.45%) diet, but the effects were not of statistical significance.
Throughout the entire 6-week period, birds fed the PC diet consumed more feed, gained more weight and were more feed-efficient as depicted by the lower FCR when compared to the negative control diet (NC1 and NC2). Within the negative control diets (NC1 and NC2), markedly higher values for ADG and ADFI (p > 0.1) were noted with the NC2 diet relative to the NC1 diet. Feeding the PCV diet (PC + 25-OH-D3) similarly, led to numerical increases in the ADG, ADFI and overall body weight as compared to all the other treatments even though the results were not statistically significant.
Discussion
Experiment 1
The impact on weaned piglet growth performance brought about by reducing Ca from the standard requirements while supplying P in marginally excess amounts was assessed. Results of Experiment 1 confirmed that the use of the PC diet (Ca : STTD P 0.80 : 0.50%) led to numerically higher ADG, ADFI, feed conversion ratios and overall better growth performance. It was formulated to meet or exceed the NRC (2012) total Ca : STTD P standards for piglets weighing between 7 - 25 kg. Subsequent lowering of Ca to 0.60% while maintaining the STTD P at 0.50% for the NC negatively affected the growth performance beyond day 7.
According to Becker et al. (2020) and Delezie et al. (2015), for maximized growth performance and skeletal development, emphasis should be placed on maintaining the adequate required levels of Ca and P in diets since Ca reduction to lower levels could hamper both processes. Due to antagonistic mineral interactions, the accumulation of Ca and P in the skeletal tissue is interdependent of each other and an oversupply or deficiency of one mineral will affect the utilization of the other (LétourneauMontminy et al., 2015; Gonzalez-Vega et al., 2016). Lagos et al. (2019b) suggested that if P is included in excess, then Ca has to also be in excess and vice versa is also true. The same notion applies even with phytase supplementation. Since the beneficial impact induced on digestibility of phytate bound P (PP) may be challenged by extra urinary losses of P that have been recorded when dietary Ca is low (Létourneau-Montminy et al., 2012; Gutierrez et al., 2015).
Determination of dietary Ca and P levels and their equivalence values of phytase and vitamin D3 for improved growth performance in weanling pigs - Image 4
It has been recorded that the major role of Ca and P in the body is in the development and maintenance of the skeletal system. It has also been observed that although increases in the content of urine P have been associated with the supply of higher than recommended levels of P, the femur Ca and P content also seemed to increase with elevated levels of mineral provision (Gutierrez et al., 2015). This could suggest that the requirement to maximize the main role of Ca and P (bone mineralization) could be over and above the requirement needed to maximize growth performance (Stein et al., 2008; Saraiva et al., 2012; Lagos et al., 2019b). Therefore, to mitigate potential underfeeding of P and the subsequent suboptimal bone development especially when using higher doses of phytase in diets, the use of additional dietary P in such diets has been suggested (Wu et al. 2019).
However, phosphorus is the third most expensive nutrient after energy and protein (Tahir et al., 2012; Patience, 2017). The majority of plant origin feed ingredient P (> 65%) is also in the form of phytate which chelates P (Ravindran et al., 1994; Pallauf and Rimbach, 1996) thus rendering the phytate-bound P (PP) unavailable for utilization without the intervention of microbial phytase (Selle and Ravindran, 2007). The use of diets that are low in P have also been associated with lameness in animals, reduced growth performance with lower ADG and ADFI in addition to a possible sub-optimal bone development (Ekpe et al., 2002; Létourneau-Montminy et al., 2012).
Therefore, P supplementation through inorganic sources such as defluorinated phosphate, monosodium phosphate, monocalcium phosphate mono- and dicalcium phosphate could be plausible (Létourneau-Montminy et al., 2012). Nevertheless, unlike calcium, excess P use has been subject to environmental concerns due to mineral excretion in addition to its overall impact on feed cost. Therefore, it is common practice to incorporate the use of the enzyme phytase to hydrolyze the anti-nutritional factor phytate and release phytate phosphorous (PP) rather than incorporate the use of inorganic phosphates (Bedford and Schulze, 1998; Choct, 2006; Woyengo and Nyachoti, 2011; Gadde et al., 2017). Kiarie et al. (2013) reported that phytase dominates the exogenous feed enzymes market with a lion 60% share.
Diets that are sufficient in Ca but lower in P have traditionally been used for assessing phytase even though as reported by Zanu et al. (2020), the use of the marginally higher Ca in such diets precipitates phytate leading to the formation of insoluble Ca-phytate complexes. This could impede the effectiveness of evaluating phytase by reducing the enzymes’ mucosal activity and ileal phytate degradation (Applegate et al., 2003). As a result, it could hypothetically be more physiologically relevant for the assessment of phytase to be conducted using diets that meet or exceed the recommended levels of P (Olsen et al., 2019). However, there is a paucity of information on phytase use in P adequate diets.
Therefore, additional analysis to investigate the effect of supplementing phytase at a super dose level in the P adequate diets was determined. This was based on the hypothesis that the functional relevance of supplementing phytase at super dose levels could be better evaluated in such diets. The administration of super dose phytase above the level required to meet the phosphorus requirement resulted in significant improvements for the ADG and the FCR. Similar improvements with the addition of phytase in P adequate diets were first observed by Beers and Jongbloed (1992) although conflicting results have been recorded by Gourley et al. (2018) for the ADG and ADFI value. The improved growth performance brought about by super dosing phytase could have seemingly resulted from the greater phytate hydrolysis (Ravindran, 2013).
"Super-dosing” incorporates the use of higher than recommended levels of phytase to achieve greater results (Humer et al., 2015). The greater hydrolysis of phytate due to super dosing could generate lower esters of IP6 including IP5, IP4, IP3, and IP2. IP2 is digestible by the gastric alkaline phosphatase in a process that results in the release of inositol, a nutrient that has been suggested to be growth-promoting in nature (Cowieson et al., 2011; Bedford and Rousseau, 2017). However, varied results have been recorded with phytase supplementation at super dose levels with Holloway et al. (2018), Kies et al. (2006), Zeng et al. (2014), and Adhikari et al. (2015), reporting positive improvements while Flohr et al. (2014a) observed no benefits of super- dosing phytase.
Super dosing could also bring into light the extra-phosphoric effects of phytase. The present study reported significant improvements were noted for the FCR with super dosing of phytase, thus supporting the findings of Walk et al. (2013) who proposed that when P is not limiting, the phytase response could be limited to improvements in the feed to lean muscle conversion ratios. Super dosing could also facilitate the release of the other limiting components of the diets excluding P (Kies et al., 2001; Walk et al., 2013). In this instance, Ca could be the main candidate since it is a cation (+ve) and can be effectively bound to phytate which is a negatively charged ion (Ravindran et al., 1995). Since 1 phytate molecule binds to 5 Ca molecules (Selle et al., 2009), Ca digestibility has been shown to improve with increasing levels of phytase addition (Kies et al., 2006). Therefore, as stated by Cowieson et al. (2011) super-dosing phytase could be restorative, leading to a proportionate release of the limiting mineral.
However, it could be worth noting that better growth response was observed with the PC+ (PC plus phytase) diet as compared to the NC+ (NC plus phytase) treatment. This could have resulted from a possible Ca relative insufficiency in the NC+ diet. Similar results have been reported by Holloway et al. (2018) whose results showed that super dosing phytase in a marginally deficient diet was no greater than a diet that is almost or fully balanced for all nutrients. This suggests as noted by Driver et al. (2005) that if super dose phytase is used in P-sufficient diets, an improved response could be obtained at higher levels of Ca. The reverse could be true that if low P is used in phytase supplemented diets then the Ca also be reduced. This is because it is important to maintain the required balance between the two minerals and avoid the formation of insoluble Caphytase complexes that could be formed in phytase experiments having low P and high Ca (Qian et al., 1997; Bougouin et al., 2014; Dersjant-Li et al., 2015). Care should be taken to avoid insufficiency while lowering Ca and P lest growth performance and bone mineralization could be compromised.
Experiment 2
The impact brought about by different Ca : STTD P ratios were to be determined alongside the effect that a commercially available vitamin D3 source could have on weaned piglet growth performance. Our results suggested that the feeding of the PC diet with the Ca : STTD P ratio set at 0.80 : 0.50% tended to result in a numerically higher ADG, ADFI with a desirably reduced FCR. This performance was relative to the NC1 diet where the STTD P was marginally reduced to 0.45%, and the NC2 diet where both the Ca and STTD P ratios were slightly reduced to 0.60 and 0.45% respectively (see Table 5). The relatively improved better performance with the PC diet could be explained by a possible provision of Ca and P over and above the requirements as per the NRC (2012) requirements. It is worth noting that slightly better performance that was not of statistical significance was recorded with the NC2 diet that had even lower Ca and P levels compared to the NC1 diet. It is not yet clear what led to this response.
Plant-based diets in form of corn-soybean meals are the mainstay for modern-day feed formulations. Unfortunately, they are characteristically low in calcium as compared to animal sources (NRC, 2005). Additionally, 20 - 30% of Ca in plant tissues is bound to oxalate, thus it is relatively unavailable (NRC, 2001). Therefore, it is common practice to incorporate the use of inorganic feedstuffs such as mono- and dicalcium phosphate, ground limestone and calcium chloride. Their excessive use, because they are relatively inexpensive, has not subject to environmental concerns (Zhang and Adeola, 2017), even though there could be a marginal calcium oversupply in swine diets. Recent research has demonstrated that with excess dietary Ca, unabsorbed Ca interacts with P in the chyme to form insoluble Ca-P complexes, this reduces P absorption with profound impacts on growth performance and bone calcification (Reinhart and Mahan, 1986; Heaney and Nordin, 2002; Stein et al., 2011). Marginally excess Ca even reduces the impact of phytase on the release of P from phytic acid (Selle et al., 2009; Dersjant-Li et al., 2015). The impact is more pronounced when diets are limiting in P (Létourneau-Montminy et al., 2015; Merriman et al., 2017; Wu et al., 2018). Maintenance of the adequate ratios of Ca and P is therefore vital with or without additive use.
Since vitamin D is actively involved in the regulative mechanism for calcium and phosphorus homeostasis, it was hypothesized that the use of a commercially available vitamin D3 source could positively impact weaned piglet growth performance. Our current findings showed that the use of the vitamin D3 source resulted in numerical increases in the ADG, ADFI and overall body weight as compared to the other treatments even though the results were not of statistical significance. Similar results have been reported by Flohr et al. (2014b), whereby vitamin D3 use led to an increase in serum levels of 25- OH-D3 but no major improvements were noted for growth performance and bone mineralization.
Ca absorption from the small intestine is usually carried out by either paracellular and transcellular transport in response to high or low Ca respectively (Bouillon et al., 2003; Bronner, 2003; Pérez et al., 2008). Lagos et al. (2019a) outlined that transcellular transport in response to low Ca is a saturable process that requires energy, Ca-binding proteins (calbindins), and calcium channels such as the transient receptor potential cation channel, subfamily V, member 6 (TRPV6). Calcium is first absorbed through the Ca channels located in the brush border membrane (van de Graaf et al., 2004). It is then bound in the cytosol to the binding proteins that facilitate transport towards the basolateral membrane (Kaune, 1996) where the release of Ca be accomplished via plasma membrane Ca-ATPase activity (Lagos et al., 2019a). The release process is regulated by vitamin D.
Vitamin D goes through two hydroxylation processes for its activation. First is through the action of the hepatic 25-hydroxylase to generate 25-hydroxy-cholecalciferol (25-OH-D3) also known as calcidiol which is its main circulating form (Molin et al., 2017). Thereafter, 25-OH-D3 can be hydroxylated by the renal 1α-hydroxylase into 1, 25- dihydroxyvitamin D3 (1,25(OH)2D3) also known as calcitriol. It is the physiologically active form of vitamin D, through which the parathyroid hormone or calcitonin maintains Ca and P homeostasis (Dittmer and Thompson, 2011). The activation of calcitriol has been observed to be in response to low plasma Ca levels (Eklou-Kalonji et al., 1999; Fleet and Schoch., 2010), leading to increased absorption of Ca (Lagos et al., 2019a).
Therefore, perhaps the major focus should be on Ca and P balance since vitamin D tends to affect growth performance significantly when the animal is deficient in either Ca or P. It has been suggested that better results of vitamin D3 use in modern swine diets could be achieved in pregnant and lactating sow diets (Witschi et al., 2011). This is because piglets from such sows recorded significantly improved vitamin D status with added benefits on growth performance. Similar results have since been supported by Upadhaya et al. (2021). Additionally, the immaturity of hepatic 25-hydroxylase- the enzyme responsible for converting vitamin D3 into its main circulating form (calcidiol) has been noted in newborns (Hollis et al., 1996).
Conclusion
Generally, it was noted that better growth performance was achieved with Ca : STTD P ratios closer to NRC (2012) standards in the PC diets. Deficiencies and imbalances of Ca and P should be avoided. The overall conclusion of this study highlights the relevance of maintaining the adequate recommended Ca : STTD P ratios while exploiting the use of available feed additives such as phytase at super dose levels for notable improvements in the feed conversion efficiency. No major effects were observed with vitamin D supplementation.

This article was originally published in Korean Journal of Agricultural Science 48:397-412. https://doi.org/10.7744/kjoas.20210030. This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0/).

Adam JS, Hewison M. 2010. Update in vitamin D. Journal of Clinical Endocrinology and Metabolism 95:471-478.
Adhikari PA, Heo JM, Nyachoti CM. 2015. True and standardized total tract phosphorus digestibility in canola meals from Brassica napus black and Brassica juncea yellow fed to growing pigs. Journal of Animal Science 93:209-216.
AOAC (Association of Official Analytical Chemists). 2005. Official methods of analysis of the Association of Official
Analytical Chemists International, 17th ed. AOAC International, Arlington, VA, USA.
Applegate TJ, Angel R, Classen HL. 2003. Effect of dietary calcium, 25-hydroxycholecalciferol, or bird strain on small intestinal phytase activity in broiler chickens. Poultry Science 82:1140-1148.
Becker SL, Gould SA, Petry AL, Kellesvig LM, Patience JF. 2020. Adverse effects on growth performance and bone development in nursery pigs fed diets marginally deficient in phosphorus with increasing calcium to available phosphorus ratios. Journal of Animal Science 98:1-8.
Bedford MR, Rousseau X. 2017. Recent findings regarding calcium and phytase in poultry nutrition. Animal Production
Science 57:2311-2316.
Bedford MR, Schulze H. 1998. Exogenous enzymes for pigs and poultry. Nutrition Research Reviews 11:91-114.
Beers S, Jongbloed AW. 1992. Effect of supplementary aspergillus-niger phytase in diets for piglets on their performance and apparent digestibility of phosphorus. Animal Science 55:425-430.
Bougouin A, Appuhamy JADRN, Kebreab E, Dijkstra J, Kwakkel RP, France J. 2014. Effects of phytase supplementation on phosphorus retention in broilers and layers: A meta-analysis. Poultry Science 93:1981-1992.
Bouillon R, Van Cromphaut S, Carmeliet G. 2003. Intestinal calcium absorption: Molecular vitamin D mediated mechanisms. Journal of Cellular Biochemistry 88:332-339.
Bronner F. 2003. Mechanisms of intestinal calcium absorption. Journal of Cellular Biochemistry 88:387-393.
Choct M. 2006. Enzymes for the feed industry: Past, present and future. Worlds’ Poultry Science Journal 62:5-16.
Cowieson A, Wilcock P, Bedford M. 2011. Super-dosing effects of phytase in poultry and other monogastrics. World's
Poultry Science Journal 67:225-236.
Delezie E, Bierman K, Nollet L, Maertens L. 2015. Impacts of calcium and phosphorus concentration, their ratio, and phytase supplementation level on growth performance, foot-pad lesions and hock burn of broiler chickens.
Journal of Applied Poultry Research 24:115-126.
DeLuca HF. 1976a. Recent advances in our understanding of the vitamin D endocrine system. The Journal of
Laboratory and Clinical Medicine 87:7-26.
DeLuca HF. 1976b. Metabolism of vitamin D: Current status. The American Journal of Clinical Nutrition 29:1258-1270.
DeLuca HF. 1979. The D vitamins and their precursors. In vitamin D. pp. 8-10. Springer, Berlin, Heidelberg, Germany.
Dersjant-Li Y, Awati A, Schulze H, Partridge G. 2015. Phytase in non-ruminant animal nutrition: A critical review on phytase activities in the gastrointestinal tract and influencing factors. Journal of the Science of Food and
Agriculture 95:878-896.
Dittmer KE, Thompson KG. 2011. Vitamin D metabolism and rickets in domestic animals: A review. Veterinary
Pathology 48:389-407.
Driver JP, Pesti GM, Bakalli RI, Edwards Jr HM. 2005. Effects of calcium and non-phytate phosphorus concentrations on phytase efficacy in broiler chicks. Poultry Science 84:1406-1417.
Eklou-Kalonji E, Zerath E, Colin C, Lacroix C, Holy X, Denis I, Pointillart A. 1999. Calcium regulating hormones, bone mineral content, breaking load and trabecular remodelling are altered in growing pigs fed calcium-deficient diets.
The Journal of Nutrition 129:188-193.
Ekpe ED, Zijlstra RT, Patience JF. 2002. Digestible phosphorus requirement of grower pigs. Canadian Journal of Animal
Science 82:541-549.
Engelen AJ, Van Der Heeft FC, Randsdorp PHG, Smtt ELC. 1994. Simple and rapid determination of phytase activity.
Journal of AOAC International 77:760-764.
Fleet JC, Schoch RD. 2010. Molecular mechanisms for regulation of intestinal calcium absorption by vitamin D and other factors. Critical Reviews in Clinical Laboratory Sciences 47:181-195.
Flohr JR, Goodband RD, Tokach MD, Langbein KB, Dritz SS, DeRouchey JM, Woodworth J. 2014a. Influence of a super dose of phytase on finishing pig performance and carcass characteristics. Journal of Animal Science 92:149.
Flohr JR, Tokach MD, Dritz SS, DeRouchey JM, Goodband RD, Nelssen JL, Henry SC, Tokach LM, Potter ML,
Goff JP, Koszewski NJ, Horst RL, Hansen EL, Fruge ED. 2014b. Effects of supplemental vitamin D3 on serum
25-hydroxycholecalciferol and growth of preweaning and nursery pigs. Journal of Animal Science 92:152-163.
Gadde U, Kim WH, Oh ST, Lillehoj HS. 2017. Alternatives to antibiotics for maximizing growth performance and feed efficiency in poultry: A review. Animal Health Research Reviews 18:26-45.
Gonzalez-Vega JC, Walk CL, Murphy MR, Stein HH. 2016. Requirement for digestible calcium by 25 to 50 kg pigs at different dietary concentrations of phosphorus as indicated by growth performance, bone ash concentration, and calcium and phosphorus balances. Journal of Animal Science 94:5272-5285.
Gourley KM, Woodworth JC, DeRouchey JM, Dritz SS, Tokach MD, Goodband RD. 2018. Effect of high doses of
Natuphos E 5,000 G phytase on growth performance of nursery pigs. Journal of Animal Science 96:570-578.
Gutierrez NA, Serão NVL, Elsbernd AJ, Hansen SL, Walk CL, Bedford MR, Patience JF. 2015. Quantitative relationships between standardized total tract digestible phosphorus and total calcium intakes and their retention and excretion in growing pigs fed corn-soybean meal diets. Journal of Animal Science 93:2174-2182.
Heaney RP, Nordin BEC. 2002. Calcium effects on phosphorus absorption: implications for the prevention and cotherapy of osteoporosis. Journal of the American College of Nutrition 21:239-244.
Hollis BW, Lowery JW, Pittars 3rd WB, Guy DG, Hansen JW. 1996. Effect of age on the intestinal absorption of vitamin
D3-palmitate and non-esterified vitamin D2 in the term human infant. The Journal of Clinical Endocrinology &
Metabolism 81:1385-1388.
Holloway CL, Boyd RD, Koehler D, Gould SA, Li Q, Patience JF. 2018. The impact of “Super-dosing” phytase in pig diets on growth performance during the nursery and grow-out periods, Translational Animal Science 3:419-428.
Horst RL, Littledike ET. 1982. Comparison of plasma concentrations of vitamin D and its metabolites in young and aged domestic animals. Comparative Biochemistry and Physiology. B, Comparative Biochemistry 73:485-489.
Horst RL, Littledike ET, Riley JL, Napoli JL. 1981. Quantitation of vitamin D and its metabolites and their plasma concentrations in five species of animals. Analytical Biochemistry 116:189-203.
Humer E, Schwarz C, Schedle K. 2015. Phytate in pig and poultry nutrition. Journal of Animal Physiology and Animal
Nutrition 99:605-625.
Kaune R. 1996. Mechanisms of intestinal calcium absorption and availability of dietary calcium in pigs. Deutsche
Tierarztliche Wochenschrift 103:215-218.
Kiarie E, Romero LF, Nyachoti CM. 2013. The role of added feed enzymes in promoting gut health in swine and poultry.
Nutrition Research Reviews 26:71-88.
Kiarie E, Walsh MC, Nyachoti CM. 2016. Performance, digestive function, and mucosal responses to selected feed additives for pigs. Journal of Animal Science 94:169-180.
Kies AK, Kemme PA, Sebek LB, Van Diepen JTM, Jongbloed AW. 2006. Effect of graded doses and a high dose of microbial phytase on the digestibility of various minerals in weaner pigs. Journal of Animal Science 84:1169-1175.
Kies AK, Van Hemert KHF, Sauer WC. 2001. Effect of phytase on protein and amino acid digestibility and energy utilisation. World’s Poultry Science Journal 57:109-126.
Lagos LV, Lee SA, Fondevila G, Walk CL, Murphy MR, Loor JJ, Stein HH. 2019a. Influence of the concentration of dietary digestible calcium on growth performance, bone mineralization, plasma calcium, and abundance of genes involved in intestinal absorption of calcium in pigs from 11 to 22kg fed diets with different concentrations of digestible phosphorus. Journal of Animal Science and Biotechnology 10:1-16.
Lagos LV, Walk CL, Murphy MR, Stein HH. 2019b. Effects of dietary digestible calcium on growth performance and bone ash concentration in 50- to 85-kg growing pigs fed diets with different concentrations of digestible phosphorus.
Animal Feed Science and Technology 247:262-272.
Létourneau-Montminy MP, Jondreville C, Sauvant D, Narcy A. 2012. Meta-analysis of phosphorus utilization by growing pigs: Effect of dietary phosphorus, calcium and exogenous phytase. Animal 6:1590-1600.
Létourneau-Montminy MP, Narcy A, Dourmad JY, Crenshaw TD, Pomar C. 2015. Modeling the metabolic fate of dietary phosphorus and calcium and the dynamics of body ash content in growing pigs. Journal of Animal Science
93:1200-1217.
Lindemann MD, Kim BG. 2007. A model to estimate individual feed intake of swine in group feeding. Journal of Animal
Science 85:972-975.
Lopez AG, Kerlan V, Dessailloud R. 2020. Non-classical effects of vitamin D: Non-bone effects of vitamin D. Annales d'Endocrinologie 82:43-51.
Madson DM, Ensley SM, Gauger PC, Schwartz KJ, Stevenson GW, Cooper VL, Janke BH, Burrough ER, Goff JP, Horst RL.
2012. Rickets: Case series and diagnostic review of hypovitaminosis D in swine. Journal of Veterinary Diagnostic
Investigation 24:1137-1144.
Mahamid J, Aichmayer B, Shimoni E, Ziblat R, Li C, Siegel S, Paris O, Fratzl P, Weiner S, Addadi L. 2010. Mapping amorphous calcium phosphate transformation into crystalline mineral from the cell to the bone in zebrafish fin rays. Proceedings of the National Academy of Sciences 107:6316-6321.
Merriman LA, Walk CL, Murphy MR, Parsons CM, Stein HH. 2017. Inclusion of excess dietary calcium in diets for 100- to 130-kg growing pigs reduces feed intake and daily gain if dietary phosphorus is at or below the requirement.
Journal of Animal Science 95:5439-5446.
Molin A, Wiedemann A, Demers N, Kaufmann M, Do Cao J, Mainard L, Dousset B, Journeau P, Abeguile G, Coudray N,
Mittre H, Richard N, Weryha G, Sorlin A, Jones G, Kottler ML, Feillet F. 2017. Vitamin D-dependent rickets type 1B (25-hydroxylase deficiency): A rare condition or a misdiagnosed condition? Journal of Bone and Mineral Research
32:1893-1899.
Murshed M. 2018. Mechanism of bone mineralization. Cold Spring Harbor Perspectives in Medicine 8:a031229.
NRC (National Research Council). 1998. Nutrient requirements of swine, 10th edition. National Academy Press,
Washington, D.C., USA.
NRC (National Research Council). 2001. Nutrient requirements of dairy cattle, 7th edition. National Academy Press,
Washington, D.C., USA.
NRC (National Research Council). 2005. Mineral tolerance of animals, 2nd edition. National Academy Press,
Washington, D.C., USA.
NRC (National Research Council). 2012. Nutrient requirements of swine, 11th edition. National Academy Press,
Washington, D.C., USA.
Oketch EO, Cho HM, Hong JS, Kim YB, Nawarathne SR, Yu M, Heo JM, Yi YJ. 2021. Mixed and separate gender feeding influenced the growth performance for two lines of Korean native chickens when compared to a white semibroiler and a commercial broiler from day 1 to 35 post-hatch. Korean Journal of Agricultural Science 48:171-178.
Olsen KM, Gould SA, Walk CL, Serão NVL, Hansen SL, Patience JF. 2019. Evaluating phosphorus release by phytase in diets fed to growing pigs that are not deficient in phosphorus. Journal of Animal Science 97:327-337.
Oster M, Just F, Büsing K, Wolf P, Polley C, Vollmar B, Muráni E, Ponsuksili S, Wimmers K. 2016. Toward improved phosphorus efficiency in monogastrics-interplay of serum, minerals, bone, and immune system after divergent dietary phosphorus supply in swine. American Journal of Physiology-Regulatory, Integrative and Comparative
Physiology 310:R917-R925.
Pallauf J, Rimbach G. 1996. Effect of supplemental phytase on mineral and trace element bioavailability and heavy metal accumulation in pigs with different type diets. Phytase in animal nutrition and waste management. pp. 451-
465. BASF Corporation, Mount Olive, USA.
Patience JF. 2017. The theory and practice of feed formulation. In Feed Evaluation Science edited by Moughan P,
Lange KD, Hendriks W. pp. 457-490. Wageningen Academic Press, Wageningen, Netherlands.
Peo Jr ER. 1991. Calcium, phosphorus, and vitamin D in swine nutrition. In Swine Nutrition. pp. 165-182. ButterworthHeinemann, Oxford, UK.
Pérez AV, Picotto G, Carpentieri AR, Rivoira MA, López MEP, De Talamoni NGT. 2008. Minireview on regulation of intestinal calcium absorption. Digestion 77:22-34.
Pravina P, Sayaji D, Avinash M. 2013. Calcium and its role in the human body. International Journal of Research in
Pharmaceutical and Biomedical Sciences 4:659-668.
Qian H, Kornegay ET, Denbow DM. 1997. Utilization of phytate phosphorus and calcium as influenced by microbial phytase, cholecalciferol, and the calcium: Total phosphorus ratio in broiler diets. Poultry Science 76:37-46.
Ravindran V. 2013. Feed enzymes: The science, practice, and metabolic realities. Journal of Applied Poultry Research
23:628-636.
Ravindran V, Bryden WL, Kornegay ET. 1995. Phytates: Occurrence, bioavailability and implications in poultry nutrition.
Poultry and Avain Biology Reviews 6:126-143.
Ravindran V, Cowieson AJ, Selle PH. 2008. Influence of dietary electrolyte balance and microbial phytase on growth performance, nutrient utilization, and excreta quality of broiler chickens. Poultry Science 87:677-688.
Ravindran V, Ravindran G, Sivalogan S. 1994. Total and phytate phosphorus contents of various foods and feedstuffs of plant origin. Food Chemistry 50:133-136.
Reinhart GA, Mahan DC. 1986. Effect of various calcium: phosphorus ratios at low and high dietary phosphorus for starter, grower and finishing swine. Journal of Animal Science 63:457-466.
Saraiva A, Donzele JL, Oliveira RFM, Abreu MLT, Silva FCO, Guimarães SEF, Kim SW. 2012. Phosphorus requirements for 60- to 100-kg pigs selected for high lean deposition under different thermal environments. Journal of Animal
Science 90:1499-1505.
Selle PH, Cowieson AJ, Ravindran V. 2009. Consequences of calcium interactions with phytate and phytase for poultry and pigs. Livestock Science 124:126-141.
Selle PH, Ravindran V. 2007. Microbial phytase in poultry nutrition. Animal Feed Science and Technology 135:1-41.
Selle PH, Ravindran V. 2008. Phytate-degrading enzymes in pig nutrition. Livestock Science 113:99-122.
Singh PK. 2008. Significance of phytic acid and supplemental phytase in chicken nutrition: A review. World’s Poultry
Science Journal 64:553-557.
Stein HH, Adeola O, Cromwell GL, Kim SW, Mahan DC, Miller PS. 2011. Concentration of dietary calcium supplied by calcium carbonate does not affect the apparent total tract digestibility of calcium but decreases digestibility of phosphorus by growing pigs. Journal of Animal Science 89:2139-2144.
Stein HH, Kadzere CT, Kim SW, Miller PS. 2008. Influence of dietary phosphorus concentration on the digestibility of phosphorus in monocalcium phosphate by growing pigs. Journal of Animal Science 86:1861-1867.
Tahir M, Shim MY, Ward NE, Smith C, Foster E, Guney AC, Pesti GM. 2012. Phytate and other nutrient components of feed ingredients for poultry. Poultry Science 91:928-935.
Tousignant SJP, Henry SC, Rovira A, Morrison RB. 2013. Effect of oral vitamin D3 supplementation on growth and serum 25-hydroxy vitamin D levels of pigs up to 7 weeks of age. Journal of Swine Health and Production 21:94-98.
Upadhaya SD, Jung YJ, Kim YM, Chung TK, Kim IH. 2021. Effects of dietary supplementation with 25-OH-D3 during gestation and lactation on reproduction, sow characteristics and piglet performance to weaning:
25-hydroxyvitamin D3 in sows. Animal Feed Science and Technology 271:114732. van de Graaf SFJ, Boullart I, Hoenderop JGJ, Bindels RJM. 2004. Regulation of the epithelial Ca2+ channels TRPV5 and
TRPV6 by 1α,25-dihydroxy vitamin D3 and dietary Ca2+. The Journal of Steroid Biochemistry and Molecular Biology
89:303-308.
Walk CL, Bedford MR, Santos TS, Paiva D, Bradley JR, Wladecki H, Honaker C, McElroy AP. 2013. Extra-phosphoric effects of superdoses of a novel microbial phytase. Poultry Science 92:719-725.
Witschi AK, Liesegang A, Gebert S, Weber GM, Wenk C. 2011. Effect of source and quantity of dietary vitamin D in maternal and creep diets on bone metabolism and growth in piglets. Journal of Animal Science 89:1844-1582.
Woyengo TA, Nyachoti CM. 2011. Supplementation of phytase and carbohydrases to diets for poultry. Canadian
Journal of Animal Science 91:177-192.
Wu F, Tokach MD, Dritz SS, Woodworth JC, DeRouchey JM, Goodband RD, Gonçalves MAD, Bergstrom JR. 2018. Effects of dietary calcium to phosphorus ratio and addition of phytase on growth performance of nursery pigs. Journal of
Animal Science 96:1825-1837.
Wu F, Woodworth JC, Tokach MD, Dritz SS, DeRouchey JM, Goodband RD, Bergstrom JR. 2019. Standardized total tract digestible phosphorus requirement of 6 to 13 kg pigs fed diets without or with phytase. Animal 13:2473-2482.
Zanu HK, Kheravii SK, Morgan NK, Bedford MR, Swick RA. 2020. Interactive effect of dietary calcium and phytase on broilers challenged with subclinical necrotic enteritis: Part 2. Gut permeability, phytate ester concentrations, jejunal gene expression, and intestinal morphology. Poultry Science 99:4914-4928.
Zeng ZK, Wang D, Piao XS, Li PF, Zhang HY, Shi CX, Yu SK. 2014. Effects of adding super dose phytase to the phosphorus-deficient diets of young pigs on growth performance, bone quality, minerals and amino acids digestibilities. Asian-Australasian Journal of Animal Sciences 27:237-246.
Zhang F, Adeola O. 2017. True is more additive than apparent total tract digestibility of calcium in limestone and dicalcium phosphate for twenty-kilogram pigs fed semipurified diets. Journal of Animal Science 95:5466-5473.

Related topics:
Authors:
Oketch Elijah Ogola
Chungnam National University
Chungnam National University
Jung Min Heo
Chungnam National University
Chungnam National University
Recommend
Comment
Share
Profile picture
Would you like to discuss another topic? Create a new post to engage with experts in the community.
Featured users in Pig Industry
Sriraj Kantamneni
Sriraj Kantamneni
Cargill
Global Business Technology Director
United States
Francis Simard
Francis Simard
Trouw Nutrition
Agr., M. Sc. / Nutrition and Development Director at Trouw Nutrition Canada
United States
Tom Frost
Tom Frost
DSM-Firmenich
Director of Innovation & Application
United States
Join Engormix and be part of the largest agribusiness social network in the world.
