Evaluation of Wisprec Advanced Spray and Certain Phytopharmaceutical Prototypes for their Topical Anti-inflammatory Effect

Inflammation and pain in dairy animals is manifestation of numerous disease related conditions influencing the overall animal well-being as well as their productive and reproductive capabilities. Mastitis  is defined as the inflammation of the mammary gland [1] and udder tissue and is one of the major endemic diseases of dairy cattle [2]. It typically occurs as an immune response against the bacterial invasion to the teat canal by variety of bacterial and other infectious sources. It also occurs as a consequence of chemical, mechanical or thermal injury [3, 4] to the cow’s udder. There will be visible changes in the udder as a result of disease and significant alterations in the appearance, production and quality of milk.

In mastitis, inflammatory reaction is the outcome of glandular and the alveolar tissues damage, initiating the series of reaction at the cellular and molecular level. The cellular damage leads to the synthesis of prostaglandins which are potent inflammation mediators. They produce multiple responses like hyperalgesia, vasodilation and increase in permeability of blood vessels resulting in to erythema, oedema, pain and heat. White blood cells  (leukocytes) are liberated into teat canal and udder tissues in response to bacterial invasion and even appear in the milk in the form of somatic cells. Milksecreting cells and other lobular ducts all throughout the mammary gland system are destroyed by bacterial toxins with the visible reduction in milk yield and sometimes may cause the permanent damage to the udder tissues with permanent loss in milk production. Symptoms of clinical mastitis can be acute or chronic; the severely acute cases are often fatal but even in dairy animals that recover from the clinical condition there are the consequences of decreased milk production and the chances of reoccurrence of the disease in the rest of the lactation period and subsequent lactations.

Treatment and management of mastitis relies on attenuation of pain and inflammation since majority of the physiological changes and pathological lesions [5] associated with clinical mastitis are result of the inflammatory reaction to infection. Using anti-inflammatory agents to alleviate the inflammation and pain help inhibiting the further tissue damage. They check the spread of the infection, make management easier, hasten recovery from ailment and ensure good quality milk securing economical and welfare benefits to animals and dairy farmers.

Glucocorticoids (GC) and Non-Steroidal AntiInflammatory Drugs (NSAIDs) are the classical antiinflammatory agents frequently used in treatment and management of bovine mastitis disease. These agents reduce inflammation (anti-inflammatory), reduce pain (analgesic), reduce pain sensitivity (antihyperalgesic) and decrease overall body temperature (antipyretic).They inhibit eicosanoid production by checking arachidonic acid release (GC) and metabolism (NSAIDs) [6] and thus inhibit cyclooxygenase (COX) pathway and prostaglandin synthesis.

However, indiscriminate use and long term administrations of NSAID are substantially associated with high risk of lethal and toxic adverse effects causing gastric ulcers [7] and severe gastrointestinal mucosa damage [8] due to the inactivation of the protective cyclooxygenase enzyme-1 (COX-10) in gastric mucosa [3, 9]. In addition to that synthetic systemic antiinflammatory formulations are quite expensive and repetition of the doses makes the treatment probably cost-prohibitive. Also many reports have suggested that there are certain categories of prescribed antiinflammatory drugs which are not labeled for their application in lactating dairy herds. It further raises the concern about the appearance of these drug residues in milk and meat making it unfit for human consumption.

In recent years, extensive research studies and pharmacological evaluation of active principles of distinct herbal species and families, used in Indian traditional system of medicine have unveiled the remarkable potency and efficacy of herbal medication in effective management of pain and inflammatory conditions. The additional advantages and benefits of indigenous ancient medicinal therapy substantiate its complementary nature to the conventional treatment. They produce minimal side effects, are well tolerated and economical remedy for inflammatory disease conditions [9, 10]. Various plant extracts and essential oils derived from plants species with formerly unknown pharmacological activities have exhibited the significant analgesic and anti-inflammatory effect in animal models used in pharmacological studies. Their effects have been anticipated owing to the presence of secondary plant metabolites (phytochemicals) monoterpenoids triterpenoids, alkaloids, glycosides, flavonoids, tannins, saponins, glucosinolates and sterols etc.

With this viewpoint and growing acceptance of alternative herbal therapy, the present investigation was undertaken to comparatively evaluate the poly herbal formulations for their possible potency and efficacy in the alleviation and management of pain and inflammation.

The polyherbal formulation NR-WR-01 contains extracts of herbs viz. Cymbopogon citratus, Ocimum sanctum and Cucurma longa, NR-W1-01 (WISPREC ADVANCED SPRAY) contains Eucalyptus globulus Ocimum sanctum, Ricinus communis, Menthol and NRMP-01 contains extracts of Eucalyptus globulus, Cucurma longa, Paedaria foetida, Glycyrrhiza glabra, Cedrus deodara.

TPA-induced mouse ear edema method [11] had been used to evaluate the anti-inflammatory activity of the phytopharmaceutical formulations. TPA was obtained from Sigma., USA. Animals were procured from CPCSEA certified supplier and were housed at institute’s animal house for quarantine before experiment. Animals were grouped in to three groups comprising seven animals in each. Edema was induced in ears of each mouse by the topical application of 2 μg TPA dissolved in 20 μL of acetone to both the inner and outer ear surfaces. Thirty minutes after the application of TPA, the inner and outer surface of right ear was treated with test candidate (10mg). The left ear was left untreated and considered as reference control. The test candidate’s ability to reduce the inflammation was taken as measure for calculating the anti-inflammatory activity and was detected by measuring change in ear edema thickness. The thickness of ear was measured using a micrometer (Mitutoyu PK-1025) before applying TPA and at 4hrs and 24hrs after TPA application. The measurement was taken near the top of the ear distal to the cartilaginous ridges. Rubor (redness) at the site of inflammation was measured visually and scored among the groups.

The TPA induced edema in right treated ear was compared with left untreated ear and analyzed by using student ‘t’ test with the significance set at 0.05. The results had been expressed as mean ± SEM. Statistics were calculated with the help of online GraphPad statistical software.

TPA induced edema in applied ears of mice in all groups. The edema observed after 4 hours of TPA application was found to be low in treated ears of two groups; NR-WI-01 and NR-WR-01 whereas edema increased in one group treated with NR-MP-01. Out of all the formulations tested NR-WI-01 was found to be most effective in reducing topical inflammation induced by TPA by up to 55% at 4 hrs. (Table 1 and Fig.1). After 24 hrs, all the formulations seemed to be protective and showed antiinflammatory activity. It was interesting to note that NRMP-01 an ointment which did not show any protection at 4 hrs. interval had shown protection up to 38% closer to 44% offered by NR-WR-01 which is a liquid formulation whereas NR-WI-01 had shown the highest protection of up to 68% a day after TPA application (Table 2 and Fig. 2).

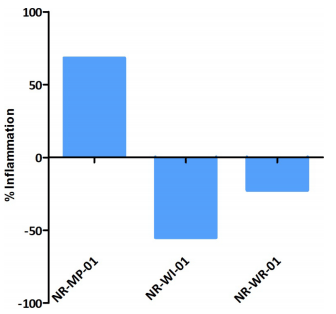

Fig. 1. Percentage inhibition of topical inflammation at 4hrs interval after TPA application by three herbal formulations.

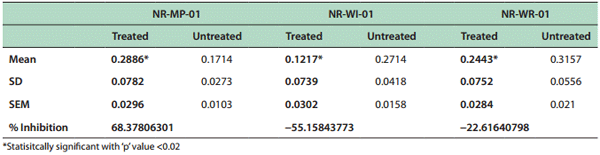

Table 1: Showing TPA induced edema in treated ears and control ears after 4hrs of TPA application

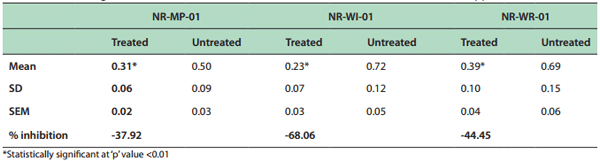

Table 2: Showing TPA induced edema in treated ears and control ears after 24hrs of TPA application



Fig. 2. Percentage inhibition of topical inflammation at 24hrs interval after TPA application by three herbal formulations.

Rubor (Redness): One of the cardinal signs of inflammation is rubor due to increased blood supply to the site of damage. During the study period the ears of all groups were visually observed, scored and were found that mice treated with NR-WI-01 had less reddening of the ears compared to other groups indicating low inflammation. (Fig. 3)

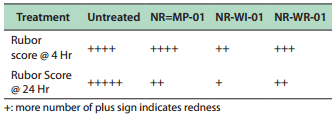

Table 3: Rubor scoring measured visually by investigator (Higher the + means higher the rubor)



Fig. 3. Photographs showing rubor in each treated group mouse.

NR-WI-01 (Wisprec Advanced) is an unique combination of essential oils of Eucalyptus globulus, Ocimum sanctum and menthol formulated in castor oil base. It is a clinically proven and excellent aerosol spray endowed with potent anti-inflammatory activity and helps in the effective management of pain and inflammation in clinical mastitis [18]. The oils derived from Eucalyptus globulus have magnificent anti-inflammatory action which is well demonstrated by Silva J et al., in the variety of animal models [12]. They proposed that the oils of Eucalyptus globulus have analgesic property through peripheral and central actions.

The phytochemical active principle possessing the anti-inflammatory effect in eucalyptus oil is identified as 1, 8 Cineole. A variety of biological models studies have indicated the potent anti-inflammatory effect of 1, 8 cineole. Takaishi M et al., have shown that 1, 8 cineole is a novel natural antagonist of TRPA-1 receptors [13]. TRPA-1 receptors are known to be involved in processing noxious cold temperature signals. These receptors are also known to be involved in inflammatory processes. Molecular mechanism studies have shown that 1, 8 cineole inhibits the activity of NF-kappa B, a key regulator of inflammation in cells. More specifically 1,8 cineole has been shown using reporter gene assays to prevent the translocation of NF-kappa B P65, which plays a vital role in initiating gene expression of proteins involved in inflammation [14]. Production of tumor necrosis factor-alpha, interleukin-1beta, leukotriene B4 and thromboxane B2 are also inhibited by 1,8 cineole in monocytes stimulated by LPS [15].

Eugenol a phenylpropanoid found in essential oil of Ocimum sanctum has been shown to inhibit prostaglandin E2 in lipopolysaccharide stimulated RAW 264.7 cells. Eugenol also inhibits the cyclooxygenase-2 gene expression in LPS stimulated macrophages. Thus, inhibition of cycloxygenase pathway may be the mechanism of action of Ocimum sanctum essential oil [16]. The essential oil extract, menthol present in NR –WI-01 (Wisprec Advanced spray) is well known for its cooling and local anesthetic effect. Menthol is also reported to have local anesthetic effect in vivo in the rabbit conjunctivial reflex test and in vitro in a rat phrenic nerve hemidiapharagm preparation [17]. The probable mechanism of action of Wisprec advanced spray as deduced from its ingredients and phytochemical actives is summarized in Fig. 4.

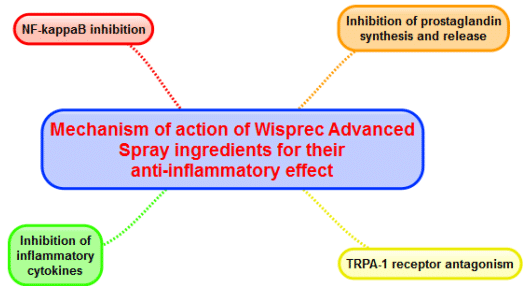

Fig. 4. Illustration of mechanism of action of active principles present in Wisprec Advanced Spray

Udder inflammation and pain are the classical manifestations in bovine clinical mastitis. Among all the three topical anti-inflammatory formulations compared, NR-WI-01 (Wisprec Advanced Spray) is found to be most potent. It is clinically proven to reduce udder inflammation, it is further supported by the current invivo study. 1, 8-Cineole, Eugenol and Menthol are the key phytochemical active principles present in Wisprec advanced spray

1. Gianneechini R, Concha C, Rivero R, Delucci I, Lopez JM. Occurrence of clinical and sub-clinical mastitis in Dairy herds in the west littoral region in Uruguay. Acta Vet Scand. 2002; 43:221–30.

2. Available from: http://www.dairyco.org.uk/

3. Kaushik D, Kumar A, Kaushik P, Rana AC. Analgesic and Anti-Inflammatory Activity of  Pinus roxburghii  Sarg. Advances in Pharmacological Sciences. 2012; 2012:1–6. (Article ID: 245431).

4. Oyedapo OA, Adewunmi CO, Iwalewa EO, Makanju VO. Analgesic, antioxidant and anti-inflammatory related activities of 2-hydroxy-2,4-dimethoxychalcone and 4-hydroxychalcone in mice. J Biol Sci. 2008; 8(1):131–6.

5. Kulkarni PA, Kewatkar S, Lande MD, Phanse MA, Chaudhari PD. Topical anti-inflammatory activity of herbal gel formulation. Der Pharma Chemica. 2010; 2(3):338–42.

6. Morin DE. Beyond antibiotics – what else can we do. University of Illinois Urbana, Illinois. NMC Annual Meeting Proceedings. 2004.

7. Paviaya US, Kumar P,  Wanjari MM,  Thenmozhi S, Balakrishnan BR. Analgesic and anti-inflammatory activity of root bark of Grewia asiatica Linn. in rodents. Anc Sci Life. 2013; 32(3):150–5.

8. Chokshi KS, Ladola DB, Suthar JS, Solanki AJ, Patel S, Ahir KB. To prepare a poly herbal formulation containing pluchea lanceolata and vitex negundo and evaluate its anti-inflammatory activity by topical application. Am J Pharm Tech. 2012; 2(4):2249–338.

9. Benni JM, Jayanthi MK, Suresha RN. Evaluation of the anti-inflammatory activity of Aegle marmelos  (Bilwa) root. Indian J Pharmacol. 2011; 43(4):393–7.

10. Ashraf S, Munawar MS, Srivastav MK, Sayeed M, Ahmed F, Lakshman D. Evaluation of anti-inflammatory activities with aerial part extracts of cassia sophera (linn) in wistar rats. International Journal of Technical Research and Applications. 2013; 1(3):103–6.

11. Bralley EE, Greenspan P, Hargrove JL, Wicker L, Hartle DK. Topical anti-inflammatory activity of Polygonum cuspidatum extract in the TPA model of mouse ear inflammation. J Inflamm (Lond). 2008 Feb 8; 5:1.

12. Silva J, Abebe W, Sousa SM, Duarte VG, Machado MIL, Matos FJA. Analgesic and anti-inflammatory effects of essential oils of Eucalyptus. J Ethnopharmacol. 2003 Sep 1; 89: 277–83.

13. Takaishi M, Fujita F, Uchida K, Yamamoto S, Sawada M, Hatai C, Shimizu M, Tominaga M. 1, 8-cineole, a TRPM8 agonist, is a novel natural antagonist of human TRPA1. Molecular Pain. 2012; 8:86.

14. Greiner JFW, Müller J, Theres Zeuner M, Hauser S, Seidel T, Klenke C, Grunwald LM, Schomann T, Widera D, Sudhoff H, Kaltschmidt B, Kaltschmidt C. 1,8-Cineol inhibits nuclear translocation of NF-κB p65 and NF-κB-dependent transcriptional activity. Biochim Biophys Acta. 2013; 1833:2866–78.

15. Juergens UR, Stober M, Vetter H. Inhibition of cytokine production and arachidonic acid metabolism by eucalyptol(1,8-cineole) in human blood monocytes in vitro. Eur J Med Res. 1998 Nov 17; 3(11):508–10.

16. Kim SS, Oha OJ, Mina HY, Parka EJ, Kima Y, Parka HJ, Hanb YN, Leea SK. Eugenol suppresses cyclooxygenase-2 expression in lipopolysaccharide-stimulated mouse macrophage RAW264.7 cells. Life Sciences. 2003 Jan 28; 73:337– 48.

17. Galeotti N, Ghelardini C, Mannelli LD, Mazzanti G, Baghiroli L, Bartolini A. Local Anaesthetic Activity of (+)- and (±)-Menthol. Planta Med. 2001 Mar; 67(2):174–6.

18. Shinde AS, Shete SM, D’Souza P. Evaluation of polyherbal aerosol formulation as supportive treatment for clinical mastitis in dairy cows. Indian Vet J. 2014; 91(02):41–2.
