Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk

1. Introduction

Lameness is one of the most significant diseases currently impacting on dairy cow health, welfare and productivity (Huxley, 2013). Since a first occurrence of lameness increases the future risk of lameness (Hirst et al., 2002; Green et al., 2014; Randall et al., 2015), lameness in dairy heifers has the potential to have a severe impact on their overall lifetime performance within the herd. The significance of this is most pronounced when considering the high prevalence of lesions in heifers (Manske et al., 2002; Capion et al., 2009; Maxwell et al., 2015). Capion et al. (2009) found the prevalence of moderate to severe sole haemorrhage and white line lesions in 147 Danish Holstein heifers was 55% and 72% at 1–100 days in milk (DIM) respectively and the prevalence of digital dermatitis (DD) peaked at 39% at 0–100 DIM. Similarly, Maxwell et al. (2015) reported that 95% of a cohort of 139 Holstein dairy heifers being trimmed at between 50 and 80 days post-partum had some pathology on at least one claw. Lameness in the first lactation has been associated with a doubling of the hazard for lameness in the second lactation (Hirst et al., 2002). Consequently, Bell et al. (2009) suggested that a critical control point for lameness in dairy cattle should aim to prevent claw horn lesions and digital dermatitis in heifers. The transition period, around the time of calving, has been identified as an important risk period, with increased stress related to physiological changes, social factors and changes in housing that impact on the risk of lameness occurring in heifers (Tarlton et al., 2002; Bergsten et al., 2015). Webster (2002) reported that heifers housed in straw yards for eight weeks after calving before being moved to cubicle housing resulted in less severe sole haemorrhages compared to heifers introduced to cubicle housing four weeks before calving. This finding demonstrated that housing practices around the time of calving affect the development of foot lesions in dairy heifers. The impact of lesions in heifers on longterm lameness is not yet known and could have major implications for the future health and welfare of the dairy herd.

Lameness in dairy cows has also been demonstrated to be associated with significant impacts on performance, such as reduced milk yield and increased culling risk (Booth et al., 2004; Amory et al., 2008). For other diseases, such as mastitis, it has been shown that disease occurring in heifers affects lifetime performance, for example, an increase in somatic cell count in heifers in early lactation negatively impacts on lifetime milk yield (Archer et al., 2013). This relationship may also be true for lameness, but has not yet been fully explored.

This study aimed to investigate the long-term impacts of hoof lesions that occur around the time of first calving in heifers, on lameness, daily milk yield and culling risk. A retrospective cohort study using mixed effect logistic regression and linear regression models was conducted to test the null hypothesis that hoof lesions occurring around the time of first calving in heifers have no impact on future lameness risk, average daily milk yield and culling risk in one UK dairy herd.

2. Materials and methods

2.1. Study herd

Records for 158 Holstein Friesian heifers that calved for the first time between August 2003 and March 2006 were obtained from the Scotland’s Rural College (SRUC) Dairy Research and Innovation Centre in Dumfries, Scotland. Lifetime data for these animals were collected from September 2003 to August 2011. The SRUC centre has two pedigree research herds which are based at the same site; the ‘Langhill’ systems herd and ‘Acrehead’ herd. Cows remained within the Langhill herd for typically 3 lactations, after which they were moved to Acrehead, however, if no replacement heifers were due to calve within 2 months, the cow remained at Langhill for one or more additional lactations (Roberts and March, 2013).

The Langhill herd was managed on a long-term 2 × 2 factorial genetic and feed management system that comprised two contrasting dairy management systems; low forage, continuously housed (LF) and high-forage, grazed (HF) groups. Cows belonging to one of two genetic lines, Control (C) and Select (S), were divided equally between the management systems (Pryce et al., 1999). These management systems are described in further detail below. The Acrehead herd was managed as a separate research and experimental herd with no long-running feed or management groups.

2.1.1. Young-stock management prior to first calving

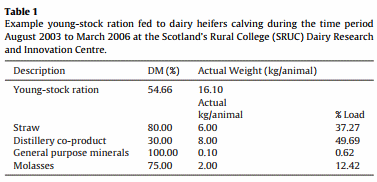

At the Langhill site, heifers calved all year round. Young-stock were reared in stable groups of approximately 25 animals from weaning to the start of their first transition period at approximately eight weeks before calving. As calves, they remained with the dam until at least 24 h of age, and were fed 2 l of colostrum by stomach tube. Following removal from the dam, calves were housed individually indoors in straw-bedded pens and received 2 l of pooled colostrum twice daily for up to 7 days, followed by 6 l per day of calf milk replacer. After ten days, calves were housed in group pens with deep straw bedding; the UK minimum recommended space allowance (Defra, 2003) was exceeded at all times. Fresh water was available from drinking bowls fitted to the wall of the building and calf milk replacer was fed via automatic feeders. Calves were weaned at approximately 50 to 60 days and managed as one group of dairy replacement young-stock; they were reared indoors until their second summer. Heifers were grazed during their second summer and then fed a young-stock ration when housed during winter. Table 1 presents a summary of the typical formulation for the young-stock ration. Housing was straw bedded pens until 12 to 15 months of age, at which time all heifers were moved to cubicle housing with mattress and sawdust until the transition period. Passageways were grooved concrete. Target age at first calving was 24 months; first service was scheduled at approximately 350 kg of BW and 15 months of age. All inseminations were artificial. No routine foot trimming was performed prior to first calving. Footbathing was carried out monthly for young-stock using 5% copper sulphate solution. Live weight was recorded monthly using walk-in weigh scales. Prior to the start of the transition period before first calving, heifers were separated according to the feeding system to which they had been allocated (described below) and were fully housed in straw bedded pens until calving. The same management protocols were applied by the same stock persons and technicians throughout the study period.

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 1

2.1.2. Lesion scoring around first calving

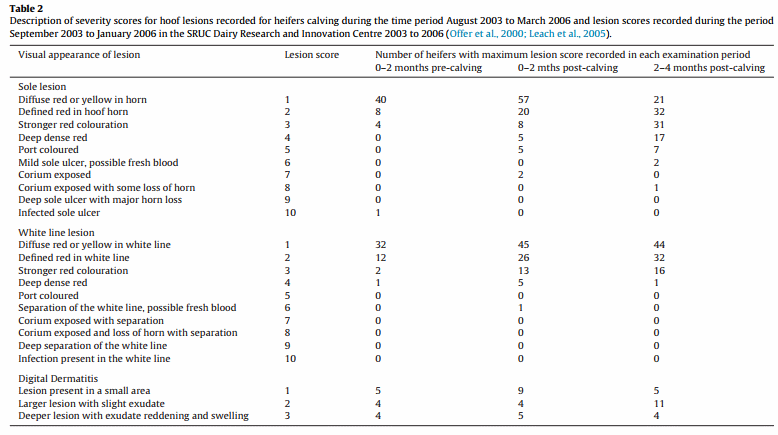

During the period 1st September 2003 to 31st January 2006, all four feet of heifers were lifted and lesions were recorded on standardised hoof maps (Greenough and Vermunt, 1991). Examinations were carried out by the same veterinary surgeon at regular intervals, approximately two months apart, with an average of 37 heifers being examined each time over the three year period 2003 to 2006. Lesions were severity scored on a 1 to 10 scale for sole or white line lesions (1 to 5 for haemorrhage and 6 to 10 for sole ulcers or white line separation) and a 1 to 3 scale for digital dermatitis (1 for mild or 3 for severe) as described by Offer et al. (2000) and Leach et al. (2005) (Table 2).

2.1.3. Management subsequent to first calving

As heifers calved they were introduced into the Langhill milking herd, remaining within the feeding system to which they had been allocated prior to calving. The detailed diet and management systems for the herd have been described by Chagunda et al. (2009). Briefly, low forage (LF) cows were housed continuously throughout the year whilst high forage (HF) cows were housed during winter months (typically November to March) and grazed during summer months provided sufficient herbage was available. When housed, cows were fed a complete diet that was between 45% and 50% forage in the dry matter (DM) for those in the continuously housed, low forage group, and 70% to 75% forage in the DM for those in the high forage group. Concentrates were included at approximately 3000 kg and 1200 kg per cow per year respectively for the low forage and high forage diets, with target yields being 13,000 kg and 7,500 kg per cow per year respectively. The herd was all-year round calving and milked three times daily. Housing was the same for cows in both the low and high forage groups; cubicles with mattresses (mats prior to 2004) and sawdust bedding. Passageways were grooved concrete and were automatically scraped every 2 h. Footbathing was carried out regularly using 5% copper sulphate solution; once weekly at 3 consecutive milking’s for lactating cows and once weekly for dry cows. A professional foot trimmer attended bi-annually to trim all four feet of the whole herd. Cows were moved to Acrehead, typically after 3 lactations, according to Langhill research herd protocol requirements.Housing and general management was the same for cows in the Acrehead herd as it was for Langhill. Cows were milked three times daily and fed a grass-silage based total mixed ration, formulated to provide adequate nutrients for maintenance and milk production. All cows were housed in cubicle housing during winter months and had the potential to graze for varying period throughout summer months (Rioja-Lang et al., 2009).

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 2

Click here to enlarge the image

2.1.4. Data collection during lifetime lactation

2.1.4.1. Langhill. Locomotion scores and body condition scores were recorded weekly by experienced, trained assessors and following standard protocols. In order to reduce the impact of operator bias, assessors alternated weekly and underwent regular training with the same veterinarian during the study period. A 1 to 5 scoring scale (LS 1 to 5) was used to measure locomotion (according to Manson and Leaver (1988)). Cows recorded LS 4 or 5 on a single occasion or LS 3 on two successive occasions were examined and treated by a veterinarian; weekly prior to 2006 and every two weeks thereafter. Cows observed lame between weekly scoring were treated within 24 h by trained staff. A 0 to 5 categorical scale with increments of 0.25 was used to body condition score cows (Mulvany, 1977). Body weights were recorded after milking three times daily using an automatic weighing system. Health, production and management data were recorded in a database, including culling dates.

2.1.4.2. Acrehead. Locomotion scores, body condition scores, milk yield and body weight were not systematically recorded. Culling dates were recorded within the main database. Cows spent on average 3.9 years (3.5 lactations) within the Langhill herd, and is referred to throughout this paper as ‘herd lifetime’

2.2. Statistical methods

Data recorded from heifers calving during the period August, 1, 2003 to March, 31, 2006 were obtained; lesion data recorded during the period September, 1, 2003 to January, 31, 2006 and lifetime health and production data recorded as these animals were followed through from September, 1, 2003 to August, 31, 2011. Microsoft Excel 2010 (Microsoft Corp.) was used for data handling and manipulation including identification and removal of unusual or anomalous data and constructing categorical variables. Where possible, missing observations were included as a categorical variable and fitted within each of the models to minimise the loss of data (results not reported). Three examination periods were assigned to the data according to when heifers had lesions scored in relation to calving; 0 to 2 months pre-calving, 0 to 2 months and 2 to 4 months post-calving.

Maximum, sum and mean of the scores for sole lesions, white line lesions and digital dermatitis recorded on the hind feet were calculated for each heifer for each of the three assessment points (0 to 2 months pre-calving, 0 to 2 and 2 to 4 months post-calving). Lesion scores were added to the lifetime data records for the study population using the data set previously described by Randall et al. (2015). Outcome variables of interest were; lameness (based on locomotion score) categorised as ‘not lame’ (LS 1 or LS 2), or ‘lame’ (LS 3, LS 4 or LS 5), average daily milk yield (kg) as a continuous variable and culling as a binary variable (0 or 1 for not culled or culled respectively). Lesion score categories with a similar effect on the outcome variable were grouped together to ensure the minimum number of cows within a category was 10. Average daily milk yield was calculated for the time from first calving through to removal from the Langhill herd. Kendall’s correlation coefficient (Kendall, 1955) was used to determine the correlation between sole lesions and white line lesions during different time periods.

All models were constructed in MLWin 2.28 (Rabash et al., 2009). Multilevel models were used to explore the relationship between lesion scores and the outcomes of repeated locomotion scores and survival to culling. Data were structured at the cow week level. Initial assessment of model parameters was carried out using the iterative generalised least square procedure for parameter estimation (Goldstein, 2003) with forward selection of explanatory variables.Biologically plausible interactions were investigated. Final parameter estimates for each model were made using Markov Chain Monte Carlo (MCMC) to reduce the potential for biased estimates (Rabash et al., 2009), using procedures described by Green et al. (2004). Briefly, explanatory variables remained within the model if the 95% credible interval of the odds ratio did not include 1 and as such were considered ‘significant’. A minimum burnin of 5000 iterations was used, during which model convergence occurred. Final parameter estimates were based on a maximum of a further 50,000 iterations. Chain mixing and stability were examined visually. To explore the relationship between lesion scores and average daily milk yield, a linear regression model was used, with data structured at the cow level (Dohoo et al., 2003). Model parameters were estimated using the iterative generalised least square procedure (Goldstein, 2003) and explanatory variables remained within the model if P ≤ 0.05. A forward selection procedure was used for model building. Methods for assessing model fit and posterior predictions are described in detail below.

2.2.1. Model 1: impacts of lesions present around first calving on lameness

The data were analysed as a frailty model using a mixed effect binomial logistic regression framework (Goldstein, 2003), where each cow could have repeated lameness events over time. Cow was included as a random effect and time since last lameness event as a fixed effect. This model equates to a multilevel survival model with random effects (Goldstein, 1995). The model took the form;

Lameij ∼ Bernoulli(probability = ∏ij)

Logit(∏ij) = α + β1wkij + β2Xij + β3Xj + uj

[uj] ∼ N(0, σ2 v) W

Where subscripts i and j denote the ith observation of the jth cow respectively. ij = probability of a lame outcome for the ith observation of the jth cow. = intercept value, wkij = categorical variable to represent week of the study for the ith observation of the jth cow, β1 = vector of coefficients for wkij, Xij = vector of covariates associated with each observation, β2 = coefficients for covariates Xij, Xj = vector of covariates associated with each cow, β3 = coefficients for covariates Xj. uj = random effect to account for residual variation between cows (assumed to be normally distributed with mean = 0 and variance = σ2v).

Lesion scores were included as a categorical explanatory variable. Other potentially confounding explanatory variables tested included; categories for parity (1 to 4 + ), previous LS 3, 4 or 5 (yes or no in two month intervals; 0 to 2 months previously, 2 to 4 months previously and >4 months previously), age at first calving (<24months, 24 to 27months, 28 to 30months, 31 to 33months and greater than 33 months), feed-genetic group (low-forage control: LF-C, low-forage select: LF-S, high forage control: HF-C, high forage select: HF-S, dry-control: D-C, dry-select: D-S, other-control: O-C, other-select: O-S, where other represents all management groups outside of LF, HF and Dry). Locomotion score assessor was included as an explanatory variable to control for possible interobserver variability (Locomotion score recorder; 1 to 4). Weeks in milk (WIM) was categorised in five 8-week intervals from 0 to 40 weeks and a separate category for >40 weeks. Week of the study was included as a categorical variable to account for background changes in risk over time. Within the data set there were a small number of cows with a high number of weeks recorded ‘lame’, which would influence model parameters. Therefore a term was included for cows with greater than 40 lame weeks, with the threshold value being selected based on examination of the frequency distribution of the number of lame weeks per cow.

Posterior predictions were used to assess model fit by visual comparison to the observed data (Gelman et al., 1996) and the Hosmer-Lemeshow test (Hosmer and Lemeshow, 1989) was used as a statistical test for goodness of fit for mixed effect models by comparing deciles of fitted risk values to the matched observed risk. Posterior predictions were also used to calculate relative risks for each of the lesion categories.

2.2.2. Model 2: impacts of lesions present around first calving on milk yield

A linear regression model was used to analyse the data with animal average daily milk yield for time spent at Langhill, as the outcome. The model took the form;

Yieldi ∼ N(XB, Ω)

Yieldi = α + β1Xi + ei

[ei] ∼ N(0, Ωe)

Where Yieldi is the average daily yield for the ith cow. = intercept value, β1 = vector of covariates associated with each cow and ei represents the residual error (assumed to be normally distributed, with mean = 0 and variance = Ωe).

Lesion scores were included in the model as a categorical variable. Other explanatory variables tested included; feed-genetic group (low-forage control: LF-C, low-forage select: LF-S, high forage control: HF-C, high forage select: HF-S), maximum age at first calving (< 24 months, 24 to 27 months, 28 to 30 months, 31 to 33 months and greater than 33 months)

Model fit was evaluated using conventional plots of standardised residuals and by examining the influence and leverage of data points (Rabash et al., 2009).

2.2.3. Model 3: impacts of lesions present around first calving on culling

A discrete time survival model was used to explore the relationship between lesions and survival to culling. The model took the form;

Cullij ∼ Bernoulli(probability = ∏ij)

Logit(∏ij) = α+ β1wkij + β2Xij + β3Xj + uj

[uj] ∼ N(0, σ2 v) W

Where subscripts i and j denote the ith observation of the jth cow respectively. ∏ij = probability of a lame outcome for the ith observation of the jth cow. = intercept value, wkij = categorical variable to represent week of the study for the ith observation of the jth cow, β1 = vector of coefficients for wkij, Xij = vector of covariates associated with each observation, β2 = coefficients for covariates Xij, Xj = vector of covariates associated with each cow, β3 = coefficients for covariates Xj. uj = random effect to account for residual variation between cows (assumed to be normally distributed with mean = 0 and variance = σ2v).

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 4

Click here to enlarge the image

Lesion scores were included as a categorical explanatory variable. Other potentially confounding explanatory variables tested were the same as described above for model 1. The only difference being that parity was not included and WIM was categorised in two 16-week intervals from 0 to 32 weeks and another category for > 32 weeks.

3. Results

Data were available for a total of 158 heifers calving for the first time between August 2003 and March 2006; parity number ranged from 1 to 7 for animals in the complete dataset.

3.1. Descriptive analysis

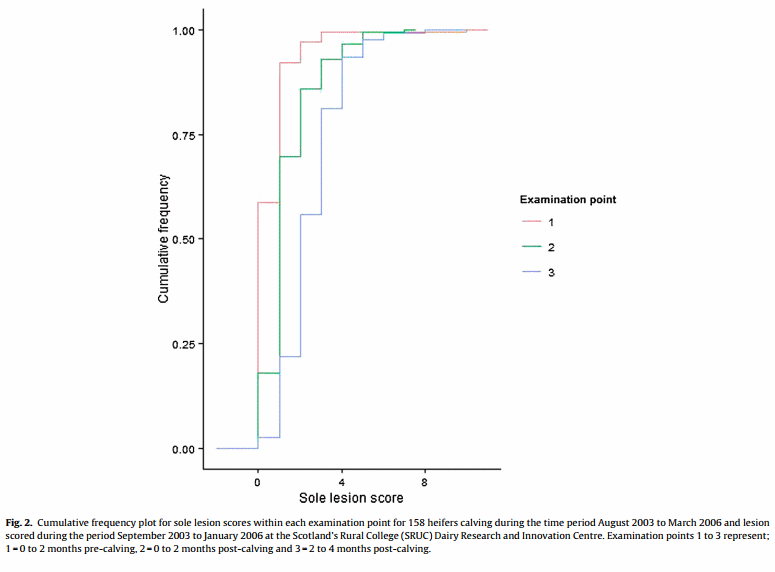

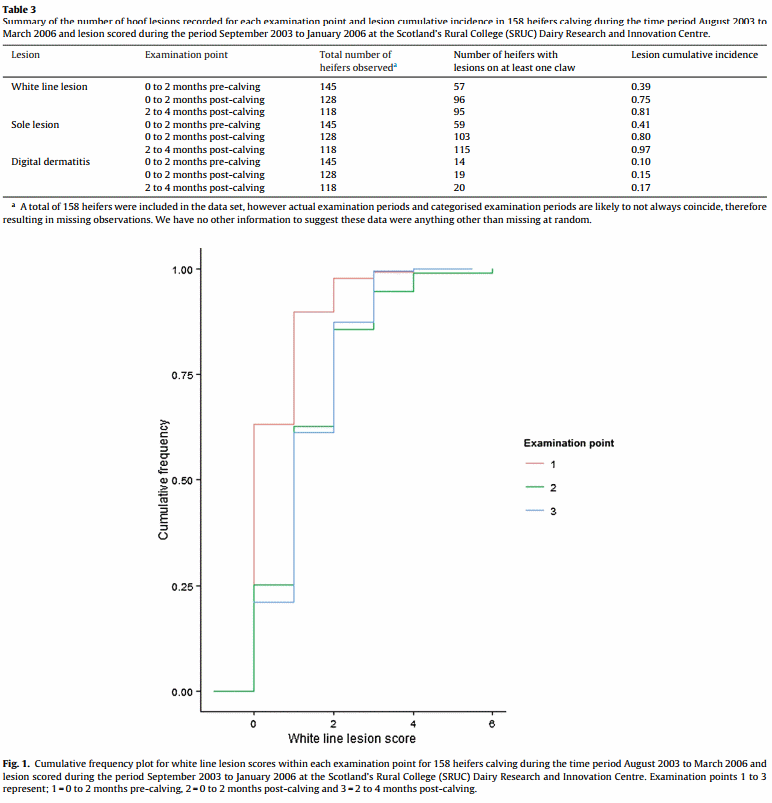

Sole lesions were the most commonly observed lesion at each of the examination points and the proportion of heifers with sole lesions increased from pre-calving to 2 to 4 months post-calving, such that by 2 to 4 months post-calving 97% of heifers had some degree of sole lesion recorded (Table 3). A similar pattern of increasing proportions of heifers having a lesion recorded for each of the time periods was also observed for white line lesions; at the 2 to 4 month post-calving observation 81% of heifers had a lesion recorded (Table 3). Score severity also increased over the time periods 0 to 2 months pre-calving through to 2 to 4 months post-calving for white line and sole lesions (Figs. 1 and 2).

Sole lesion and white line lesion scores were moderately correlated at each examination point (Kendall’s tau = 0.24, 0.35 and 0.13 for the time period 0 to 2 months pre-calving, 0 to 2 months post-calving and 2 to 4 months post-calving respectively, P ≤ 0.05).

3.2. Modelling

For all models, maximum lesion scores were included as a categorical variable in the final models. This was because the maximum score was considered biologically most likely to have an impact on subsequent health. Results for each of the models are described in detail below;

3.2.1. Model 1: impacts of lesions present around first calving on lameness

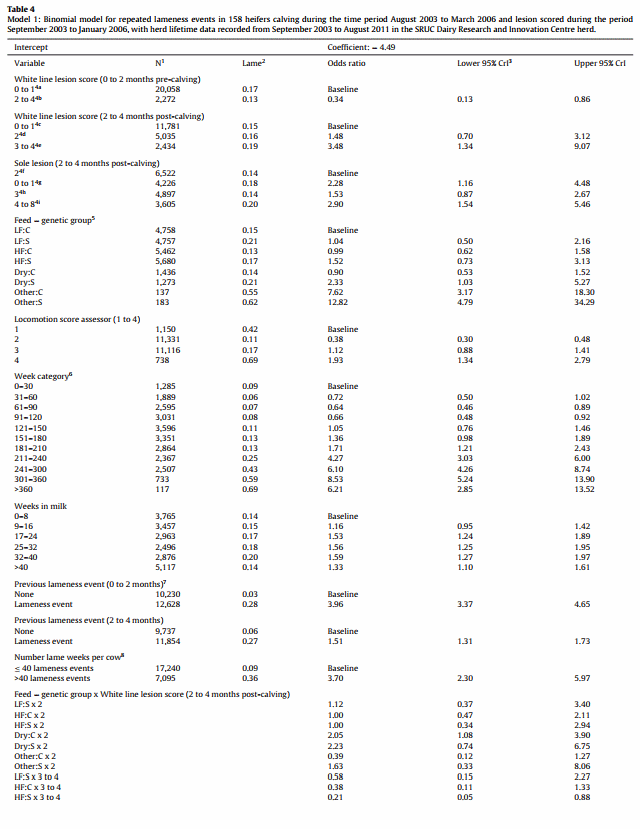

The dataset included a total of 24,335 cow weeks at risk for 158 heifers with lesion score data. There were 4,093 lame events recorded in a total of 146 animals over the period September, 1, 2003 to August, 31, 2011. Table 4 shows the results from Model 1. Heifers with white line lesion scores between 2 and 4 in the 0 to 2 months pre-calving period had a decreased risk of future lameness events compared with heifers with lesion score zero or 1 at this examination point (OR (95% credible interval) = 0.34 (0.13 to 0.86) for lesion score = 2 to 4).White line lesions with a score of ≥ 3 in the 2 to 4 months post-calving period were associated with a significantly increased risk of future lameness compared with a baseline of score of zero to 1 (OR (95% credible interval) = 3.48 (1.34 to 9.07) for score 3 to 4). Compared with the baseline white line lesion score of zero to 1, a score ≥ 3 at this examination point had a predicted increased relative risk of future lameness of 1.6.

More severe sole lesions (score of 4 to 8) in the 2 to 4 months post-calving were similarly associated with an increased risk of future lameness compared with a baseline score of 2 (OR (95% credible interval) = 2.90 (1.54 to 5.46) for scores ≥ 4). Heifers with lesion score zero or 1 in the 2 to 4 months post-calving were also at increased risk of future lameness compared with those with a mild lesion of score 2 (OR (95% credible interval) = 2.28 (1.16 to 4.48)). Compared with a baseline sole lesion score of 2, more severe sole lesions (score 4 to 8) at this time point had a predicted increased relative risk of future lameness of 2.6, whilst a score of zero or 1 had a predicted increased relative risk of future lameness of 2.1. Interactions between feed-genetic group and white line lesion score 2 to 4 months post-calving were significant including, Dry:C and score 2 (OR (95% credible interval) = 2.05 (1.08 to 3.90), HF:S and score 3 to 4 (OR (95% credible interval) = 0.21 (0.05 to 0.88) and Other:C and score 3 to 4 (OR (95% credible interval) = 0.06 (0.01 to 0.50). The variance at cow level was 0.85; inclusion of random effects improves model fit. Model fit was good, χ2 = 11.95, p = 0.22.

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 6

Click here to enlarge the image

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 8

Click here to enlarge the image

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 10

Click here to enlarge the image

3.2.2. Model 2: milk yield over lifetime within the Langhill herd

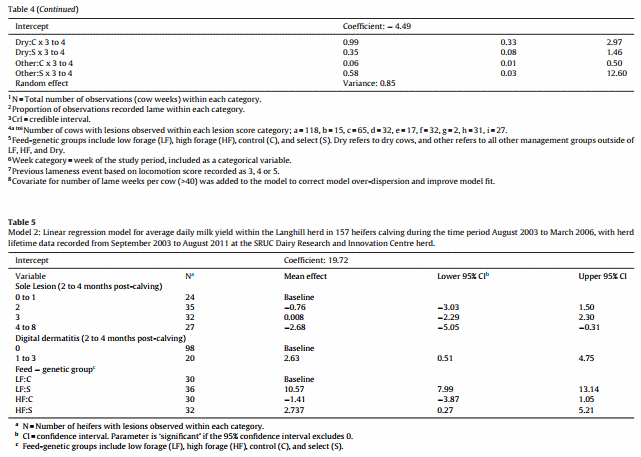

Milk yield data were available for 157 heifers, with an average time within the Langhill herd of 3.9 years. The mean (SD) average daily milk yield was 27.6 (5.9) kg with a range of 4.1 kg to 41.1 kg, and was approximately normally distributed. Table 5 shows the results for Model 2. The mean effect and mean number of days cows spent in the herd for each lesion category were used to calculate an adjusted yield loss for lesion categories.

Heifers with sole lesions score ≥4 in the 2 to 4 month post-calving period had a significantly reduced average daily milk yield of 2.68 kg compared with those with no lesion at this time point. Animals with sole lesions score≥4 at this examination point remained within the herd a median of 326 days less (Fig. 3), therefore the mean yield loss associated with these sole lesions equated to 9,928 kg over the animals’ productive lifespan within the herd (calculated from the coefficient of the intercept multiplied by the mean number of days in the herd for cows in the baseline category minus the mean effect of the significant category multiplied by the mean number of days in the herd for cows in the significant category i.e (1631.88 × 19.72) − (1305.89 x (19.72+-2.68)). Digital dermatitis in the 2 to 4 months post-calving was associated with an increased average daily milk yield of 2.63 kg compared with no lesion. However, since animals with digital dermatitis lesions at this examination point remained in the herd for an average of 341 days less (Fig. 4) than those with no lesion at this examination point, the adjusted yield difference associated with the presence of digital dermatitis lesions compared with no lesion was a net loss of 3,513 kg of lifetime production within the herd (calculated using the method described above). Model fit was good.

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 12

3.2.3. Model 3: impacts of lesions present around first calving on culling

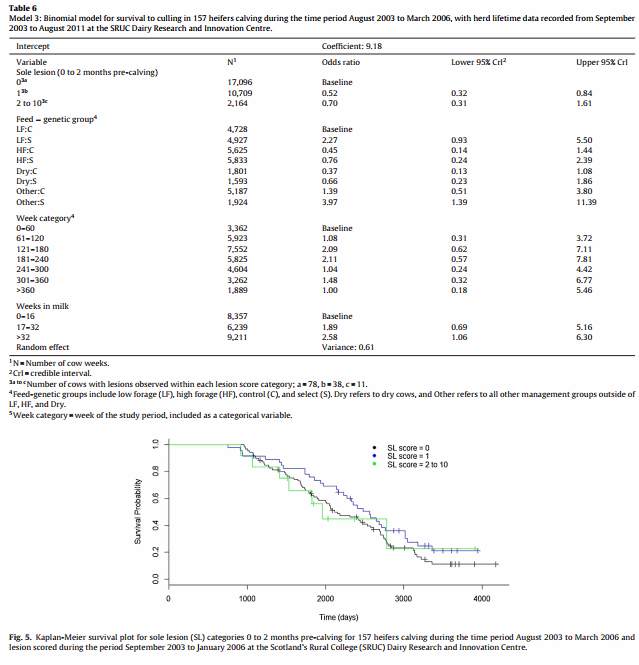

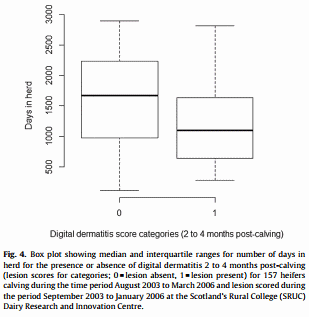

Culling data were available for 157 heifers; 139 animals were culled within the study period September, 1, 2003 to August, 31, 2011. The data set included a total of 39,417 cow weeks at risk. Table 6 shows the results for Model 3. Sole lesions in the 0 to 2 months pre-calving was the only lesion in any of the time periods investigated with a significant association with culling (Fig. 5). Sole lesion of score 1 compared with no lesion was associated with a reduced risk of culling (OR (95% CI) = 0.52 (0.32 to 0.84)). The variance at cow level was 0.61; inclusion of random effects improves model fit. Model fit was good, χ2 = 0.55, p = 0.76.

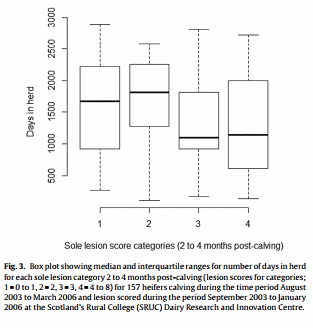

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 13

4. Discussion

This study reports on the long term impacts of foot lesions around the time of first calving in heifers, on future lameness risk, milk yield and culling risk in a dairy herd. Previous studies investigating the impacts of lameness in heifers on these outcomes have looked separately at impacts on future lameness (Hirst et al., 2002) or milk yield (Onyiro et al., 2008), or at impacts of digital dermatitis in pre-calving heifers on culling restricted to the first lactation (Gomez et al., 2015). As heifers represent the future of the dairy herd, understanding the overall effects of lesions occurring around the time of first calving could be important for improving lameness control in dairy herds. A particularly novel finding from this study was the reduced risk of culling associated with mild sole lesions (score 1) in the 0 to 2 months pre-calving.

4.1. Impacts of lesions present around first calving on culling

To the authors’ knowledge, there are no previous studies reporting the impacts of lesions in heifers on long term survival within the dairy herd. Gomez et al. (2015) reported a numerically, but not statistically significant effect of digital dermatitis in pre-calving heifers on increased risk of culling before 60 days in milk (DIM) in their first lactation. Sogstad et al. (2007) used claw trimming data from 500 Norwegian herds to investigate the impacts of lameness and lesions on culling within the same lactation that claw trimming took place; lameness in lactation 1 was associated with earlier culling (hazard ratio = 4.2). Previous studies have reported significant negative effects of lameness in adult dairy cows on survival (Boothet al., 2004; Bicalho et al., 2007; Machado et al., 2010).Whilst Barkema et al. (1994) reported a lower culling rate associated with lameness, thought to be attributed to the retention of lame cows because of the higher milk production of these cows. Interpreting survival within the herd is complex due to the decisions behind culling, which may be a direct response to lameness or due to indirect effects of lameness on milk yield and fertility, alongside many other health and management reasons. In the current study the data were analysed using time to culling for all reasons due to this uncertainty. The findings of the current study suggest that mild sole lesions occurring at a time when the animal is able to recover from and adapt to the insult may be beneficial for long term survival. Since the reasons for culling were not analysed it is not possible to identify possible underlying mechanisms, however, this finding is consistent with some of the other outcomes explored; mild sole lesions and white line lesions were also associated with a reduced risk of lameness. Therefore further research is required to understand the underlying mechanisms associated with this finding and to clarify the extent to which mild lesions may offer protection.

4.2. Impacts of lesions present around first calving on future lameness

In the current study, more severe white line lesions and sole lesions were associated with a significantly increased risk of future lameness by 1.6 and 2.6 times respectively, across all future lactations within the herd. These results are similar to Hirst et al. (2002) who reported a positive association between claw horn lameness in heifers and future risk, but only for the second lactation; this association was not significant for the third lactation. Hirst et al. (2002) also found that any type of lameness in the first lactation was associated with claw-horn lameness in the second lactation and hypothesised that this may be due to underlying pathology that is carried over from one lactation to the next. This hypothesis is supported by the findings of a study which used micro-computed tomography and reported that claw horn lesions during life were associated with an increase in pathological changes to the bony architecture of the pedal bone (Newsome et al., 2016). This could explain the relationship between more severe claw horn lesions and future lameness risk observed in this study. Further work is required to understand the longitudinal relationship between causal factors and the role of pathological changes to distal limb anatomy associated with claw horn lesions.

In the current study, mild sole lesion and white line lesions occurring in the 2 to 4 months post-calving or 0 to 2 month precalving periods respectively, were associated with a reduced risk of lameness. This suggests that some degree of mild insult around the time of first calving may be beneficial to long term claw health; if adaptive changes occur in response to the insult during a time when the claw is able to recover and become more biomechanically resilient the animal may be less prone to lameness in the long term. Bergsten et al. (2015) reported findings that support this hypothesis; heifers reared on a hard flooring surface (cubicles with slatted concrete alleys) pre-calving and housed on a soft surface (slatted rubber alleys) post-calving resulted in the lowest prevalence and severity of sole and white-line haemorrhages in first-lactation. The authors suggested that the challenge from hard flooring during the rearing period resulted in traumatic sole haemorrhages, but as the heifers were able to cope at this time, this was ultimately beneficial for claw health. Previous studies have demonstrated that adaptive changes can take place in the bovine hoof and indicate that environment and exercise have a role in the development of the hoof support structures (Knott et al., 2007; Gard et al., 2015). Additional research is required to understand the mechanisms underlying these findings and therefore their clinical relevance. The findings of this study suggest that there may be a threshold for severity of white line and sole lesions that is associated with an increased risk of future lameness, but that some degree of mild insult occurring at certain times may initiate adaptive changes within the hoof that are beneficial to long term claw health. Husbandry practices implemented during the pre- and post-calving period may have significant impacts on future lameness in adult cattle as a result of reducing the more severe lesions occurring during this time. Additionally, management of husbandry practices may also allow for adaptive changes to occur in the hoof that best prepare those heifers for their future life in the herd.

Lameness in dairy heifers; impacts of hoof lesions present around first calving on future lameness, milk yield and culling risk - Image 14

Click here to enlarge the image

The interaction between the feed-genetic group HF:S and white line disease 2 to 4 months post-calving suggests that there may be environmental or nutritional factors mitigating the impacts of sole lesions occurring during this time period on the risk of future lameness. It may, therefore, be possible that the effects of claw horn lesions are different in herds with different management systems, for example, grazed vs continuously housed.

The high prevalence of lesions in heifers has previously been highlighted in a number of studies (Manske et al., 2002; Capion et al., 2009; Maxwell et al., 2015), and at a similar level to that observed in this study. This is relevant not only for the health and welfare of those animals affected at that time but also when considering the impacts on future health and welfare.

4.3. Impacts of lesions present around first calving on milk yield

Severe sole lesions 2 to 4 months post-calving were associated with a reduction in average daily yield of 2.68 kg in the current study. A number of studies have demonstrated a reduction in milk yield associated with lameness in dairy cows of all ages (Green et al., 2002; Amory et al., 2008; Archer et al., 2010). Amory et al. (2008) investigated the effect of lesion-specific causes of lameness on milk yield in 1824 UK dairy cows. Sole ulcer and white line disease were associated with a lactation milk yield loss of approximately 570 and 370 kg respectively, whilst a slight increase in yield was observed following treatment of digital dermatitis. Interpretation of milk yield losses associated with lameness can be difficult, as it is the higher yielding cows that are more likely to become lame (Green et al., 2002; Amory et al., 2008; Archer et al., 2010). This association may also lead to retention of lame cows within the herd. Maxwell et al. (2015) reported that lame heifers produced significantly more milk over the first lactation (734 l, P = 0.02) than those that were not lame. In a study carried out 2003 to 2005 on the same UK research herd as the current study, no association was found between lameness in heifers and their 305-day yield. The study did not, however, explore the longitudinal relationship between lameness in heifers and their long-term future milk yield (Onyiro et al., 2008). The results of the current study demonstrate that severe sole lesions were associated with a long-term negative impact on milk yield. This population of animals also remained within the herd on average nearly one year less than those with no lesion. Similarly, as animals with DD lesions remained within the herd for a shorter period, DD was associated with a net yield loss, despite positive associations between DD and yield in this study and as reported by Amory et al. (2008). Gomez et al. (2015) also demonstrated that animals with DD lesions during the rearing period produce significantly less milk during their subsequent lactation. The reasons for cows leaving the Langhill herd were not recorded, therefore it is not possible to explain why severe sole lesions and DD were associated with a shorter time period within the Langhill herd.

4.4. Study limitations and generalisability

One of the limitations associated with this study in demonstrating the impacts of early life lesions in heifers on future lameness and performance, was that the regular examination of claws may have increased the level of treatment interventions, compared with the situation more commonly observed on UK commercial dairy farms. This may have resulted in a reduced effect of lesions on future lameness, milk yield and culling in this herd. The published literature includes supporting evidence for the reduction in milk yield and longevity reported here and the possible protective effects of mild foot lesions on future robustness. We conclude that whilst this study was carried out on one UK dairy herd and the quantitative impact of severe foot lesions in heifers are likely to be specific to this study, the qualitative impacts are likely to be generic across dairy herds using similar management systems.

Whilst the lesion scoring systems are subjective and may be prone to inter-observer variability, lesion scoring within the study period was limited to one person and any variability should not undermine the conclusions of the study findings. The authors also acknowledge the lack of a widely accepted lesion scoring system and the issues associated with a lack of understanding of pathogenesis and therefore lesion progression associated with claw horn lesions. Consequently, results should be interpreted with consideration of the approach taken. Finally, due to the difficulties in defining the duration of a case of lameness (especially in situations where lameness scoring is conducted frequently), in this paper the risk of a cow being lame in any one week was modelled and results should, therefore, be interpreted in this context.

5. Conclusions

This study demonstrated that mild sole lesions are associated with an overall reduced risk of premature culling in dairy cows. We hypothesise that a mild insult may be beneficial to claw health; if adaptive changes occur in response to the insult during a time when the claw is able to recover and become more biomechanically resilient. High and low scores for white line and sole lesions in heifers were associated with a greater risk of future lameness than medium scores. High sole lesion scores and digital dermatitis were associated with an overall reduction in milk yield when adjusted for mean time within the herd. We conclude that the current high prevalence of more severe claw horn lesions in dairy heifers is likely to have a large impact on the health, welfare and productivity of these animals over their lifetime within the herd. Identifying and implementing husbandry practices which reduce the occurrence of severe claw horn lesions is essential for the future sustainability of dairy herd production.

Conflicts of interest

none

Acknowledgements

This work was supported by an Industrial CASE studentship. Funding from the Biotechnolgy and Biological Sciences Research Council (BBSRC) and Boehringer Ingelheim is gratefully acknowledged. We also acknowledge staff at the SRUC Dairy Research and Innovation Centre for access to and collection of the data.

Appendix A. Supplementary data

Supplementary data associated with this article can be found, in the online version, at http://dx.doi.org/10.1016/j.prevetmed.2016. 09.006.

This article was originally published in Preventive Veterinary Medicine 2016 Oct 1;133:52-63. doi: 10.1016/j.prevetmed.2016.09.006. This is an Open Access article under the CC-BY license (http://creativecommons.org/licenses/by/4.0/).
