Windrow Composting of Poultry Carcasses

On March 27, 2009, the Ontario government introduced Ontario Regulation 106/09, which applies to all producers who manage deadstock on-farm. The new regulation applies to poultry producers, which its predecessor did not, and outlines specific requirements for disposing of deadstock.

The new Regulation stipulates specific setback distances for deadstock composting that apply to neighbouring landuses and sensitive features, such as wells and surface water.

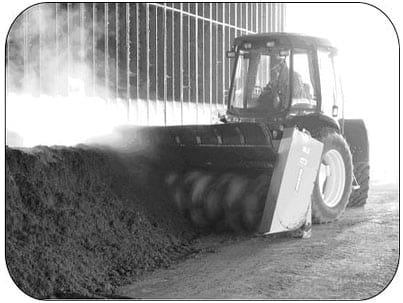

Figure 1. Brown Bear windrow compost turning unit and a windrow of poultry carcasses and substrate materials.

Windrow Composting of Poultry Carcasses - Image 1

Poultry producers in Ontario currently have several options for managing dead birds on their operations, including pick-up by a licensed deadstock company, burial, incineration and composting. This Factsheet describes the critical elements needed to successfully compost poultry carcasses using the windrow method. A windrow compost pile is a long, narrow pile of biodegradable organic matter, with a large surface area that allows for good oxygen infiltration (Figure 1).

Compost is produced through the decomposition of biodegradable organic matter by aerobic micro-organisms (that require oxygen to survive) into a stable, soil-like material called humus. To encourage this rapid decomposition, it is necessary to provide the optimal environment for these micro-organisms to thrive and multiply.

The Recipe

The micro-organisms require the correct mix of carbon, nitrogen, oxygen and water to operate. The recipe — the blending of the correct ratios of raw materials during windrow formation — is one of the key steps to successful composting.

According to literature, the optimum recipe will have a carbon-to-nitrogen ratio of between 20:1 and 30:1. This means there will be between 20–30 units of carbon, by mass, for every unit of nitrogen present. The optimum moisture content of the recipe is 40%–60%. The materials must be blended or piled to allow for oxygen to infiltrate the pile — materials should not be compacted in a compost pile.

Substrate Materials

Fresh poultry carcasses contain approximately 80% moisture, 12% carbon and 2.4% nitrogen, and have a carbon-to-nitrogen (C:N) ratio of 5:1 by weight. The carcasses by themselves are deficient in carbon and too wet to compost, so additional carbon material (substrate) must be added to the mix. Different substrate materials have different chemical and physical properties (Table 1). These differences are managed by mixing different amounts of various substrate materials with the carcasses to create the optimum recipe.

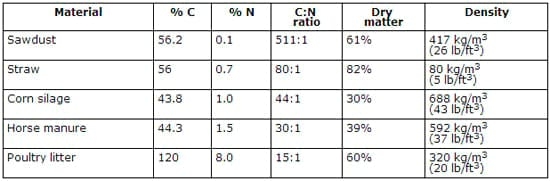

Table 1. Common substrate materials and their associated chemical and physical properties.

Windrow Composting of Poultry Carcasses - Image 2

For example, to compost 909 kg (2,000 lb) of poultry carcasses, at least 336 kg (740 lb) of sawdust or 2,636 kg (5,800 lb) of corn silage would be required to achieve the ideal 30:1 carbon-to-nitrogen ratio. By volume, this would translate into nearly five times more corn silage than sawdust to achieve the correct ratios.

Table 2 shows the formula for calculating the ideal quantities of different substrate materials to use in a windrow composting pile.

The amount of substrate used in the pile should be determined by the amount needed to achieve the correct C:N ratio. For substrate materials with C:N ratios higher than 80:1, such as sawdust, the amount of substrate required is normally determined by the quantity required to properly cover the carcasses.

The extra carbon in the recipe does not harm the environment. It will translate into higher costs, as more substrate will be used.

The Compost Pile

The final pile is cone shaped, 2.4–3.6 m (8–12 ft) wide at the base and 1.2–1.8 m (4–6 ft) tall at the highest point (Figure 2). No poultry carcasses should be visible in the finished windrow; during the creation of the pile, carcasses are placed at least 15 cm (6 in.) from the edges of the pile. The cap is extremely important as it serves as a biofilter to reduce or contain odours within the windrow during carcass breakdown.

Release of odours is not only offensive to neighbours, it can attract scavengers, such as skunks, raccoons, rats and coyotes, to the compost windrow. Due to the prolonged heating of the material, proper composting will destroy most, if not all, of the pathogenic organisms contained in the carcasses. If a scavenger were to remove a partially composted carcass from the windrow pile before the process has been completed, still-active pathogenic organisms could be spread to the surrounding environment – other barns, farms, etc. To maintain biosecurity, any scavenging from the windrows is unacceptable.

Table 2. Calculating how much substrate material to use.

Formula: 30 = [(weight x % C x % dry matter) of Material A + (weight x % C x % dry matter) of Material B] ÷ [(weight x % N x % dry matter) of Material A + (weight x % N x % dry matter) of Material B]

Sample calculation (for sawdust and 908 kg (2,000 lb) of carcasses):

30 = [(weight of sawdust x 56.2% x 61%) + (908 kg (2,000 lb) of carcasses x 12% x 20%)] ÷ [(weight of sawdust x 0.1% x 61%) + (908 kg (2,000 lb) of carcasses x 2.4% x 20%)]

30 = [((weight of sawdust) x 3,428) + 480,000] ÷ [((weight of sawdust) x 6.1) + (96,000)]

[((weight of sawdust) x 183) + 2,880,000] = [((weight of sawdust) x 3,428) + 480,000]

2,400,000 = ((weight of sawdust) x 3,245)

335.78 kg (739.6 lb) = weight of sawdust

For every 908 kg (2,000 lb) of poultry carcasses, you need 336 kg (740 lb) of sawdust to reach the target 30:1 C:N ratio.

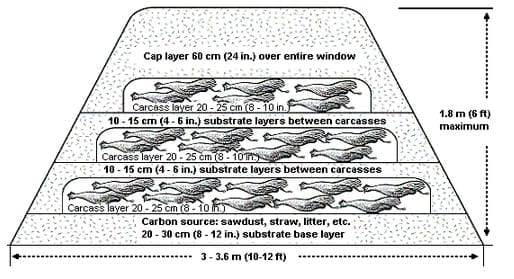

Figure 2. Cross-section of a carcass-composting windrow created using the layering method.

Windrow Composting of Poultry Carcasses - Image 3

Layering method

Typical windrow formation involves:

creating a suitable base of substrate 20–30 cm (8–12 in.) thick
adding a layer of birds
adding an additional 10–15 cm (4–6 in.) of substrate
adding another layer of birds, possibly a third layer of substrate and third layer of birds (depending on the equipment to be used to "turn" the material)
capping the entire pile with 60 cm (24 in.) of substrate (Figure 2)

Mix and build method

The mix and build method involves:

establishing a base of substrate, also 20–30 cm (8–12 in.) thick
creating a mix pile of bird carcasses and the required amount of substrate with a front-end loader, adjacent to the windrow location
scooping up and depositing this blended material on top of the base
capping the entire pile with substrate as in the layering method

Moisture

The other key ingredient in the recipe is moisture. The micro–organisms will thrive if the moisture content of the pile is 40%–60%. If a pile is too dry to reach optimum conditions, water may be added. If a pile is too wet, additional "dry" substrate is added to absorb the excess moisture, or the pile can be aerated.

When a pile is too wet, leachate can drain from the windrow, or offensive odours can be generated from it (aerobic micro-organisms are unable to survive in these conditions, so their anaerobic counterparts take over the process, producing odorous by-products). Using corn silage can have this effect, as it is quite wet and blending it with fresh carcasses would result in a mixture that is 65%–75% moisture (40%–60% is ideal).

When fresh poultry carcasses are used, there is usually no need to add extra moisture, as there is a lot of moisture in the birds themselves. Only if the substrate is extremely dry (>85% dry matter) or the carcasses have dried out before the windrow was created should a pile need water added.

Composting can be done inside a building or outside, however, it is much easier to manage the composting process if the pile is under cover of a roof, to prevent the addition of moisture from precipitation.

Table 3. Minimum Compost Siting Requirements

Sensitive Feature: Drilled well

Distance: 15 m

Sensitive Feature: Dug well

Distance: 30 m

Sensitive Feature: Subsurface drain tile

Distance: 6 m

Sensitive Feature: Surface water (stream, open drain, etc.)

Distance: 50 m flowpath¹

Sensitive Feature: Neighbouring dwelling

Distance: 100 m

Sensitive Feature: Area zoned residential

Distance: 200 m

Sensitive Feature: Lot line

Distance: 15 m

Sensitive Feature: Highway

Distance: 30 m

¹ The distance any runoff must travel overland before it reaches discharge point into surface water.

If the pile cannot be under a roof, locate the compost site away from sensitive features, such as wells, surface water or other land uses, e.g., neighbouring houses (Table 3), and use a compost recipe with a drier substrate, factoring in some additional moisture absorption.

Managing the compost pile

If all the ingredients are present in the correct combination, the micro–organisms will quickly start to decompose the organic matter and generate heat that can be measured using a thermometer or a thermocouple. Monitoring the temperature of compost piles is one of the best ways to determine whether the process is working properly (Figure 3).

It is not uncommon for the core of the pile to reach temperatures of 50°C–65°C or higher, which is important for the destruction of pathogenic organisms in the organic matter. Research has shown that the avian influenza (AI) virus can be inactivated at 60°C in 10 min or 56°C in 90 min (Lu et al., 2003). These high temperatures also discourage insects such as maggots or Rove beetles from inhabiting the windrows.

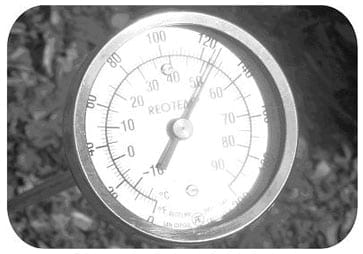

Figure 3. Long-stem thermometer inserted in compost pile recording a temperature of 51°C (124°F).

Windrow Composting of Poultry Carcasses - Image 4

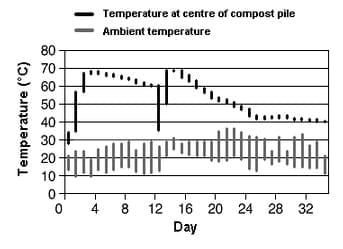

Figure 4. Time versus temperature graph of a compost windrow. The pile was turned at Day 13.

Windrow Composting of Poultry Carcasses - Image 5

The management of a compost pile involves periodically re-introducing oxygen into the materials by mixing the pile, maintaining aerobic conditions in the pile for the micro–organisms. The mixing also ensures that the materials are reorganized within the pile to encourage rapid decomposition of the remaining organic material. Generally, after the initial formation of the compost pile, the material will heat up quickly and then gradually start to cool down. The cooling down is normally a sign that the organisms are starting to be deficient in one of the ingredients, usually oxygen. Mixing or stirring the pile reintroduces oxygen, so the micro-organisms become active again, causing the compost pile temperatures to rise once more (Figure 4).

Equipment used to "turn" the windrows varies from specialized compost turning equipment (Figure 1) to front–end loaders used to re-pile the material.

Recent experience in Ontario with end-of-lay hens has shown that temperatures in the windrows peaked 5–10 days after the windrows were created, depending on the substrate used (straw substrate peaked in 5 days), then started to gradually decline. Most substrate mixtures were initially turned after 12–21 days. Temperatures increased in the pile once more before gradually declining.

Thirty days after the windrow was created, the most active composting process was complete, and there was little evidence of poultry carcasses in the material apart from the odd bone (skull, thigh bone, etc.), which was extremely brittle due to the high heat exposure. There were no feathers or flesh present in the material, which looked more like topsoil than the original substrate material.

The compost continued to produce heat, indicating that it was still curing. A second turning of the material can help to speed this curing process by introducing more oxygen into the pile. The finished product can be applied to crop land as soil amendment similar to using livestock manure to fertilize crops.
