Avian respiratory tract infections are associated with massive economic losses particularly under poor intensive rearing conditions in winter sea-sons. Several pathogens, adverse environmental conditions and poor managemental factors are involved [1–3]. Pathogens include avian influenza virus (AIV), Newcastle disease virus (NDV), infectious bronchitis virus (IBV), avian pneumovirus (APV), Mycoplasma gallisepticum (MG), and avian pathogenic E. coli (APEC). Avian respiratory tract infections can be caused by single pathogens or in combination with each other in form of preceding, concurrent or secondary infections [3– 5]. Change in the ecosystem of the respiratory microbiome [6], mechanical damage of the epithelium, loss of ciliated cells and the impairment of innate immune responses are a consequence of primary respiratory infections and associated with enhanced disease and economical losses during superinfections [7].
In Egypt, respiratory diseases outbreaks caused significant economic losses in commercial poultry production during recent years [8]. Laboratory investigations revealed that IBV represents the most common pathogen detected during these outbreaks [8–10]. IB is a highly contagious disease affecting the respiratory, renal and reproductive tract of chickens. The disease caused by single-stranded, enveloped RNA virus belongs to the genus of Gamma corona-virus [11]. The spike (S) glycoprotein represents the major structural and immunogenic domain, and plays a pivotal role in tissue tropism and carry the receptor-binding site [12]. The S glycoprotein is cleaved post transitionary into S1 (globular head) and S2 (stalk) domain [13]. The S1 domain possesses three hypervariable regions (HVR 1, 2 and 3) responsible for the high genetic and antigenic variability of IBV [14]. Despite massive vaccination strategies used in Egypt, IBV extensively circulates in all over Egypt in vaccinated and non-vaccinated chickens with continuous viral evolution [9,15,16]. Complications between APEC and IBV infections are widely observed under field conditions and are reproduced under experimental conditions resulting in enhanced severe colibacillosis [7] and enhanced pathogenicity post IBV infection.
Under field conditions, commercial broiler farms with inadequate biosecurity measures and with the presence of colibacillosis in early age bird are associated with more severe IBV infections in late age birds (>20 days old). Despite the wide spread use of antibiotics and vaccination against IBV, complications as a consequence of mixed infections of avian bacterial pathogens including APEC and IBV became a general phenomenon associated with significant economic losses.
In the present study, samples were collected from broiler farms with birds with respiratory manifestations. All samples were tested for the presence of IBV and APEC. Recovered IBV isolates were genetically characterized by partial spike protein sequencing. Recovered APEC were characterized by serotyping and antibiotic profiling. Bacteriophages were isolated from water samples collected from the same farms and enriched against APEC O78. In vivo study was conducted to evaluate the efficacy of bacteriophages in reducing the pathogenicity of single and mixed infections with APEC and IBV.
Material and methods
Sampling and sample preparation
One hundred recently succumbed chickens suspected of being IBV infected were collected from forty broiler farms. The study was conducted between late 2017 and early 2018 and samples collected in northern Egypt (Dakahila and Damietta governorates). Lung, trachea, kidney, and liver samples were aseptically collected. On the same day of sampling, half of the organs were cultured for bacteriological investigation in buffered peptone water at 37ºC for 24 h. For IBV screening, lung and trachea samples were homogenized with an equal mass of phosphate buffer saline and then centrifuged at 7,000 × g for 5 min. Supernatant was collected and stored at −80ºC until further investigation.
IBV and E.coli detection and characterization
Viral RNA was extracted using the QIAamp viral RNA mini kit (QIAGEN) in accordance with the manufacturer instructions. One-step RT-PCR was performed for IBV screening as previously described [17]. Genotyping with forward and reverse primers for amplification of HVR1, amplicon purification and sequencing was performed as previously described [17]. Obtained sequences in this study aligned with sequences represent all infectious bronchitis virus genotypes proposed by [18]. All samples used in the phylogenetic analysis were downloaded from GenBank (
http://www.ncbi.nlm.nih.gov). The sequences were aligned using multiple alignment MAFFT version 7 (

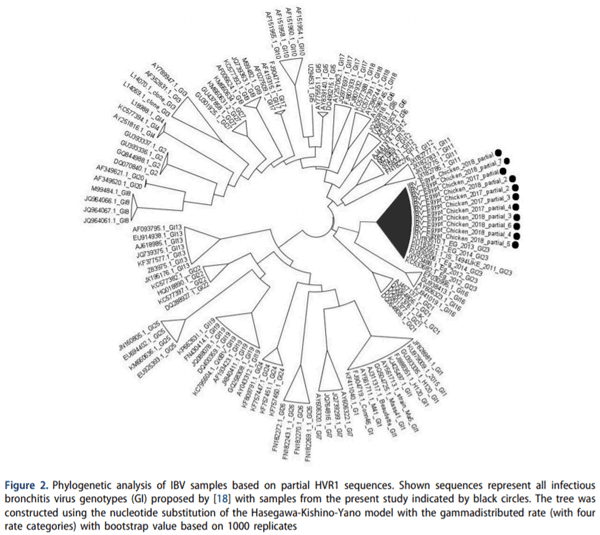

https://mafft.cbrc.jp/alignment/server/). The tree was constructed with the MEGA 6 software [19] using the nucleotide substitution of the Hasegawa-Kishino-Yano model with the gamma-distributed rate (with four rate categories) with bootstrap value based on 1000 replicates [20]. Then, the tree was viewed and edited using the FigTree v1.4.2 software (
http://tree.bio.ed.ac.uk/software/figtree/).
For the bacteriological investigation, E.coli isolation and confirmation was performed in accordance with [21]. Confirmed, positive E.coli strains were subjected to serotyping using all available
O (O1 to O181) antisera in accordance with [22], cross-reacting antigens were used to ensure the removal of cross-reactivity. All confirmed strains were tested against antibiotics commonly used in Egyptian farms by disc diffusion, with testing procedures and interpretations of the results performed in accordance with reference laboratory protocols. One of the field isolates E.coli (serotype O78) was tested for purity using API 20E (bioMérieux, Inc.) and counted in colony-forming units (CFU).
Bacteriophage isolation, enrichment, and titration
Over the surveillance period, sewage water samples were collected from poultry farms and used for the isolation of bacteriophages specific to APEC O78. Samples were centrifuged at 10,000 rpm for 10 min and then filtered through a 0.22 μm filter (Millipore). Bacteriophage purification and enrichment was performed in accordance with [23]. Briefly, filtered samples were mixed with Luria Bertani (LB) broth (Sigma), early-log grown APEC O78 added and samples incubated overnight at 37ºC with shaking set to 120 rpm/min. Then, samples were centrifuged at 10,000 rpm for 10 min and filtered through a 0.22 μm filter. The presence of bacteriophages was initially tested by the spot test method based on the double layer plaque technique in accordance with [24]. For this, 100 µl of APEC O78 were cultured on LB agar for 8 h, then 10 µl of the prepared bacteriophage suspension spotted onto it, and plates incubated at 37ºC overnight. The appearance of a clear zone in the plate indicated the presence of the lytic phage. Plaque assay was used for the titration of bacteriophages as previously described [25].
In vivo evaluation of bacteriophage efficacy in the reduction of E.coli and/or IB pathogenicity
Ethics statement
Animal experimental designs and procedures were reviewed and approved by RLQP in accordance with guidelines of the ministry of agriculture and land reclamation and ministry of environment of Egypt.
Virus and bacteria
Pure E.coli O78 isolate recovered in the present study were titrated by colony-forming units (CFU). Birds were challenged with 108 CFU diluted in 100 µl sterile PBS. The IBV strain IBV-EG/1212B-2012 (accession number: JQ839287) belonging to Egy/Var II [15] was used for the intratracheal challenge with 106 EID50 in 100 µl per bird. Previously described primers and probes were used to create a standard curve for absolute quantification of IBV shedding [26].

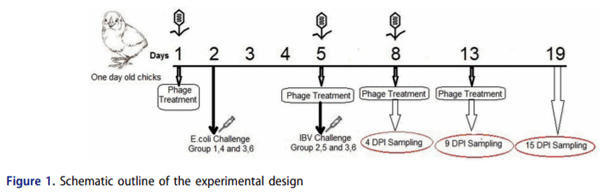

Experimental design
A total of 70 healthy one-day old chicks were purchased from a local poultry hatchery and housed in isolators with ad libitum access to feed and water. One day later, chicks were monitored for the presence of IBV or APEC O78 as previously described and then randomly divided into seven groups. Groups 1, 2, and 3 were treated with bacteriophages by intratracheal inoculation with 108 PFU at 1, 5, 8 and 13 days; whilst groups 4, 5, 6 and 7 were not treated with bacteriophages. Groups 1 and 4 were challenged intratracheally at day 2 with 108 CFU APEC O78. Groups 2 and 5 were challenged intratracheally with 106 EID50 of IBV. Groups 3 and 6 were infected with both pathogens in a 3 days interval. Group 7 was kept as a negative control and received PBS. The experimental design is shown in Figure 1. Three birds per time point were humanely culled at 4, 9 and 15 days post-infection (dpi). The carcasses were weighed and dissected and trachea and lung samples collected aseptically for the detection and titration of APEC O78, bacteriophages and IBV as previously described.
Clinical signs scoring and sampling
All birds were observed twice daily and clinical signs recorded in accordance with [27]. Briefly, no signs were recorded as 0, mild signs included mild gasping, coughing or depression and were recorded as 1, and severe gasping, coughing or depression with ruffled feathers was considered as severe signs and recorded as 2. Birds with severe signs unable to move were recorded as 3 and humanely culled and samples collected. Birds which unexpectedly succumbed to disease were also recorded as 3 and samples collected.
Statistical analysis
Statistical significances of viral and bacterial shedding between different groups were evaluated using Student’s t-test in Microsoft Excel based on the mean of shedding quantities in three tested birds sampled from each group at each time point.
Results
History, clinical findings, and prevalence of APEC and IBV in the examined flocks
Forty broiler flocks, aged between 30 and 40 days and suffering from respiratory affections, from the Dakahlia and Damietta governorate were examined. Unwell birds showed respiratory manifestations visible as nasal discharge, sneezing, gasping and swollen head. In all farms examined unwell birds were isolated and subjected to intense antibiotic treatments. However, clear differences in activity and feed intake remained. Screening of collected samples focused on the detection of IBV and E.coli.
Eight farms were positive for E.coli (20% of all farms examined), five farms from the Dakahlia and three farms from the Damietta governate. Serotyping of the isolated strains revealed the presence of the O26, O78, O86, O114, O119 serogroups, with the O125 serogroup detected on three farms. Disc diffusion tests showed the following resistance rates: 100% to penicillin, 75% to gentamycin and streptomycin, 62.5% to ciprofloxacin, 50% to cefotaxime and 25% to doxycycline. 75% of all isolated strains were multi-drug-resistant (MDR).
Twelve farms were positive for IBV (30% of all farms examined) determined by real-time PCR, with ten farms from the Dakahlia and two farms from the Damietta governate. Postmortem examination of the recently succumbed birds revealed the presence of caseous plug at the tracheal bifurcation, caseous tracheitis, and fibrinous pericarditis, perihepatitis and air sacculitis. For virus isolation, specific pathogen free embryonated chicken eggs were inoculated. Total RNA was extracted from the allantoic fluid and the partial S1 gene of each isolate sequenced. Results obtained revealed that the tested samples clustered within the Egyptian variant group of GI-23 genotype subgroups (Figure 2). Nucleotide sequences tested in this study were designated as IBV_Egypt_ Chicken_2017_partial, IBV_Egypt_Chicken _2018_ IBV_Egypt_Chicken_2017_partial_2, IBV_Egypt_ Chicken_2017_partial_3, IBV_ Egypt_Chicken_ 2017_partial_4, IBV_Egypt_Chicken_2017_partial_5, IBV_ Egypt _Chicken_2018_partial_2, IBV_Egypt_ Chicken_2018_partial_3, IBV_Egypt_ Chicken_ 2018_partial_4, IBV_Egypt_Chicken_2018_partial_5, IBV_Egypt_Chicken _2018_partial_6 and IBV_Egypt_Chicken_2018_partial_7, and were submitted to GenBank under accession number MK415385 and MK415386, MK882512, MK882513, MK882514, MK882515, MK882516, MK882517, MK882518, MK882519, MK882520 and MK882521 respectively.
In vivo evaluation of bacteriophage treatment

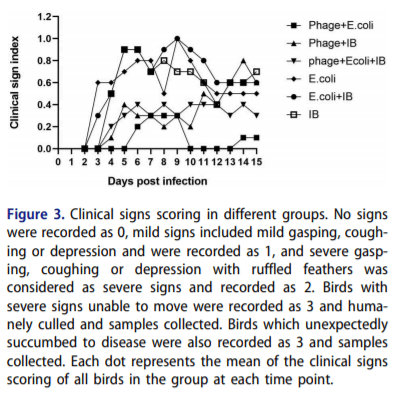

Clinical signs observed including gasping, coughing or depression started to appear from three days post-challenge with APEC or a mixed APEC and IBV infection. Bacteriophage treatment delayed the onset of the clinical signs to 6 days post-challenge (dpc) and in addition markedly reduced their severity in both groups (Figure 3). Regarding IBV infection, clinical signs were observed from four-days post-challenge, with bacteriophage treatment leading to a reduction of their severity, but not delaying their onset (Figure 3).

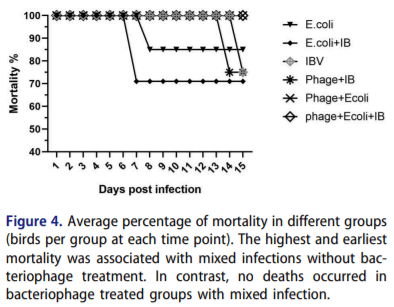

Bacteriophage treatment was not associated with mortality in single APEC or mixed APEC and IBV infected groups. In contrast, birds challenged with APEC alone and mixed APEC and IBV infection without bacteriophage treatment showed a 16% and 29% mortality rate at 8 and 7 days post-infection respectively (Figure 4). Bacteriophage treatment in combination with single IBV infection did not reduce the mortality of 26% (Figure 4).

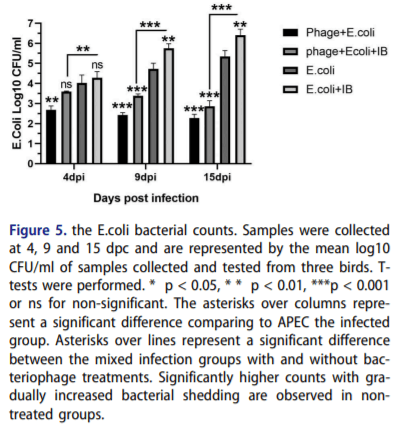

Bacteriophage treatment significantly reduced APEC shedding after single APEC or mixed APEC and IBV challenge, with a gradual decrease of bacterial loads in lung tissues over time. In contrast, a non-treated and challenged group showed a significantly higher APEC load with a gradual increase over time especially at 9 and 15 dpc (Figure 5). Interestingly, bacteriophage treatment significantly reduced IBV shedding in the mixed infected group but not in the IBV alone infected group comparing to the mixed infected group without bacteriophage treatment. The bacteriophage treated group infected with IBV showed relatively comparable results to the infected non-treated group. Groups with single IBV infection and mixed APEC and IBV infection with bacteriophage treatment showed a reduction, but not statistically significant, of IBV comparing to single IBV infection without bacteriophage treatment, with the reduction only becoming statistically significant at 15 dpc (Figure 6).
Discussion
Infectious bronchitis in particular complicated by mixed viral and/or bacterial infections is associated with catastrophic economic losses for the global poultry industry, and a significant threat for food security. Under field conditions complications caused by mixed IBV and APEC infections are linked with accentuating respiratory signs in addition to air sacculitis, pericarditis and possible perihepatitis [28]. Under experimentally controlled conditions, mixed IBV and APEC infections can induce more pronounced clinical lesions in the air sacs that persist for a longer time [29]. In the present study samples were collected from birds with respiratory manifestations from a total of forty farms, and subjected to characterization based on currently circulating IBV and APEC strains. In addition, the efficacy of bacteriophage treatment in reducing APEC replication in the avian respiratory tract was studied in vivo, as well as their effect in reducing IBV pathogenicity after mixed APEC and IBV infections.
Out of forty farms, IBV was detected on 12 farms (30% of all farms examined). The high incidence of IBV in Egyptian poultry flocks suffering from respiratory manifestations (39–75.6%) has been recorded in several previous studies [8,10,30,31]. The range in the incidence rate is apparently due to the differences in the age of birds, with a higher incidence in 20–30 days old birds [8]. Based on partial spike protein gene sequencing, all positive IBV samples were clustered within the Egyptian variant IBV that belongs to the GI-23 genotype [18]. All recent molecular characterization of IBV circulating in Egypt revealed the circulation of two distinct genotypes, the GI-1 vicinal strains genotype and the GI-23 local variant genotype [32–34]. Despite wide spread vaccination with classical and/or variant strain based vaccines in Egypt, IBV outbreaks were frequently reported in vaccinated and non-vaccinated flocks of farms [16], indicating poor protection against the prevalent local variant strain [35].
In chickens, diseases associated with APEC cause significant economic losses due to mortality, decreased feed conversion rates, carcass contaminations and the high cost of its control and prevention. These losses in addition to the high prevalence of E.coli in poultry farms’ environment necessitate the use of antibiotics. However, the constant unwise use of antimicrobials in Egypt led to the high prevalence of multidrug-resistant strains that threaten human health and are associated with economic losses in the commercial poultry sector [36,37]. In the present study, 20% of the collected samples were positive for E.coli. 75% of them showed resistance to three or more antibiotics which were defined as multidrug resistant. This highlights the importance for the development of alternative therapeutic approaches preventing colibacillosis.
Bacteriophage therapy has been proven as an effective tool in the treatment of colibacillosis which initiated in the respiratory tract of chicken [38–40]. The ability to generate bacteriophages against selected bacterial species, serotypes or strains, that do not affect the commensal bacterial flora [41], make them safe in comparison to antibiotics and provide an alternative approach for eliminating pathogens.
In the present study, the efficacy of bacteriophage therapy in single and mixed infections with Egyptian IBV variant and/or APEC O78 has been evaluated. Results obtained revealed a significant higher persistence of APEC and IBV shedding together with higher morbidity and mortality in the mixed infection group comparing to single infected groups. This finding agrees with several previous studies [29,42,43]. Mechanisms behind the escalation of pathogenicity after mixed IBV and APEC infections are not yet fully understood. However, alteration of the immune response is most likely the cause not mechanical altering of the mucociliary barrier [29]. Bacteriophage treatment significantly reduced the severity of single APEC O78 challenge as well as a mixed infection with APEC and IBV. In brief, a high dose of bacteriophages administered intratracheally reduced the morbidity, prevented mortalities and significantly decreased APEC shedding com-pared to non-treated APEC challenge. Local application of bacteriophages at the site of APEC infection that is relatively inaccessible via the circulatory system, i.e. intra air sac administration, enables bacteriophages to eliminate the disease [44]. This explains the success of intrathoracic air sac injections in the reduction or prevention of mortality in several studies [38,44]. In the present study with a higher bacteriophage dose and intra-tracheal inoculation, APEC was significantly reduced in the bacteriophage treated lung tissue. In the case of mixed infections, bacteriophage treatment did not only reduce bacterial counts but also significantly reduced IBV detected in the lung, and associated with reduction in morbidity and mortality in the mixed infection group but not the single IBV infected group. These results show the efficient inhibition of APEC replication associated with a reduction of IBV severity during mixed infections.
In conclusion, the intra-tracheal administration of a high dose of bacteriophages limited APEC replication in the respiratory tract, and subsequently diminished the consequences of single and mixed infections with APEC and IBV. Bacteriophage treatment represents a promising tool for the prophylactic control of colibacillosis, and minimizes the consequences of mixed APEC and IBV infections.
Acknowledgments
The authors would like to thank colleagues in Reference Laboratory for Veterinary Quality Control on Poultry Production for their technical help. Also, we would like to thank the broilers farm’s owners for their cooperation and patience during samples collection.
Disclosure statement
All Authors declare that they have no conflict of interest.
Notes on contributors
Maram Tawakol: Graduated 2004 from Mansoura University with PhD in bacteriology, immunology and mycology in parallel with work as microbiologist and head of biotechnology unit in the reference laboratory for veterinary quality control on poultry production animal health research institute (RLQP), Gamasa, Dakahlia, Egypt.
Nehal Nabil: Graduated 2004 from Mansoura university with PhD in bacteriology, immunology and mycology in parallel with work as microbiologist and quality manager in the RLQP, animal health research institute, Gamasa, Dakahlia, Egypt.
Ahmed Samy: Graduated from faculty of veterinary medicine Zagazig university 2006. I got my PhD in veterinary microbiology and immunology 2013 from Cairo university. 2013 to 2015 work as a researcher in RLQP, Cairo, Egypt. currently I work as postdoctoral scientist, Pirbright Institute, UK.
This article was originally published in Infection Ecology & Epidemiology 2019, VOL. 9, 1686822. https://doi.org/10.1080/20008686.2019.1686822. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0/).
