Clovibactin: improved therapeutics that kill bacterial pathogens without resistance development

INTRODUCTION

The introduction of antibiotics has revolutionized medicine, providing effective treatment for infectious diseases that were once fatal and enabling modern medicine, such as surgery and organ transplantation. Widespread resistance development thwarts the effectiveness and lifespan of antibiotics, calling for the discovery of new drugs in the perpetual standoff against human pathogens.

Most antibiotics used in the clinic originate from natural product scaffolds that were discovered by screening soil dwelling bacteria. This approach, ushered in by the ‘‘Waksman platform,’’ was vastly successful in the 1940s to 1960s, considered the golden age of antibiotics discovery, and it eventually led to the introduction of compounds such as streptomycin, vancomycin, or tetracycline. However, to date, traditional screening sources seem overmined because they tend to yield previously known compounds. Because the drug discovery pipeline has considerably thinned, it is prudent to search for new antibiotics with unprecedented mechanism of action among untapped groups of bacterial producers.

Uncultured bacteria represent a vast (˜99% of all species), unexploited source of new natural product scaffolds. Recently, the development of the iChip technique provided access to a broad diversity of uncultured bacterial species, leading to the discovery of teixobactin, isolated from the soil bacterium Eleftheria terrae. Teixobactin shows excellent antibacterial activity and has a unique chemical structure. Teixobactin blocks cell wall biosynthesis by specific binding to highly conserved lipid precursors, leading to the formation of supramolecular structures that perturb membrane stability. Additional antibiotics with novel modes of action that came out of screening uncultured bacteria are lassomycin, an inhibitor of the ClpP1P2C1 protease, and amycobactin, an inhibitor of the SecY protein exporter, both acting selectively against mycobacteria. Uncultured bacteria hence appear to offer a rich source of compounds with new chemical and mechanistic characteristics, which bodes well for the sustained discovery of effective leads to develop next-generation antibiotics.

Here, we report the discovery and mode of action of clovibactin, an antibiotic without detectable resistance, identified from a screen of uncultured bacteria.

RESULTS

Discovery of clovibactin

Some environmental bacteria, as well as spores, may require a prolonged incubation to initiate growth in vitro. This allows access to microorganisms that would be missed by standard cultivation techniques. Colonies that were detected after 12 weeks of incubation were sub-cultured and screened for antimicrobial activity on nutrient agar plates overlaid with Staphylococcus aureus. One of the producers showed a prominent zone of inhibition, and based on 16S rDNA sequence, it is 99% identical to E. terrae. We refer to this isolate as E. terrae ssp. carolina; the sandy soil it was isolated from comes from North Carolina. The genus Eleftheria that belongs to b-proteobacteria is very rare, and the original E. terrae we isolated several years ago by growth in situ is the producer of teixobactin. E. terrae belong to ‘‘uncultured’’ bacteria that are not recovered by conventional methods. We therefore decided to identify the antimicrobial compound produced by E. terrae ssp. carolina.

Bioassay-guided fractionation of an extract resulted in the isolation of kalimantacin, a known antibiotic. However, extracts of the fermented broth showed activity against Bacillus subtilis, whereas kalimantacin is not active against this species. Upon an initial separation of the crude extract by high-pressure liquid chromatography (HPLC), we identified another fraction of the extract that showed activity against both B. subtilis and S. aureus. In an attempt to increase metabolic flux to novel compound production and simplify isolation, we set out to disrupt genes responsible for kalimantacin production. Whole-genome sequencing led to the identification of a biosynthetic gene cluster (BGC) with 55% identity to the kalimantacin/batumin operon. Production of kalimantacin was reduced below detectable levels by interrupting the first gene in the operon, bat1, using homologous recombination of a suicide vector.

Fermentation broth of E. terrae ssp. carolina Dbat1 was separated by HPLC, and bioassay-guided isolation produced a fraction with a compound having a mass of 903.5291 [M+H]⁺. According to Antibase, this mass is unique. A combination of mass spectrometry and solution nuclear magnetic resonance (NMR) resolved the structure of this compound, which is a novel depsipeptide that we named clovibactin (Figure 1). Stereochemistry was confirmed by Marfey’s analysis. Clovibactin features two D-amino acids in its linear N terminus and an uncommon residue D-3-hydroxyasparagine in the depsi-cycle. The compound’s molecular scaffold bears some resemblance to the depsi-peptide teixobactin, as reflected by a Tanimoto coefficient of 0.8761. However, clovibactin has a considerably shorter linear N terminus (four residues in clovibactin, seven residues in teixobactin) that harbors the two positive charges present in the compound. Additionally, teixobactin contains one of its two positively charged amino acids in the macrolactone that also contains an unusual enduracididine residue, missing in clovibactin.

The genome of E. terrae ssp. carolina was sequenced using PacBio. E. terrae ssp. carolina contains 19 predicted BGCs overall, of which 14 have non-ribosomal peptide synthase (NRPS)-like elements (either pure NRPS or NRPS/PKS hybrid). The gene cluster associated with the biosynthesis of clovibactin was identified by antiSMASH version 5.1.1. It contains two NRPS genes (cloA and cloB), a transporter gene (cloC) and a tailoring enzyme (cloD). The proposed biosynthetic pathway of clovibactin (Figure 1) proceeds through assembly line condensation of 8 amino acids with 3 epimerizations carried out by dual-function condensation domains and a b-hydroxylation on Asn5 by the CloD, a TauD/TfdA dioxygenase. This hydroxylation provides the cyclization point for release from the NRPS and formation of the macrocyclic lactone. When comparing the clovibactin and teixobactin BGCs, the identity is 72% by BLASTN alignment (Figure 1).

Clovibactin exhibited antibacterial activity against a broad range of Gram-positive pathogens, including methicillinresistant S. aureus (MRSA), daptomycin-resistant and vancomycin-intermediate-resistant S. aureus (VISA) strains, and difficult to treat vancomycin-resistant Enterococcus faecalis and E. faecium (vancomycin-resistant enterococci [VRE]) (Tables 1 and S1). Escherichia coli was only marginally affected compared with an outer membrane deficient E. coli WO153 strain, probably reflecting insufficient penetration of the compound.

Clovibactin is bactericidal, with S. aureus minimal bactericidal concentration (MBC) of 2 x MIC (minimal inhibitory concentration). We then examined the time-dependent killing in more detail (Figure 2A). Clovibactin was more effective in killing S. aureus compared with vancomycin, the first line of defense antibiotic. We noticed that clovibactin produced unusually strong lysis of the cell culture and quantified this effect (Figures 2B, 2C, and S1A). Teixobactin was previously demonstrated to be rapidly bactericidal and to induce lysis mediated by AtlA, the major cell wall autolysin of S. aureus. To investigate the contribution of AtlA to the activity of clovibactin, the antibacterial activity against an DatlA deletion mutant was examined and compared with wild-type S. aureus. Clovibactin (2 x MIC) induced strong lysis, more pronounced than teixobactin (Figures 2B and 2C). Strikingly, lytic events were only slightly affected in the DatlA mutant, suggesting that clovibactin-induced lysis does not primarily rely on AtlA activity. Moreover, killing of S. aureus by clovibactin was almost unaffected in both wild type and in the DatlA mutant, in contrast to teixobactin (Figure 2D). In agreement, clovibactin-treated S. aureus cells did not release AtlA into supernatant as observed for teixobactin as revealed by zymographic analysis (Figure S1B) and comparative transcriptomic sequencing (RNA-seq) of clovibactin- and teixobactin-treated S. aureus showed differential regulation of autolysins and hydrolases controlled by the essential WalRK two-component system (TCS) (Figure S1C), pointing to distinct cellular mechanisms of action of the two compounds. Such pronounced lysis is typically observed with detergent-like compounds that rapidly destroy the cell membrane. However, lysis induced by clovibactin is not the result of rapid pore formation or membrane disruption, as evidenced by the absence of membrane effects in permeabilization assays in contrast to the pore-forming lantibiotic nisin (Figure S1E). Similarly, clovibactin treatment did not lead to rapid membrane depolarization as determined using the membrane potential sensitive dye DiSC2(5) or enable penetration of SYTOX. This contrasts with the action of teixobactin that thins and depolarizes bacterial membranes. In agreement with this, clovibactin did not affect the cellular localization of the cell-division protein MinD in B. subtilis (Figure S1F). MinD is normally localized to cell poles and division sites and becomes delocalized upon dissipation of the membrane potential.

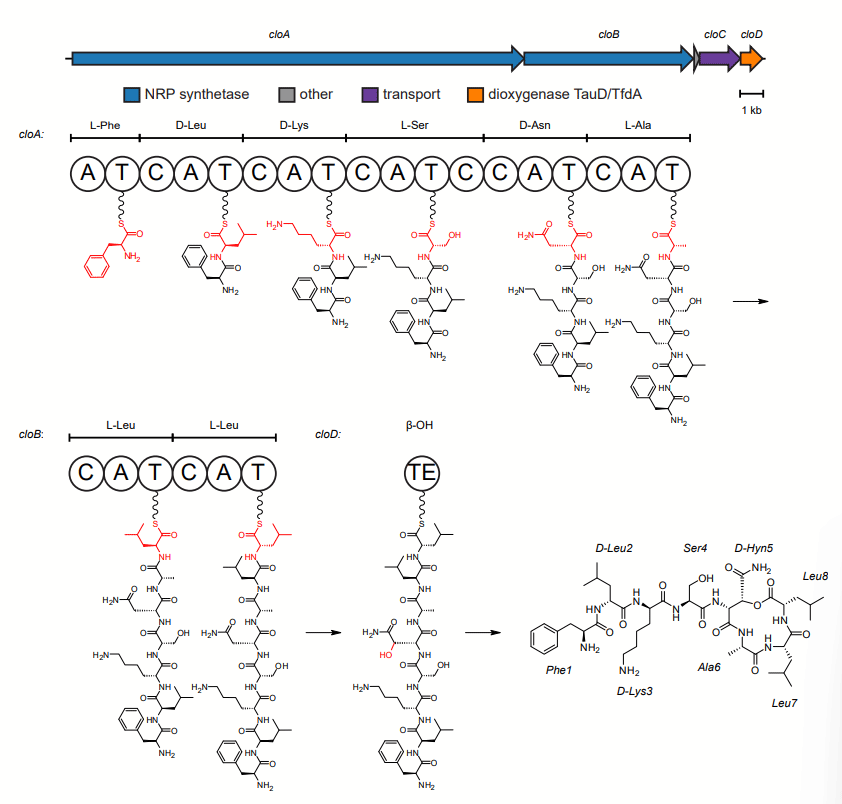

Figure 1. Biosynthetic gene cluster and proposed biosynthesis of clovibactin The gene cluster associated with the biosynthesis of clovibactin (cloABCD) was identified via whole-genome sequencing. NRPS modules are labeled as follows: A, adenylation; T, thiolation/peptidyl carrier protein; C, condensation; TE, thioesterase. See also Tables 1 and S1.

An antibiotic from an uncultured bacterium binds to an immutable target - Image 1

Click here to enlarge the image

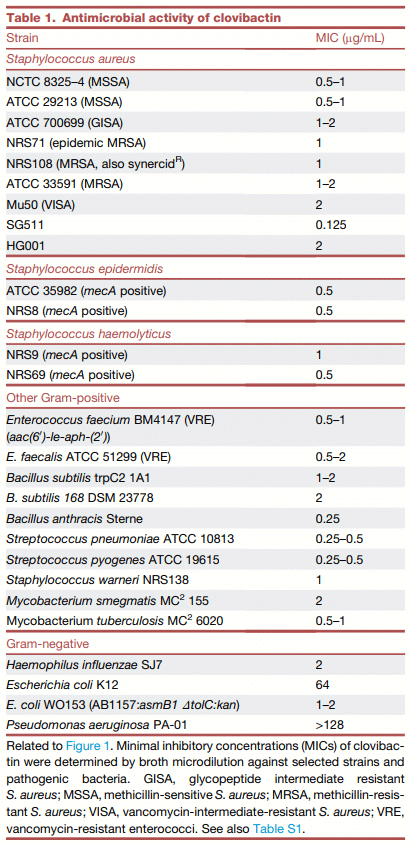

Table 1. Antimicrobial activity of clovibactin

Clovibactin did not show any cytotoxicity against mammalian NIH/3T3 and HepG2 cells at 100 μg/mL (highest concentration tested). Given the strong antimicrobial activity of clovibactin and low cytotoxicity, we next examined the action of this antibiotic in vivo. We first performed a pharmacokinetic (PK) study to evaluate the systemic exposure and blood residence time of the compound. A single dose of clovibactin was administered to mice at up to 40 mg/kg intravenously and was tolerated. Blood was drawn at different times, and clovibactin plasma levels were determined by LC-MSMS, and PK parameters were determined using the software package Watson LIMS (Figure 2E).

Next, clovibactin was evaluated in a neutropenic mouse thigh infection model with S. aureus. In this model, mice are treated with cyclophosphamide to disable the immune response. Antibiotics are then evaluated for their ability to control infection without the assistance of the immune system. Clovibactin was comparable to vancomycin in diminishing the bacterial burden (Figure 2F).

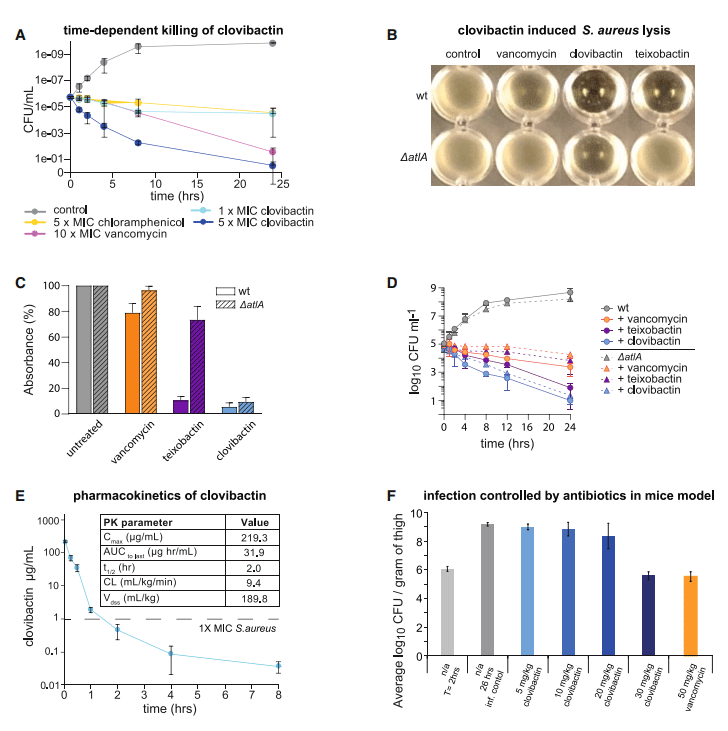

Figure 2. Clovibactin kills S. aureus in vitro and in vivo

(A) Time-dependent killing of S. aureus (clovibactin [1 x MIC], clovibactin [5 x MIC], vancomycin [10 x MIC], and chloramphenicol [5 x MIC]). Data are means of three independent experiments ± standard deviation.

(B and C) Clovibactin-induced lysis in S. aureus. Cells of S. aureus SA113 and a DaltA mutant were incubated with each compound at 2 x MIC (B) and 5 x MIC

(C) for 24 h, as indicated. Representative of four independent experiments (B) and mean values from three independent experiments (C) are shown. In (C), error bars represent standard deviation.

(D) Time-dependent killing of S. aureus and S. aureus DatlA (clovibactin, teixobactin, and vancomycin [2 x MIC each]). Error bars represent standard deviation.

(E) Pharmacokinetic parameters of clovibactin in mice model determined using Watson LIMS software. The analysis was performed using three animals per time point. The data points are the mean plasma concentration and the standard deviation from all three animals within each time point.

(F) The bacterial load from the thigh infection model prior to dosing and 24 h after treatment. The infection controls demonstrated a bioload of 6.07 log₁₀ colonyforming units (CFUs)/gram of thigh at the time of treatment (2 h). Clovibactin was delivered as two IV doses (2 and 4 h post infection) of 5, 10, 20, and 30 mg/kg. Vancomycin was delivered as a single IV dose at 50 mg/kg. There were four animals per group. The data points are the average CFU/gram of thigh and the standard deviation from all four animals within each group.

Target identification

Given the novelty of the structure and the promising properties of this compound as a developmental lead, we sought to identify the molecular target of clovibactin. First, we determined the frequency of resistance, which is essential to know for advancing a compound. From a drug development standpoint, a desirable frequency of resistance is < 10^-8—low enough to provide extended lifetime in the clinic. The added benefit of this determination is target identification by whole-genome sequencing of resistant mutants. However, plating S. aureus on media containing clovibactin even at a low concentration (4 x MIC) produced no resistant mutants. We therefore estimate the frequency of resistance to be < 10^-10. We then sought to determine a possible biosynthetic pathway that clovibactin might inhibit. For this, we followed the incorporation of labeled precursors into the major biosynthetic pathways of S. aureus—DNA, RNA, protein, and peptidoglycan. Clovibactin specifically interfered with the incorporation of radiolabeled N-acetylglucosamine (GlcNAc) into the cell wall, whereas DNA, RNA, and protein biosynthesis remained unaffected (Figure 3A). In a parallel approach, we used pathway-selective bioreporter strains of B. subtilis treated with clovibactin. Expression of LacZ was specifically induced by clovibactin in B. subtilis P_ypuA-lacZ, indicative of interference with cell wall biosynthesis (Figure 3B). Treatment of B. subtilis with clovibactin induced cell-shape deformations as visualized by phase-contrast microscopy. This blebbing phenotype is characteristically induced by many cell-wall-acting antibiotics and was similarly observed with teixobactin, hypeptin, or vancomycin but not the protein synthesis inhibitor clindamycin used as a control (Figures 3C and S1D), further supporting direct interference with cell wall biosynthesis. To narrow down the molecular target within the cell wall biosynthesis pathway, liaIlux induction was monitored over time. LiaRS is a TCS, known to respond to antibiotics that interfere with lipid II biosynthesis. Clovibactin strongly induced P_liaI-lux, suggesting that it may directly interact with the lipid II biosynthesis pathway (Figure 3D).

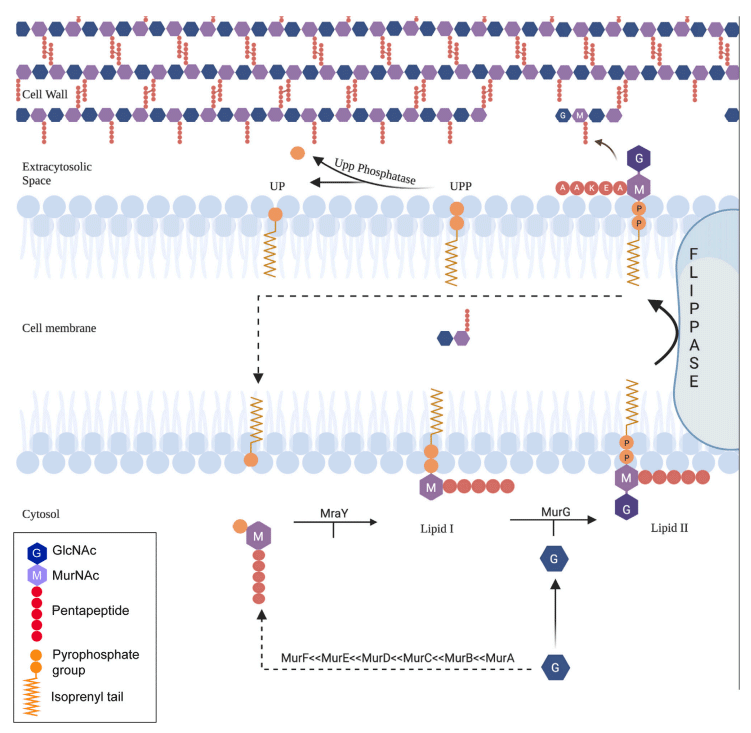

Synthesis of the peptidoglycan precursor lipid II occurs in two different compartments of the bacterial cell. In the cytoplasm, the soluble sugar building blocks UDP-N-acetylmuramic acid pentapeptide (UDP-MurNAc-pp) and UDP-GlcNAc are synthesized and transferred to the lipid carrier undecaprenyl phosphate (C₅₅P) to build lipid II that is flipped across the membrane to the exterior of the cell and incorporated into the growing peptidoglycan network (Figure S2). Antibiotics that block late stages of peptidoglycan biosynthesis, such as vancomycin, are known to trigger the intracellular accumulation of the last soluble peptidoglycan precursor UDP-MurNAc-pp. As observed for vancomycin, treatment of S. aureus with clovibactin at increasing concentrations led to an accumulation of UDPMurNAc-pp in the cytoplasm (Figure 3E). A fluorescent clovibactin-Bodipy-FL derivative bound preferentially to the septum of dividing staphylococcal cells, a site enriched in lipid II (Figure S3A). Preincubation of cells with teixobactin strongly diminished clovibactin-FL binding to the septum, suggesting that both compounds interact with the same targets (Figure S3A).

Based on the results obtained with whole cells, the impact of clovibactin on the late steps of cell wall biosynthesis was analyzed in vitro to identify the molecular target—clovibactin was thus tested in individual biosynthesis assays using purified enzymes and substrates (Figure 3F). Clovibactin inhibited all cell wall biosynthesis reactions that consume lipid I, lipid II, lipid III_WTA, or undecaprenyl-pyrophosphate (C₅₅PP) as a substrate in a dose-dependent fashion, suggesting binding to these lipid intermediates, rather than inhibiting enzyme function. Of note, clovibactin equally inhibited reactions consuming C₅₅PP and lipid II as a substrate. Corroborating this result, the addition of purified cell wall lipid intermediates antagonized the antimicrobial activity of clovibactin and restored growth of S. aureus (Figures 3G and S3D). Interestingly, similar molar concentrations of C₅₅PP and lipid II were required to fully antagonize clovibactin activity, whereas antagonization of teixobactin activity required a 10-fold higher concentration of C₅₅PP compared with lipid II (Figure S3D), suggesting differences in the binding mode. In agreement with this, higher concentrations of teixobactin were needed to completely block the YbjG-catalyzed dephosphorylation compared with clovibactin (Figures 3F and S3E), suggesting that C₅₅PP is a primary target for clovibactin. This is further substantiated by the antagonization of the clovibactin-induced liaI-lux stress response, which was equally antagonized by C₅₅PP and lipid II (Figure S3F). In contrast, although teixobactin-induced liaI-lux stress response was efficiently antagonized by lipid II, significantly higher concentrations of C₅₅PP were required (Figure S3F).

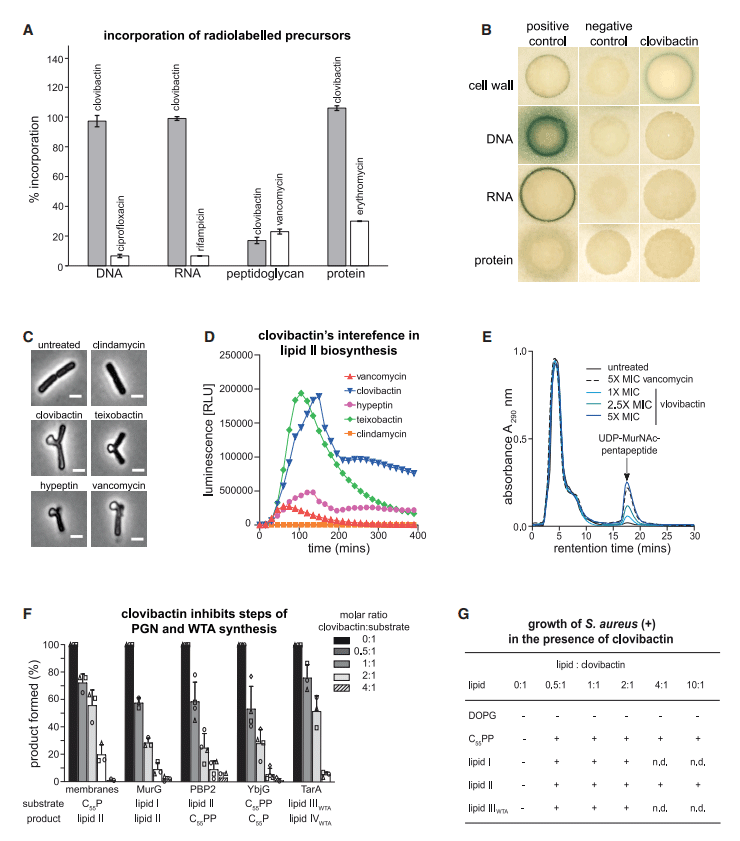

Figure 3. Clovibactin targets cell wall biosynthesis

(A) Effect of clovibactin on macromolecular biosyntheses in S. aureus. Incorporation of ³H-thymidine (DNA), ³H-uridine (RNA), ³H-leucine (protein), and ³H-glucosamine (peptidoglycan) was determined in cells treated with clovibactin at 2 3 MIC (gray bars). Ciprofloxacin (8 x MIC), rifampicin (4 x MIC), vancomycin (2 x MIC), and erythromycin (2 x MIC) were used as positive controls (white bars). Data are averages of two independent experiments. Error bars are standard deviation.

(B) B. subtilis bioreporter strains with selected promotor-lacZ fusions were used to identify interference with major biosynthesis pathways. b-galactosidase (lacZ) is fused to promotors P_ypuA (cell wall), P_yorB (DNA), P_yvgS (RNA), and P_yhel (protein) and induction of a specific stress response is visualized by a blue halo at the edge of the inhibition zone. Antibiotics vancomycin, ciprofloxacin, rifampicin, and clindamycin were used as positive controls.

(C) Clovibactin treatment results in cell-shape deformations and characteristic blebbing as observed by phase-contrast microscopy of B. subtilis. Cell wall active antibiotics teixobactin, hypeptin, vancomycin, and protein synthesis inhibitor clindamycin were used as controls. Scale bars, 2 mm.

(D) Clovibactin (1 3 MIC, blue) strongly induced Plial as observed by expression of the lux operon in B. subtilis P_liaI-lux. Teixobactin, hypeptin, vancomycin, and clindamycin were used as control antibiotics.

(E) Intracellular accumulation of the soluble cell wall precursor UDP-MurNAc-pp after treatment of S. aureus with different concentrations of clovibactin. Untreated and VAN-treated (5 x MIC) cells were used as controls. Experiments are representatives of three independent experiments.

(F) Clovibactin inhibits membrane-associated steps of peptidoglycan (PGN) and wall teichoic acid (WTA) synthesis in vitro. The antibiotic was added in molar ratios from 0.5 to 4 with respect to the amount of the lipid substrate C₅₅P, C₅₅PP, lipid II, or lipid III_WTA used in the individual test systems. Reaction product synthesized in the absence of antibiotic was taken as 100%. Mean values from three independent experiments are shown. Error bars represent standard deviation.

(G) Antagonization of the antimicrobial activity of clovibactin by cell wall precursors. S. aureus was incubated with clovibactin (8 x MIC) in nutrient broth in microtiter plates, and growth was measured after a 24 h incubation at 37ºC. Putative HPLC-purified antagonists (undecaprenyl-pyrophosphate [C₅₅PP], lipid I, lipid II, and lipid III_WTA) and 1,2-dioleoyl-sn-glycero-3-phospho-glycerol (DOPG) were added at molar ratios with respect to the antibiotic. Experiments were performed with biological replicates. + antagonization/growth; no antagonization/no growth; n.d. not determined.

Oligomerization upon target binding

Next, we studied the interaction between clovibactin and lipid II in lipid bilayers using solid-state NMR (ssNMR), which allows the investigation of molecular mechanism of antibiotics binding to membrane targets under near-native conditions. To make the drug amenable to a comprehensive ssNMR characterization, we produced uniformly ¹³C,¹⁵N-labeled clovibactin by fermentation of E. terrrae spp. carolina Dbat in ¹³C,¹⁵N-enriched media (see STAR Methods section). Co-assembly of clovibactin and lipid II in membranes resulted in high-quality 2D ssNMR correlation spectra that demonstrate the formation of a well-defined complex. We fully assigned the chemical shifts of clovibactin in the complex using 2D CC, CN, and NH spectra (Figure S4). Large signal shifts of the backbone amide protons show that clovibactin undergoes a major conformational change upon lipid II binding (Figure 4A). An analysis of the 13C chemical shifts27 suggests that the short linear N terminus of clovibactin does not adopt a classical secondary structure but seems to contain elements of b-structuring (Figure S4). Subsequently, we investigated the site-resolved dynamics of clovibactin in the lipid II-bound state using ssNMR relaxation measurements (Figures 4B and 4C). Globally, clovibactin is immobilized in the complex, indicative of the formation of a larger supramolecular structure. Strikingly, the N terminus (Leu2 and Lys3) strongly rigidifies upon complex formation, which is reminiscent of the antimicrobial action of teixobactin, whose N terminus drives the self-assembly into large clusters upon target binding.

We used confocal microscopy to probe the assembly of the complex on the surface of giant unilamellar vesicles (GUVs) doped with a low (0.1 mol %) concentration of Atto-tagged lipid II. Microscopy images clearly show the formation of large clovibactin-lipid II patches, whereas such accumulation was not observed without clovibactin (Figure 4G). These data confirm the formation of large supramolecular clovibactin-lipid II domains.

Next, we investigated at high resolution how clovibactin molecules arrange in the supramolecular assemblies. We acquired 2D ssNMR PARISxy CC spectra of the complex, in which we observed numerous clear head-to-tail contacts between N-terminal (Phe1) and C-terminal (Hyn5 and Leu8) clovibactin residues. In agreement with the formation of a supramolecular structure, these are likely intermolecular contacts between clovibactin molecules because the intramolecular distances between N-terminal and C-terminal residues appear too far for CC magnetization transfer with a distance threshold of approximately 8 A˚ (Figures 4D, 4E, and S5A). The contacts that we observe are consistent with an antiparallel dimeric organization of clovibactin molecules (Figures 4F and S5B). The formation of supra-structures is also demonstrated by dynamic nuclear polarization (DNP) ssNMR studies using an equimolar mixture of ¹³C-labeled and ¹⁵N-labeled clovibactin samples (Figures S5C–S5F). In line with our structural model of the complex, these fluorescence resonance energy transfer (FRET)-like DNP-ssNMR experiments show that intermolecular clovibactin-clovibactin contacts in the suprastructure are predominantly backbone-backbone mediated and mainly involve N-terminal residues.

Flexible fibrils

To examine the supramolecular nature and the membrane interactions of clovibactin-lipid II complex in more detail, we first used high-speed atomic force microscopy (HS-AFM), a dynamic technique that provides biomolecular-scale structural resolution in real time. Within minutes after the addition of 5 mM of clovibactin to membranes doped with lipid II, HS-AFM data show the formation of fibrils on the membrane surface (Figures 4H, 4J, and S5G). These fibrils only formed in the presence of both clovibactin and lipid II (Figure S5H). The observed fibrils showed a limited extend of lateral nucleation, forming thin, flat strings of associated fibrils.

The clovibactin concentrations required to observe supramolecular structures by HS-AFM are comparable to the MIC, suggesting that the oligomerization upon target binding is important or even critical for the mode of action of clovibactin (Tables 1 and S1). The differential nature of the supramolecular structures of clovibactin and teixobactin is also in line with mobility measurements in supported bilayers using single-molecule tracking. These measurements agree with higher concentration requirements for the formation of clovibactin fibrils and show that lipid II remains more mobile in assemblies formed by clovibactin (Figure S5I).

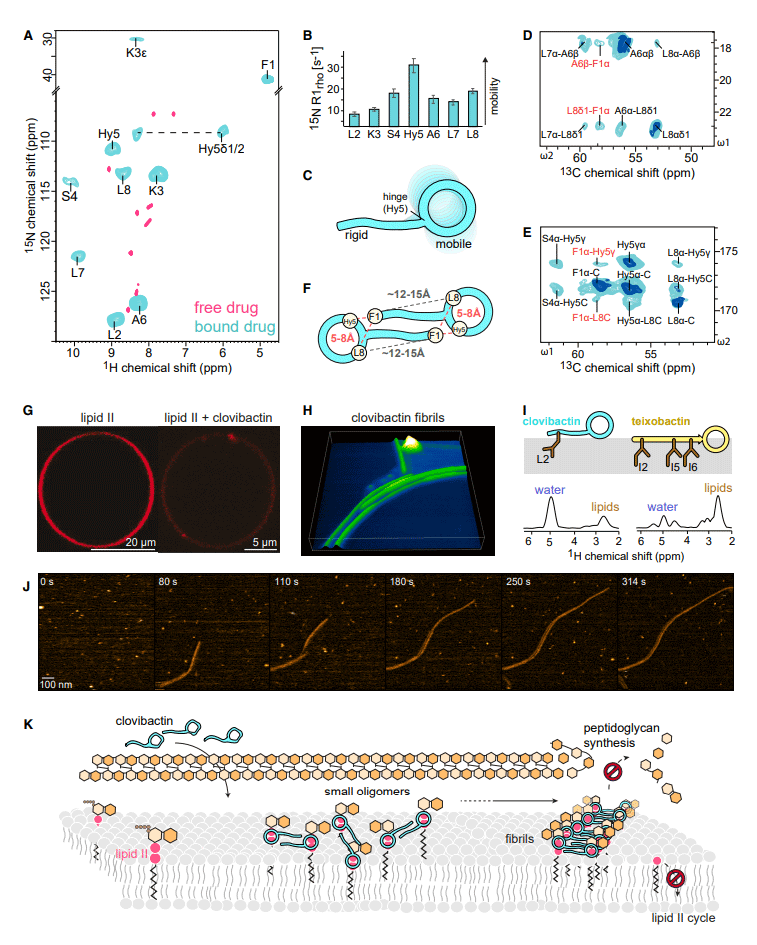

Figure 4. ssNMR structural model and oligomerization of the clovibactin/lipid II complex in membranes

(A) 2D NH ssNMR spectrum of lipid-II-bound clovibactin in membranes (cyan), superimposed on free clovibactin in aqueous solution (rose).

(B) Site-resolved ¹⁵N R_1rho dynamics of lipid-II-bound teixobactin and clovibactin in 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC) membranes. The error bars show the standard error of the fit.

(C) Illustration of the NMR-derived dynamics. Although clovibactin’s N terminus is rigid, the depsi-cycle shows elevated dynamics.

(D and E) Zooms into a 2D CC spectrum of the complex show head-to-tail contacts in clovibactin, suggesting a dimeric (supramolecular) arrangement of clovibactin in the complex. Data acquired at 1,200 MHz magnetic field using 50 (cyan) and 250 ms (dark blue) CC mixing time.

(F) Schematic illustration of the head-to-tail contacts between Phe1-Hyn5 and Phe1-Leu8 seen in (D) and (E).

(G) Confocal microscopy of DOPC GUVs doped with Atto-labeled lipid II and treated with clovibactin show domain/cluster formation.

(H) 3D rendered HS-AFM image show the formation of clovibactin-lipid II supramolecular fibrils after 10 min of interactions.

(I) Lower panel: mobility-edited31 ssNMR experiments show that clovibactin is much more water-accessible than teixobactin in the lipid II-bound state. Upper panel: ssNMR-derived topology and membrane insertion of clovibactin and teixobactin.

(J) Snapshots of a time-lapse HS-AFM video (Video S1) following the assembly of clovibactin-lipid II fibrils. Images were obtained on a supported lipid bilayer containing 4% (mol) lipid II in the presence of 5 mM clovibactin, added at 0 s. Image acquisition rate of 0.5 frames per second.

(K) Model of the mode of action of clovibactin. At the membrane surface, clovibactin binds lipid II and forms small oligomers that serve as nuclei for the formation of fibrils. Fibril formation enables a stable binding of lipid II and other cell wall precursors, blocking cell wall biosynthesis.

The complex interface

Next, we sought to determine precisely how clovibactin targets lipid II, a complex lipid with a conserved pyrophosphate (PPi) group, a headgroup composed of the sugars MurNAc and GlcNAc and a pentapeptide whose variation confers resistance to antibiotics such as vancomycin (Figure 5A).

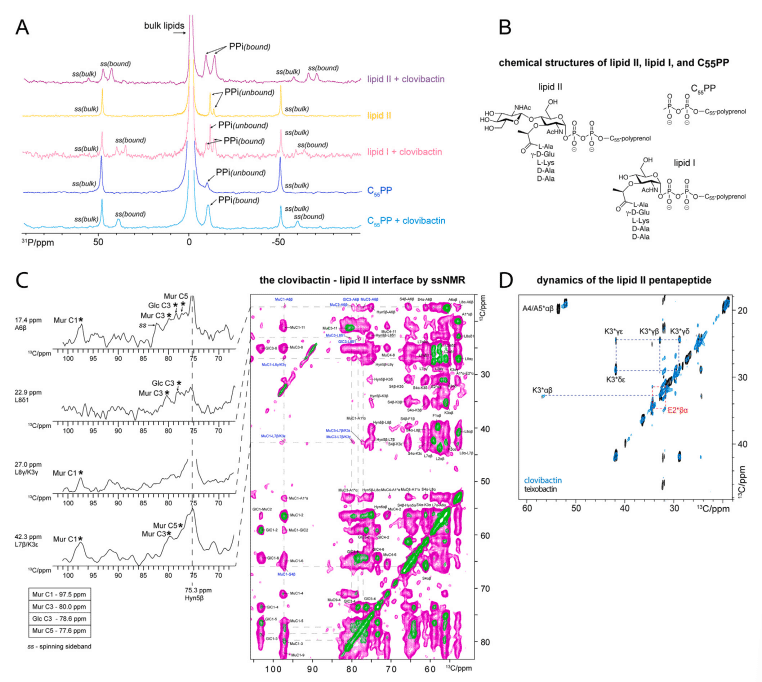

First, we investigated how clovibactin targets the PPi group. Upon addition of clovibactin, 1D ³¹P ssNMR data showed marked changes in the pyrophosphate signals of lipid II, suggesting a direct coordination (Figures 5B, S7A, and S7B). A similar signal shift was observed for lipid I (which lacks the GlcNAc sugar). Furthermore, the emergence of intense sidebands in 1D ³¹P ssNMR data demonstrate that clovibactin also binds and immobilizes C₅₅PP (which lacks the sugars and the pentapeptide), in line with our biochemical binding analysis. Together, these data confirm that clovibactin is a multi-targeting antibiotic that blocks cell wall biosynthesis at several distinct, indispensable stages. To pinpoint the role of the lipid II PPi group in complex formation, we acquired a 2D ³¹P¹H ssNMR spectrum, which monitors magnetization transfer from amino protons of clovibactin to PPi (Figure 5B). These data demonstrate that the backbone amino protons of clovibactin directly coordinate the PPi group with the amino protons of the depsi-cycle (Hyn5, Ala6, and Leu8). Furthermore, a weaker, but clearly discernible, signal shows that Ser4 of the N terminus-depsi-cycle junction is in proximity close to the PPi group. These direct contacts with the PPi group agree with the stark signal changes observed upon addition of the drug.

Subsequently, to resolve the role of the lipid II sugars and the pentapeptide for target binding, we prepared a complex of ¹³C,¹⁵N-clovibactin and ¹³C,¹⁵N-lipid II to measure a series of 2D PARISxy ¹³C¹³C spectra at ultra-high magnetic fields of 950 and 1,200 MHz (Figures 5C and S7C). We observed a total of 12 unambiguous interfacial contacts between clovibactin and the lipid II sugars, 10 of which relate to Ala6 and Leu8 (Figure 5D), confirming that the depsi-cycle directly interacts with the lipid II headgroup. This is also in line with additional ambiguous interfacial contacts that we observed between Leu7 and the sugars. Together, our data show that all hydrophobic residues of the depsi-cycle are in direct proximity to the lipid II sugars. Almost all interfacial clovibactin-lipid II contacts are with MurNAc, the sugar that is covalently attached to the pyrophosphate, whereas we observed only three weak contacts with the GlcNAc sugar. This means that MurNAc is directly present at the interface with clovibactin, whereas the GlcNAc sugar is distal to this interface.

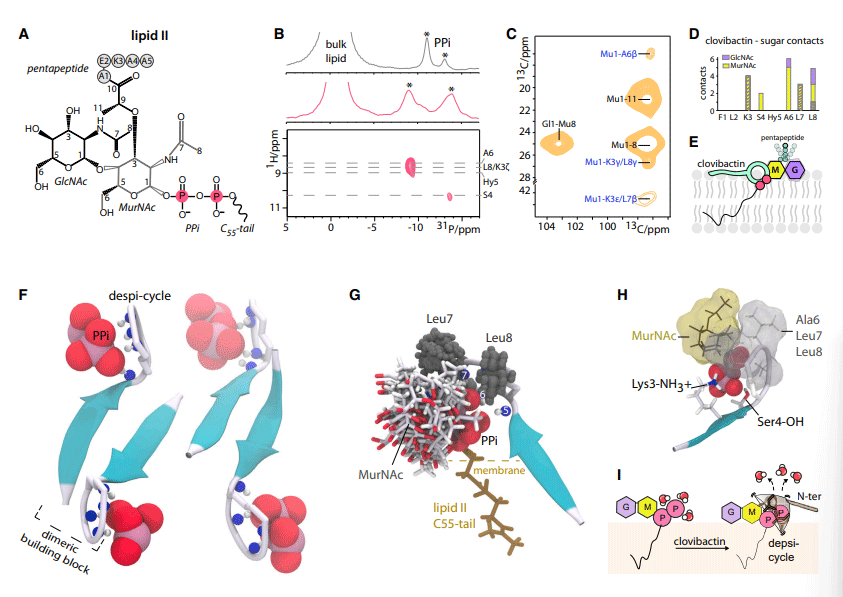

Figure 5. The interface and supramolecular structure

(A) Chemical structure of lipid II.

(B) 1D³¹P ssNMR data in liposomes show marked changes of the lipid II PPi signals upon addition of clovibactin. 2D ¹H³¹P ssNMR spectrum establishes direct interactions between the backbone of the depsi-cycle and PPi.

(C) 2D CC ssNMR data of the ¹³C,¹⁵N-clovibactin-¹³C,¹⁵N-lipid II complex in liposomes show interfacial contacts with the MurNAc sugar and the hydrophobic side chains of the depsi-cycle. Interfacial clovibactin-lipid II contacts in blue. Data acquired at 950 MHz using 300 ms CC mixing time.

(D) Sum of interfacial contacts of clovibactin with the sugars of lipid II. Shaded bars show ambiguous contacts of MurNAc with either K3 or L7.

(E) Illustration of the interface: PPi and MurNAc are in direct proximity, GlcNAc is distal, the pentapeptide is flexible and not involved in the interface.

(F) ssNMR-derived structural model of the clovibactin-lipid II complex.

(G) Calculated interfaces of ssNMR structural models superimpose well and show that the hydrophobic depsi-cycle side chains (Ala6, Leu7, and Leu8) wrap like a glove around lipid II PPi group, interacting with the hydrophobic side of MurNAc.

(H) The cationic K3 and the polar S4 side chains favorably interact with the lipid II PPi group.

(I) Hydrophobic residues of clovibactin embrace the PPi group like a glove, which appears entropically favorable by the release of boundary water.

Structural model of the complex

We next calculated a structural model of the complex using HADDOCK. Although the dimeric (2 x 2) clovibactin is likely the minimal binding arrangement to stably bind lipid II, we calculated a (4 x 4) arrangement to get a better idea about the supramolecular structure. The structure calculations were based on intermolecular clovibactin-clovibactin distance restraints and interfacial clovibactin-lipid II distance restraints. Hydrogen bonding restraints were applied among and between the dimeric units (Figure S7J).

The obtained structures superimposed well (2.50 ± 0.85 A˚ average backbone root-mean-square deviation [RMSD] for clovibactin in the complex) (Figures 5F and S7E–S7G) and show antiparallel dimeric units of clovibactin that could elongate to fiber-like supramolecular structures, in agreement with supramolecular structures observed by HS-AFM. A secondary structure analysis shows about 60%–70% b strand propensity for clovibactin’s short N terminus, an unusual molecular conformation that could foster oligomerization and fibril formation (Figure S6H). Enabled by the sequence of alternating D- and L-amino acids, hydrophobic (Leu2), and hydrophilic (Lys3 and Ser4) side chains are divided below and above the sheet-like arrangement, positioned to face lipid and water phases, respectively (Figure S6I).

The clovibactin-lipid II interface is well defined by several unambiguous distance restraints (1.47 ± 0.40 A˚ interfacial RMSD defined by residues Ala6, Leu7, and Leu8 of clovibactin, PPi, and MurNAc of lipid II) and shows that the backbone amino protons of the depsi-cycle directly coordinate the PPi group of lipid II. Strikingly, the hydrophobic residues of the despi-cycle (Ala6, Leu7, and Leu8) neatly wrap around the PPi moiety, reminiscent of a hydrophobic glove structure, in agreement with ssNMR distance measurements (Figure 5G). In this configuration, the hydrophobic depsi-cycle side chains of clovibactin do not form specific interactions with the sugars. Instead, they form a plastic, adjustable interface with the hydrophobic side of the MurNAc sugar, in agreement with unambiguous contacts between Leu8d1-MurNAcC3, Ala6Cb-MurNAcC11, or ambiguous contacts between Leu7Cb-MurNAcC3 that are all within the hydrophobic patch of MurNAc. The lack of specific interactions with the MurNAc sugar also matches well with the increased dynamics of clovibactin’s depsi-cycle in the complex observed by ssNMR relaxation data, and the relatively weak interfacial clovibactin-sugar contacts observed in 2D CC ssNMR spectra. Residue 5 (3-hydroxyasparagine) that attaches the depsi-cycle to the linear N terminus shows by far the strongest dynamics and hence acts as a sort of hinge that uncouples the dynamics of the PPi-binding depsi-cycle from the N-terminal oligomerization domain (Figures 4B and 4C). The lack of specific interactions between clovibactin and the sugars is also buttressed by phosphorous ssNMR dynamics studies (Figures S8A and S8B) that show that the lipid II PPi group is markedly more mobile in the clovibactin complex than in the teixobactin complex, in the latter of which the unusual enduracididine residue specifically interacts with the sugars.10 Together, these data clearly agree with differential lipid II binding modes for clovibactin and teixobactin (Figure S8C).

The structures consistently show favorable closer-distance interactions between the anionic lipid II PPi group and the cationic (Lys3) and the polar (Ser4) side chains of the N terminus (Figure 5H). This agrees with clear interfacial clovibactin-lipid II ssNMR distance restraints Ser4Cb-MurNAcC1 and Ser4CbMurNAcC3 that show that Ser4-hydroxyl group is in proximity of the lipid II headgroup, and it matches well with the high rigidity of the Lys3 side chain that is observable in dipolar 2D NH spectra (Figures 4A and S4). 2D NH spectra also show that the protons of the cationic N-terminal amino-group of Phe1 are in fast exchange with water, which implies that they are not bound in a tight interaction.

The absence of specific interactions with the hydrophobic depsi-cycle side chains (Ala6, Leu7, and Leu8) is one of the reasons why clovibactin is able to efficiently (K_d for lipid II = 0.086 ± 0.007 mM) bind a broad spectrum of cell wall precursors with a PPi group (C₅₅PP, lipid I, and lipid II) (Figures 3E, 3F, and S9). This conclusion is supported by isothermal titration calorimetry (ITC) measurements that compare the affinity of clovibactin and teixobactin to different precursors showing that clovibactin’s affinity is less affected by the presence of the sugars, explaining why clovibactin binds C₅₅PP with significantly higher affinity than teixobactin. The lack of specific interactions between clovibactin and the sugars is likely compensated by favorable entropic contributions of the hydrophobic cage, which remains flexible but strips off boundary water molecules that coordinate the PPi group (Figure 5I). Critically, we did not observe binding of clovibactin to soluble PPi (Na-pyrophosphate) in ITC experiments (Figure S9), demonstrating that clovibactin selectively binds lipid-anchored pyrophosphate groups. This suggests that settling on the membrane surface and the formation of stable supramolecular structures contribute to the effective binding of precursors.

DISCUSSION

Traditional screening platforms have failed to introduce new antibiotics in the last decades, in part due to overmining of Actinomycetes, the traditional source of antibiotics. Novel antibiotics are likely to be discovered by accessing silent operons, uncovering compounds masked by abundantly produced antimicrobials, and by growing previously uncultured bacteria.

Clovibactin was isolated from an uncultured soil Gram-negative b-proteobacterium E. terrae ssp. carolina. It is a cell-wallacting antibiotic with an unusual structure and mode of action. The extract from the producing organism was active against S. aureus but isolating the major compound responsible for this activity led to kalimantacin, a known antibiotic.15 Kalimantacin is produced by Pseudomonas and Alcaligenes and inhibits the FabI enoyl-acyl carrier protein reductase of the fatty acid biosynthesis. Kalimantacin is inactive against B. subtilis carrying a different biosynthetic enzyme, but the extract was active against B. subtilis as well. Upon further examination of the extract, we isolated clovibactin, which was a relatively low abundant compound relative to kalimantacin. In order to simplify the isolation of clovibactin, we inactivated the kalimantacin operon. Inactivating the biosynthesis of abundant compounds to help detect and isolate minor compounds from extracts of interesting producers should be generally applicable to antibiotic discovery. In a similar approach, we recently reported isolation of a novel prodrug antibiotic aminodeoxyguanosine from a silent operon of Photorhabdus luminescens by first fractionating and concentrating an extract and then screening.

Clovibactin binds to the pyrophosphate moiety of multiple essential cell wall precursors C₅₅PP, lipid II, and lipid III_WTA from different cell wall biosynthetic pathways. Clovibactin binds to the PPi moiety of these precursors. In general, PPi seems as an unsuitable target for an antibiotic because it will be released from dead cells together with PPi-containing nucleoside phosphates, and it is commonly present in the environment. At the same time, pyrophosphate is both an essential and immutable moiety of cell wall lipid intermediates, unlike other portions of the molecules, such as the pentapeptide of lipid II or sugars that can be modified in, e.g., mycobacteria or mutated. Moreover, a D-Ala-D-Lac substitution in the lipid II pentapeptide is a common mechanism of resistance to vancomycin that binds to the terminal D-Ala-D-Ala motif. Binding to immutable PPi would explain the lack of detectable resistance to this compound. How clovibactin manages to bind PPi of the central peptidoglycan precursor lipid II tightly and selectively is a fascinating question that we address in this study by performing a detailed structural analysis.

From the external medium, clovibactin settles at the membrane surface where it binds cell wall precursors. The leucine side chain on the N terminus helps partition clovibactin into the membrane at the site of its targets. Backbone amino protons of clovibactin’s depsi-cycle directly coordinate the PPi, whereas the hydrophobic depsi-cycle side chains (Ala6, Leu7, and Leu8) surround the PPi group similar to an adjustable glove, an unusual interaction that is presumably entropically favorable by replacing boundary water and which enables efficient binding to distinct, indispensable cell wall precursors. Attacking a highly polar target (PPi) with a hydrophobic warhead is a striking, counter-intuitive mode of action. Clovibactin does not noticeably bind to PPi in solution, whereas ssNMR data acquired in membranes show that this is the principle moiety that clovibactin engages in the lipid II target. Apparently, selective binding to the PPi moiety of lipid precursors is achieved by the formation of a supramolecular complex and subsequent oligomerization into a stable higher-order fibrillar assembly of interacting clovibactin molecules bound to the target. This is presumably enabled by an antiparallel arrangement of clovibactin molecules, in which the short N terminus acts as oligomerization domain. The comparable concentrations for antibacterial action and for the formation of clovibactin fibrils suggests that supra-structures are an important or even essential part of the killing mechanism. The unique presence of readily accessible PPi-carrying molecules on the outside of bacterial membranes enables the formation of this structure and accounts for the lack of clovibactin toxicity against mammalian cells. A surprising feature of clovibactin is its superior ability to cause cell lysis, which is mechanistically distinct from teixobactin and independent of the major autolysin AtlA of S. aureus. This agrees well with the differential cellular response and expression pattern of genes controlled by the WalRK TCS. WalRK is the only essential TCS in S. aureus and plays a major role in controlling cell wall metabolism, mainly by controlling the transcription of cell wall lytic enzymes. The formation of a stable supramolecular structure will have favorable consequences for the in vivo activity of this compound, concentrating it onto bacterial surfaces where it belongs and continuing to act long after the soluble compound has been cleared from the body. Clovibactin’s action against the PPi of cell wall precursors, a simple immutable target, expands our understanding of antibiotics evolved to avoid resistance, and points the way to rationally designing compounds with a long clinically useful life.

Limitations of the study

Further studies will be needed to conclusively establish the arrangement of the clovibactin-lipid II suprastructure. Although the clovibactin-lipid II interface is well described by unambiguous ssNMR distance restraints, we cannot conclusively rule out alternative clovibactin-clovibactin arrangements in the suprastructure. Establishing the precise supramolecular arrangement will likely require novel ssNMR methods, including synthetic routes to selectively isotope-label clovibactin. Another limitation of the study is that, at this point, we did not identify a specific hydrolase or glucosaminidase responsible for the strong lytic effect induced by clovibactin.

SUPPLEMENTAL INFORMATION

Supplemental information can be found online at https://doi.org/10.1016/j.cell. 2023.07.038.

ACKNOWLEDGMENTS

This work was funded by the Netherlands Organisation for Scientific Research (NWO, grant numbers 723.014.003 and 711.018.001 to M.W. and 718.015.001 to A.M.J.J.B.). This project has received funding from the European Union’s Horizon Europe grant and innovation programme under grant agreement no. 101045485 (to M.W.). Funding for T.S., K.C.L., F.G., S.D.B., T.H., K.N., U.K., and A.M.K. was provided by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation), project ID 398967434—TRR 261, and funding to T.S. and F.G. was provided by the German Center for Infection Research (DZIF). Funding was also provided by NIH grant AI136137 to L.L.L., NIH grant AI091224 to A.L.S., NIH grant P01AI118687 to A.L.S. and K.L., and NIH grant RO1AI170962 to K.L. NMR experiments at the 950 and 1,200 MHz instruments were supported by uNMR-NL, an NWO-Funded Roadmap NMR Facility (no. 184.032.207). Support by Instruct-ERIC (to M.L. and M.W.) is acknowledged. M.W. and M.L. acknowledge project INFRAIA-02-2020 PANACEA (H2020, contract no. 101008500). M.L. acknowledges the Fondazione CR Firenze for funding. This work has been supported BioExcel, grant numbers 675728 and 823830, funded by the Horizon 2020 program of the European Commission. The NRS strains were provided by the Network on Antimicrobial Resistance in Staphylococcus aureus (NARSA) for distribution by BEI Resources, NIAID, NIH. The authors also wish to acknowledge the help and expertise of the University of Maryland Core Genome Sequencing Facility, Micromyx LLC, Kalamazoo, MI, NeoSome Life Sciences, Billerica MA. The authors would like to thank the following scientists for their work on clovibactin at NovoBiotic Pharmaceuticals, LLC, Alysha Desrosiers, William Millett, Kelly Demeo, Ashley Zullo, and Cintia Felix. The plasmid pIJ12738 was a gift from the John Innes Centre. The authors further thank Dr. Andrei Gurinov (Utrecht University) for assistance during the DNP-ssNMR experiments and Marc Sylvester (University of Bonn) for the mass spectrometry support.

AUTHOR CONTRIBUTIONS

K.L., T.S., D.H., L.L.L., and M.W. initiated the study. R.S., A.J.P., M.G.N.D., A.N., R.K., M.B., M.L., and M.W. did NMR experiments. A.N. isolated clovibactin. K.C.L., T.H., A.M.K., and S.D.B. did mode of action studies. R.S. and F.G. did fluorescence microscopy. A.M.K. and U.K. did single-molecule mobility measurements in supported bilayers. S.M. and W.H.R. did HS-AFM studies. A.L.S. performed the fermentations, gene knockout work, and isolated the DNA for sequencing. C.A. performed susceptibility and cytotoxicity assays. C.J.S. sequenced and annotated the genome. R.S. and M.W. did calorimetric studies. Y.L. provided research agents. R.S., M.G.N.D., and E.B. prepared ssNMR samples and lipid II. F.L., B.J.A.V., R.V.H., A.M.J.J.B., and M.W. did structure calculations. All authors contributed to data analysis and writing of the manuscript.

DECLARATION OF INTERESTS

The following authors, A.J.P., C.A., A.N., A.L.S., L.L.L., D.H., and K.L., declare competing financial interests because they are employees and consultants of NovoBiotic Pharmaceuticals. A patent US 11,203,616 B2 was issued on 12/21/ 2021 and describes the use of clovibactin (Novo29) and as an antibiotic, as well as the pharmaceutical composition and antibiotic use of derivatives.

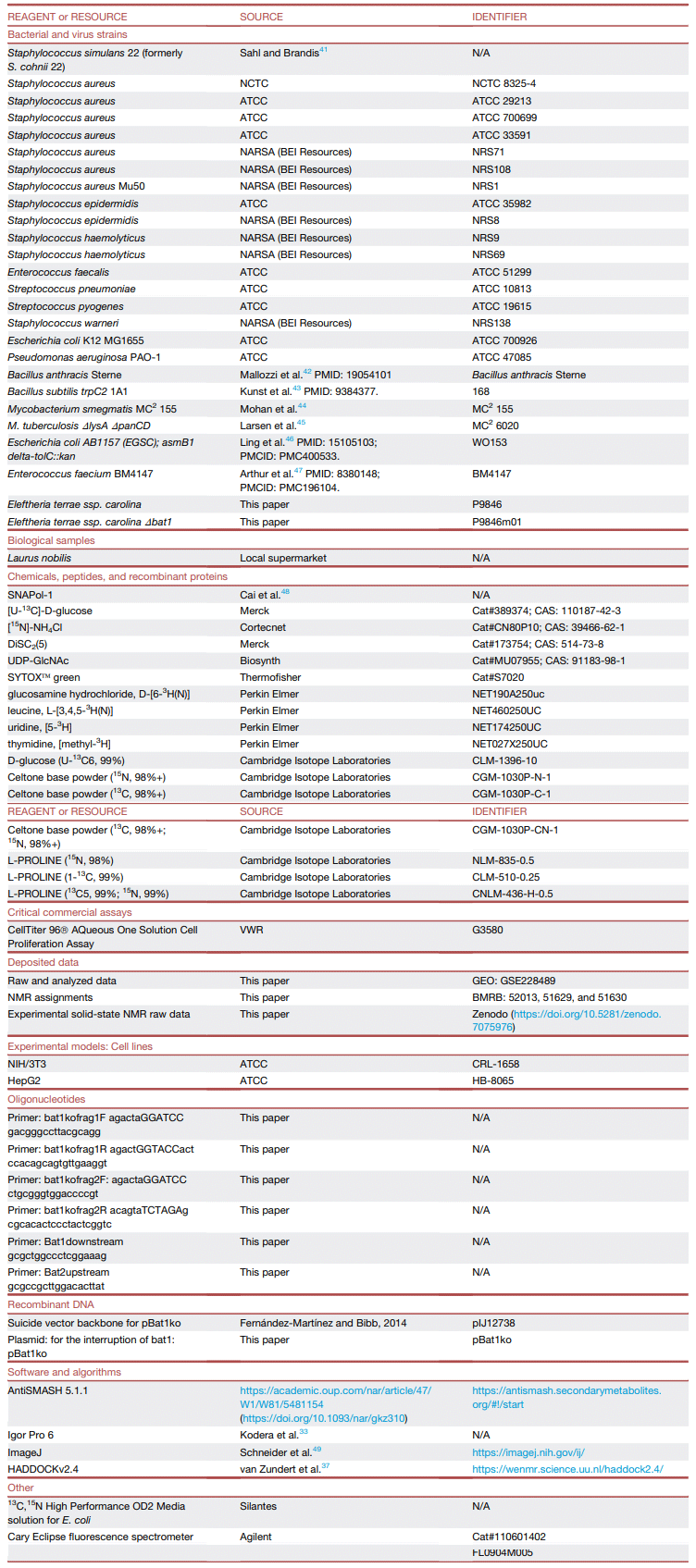

KEY RESOURCES TABLE

Click here to enlarge the image

RESOURCE AVAILABILITY

Lead contact

Further information and requests for resources and reagents should be directed to and will be fulfilled by the lead contact, Markus Weingarth (m.h.weingarth@uu.nl).

Materials availability

Clovibactin, or its producing strain, will be made available to researchers under an MTA agreement.

Data and code availability

The NMR assignments of unbound clovibactin and the clovibactin – lipid II complex have been deposited in the BMRB database (accession numbers BMRB: 52013, 51629, and 51630) and are publicly available as of the date of publication.
Experimental solid-state NMR raw data have been deposited in an open repository (https://doi.org/10.5281/zenodo.7075976) and are publicly available as of the date of publication.
All RNA-Seq Illumina read files as well as the batch-corrected counts have been deposited in NCBI’s Gene Expression Omnibus and are accessible under accession number GEO: GSE228489 and are publicly available as of the date of publication.
This paper does not report original code.
Any additional information required to reanalyse the data reported in this paper is available from the lead contact upon request.

EXPERIMENTAL MODEL AND SUBJECT DETAILS

Bacterial strains

P9846 and P9846m01 were propagated on SMS agar (0.125 g casein, 0.1 g potato starch, 1 g casamino acids, 20 g bacto-agar in 1 L of water). Colonies from both strains were harvested from agar plates and stored in 15% glycerol at -80ºC.

NRS strains were purchased from the Network on Antimicrobial Resistance in Staphylococcus aureus (NARSA) for distribution by BEI Resources, NIAID, NIH. ATCC strains were purchased from ATCC. S. aureus NCTC 8325-4, B. subtilis trpC2 A1A, M. smegmatis MC² 155, M. tuberculosis MC² 6020 were kindly provided by Kim Lewis, Northeastern University. E. coli WO153 and E. faecium BM4147 were kindly provided by T. Opperman, Microbiotix Pharmaceuticals. B. anthracis Sterne was kindly provided by Adam Driks, Loyola University. The other bacterial strains in Table S1 were clinical isolates from the Micromyx repository. The culture medium employed for the majority of the strains was cation adjusted Mueller Hinton II. Exceptions are described below. Streptococci were grown in cation adjusted MHB II supplemented with 3% lysed horse blood. Haemophilus was grown in Haemophilus Test Media. N. gonorrhoeae was grown in a modified broth medium containing 15 g Oxoid Special Peptone, 1 g corn starch, 5 g NaCl, 4 g K₂HPO₄, and 1 g KH₂PO₄. It was autoclaved, centrifuged at 5,000 x g for 10 min, the supernatant was passed through a 0.45 mm filter, and IsoVitaleX supplement was added at 1% (v/v). Mycobacteria were grown in 7H9 broth and 7H10 agar. Upon receipt, bacterial isolates were streaked onto the recommended agar plates and incubated at the recommended optimal conditions for growth. Colonies were harvested from the plates, resuspended in recommended broth supplemented with 15% glycerol and stored frozen at -80ºC.

S. aureus SA113 (ATCC 35556), the DatlA mutant, Mu50 (ATCC 700699), RN4220 (DSM 26309), and SG511 (DSM 6247) were grown aerobically at 37ºC, in cation-adjusted Mueller Hinton medium. S. aureus HG001 was grown in tryptic soy broth at 37ºC, aerobically. All B. subtilis 168 (DSM 23778) strains were grown in cation-adjusted Mueller Hinton medium at 30ºC, aerobically. S. simulans 22 (formerly S. cohnii 22),41 was grown aerobically in TSB at 37ºC.

Cell Lines

The cell lines used were NIH/3T3 mouse NIH/Swiss embryonic fibroblast (ATCC CRL-1658), and Hep-G2 human liver hepatocellular carcinoma (ATCC HB-8065). NIH/3T3 was cultured in Dulbecco’s Modified Eagle’s Medium (DMEM) supplemented with 10% bovine calf serum (ATCC 30-2031) at 3ºC and HepG2 was cultured in DMEM supplemented with 10% fetal bovine serum (ATCC 30-2021) at 37ºC.

Mice

Six weeks old female CD-1 mice (Charles River Laboratories) were used for all animal experiments. All animal experiments were conducted according to protocols approved by the Institute of Animal Care and Usage Committee (IACUC) at NeoSome Life Sciences, LLC. Mice were randomly assigned to experimental groups.

METHOD DETAILS

Isolation of strain producing clovibactin

The isolate producing clovibactin, P9846, was isolated from a sandy soil collected in North Carolina using techniques previously described. Briefly, 1 gram of heat-treated soil (dry heat at 65ºC for 30 minutes) was mixed with 9 mL of sterile water, vortexed, and then diluted into molten SMS agar (0.125 g casein, 0.1 g potato starch, 1 g casamino acids, 20 g bacto-agar in 1 L of water). This mixture was then dispensed in 100 μL aliquots per well of a flat bottom 96-well plate. The 96-well plates were incubated for 16 weeks at room temperature in a humidified chamber and observations of growth were made over time. The isolate P9846 grew to a size detectable under a dissecting microscope (50X magnification) at week 12 of the incubation.

Isolates from long-term incubation experiments were sub-cultured from their original incubation plates to individual plates of SMSR4 (0.125 g casein, 0.1 g potato starch, 1.5 g casamino acids, 1 g glucose, 0.1 g yeast extract, 0.3 g proline, 1 g MgCl₂- 6H2O, 0.4 g CaCl₂- 2H2O, 0.02 g K₂SO₄, 0.56 g TES free acid (2-[[1,3-dihydroxy-2-(hydroxymethyl) propan-2-yl]amino]ethanesulfonic acid) and 20 g bacto-agar in 1 L of water agar). Monocultures of isolates were grown in a seed medium (15 g glucose, 10 g malt extract, 10 g soluble starch, 2.5 g yeast extract, 5 g casamino acids, and 0.2 g CaCl₂-2H2O per 1 litre of deionized H2O, pH 7.0) to promote biomass production. Grown cultures were diluted 1:20 into 4 different fermentation broths. After 11 days of agitation at 28o C, the fermentations were dried and resuspended in an equal volume of 100% DMSO. Then 5 mL of extracts were spotted onto a lawn of growing S. aureus NCTC8325-4 cells in Mueller Hinton agar (MHA) plates. After 20 hours of incubation at 37ºC, visible clearing zones indicated antibacterial activity. The extract from P9846 produced a large clearing zone. Although it produced antibacterial activity under several fermentation media, the best activity (that is, largest clearing zone) was seen with R4 fermentation broth (10 g glucose, 1 g yeast extract, 0.1 g casamino acids, 3 g proline, 10 g MgCl2-6H2O, 4 g CaCl₂-2H2O, 0.2 g K2SO4, 5.6 g TES free acid (2-[[1,3-dihydroxy-2-(hydroxymethyl) propan-2-yl]amino]ethanesulfonic acid) per 1 litre of deionized H2O, pH adjusted to 7.0 using KOH).

Clovibactin Isolation Procedure

n-Butanol (0.5V) was added to fermentation broth. The mixture was shaken vigorously, then left over night at room temperature until 2 distinct phases developed. The butanol phase was dried to completeness on a Buchi rotary evaporator. The resulting residue was reconstituted in a solution of 25% acetonitrile in water with 0.1% trifluoroacetic acid (˜240 mL). This concentrated extract was centrifuged, and the supernatant decanted to remove any undissolved material. The supernatant was divided into 6 equal portions (˜40 mL each) and successively purified on a preconditioned C18 flash chromatography column (Biotage, Sfar C18 60g, gradient of 25% - 100% acetonitrile in water (w/0.1% TFA), 50 mL/min). The compound of interest (clovibactin) was found at an adequate level of purity in two fractions as verified by mass spectrometry. The fractions containing clovibactin were concentrated under reduced pressure and lyophilized to yield approximately 125 mg from 6 L of fermentation.

Clovibactin Mass Spectrometry

Clovibactin was obtained as a white amorphous powder and its molecular formula (C₄₃H₇₀N₁₀O₁₁) was determined by LC-MS (m/z of 903.5291 [M+H]⁺ , calculated 903.5298). This is consistent with ¹ H and ¹³C NMR data. Furthermore, ¹³C and ¹⁵N labeled clovibactin had an observed mass of 956.6472 [M+H]⁺ (calculated 956.6460).

Clovibactin 1D and 2D solution NMR Experiments

About 10 mg of Clovibactin was dissolved in _˜600 mL of D¹H-¹³C HMBC, ¹H-¹⁵N HSQC.

Whole genome sequencing of P9846

Isolated gDNA was sequenced on a multiplexed PacBio Sequel II SMRT Cell 8M (Pacific Biosciences) using Sequel II 2.0 chemistry at the University of Maryland Core Genome Sequencing Facility yielding 836,139 total reads for this sample with a mean read length of 11,416 bp. Reads were assembled with SMRT8.0.0_HGAP4 (N50 = 5,455,962). The completed genome for P9846 contained a single circular chromosome and 3 extrachromosomal contigs (5.5 Mb chromosome, 7.0 Mb total) with 69% GC content. Our data has been deposited on NCBI Genbank under the BioProject PRJNA882350, BioSample SAMN30932845 with Accession numbers CP106950- CP106953.

Biosynthetic analysis of P9846 genome

Assembled contigs were concatenated into a single nucleotide FASTA file and analyzed by AntiSMASH (https://antismash. secondarymetabolites.org/#!/start) version 5.1.1 using relaxed detection strictness and all extra features enabled. 10 putative biosynthetic gene clusters (BGCs) were identified on the chromosome, as well as 4 and 5 on two of the three extrachromosomal contigs for a total of 19 BGCs. Of these, two were found to have high similarity to known compounds in the Minimum Information about a Biosynthetic Gene cluster (MIBiG) database, the PKS compounds SGR-polycyclic tetramate macrolactam and malleilactone.

Annotation of clovibactin biosynthetic gene cluster

The BGC responsible for cyclic peptide clovibactin was identified in the extrachromosomal genetic material where the majority of the NRPS BGCs are located. Eight complete NRPS modules corresponding to the amino acids found in the compound were identified and predictions of adenylation domain specificity from AntiSMASH were checked against Non-Ribosomal Peptide Synthase Substrate Predictor (NRPSsp, http://www.nrpssp.com/). Presence of dual-function condensation domains were used to identify sites of epimerization. Dioxygenase function was assigned based on homology to cucE from cupriachelin biosynthesis (MIBiG BGC0000330). The annotated sequence for clovibactin has been deposited into the MIBiG repository under the accession number BGC0002755.

Determination of MICs

MIC values were determined using a broth microdilution method as recommended by the CLSI. The test medium for most species was cation-adjusted Mueller-Hinton broth (MHB). The same test medium was supplemented with 3% lysed horse blood (Cleveland Scientific, Bath, OH.) for growing Streptococci. Haemophilus Test Medium was used for H. influenzae (Teknova, Hollister, CA, or HTM; Remel; Lot No. 903401), Middlebrook 7H9 broth (Difco) was used for mycobacteria. For N. gonorrhoeae, a modified broth medium described by the ATCC was used. The medium contained 15 g Oxoid Special Peptone (Oxoid, Hampshire, UK; Lot No. 1280296), 1 g corn starch (Ward’s Science; Rochester, NY; Lot No. AD-13344-14), 5 g NaCl (VWR, Radnor, PA; Lot No. 57897), 4gK2HPO4 (Sigma, St. Louis, MO; Lot No. 052K0147), and 1 g KH2PO4 (Sigma; Lot No. SLBC1921V). After autoclaving, the medium was centrifuged at 5,000 x g for 10 min, the supernatant was passed through a 0.45 mm filter, and IsoVitaleX supplement (BD; Lot No. 6309687) was added at 1% (v/v). Two-dimensional checkerboards were set up according to standard protocol.

All test media were supplemented with 0.002% polysorbate (Tween) 80 to prevent drug binding to plastic surfaces, and cell concentration was adjusted to approximately 5X105 cells/mL. After 20 hours of incubation at 37ºC (2 days for M. smegmatis, 7 days for M. tuberculosis), the MIC was defined as the lowest concentration of antibiotic with no visible growth.

Fetal bovine serum (ATCC) was added to MHB (1:10) to test the effect of serum for S. aureus NCTC 8325-4 and S. aureus ATCC 29213.

Experiments were performed with three biological replicates.

Mammalian cytotoxicity

The CellTiter 96 AQueous One Solution Cell Proliferation Assay (Promega) was used to determine the cytotoxicity of clovibactin on NIH 3T3 mouse embryonic fibroblast (ATCC CRL-1658, in Dulbecco’s Modified Eagle’s medium supplemented with 10% bovine calf serum), and HepG2 cells (ATCC HB-8065, in Dulbecco’s Modified Eagle’s medium supplemented with 10% fetal bovine serum). Exponentially growing cells were seeded into a 96-well flat bottom plate and incubated at 37ºC. After 24 hours, the medium was replaced with fresh medium containing test compounds (0.5 mL of a two-fold serial dilution in DMSO to 99.5 mL of media, tested up to 100 mg/mL clovibactin). After 72 hours of incubation at 37ºC, reporter solution was added to the cells and after 2 hours, the OD₄₉₀ was measured using a Spectramax Plus Spectrophotometer. Experiments were performed with three biological replicates.

Minimum bactericidal concentration (MBC)

Cells from the wells from an MIC microbroth plate for S. aureus NCTC8325-4 and S. aureus ATCC29213 that had been incubated for 20 hours at 37ºC were pelleted. An aliquot of the initial inoculum for the MIC plate was similarly processed. The cells were resuspended in fresh media, plated onto MHA, and the colonies enumerated after incubating for 24 hours at 37ºC. The MBC is defined as the first drug dilution which resulted in a 99.9% decrease from the initial bacterial titer of the starting inoculum. Experiments were performed with three biological replicates.

Time-kill curves

Macrobroth MIC was determined for S. aureus ATCC 29213 in MHB II supplemented with 0.002% polysorbate 80 as 1 mL culture in polystyrene culture tubes after 20 hours of incubation at 37ºC with aeration at 225 rpm. The MIC was 16 mg/mL for chloramphenicol, 1 mg/mL for vancomycin and 2 mg/mL for clovibactin under these conditions. To conduct time dependent killing, exponentially growing S. aureus ATCC 29213 cells were challenged with antibiotics at 37ºC with aeration at 225 rpm -chloramphenicol (5xMIC, 80 mg/mL), vancomycin (10xMIC, 10 mg/mL), clovibactin (1XMIC, 2 mg/mL) or clovibactin (5xMIC, 10 mg/mL) in culture tubes at 37ºC and 225 rpm. At intervals, 100 mL aliquots were removed, and 100 mL of ten-fold serially diluted suspensions were plated on MHA plates. Colonies were counted after 20 hours of incubation at 37ºC, and CFU/mL was calculated. For time-dependent killings of S. aureus SA113 and the corresponding DatlA mutant exponentially growing cultures were challenged with 23 MIC of each antibiotic. Aliquots were collected at defined time points and 30 mL of serially diluted suspensions in PBS (pH 7.4) were plated on MHA plates. Colony counts were determined after overnight incubation at 37ºC. Experiments were performed with three biological replicates.

Macromolecular synthesis assay

S. aureus NCTC 8325-4 cells were cultured in minimal medium (0.02 M Hepes, 0.002 M MgSO4, 0.0001 M CaCl2, 0.4% succinic acid, 0.043 M NaCl, 0.5% (NH₄)₂ SO₄) supplemented with 5% Tryptic Soy Broth (TSB). Cells were pelleted and resuspended into fresh minimal medium supplemented with 5% TSB containing test compounds and radioactive precursors to a density of 10⁸ cells/mL. The radioactive precursors were glucosamine hydrochloride, D-[6-3H(N)] (1 mCi/mL), leucine, L-[3,4,5-3H(N)] (1 mCi/mL), uridine, [5-3H] (1 mCi/mL), or thymidine, [methyl-3H] (0.25 mCi/mL) to measure cell wall, protein, RNA, and DNA synthesis, respectively. After 20 minutes of incubation at 37ºC, aliquots were removed, added to ice cold 25% trichloroacetic acid (TCA), and filtered using Multiscreen Filter plates (Millipore Cat. MSDVN6B50). The filters were washed twice with ice cold 25% TCA, twice with ice cold water, dried and counted with scintillation fluid using Perkin Elmer MicroBeta TriLux Microplate Scintillation and Luminescence counter. Experiments were performed with two biological replicates.

Resistance studies

No spontaneous resistant mutants of S. aureus ATCC29213 were obtained when plating 1.2X10¹⁰ cells on agar media with 4xMIC clovibactin. No colonies grew up after 3 days of incubation at 37ºC.

Single dose PK in mice

In a separate tolerance study, mice tolerated a single dose of clovibactin administered as an IV bolus at 10 mg/kg, 20 mg/kg or 40 mg/ kg. Clovibactin was then tested in a PK study to evaluate the systemic exposure and blood residence time of the compound. CD-1 female mice (n=3 per timepoint) were administered a single dose of compound at 28 mg/kg IV bolus. Blood was drawn at different times and clovibactin plasma levels determined by LC-MSMS. PK parameters were determined using the software package Watson LIMS.

Neutropenic mouse thigh infection study

Clovibactin was evaluated in a neutropenic mouse thigh infection model. Female CD-1 mice (n=4 per group) received two doses of cyclophosphamide 4 days (150mg/kg), and 1 day (100 mg/kg) prior to infection. S. aureus ATCC 33591 (MRSA) was injected into the thighs. The infection controls demonstrated a bioload of 6.07 log₁₀ CFUs/ gram of thigh at the time of treatment (2 hours). Clovibactin was delivered as two IV doses (2 and 4 hours post infection).

Producing ¹³C -¹⁵N labeled clovibactin

P9846 makes multiple antibacterial compounds. Under the typical fermentation conditions (R4 broth) clovibactin is made in sufficient quantities. However, under labelling conditions we found that a known antibiotic, kalimantacin, was produced in large amounts and interfered with clovibactin purification. Using the whole genome sequence, we identified the BGC with 55% identity to the kalimantacin gene.16 Production of kalimantacin was reduced below detectable levels by interrupting the bat genes and generating the strain P9846m01. The bat genes were interrupted using homologous recombination previously described.17 Following procedures from Martinez et al. 500 bp fragments from upstream and downstream of the P9846 bat1 gene were made by pcr (see ‘key resources table’ for the primers). Fragments were digested with XbaI or KpnI and BamHI (New England Biolabs) and cloned into plasmid pIJ12738 digested with XbaI and KpnI. This created a 4605 bp plasmid, pBat1ko. pBat1ko was transformed into mobilization strain ET12567. Using conjugation conditions, the pIJ12738 was transferred into P9846 and selected with 50 ug/ml apramycin on SMSR4 agar. The insertion in mutant, P9846m01 was confirmed using pcr with primers bat1downstream and bat1upstream (see ‘key resources table’ for the primers). Disruption was further confirmed by fermentation in R4 medium and subsequent loss of kalimantacin derived active zones against a lawn of S. aureus followed by a lack of detectable kalimantacin by LC-MS in the appropriate fraction.

To label clovibactin, P9846m01 was grown from a frozen stock on SMSR4 agar supplemented with 50 ug/ml apramycin for 48 hours at room temperature. Biomass was scraped into 20ml flask of Celtone-R4 broth (10 g D-glucose; Cambridge Isotope Laboratories (CLM) #CLM-1396-5, 1 g Celtone base powder; CLM #CGM-1030P-CN-1, 0.5 g L-proline; CLM #CNLM-436-H-0.5, 10 g MgCl2-6H2O, 4 g CaCl2- 2H2O, 0.2 g K2SO4, 5.6 g TES free acid (2-[[1,3-dihydroxy-2-(hydroxymethyl) propan-2-yl]amino]ethanesulfonic acid) per 1 liter of deionized H2O, pH 7 C). After 3 days of incubation with shaking at 28ºC the culture was split between 2 flasks of 500ml Celtone-R4 broth. This culture was incubated with shaking at 28ºC for 6 days. ¹³C and ¹⁵N labeled clovibactin was isolated in a similar manner as above, yielding 5.7 mg of ¹³C¹⁵N - labeled clovibactin from a 1 L fermentation.

b-galactosidase reporter assays

B. subtilis b-galactosidase reporter assays were performed as previously described. In short, reporter strains were grown in MHB containing 5 mg/ml chloramphenicol at 30ºC to an OD₆₀₀ of 0.5. Subsequently, cells were poured at 1x10⁷ CFU/ml in MHA plates supplemented with 5 mg/ml chloramphenicol, 75 mg/ml (cell wall reporter), 125 mg/ml (DNA reporter), and 250 mg/ml (RNA and protein reporters) X-gal, respectively. After solidification of the plates, 6 mg of clovibactin and control antibiotics selectively inducing the promotors were spotted (6 mg vancomycin for cell wall, 0.3 mg ciprofloxacin for DNA, 6 mg rifampicin for RNA, 3 mg clindamycin for protein). Results were documented after incubation overnight at 30ºC.

Quantification of intracellular UDP-N-acetylmuramic acid-pentapeptide

To analyze the cytoplasmic nucleotide pool we adapted the protocol of Kohlrausch and Ho¨ ltje. S. aureus SG511 was grown in 20 ml MHB at 37ºC to an OD₆₀₀ of 0.6 and incubated with 130 mg/ml chloramphenicol for 15 min. Clovibactin was added at 0.53, 13, 2.53, and 53MIC and incubated for another 30 min. Vancomycin (5x MIC) was used as positive control. Extraction and analysis of nucleotide-linked peptidoglycan precursors was performed as described previously. Corresponding fractions were confirmed by mass spectrometry.

Luciferase reporter antagonization assays

B. subtilis luciferase reporter assays were conducted as previously described. Briefly, luciferase reporters were grown in MHB containing 5 mg/ml chloramphenicol at 30ºC to an OD₆₀₀ of 0.5. Cells were added to 96-well white wall chimney plates containing serially diluted antibiotics. For antagonization assays, purified cell wall lipid intermediates (C55PP, lipid I, lipid II, lipid III_WTA) and phospholipids (phosphatidylglycerol [PG], phosphatidylcholine [PC], cardiolipin [CL]) were added in 0.5 to 4-fold molar excess with respect to clovibactin (0.5 x MIC) and were pre-incubated for 10 min prior to addition of the reporter strain. Luminescence measurements were performed at 30ºC in a microplate reader Spark 10M (Tecan). At least three independent biological replicate experiments were conducted.

Bacterial cell wall integrity assay

Bacterial cell wall integrity assays were adapted from previous work (Schneider et al.) B. subtilis 168 cultures were grown in MHB at 30ºC to an OD₆₀₀ of 0.3. Subsequently, cells were treated with were treated with clovibactin, teixobactin, hypeptin and vancomycin (0.25x MIC each) and 32 mg/ml clindamycin, or DMSO for 30 min. Cells were immediately fixed in a 1 ml 1:3 (v:v) mixture of acetic acid and methanol and immobilized on thin 1% w/v agarose slides. Imagaing was performed by phase contrast microscopy on a Zeiss AxioObserver Z1 equipped with an HCP 120 C lamp, an aPlan-APOCHROMAT 1003/1.46 oil objective and an AxioCam MRm camera and further processed with Zen 2 (Zeiss) and analyzed and postprocessed using ImageJ v1.52p.49 Semi-quantitative analysis of cell phenotypes was performed manually, and statistical significance was carried out with GraphPad Prism 9.0.0 using unpaired twotailed Student’s t-test and a 95% confidence interval.

MIC-type antagonization assays

Antagonization of the antibiotic activity of clovibactin by potential target molecules was performed by an MIC-based setup in microtiter plates. Clovibactin (83 MIC) was mixed with HPLC-purified antagonists (C55PP, lipid I, lipid II, lipid III_WTA and DOPG) in 0.5 to 4-fold molar excess with respect to the antibiotic. S. aureus SG511 (5x10⁵ CFU/ml) was added and samples were examined for visible bacterial growth after incubation at 37ºC overnight. Experiments were performed with at least three biological replicates.

Synthesis and purification of lipid intermediates

Large scale synthesis and purification of the PGN precursors lipid I and lipid II were performed as previously described. UDP-Nacetyl-muramic acid pentapeptide (UDP-MurNAc-pp) was purified according to the protocol elaborated by Kohlrausch and Ho¨ ltje.52 Undecaprenyl phosphate (C₅₅P) and undecaprenyl diphosphate (C₅₅PP) were purchased from Larodan Fine Chemicals AB (Malmo¨ , Sweden). The phospholipids 1,2-dioleoyl-sn-glycero-3- phosphocholine (DOPC), 1,2-dioleoyl-sn-glycero-3-phosphoglycerol (DOPG) and 1',3'-bis[1,2-distearoyl-sn-glycero-3-phospho]-glycerol (DOCL, cardiolipin) were purchased from Avanti Polar Lipids (Alabaster, AL, USA). The concentration of purified PGN and wall teichoic acid precursors was quantified on the basis of their phosphate content as described.

In vitro lipid II synthesis with isolated membranes

In vitro lipid II synthesis was performed using membranes of M. luteus as previously described. Briefly, synthesis was assayed by incubating membrane preparations (200 mg protein) with 5 nmol C₅₅P, 50 nmol UDP-MurNAc-pentapeptide, 50 nmol UDP-N-acetylglucosamine (UDP-GlcNAc) in 60 mM Tris-HCl, 5 mM MgCl2, and 0.5 % Triton X-100, at pH 7.5 in a total volume of 50 ml at 30ºC for 1 h. C₅₅P-containing products were extracted with an equal volume of n-butanol/pyridine acetate, pH 4.2 (2:1, v/v) and analyzed by thin layer chromatography (TLC) using chloroform/methanol/water/ammonia (88:48:10:1, v/v/v/v) as the solvent and phosphomolybdic acid staining (Schneider et al.). The quantitative analysis of lipids extracted to the butanol phase was carried out by phosphorimaging in a StormTM imaging system (GE Healthcare) or PMA staining and analysis performed using Image Quant TL. Clovibactin was added in molar ratios of 0.5 to 4 with regard to C₅₅P.

In vitro PGN synthesis reactions using purified proteins and substrates

To determine the enzymatic activity of MraY-His6 the assay was carried out in a total volume of 50 ml containing 5 nmol C₅₅P, 25 nmol of UDP-MurNAc-pp in 100 mM Tris-HCl, 10 mM MgCl2, at pH 7.5, and 0.6% Triton X-100. The reaction was initiated by the addition of 2 mg of MraY-His6 and incubated for 1.5 hours at 30ºC.

The in vitro MurG reaction was performed in a 30 mL reaction containing 2 nmol of purified lipid I and 25 nmol of UDP-N-acetyl glucosamine (UDP-GlcNAc) in 200 mM Tris-HCl, 5.7 mM MgCl2, at pH 7.5, and 0.8% Triton X-100 with 2 mg of purified, recombinant MurG-His6 enzyme. Reaction mixtures were incubated for 30 min at 30ºC.

The PBP2 activity assay was performed in a 50 mL reaction containing 2 nmol of purified lipid II, in 20 mM MES, 2 mM MgCl2, and 2 mM CaCl2, at pH 5.5 with 2 mg of purified, recombinant PBP2-His6 enzyme. Reaction mixtures were incubated for 2 h at 30ºC.

Dephosphorylation of C₅₅P was determined using purified YbjG-His6 enzyme (SA0415). A total of 20 nmol of C55PP was incubated with 3 mg of YbjG-His6 in 20 mM Tris-HCl, 150 mM NaCl, and 0.8% Triton X-100 at pH 7.5 in 50 mL for 30 min at 30ºC.

In all in vitro assays, clovibactin was added in molar ratios from 0.5 to 2 (and to 4 for MraY and MurG) with respect to the respective substrate. C₅₅P-containing products were extracted, analyzed by TLC and quantified as described above. The quantitative analysis of lipids extracted to the n-butanol phase was carried out using ImageJ v1.53p software (National Institutes of Health). Experiments were performed at least in triplicates.

Complex formation clovibactin

Binding of clovibactin to C₅₅P, lipid I, lipid II, lipid III_WTA and DOPG was analyzed by incubating 2 nmol (lipid I, lipid II, lipid IIIWTA) or 5 nmol (C₅₅P and DOPG) with 8-fold molar excess of clovibactin in 50 mM Tris-HCl, at pH 7.5 for 30 min at room temperature. Complex formation was analyzed by extracting unbound precursors from the reaction mixture followed by TLC analysis as described above. Experiments were performed with biological replicates.

Lysis assay

Analysis of lysis was conducted with MHB-grown exponential phase cells (OD₆₀₀ of 0.5) of S. aureus SA113 and the AtlA-deficient mutant S. aureus SA113 DatlA, that were treated with clovibactin, teixobactin, and vancomycin at concentrations of 0.53, 13, 23, and 53MIC and optical density (OD₆₀₀) was measured after 24 hours. The final OD₆₀₀was expressed as the relative absorbance to initial values of each strain. Experiments were performed with three biological replicates. For qualitative analysis exponential phase cells were adjusted to an OD₆₀₀of 1 and treated with antibiotics at 23 MIC. After 24 hours, cell turbidity was photographed in microtiter plates.

Zymographic analysis

S. aureus SA113 was grown in 100 mL MHB until an OD₆₀₀of 0.5. The culture was then split into 10 mL aliquots. Each aliquot was treated with the respective antibiotic (53 MIC) for 30 min. The cells were harvested by centrifugation (4,500 3 g, 15 min). Supernatants were concentrated to 200 mL using VivaSpin6 colums (Sartorius, MWCO 10,000 kDa, 4,000 3 g), and then to 50 mL using VivaSpin500 column (Sartorius, MWCO 3,000 kDa, 12,000 3 g) and were run in a 4-12% sodium dodecyl sulfate (SDS)-polyacrylamide gel containing pasteurized S. aureus RN4220 cells. To remove SDS, the gel was washed 6 times for 10 min with deionized water and incubated in freshly prepared renaturation buffer (50 mM Tris-HCl, pH 7.5, 10 mM CaCl2, 10 mM MgCl2, 0.1% v/v Triton X-100, pH 7.5) for 16 h at 37ºC. To visualize clear bands, representing cell lysis, the gel was stained with 0.1% w/v methylene blue. The assay was repeated three times, with a representative experiment shown.

MinD delocalization studies

B. subtilis 1981 erm spc minD:ermC amyE::Pxyl-gfp-minD, a strain with a gfp-minD fusion under control of the Pxyl promotor (kindly provided by H. Strahl, Newcastle), was grown in MHB supplemented with 0.1 % w/v xylose and 50 mg/ml spectinomycin at 30ºC to an OD600 of 0.6. Imaging was carried out within 2, 5, and 30 min after addition of antibiotic at 23 and 103 MIC. The proton ionophore carbonyl cyanide m-chlorophenylhydrazone (CCCP, 100 mM) was used as positive control and imaging was carried out within 2 min. Samples were immobilized on microscope slides covered with 1 % w/v agarose. Fluorescence microscopy and analysis was performed using the same microscope and software as described for phase contrast microscopy.

Fluorescence labeling and fluorescence microscopy

Clovibactin was dissolved in anhydrous DMF (5 mg/ml) and BODIPY FL succimidyl ester (Invitrogen) was dissolved in DMSO (10 mg/ml). For labeling, 1 vol of BODIPY FL was added to 0.5 vols of DIPEA and 5 vols clovibactin solution and incubated at room temperature with gentle agitation. After 2 hours, ice-cold diethylether was added to the reaction mixture leading to precipitation of clovibactin. After centrifugation, the supernatant was carefully aspirated, and the pellet was dissolved in anhydrous DMF. Separation of labeled and non-labeled clovibactin was achieved by HPLC purification on a Poroshell 120 EC-C18, 2.7 mm, 3 3 150 mm column (Agilent), column temperature 50 C, with a gradient of (A) 79.9% H2O + 20% acetonitrile (MeCN) + 0.1% trifluoroacetic acid (TFA) and (B) 49.9% H2O + 50% MeCN + 0.1% TFA: 0 min, %B = 0, 10 min, %B = 60, 34 min, %B = 80. Clovibactin-FL was collected and confirmed by LC-MS.

To study localization of clovibactin in S. aureus, cultures were grown in MHB at 37ºC until an OD₆₀₀of 0.5 and were pre-incubated for 10 min with teixobactin (23 MIC). Cells were then washed four times with MHB prior to 10 min incubation with a 1:3 mixture of unlabeled and labeled clovibactin (23 MIC). To visualize cell membranes, nile red was added to a final concentration of 1 mg/ml. Subsequently, cells were washed four times in phosphate-buffered saline (PBS) and mounted on microscope slides covered with a thin film of 1% v/v agarose. At least n R 30 cells per replicate were used for calculations for each condition from three biologically independent experiments.

Images were acquired using Zeiss AxioObserver Z1 equipped with an HXP 120 C lamp, an aPlan-APOCHROMAT 1003/1.46 oil objective and an AxioCam MRm camera. Standard filter sets were used for BODIPY FL (450–490 nm excitation and 500–500 nm emission). Images were further processed with Zen 2 (Zeiss) and analyzed and postprocessed using ImageJ v1.52p49 and GraphPad Prism version 9.0.0 for Windows.

Transcriptomics

S. aureus HG001 cells were grown overnight in TSB medium at 37ºC. The cultures were diluted to 2% in fresh TSB medium and incubated at 37ºC until they reached an OD600 0.5. Cells were challenged with subinhibitory concentration of teixobactin and clovibactin (0.25x MIC) or left untreated and incubated for 1 h under the same conditions. The chosen concentration depends on the growth inhibition without evident lysis of the cells. Afterwards, 20 ml of cultures were harvested (8000 x g, 5 min, RT), the pellets were resuspended in 1 ml RNA protect buffer (New England Biolabs, Frankfurt am Main, Germany) and incubated for 5 min at RT. After removal of the buffer by centrifugation (8000 x g, 5 min, RT), the cells were lysed in 200 ml Tris-EDTA buffer containing 25 mg lysostaphin and incubated at 37ºC for 30 min. RNA was isolated using the Monarch total RNA miniprep kit (New England Biolabs) following the manufacturer’s instructions and stored at -80ºC. Quality and quantity of total RNA were determined by NanoDrop (Thermo Scientific, USA) and by agarose gel electrophoresis. The RNA extraction was performed with 3 biological replicates.

RNA-Seq data assessment and analysis

Sequencing statistics including the quality per base and adapter content assessment of the resulting transcriptome sequencing data were conducted with FastQC v0.11.8 (https://www.bioinformatics.babraham.ac.uk/projects/fastqc/). All reads mappings were performed against the strain S. aureus HG001 (RefSeq ID: NZ_CP018205.1). The mappings of all samples were conducted with HISAT2 v2.1.0.61 As parameters spliced alignment of reads was disabled and strand-specific information was set to reverse complemented (HISAT2 parameter –no-spliced-alignment and –rna-strandness "R"). The resulting mapping files in SAM format were converted to BAM format using SAMtools v1.9. Mapping statistics, including strand specificity estimation and percentage of mapped reads, were conducted with the RNA-Seq module of QualiMap2 v2.2.2-a.62 Gene counts for all samples were computed with featureCounts v1.6.4, where the selected feature type was set to transcript records (featureCounts parameter -t transcript). A quality check for ribosomal rRNA was performed with a self-written script based on the absolute counts of annotated rRNAs. To assess variability of the replicates, a principal component analysis (PCA) was conducted with the DESeq2 package v1.28.1.

Normalization and differential gene expression

For batch correction between the first batch of samples (teixobactin + untreated) and the second batch of samples (clovibactin + untreated) ComBat-seq64 was applied to a slightly larger data set with the batch and group parameters set. For the computation of genes differentially expressed between the treated and the untreated samples, DESeq2 v1.20.0 was applied to the absolute gene counts as computed with featureCounts. For differences between the two treated samples and the untreated samples, genes with an adjusted p-value (FDR) < 0.05 and absolute log2 fold change (FC) > 1 were reported as differentially expressed. All RNA-Seq Illumina read files as well as the batch-corrected counts have been deposited in NCBI’s Gene Expression Omnibus and are accessible under accession number GSE228489.

Analysis of single molecule mobility in supported lipid bilayers

Lipid II-Atto565 was obtained by labeling of lipid II with a 10-fold excess of Atto565-NHS ester (Sigma-Aldrich, Taufkirchen, Germany) in presence of 0.6 vol% diisopropylethylamine (Sigma-Aldrich, Taufkirchen, Germany). The reaction was carried out in water-free chloroform for 2 hours at room temperature. Lipid II-Atto565 was purified via thin layer chromatography.Supported bilayers were formed by DOPC 0.2 mol% lipid II/lipid II-Atto565.

The required lipid composition was prepared in chloroform to reach a lipid concentration of 1.3 mM. Then, chloroform was removed in a nitrogen stream and the dried lipid film was solved in HEPES/Triton buffer (20 mM HEPES, 150 mM NaCl, 20 mM Triton X-100, pH 7,4) in order to reach a lipid concentration of 5 mM. The stock solution was divided into 20 mL aliquots and stored at -20ºC. To enable the preparation of planar lipid bilayers on coverslips, a suspension containing very small unilamellar vesicles (VSUV) was prepared by addition of 200 mL HEPES buffer (20 mM HEPES, 150 mM NaCl) and 200 mL of a 4 mM heptakis(2,6-di-O-methyl)- ß-cyclodextrin to each of the aliquoted lipid-detergent solutions. Finally, the vial was vortexed for 2 minutes.

In order to increase the hydrophilicity of the glass support, coverslips with a diameter of 18 mm were placed for at least 1 hour in freshly prepared Piranha-solution (one-part H2O2 30% and three parts H2SO4). Then, the coverslips were washed with milliQ water, dried in a nitrogen stream and inserted into custom-built sample chambers. The VSUV suspension resulting from one aliquot was immediately added on top of the cleaned coverslip.

After an incubation time of 6 minutes, unfused vesicles were removed by washing of the coverslip with HEPES buffer. During the washing steps care was taken to not dry out the lipid bilayer. Bilayers were kept in HEPES buffer and the respective amounts of teixobactin and clovibactin were added from stock solutions in DMSO to freshly prepared bilayers. After an incubation time of 30 minutes the samples were imaged using a custom-built setup enabling single-molecule microscopy.65 An a-plan-apochromat 63x/1.46 objective (Zeiss) and a sCMOS camera (Prime BSI, Teledyne Photometrics, Tucson, AZ, USA) were used for data acquisition resulting in a pixel size of 103.2 nm. Images were acquired with a field of view of 30.96 mm x 30.96 mm and a single frame integration time of 10 ms. Excitation of Atto565 was performed using a DPL 561 nm laser (Hu¨ bner Photonics GmbH, Kassel, Germany). For every sample 27 movies consisting of 1000 frames were acquired at different sample locations. For every experimental condition three independently prepared samples were measured. Single-particle tracking was performed with the ImageJ 1.52p66 plugin TrackMate67 after background subtraction using a rolling ball radius of 50. For spot detection, the LoG-based detector was used, the parameter ‘‘estimated blob diameter’’ was set to 0.75 mm, the threshold was set to 2.2. Tracking was performed by the ‘‘Simple LAP Tracker’’. Gap-closing was allowed with a maximum closing distance of 1 mm and a maximum frame gap of two frames. A maximum linking distance of 1 mm was chosen. From the resulting tracking data, the mean square displacement as function of time was determined and plotted with the Software OriginPro 2021b (OriginLab Co., Northhampton, MA, USA). A linear fit was performed and according to the Einstein equation for two-dimensional diffusion, the diffusion coefficient of lipid II-Atto565 molecules was determined by dividing the slope of the linear fit by 4.

Synthesis and purification of isotopically labelled Lipid II

Lipid II was produced according to published methods68 based on enzymatic lipid reconstitution using the lipid II precursors UDPGlcNAc, UDP-MurNAc-pentapeptide and polyisoprenolphosphate as substrates.68 Lysine-form UDP-MurNAc-pentapeptide was extracted from Staphylococcus simulans 22. 13C,15N-labelled UDP-GlcNAc and UDP-MurNAc-pentapeptide (lysine form) were extracted from S. simulans 22 grown in [13C/15N]-labelled rich medium (Silantes) and supplemented with [U-13C]-D-glucose and [ 15N]-NH4Cl. Polyisoprenolphosphate was synthesized via phosphorylation of polyisoprenol obtained from Laurus nobilis. 69 The head-group precursors were extracted from bacteria and polyisoprenol was extracted from leaves as described.70 After synthesis, lipid II was extracted with 2:1 BuOH:(Pyr/Acetate, 6 M) and then purified with a DEAE cellulose resin using a salt gradient of 0 - 600 mM NH4HCO3 with 2:3:1 CHCl3:MeOH:[H2O+salt]. Fractions containing pure lipid II were pooled, dried, and dissolved in 2:1 chloroform/methanol. Lipid II concentration was estimated through an inorganic phosphate determination.

Solid-state NMR sample preparation

Multi-lamellar vesicles (MLVs) of DOPC doped with 4 mol% lysine-lipid II in buffer (30mM Citrate, 300mM NaCl, pH 5.5) were collected by centrifugation (60,0003g) and loaded into ssNMR rotors. For 3.2 mm rotors, we used 800 nmol of clovibactin with unlabelled lipid II, while we used 400 nmol with labelled lipid II. For 1.3 mm rotors, samples contained 200 nmol of antibiotic for unlabelled lipid II.

Solid-state NMR spectroscopy

¹H-detected ssNMR experiments were performed at 60 kHz magic angle spinning (MAS) using magnetic fields of 700, 950, and 1200 MHz (1 H frequency) with dipolar transfer steps and using low-power PISSARRO71 decoupling in all dimensions. See Tables S2 and S3 for NMR assignments. 1 H-detected 15N T1rho relaxation experiments28,29 were acquired with a 15N spin lock-field of 18 kHz and spinlock durations of 0, 10, 20, 40, 70, and 100 ms. T1rho trajectories were fit to single exponentials. 2D CC experiments were acquired with PARIS72 or PARISxy32 recoupling (m=1) at 950 or 1200 MHz magnetic field and 15 to 18 kHz MAS. To probe interfacial contacts between 13C,15N-clovibactin and 13C,15N-lipid II, we used CC magnetization transfer times of 50, 150, and 300 ms. 2D NCa and NCO experiments were acquired at 800 MHz, 15 kHz MAS, and with 5 to 7 ms N to C cross-polarization transfer time. To characterize lipid II-bound clovibactin, we used CC magnetization transfer times of 50 and 300 ms. The scalar 2D CC TOBSY36 experiment was acquired at 700 MHz using 8 kHz MAS with 6 ms CC mixing time. The mobility-edited31 H(H)C experiment was measured at 700 and 1200 MHz with 16.5 kHz MAS at about 30ºC temperature using a T2 relaxation filter of 2.5 ms. 1D MAS 31P experiments were acquired at 500 MHz magnetic field and 12 kHz MAS. 2D HP experiments were acquired at 800 MHz and 60 kHz MAS using 1 and 2 ms 1 H to 31P cross-polarization contact time.

For dynamic nuclear polarization (DNP) ssNMR measurements at 800 MHz magnetic field, an equimolar mixture of 13C-labelled and 15N-labelled clovibactin was added to liposomes (4 % lipid II). Prior to the measurements, the DNP samples were suspended in 60% glycerol-d8, 35% buffer solution (30mM citrate, 300 mM NaCl, pH-5.5), and 5% 15 mM SNAPol-1.48 Intermolecular magnetization transfer was established with the NHHC pulse sequence,73 using short (100 ms) cross-polarization transfer steps and an intermediate (300 ms) proton-proton magnetization transfer time.

Details of 2D ssNMR experiments:

1. 2D CC PARIS experiment with 13C,15N-clovibactin – 12C,14N-lipid II

Magnetic field / MAS = 1200 MHz (1 H-frequency) / 18 kHz

Mixing time (CC) = 50 ms

t1 points / AQ = 452 / 5.00 ms

Recycle delay = 2.40 s

Co-added transients = 144

Experimental time = 1d 21h

2. 2D CC PARIS experiment with 13C,15N-clovibactin – 12C,14N-lipid II

Magnetic field / MAS = 1200 MHz (1 H-frequency) / 18 kHz

Mixing time (CC) = 300 ms

t1 points / AQ = 452 / 5.00 ms

Recycle delay = 2.40 s

Co-added transients = 224

Experimental time = 3d 5h

3. 2D CC PARISxy (m = 1) experiment with 13C,15N-clovibactin – 13C,15N-lipid II

Magnetic field / MAS = 950 MHz (1 H-frequency) / 15.5 kHz

Mixing time (CC) = 50 ms

t1 points / AQ = 316 / 4.40 ms

Recycle delay = 1.90 s

Co-added transients = 192

Experimental time = 1d 10h

4. 2D CC PARISxy (m = 1) experiment with 13C,15N-clovibactin – 13C,15N-lipid II

Magnetic field / MAS = 950

MHz (1 H-frequency) / 15.5 kHz

Mixing time (CC) = 300 ms

t1 points / AQ = 215 / 3.00 ms

Recycle delay = 1.84 s

Co-added transients = 1024

Experimental time = 5d 14h

5. 2D CC PARIS experiment with 13C,15N-clovibactin – 13C,15N-lipid II

Magnetic field / MAS = 1200

MHz (1 H-frequency) / 18 kHz

Mixing time (CC) = 50 ms

t1 points / AQ = 452 / 5.00 ms

Recycle delay = 2.40 s

Co-added transients = 144

Experimental time = 1d 21h

6. 2D CC PARIS experiment with 13C,15N-clovibactin – 13C,15N-lipid II

Magnetic field / MAS = 1200 MHz (1 H-frequency) / 18 kHz

Mixing time (CC) = 250 ms

t1 points / AQ = 316 / 3.50 ms

Recycle delay = 2.30 s

Co-added transients = 752

Experimental time = 7d 1h

7. 2D T2-edited H(H)C experiment with 13C,15N-clovibactin – 12C,14N-lipid II

Magnetic field / MAS = 700 MHz (1 H-frequency) / 16.5 kHz

Mixing time (HH) = 5 ms T2 filter = 2.5 ms

t1 points / AQ = 60 / 2.08 ms

Recycle delay = 2.15 s

Co-added transients = 1972

Experimental time = 2d 17h

8. 2D CC TOBSY experiment with 13C,15N-clovibactin – 13C,15N-lipid II

Magnetic field / MAS = 950 MHz (1 H-frequency) / 8 kHz

Mixing time (HH) = 6 ms

t1 points / AQ = 265 / 5.38 ms

Recycle delay = 1.61 s

Co-added transients = 2304

Experimental time = 11d 16h

9. 2D NCa experiment with 13C,15N-clovibactin – 12C,14N-lipid II

Magnetic field / MAS = 800 MHz (1 H-frequency) / 15 kHz

Mixing time (NC) = 5.5 ms

t1 points / AQ = 17 / 3.6 ms

Recycle delay = 1.82 s

Co-added transients = 7168

Experimental time = 2d 17h

9. 2D NCO experiment with 13C,15N-clovibactin – 12C,14N-lipid II

Magnetic field / MAS = 800 MHz (1 H-frequency) / 15 kHz

Mixing time (NC) = 7 ms

t1 points / AQ = 25 / 4.4 ms

Recycle delay = 1.9 s

Co-added transients = 8192

Experimental time = 4d 18h

10. 2D NH experiment with 13C,15N-clovibactin – 12C,14N-lipid II

Magnetic field / MAS = 700 MHz (1 H-frequency) / 60 kHz t1 points / AQ = 87 / 5.6 ms

Recycle delay = 0.72 s

Co-added transients = 4096

Experimental time = 5d 4h

Note = high number of co-added transients was necessary to obtain good data for the side chains of clovibactin residues 3 and 5.

11. 2D N(HH)C experiment with 13C,15N-clovibactin – 12C,14N-lipid II (DNP-ssNMR)

Magnetic field / MAS = 800 MHz (1 H-frequency) / 10.6 kHz

Mixing time (HH) = 0.3 ms

t1 points / AQ = 42 / 3.0 ms

Recycle delay = 2.8 s

Co-added transients = 3776

Experimental time = 5d 3h

12. 2D 1 H-31P HETCOR experiment with 13C,15N-clovibactin – 12C,14N-lipid II

Magnetic field / MAS = 800 MHz (1 H-frequency) / 60 kHz

Mixing time (HP) = 2.0 ms

t1 points / AQ = 36 / 1.4 ms

Recycle delay = 1.3 s

Co-added transients = 22528

Experimental time = 12d 9h

For all 2D experiments, sign discrimination in indirect dimensions was achieved with the TPPI (time-proportional phase incrementation) method.

Fluorescence Microscopy

GUVs preparation

We used a self-assembled GUV cell, aligned with two titanium electrodes in a closed Teflon chamber (volume = 500 mL). 1 mL of 0.5 mM DOPC doped with Atto 550-labelled lipid II (0.1 mol%) was brushed on the titanium electrodes. The GUV cell was dried under vacuum. Next, the chamber was filled with 350 mL 0.1M sucrose solution, the electrodes dipped in and connected to a power supply of a sine wave (2.5V; 10 Hz; 90 minutes). Each microscopy slide (m-slide 8 well, Ibidi) was incubated with 350 mL BSA solution (1 mg/mL) for 1 hour. To detach the GUVs, the power supply was changed to square wave (2V; 2Hz; 15 minutes). The slides were washed once with water and 0.1M glucose solution. The slides were immersed in 300 mL of 0.1M glucose solution to which 50 mL of GUVs were added. These were incubated for 3 hours with 1 mM clovibactin and later observed under confocal microscope Zeiss LSM 880. GUVs were imaged using Zeiss LSM 880 with 63x/1.2NA glycerol and 100x/1.2NA oil objective lenses. The Atto 550 label appeared red upon excitation by the 560 nm laser. The brightfield was used for detection and location of the GUVs and to observe their shape. ImageJ software66 was used for the analysis of the images.

Isothermal Titration Calorimetry

For ITC measurements, LUVs (Large unilamellar vesicles) containing Lys-lipid II were prepared by incorporating 2 mol% of Lys-lipid II in DOPC from the stock solution. The lipids were dried under a nitrogen stream and hydrated with buffer (30mM Citrate, 300mM NaCl, pH 5.5) to a lipid-phosphate concentration of 20mM determined by Rouser’s method.57 Finally, unilamellar vesicles were obtained after 10 rounds of extrusion through 200 nm membrane filters (Whatman Nuclepore, Track-Etch Membranes). ITC experiments were performed with the Affinity ITC (TA Instruments- Waters LLC, New Castle, DE, USA) to determine interaction between LUVs and clovibactin. Clovibactin was diluted in the buffer, to a final concentration of 30 mM. The samples were degassed before use. The chamber was filled with 177 mL of clovibactin, and the LUVs were titrated into the chamber at a rate of 1.96 mL/150 seconds with a constant syringe stirring rate of 125 rpm. Number of injections = 21. Experiments were performed at 37C and analyzed using the Nano Analyze Software (TA instruments – Water LLC). All experiments were performed in duplicates. Control experiments were performed with lipid II-free DOPC LUVs. The independent model was used to determine the interaction between clovibactin and lipid II. ITC data for teixobactin was recently published.10

High Speed-Atomic Force Microscopy (HS-AFM) Imaging

The HS-AFM images were acquired in amplitude modulation tapping mode in liquid using a high-speed atomic force microscope (RIBM, Japan). Short cantilevers (7 mm) with a nominal spring constant of 0.15 N/m were used (USC-F1.2-k0.15, NanoWorld, Switzerland). A minimal imaging force was applied by using a small set-point amplitude of 0.8 nm (for a 1 nm free amplitude). The HS-AFM results showing the assembly of clovibactin filaments were obtained from imaging of supported lipid bilayers on mica. The lipid bilayer was obtained by incubating LUVs containing 0.5 mg/ml of DOPC and 4 mol% lipid II (prepared as mentioned above) mixture (or 0.5 mg/ml DOPC without lipid II) on top of a freshly cleaved mica for 20-30 minutes. After the incubation period, the mica was cleaned gently using recording buffer (10 mM Tris-Cl, 100 mM NaCl, pH 8.0). Imaging was started on the lipid bilayer surface in recording buffer. Next, a concentrated clovibactin solution was added and pipetted to reach the desired final concentration in the AFM liquid chamber of 40 ml. Images were primarily processed using built-in scripts (RIBM, Japan) in Igor Pro33 (Wavemetrics, Lake Oswego, OR, USA) and analyzed using ImageJ software. The images/movies were corrected minimally for tilt, drift, and contrast. Unless otherwise mentioned, the times reported in AFM images are relative to clovibactin addition into the imaging chamber. Reported image acquisition rate is 0.5 frames/second, and the line rate is 150 lines/second. Stated errors are standard deviation.

Permeabilization assay

S. simulans cultures were grown overnight at 37 C in TSB. Secondary cultures were grown until the OD600 reached 0.5. The bacterial cells were then centrifuged at 3000x g for 5 minutes at 4 C and washed twice with 10 mL of buffer (10 mM KPi, 100 mM KCl, 5 mM MgSO4, 250 mM glucose pH=7.2). The bacterial cells were resuspended to an OD600 = 5 in the buffer and kept on ice until use. All permeability experiments were performed with a Cary Eclipse (FL0904M005) fluorescence spectrometer. All samples (1.0 mL) were continuously stirred in a 1034-mm quartz cuvette and kept at 20 C. For the assay, 10 mL of the bacterial suspension was added to 1 mL of buffer. For DiSC2(5) (excitation 650 nm, emission 670 nm, 5 nm bandwidths) ion leakage assays, 2 mL of a 0.1 mM DiSC2(5) stock in DMSO was added to the cuvette and the fluorescence was measured for 2 minutes before the addition of the antibiotic. After 5 minutes incubation, Triton-X100 (0.2 v% final) was added to completely dissipate the membrane potential. For SYTOX green (excitation at 504 nm, emission at 523 nm, 5 nm bandwidths) leakage assays, 1 mL of a 0.25 mM SYTOX green stock was added to the cuvette and the fluorescence was measured for 1 minute before the addition of the antibiotic. After a incubation time of 5 minutes, Triton-X100 (0.2 v% final) was added. We used antibiotic concentrations of 160 nM for nisin (2 x MIC), 10 mM for clovibactin (5 x MIC), and 2.5 mM for teixobactin (5 x MIC).

Structure Calculations

Parametrization of Clovibactin

Clovibactin parametrization was started from a linear peptide topology of L-amino acids. D-amino acids were generated by inverting relevant dihedral and improper torsion angles and hydroxyasparagine (Hyn) topology was based on asparagine, where -OH group parameters were derived from threonine-OH group parameters. Depsi-cycle formation between Hyn5 and Leu8 was performed as previously described for [R4,L10]-teixobactin.30 Parameters for lipid II were taken from Hsu et al.18

Structure calculation protocol

We used HADDOCK version 2.437 for the structure calculations. An eight-body docking (four lipid II and four clovibactin molecules) was performed using ssNMR-derived distance and dihedral restraints. Five thousand models were generated in the rigid-body docking stage of HADDOCK, of which the best-scoring 500 were subjected to the flexible refinement protocol of HADDOCK. The resulting models were energy minimized. Default HADDOCK settings were used except for doubling the weight of the distance restraints during all stages of the structure calculation. The final models were further filtered based on the topological requirements (that is, the lipid tails of all lipid II molecules must point in the same direction as the membrane-exposed hydrophobic residue Leu2). This resulted in a final ensemble of 22 structural models. See Supplementary Information for detailed analysis of the calculated structural models.

In total, we used 19 unambiguous intermolecular clovibactin – clovibactin distance restraints, 4 intermolecular clovibactin – clovibactin hydrogen bonding restraints, 12 unambiguous and 4 ambiguous clovibactin - lipid II distance restraints (with the lipid II sugars), and 4 ambiguous clovibactin - lipid II PPi distance restraints. Intramolecular restraints are listed per monomers, while intermolecular clovibactin – clovibactin /interfacial clovibactin – lipid II restraints are listed per pair of interacting molecules.

Analysis of calculated structure models

The average backbone RMSD (from the average structure) of the 22 clovibactin molecules in the complex was 2.50 ± 0.85 A˚ (see also Tables S4 and S5).

NMR restraints

Intermolecular distance restraints between clovibactin molecules

All restraints based on a series of 2D 13C13C PARIS experiments (up to 300 ms 13C13C transfer) using a target distance of 7.5 A˚ , and lower distance margin of 5.5 A˚ , and a higher distance margin of 2.0 A˚ ; i.e., format (7.5 5.5 2.0). Note that in the arrangement of four clovibactin molecules, intermolecular clovibactin-clovibactin distance restraints for the inner clovibactin molecules were implemented so that a restraint could be with the clovibactin molecule on either side.

Hydrogen bond restraints (intermolecular) between clovibactin molecules

Hydrogen bonding restraints in line with experimentally determined antiparallel clovibactin arrangements were applied. While two different register shifts are possible to form antiparallel b-sheets (i.e., Ser4NH could interact with Leu2CO or Ser4CO), only the variant with Leu2CO appears to agree with the intermolecular ssNMR distance restraints. Hydrogen bonding distance restraints were defined accordingly with upper and lower limits of 2.3 and 1.5 A˚ , respectively, i.e., format (2.0 0.5 0.3). These restraints were applied between the amino protons of depsi-cycles residues and oxygens of the PPi-group.

clovibactin A with clovibactin B

clovibactin C with clovibactin D

Similar as in A with B

Interfacial distance restraints between clovibactin and lipid II

Restraints involving the pyrophosphate group. Ambiguous distance restraints were applied between the backbone amino protons of the four depsi-cycle residues (Hyn5-Leu8) with either phosphate of the pyrophosphate group using upper and lower limits of 2.4 and 1.7 A˚ , respectively, i.e., format (2.0 0.3 0.4). Restraints based on a 2D 1 H31P experiment (Figure 5B of the manuscript).

Restraints involving the MurNAc/GlcNAc sugars

Restraints were based on a series of 2D 13C13C PARIS and PARISxy experiments with 50, 250, and 300 ms magnetization transfer. Due to the mobility of the depsi-cycle in the complex (Figures 4B and 4C of the main text), most interfacial clovibactin – lipid II restraints were weak. We therefore applied all interfacial clovibactin – lipid II CC restraints with wider boundaries (7.5 5.5 2.0), i.e., upper and lower boundaries of 9.5 and 2.0 A˚ , respectively. Notwithstanding the wider boundaries, the interface is well defined (1.47±0.40 A˚ interfacial RMSD defined by residues Ala6, Leu7, Leu8 of clovibactin, PPi and MurNAc of lipid II)

Topological restraints

Eventually, a filtering strategy was applied to constrain the conformational space of the isoprenyl tails. Structural models were only accepted if all lipid II tails pointed into the direction of the membrane-exposed side chain of Leu2 (see Figures 4I and S6). Sorting of the lipid II tails was steered by imposing soft distance restraints between the side chain of Leu2 and the lipid II isoprenyl-tails, and by imposing soft distance restraints between the isoprenyl-tails.

QUANTIFICATION AND STATISTICAL ANALYSIS

All of the statistical details for each experiment are described in the figure legends.

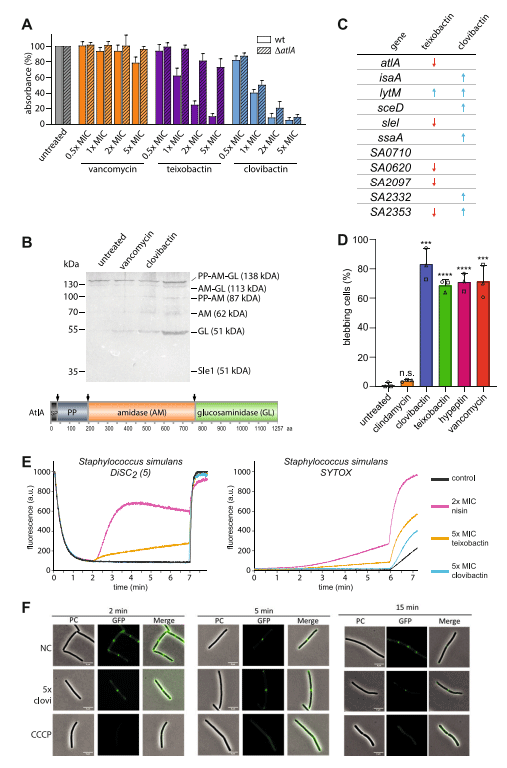

Figure S1. Clovibactin-induced lysis in S. aureus is AtlA independent, related to Figures 2 and 3

(A) Cells of S. aureus SA113 and a DaltA mutant were incubated with each compound at increasing concentrations for 24 h, as indicated. Mean values from three independent experiments are shown. Error bars represent standard deviations. Related to Figure 2C. (B) Zymographic analysis of supernatants derived from clovibactin- and teixobactin-treated S. aureus cells on sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) gel containing heat-killed S. aureus RN4220 as a substrate. The dark bands indicate the clear zone in the SDS-PAGE gel. AtlA is visible in multiple bands representing the precursor protein (Pro-AtlA) that is cleaved to generate intermediates as depicted in the scheme. (C) Differential regulation of WalRK-controlled genes in clovibactin- and teixobactin-treated S. aureus HG001 (0.25 3 MIC) by RNA sequencing; downregulated (red) and upregulated (blue). (D) Cell wall active antibiotics teixobactin, hypeptin, vancomycin, and protein synthesis inhibitor clindamycin were used as controls. Scale bars, 2 mm. Error bars represent standard deviation. At least n R 30 cells per replicate were evaluated for each condition from three biologically independent experiments. Significance was determined by unpaired two-tailed Student’s t test with a 95% confidence interval. ****p < 0.0001, ***p < 0.0004, n.s., not significant (p = 0.0558). Related to Figure 3C of the manuscript. (E) Permeabilization assay with DiSC2 (5) and SYTOX reporter dyes for Staphylococcus simulans with nisin, teixobactin, clovibactin, and untreated cells. Although nisin and teixobactin compromise the membrane integrity, clovibactin shows no permeabilizing activity for either of the two reporters. (F) GFP-MinD cells of B. subtilis were treated with clovibactin (5 3 MIC). The ionophore carbonyl cyanide m-chlorophenylhydrazone (CCCP) was used as a positive control. Scale bars, 5 mm. The shown data are representative of two independent experiments for each SYTOX and DiSC2 (5).

Figure S2. Schematic of peptidoglycan synthesis, related to Figure 3

Peptidoglycan synthesis is dependent on the lipid II cycle which is shown in the illustration. It shows the organization of the lipid II molecule on the inner leaflet, which is eventually flipped to the outer leaflet. When present in the outer leaflet lipid II deposits the disaccharide moiety (GlcNAc-MurNAc) and the attached pentapeptide to develop the peptidoglycan layer. The C55P moiety is then recycled to continue the cycle.

Click here to enlarge the image

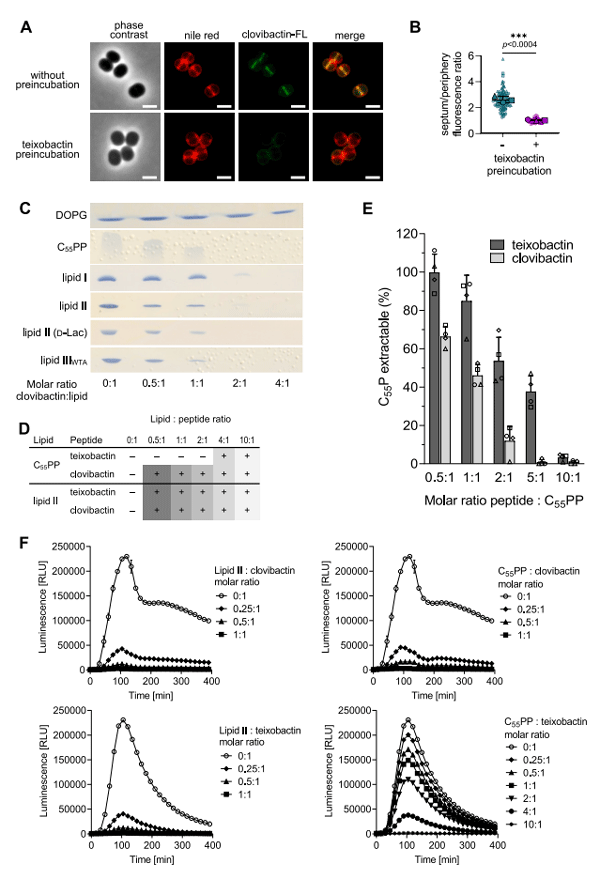

Figure S3. BODIPY FL-clovibactin localizes to the septum of S. aureus and forms extraction-stable complexes with undecaprenyl-pyrophosphate-containing cell wall precursors, related to Figure 3

(A) In cells preincubated with teixobactin (2 min), septal localization of FL-clovibactin is diminished. Nile red was used for membrane staining. Scale bars, 1 mm. (B) Images of individual cells were used to calculate the fluorescence ratio (FR) of the septal versus peripheral fluorescence signal for cells pre-treated with teixobactin and lacking pre-treatment. FR > 2 indicates septal localization. At least n = 30 cells were evaluated for each condition from three biologically independent experiments. Significance was determined by unpaired Student’s t test with a 95% confidence interval. ****p < 0.0004. (C) Complex formation is indicated by a reduction of the amount of free lipid intermediates visible on the TLC. Cell wall intermediates are fully locked in a complex at a 2-fold molar excess of antibiotic. No complex formation was observed with the anionic phospholipid DOPG. Note that the molar clovibactin: lipid ratios are not representative for stoichiometries. The chromatograms are representative of three independent experiments. (D) Antagonization of the antimicrobial activity of clovibactin and teixobactin by cell wall precursors. S. aureus was incubated with clovibactin (8 3 MIC) in nutrient broth in microtiter plates, and growth was measured after a 24 h incubation at 37C. HPLC-purified antagonists C55PP and lipid II were added in molar ratios with respect to the antibiotic. Experiments were performed with biological replicates. + antagonization/growth; no antagonization/no growth. (E) Clovibactin inhibits dephosphorylation of undecaprenyl-pyrophosphate (C55PP) by YbjG. Clovibactin and teixobactin were added in molar ratios from 0.5 to 10 with respect to the amount of the C55PP substrate C55PP. The reaction product (C55P) synthesized in the absence of antibiotic was taken as 100%. Mean values from three independent experiments are shown. Error bars represent standard deviation. (F) Clovibactin and teixobactin-induced liaI-lux expression is antagonized when preincubated with lipid II (molar ratio of lipid II with respect to antibiotic). C55PP antagonizes clovibactin activity at equimolar ratio, whereas at least a 10-fold higher concentration is required for teixobactin. Representative of three independent experiments.

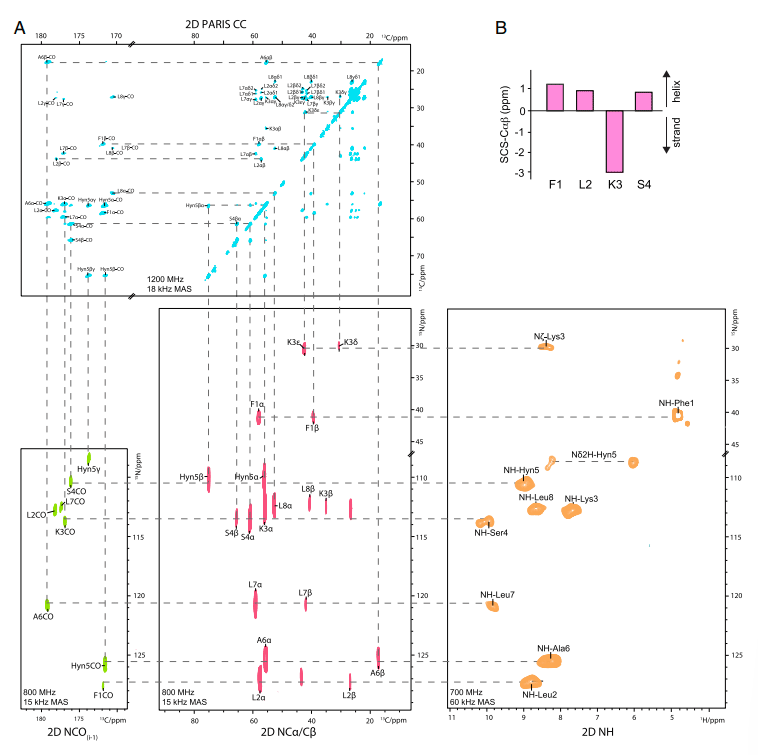

Figure S4. ssNMR assignments of clovibactin in the lipid II-bound state in DOPC liposomes, related to Figure 4

(A) Assignments were performed using a 2D PARIS CC experiments (in blue), 2D NCO(i-1) (in green), 2D NCA (in red), and 2D NH (in orange). 2D PARIS CC ssNMR experiment was recorded at 1,200 MHz magnetic field at 18 kHz magic angle spinning (MAS). 2D NCO(i-1) and 2D NCa experiments were recorded at 800 MHz magnetic field at 15 kHz MAS. The 2D NH experiment was recorded at 700 MHz magnetic field at 60 kHz MAS. (B) Cab secondary chemical shifts (SCSs) do not show consistent b-structuring for the linear clovibactin N terminus. We note that it is unclear to which extent chemical shift information27 applies to the very short N terminus with its unusual structure and non-canonical residues. We also note that for the chemical shifts of teixobactin,10 residues D-N-Me-Phe1 and Ser7, i.e., the residue connected to the depsi-cycle, did not indicate b-structuring.

An antibiotic from an uncultured bacterium binds to an immutable target - Image 3

Click here to enlarge the image

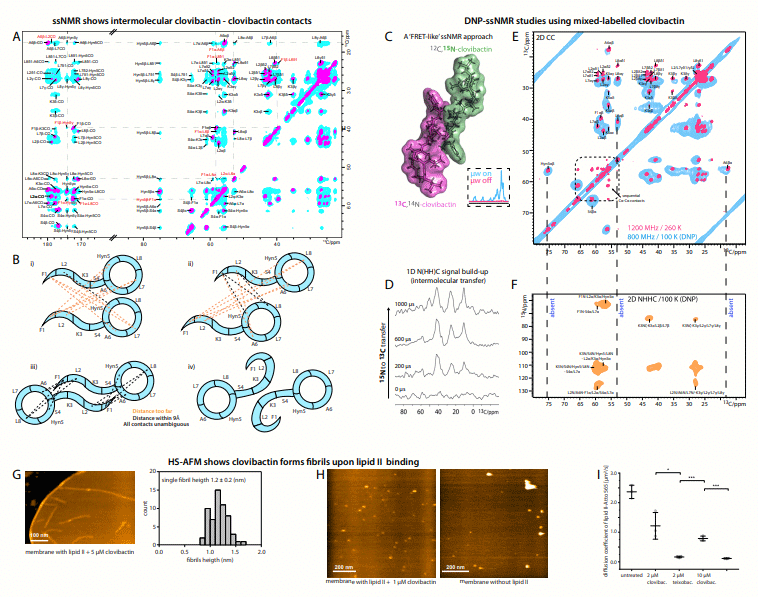

Figure S5. Supramolecular arrangement of the clovibactin dimer, related to Figure 4

ssNMR, confocal microscopy, and AFM data show that clovibactin assembles into fibrils upon lipid II binding. From ssNMR data, the nature of the fibrils can be gauged. (A) Superposition of 2D PARIS CC spectra of clovibactin in the lipid II-bound state with 50 (magenta) and 300 ms (cyan) mixing time measured at 1,200 MHz magnetic field and 18 kHz MAS. The contacts (in red) very likely arise from intermolecular interactions between adjacent clovibactin molecules because they are beyond the 8 A˚ distance range of such an experiment. (B) The illustrations show how these contacts are consistent with be an antiparallel arrangement (Biii) of the neighboring clovibactin molecules. The parallel (Bi) and out of register parallel (Bii) arrangements still contain many contacts that presumably would not be satisfied by the distance threshold of the experiment. In the antiparallel arrangement, the N- and C-terminal residues of adjacent clovibactin molecules come close enough to justify observing contacts such as F1a-L8a and F1a-A6b. (Biv) Due to the small size of clovibactin, we note that the ssNMR restraints could potentially also be fulfilled by alternative supramolecular arrangements in which the N terminus bends toward the C-terminal depsi-cycle. However, such an alternative arrangement appears difficult to align with the formation of fibrils observed by AFM. (C–F) DNP-ssNMR studies in liposomes demonstrate that clovibactin assembles into oligomeric structures upon lipid II binding in liposomes. (C) The formation of a suprastructure can be probed with an equimolar mixture of 15N- and 13C-labeled clovibactin and dedicated ssNMR experiments such as NHHC.73 The insert shows the DNP signal enhancement of a factor of 49 using the SNAPol-148 biradical at 800 MHz magnetic field. (D) A series of DNP-enhanced 1D ssNMR NHHC experiments, acquired at 800 MHz magnetic field, with increasing 1 H-1 H magnetization transfer times applied to mixed-labeled clovibactin (in membranes with 4% lipid II) show the presence of oligomeric clovibactin structures. (E) Superposition of 2D CC ssNMR spectra acquired at 260 K temperature (in red) and at 100 K under DNP conditions (in blue). (F) DNP-enhanced 2D NHHC ssNMR spectrum, acquired with mixed-labeled clovibactin. The black dashed-lines mark signals of the depsi-cycle residues Hyn5, Ala6, and Leu8 that are absent from the spectrum, consistent with their involvement in lipid II binding. DNP-ssNMR studies: although signal broadening at 100 K and the moderate spectral sensitivity in this highly challenging experimental setup prohibited to clearly identify the type of supramolecular arrangement, the ‘‘FRET-like’’ ssNMR experiments provided valuable insights that support our structural model of the complex. (1) Intermolecular (proton-mediated) 15N to 13C magnetization transfer clearly confirms that the supra-structures observed by fluorescence microscopy and AFM are mediated by direct clovibactin-clovibactin contacts. (2) The high signal intensity of NH-Ha contacts demonstrate that clovibactin-clovibactin contacts are mainly mediated by backbone-backbone contacts, which aligns with our structural model of a fibrillar suprastructure. (3) Interestingly, well-resolved signals of depsi-cycle residues Hyn5, Ala6, and Leu8 showed no signals and hence seem not involved in intermolecular clovibactinclovibactin contacts (indicated by black-bashed lines in E and F). This is something that aligns well with our structural model, in the N terminus acts as oligomerization domain and the depsi-cycle as lipid II binding motif. (4) Furthermore, the Lys3 side chain shows only side-chain-side-chain contacts, consistent with the membrane topology of our model, in which hydrophilic residues ‘‘stick out of the fibril’’ toward the water phase. (G) HS-AFM experiments show the formation of the clovibactin fibrils only at high-concentrations of 5 mM and in the presence of lipid II. Also, the fibrils are loosely attached to the membrane and the average height of the fibrils is 1.2 ± 0.2 nm above the membrane. There was no visible membrane deformation, and this is in line with our permeabilization assays, which also show no effect on bacterial membrane depolarization. (H) Control experiments with low clovibactin concentration (1 mM) at a membrane containing 4% lipid II (left image) and 5 mM clovibactin at a membrane containing no lipid II (right image) both show no fibrilization events. (I) Lipid II mobility was also monitored using single-molecule tracking microscopy experiments in supported lipid bilayers. These experiments also align with the requirement of higher clovibactin concentrations to immobilize lipid II in lipid bilayers. This contrasts with the low concentrations of teixobactin required for maximum lipid II immobilizations. For every experimental condition three independently prepared samples were measured. Further statistical details are given in the STAR Methods.

An antibiotic from an uncultured bacterium binds to an immutable target - Image 5

Click here to enlarge the image

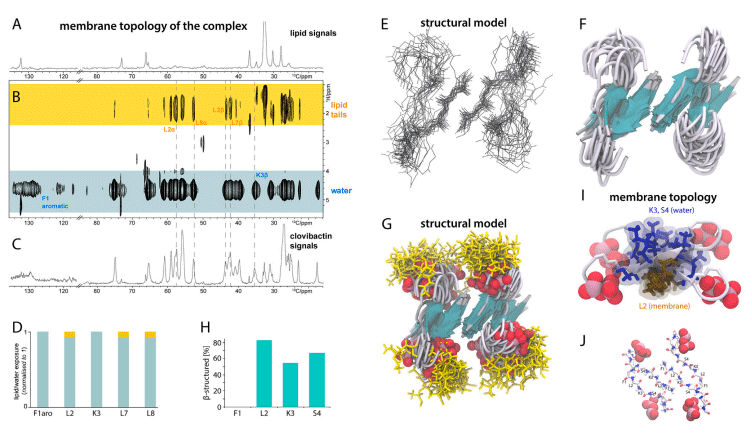

Figure S6. Membrane topology and structure of the complex, related to Figure 4

(A) and (B) show mobility-edited (T2-filtered) 1 H(1 H)13C ssNMR experiments31 of 13C,15N-clovibactin bound to lipid II. Here, magnetization from mobile water and lipid molecules is transferred to the rigid clovibactin protons via 1 H-1 H mixing and eventually transferred to the 13C nuclei of clovibactin via a short cross-polarization step (200 ms). A 2D implementation of this experiment demonstrates that the side chain of Leu2 is partially inserted in the membrane, whereas the side chain of Lys3 points to the water phase. In general, as shown in Figure 4I of the main text, clovibactin fibrils do reside on the membrane surface and do not insert deeply into the membrane. Spectra were measured at 1,200 MHz, 16.5 kHz MAS, and 300 K sample temperature. (A) Control: 1D 1 H(1 H)13C ssNMR spectrum (5,120 scans) using a T2-filter of 2.5 ms without transfer to clovibactin (0 ms 1 H-1 H mixing). All signals relate to lipids, demonstrating the effectiveness of the T2-filter. (B) 2D 1 H(1 H)13C ssNMR spectrum using 2.5 ms T2 filter (1,792 scans) and 5 ms 1 H-1 H mixing. (C) 13C cross-polarization spectrum (200 ms contact time) of lipid II-bound clovibactin. (D) Normalized relative signal intensities (peak heights) of the correlations with water (blue) and lipid (brown) protons for several residues. See Figure S6I for a structural representation of the topology. (E and F) Superposition (2.50 ± 0.85 A˚ average backbone RMSD for clovibactin in the complex) of 22 calculated structural models of the clovibactin-lipid II complex. Lipid II is not shown for clarity. (G) Same as (F) but including the PPi group (shown in spheres) and the MurNAc sugar of lipid II. (H) Quantification38 of secondary structure elements of the very short linear N terminus based on the calculated structural model. The N terminus adopts a secondary structure that contains elements of b-structuring and an elongated loop. This is also reflected in the calculated ensemble (E and F) that does not show consistent b-structuring for the N terminus. (I) Membrane topology of clovibactin in the complex derived from ssNMR T2-edited H(H)C experiments.31 The long hydrophobic Leu2 side chain (in brown) is embedded in the membrane, whereas the cationic (Lys3) and polar (Ser4) side chains (in blue) of the N terminus are water-exposed and, at the same time, favorably interact with the anionic PPi group. (J) Atomic force microscopy, confocal microscopy, and ssNMR data demonstrate that clovibactin and lipid II oligomerize into fibrils. ssNMR distance measurements are consistent with an antiparallel arrangement of clovibactin molecules, something that is also in line with the fibrils observed in AFM experiments. Based on these experimental data, we applied hydrogen bonding restraints to foster an antiparallel arrangement in the structural model.

An antibiotic from an uncultured bacterium binds to an immutable target - Image 7

Click here to enlarge the image

Figure S7. The clovibactin-lipid II binding interface seen by ssNMR, related to Figure 5

(A) Clovibactin binds to all cell wall precursors containing the C55PP unit (C55PP, lipid I, and lipid II). Changes in the chemical shifts of the pyrophosphate groups of lipid II and lipid I upon addition of clovibactin show the direct binding to the site. Furthermore, the emergence of strong spinning sidebands around +45/55 ppm show that clovibactin binds and immobilizes C55PP. Experiments were performed using MLV’s containing 2 mol % of the cell wall precursor with and without the treatment with clovibactin at 500 MHz and 10 kHz MAS (lipid II + clovibactin was performed at 12 kHz MAS). Spinning sidebands (ss) of bound cell wall precursors and bulk lipids are annotated. (B) Chemical structures of lipid II, lipid I, and C55PP. (C) (Right) 2D CC PARIS ssNMR spectra show multiple interfacial contacts illustrating the interaction between the depsi-cycle of clovibactin with the first sugar of lipid II. The experiments were performed at 950 MHz magnetic field with 15.5 kHz MAS using CC mixing times of 50 (green) and 300 ms (magenta). (Left) Horizontal cross-sections (rows) of long-range contacts extracted from 2D CC spectrum acquired with 300 ms CC mixing time. (D) The scalar based TOBSY spectrum only shows highly mobile residues in the complex. Here, one can clearly see the presence of all the residues of the pentapeptide of lipid II, except for A1*. This indicates that the pentapeptide is highly mobile in the complex and not involved in the binding interface. The first A1* residue is linked to the first sugar (MurNAc) and therefore is more rigid and visible in the dipolar-based spectrum (Figure S7C). This contrasts with teixobactin’s scalar spectrum (black) where residue E2 (in red) was not observed due to specific interactions of the MurNAc sugar with the enduracididine residue, leading to higher degree of rigidification of the pentapeptide.10

An antibiotic from an uncultured bacterium binds to an immutable target - Image 9

Click here to enlarge the image

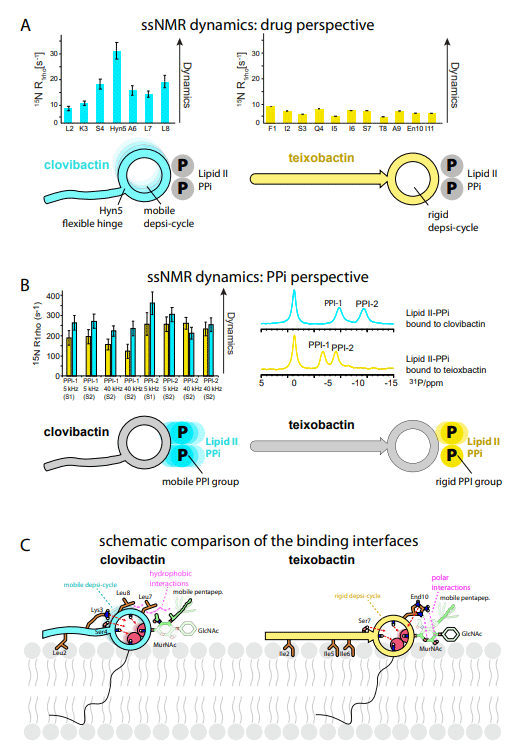

Figure S8. Comparison of the clovibactin-lipid II and teixobactin-lipid II interfaces, related to Figure 5

(A) Comparison of 15N T1rho ssNMR dynamics acquired for clovibactin (in cyan) and teixobactin (in yellow) in their lipid II-bound states in DOPC liposomes. Data were acquired using 1 H-detected ssNMR experiments74 at 60 kHz MAS and 700 MHz static magnetic field at about 300 K sample temperature. The error bars show the standard error of the fit. The data show enhanced dynamics for the depsi-cycle of clovibactin, especially around the hinge-residue Hyn5. These enhanced slow dynamics compromise dipolar magnetization transfer, especially for clovibactin’s depsi-cycle residues. (B) Comparison of 31P T1rho ssNMR dynamics acquired for the lipid II PPi group bound to teixobactin (in yellow) and bound to clovibactin (in cyan) in DOPC liposomes. Data were acquired at 16 kHz MAS and 500 MHz static magnetic field (1 H-frequency) at about 300 K sample temperature. The data show clearly enhanced dynamics for the PPi group when bound to clovibactin compared to when bound to teixobactin. For each complex, measurements were conducted in duplicate (i.e., for two samples) using two different spin-lock fields of 5 and 40 kHz. (C) Schematic comparison of the binding interfaces: Clovibactin: clovibactin binds lipid II on the membrane surface. In the bound state, clovibactin’s N-terminal domain (Phe1-Ser4) adopts a non-classical secondary structure that presumably contains b-structured elements. Clovibactin’s N-terminal domain, which is presumably the self-assembly domain, is only loosely anchored into the membrane by a single long hydrophobic residue (Leu2). This (together with the lack of specific interactions with the lipid II sugars, see below) explains why clovibactin supra-structures are quite mobile, as seen by single-molecule tracking microscopy experiments (Figure S5I). Target binding: clovibactin specifically targets the pyrophosphate group of lipid II using backbone amino protons (shown as blue-white sticks) of its depsi-cycle (Hyn5-Leu8). Binding of the anionic pyrophosphate group is presumably supported by the cationic Lys3 side chain and also by polar interactions with the hydroxyl group of Ser4. In the complex, the depsi-cycle and the lipid II pyrophosphate remain fairly mobile, as demonstrated by ssNMR relaxation data (Figures S8A and S8B). The side chains of the depsi-cycle that face the lipid II sugars are exclusively hydrophobic (Ala6, Leu7, and Leu8). ssNMR data show that these hydrophobic residues, especially Leu7 and Leu8, interact with the hydrophobic side of the MurNAc sugar (i.e., the methyl-groups of N-acetyl at the C2 position and of lactyl at the C3 position). The second lipid II sugar, GlcNAc, is distal from the complex interface. The pentapeptide is highly mobile and not involved in complex formation, which is a reason why clovibactin is not prone to the development of antimicrobial resistance. Clovibactin hence solely targets the conserved pyrophosphate group in a specific manner, which is the reason why clovibactin also targets other indispensable precursor molecules (lipid I and C55PP) with very good affinity. This multi-target mechanism is another major reason why clovibactin is so refractory to the development of antimicrobial resistance. Teixobactin: teixobactin binds lipid II on the membrane surface. In the bound state, teixobactin’s N-terminal domain (Phe1-Ser7) adopts a b strand conformation. The N-terminal domain is the self-assembly domain, forming antiparallel b sheets. Teixobactin is firmly anchored into the membrane by three long hydrophobic residues (Ile2, Ile5, and Ile6), which rigidifies the teixobactin supramolecular fibrils (together with the specific interactions with the lipid II MurNAc sugar, see below). Target binding: teixobactin specifically binds the conserved pyrophosphate group of lipid II using backbone amino protons (shown as blue-white sticks) of its depsi-cycle (Thr8-Leu11).10 Binding of the anionic pyrophosphate group is presumably supported by polar interactions with the hydroxyl-group of Ser7. In the complex, the depsi-cycle is highly rigid, as demonstrated by ssNMR relaxation data (Figures S8A and S8B). The pyrophosphate group is also rigid in the teixobactin-bound state, with slightly elevated dynamics on the second phosphate that is attached to MurNAc. The unusual cationic residue enduracididine10 (End10) of teixobactin dominates the interface and engages in tight, specific hydrogen bonding with the MurNAc sugar, presumably with the hydroxyl group of C6. The cationic End10 side chain also stabilizes the anionic pyrophosphate. Furthermore, pyrophosphate is coordinated by the cationic N terminus of N-Me-D-Phe1 of an adjacent teixobactin molecule in the suprastructure. The second sugar, GlcNAc, is distal from the complex interface. The pentapeptide is highly mobile and not involved in complex formation, which is a reason why clovibactin is not prone to the development of antimicrobial resistance.

Figure S9. Comparative ITC data for clovibactin and teixobactin, related to Figure 5

The ITC data shows a binding isotherm for interaction between clovibactin and lipid II, lipid I, and C55PP. All experiments were performed in duplicates. All the parameter values are shown as mean ± SD. Teixobactin (1.46E8 ± 2.00E9) has a higher binding affinity for lipid II than clovibactin (8.62E8 ± 7.30E9). For lipid I, teixobactin’s affinity diminishes (8.05E8 ± 7.48E9), whereas the affinity of clovibactin remains steady (8.07E8 ± 8.07E8). This decrease in affinity already indicates that teixobactin is more sensitive to the exact conformational arrangement of the lipid II sugars. This is strongly supported by the drastically reduced binding affinity of teixobactin for C55PP (1.37E4 ± 4.17E5), whereas clovibactin still binds reasonably strong to C55PP (6.23E05 ± 2.60E6). There is no binding observed between clovibactin and soluble sodium-pyrophosphate.

An antibiotic from an uncultured bacterium binds to an immutable target - Image 11

Click here to enlarge the image

This article was originally published in Cell 186, 4059–4073, September 14, 2023. https://doi.org/10.1016/j.cell.2023.07.038. This is an Open Access article under the CCBY license (http://creativecommons.org/licenses/by/4.0/).

Clovibactin: improved therapeutics that kill bacterial pathogens without resistance development

An antibiotic from an uncultured bacterium binds to an immutable target

INTRODUCTION

RESULTS

Discovery of clovibactin

Target identification

Oligomerization upon target binding

Flexible fibrils

The complex interface

Structural model of the complex

DISCUSSION

Limitations of the study

SUPPLEMENTAL INFORMATION

ACKNOWLEDGMENTS

AUTHOR CONTRIBUTIONS

DECLARATION OF INTERESTS

KEY RESOURCES TABLE

RESOURCE AVAILABILITY

Lead contact

Materials availability

Data and code availability

EXPERIMENTAL MODEL AND SUBJECT DETAILS

Bacterial strains

Cell Lines

Mice

METHOD DETAILS

Isolation of strain producing clovibactin

Clovibactin Isolation Procedure

Clovibactin Mass Spectrometry

Clovibactin 1D and 2D solution NMR Experiments

Whole genome sequencing of P9846

Biosynthetic analysis of P9846 genome

Annotation of clovibactin biosynthetic gene cluster

Determination of MICs

Mammalian cytotoxicity

Minimum bactericidal concentration (MBC)

Time-kill curves

Macromolecular synthesis assay

Resistance studies

Single dose PK in mice

Neutropenic mouse thigh infection study

Producing 13C -15N labeled clovibactin

b-galactosidase reporter assays

Quantification of intracellular UDP-N-acetylmuramic acid-pentapeptide

Luciferase reporter antagonization assays

Bacterial cell wall integrity assay

MIC-type antagonization assays

Synthesis and purification of lipid intermediates

In vitro lipid II synthesis with isolated membranes

In vitro PGN synthesis reactions using purified proteins and substrates

Complex formation clovibactin

Lysis assay

Zymographic analysis

MinD delocalization studies

Fluorescence labeling and fluorescence microscopy

Transcriptomics

RNA-Seq data assessment and analysis

Normalization and differential gene expression

Analysis of single molecule mobility in supported lipid bilayers

Synthesis and purification of isotopically labelled Lipid II

Solid-state NMR sample preparation

Solid-state NMR spectroscopy

Fluorescence Microscopy

GUVs preparation

Isothermal Titration Calorimetry

High Speed-Atomic Force Microscopy (HS-AFM) Imaging

Permeabilization assay

Structure Calculations

Parametrization of Clovibactin

Structure calculation protocol

Intermolecular distance restraints between clovibactin molecules

Hydrogen bond restraints (intermolecular) between clovibactin molecules

Interfacial distance restraints between clovibactin and lipid II

Restraints involving the MurNAc/GlcNAc sugars

Topological restraints

QUANTIFICATION AND STATISTICAL ANALYSIS

Effect of selected yeast fraction on the growth of Clostridium perfringens: Quantitative determination of growth inhibition and adsorption capacity

Improving immunity and fighting against diseases: Cordycepin

Florfenicol market review

Effect of selected yeast fraction on the growth of Clostridium perfringens: Quantitative determination of growth inhibition and adsorption capacity

Producing ¹³C -¹⁵N labeled clovibactin
