E. Coli Lipopolysaccharide Decreases the Expression of Proteins of Tight Junctions in the Jejunum of Weaning Piglets

In the countries with the higher levels of pig production, piglets are weaned 14 to 28 days after being born (Marion et al., 2002). As a result, piglets are lighter and the digestive system is less developed during weaning, particularly the gut. This renders these animals more susceptible to digestive problems in the post-weaning period (Reis et al., 2007).

Besides its digestive functions, the gut of piglets forms a physical barrier that prevents toxic compounds and pathogens from entering the intestinal mucosa and the circulatory system. This barrier is mainly composed of tight junctions, which are multiprotein complexes that bind and seal the spaces between adjacent enterocytes and limit the paracellular movement of molecules and luminal bacteria within the mucosa of the tissues (Lamb-Rosteki et al., 2008). Junctions are formed by the proteins: Zonula Ocludens 1 (ZO-1) and two Claudines (C3 and C4), which are connected to the epithelial cells (Tlaskalová-Hogenová et al., 2004), act as a structure, and regulate the permeability of the tight junctions (McLaughlin et al., 2004).

Similarly, tight junctions participate in the preservation of cellular polarity and are considered to play a key role in intestinal diffusion mechanisms (Shen and Turner, 2005). However, diffusion mechanisms may be dramatically altered by the physiological processes triggered by weaning and the presence of microbial infections (Fan, 2002).

During the weaning period, there is a brief period of fasting resulting from the forced removal of milk and the subsequent provision of solid food. This may cause a decrease in nutrient absorption and an increase in the substrate available for enteropathogenic bacteria in the hindgut (Pluske et al., 2003). Consequently, weaning is associated with a dramatic change in the composition of the intestinal microbiota (Chow et al., 2010).

In modern production systems, early weaning causes the lactobacilli population to disappear from the gastrointestinal tract and favors an increase in the E. coli population, releasing proinflammatory substances such as lipopolysaccharides (LPS) from the cell walls (Amador et al., 2007). LPS causes physical damage in the gut by activating a coordinated series of cell signaling pathways which favor an inflammatory response, which in turn produces important changes in the structure and functional capacity of the gut (García et al., 2008). These intestinal changes are characterized by an alteration in the functions of the tight junctions as well as by an increase in the indiscriminate paracellular transport of molecules (Pitman and Blumberg, 2000; García et al., 2003).

The administration of E. coli LPS is one of the most used models to study acute infection processes because the LPS response is highly reproducible, without the side effects commonly associated with chronic infections. Therefore, the aim of this study was to determine the effect of E. coli LPS administration on the molecular expression of tight junction proteins in the jejunum of piglets at different post-weaning periods.

MATERIALS AND METHODS

Ethical considerations.All experimental procedures were conducted according to guidelines suggested by “The International Guiding Principles for Biomedical Research Involving Animals” (CIOMS, 1985), and approved by the Ethics Committee on Animal Experimentation of the Universidad Nacional de Colombia (Medellín; CEMED 001 from January 26, 2009).

Location.The fieldwork was conducted at the San Pablo Center of the Universidad Nacional de Colombia, located in Rionegro, Antioquia, at an altitude of 2,100 m, corresponding to a tropical lower-montane wet forest (LM-wf) zone, with average annual temperatures between 12 and 18 °C.

Animals.A total of 52 pigs were used. The pigs were group-penned in nursery crates with trough-type feeders in a temperature-controlled room (26 ± 3 °C).

Diets.Four experimental diets were evaluated:a control diet (basal diet) and three others containing E. coli LPS, serotype 0111: B4 (Sigma-AldrichTM, St Louis, MO, USA), as follows:

- Basal Diet (BD) 0.0 µg LPS mg^-1 feed.

- Diet 1 (D1): BD plus 0.3 µg LPS mg^-1 feed.

- Diet 2 (D2): BD plus 0.5 µg LPS mg^-1 feed.

- Diet 3 (D3): BD plus 1.0 µg LPS mg^-1 feed.

The basal diet consisted of powdered milk and milk byproducts and was supplemented with vitamins, minerals, and HCL-lysine, meeting all minimum nutritional requirements proposed by the NRC (2012) (Table 1). The pigs were offered a minimum of 3000 g feed/day per crate, additional feed was provided when required. The diets were administered from days 1 to 10 after weaning. Water was provided ad-libitum throughout the experiment. No solid feed was offered to the piglets during lactation.

Small intestine sampling.The pigs were sequentially slaughtered as follows:

Four pigs were slaughtered on day 1 (weaning day), representing the control group. This group was used to assess the overall health status and to evaluate the macroscopic appearance of the organs before the pigs received LPS. Four pigs of each LPS-inclusion level (0, 0.3, 0.5, and 1.0 µg LPS mg^-1 feed) were slaughtered on days five, seven, and 10 after weaning. All animals were slaughtered 2.5 hours after their last meal and were previously sedated by carbon dioxide inhalation for three minutes. The pigs were then slaughtered by exsanguination through a section of the jugular vein. After the slaughter, the small intestine was removed from the pyloric junction to the ileocecal valve (Segalés and Domingo, 2003). The intestine was lined up on a table, measured without any tension, divided into three equally sized sections (duodenum, jejunum, and ileum) and a 20 cm sample was taken from the center of the jejunum. The digesta contained in the samples was removed by washing it with cold saline infusion as previously described (Makkink et al., 1994; Reis et al., 2005). Subsamples (1 cm) were then obtained from each segment and were prepared for total RNA extraction. The samples were preserved in liquid nitrogen and the RNA was stored in a freezer at -70 ºC.

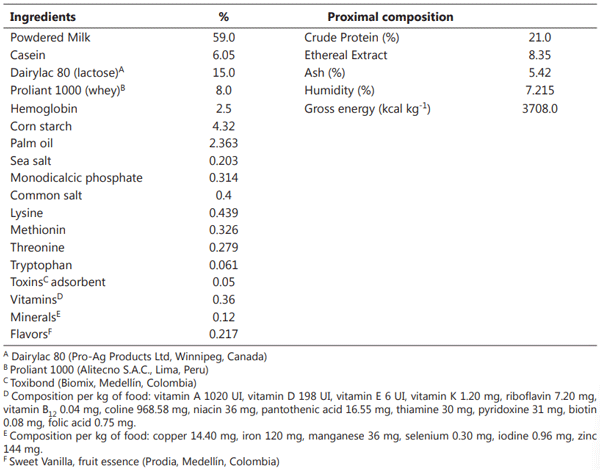

Table 1. Composition of proximal analysis and the basal diet used in gastrointestinal pathophysiology study of post weaning pigs.

Total RNA extraction and material quality check.Total RNA was extracted using an ULTRACLEANTM Tissue and Cells RNA Isolation Kit (MO BIO Laboratories Inc., San Diego, CA, USA). Samples (25 mg) were broken down in a mortar using liquid nitrogen. The RNA was stored at -80 °C and only aliquoted on ice for analysis. The integrity of the extracted material was assessed by running the samples on agarose gel with 1% ethidium bromide (100V for 50 min) and observing the rRNA bands. When not enough of the material or bands was clearly observed, the extraction was repeated under identical conditions (Freeman et al., 1999).

Synthesis of copy DNA (cDNA) from total RNA.A QuantiTectTM Reverse Transcription Kit (QIAGENTM) was used to synthesize the cDNA from the total RNA extracted. 1 μg RNA samples were used for all reverse transcription reactions. Genomic DNA debris was removed and enzyme plus triphosphate nucleotides were added to synthesize the cDNA following the manufacturer’s recommendations. The obtained cDNA was stored at -20 °C until it was used (Kubista et al., 2006).

RT-PCR from cDNA for ZO-1, C3 and C4 and constitutive expression gene.The primers of the genes of interest and constitutive expression (Cyclophilin) are shown in Table 2. These primers were taken from the literature, verifying that their design had been performed on the intron/exon edges to avoid amplification of genomic DNA. Additionally, the primers were evaluated through bio-informatic analysis to verify their specificity with the studied mRNA and rRNA fragment and the absence of secondary structures, such as lenses or dimer formations, between them or with the other primers. The primers were chosen to amplify the less than 150 base pairs fragments, as recommended by some researchers (Bustin, 2000; Kubista et al., 2006.

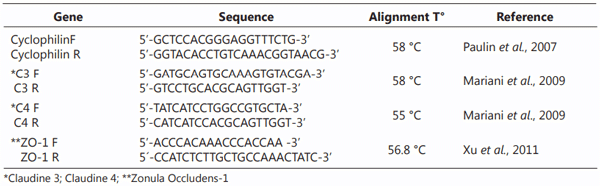

Table 2. Primer sequences and references used in the gastrointestinal physiopathology study in post weaning pigs.

Standardization strategy, data processing, and relative quantification. To determine the expression level of each gene, a relative quantification method using a constitutively expressed gene (Cyclophilin) was used, following recommendations from several reports on gene choice and overall normalization strategy (Muller et al., 2002; Vandesompele et al., 2002; Huggett et al., 2005). The amount of material from which the RNA was extracted, the RNA amount in the reverse transcription reaction, and the amount of cDNA for PCR amplification were identical for all samples. The chosen constitutively expressed gene was validated in previous trials under similar experimental conditions (Paulin et al., 2007). The results were analyzed using the ImageJ software, version 1.43.

mRNA expression of intestinal ZO-1, C3 and C4 using RTPCR and quantification of PCR products.The mRNA amplification of C3, C4 and ZO-1 was conducted on individual samples of the middle intestine segment (Petersen et al., 2001). The general protocol for PCR was: Cyclophilin: 95 ºC x 1 min; 37 cycles 95 ºC x 30 seg; 58 º C x 30 seg; 72 º C x 40 seg; 72 º C x 3 min; 10 ºC x ∞; C3: 95 ºC x 1 min; 39 cycles 95 º C x 30 seg; 58 º C x 30 seg; 72 º C x 40 seg; 72 º C x 3 min; 10 º C x ∞; C4: 95 º C x 1 min; 37 cycles 95 º C x 30 seg; 55 º C x 30 seg; 72 º C x 40 seg; 72 º C x 3 min; 10 º C x ∞; ZO-1: 95 º C x 1 min; 39 cycles 95 º C x 30 seg; 56.8 º C x 30 seg; 72 º C x 40 seg; 72 º C x 3 min; 10 º C x ∞.

The density of the RT-PCR products from each protein was expressed in units relative to the band density of the constitutive expression gene (cyclophilin gene).

Statistical design: The experiment was performed as a randomized block design (2 blocks) in a 4x4 factorial arrangement (four experimental diets and four periods after weaning) (Steel and Torrie, 1980). The animals were blocked by initial weight. Each animal was assigned one of 16 treatments and each treatment had four repetitions. The General Linear Model procedure (GLM) of SASTM (2006) was used for the statistical analysis of the data. The Duncan test (P< 0.05) was used to separate the treatment means.

RESULTS

Pigs fed the basal diet maintained normal body temperature, while animals that received LPS had rectal temperatures above 38 ºC throughout the experiment. However, pigs fed LPS did not show symptoms of disease, so none had to be slaughtered or excluded from the experiment. No food orts were observed during the experiment.

Data on the molecular expression of each of the genes for the studied proteins were obtained from the ratio between the expression of each protein’s gene and the expression of the constitutive gene (Cyclophilin). Initially, the values for the molecular expression of the tight junction proteins in the basal diet were compared through the various postweaning periods in order to determine the exclusive effect of weaning on the expression of these proteins. Table 3 shows the data obtained with the basal diet (BD) during the various experimental periods for the jejunum.

For C3, C4, and ZO-1, a statistically significant (P< 0.01) decrease was observed in the molecular expression, starting from the first day after weaning (day 1). Similarly, on day 5 after weaning, the animals presented the lowest expression values in terms of cyclophilin (1.34, 1.18, and 0.90 respectively). All studied variables showed partial recovery from days five to ten. However, a statistical difference was observed between days 1 and 10 (P< 0.01).

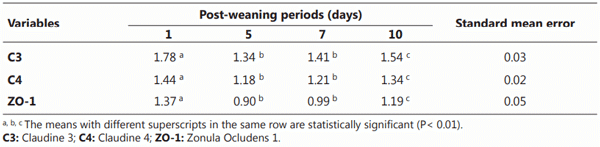

Table 3. Mean molecular expression levels of tight junction proteins in the jejunum of weaned pigs not consuming E. coli LPS, as postweaning days increase (effect of weaning).

For tight junction proteins C3, C4, and ZO-1, significant decreases (P < 0.01) were observed between the different diets (Table 4). The animals on the D3 diet had the lower molecular expression values (1.12, 0.92, and 0.66 respectively) with respect to BD (1.51, 1.29, and 1.11, respectively). However, it is worth mentioning that there were no statistically significant differences between D1 and D2 (P> 0.01).

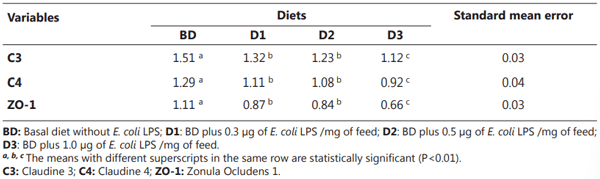

Table 4. Changes in the molecular expression of tight junction proteins in the jejunum of weaned piglets that ingested various LPS levels after weaning (until the tenth day after weaning).

Tables 5 and 6 show the general average values of the molecular expression of the studied tight junction proteins for each treatment and for each exposure period. No statistical interaction was observed between the LPS concentrations and postweaning periods for any of the studied variables. Therefore, it was not necessary to analyze or break down said factors independently

With regard to the molecular expression parameter for the C3, C4, and ZO-1 tight junctions during the LPS exposure periods, the overall evaluation of all the animals (DB, B1, D2, and D3; Table 5) showed a significant decrease (P< 0.01) from day one after weaning. Additionally, the animals presented the lowest values at day 10 after weaning (1.04, 0.87, and 0.52 respectively).

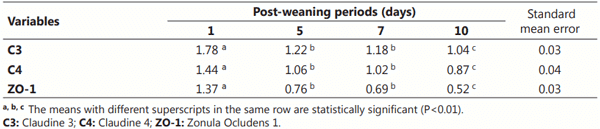

Table 5.Changes in the molecular expression of tight junction proteins in the jejunum of weaned piglets exposed to LPS during various periods at different post-weaning periods.

DISCUSSION

The intestinal barrier is formed by many tight junctions where the proteins ZO-1, C3, and C4 are responsible for restricting the paracellular passage of luminal bacteria and molecules within the mucosa of the tissues (McLaughlin et al., 2004). When the intestinal microbiota has an optimal balance, it prevents pathogen or virulent microorganisms from multiplying and adhering to and invading the epithelial cells, as well as the circulatory system (Tlaskalová-Hogenová et al., 2004), which favors the integrity of the intestinal wall. However, under pathophysiological situations or stress, the MLCK pathway is activated, which increases intestinal permeability, solute cotransport, and the presence of proinflammatory cytokines and pathogenic bacteria.

Many cytokines, including TNF-α, are capable of increasing intestinal permeability because they can directly activate the MLCK (myosin regulatory light chain) pathway, thus shortening the actin filaments in the enterocytes, which ultimately breaks the tight union (Chin et al., 2002). A change in this conformation favors the development of pathogenic problems at the intestinal level (Saitou et al., 2000). Since tight junctions are important for maintaining the structural integrity of the epithelial barrier, they are the target of multiple infectious agents (Shen and Turner, 2005). Furthermore, these cytokines increase intestinal permeability by reducing the expression of the genes for proteins, such as ZO-1 and Claudines in the tight junctions, thus causing deep alterations in the normal physiology of enterocytes (Tsukita and Furuse, 2002; Bruewer et al., 2003). The results obtained in this study showed a reduction in the molecular expression of ZO-1, C3, and C4, which may be associated with the post-weaning physiological intestinal inflammation in the piglets fed with the basal diet.

The events in which the MLCK pathway is activated are associated with a decrease in transepithelial resistance (Berkes et al., 2003), an increase in indiscriminate paracellular transport of molecules, and a bacterial invasion of tissues (Shifflett et al., 2005). Thus, the modulation of MLCK activity represents a point of convergence of multiple signaling pathways regulating the function of the tight junctions, thus causing changes in their structure and, in turn, in the proteins that compose said junctions (Yu et al., 2010).

As mentioned above, the decrease in the molecular expression of the tight junction proteins observed in the animals that consumed the BD might be associated with the inflammatory and immune responses produced by different stress manifestations during weaning. These include: abrupt separation from the mother, relocation to new social groups, and changing to solid food (Kojima et al., 2007). In addition, physiological responses to the stress caused by weaning involve complex interactions and responses from the central nervous, endocrine, and immune systems, which influence the health and welfare of the animals in response to environmental and handling conditions (Yang and Glaser, 2000; Davis et al., 2006).

In this study, a decrease in the molecular expression of tight junction proteins was observed in the pigs that were fed with diets containing increasing concentrations of LPS. In the studies conducted by Pié et al. (2004), Amador et al. (2007), and Parra et al. (2013), the addition of LPS to the intestinal medium increased the production of various proinflammatory cytokines, mainly TNF-α, which may activate a wide range of signaling pathways that affect cell turnover and growth by stimulating apoptosis (Bruewer et al., 2003), thus favoring permeability to bacteria and compounds that might strengthen infectious and inflammatory processes (Berkes et al., 2003). In addition, McLaughlin et al. (2004) reported that TNF-α modifies the structure of claudines by weakening the multiprotein complex of the tight junctions, which is crucial for the maintenance of intestinal barrier properties. This is consistent with the results obtained in this study, which showed that LPS decreases the expression of ZO-1, C3, and C4, possibly due to an increase in the production of TNF-α, as reported by Parra et al. (2013).

Another alternate mechanism involved in the intestinal alterations resulting from the TNF-α production and from the inflammation caused by LPS (Hataya et al., 2003; Waseem et al., 2008, Parra et al., 2013) is the shortening of the actin filaments in the enterocytes, which makes the structure of the tight junctions permeable to bacteria and compounds that might strengthen infections and inflammations (Berkes et al., 2003). This favors the infiltration of leukocytes, the expression of the gene for proinflammatory cytokines, the overexpression of heat shock proteins, the modification of tissues caused by proteases, and, finally, the appearance of epithelial functional disorders related to absorption, mineral secretion, and intestinal permeability (Lallès et al., 2004).

Studies conducted by Lamb-Rosteki (2008) demonstrated that the integrity and function of the epithelial barrier is interrupted after one hour of exposure to C. jejuni in broilers. The interruption of such barrier is represented by the paracellular breaking and the granular accumulation of Claudines. This is consistent with this study’s findings since, as the time of exposure to E. coli LPS increased, a decrease in the molecular expression of C3, C4, and ZO-1 was observed, as well as a reduction in the integrity and renewal rate of the epithelial barrier’s multiprotein complex. On the other hand, exposure to some toxic secondary metabolites produced by fungi (deoxynivalenol) decreases C3 in caco-2 cells, as well as C3 and C4 in IPEC-1 cells, leading to the alteration of the structure of the tight junctions, which are responsible for the paracellular passage of molecules (McLaughlin et al., 2004; Pinton et al., 2009). Therefore, the decrease in the expression of proteins C3, C4, and ZO-1 observed in this study might cause the paracellular movement of compounds and a decrease in cell polarity, which would ultimately favor the appearance of diarrhea (Mush et al., 2006).

CONCLUSIONS

Weaning is associated with multiple environmental and nutritional factors that produce different manifestations of stress, which in turn cause the protein complexes forming tight junctions to deteriorate, thus decreasing intestinal barrier functioning.

E. coli LPS decreases the expression of tight junction proteins, which might contribute to the development of anatomical and functional disorders in the intestine. Such disorders are characterized by indiscriminate paracellular transport of molecules, microorganisms and toxic compounds into the circulatory system. This results in post-weaning diarrhea and a decrease in the productive efficiency of piglets.

Due to the large anatomical, physiological, and immunological similarities between human beings and pigs, the latter might be an excellent animal model for developing therapeutic strategies in human medicine. Likewise, these results could be a starting point in the search for therapies for Crohn’s disease in human beings.

This article was originally published in Revista Facultad Nacional de Agronomía Medellín [online]. 2014, vol.67, n.2, pp.7301-7310. ISSN 0304-2847. https://doi.org/10.15446/rfnam.v67n2.44172. This is an Open Access article under the terms of a Creative Commons Attribution License.
