Aptamer-Based QCM-Sensor for Rapid Detection of PRRS Virus

Porcine reproductive and respiratory syndrome is an important disease in swine industry. The disease has become endemic in many countries throughout the world following an epidemic phase. It is caused by infection with the Porcine Reproductive and Respiratory Syndrome Virus (PRRSV), a small single-stranded, non-segmented RNA virus [1]. The virus is enveloped, spherical and ranges in size from 45 to 80 nm in diameter. PRRSV is differentiated into two genetically distinct genotypes: Type 1, or European genotype, predominant in Europe, and Type 2, or North American genotype, that is mostly isolated on the American continent (North and South), as well as in Asia. Disease signs are similar to many other viral or bacterial swine diseases and can be blurred by coinfection with other pathogens. Therefore, diagnosis of PRRS currently is based on laboratory tests. PRRS virus can be identified by PCR, RT-PCR, ELISA and immunohistochemistry [1].

However some of these methods require long time for obtaining results. Hence it is important to find screening techniques for it. Aptamers are a good alternative to antibodies when developing sensors for PRRSV. They comprise of small oligonucleotides, such as single-strand deoxyribonucleic acid (ssDNA), ribonucleic acid (RNA), or small peptides. Aptamers usually bind their target species with high selectivity and affinity. They have been designed for a variety of analytes ranging from small molecules and ions, over drugs and toxins, to large molecules, such as peptides, proteins, and even whole cells, bacteria, and viruses. The advantages of aptamers include high affinity and specificity, production by chemical synthesis, long-term storability, and ease of modification. They also provide an economic and superior alternative to antibodies. In addition, aptamers show minimal or no immune response in vivo [2]. In this study we used the 7R aptamer, which specifically interacts with PRRSV. It was selected by capillary electrophoresis and colorimetric methods during previous experiments and coated onto quartz crystal microbalances (QCM), i.e., high-resolution mass sensitive devices. Among others, this is based on the fact that QCM is the technique of choice for detecting interactions between nucleotides and their targets [3]. Therefore QCM can used to characterize selectivity and sensitivity of 7R aptamer.

7R aptamer consisted of 40 nucleobases modified at the 5′ end with a thiol group (-SH). Its sequence is 5′-(ThiC6)GCTGTACCGTCTGCTAGGACACCATAACTTCTAGCAAACGC. Both selective and non-specific aptamer were synthesized by SIGMA-ALDRICH.

MARC-145 cells infected by PRRSV were lysed by three consecutive freeze-thaw cycles following by collecting the supernatant of cell lysate by centrifugation. The virus was purified by ultra-centrifuge at 110,000 g for 24 h in 40–60% sucrose gradient.

10 MHz dual electrode QCMs were coated with 7R aptamer diluted with cysteine (1:1000) on working site of gold-electrode. The reference side contained non-specific 40-mer diluted with cysteine at the same concentration to ensure similar chemical compositions of the two surfaces. After drop-coating, solutions were incubated at 4 °C overnight and washed with distilled water one hour at room temperature. During QCM measurements we used 1 mM TNE (Tris/NaCl/EDTA) buffer at pH 7.4 for obtaining the baseline signal. QCM were exposed to PRRSV test solutions containing around 10¹⁰–10¹¹ particles/mL and washed the target come out form working site by mixed 10% aqueous solution of acetic acid and deionized water. Selectivity tests with CSFV and PRV solutions were based on the same virus concentrations.

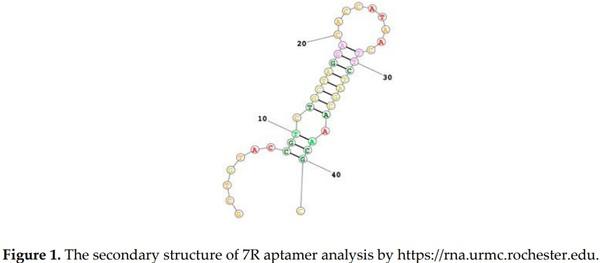

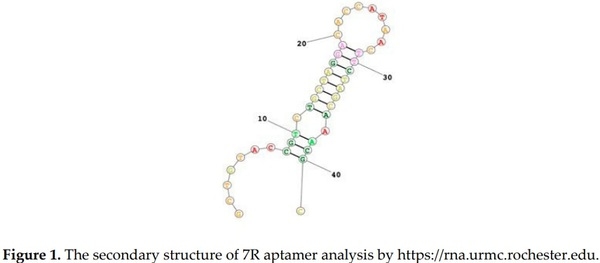

7R specific aptamer of PRRSV was developed during previous studies and identified/quantified by capillary electrophoresis and UV-Vis detection. Figure 1 shows its secondary structure (calculated using the tool of the University of Rochester at https://rna.urmc.rochester.edu). As can be seen, the 7R aptamer comprises of a 40-mer of nucleotide and reveals one loop in its secondary structure. This loop is important for interaction with a virus particle, because it facilitates formation of electrostatic interactions or hydrogen bonds between the aptamer and its target, as well as stacking interactions between aromatic compounds and the nucleobases.

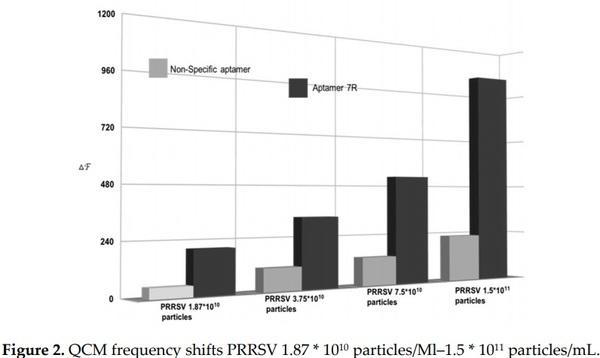

During these measurements, PRRSV was diluted with 1 mM TNE buffer for sensitivity test. Figure 2 shows the QCM responses for solutions containing PRRSV 1.87 * 10¹⁰ particles/mL. The corresponding frequency shift from baseline on the working electrode is ∆f = 150 Hz. Flushing the system with 10% acetic acid and water removes the virus particles: the frequency increases to baseline revealing fully reversibility. The frequency shift increases when adding higher concentrations corresponding to mass loading. Frequency shifts on the reference side reach only 20– 25% of those values. So the QCM results clearly indicate that 7R aptamer can bind PRRSV. Furthermore, virus particles can be removed by acetic acid solution, because the conformation of the DNA aptamer changes and thus releases virus into the solution.

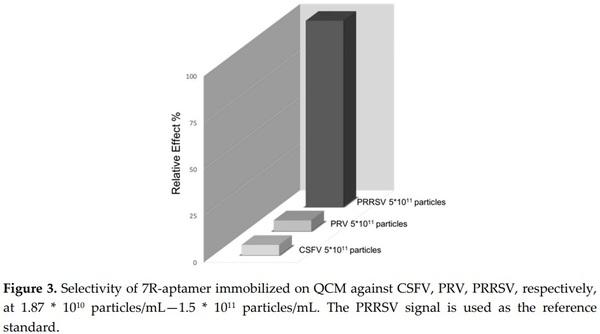

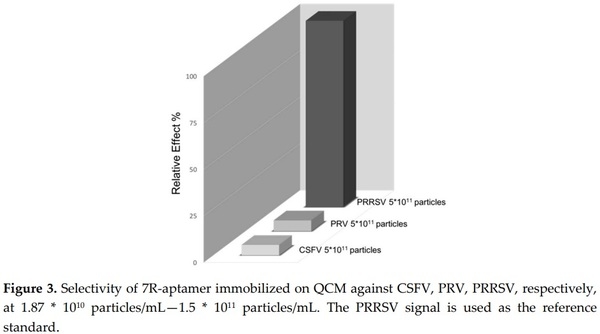

As can be seen from Figure 3, CSFV and PRV at concentrations of around 1.5 * 10¹¹ particles/mL lead to much lower frequency responses than PRRSV: they are at −95 Hz for CSFV and −110 Hz for PRV, respectively. In contrast to this, PRRSV– the target of the 7R aptamer—results in frequency shift by-1320 Hz. Therefore, selectivity factors are obviously at least six, which strongly supports the claim that the 7R aptamer is suitable for detecting the PRRSV in situ on the surface of quartz crystal microbalances (QCM).

Although concentrations are on the high side, all results indicate successful implementation of 7R aptamer/QCM sensors. The resulting systems lead to appreciable selectivity and acceptable sensitivity, although especially the latter needs further improvement. The main recognition behavior is based aptamer-virus binding which mimics antibody/antigen interactions. The results show that QCMs are in principle suitable for screening aptamers and for testing their binding properties on the way to develop biosensors toward a specified target analyte. In further steps, this may lead to reversible (or quasi-reversible) biomimicking sensors for that target analyte.
