INTRODUCTION
Antimycotoxins additives (AMAs) are among the multiple approaches used to detoxify aflatoxin-contaminated feedstuffs (OGUZ, 2012). Not all commercially available AMAs have proven efficacy, which should be based on in vitro and in vivo findings (BRASIL, 2006; MALLMANN et al., 2007).
Most in vitro studies employ artificial biological fluids or other models mimicking the animal’s gastrointestinal tract (GIT) (AVANTAGGIATO et al., 2003, 2007). Nonetheless, no significant correlation has been reported between in vitro and in vivo assessments (MALLMANN et al., 2007), and in vitro/in vivo extrapolation is a complex issue. Thus, in vivo analysis is essential to prove the efficacy of an AMA. However, animal experimentation has caused great concern regarding welfare and ethical aspects, so different techniques have been associated in order to reduce the number of specimens used (CHELI et al., 2015). In this scenario, the principles of the 3Rs, namely Replacement, Reduction and Refinement, have provided a framework for performing more humane animal research (CLARK, 2019).
Ex vivo testing refers to experiments done in animal tissues subjected to external environment, with minimal changes in the natural conditions (BASSO & BRACARENSE, 2013). This technique allows to obtain multiple explants from a single specimen, and has been associated with Ussing chambers (UC) to investigate the effect of mycotoxins, since UC is a valuable tool to measure gut integrity (THOMSON et al., 2019). The impact of mycotoxins on intestinal permeability (AWAD et al., 2007), intestinal occludin expression and direct damage to intestinal villi, as well as products capable of limiting mycotoxins effects (GARCIA et al., 2018; GEREZ et al., 2018), has been demonstrated through this method. YIANNIKOURIS et al. (2013) conducted the first ex vivo trial applying UC to evaluate two AMAs, a hydrated sodium calcium aluminosilicate (HSCAS) and a yeast cell wall (YCW), in live intestinal tissue of rats; the latter was more efficient in binding zearalenone (ZEN). Nevertheless, there are no reports in the relevant literature describing the use of this apparatus to evaluate AMAs efficacy using intestinal fragments of birds.
In light of the above, this study tested an ex vivo poultry model associated with UC to assess AMAs efficacy. Moreover, the obtained results were compared with in vitro findings.
MATERIALS AND METHODS
Broilers and feed
Feeds free of aflatoxins, fumonisins, ZEN, deoxynivalenol (DON) and T-2 toxin contamination (verified via high performance liquid chromatography tandem mass spectrometry, HPLC-MS/MS) were formulated following nutritional recommendations (COBB-VANTRESS, 2018) and offered to 60 broilers destined for human consumption during the starter (1-20 days) and grower (21-24 days) phases. A feeding design was followed so that twelve birds were sampled daily on the 24th day of life because of the number of UC available to conduct the trials. After cervical dislocation, intestinal samples were collected and immediately tested. As no animal experiment was performed, the Ethics Committee on Animal Use of the Federal University of Santa Maria (Santa Maria, Brazil) exempted the work from an approval.
Mycotoxin and antimycotoxins additives
A standard aflatoxin B1 (AFB1) was purchased from Sigma Aldrich (St. Louis, MO, EUA), diluted and used at 1.0 and 2.8 mg/Lin in vitro and ex vivo trials, respectively. Such concentrations were used in earlier studies performing in vitro and in vivo analyses to assess the effect of mycotoxins and additives (JANSEN VAN RENSBURG et al., 2006; KOLAWOLE et al., 2019; MARCHIORO et al., 2013). Three types of AMAs were evaluated, totaling six commercially available products (names have been omitted to ensure confidentiality): 1) AMA1 and AMA2: HSCAS; 2) AMA3, AMA4 and AMA5: HSCAS+YCW association; and 3) AMA6: HSCAS+YCW and seaweed extracts association. The toxin and the AMAs were directly included in the solution inside the UC.
In vitro methodology
An in vitro assay was conducted with each AMA before ex vivo testing. The product was incubated with AFB1 at 1.0 mg/L (concentration normally used to assess AMAs in vitro) in an artificial intestinal solution at pH 6.0 (THE UNITED STATES PHARMACOPEIA, 1990). Based on recommendation of AMAs’ suppliers, an inclusion rate of 0.5% was used (three replicates/AMA); calculation was made according to the volume of the solution in the chamber. The in vitro adsorption calculation was estimated from the difference between the fluid with the presence of AMA and the fluid without it using a QTrap 5500 HPLC-MS/MS System (Applied Biosystems, Foster City, CA, USA) equipped with a Turbo Ion Spray electrospray ionisation (ESI) source and a 1290 Series HPLC System (Agilent, Waldbronn, BadenWürttemberg, Germany).
Ex vivo methodology
Four intestinal explants with 2 cm were collected from each broiler, totaling 240 samples (40 samples/AMA). The intestine was opened along the mesenteric border to remove the digesta and washed with cold salty isotonic solution. A pilot study evaluated fragments of duodenum, jejunum and ileum to identify the portion with the best viability (assessed via histopathology after 120-min exposure in the UC). Passage of the toxin across the intestinal explant was also analyzed. Additionally, serosal and seromuscular layers were removed with micro tweezers and scalpels. Results indicated the jejunum with all its layers as the most suitable portion to perform the experiment.
Four pairs of UC (Easy Mount Ussing Chambers, Physiologic Instruments, San Diego, CA, USA) were used. Each chamber half was connected to one vessel containing the same volume of the buffer solution with equal mineral composition. Both vessels were bubbled with a blend of 95% O2 and 5% CO2 , which maintained tissue oxygenation and also worked as a supporting gas for the recirculation of the solution in each chamber. The vessels were kept at 37 °C through warm water circulation in the coating around.
The intestinal segment was fixed on the slider between the apical and basolateral sides of the UC. Total area of intestinal contact with the mycotoxin-enriched solution, which corresponds to the free area where the explant is fixed, was 1.0 cm² (Figure 1). The explants were subjected to two treatments per AMA (two replicates/treatment) in a block design: T1 (control) - 2.8 mg/L of AFB1; and T2 - 2.8 mg/L of AFB1 + 0.5% AMA. In vivo testing with AMAs routinely use AFB1 at 2.8 mg/kg, hence the choice to replicate it in the ex vivo trials. The jejunal explant was subjected to the UC process for 120 min; a previously incubated solution with AFB1 and the AMA was included in two UC; in the other two chambers, only AFB1 was added. The AMAs were incubated with AFB1 for 30 min prior to testing. The amount of AFB1 absorbed by the intestinal fragment was measured by HPLC-MS/MS; thus, it was possible to verify the intestinal capacity to absorb the mycotoxin either in the presence of an AMA or not. The following buffer solution (in mmol/L) was used for all the washings and incubations: NaCl - 128, KCl - 4.7, CaCl2 - 2.5, KH2 PO4 - 1.2, MgSO4 - 2.6, NaHCO3 - 2.0 and D-glucose - 5.0; pH was maintained at 6.8.
Mycotoxin extraction
Immediately after the UC procedure, the explant was placed in a 15 ml Falcon tube with 4 ml of a AFB1 extraction solution (acetonitrile:water 84:16 v/v) for 1 h. Subsequently, it was macerated to increase contact surface with the solution to ensure complete extraction of the mycotoxin. The macerated tissue remained in contact with the solution for 1 h, then it was removed and discarded. The tube was centrifuged (10 min, 2,058 x g), then the supernatant was collected and transferred to a 2 ml Eppendorf tube which was also spun (10 min, 20,854 x g, 4 °C). The supernatant was transferred to another 2 ml Eppendorf tube and this content constituted the sample which was diluted and injected into the HPLC-MS/MS system to determine the concentration of the mycotoxin.

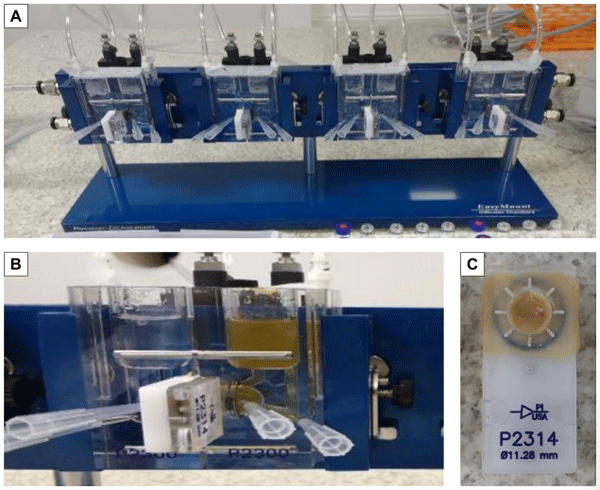

Figure 1 - Ussing chambers used in the ex vivo tests with jejunal explants of broilers. (A) General view of the equipment, which includes four Ussing chambers, with a heater block and O2 and CO2 circulation. (B) Close view of an Ussing chamber, showing the two chamber halves with the buffer solution and the substance under evaluation, separated by a piece where the tissue is fixed. (C) The slider, where the tissue is fixed by the steel pins. The slider is positioned between the two middle chambers, forming a barrier.
Performance parameters in HPLC-MS/MS analysis
Selectivity was obtained through the addition of potentially interfering factors, both in blank and enriched samples. Linearity was obtained by developing a calibration curve consisting of seven concentration levels: 1, 2, 5, 10, 25, 50 and 100 µg/L; each level had a specific solution prepared in triplicate. Instrumental readings were randomly performed. Linearity was observed by the graphic of the assays results, depending on the concentration of the analyte, and was verified based on the linear regression equation, which was determined by the least squares method.
The matrix effect was evaluated by establishing two calibration curves with seven levels each, as follows: a) calibration curve of the analyte in solution: formulated from pure analyte calibration standards in the solvent; and b) calibration curve of the blank matrix extract fortified with pure analyte calibration standards.
Statistical analysis
The number of blocks was set according to the test power criterion, with the aid of the software Gpower 3.1.5º, using the means and standard deviations obtained in the pilot experiment. A test power of 0.99 was considered for the experimental design calculations. Statistical analyses were conducted using the software Statgraphics Centurion XV (Manugistics Inc., Rockville, USA). Data were subjected to ANOVA using the F Test at 5%. Pearson’s correlation was performed between the results obtained in the ex vivo and in vitro tests. Mean differences in the percentage of reduction in AFB1 absorption among the AMAs were separated using Tukey’s HSD test.
RESULTS
In vitro and ex vivo analyses
This study originally aimed to measure AFB1 passage from the mucosal to the serosal side of the intestine, that is, from the apical to the basolateral side of the chamber, thus verifying the passage across the intestinal explant in the presence or absence of an AMA. Initial testing subjected an entire intestinal segment to the equipment; however, no significant AFB1 passage was observed. Afterwards, the seromuscular layer was removed and the explant was resubjected to AFB1 ; stripping was expected to allow the toxin to pass to the basolateral side, since it isolates the tissue from the outside, but passage through the serosal layer was not significant(0.1 to 0.5%).
The next step was to evaluate the concentration of AFB1 retained in the intestinal explant. Exposure to AFB1 in the presence or not of an AMA was then performed after having consolidated the technique in the UC with verification of intestinal absorption at different times (Figure 2).
The AMAs were able to bind AFB1 and prevent its absorption by the intestinal epithelium. There was a lower concentration of the toxin in the intestinal explant in the presence of all AMAs in comparison to the explant exposed to AFB1 alone (P < 0.0001). AMA1 to AMA6 reduced the intestinal absorption of AFB1 by 67.11%, 73.82%, 80.70%, 85.86%, 86.28% and 82.32%, respectively (P < 0.0001); there was a difference between additives in the ability to reduce intestinal absorption of AFB1 (P < 0.0001). In vitro data demonstrated an absorption ability of 99.72%, 99.37%, 99.67%, 99.53%, 99.04% and 99.15%, for AMA1 to AMA6, respectively; no significant difference was seen between the AMAs (P > 0.05). No correlation (Pearson’s correlation, P > 0.05) was found between ex vivo and in vitro findings; so, even though the AMAs presented an adsorption above 99% in the in vitro trials, a different pattern was observed in the ex vivo assays (Table 1).
Performance of HPLC-MS/MS analysis
The sample matrix may contain elements which interfere in the measuring performance and may increase/decrease the result. In this study, selectivity was verified by comparing the signs coming from the reading of the processed sample and the analyte of interest. There was no statistically significant difference regarding the impact of the matrix on AFB1 recovery (P > 0.05). The r value for AFB1 was 0.9971 (Table 2).
Linearity evaluation was performed by the visual inspection of the linear regression chart of the calibration curves with and without matrix. A linear correlation coefficient (R2 ) over 0.99 was considered as ideal. The regression equation used to determinate the line was y = ax + b (Figure 3).

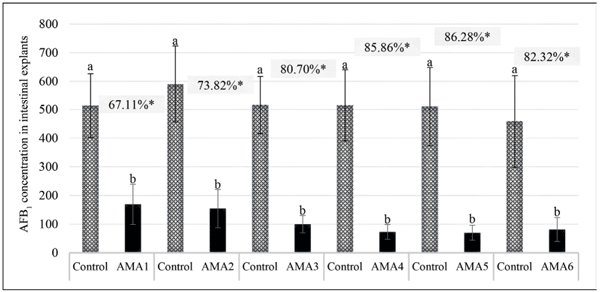

Figure 2 - Aflatoxin B1 concentration in jejunal explants of broilers in the presence or absence of antimycotoxins additives.AFB1 : aflatoxin B1 (µg/kg); AMA1-6: antimycotoxins additives 1 to 6; a-b: means with different letters in the same trial indicate significant difference (F test; P < 0.0001); * reduction in AFB1 intestinal absorption in the presence of each AMA.
DISCUSSION
These findings are in line with those disclosed by YIANNIKOURIS et al. (2013), who used UC mounted with intestinal segments of rats and subjected them to ZEN challenge. The authors reported that the mycotoxin concentration in the tissue was almost the same as that in the chamber, indicating that ZEN concentration gradient was maintained from the basolateral side into the tissue. Nevertheless, passage of ZEN to the serosal side was restricted (0.4%). The researchers suggested that such behavior could be associated with the lipophilic properties of ZEN, which may lead to an interaction with the lipidic membranes of the intestinal epithelium and cause its encapsulation.
Another study also reported no significant toxin passage to the serosal side of jejunum when assessing DON transport across swine intestines (HALAWA et al., 2013). Pigs received feed containing DON (0, 4 or 8 ppm) and were slaughtered to obtain explants to be mounted on UC; DON (4 or 8 ppm) was introduced to the mucosal side, then the flux rate was evaluated in the specimens that had or not received the contaminated feed. There was a low flux rate in mucosal-to-serosal direction, but the DON-fed animals showed greater permeation due to the damage the toxin had caused in vivo. The authors raised two possibilities to explain these findings: DON metabolism in the jejunal epithelia or its accumulation in the tissues.

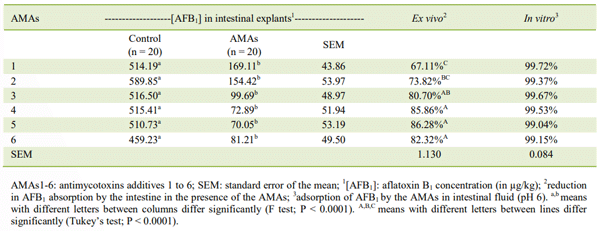

Table 1 - Results of ex vivo and in vitro tests evaluating six antimycotoxins additives against aflatoxin B1 in broilers.

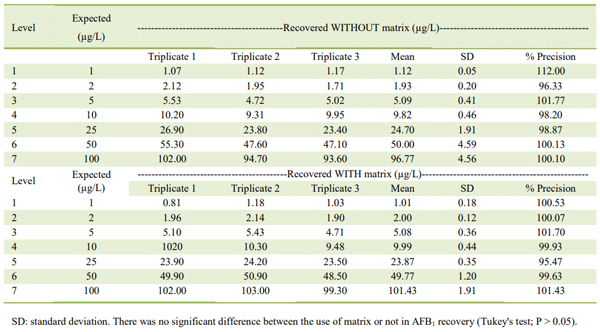

Table 2 - Matrix effect on aflatoxin B1 (AFB1) recovery from intestinal samples of broilers.
Conversely, AWAD et al. (2007) mounted chicken jejunum on UC and evaluated the flux rate of DON from the mucosal to the serosal side at 30, 60, 90 and 120 min. There was 6.3% passage at 120 min, which is higher than that registered herein. A review of the relevant literature did not disclose any results about AFB1 passage through intestinal explants of birds using UC.
With respect to the removal of the seromuscular layer of the intestine described here, stripping was highly detrimental; the villi and the tissue structure were damaged, so the explant could not be used in the UC. Such data are in agreement with those reported when evaluating the viability of employing the UC to determine jejunal permeability of highly permeable compounds in several species; tissues were histologically analyzed before and after using the apparatus (NEIRINCKX et al., 2010). Dissection of the jejunal seromuscular layer of turkeys, dogs, pigs and horses indicated the intestines of the two first species as inadequate for permeability evaluations. Moreover, attempts to remove the jejunal tissue of birds failed due to mucosal damage. The authors stated that intense epithelial damage and accumulation of mucus and cellular debris in the lumen are accountable for the low and greatly variable permeability across the jejunum of turkeys and dogs; the intestine of the pigs, in turn, was highly permeable. The findings observed in birds were attributed to the longer villi, the existence of wider and more numerous tight junctions facilitating paracellular transport, and the greater concentration and secretion rate of bile salt in this species.
Despite being scarce, literature reports indicate a low rate of mycotoxins passage through intestinal explants of birds (HALAWA et al., 2013) as well as a low tissue viability after stripping (NEIRINCKX et al., 2010), thus leading to unreliable outcomes. In view of that, the present investigation measured the amount of mycotoxin absorbed by the entire structure of the intestinal epithelium with all its layers intact.
As to efficacy tests, AMAs had a high percentage of adsorption in vitro and prevented absorption of the toxin. Nonetheless, the fact that they did not demonstrate the same percentage of adsorption when tested ex vivo must be highlighted, indicating that AFB1 presented a greater affinity for the epithelium than for the AMAs. All AMAs showed an in vitro adsorption over 99%, while reduction in intestinal absorption of AFB1 ranged from 67.11% to 86.28%; this may explain the differences commonly observed between in vitro and in vivo results: products which have an excellent in vitro efficacy show little or no efficacy in vivo. So, when included in animal feed, the AMA does not have the same potential to reduce the concentration of the toxin as it does in vitro, demonstrating that interaction of the toxin with the epithelium is more complex than the in vitro simulation of the intestinal juice.
The European Food Safety Authority (EFSA, 2010) reinforces these data: in vitro assays are considered a viable tool to analyze the potential of AMAs to act in mycotoxin control and may be used to provide information about their mechanism of action. Nevertheless, it mentions that such tests do not fully represent the conditions of the GIT and the differences between the target-animals and their metabolism and, consequently, must not be employed to demonstrate the efficacy of an AMA under natural conditions.
An in vitro model simulating the swine GIT was firstly used to evaluate the potential of activated carbon and cholestyramine to adsorb ZEN (AVANTAGGIATO et al., 2003). The method consists of four successive compartments simulating the stomach, duodenum, jejunum and ileum. The potential of several AMAs to adsorb or inactivate mycotoxins was demonstrated by using simulations of the gastric, biliary and pancreatic secretions as well as bicarbonate to control the compartmental pH (AVANTAGGIATO et al., 2003, 2004, 2007).
The explants technique has recently been improved. ZHANG et al. (2017) mounted ileal fragments of broilers which had been damaged by Clostridium perfringens in vivo on UC and found a protective effect of dietary L-arginine upon the intestinal barrier. Another assessment used jejunal explants of piglets and showed Lactobacillus rhamnosus RC007 to be a promising AMA due to its ability to reduce DON toxicity (GARCIA et al., 2018). The same methodology was applied to evaluate DON’s effect on intestinal explants of swine, and the ability of low doses of a chito-oligosaccharide to lessen the toxin’s effects (GEREZ et al., 2018); the product was not able to avoid DON-induced damage.
Different results have been achieved in in vitro and ex vivo models applied to evaluate the adsorbent effect of a blend of probiotics (Lactobacillus and Propionibacterium) on AFB1 in broilers (GRATZ et al., 2005). The adsorption potential obtained in vitro ranged from 57% to 66%, while in the ex vivo assay it was 25%; nonetheless, the ex vivo technique referred to animals’ anaesthesia, ligature of a jejunal segment and injection of the toxin and probiotics. Another research evaluated the effects of DON upon intestinal morphology and activation of the mitogen activated protein kinases (MAPK) through in vivo and ex vivo models (LUCIOLI et al., 2013); results indicated the latter approach as a valuable tool to assess gastrointestinal toxicity after exposure to low doses of toxins.
This is the first report on the use of UC to evaluate AMAs’ efficacy employing intestinal explants of broilers. This ex vivo model proved valuable in the assessment of AMAs, and further studies are required to establish the correlation between the present technique and in vivo studies.
