Microwave Heating on Content of Cyanogenic Glycosides in Linseed

Introduction

Linseed (Linum usitatissimum) is an annual or biannual plant, one of the most useful crops, that has been cultivated as a commercial plant in over thirty countries all over the world (Karlovic & Andric 1996, Gabiana 2005). It yields seeds that mature 30-60 days after flowering (Matheson 1976), and which are rich source of both edible and non-edible oils. Containing about 40% of oil, the seeds have long been used in animal diet. Recently there has been a growing interest in linseed oil due to the high concentration of linoleic (LA, 18:2, n-6) and especially α-linolenic acid (ALA, 18:3, n-3) (Lukaszewicz et al., 2004). Furthermore, linseed is the richest oilseed source of ALA ( Juárez et al. 2010). These fatty acids are representative of ω6 and ω-3 polyunsaturated fatty acids (PUFA), which are essential because mammals, and therefore humans, cannot endogenously synthesize them and must adopt them exogenously from dietary sources (Beare – Rogers et al. 2001). One way to increase content of ω-6 and ω-3 PUFAs and improve their ratio in human diet is by modifying fatty acid composition in meat, which is a natural supplier of fatty acids. This is usually done by feeding animals with meals containing seeds rich in ω PUFAs, such as linseed (Okanovic et al. 2010).

In spite of its high nutritive value, linseed has not been effectively exploited, due to the fact that it contains antinutritive components, which are cyanogenic glycosides (CG) and antivitamin B6 (linatine). Several sources reported that negative effect of antivitamin B6 could be eliminated by adding vitamin B6 in the diet (Madhusudhan & Singh 1985, Klosterman 1974). CG are chemically defined as glycosides of the α-hydroxynitriles. They are amino acid-derived secondary metabolites produced by plants, whose biosynthetic precursors are different L-amino acids (Vetter 2000). CGs in linseed are linamarin, β -gentiobiose acetone cyanohydrins (linustatin), and β-gentiobiose methylethyl ketone cyanohydrins (neolinustatin), presented in Fig. 1.

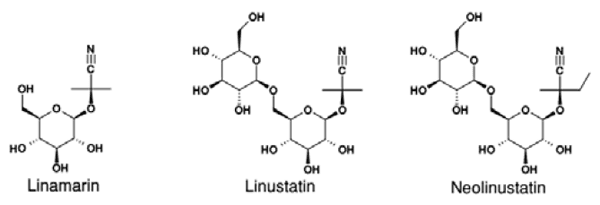

Fig. 1. Chemical composition of cyanogenic glycosides in linseed

Effect of Microwave Heating on Content of Cyanogenic Glycosides in Linseed - Image 1

CG present a major limitation in application of linseed and its meal in animal nutrition. The reason for toxicity of CG lies in releasing of hydrogen cyanide (HCN) due to the action of a β-glucosidase enzyme (oxynitrilase), thus their level in food or feed is expressed trough content of HCN (mg) per kg of examined material. According to literature, the following animal species tolerate (mg HCN equivalents/ kg body weight per day): pigs (2.9 mg/kg per day), poultry (2.8 mg/kg per day), ruminants (on the basis of goat studies) (0.25 mg/kg per day), and horses (0.4 mg/kg per day). There are no studies investigating fish and fish feed that would allow the determination of a tolerated level in feedstuffs; however, a total cyanide concentration in the water of 0.2 μmol/l is considered to give not observable adverse effects (EFSA 2006).

Serbian regulation on quality of feedstuff 2010, act 99 requires maximum content of 250 mg of HCN/kg of linseed and 350 mg HCN/kg of linseed meal and cake (Republika Srbija 2010). EU Regulation (EC) No 1334/2008, Annex III of Directive 88/388 on flavourings allows the following maximum permitted levels of HCN in foodstuffs and beverages to which flavourings or other food ingredients with flavouring properties have been added: 1 mg/kg in foodstuffs, 1 mg/ kg in beverages, with the exception of 50 mg/kg in nougat, marzipan or its substitutes or similar products, 35 mg/kg in alcoholic beverages and 5 mg/kg in canned stone fruit. There is no data for limitation of HCN content in linseed for feeding animals in EU (EEC 2008).

There are several conventional methods for determination of content of cyanogenic glycosides in food or plant material. Ganjewala et al. (2010) give an overview of qualitative and quantitative methods for detection of CG in plant material such as gas chromatographic analysis (Bacala & Barthet 2007), liquid chromatography (LC) combined with tandem mass spectrometry (LC -MS/MS) (Franks et al. 2005), alkaline or acid titration method (AOAC 2000), direct determination of cyanides by potentiometric biosensors (Keusgen et al. 2004), picrate paper and picrate paper kits (AOAC 2000, Hidayat et al. 2000), densitometric method (Brimer & Molgaard 1986), immunoassay using polyclonal antibodies (Cho et al. 2006), etc. Different heat treatments, such as autoclaving, pelleting, extrusion, or microwave roasting are usually used for reduction of content of cyanogenic glycosides (Feng et al. 2003, Wu et al. 2008).

The aim of this study was to investigate the effect of microwave heating on the content of HCN in linseed samples. As a result of different microwave powers and time of treatment, optimal levels of both parameters were determined, in order to fulfil demand of Serbian regulation on quality of feedstuff.

Materials and Methods

Linseed Samples

Samples of linseed cultivated in Vojvodina, Serbia in 2010 were used for the experiments. All treatments were done on linseed from the same producer and same batch. Samples were transported to the laboratory in polypropylene bags, where they were ground on hammer mill (ABC Engineering, Pancevo, Serbia) to pass 1 mm sieve and stored in dark at room temperature. Moisture content of linseed was determined using gravimetrical AOAC Method 950.46 (AOAC 2000), also known as "oven dry" method, and crude ash was done using standard AOAC Method 942.05 (AOAC 2000). For determination of crude protein, Kjeldahl method was used according to AOAC 978.04 Method (AOAC 2000), and crude fibres were determined by AOAC 978.10 Method (AOAC 2000). Soxhlet extraction for determination of total oil content was performed with a Büchi 810 Soxhlet fat extraction apparatus (Soxtec system HT, 1043 Extraction Unit, Foss Tecator AB, Höganäs, Sweden) in accordance with manufacturer procedure and AOCS Method Ba 3-38 (AOCS 2001).

Microwave Treatment

Microwave oven Gorenje MO-230 DGW (Slovenia) was used for thermal treatment of linseed samples. Each sample was put in a thin layer on glass plate with diameter of 16 cm, uniformly distributed and placed into the microwave oven. Operating frequency of microwave oven was 2450 mHz, and working power 240W, 400W, 560W and 800W. Samples were treated for 0, 3, 6 and 10 minutes for every working power.

Methods for Chemical Analysis

Determination of hydrocyanic acid was performed according to AOAC official method 915.03 (part B, alkaline titration method). Hydrolysis of twenty grams (grounded sample) with 200 mL of water was carried out in a sealed Kjeldehl flask, for 2 -4 h. After this the flask was connected to a steam distilling facility. Twenty mL of 2.5% sodium hydroxide solution was added to Erlenmeyer flask and the bottom of the cold trap was immersed in it (Fig. 2) . 150 mL of distilled liquid was collected in the the flask. Ammonia and potassium iodide were added to the solution. Silver nitrate standard solution was used for titration, during which its volume was measured and recorded. Equation (1) was used to calculate the HCN content in the sample:

Effect of Microwave Heating on Content of Cyanogenic Glycosides in Linseed - Image 2

Simbol X stands for the the content of cyanide (including the hydrocyanic acid) in the sample (mg/kg); m is the mass of the sample (g); C the concentration of silver nitrate standard solution (mol/L); and V is the volume of silver nitrite standard solution (mL).

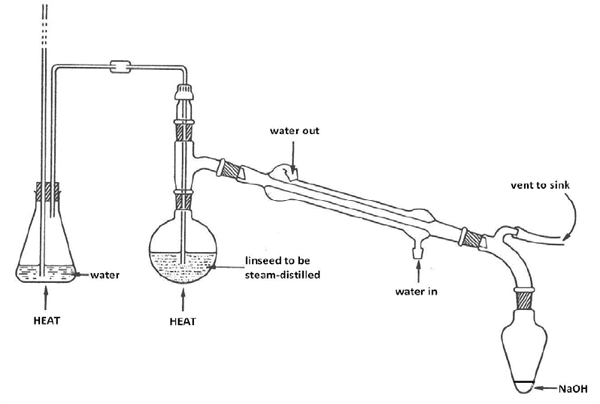

Fig. 2. Apparatus for steam distillation of cyanogenic glycosides

Effect of Microwave Heating on Content of Cyanogenic Glycosides in Linseed - Image 3

The removal rate of HCN from linseed was taken as the response, and this can be expressed as equation (2): The removal rate (%)

Effect of Microwave Heating on Content of Cyanogenic Glycosides in Linseed - Image 4

Statistical analysis

Statistica software version 9 (Statsoft, Tulsa, OK, USA) was used for analyzing variations (analysis of variance – ANOVA) and for Tukey's HSD comparison of means of samples treated with the microwaves of the same power, but for different time of heating. Differences between mean values with probability p≤0.05 were recognized as statistically significant differences, and differences between mean values with 0.05 ≤ p ≤ 0.10 were recognized as representing tendencies to differences.

Results and Discussion

All examinations were performed on linseed samples with following chemical composition: moisture content (6.54%), crude ash (2.54 %), crude protein (22.53 %), crude fibres (12.02 %), and total oil content (41.28%).

Obtained results of content of HCN after microwave treatment under different conditions (microwave power and time of heating) are presented in Table 1.

Observing the results, it can be concluded that higher microwave power increased reduction of HCN content. The same trend could be noticed if linseed samples were heated with microwaves of the same power, but for longer time, as shown in Fig. 3. As already mentioned, Serbian regulation on quality of feedstuff requires maximum of 250 mg of HCN/kg of linseed, which was achieved by treating linseed with microwaves of every examined power, except with 240W, but for different time of treatment. Microwave power of 400 W caused increase in HCN removal rate with time of heating until approximately 450 s, after what there was no change in HCN removal rate (Fig. 3).

When microwave power of 560 W and 800 W for 360 s and longer was used, linseed samples were burned and damaged, for this reason those seeds could not be used for further analyses. Therefore, it was necessary to find minimum time of heating at 400 W, in order to avoid damaging of linseed samples, and to reduce HCN content under permissible concentration at the same time. For that purpose, dependence of HCN content with regards to heating time and microwave power was presented trough three-dimensional contour plot graph (Fig. 4), generated by Statistica software, where every contour define specific content of HCN. Minimal time of heating which would provide reduction of HCN content under 250 mg/kg of linseed was determined graphically and it was 290 s (4 minutes and 50 s). By applying targeted conditions in practice (heating time of 290 s, and microwave power of 400 W), achieved removal rate of HCN was 25%, which was in this case, enough to reduce content of HCN at level of 243 mg/ kg of linseed.

Feng et al. (2003) concluded in their work that microwave roasting achieved the highest level of HCN reduction in linseed among autoclaving, pelleting and dry-heating in oven. Microwave processing was performed with a microwave oven with 750 W output, under operating frequency of 2450MHz, for 4 min. They also showed that there were no major changes in the main nutrient and fatty acid profile caused by microwave treatment.

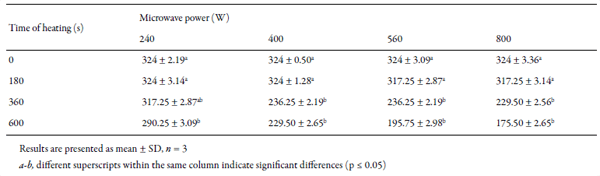

Table 1. Content of HCN mg/kg of sample depending on microwave power and time of heating

Effect of Microwave Heating on Content of Cyanogenic Glycosides in Linseed - Image 5

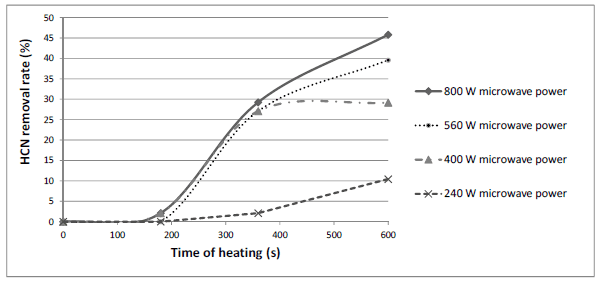

Fig. 3. Influence of heating time on removal rate of HCN in linseed

Effect of Microwave Heating on Content of Cyanogenic Glycosides in Linseed - Image 6

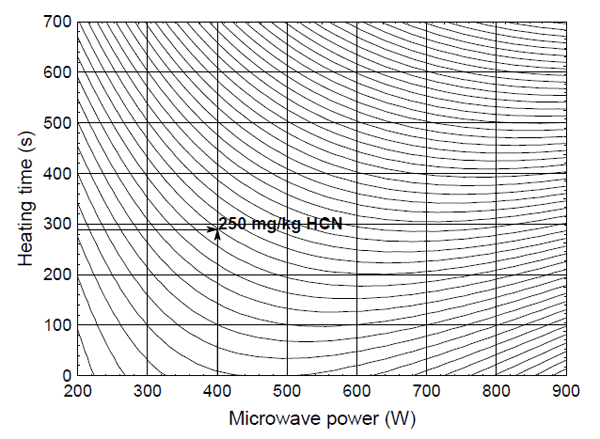

Fig. 4. Determination of optimum microwave power and heating time for reducing HCN content

Effect of Microwave Heating on Content of Cyanogenic Glycosides in Linseed - Image 7

Other authors mentioned toasting as a successful method for destruction of CGs in linseed (Epaminondas et al. 2011). Wu et al. (2008) investigated detoxification of linseed by extrusion. According to their results, extrusion can be considered a highly effective process in removing CGs, but there was no data about comparison between extrusion and other processes.

Conclusion

In conclusion, the presented study has described relatively simple method for reduction of HCN content in linseed. It was necessary to precisely determine microwaves power used for heating of samples in order to avoid burning of treated material. In the conducted experiment, microwave power of 800 W and 560 W damaged the samples. Optimal conditions were defined using three-dimensional contour plot graph. 400W of microwave power and 4 min 50 s of treatment were optimal for the reduction of HCN content under allowed limits.

References

AOAC (2000): Official Methods of Analysis, 17th edn. Ed. W. Horwitz, AOAC Int, Arlington, VA, USA

AOCS (2001): Method Ba 3-38, In Official Methods and Recommended Practices, 5th edn. Ed. D. Firestone, AOCS, Champaign, IL, USA

Bacala R, Barthet V (2007): Development of extraction and gas chromatography analytical methodology for cyanogenic glycosides in flaxseed (Linum usitatissimum). J. AOAC Int. 90: 153-161

Beare-Rogers J, Dieffenbacher A, Holm JV (2001): Lexicon of lipid nutrition (IUPAC Technical report) Pure Appl. Chem. 73: 685-744

Brimer L, Molgaard P (1986): Simple densitometric method for estimation of cyanogenic glycosides and cyanohydrins under field conditions. Biochem. Syst. Ecol. 14: 97-103

Cho AY, Yi KS, Rhim JH, Kim KI, Park JY, Keum EH, Chung J, Oh S (2006): Detection of abnormally high amygdalin content in food by an enzyme immunoassay. Mol. Cells 21: 308-313

European Parliament (2008): Regulation (EC) No 1334/2008 of The European Parliament and of The Council of 16 December 2008 on flavourings and certain food ingredients with flavouring properties for use in and on foods and amending Council Regulation (EEC) No 1601/91, Regulations (EC) No 2232/96 and (EC) No 110/2008 and Directive 2000/13/EC. Official Journal of the European Communities, L354, 34-50

EFSA (2006): Opinion of the scientific panel on contaminants in the food chain on a request from the commission related to cyanogenic compounds as undesirable substances in animal feed question N° EFSA-Q-2003-064.

Feng D, Shen Y, Chavez E (2003): Effectiveness of different processing methods in reducing hydrogen cyanide content of flaxseed. J. Sci. Food Agric. 83: 836-841

Epaminondas PS, Araújo KLGV, Lima de Souza A, Silva MCD, Queiroz N, Souza AL, Soledade LEB, Santos IMG, Souza AG (2011): Influence of toasting on the nutritious and thermal properties of flaxseed. J. Therm. Anal. Calorim. 106: 551-555

Franks TK, Hayasaka Y, Choimes S, Van Heeswijck R (2005): Cyanogenic glucosides in grapevine: polymorphism, identification and developmental pattern. Phytochem. 66: 165-173

Gabiana CP (2005): MSc Thesis, Lincoln University, Canterbury, New Zealand

Ganjewala D, Kumar S, Devi A, Ambika K (2010): Advances in cyanogenic glycosides biosynthesis and analyses in plants: A review. Acta Biologica Szegediensis 54: 1-14

Hidayat A, Zuaraida N, Hanarida I, Damardjati D (2000): Cyanogenic content of cassava root of 179 cultivars grown in Indonesia. J. Food Compost. Anal. 13: 71-82

Juárez M, Dugan MER, Aldai N, Aalhus JL, Patience JF, Zijlstra R, Beaulieu AD (2010): Feeding co-extruded flaxseed to pigs: Effects of duration and feeding level on growth performance and backfat fatty acid composition of grower-finisher pigs. Meat Sci. 84: 578-584

Karlovic Ð, Andric N (1996): Kontrola kvaliteta semena uljarica. Tehnološki fakultet Novi Sad, Savezni zavod za standardizaciju, Beograd

Keusgen, M, Kloock, JP, Knobbe, DT, Junger, M, Krest, I, Goldbach, M, Klein, W, Schoning, MJ (2004): Direct determination of cyanides by potentiometric biosensors. Sens. B. Chem. 103: 380-385

Klosterman HJ (1974): Vitamin B6 antagonist of natural origin. J. Agric. Food Chem. 22: 13-16

Lukaszewicz M, Szopa J, Krasowska A (2004): Susceptibility of lipids from different flax cultivars to peroxidation and its lowering by added antioxidants. Food Chem. 88: 225–231

Madhusudhan KT, Singh N (1985): Effect of detoxification treatment on the physicochemical properties of linseed proteins. J. Agric. Food Chem. 33: 1219-1222

Matheson EM (1976): Linseed. In: EM Matheson (ed.) Vegetable Oil Seed Crops in Australia, Holt, Rinehart and Winston, Sydney (Australia), 111-121

Okanovic Ð, Ilic N, Ivanov D, Palic D, Drobnjakovic R, Vukcevic C, Ikonic P (2010): Influence of linseed enriched diet on omega- 3 fatty acids content in pork. Krmiva 52: 189-194

Republika Srbija (2010): Pravilnik o kvalitetu hrane za životinje, Službeni glasnik Republike Srbije 4: 67 Vetter J (2000): Plant cyanogenic glycosides. Toxicon 38: 11-36

Wu M, Li D, Zhou YG, Brooks MSL, Chen XD, Mao ZH (2008): Extrusion detoxification technique on flaxseed by uniform design optimization. Sep. Purif. Technol. 61: 51-59

This article was originally published in the scientific journal Ratarstvo i povrtarstvo. 49 (2012) 63-68. Received: 4 November 2011, accepted: 12 December 2011. doi:10.5937/ratpov49-1173. www.nsseme.com/journal.html
