Pellet-Press Knife Condition and its Influence on the Feed Pellet Quality

Published: October 25, 2010
By: Dejan Miladinovic, M.Sc. (FôrTek- Norwegian University of Life Science)
Introduction
During the feed pelleting process conditioned feed mash is passing through the pellet press die where animal feed pellets are formed by rheological properties of the mash and different mechanical forces applied on that mash.

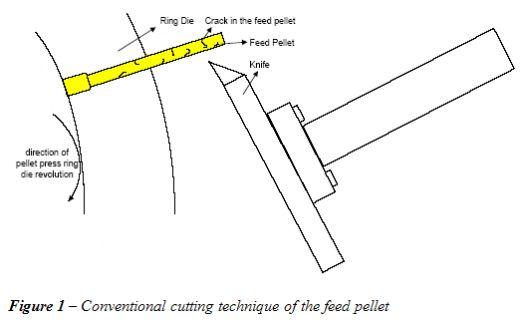

Different sized animals eat different sized feed, therefore cutting, thus uniformity of feed pellets is essential procedure for feed producers. In the end of the pelleting process pellet press knives have role to cut the feed pellets (figure 1). Bearing in mind that worn knives usually have randomized cutting area, feed pellets are more randomly stressed, therefore new abrasions would be formed hence more dust in the end product obtained. All that leads to reduced physical quality of feed pellets and non-satisfaction from customers.
Information insufficiency related to standardized feed uniforming procedure led to this research. Research based on possibility that pellet press knives condition influence physical properties of feed pellets has been accomplished at Fôrtek - Center for Feed Technology, Norwegian University of Life Science.

The research showed that knives condition (worn or sharp) can affect physical quality of feed pellets.
Pellet-Press Knife Condition and its Influence on the Feed Pellet Quality - Image 1

Materials and Methods

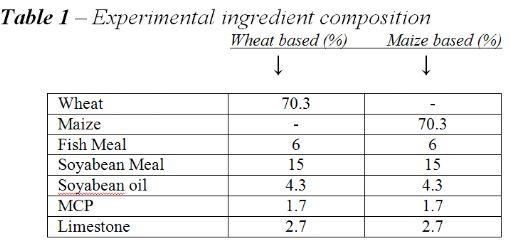

Research has been based on two types of ingredient composition (table 1). Hypothetically, superior and poor for physical properties of feed pellets.

Pellet-Press Knife Condition and its Influence on the Feed Pellet Quality - Image 2


Feed mash conditioning was performed by pellet press conditioning chamber with 75 C° preset temperature in both, test and its replica for both ingredient compositions. Samples taken after the conditioner have been analyzed for moistures. Moisture showed to be similar in both tests and diets (+/- 1%). Finished feed samples were taken immediately after pellet press to avoid any stress (breakage) due to the transport to packaging line. Cooling was performed for 6 hours at the ambient temperature of 26 C° and relative humidity of 50% to avoid any forced moisture removal, thus more likely larger crack formation.

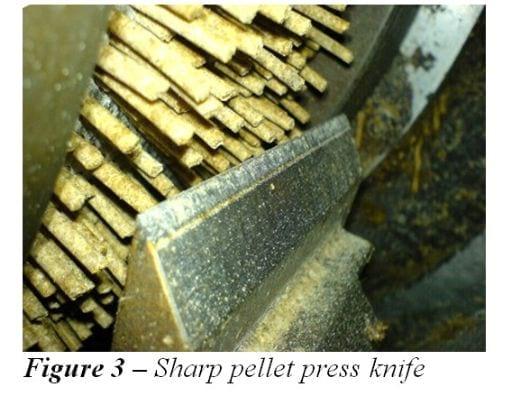

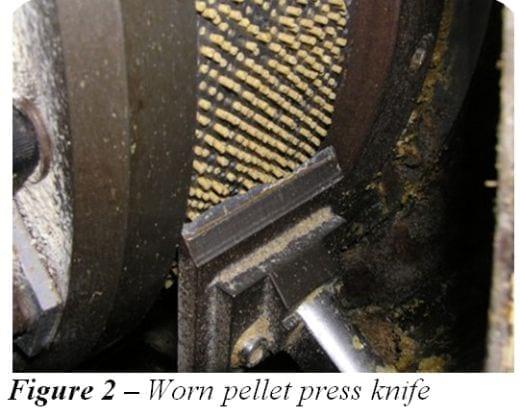

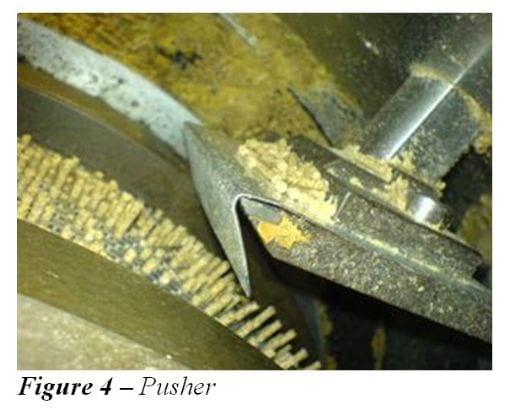

Two different knife conditions (figure 2 & 3) have been used as well as the new technique of pushing pellets thus breaking them where the sheer stress is most likely to be lowest, have been performed by pusher (figure 4).

Pellet-Press Knife Condition and its Influence on the Feed Pellet Quality - Image 3

Pellet-Press Knife Condition and its Influence on the Feed Pellet Quality - Image 4
Pellet-Press Knife Condition and its Influence on the Feed Pellet Quality - Image 5


In order to have better overview of this research, two different pellet lengths have been exercised (10 and 20mm), which means that different distances of knifes from pellet press die surface have been set.
Durability test was performed by Holmen Pellet Durability tester for both, test and its replica according to UMB-PQP procedures*.

Results and discussion

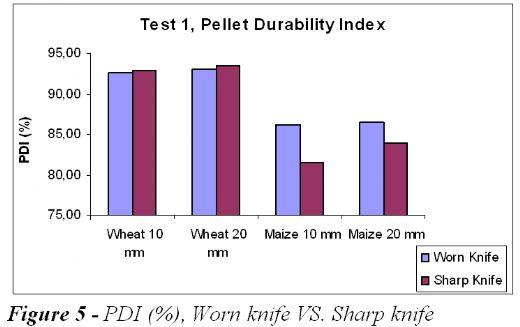

Abrasion formation, thus percentage of fines or physical property of feed pellets defined as PDI (%) showed to depend on pellet press knife condition (Figure 5).

Pellet-Press Knife Condition and its Influence on the Feed Pellet Quality - Image 6
When pellet length is shorter or when knifes are adjusted closer to the pellet press die, in this case 10mm, wheat based pellets demonstrate slight decrease of the physical properties while cut with worn knifes. Opposite was observed in feed pellets based on maize, where the worn knifes have even influenced on better PDI (%) values (p < 0,01). With increasing the pellet length on 20mm by cutting with worn knife physical property of wheat based feed pellets has not significantly changed, compared to sharp knife. On maize based pellets opposite effect was observed.
Feed pellets, compressed and formed in the pellet press die at the die outlet are experiencing sheer stress formed by knife. Wheat based pellets did not show to be influenced by different knife conditions as sharp neither worn.
When knife is worn, theoretically impact of revolved pellets is let by chance, thus additional abrasions on pellets are likely to be formed. Opposite from the theoretical hypothesis was observed on maize based feed pellets, where worn knife or wider cutting area has derived better physical properties (figure 5).

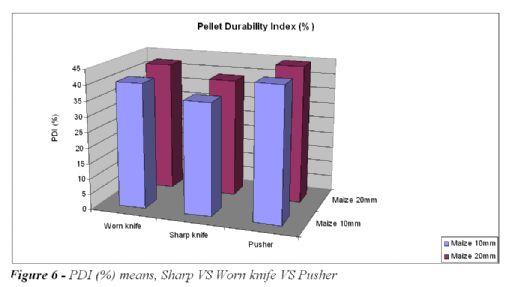

Cutting technique by pushing the maize based feed pellets by angled and widen flat surface (figure 4) illustrated increasing the physical properties of maize based pellets compared to cutting the same pellets with the sharp knifes (figure 6). Explanation for demonstrated results is that "pusher" is simply pressing on feed pellets which are occurring after the pellet die holes, consequently forcing pellet to brake where natural crack already exist without additional sheer stress onto the other cracks of feed pellet. When pellets are extruded through the pellet die holes, some abrasions are possible to form due to different compression and adhesive properties of neighboured particles. Longer pellets would be pushed by pusher and weakest abrasion is likely to crack, while that opportunity is reduced when pellets are set to be shorter. Difference (p<0,01) for "pushing technique" for maize based feed pellets with different lengths is illustrated in figure 6.

Pellet-Press Knife Condition and its Influence on the Feed Pellet Quality - Image 7
Conclusion
Dependable on factory's own needs and estimation of binding properties of feed formulation cutting technique has to be chosen carefully. Results from this research outcomes that feed pellets made of raw materials expected as good for physical properties (in this case, wheat based) can be cut with the sharp and maintained knifes, but if knifes are worn, additional maintenance investment is not necessary. Whereas pellets manufactured of raw materials assumed as bad for physical quality of feed pellets (our case, maize based) should be pushed. Hence pellet is forced to break where its natural weakest crack exist with obvious increase of PDI and reduction of additional cracks formed by knife sheer stress.
* UMB-PQP pellet durability test procedure -Before the durability test, all samples are weight out as 120g representative sample and cleaned from any dust with the Retch, AS 200 sieving machine. After sieving 3mm in diameter pellets through 2,6mm sieve, each sample was weigh as 100g sample. Holmen pellet durability tester was run for 60 seconds and then 30 additional seconds to collect remained feed pellets. Considered durability test results - PDI % (Pellet Durability Index) are presented from weight remained from pellets in the 2,6mm sieve, sieved for 30 seconds by Retch, AS 200 sieving machine on 1.5 mm shaking amplitude to avoid any human error.
Related topics:
Authors:
Dejan Miladinovic
Fôrtek- Norwegian University of Life Science
Recommend
Comment
Share
Enrique Diaz
Anderson International Corp
24 de abril de 2012

Friends,

As a normal rule to follow based on the Good Practice of Manufacturing the lenght of any pellet could be about twice the geometric diameter, in other words, if we are processing poultry feed having 4 mm by using a 5/32" perforation pellet die the lenght of that particular pellet feed would be 8 mm, largest pellets will produce more fines and dust due to the fracture of the pellets into the system.

Knife blade condition and sharpening are also an important aspects to produce good quality pellets.

Thank you.
Enrique Diaz, P.E.
Sales/Service Process Engineer.
R&D Equipment Company
Fort Worth, TX

Recommend
Reply
Dejan Miladinovic
Fôrtek- Norwegian University of Life Science
19 de marzo de 2012

Dear Jordache, all the established feed producers within the EU must have the HACCP and GMP certified procedures. Certainly, all the companies should shape their procedures according to their own production and menagerial systems. As I can see your issue, the procedures must be established within the cooling systems (air speed control and air temperature) and as you have mentioned transport systems within the production conveying).

Recommend
Reply
Dejan Miladinovic
Fôrtek- Norwegian University of Life Science
30 de noviembre de 2011
Jordache, be sure that all the transport lines are working with its 80% of total power max. Their engines should work upon optimal amperage. Broken pellets is a bit more complicated area. Its multifactorial approach is necessary. The first thing you should look upon is the steam quality and fat content. Next thing should be the roller-die gap settings. I hope that this has answered at least some of your questions.
Recommend
Reply
Dejan Miladinovic
Fôrtek- Norwegian University of Life Science
25 de noviembre de 2011
I would need more information about your system and the transport lines!
Recommend
Reply
Dejan Miladinovic
Fôrtek- Norwegian University of Life Science
24 de noviembre de 2011

Jordache, Please can you explain me better what do you mean by cost of pellet milk production? The production of the machinery or pelleting process itself?

Recommend
Reply
Dejan Miladinovic
Fôrtek- Norwegian University of Life Science
1 de noviembre de 2010

References:

Thomas et al. (1997). Physical quality of pelleted animal feed - Contribution of processes and its conditions. Animal Feed Science Technology 64 (1997) 173-192


Hussar, N., and Robblee, A. R.,(1962). Effect of pelleting on the utilization of feeds by growing chicken. Poultry Sci. 41:1489–1493.


Li, Y., et al.(2000), Measurement and statistics of single pellet mechanical strength of differently shaped catalysts”, Powder Technology. 113, 176-184.

Payne, J.D., et al. (1994), “The Pelleting Handbook”, Borregaard Lignotech. pp. 72.

Recommend
Reply
Wende Maulaga
Tanzania Veterinary Laboratory
1 de noviembre de 2010
Nice article! I would like to have that reference for more information, also if possible to get more infomation on feed pelleting. In our country making pellets is still a new technology and many feed manuctures/farmers are not involved. If possible, could you assist me with more information on the technical practice interms of machinery used and costings over the practice.
Recommend
Reply
Dejan Miladinovic
Fôrtek- Norwegian University of Life Science
26 de octubre de 2010

This article was published two years ago in FeedTech (AllAboutFeed) and last year in AFMA MATRIX. If somebody wants the references I would be more then happy to send it over.
You have just to tell me in what reference are you interested and I will send you the one. Since this research was done with pusher 10 and 20 mm from the die surface, all pellets were as uniform as pellets cut with the sharp knife. Differences in length were +/- 2mm for 10mm pellet lenght and for 20mm pellet length a bit more.
Here Im giving the point as well: Why do we have to have absolutely uniformed pellets? Is that the chicken that doesnt like non-uniformed pellets or +/- 2mm make a big nutritional difference?!
I agree with Mr. Arshaq Ramzee that the scope of this research could of been expanded by different weather conditions.

Recommend
Reply
Helen O
16 de octubre de 2021

Is there anything on a press with automatic knives adjustment rather than a hand-adjusted knives to correct pellet lengths ptn press, paladin?

Recommend
Reply
Giuseppe Bigliani
Feed Technology Solutions
Feed Technology Solutions
22 de julio de 2019
Good day dear V. Sivakumar, It is not easy to give you the solution without enough information about the problem or details about your pellet mill, die specifications, etc. etc.. I believe several years ago I visited your plant and made a report regarding several opportunity areas I found. I also presented a proposal for consulting services to improve the efficiency of all the feed manufacturing processes and the overall results of the feed milling operation. Please feel free to contact me with all your specific questions. Giuseppe Bigliani Feed Technology Solutions feedtecsol@gmail.com
