Introduction to Six Sigma and Bell Curve in Feed Formulation

Published: November 25, 2024
By: Dr.S.Sridhar M.V.Sc., (Animal Nutrition) / Product Manager, OPTIMA POULTRY PVT.LTD., Optima Square,46/2,Dhanalakshmipuram South, Central Studio Road, Singanallur, Coimbatore- 641005, India.
In feed formulation, Six Sigma methodology helps achieve high-quality standards by minimizing variability. Applying it to ingredients like maize and soybean meal allows us to control nutrient content precisely, ensuring consistency in feed quality. A bell curve (normal distribution) visually represents the variability in a nutrient (like crude protein, CP) and helps identify a target range that can maximize feed efficiency while minimizing risks of nutrient excess or deficiency.
# Steps to Apply Six Sigma in Feed Formulation
Six Sigma involves controlling variability within ±3 standard deviations (SDs) from the mean, which corresponds to 99.7% of the population. In feed formulation, this ensures that nearly all batches of ingredients (maize, soybean meal) meet desired nutritional specifications.
# Example Ingredients:
- Maize : Typically contributes energy, with less protein.
- Soybean meal : High in protein, a crucial source for poultry diets.
Introduction to Six Sigma and Bell Curve in Feed Formulation - Image 1
# Step 1: Understand Normal Distribution (Bell Curve)
A normal distribution is symmetrical, with most data points concentrated around the mean. It’s defined by two parameters:
- Mean (μ) : The average value (e.g., average CP% of soybean meal).
- Standard Deviation (σ) : A measure of how spread out the values are from the mean.

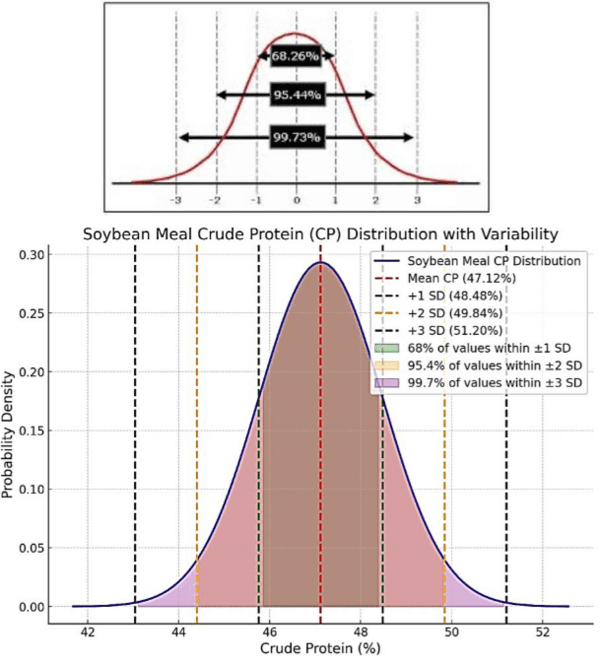

The bell curve divides data into zones:
- ±1 SD : 68% of data points.
- ±2 SD : 95.4% of data points.
- ±3 SD : 99.7% of data points.
For a feed formulation, the target would be to have nutrient values like CP of maize and soybean meal falling within ±3 SD to ensure 99.7% consistency in feed quality.
# Step 2: Equation of the Normal Distribution

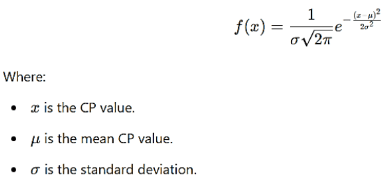

The bell curve (normal distribution) is represented by the probability density function:
Introduction to Six Sigma and Bell Curve in Feed Formulation - Image 2
This equation helps calculate the probability of different CP values occurring, and how likely the protein content of an ingredient is to meet the formulation requirements.
# Step 3: Apply Six Sigma to CP Variability
Six Sigma aims to reduce defects or outliers by controlling the variability within ±3 SD of the mean CP value. Here's how this is applied:
1. Set the Baseline CP Values:
- Maize : CP ~8.5% (mean, µ)
- Soybean Meal : CP ~47.12% (mean, µ)
Let’s assume maize has an SD of 0.3% and soybean meal has an SD of 1.36% .
2. Calculate CP at ±1, ±2, and ±3 SD :
- For soybean meal:
- Mean CP (µ) = 47.12%
- ±1 SD (µ + σ) = 47.12 ± 1.36 → 45.76% to 48.48% (68% of values)
- ±2 SD (µ + 2σ) = 47.12 ± 2.72 → 44.40% to 49.84% (95.4% of values)
- ±3 SD (µ + 3σ) = 47.12 ± 4.08 → 43.04% to 51.20% (99.7% of values)
3. Define the Target CP Range :
- To ensure consistent feed quality, we target +2 SD for soybean meal CP (i.e., 44.40% to 49.84%). This ensures 95.4% of batches will meet this CP target, minimizing the risk of nutrient variability.
- Similarly, for maize, we would calculate ±3 SD to cover 99.7% of the values and make sure the protein is consistent within 8.2% to 8.8%.
# Step 4: Determine Feed Formulation with Controlled Variability
Now that we have set a controlled range for CP variability in both maize and soybean meal, let’s build the formulation:
# Example Formulation:
- Soybean Meal : High protein, target CP = 47.12% ± 2 SD (44.40% to 49.84%)
- Maize : Lower protein, target CP = 8.5% ± 3 SD (8.2% to 8.8%)
Assuming a target formulation of 23% CP for poultry feed, and using both ingredients:
- Soybean meal provides a consistent high protein contribution (~47.12% CP).
- Maize supplies energy with lower, controlled protein (~8.5%).
If maize constitutes 60% of the diet and soybean meal makes up 30% , we calculate:
Introduction to Six Sigma and Bell Curve in Feed Formulation - Image 3
The remaining protein can come from additional protein sources (e.g., synthetic amino acids or other ingredients) to meet the 23% target, ensuring consistency within ±2 SD of soybean meal's CP values.
Introduction to Six Sigma and Bell Curve in Feed Formulation - Image 4
# Step 5: Ensuring Process Control and Monitoring
Six Sigma involves continuous monitoring to ensure that each batch of ingredients meets the defined CP range. By measuring and analyzing the actual CP content for each batch, you can control the feed formulation more precisely.
# Conclusion
Using Six Sigma with a bell curve for feed formulation allows you to:
- Define a consistent range of CP values for ingredients like maize and soybean meal.
- Minimize variability and defects by ensuring CP content falls within ±2 or ±3 SD of the mean.
- Control the formulation process by monitoring nutrient variability in raw materials.
By applying this methodology, you can achieve higher consistency and quality in your poultry feed, reducing risks associated with nutrient deficiency or excess.
