Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine

Published: December 23, 2019
By: Soumya K. Kar 1,2,3; Alfons J. M. Jansman 3; Nirupama Benis 1,2,3; Javier RamiroGarcia 4,5,6; Dirkjan Schokker 2,3; Leo Kruijt 2,3; Ellen H. Stolte 1; Johanna J. Taverne-Thiele 1; Mari A. Smits 1,2,3,7; Jerry M. Wells 1.
Summary

Dietary protein sources can have profound effects on host-microbe interactions in the gut that are critically important for immune resilience. However, more knowledge is needed to assess the impact of different protein sources on gut and animal health. Thirty-six wildtype male C57BL/6J mice of 35 d age (n = 6/group; mean ± SEM body weight 21.9 ± 0.25 g) were randomly assigned to groups fed for four weeks with semi synthetic diets prepared with one of the following protein sources containing (300 g/kg as fed basis): soybean meal (SBM), casein, partially delactosed whey powder, spray dried plasma protein, wheat gluten meal and yellow meal worm. At the end of the experiment, mice were sacrificed to collect ileal tissue to acquire gene expression data, and mammalian (mechanistic) target of rapamycin (mTOR) activity, ileal digesta to study changes in microbiota and serum to measure cytokines and chemokines. By genome-wide transcriptome analysis, we identified fourteen high level regulatory genes that are strongly affected in SBM-fed mice compared to the other experimental groups. They mostly related to the mTOR pathway. In addition, an increased (P < 0.05) concentration of granulocyte colony-stimulating factor was observed in serum of SBM-fed mice compared to other dietary groups. Moreover, by 16S rRNA sequencing, we observed that SBM-fed mice had higher (P < 0.05) abundances of Bacteroidales family S24-7, compared to the other dietary groups. We showed that measurements of genomewide expression and microbiota composition in the mouse ileum reveal divergent responses to diets containing different protein sources, in particular for a diet based on SBM.

Introduction
For economical reasons soybean meal (SBM) is commonly used as a protein source in animal feeds [1] but the increasing demand and price for SBM is stimulating interest in alternative sources of protein. Apart from the predicted nutritional properties of these novel protein sources, nothing is known about their potential effects on gut immunity and health. The effects of dietary protein on performance and health are dependent on the source(s) of protein (e.g. milk; plasma; plant cereals, insects, algae) included in the diet, their digestibility in the gastrointestinal tract, the matrix in which the protein fraction is incorporated and the nature and extent of technical processing. Furthermore, the amino acid composition and sequences of the individual proteins may influence the kinetics of protein digestion and the generation of bioactive peptides along the gastro-intestinal tract (GIT) [2–5]. In addition, variations in the nonprotein components of protein sources may have direct effects on the health and performance of hosts or indirect effects via modulation of the intestinal microbiota [6]. Alternative sources of protein include dietary casein (CAS) and whey proteins which are reported to stimulate the immune system and promote host protection against allergies [7, 8]. Spray dried plasma protein (SDPP), described as a high-quality feed ingredient for farm animals, including pigs, which is suggested to support intestinal immunity due to the presence of a high amount immunoglobulins [9]. Soybean meal (SBM) is the common source of dietary protein for many mammalian species and contains complex mixture of proteins, carbohydrates such as nonstarch polysaccharides (NSP) and phytochemicals, which might influence the activity of the immune system [6]. Wheat gluten meal (WGM) is also considered as a good source of dietary proteins for many mammals, as it is highly digestible and regarded as an excellent source of glutamine and glutamic acid, amino acids which are known to play a role in the modulation of gut immunity [10]. Based on protein digestibility and amino acid composition, yellow meal worm (YMW) seems to be a promising source of dietary protein for human and monogastric animals [11].
Amino acid availability is known to regulate the activity of the mechanistic target of rapamycin (mTOR), pathway which is a key integrator of nutrient, energy and metabolic status, controlling diverse function in different cells types through two protein complexes. Complex 1 (mTORC1) controls cell growth and cell size by phosphorylation of the regulators of protein synthesis S6K1 and 4EBP1, while mTORC2 regulates cell proliferation by functioning as the regulatory kinase [12]. The activity of mTORC1 but not mTORC2 is controlled by nutrient availability whereas both respond to growth factors. The regulation of mTORC1 is better understood than the regulation of mTORC2. Low amino acid availability and energy levels (i.e. low ATP/ADP ratio) inhibit mTOR complex 1 (mTORC1) activity and upregulation of autophagy to recycle nutrients. For example, mTORC1 can sense leucine through leucyl-tRNA synthetase and glutamine levels. Conversely, in the presence of sufficient nutrients, mTORC1 is active, enabling new protein synthesis and cellular growth and proliferation. Diverse pathways can participate in the regulation of mTORC1 signaling under conditions of nutrient availability, including growth factors, cytokines and in T cells signaling via the T cell receptor or co-stimulatory receptor interactions. Thus, mTORC1 can also be seen as a multifaceted regulator of immunity, having a crucial role in the activation and proliferation of effector and regulatory T cells as well as other immune cells [3]. The impact of diet on mTOR signaling in the intestine is not fully understood, not only with regard to the effector pathways, but also with respect to mTOR sensing of novel nutritional and microbial metabolites.
To gain further insights into the effect of different conventional and unconventional dietary protein sources on intestinal energy levels in vivo, we performed a transcriptomics analysis and measured mTORC1 protein in tissue. Additionally, we investigated possible effects of the different diets on the microbiota and measured several protein mediators of immunity, inflammation and hematopoiesis in the blood. We deliberately chose to study the effect of different dietary proteins in complex diets because it is known that purified bioactive compounds can behave differently when included in complex dietary mixtures [13, 14]. The experimental diets were prepared by replacing the corresponding reference ingredient (i.e. SBM) from the “reference” diet (i.e. SBM-diet) with CAS, partially delactosed whey powder (DWP), WGM, SDPP and YMW as sources of protein. Mice were fed these experimental diets for a period of four weeks, after which transcriptomics, histology and mTORC1 activity assays were performed on ileal tissue. Additionally, ileal digesta were collected for analysis of microbiota by16S rRNA gene sequencing.
Materials and methods
Animals
All procedures were approved by the animal experimentation board at Wageningen University & Research Center (accession number 2012062.c) and carried out according to the guidelines of the European Council Directive 86/609/EEC dated November, 1986. A schematic representation and detailed description of the experimental design and sample collection is given in online supporting information (see S1 Fig). Briefly, thirty-six 21-day-old wild type male C57BL/6J mice (Harlan Laboratories, Horst, the Netherlands) were stratified according to bodyweight and litter of origin into 6 diet groups (n = 6/group) in the light and temperature-controlled animal facility of Wageningen University (12:12 h reversed light/dark cycle, 20 ± 2°C) upon arrival. The mice were housed in pairs in a specific pathogen-free environment with ad libitum access to diet and water. Prior to the start of the experiment mice were adapted for one week to a standard diet based on AIN-1993 growth (AIN-93G), which included 300 g/kg casein (CAS) as the protein source (as fed basis). Thereafter, one group continued with the CAS-fed diet, and the other five groups received similar semi-synthetic diets containing 300 g/kg (as fed basis) of one of the alternative protein sources (SBM, DWP, WGM, SDPP or YMW) for 28 days. Body weights of animals were measured every week. Thereafter, the animals were anaesthetized with isoflurane and sacrificed to collect samples. From the same location three segments of ileal tissue were taken, one was snap frozen in liquid nitrogen and stored at -80 C for gene expression studies, the second was fixed with methanol-carnoy’s fixative for immunohistochemistry, and the third tissue segment along with luminal content was collected to perform a communityscale analysis of gut microbiota. Blood samples were collected by orbital puncture and serum was extracted using 500 μl SST tubes (Becton Dickinson, Franklin Lakes, New Jersey) within 30 minutes after collection of the blood. The sera were stored at -20°C for further analysis of cytokine levels. Soybean meal (SBM) diet served as reference to make comparisons with other experimental diets for all analysis, as it is the most widely used protein source in animal feeds [15, 16].
Diets
Customized semi-synthetic diets based on AIN-93G were prepared replacing casein with any one of five other protein sources i.e. SBM, DWP, WGM, SDPP and YMW at an inclusion level of 300 g/kg. Representative samples of dried and ground diets were chemically analyzed for dry matter (DM; NEN-ISO 6496 by 4 hours drying at 104°C), nitrogen (N; NEN-ISO 5983–2 by Kjeldahl method and crude protein calculated as Nx6.25), ash (NEN-ISO 5984 after 3 hours ashing at 550°C), ether extract (EE, NEN-ISO 6492 by extraction with petroleum ether) and gross energy (GE; NEN- EN-ISO 9831 by bomb calorimetry). Ingredient and chemical compositions of the experimental diets are presented in supporting information (S1 Table).
Gene expression
Total RNA extraction from ileal tissue samples, labelling, hybridization of individual samples on Affymetrix GeneChip mouse gene 1.1 ST arrays (Affymetrix, Santa Clara, CA, USA), scanning, quality control and normalization of the resulting datasets was performed as described previously [17] and the data is available in the Gene Expression Omnibus from NCBI with the accession number GSE84442. The output was used for Gene Set Enrichment Analysis (GSEA) [18] with human official gene symbols in which each experimental diet was compared to the diet containing SBM with permutations on gene sets. InteractiVenn [19] was used to visualize significant GSEA results (FDR < 0.05). Subsequently, we defined a set of common core genes, i.e. the genes that are enriched in the significant differential gene-sets common to all five comparisons. The common core genes were used to build two types of networks in Cytoscape [20]: a network of GO terms restricted to terms with FDR < 0.001 (using the app BINGO) [21]; and a Functional Interaction (FI) network (using the app Reactome FI) [22]. In the BiNGO network, nodes are GO terms and edges are relations between them, the network was restricted to terms with FDR < 0.001. The FI network has genes as nodes and the edges are interactions between the genes (from literature or predictions). FI Nodes with a degree (number of directly connected nodes) greater than 20 were considered as hubs.
Microbiota
DNA was isolated from snap frozen intestinal segments and the bacterial 16S rRNA V3 region was sequenced by targeted-amplicon 16S sequencing on a Illumina Mi-Seq sequences as previously described [23]. The 16S rRNA gene sequencing reads were analyzed using an in-house pipeline [24]. Shortly, paired-end libraries were filtered to contain only sequence read pairs with perfectly matching primer and barcodes. Resulting sequence reads were separated by sample using the barcodes and operational taxonomic units (OTUs) were assigned using an open reference database and a customized SILVA 16S rRNA reference database [25]. Microbial composition was generated using a workflow based on quantitative insights into microbial ecology (QIIME) v1.2 [26]. The microbial groups that had a P < 0.05 in one of the diets vs SBM were considered significant.
Immunoassay and immunohistochemistry
Endogenous levels of phosphorylated mTOR (Ser2448) was carried on snap frozen intestinal (ileal) segments using a commercial kit (Phospho-mTOR, Cisbio, USA), following manufacturer’s instructions. Briefly, snap frozen tissues were thawed on ice and chopped into small pieces (about 1–3 mm3) using a sharp razor and then washed twice with 5 ml ice-cold phosphate buffer solution (PBS) using a mechanical rotation for 15 mins followed by centrifugation at 720 rpm, for 5 mins at 4°C. Tissue homogenates were prepared in 5 ml conical tubes (Eppendrof, NL) containing 1 ml of ice-cold PBS using a hand-held homogenizer (Turrax, IKA, USA). The homogenised tissue slurry was then passed through cell strainer of mesh size 70 μm (Corning, NL) and the flow through collected in 1.5 ml tubes (Eppendrof, NL). The flow through was centrifuged at 1200 rpm for 5 mins at 4°C to obtain a pellet of cells which was resuspended in 1 ml of ice cold PBS and the cells counted using a haemocytometer. As instructed by the manufacturer, 33,000 cells were added per well in a 384 well plate for the mTORC1 phosphorylation assay. For the assay, along with the samples, we included positive control (supplied in the kit as control lysate) and negative control (added PBS without disintegrated cells; the negative control was used to check the non-specific signal). Using SpectraMax M5e (Molecular Devices, USA), the signals in the 384 wells plate were measured in two different wavelengths i.e. 665 and 620 nm, as recommended by the manufacturer.
For presence of mTOR protein, paraffin sections (5 μm) of fixed tissue were attached to poly-L- lysine-coated glass slides (Thermo Scientific, Germany). Sections were heated for 20 minutes in 0.01 M sodium citrate (pH 6.0) at 100°C, washed 2 times for 15 minutes with TRIS-Buffered Saline-triton (TBS-t) and then incubated for 30 minutes at room temperature in 5% (v/v) rabbit serum (Invitrogen, Life technologies Ltd, Paisley, UK) in TBS. The mTOR protein was detected by incubating the sections with anti-mTOR antibody (Abcam, Cambridge, UK) diluted 1:500 in TBS-t, overnight at 4°C, washing 2 times for 10 minutes with TBS-t and incubation with secondary anti-body goat-anti-rabbit-biotin (Invitrogen, Life technologies Ltd, Paisley, UK) for 60 minutes at room temperature. Avidin-HRP diluted 1:200 in TBS-t was used and kept for 60 minutes at room temperature to detect the secondary antibody. Thereafter the sections were washed for 10 minutes with two changes in TBS-t followed by 10 minutes rinsing in TRIS-HCl buffer (pH 7.6) and incubated with diamino-benzidine. Finally, the slides were immersed in hematoxylin (1:1) and then immediately rinsed under running tap water for 10 minutes. Digital images of transverse sections of the ileum were used to enumerate the positive reaction in the image.
Cytokine and chemokine profiles
Serum cytokine and chemokine concentrations (pg/ml) were measured using a Bio-Rad Mouse 23-plex kit (Bio-Rad, Hercules, CA, USA). Calibration curves from recombinant cytokine and chemokine standards were prepared for the 8-point standard dilution set with 4-fold dilution steps in sterile PBS. The samples were measured using a Bio-Plex MagPix Multiplex Reader (Bio-Rad Laboratories Inc. by the Luminex Corporation, The Netherlands). The BioPlex Manager software’s five-parameter logistic curve fitting (5PL) method was used for raw data analysis and calculation of cytokine concentrations.
Statistical analysis
Results of immunoassay, TLR assay and cytokines are presented as means ± SEM. Statistical analysis was performed by one-way ANOVA followed by post hoc test (Dunnett test: compared all treatment vs. SBM group as control) using GraphPad prism version 5.03 for Windows Vista (GraphPad Software, San Diego, California, USA). P value < 0.05 was considered significant.
Results
Feed composition and intake
The experimental diets were based on the nutrient requirements provided in the standardised AIN-93G mouse diet but varied somewhat in nutrient composition, for crude protein, crude fat, sugar, NSP, Ca, P, K, Na, Cl and electrolyte balance (S1 Table). At the start of the dietary intervention (age 28 days), mean body weights of other experimental groups were not significantly different compared with the SBM group. From day 42 to 56, mean body weight of the DWP-fed group was significantly less than mice fed the other diets (S2 Fig). Strikingly, in the YMW-fed group, we measured a significantly lower feed intake compared to the SBM fed group (S2 Fig), while the body weight over the experimental period was not significantly different to the other dietary groups. All animals appeared to be healthy throughout the 4 weeks of dietary change.
Effect of protein source on ileal gene expression

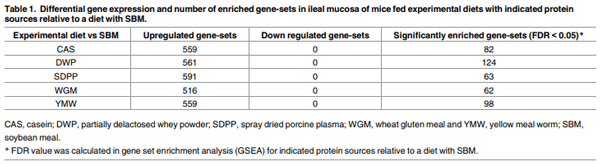

Gene set enrichment analysis (GSEA) of differentially expressed genes was performed on all one-to-one comparisons of the possible dietary combinations. The highest number of significantly different gene sets were observed comparing SBM diet to the other diets. The number of significantly regulated gene sets as determined by GSEA is presented in Table 1. When compared to SBM-fed mice, we found 4, 23, 8, and 4 unique differently expressed gene-sets (FDR < 0.05) in CAS, DWP, SDPP and YMW, respectively. These sets of genes mainly correspond to essential cellular processes such as cell cycle, cellular metabolism (anabolic and catabolic) and immune response (Fig 1; S2 Table).

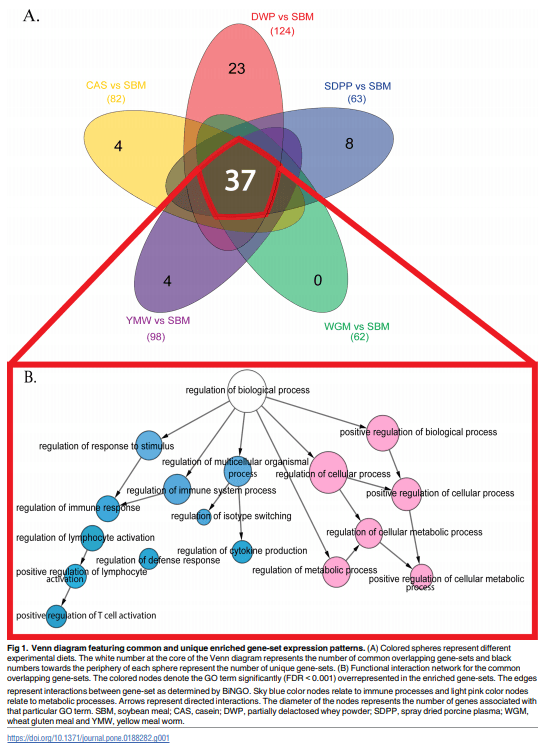

We identified a large number (thirty-seven) of overlapping gene-sets, which were significantly (FDR < 0.05) differentially expressed across all the experimental diets in comparison with SBM (Fig 1). We calculated an interaction network from these 37 gene-sets and observed down regulation (FDR < 0.001) of a number of immune and metabolic processes in ileal mucosae of the mice kept on SBM-fed diet relative to all other diets (Fig 1). In the next step, we analyzed the degree of distribution (number of interactions) for each node in the Reactome FI network and identified a total of 14 hub genes, which are indicated in Table 2 along with their pathways and biological functions. Strikingly, the mTOR pathway and biological processes related to T cell functioning and antigen presentation are highly represented in Table 2.
Effect of diet on ileal microbiota

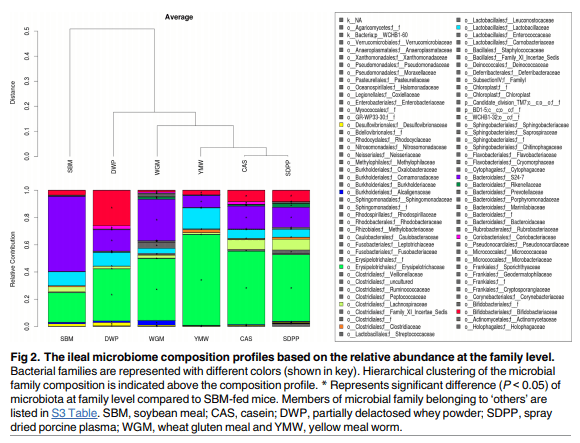

To investigate the dietary effects on intestinal microbiota, we performed 16S rRNA gene sequencing on ileal digesta of six mice per group. Details of sequence reads count and the number operational taxonomic unit (OTU) are given in online supporting material (S3 Fig). Further analysis revealed that the microbiota composition was significantly different among all dietary treatments (Figs 2 and 3). Hierarchical clustering analysis indicated that the microbial profile of SBM-fed mice was significantly different (P < 0.05) from the other dietary groups (Fig 2). The protein source had substantial effect on the Firmicutes to Bacteroidetes ratio of SBM-fed mice was inverted as compared to all the other experimental diets fed mice (Fig 3C). An opposite effect was observed in the YMW-fed group, having an increased Firmicutes to Bacteroidetes ratio compared to other groups. As these two phyla constitute up to 90% of the microbiota we analyzed their family structure in more detail (Fig 3D and 3E).

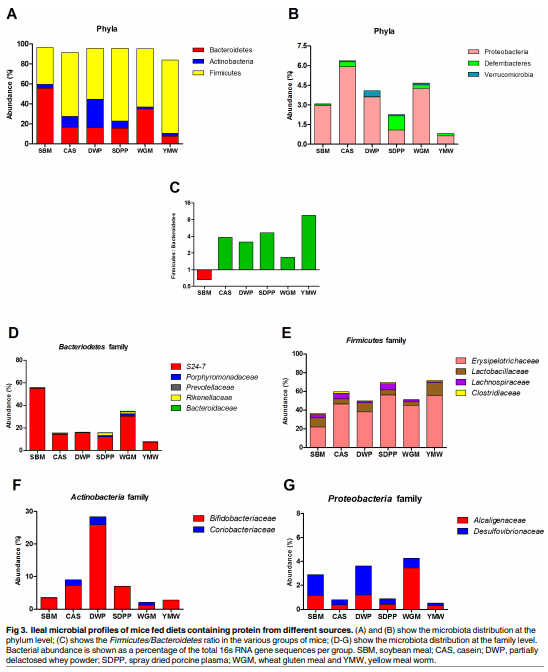

Within the Bacteroidetes, the proportion of the S24-7 family was largely increased (Fig 3D) in SBM and WGM-fed mice. The Erysipelotrichaceae family (Firmicutes) was reduced by 16.4% and 34.5% in the SBM group as compared to the DWP and SDPP groups, respectively (Fig 3E). The Bifidobacteriaceae family (Actinobacteria) was increased by 22.5%, 3.8% and 3.5% in the DWP, CAS and SDPP groups as compared to the SBM group (Fig 3F). In the phylum Proteobacteria, the Alcaligenaceae family only increased in the WGM group by 2.3% compared to the SBM group (Fig 3G). The abundance of Bifidobacteriaceae was substantially increased in the mice fed de-lactosed whey protein, which may have been due to presence of milk oligosaccharides which are known to have a prebiotic effect on Bifidobacterium species. The proportions of several other families were also affected by the various diets (Figs 2 and 3).
Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine - Image 1

Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine - Image 2
Protein source influences mTORC1 activity and amount of mTOR protein in ileum tissue

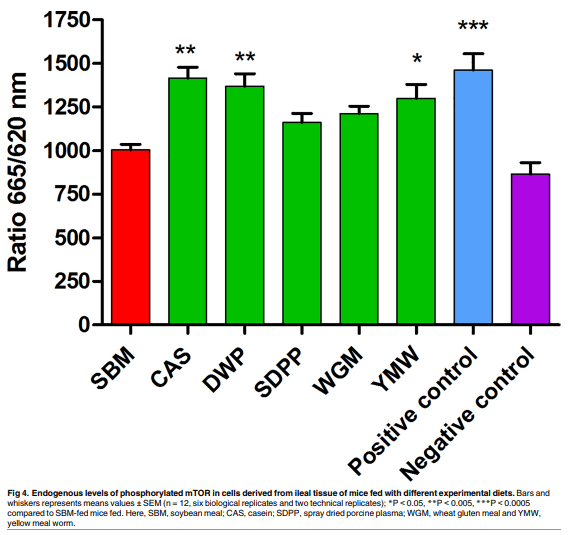

Endogenous levels of phosphorylated mTOR in cells derived from ileal tissue of mice fed with SBM diet (the most common source of animal protein) was lowest among all the dietary treatments. The level of phosphorylated mTOR in mice fed with SBM diet was significantly lower compare to CAS-, DWP- and YMW-fed mice (Fig 4). This result suggests that the different protein sources provide different levels nutrients to the epithelial and other cells of the ileum tissue and hence mTOR phosphorylation and activity
Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine - Image 3

Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine - Image 4
To investigate whether this might be due to altered expression of mTOR we used antibodies against mTOR to detect the protein in section of ileal tissue from mice fed protein sources diets. Only background levels of staining were seen in sections from mice fed the SBM diet whereas strongest staining of mTOR was observed in the samples with high mTORC1 activity (Fig 5). This suggests that levels of mTOR protein expression correlate with mTOR activity and that protein expression may be increased following activation of mTOR, possibly via an autoregulatory mechanism. mTOR staining was strongest in epithelial cells, suggesting they contribute most to the activity measured in the mTOR activity assay and differential expression mTOR pathway in the transcriptomics data sets.
Systemic cytokines and chemokines

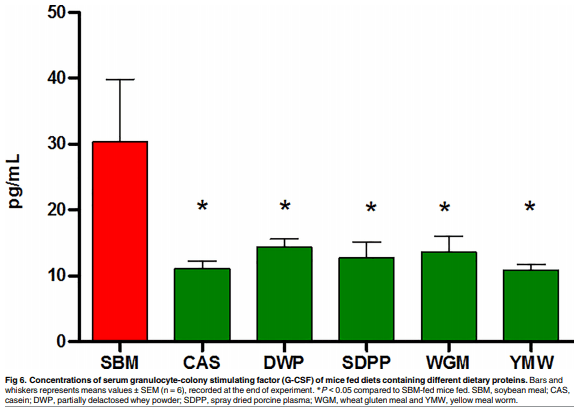

To investigate whether the mTOR activity induced by the different diets resulted in any changes in systemic immunity we measured a panel of cytokines and chemokines in the serum of mice from each dietary group (S4 Fig). The serum concentration of EOTAXIN, granulocyte-colony stimulating factor (G-CSF), granulocyte-macrophage colony-stimulating factor (GM-CSF), interferon gamma (IFN-γ), interleukin-2 (IL-2), IL-5, IL-6, IL-12p70, IL-13, monocyte chemotactic and activating factor-1 (MCP-1) and macrophage inflammatory protein-1β (MIP-1β) were significantly different (P < 0.05) in at least one of the experimental dietary groups as compared to SBM (S4 Fig). One notable finding was that mice which received SBM recorded two to three times higher (P < 0.05) serum concentrations of G-CSF than groups of mice that received the other experimental diets (Fig 6). Furthermore, significant lower (P < 0.05) concentration of GM-CSF, IL-6, IL-13, MCP and MIP-1β were observed in mice fed with WGM based diet compared to SBM.
Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine - Image 5
Discussion
The protein sources used in the experimental diets varied slightly in energy values and nutrient composition, meaning that differences in the growth and feed intake parameters cannot be directly compared between diets. However, in other respects, the diets reflect more accurately the use of these novel protein sources in formulated animal feeds and thus can be expected to reveal diet-related differences in intestinal physiology through transcriptomics and biochemical assays performed on tissue and serum. DWP-fed mice showed a significantly lower feed intake compared to SBM-fed mice and had a lower body weight gain over the experimental period as compared to the other groups. This agrees with previous observations showing that compared to CAS, whey proteins, increase the plasma levels of cholecystokinin and glucagonlike peptide-1 which are linked to satiety [41]. Alternatively, a possible explanation for the reduced body weight in the DWP-fed group could be the high electrolyte balance compare to other experimental diets, related to a high concentration of potassium and high concentrations of other minerals, especially calcium, in the DWP-based diet. Pilvi and colleagues showed that a high calcium diet with whey protein decreased body weight gain in high-fat-fed C57Bl/6J mice [42]. Funkat and colleague reported that mice fed a high fat (60%) diet gain more body weight than mice fed a standard chow diet [43]. We speculate that the higher proportion of fat in YMW (160 g/kg vs. < 90 g/kg for the diets in the other treatments), may have promoted satiety levels via one of the gut lipid sensing system resulting in the observed lower feed intake [44]. This might explain reduced feed intake but normal body weight of mice in the YMW group although, further research would be needed to determine the mechanisms involved.

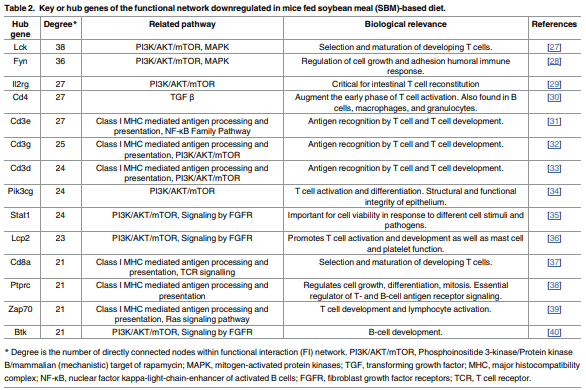

The ileal transcriptomics data revealed striking differences between groups of mice on the SBM diet and the mice fed diets containing different protein sources. In comparison to the other protein sources, 14 hub genes in gene networks associated with antigen presentation, mTOR signaling and TGFα expression were down-regulated in the mice on the SBM diet. Functionally these genes are of particular relevance to mTOR pathway which has a role in cellular differentiation and proliferation of epithelial cells as well as T cells, B cells and antigen presenting cells in the intestinal lamina propria (Table 2). Activation of mTOR pathway plays a key role in shaping and controlling the effector responses of immune cells associated with innate and adaptive immune responses through coupling these events to intracellular metabolic status and environmental nutrients [45].
To investigate whether the relative down-regulation of gene transcription associated with mTOR regulated cellular processes in SBM-fed mice was linked to reduced mTOR activity, we measured the amount of active phosphorylated mTOR in ileal tissue samples. Indeed, the amounts of phosphorylated mTOR was lowest in mice fed with SBM diet and was significantly lower compared to CAS-, DWP- and YMW-fed mice (Fig 4). Concentrations of amino acids are known to regulate mTOR activity suggesting that the digestibility of the proteins in vivo may be influencing the amount of nutrients available to epithelial and other cells of the ileum tissue. Thus, for further understanding of the underlining bio-molecular mechanisms influenced by the dietary protein sources, it is essential to generate in vivo data towards kinetics of protein degradation and amino acid digestibility. Understanding of how amino acid levels are influencing mTORC1 activity has only recently come to light and it is possible that other, as yet unknown nutrients, including microbial metabolites may influence mTORC1 activity. Apart from nutrients, various growth factors and cytokines can participate in the regulation of mTOR pathways, which might also be influenced by the diet or indirectly by effect of diet on the microbiota.
Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine - Image 6
Histological detection of mTOR with an anti-mTOR antibody showed least reactivity in the ileum tissue sections of SBM fed mice, which is consistent with the mTOR activity results. As far as we are aware, a correlation between mTOR protein expression and mTOR activity has not, been previously reported, and may be due to an autoregulatory mechanism involving mTOR activation.
As the effects of the SBM diet on mTOR and immunity pathways in the ileal mucosal might be influenced by cross-talk with the microbiota, we analyzed the effects of diet on the ileal microbiota composition by 16S rRNA gene sequencing. Protein source substantially altered the microbiota at phylum and family level, the most striking change being the lowest ratio of Firmicutes to Bacteroidetes phyla in the SBM-fed group (Fig 3C). Bacteroidetes was the most abundant phylum (~55.9%) in the SBM fed group of mice followed by WGM (34.8%) and lowest abundance was seen in the YMW group (7.7%) (Fig 3D). Within the Bacteroidetes phylum, the genus Bacteroides are known to possess a large number of genes encoding for enzymes involved in the degradation and fermentation of a variety of different carbohydrates [46]. Traditionally, SBM is considered to contain several complex carbohydrates, which includes nonstarch polysaccharides (NSP). Thus the NSP from SBM may have caused the blooming of members in Bacteroidetes phylum, the most significant being the S24-7 family
Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine - Image 7

Dietary protein sources differentially affect microbiota, mTOR activity and transcription of mTOR signaling pathways in the small intestine - Image 8
One consequence of an increased abundance of Bacteroidetes could be altered signaling through the pattern recognition receptor nucleotide-binding, oligomerization domain-containing protein-1 (Nod1), which recognizes meso-diaminopimelic acid-containing peptidoglycan found predominantly in Gram-negative bacteria) and Nod2 which is expressed in Paneth cells in the intestinal epithelium detects peptidoglycan structures found in both Gram-positive and Gram-negative bacteria. Peptidoglycan molecules from the gut has been shown to translocate to the circulation and enhance innate functions of neutrophils [47]. Furthermore, Nod1 but not Nod2 has been shown to induce expression of multiple hematopoietic cytokines in bone marrow mesenchymal stromal cells in vitro. In vivo administration of NOD1 influences the numbers of hematopoietic stem cells and precursors in bone marrow. Interestingly, greater amounts of G-CSF which can mobilize hematopoietic stem cells from the bone marrow into the blood were detected in the serum of SBM-fed group of mice than the mice on other diets. This intriguing observation may be linked to differences in circulating levels of peptidoglycan ligands in mice fed different diets and warrants future investigation into bone marrow hematopoiesis and numbers of circulating granulocytes.
Although the mice fed with YMW based diet consumed significantly less feed compared to mice in the SBM group, the body weight of the mice in both groups were similar. An increase of the Firmicutes to Bacteroides ratio in YMW fed mice (Fig 3C) is a microbiome signature found in studies on obese mice [48]. An increased Firmicutes to Bacteroides ratio in mice has been associated with enhanced energy extraction from the diet leading to adiposity and weight gain in weaned and adult mice [49]. The DWP-fed mice showed an increase of microbes belonging to the Actinobacteria phylum and mainly driven by bacteria belonging to Bifidobacteriaceae family. This is most probably due to the high sugar (lactose and milk oligosaccharide) content of the diet prepared with DWP. It has been shown that infant-associated Bifidobacterium spp. efficiently metabolize several low-mass milk oligosaccharides for growth and possess large gene clusters encoding enzymes involved in (milk) oligosaccharide metabolism [50].
SBM is a commonly used source of protein for animal feed and yet results in lower mTOR protein and activity in the small intestinal mucosa, suggesting energy levels may be lower than alternative protein sources. In the future, microbiota transfer experiments in germ-free mice, detailed characterization of immune cell populations in the intestinal lamina propria and studies with highly purified fractions of the SBM component of the diet may help to elucidate the cause of the observed effects and the consequences for health.
Acknowledgments
We thank Mark Boekschoten and Guido Hooiveld of Human Nutrition, Wageningen University and Research for expertise and help with microarray. Additionally, we want to thank Frank Harders from Central Veterinary Institute, Lelystad, The Netherlands for expertise and help with the Illumina Mi-Seq sequencing. Marjolein Meijerink from the Host-Microbe Interactomics Group, Wageningen University and Research for extending her help with ethical conduct of this experiment.
This article was originally published in PLoS ONE 12(11): e0188282. https://doi.org/10.1371/journal. pone.0188282. This is an Open Access article distributed under the terms of the Creative Commons Attribution License.

1. Capper J, Berger L, Brashears M, Jensen H. Animal Feed vs. Human Food: Challenges and Opportunities in Sustaining Animal Agriculture Toward 2050. Council for Agricultural Science and Technology (CAST). 2013;(Issue paper 53. CAST).

2. Jahan-Mihan A, Luhovyy BL, Khoury DE, Anderson GH. Dietary Proteins as Determinants of Metabolic and Physiologic Functions of the Gastrointestinal Tract. Nutrients. 2011; 3(5):574–603. https://doi.org/ 10.3390/nu3050574 PMID: 22254112

3. Herna´ndez-Ledesma B, del Mar Contreras M, Recio I. Antihypertensive peptides: production, bioavailability and incorporation into foods. Advances in colloid and interface science. 2011; 165(1):23–35. https://doi.org/10.1016/j.cis.2010.11.001 PMID: 21185549

4. Chobert J-M. Milk protein modification to improve functional and biological properties. Advances in food and nutrition research. 2003; 47:1–73. PMID: 14639781

5. Kar SK, Jansman AJM, Boeren S, Kruijt L, Smits MA. Approximation of the amino acid composition and bio-functional properties of current and novel protein sources for pigs. J Anim Sci. 2016; 94:30–9. https://doi.org/10.2527/jas2015-9677

6. Karr-Lilienthal LK, Kadzere CT, Grieshop CM, Fahey GC. Chemical and nutritional properties of soybean carbohydrates as related to nonruminants: A review. Livestock Production Science. 2005; 97 (1):1–12. https://doi.org/10.1016/j.livprodsci.2005.01.015

7. Madureira AR, Pereira CI, Gomes AMP, Pintado ME, Malcata FX. Bovine whey proteins—Overview on their main biological properties. Food Research International. 2007; 40(10):1197–211.

8. van Neerven RJJ, Knol EF, Heck JML, Savelkoul HFJ. Which factors in raw cow’s milk contribute to protection against allergies? Journal of Allergy and Clinical Immunology. 2012; 130(4):853–8. https://doi. org/10.1016/j.jaci.2012.06.050 PMID: 22939757

9. Gao YY, Jiang ZY, Lin YC, Zheng CT, Zhou GL, Chen F. Effects of spray-dried animal plasma on serous and intestinal redox status and cytokines of neonatal piglets. J Anim Sci. 2011; 89(1):150–7. https://doi.org/10.2527/jas.2010-2967 PMID: 20817859

10. Ruth MR, Field CJ. The immune modifying effects of amino acids on gut-associated lymphoid tissue. Journal of Animal Science and Biotechnology. 2013; 4. https://doi.org/10.1186/2049-1891-4-27 PMID: 23899038

11. Ghaly AE, Alkoaik F. The yellow mealworm as a novel source of protein. American Journal of Agricultural and Biological Sciences. 2009; 4(4):319–31.

12. Dibble CC, Manning BD. Signal integration by mTORC1 coordinates nutrient input with biosynthetic output. Nat Cell Biol. 2013; 15(6):555–64. https://doi.org/10.1038/ncb2763 PMID: 23728461

13. Pingitore A, Lima GPP, Mastorci F, Quinones A, Iervasi G, Vassalle C. Exercise and oxidative stress: potential effects of antioxidant dietary strategies in sports. Nutrition (Burbank, Los Angeles County, Calif). 2015; 31(7–8):916–22. https://doi.org/10.1016/j.nut.2015.02.005 PMID: 26059364

14. Liu RH. Health benefits of fruit and vegetables are from additive and synergistic combinations of phytochemicals. Am J Clin Nutr. 2003; 78(3 Suppl):517S–20S.

15. Heuze´ V, Tran G, Kaushik S. Soybean meal. Feedipedia, a programme by INRA, CIRAD, AFZ and FAO. 2016 [updated 27.10.2016].

16. Gilbert R, editor World Animal Feed Industry. Protein sources for the animal feed industry; 2004; FAO, UN, Rome: Agriculture and consumer protection.

17. Sovran B, Loonen LMP, Lu P, Hugenholtz F, Belzer C, Stolte EH, et al. IL-22-STAT3 Pathway Plays a Key Role in the Maintenance of Ileal Homeostasis in Mice Lacking Secreted Mucus Barrier. Inflammatory Bowel Diseases. 2015; 21(3):531–42. https://doi.org/10.1097/MIB.0000000000000319 PMID: 25636123

18. Subramanian A, Tamayo P, Mootha VK, Mukherjee S, Ebert BL, Gillette MA, et al. Gene set enrichment analysis: A knowledge-based approach for interpreting genome-wide expression profiles. Proc Natl Acad Sci U S A. 2005; 102(43):15545–50. https://doi.org/10.1073/pnas.0506580102 PMID: 16199517

19. Heberle H, Meirelles GV, da Silva FR, Telles GP, Minghim R. InteractiVenn: a web-based tool for the analysis of sets through Venn diagrams. Bmc Bioinformatics. 2015; 16.

20. Shannon P, Markiel A, Ozier O, Baliga NS, Wang JT, Ramage D, et al. Cytoscape: A software environment for integrated models of biomolecular interaction networks. Genome Research. 2003; 13 (11):2498–504. https://doi.org/10.1101/gr.1239303 PMID: 14597658

21. Maere S, Heymans K, Kuiper M. BiNGO: a Cytoscape plugin to assess overrepresentation of gene ontology categories in biological networks. Bioinformatics. 2005; 21(16):3448–9. https://doi.org/10. 1093/bioinformatics/bti551 PMID: 15972284

22. Croft D, Mundo AF, Haw R, Milacic M, Weiser J, Wu G, et al. The Reactome pathway knowledgebase. Nucleic Acids Research. 2014; 42(D1):D472–D7.

23. Schokker D, Veninga G, Vastenhouw SA, Bossers A, de Bree FM, Kaal-Lansbergen LMTE, et al. Early life microbial colonization of the gut and intestinal development differ between genetically divergent broiler lines. BMC Genomics. 2015. https://doi.org/10.1186/s12864-015-1646-6 PMID: 26017153

24. Ramiro-Garcia J, Hermes G, Giatsis C, Sipkema D, Zoetendal E, Schaap P, et al. NG-Tax, a highly accurate and validated pipeline for analysis of 16S rRNA amplicons from complex biomes F1000Research. 2016; 5. https://doi.org/10.12688/f1000research.9227.1

25. Quast C, Pruesse E, Yilmaz P, Gerken J, Schweer T, Yarza P, et al. The SILVA ribosomal RNA gene database project: improved data processing and web-based tools. Nucleic Acids Research. 2013. https://doi.org/10.1093/nar/gks1219 PMID: 23193283

26. Caporaso JG, Kuczynski J, Stombaugh J, Bittinger K, Bushman FD, Costello EK, et al. QIIME allows analysis of high-throughput community sequencing data. Nature Methods. 2010; 7(5):335–6. https:// doi.org/10.1038/nmeth.f.303 PMID: 20383131

27. Van Laethem F, Tikhonova AN, Pobezinsky LA, Tai X, Kimura MY, Le Saout C, et al. Lck availability during thymic selection determines the recognition specificity of the T cell repertoire. Cell. 2013; 154 (6):1326–41. https://doi.org/10.1016/j.cell.2013.08.009 PMID: 24034254

28. Chaimowitz NS, Falanga YT, Ryan JJ, Conrad DH. Fyn Kinase Is Required for Optimal Humoral Responses. PLoS One. 2013; 8(4).

29. Scheeren FA, Kuo AH, van Weele LJ, Cai S, Glykofridis I, Sikandar SS, et al. A cell-intrinsic role for TLR2-MYD88 in intestinal and breast epithelia and oncogenesis. Nat Cell Biol. 2014; 16(12):1238–48. https://doi.org/10.1038/ncb3058 PMID: 25362351

30. Fujiwara D, Chen L, Wei B, Braun J. Small intestine CD11c+ CD8+ T cells suppress CD4+ T cellinduced immune colitis. Am J Physiol Gastrointest Liver Physiol. 2011; 300(6):G939–47. https://doi.org/ 10.1152/ajpgi.00032.2010 PMID: 21436315

31. Bettini ML, Guy C, Dash P, Vignali KM, Hamm DE, Dobbins J, et al. Membrane association of the CD3ε signaling domain is required for optimal T cell development and function. J Immunol. 2014; 193(1):258– 67. https://doi.org/10.4049/jimmunol.1400322 PMID: 24899501

32. Haks MC, Pe´pin E, van den Brakel JHN, Smeele SAA, Belkowski SM, Kessels HWHG, et al. Contributions of the T Cell Receptor–associated CD3γ–ITAM to Thymocyte Selection. J Exp Med. 2002; 196 (1):1–13. https://doi.org/10.1084/jem.20020268 PMID: 12093866

33. Boding L, Nielsen MW, Bonefeld CM, von Essen MR, Nielsen BL, Lauritsen JPH, et al. Polymorphisms of the T cell receptor CD3delta and CD3epsilon chains affect anti-CD3 antibody binding and T cell activation. Mol Immunol. 2010; 47(15):2450–7. https://doi.org/10.1016/j.molimm.2010.06.012 PMID: 20638133

34. Ladygina N, Gottipati S, Ngo K, Castro G, Ma J-Y, Banie H, et al. PI3Kγ kinase activity is required for optimal T-cell activation and. Eur J Immunol. 2013; 43(12):3183–96. https://doi.org/10.1002/eji. 201343812 PMID: 24030559

35. Leopold Wager CM, Hole CR, Wozniak KL, Olszewski MA, Wormley FL Jr. STAT1 signaling is essential for protection against Cryptococcus neoformans infection in mice. J Immunol. 2014; 193(8):4060–71. https://doi.org/10.4049/jimmunol.1400318 PMID: 25200956

36. Siggs OM, Miosge LA, Daley SR, Asquith K, Foster PS, Liston A, et al. Quantitative reduction of the TCR adapter protein SLP-76 unbalances immunity and immune regulation. J Immunol. 2015; 194 (6):2587–95. https://doi.org/10.4049/jimmunol.1400326 PMID: 25662996

37. Wang X, Sumida H, Cyster JG. GPR18 is required for a normal CD8alphaalpha intestinal intraepithelial lymphocyte compartment. J Exp Med. 2014; 211(12):2351–9. https://doi.org/10.1084/jem.20140646 PMID: 25348153

38. Germena G, Volmering S, Sohlbach C, Zarbock A. Mutation in the CD45 inhibitory wedge modulates integrin activation and leukocyte recruitment during inflammation. J Immunol. 2015; 194(2):728–38. https://doi.org/10.4049/jimmunol.1401646 PMID: 25505282

39. Schim van der Loeff I, Hsu L-Y, Saini M, Weiss A, Seddon B. Zap70 is essential for long-term survival of naive CD8 T cells. J Immunol. 2014; 193(6):2873–80. https://doi.org/10.4049/jimmunol.1400858 PMID: 25092893

40. Ni Gabhann J, Hams E, Smith S, Wynne C, Byrne JC, Brennan K, et al. Btk regulates macrophage polarization in response to lipopolysaccharide. PLoS One. 2014; 9(1):e85834. https://doi.org/10.1371/ journal.pone.0085834 PMID: 24465735

41. Hall WL, Millward DJ, Long SJ, Morgan LM. Casein and whey exert different effects on plasma amino acid profiles, gastrointestinal hormone secretion and appetite. Br J Nutr. 2003; 89(2):239–48. https:// doi.org/10.1079/BJN2002760 PMID: 12575908

42. Pilvi TK, Korpela R, Huttunen M, Vapaatalo H, Mervaala EM. High-calcium diet with whey protein attenuates body-weight gain in high-fat-fed C57Bl/6J mice. Br J Nutr. 2007; 98(5):900–7. https://doi.org/10. 1017/S0007114507764760 PMID: 17692148

43. Funkat A, Massa CM, Jovanovska V, Proietto J, Andrikopoulos S. Metabolic adaptations of three inbred strains of mice (C57BL6, DBA/2, and 129T2) in response to a high-fat diet. Journal of Nutrition. 2004; 134(12):3264–9. PMID: 15570023

44. Lee CY. The Effect of High-Fat Diet-Induced Pathophysiological Changes in the Gut on Obesity: What Should be the Ideal Treatment? Clinical and Translational Gastroenterology. 2013. https://doi.org/10. 1038/ctg.2013.11 PMID: 23842483

45. Weichhart T, Hengstschlager M, Linke M. Regulation of innate immune cell function by mTOR. Nat Rev Immunol. 2015; 15(10):599–614. https://doi.org/10.1038/nri3901 PMID: 26403194

46. Flint HJ, Scott KP, Duncan SH, Louis P, Forano E. Microbial degradation of complex carbohydrates in the gut. Gut microbes. 2012; 3(4):289–306. https://doi.org/10.4161/gmic.19897 PMID: 22572875

47. Clarke TB, Davis KM, Lysenko ES, Zhou AY, Yu Y, Weiser JN. Recognition of peptidoglycan from the microbiota by Nod1 enhances systemic innate immunity. Nature medicine. 2010; 16(2):228–31. https:// doi.org/10.1038/nm.2087 PMID: 20081863

48. Ley RE, Backhed F, Turnbaugh P, Lozupone CA, Knight RD, Gordon JI. Obesity alters gut microbial ecology. Proc Natl Acad Sci U S A. 2005; 102(31):11070–5. https://doi.org/10.1073/pnas.0504978102 PMID: 16033867

49. Ley RE, Turnbaugh PJ, Klein S, Gordon JI. Microbial ecology: human gut microbes associated with obesity. Nature. 2006; 444(7122):1022–3. https://doi.org/10.1038/4441022a PMID: 17183309

50. Sela DA, Mills DA. Nursing our microbiota: molecular linkages between bifidobacteria and milk oligosaccharides. Trends in microbiology. 2010; 18(7):298–307. https://doi.org/10.1016/j.tim.2010.03.008 PMID: 20409714
