Issues with extrusion

Published: December 20, 2021
By: Tanatat

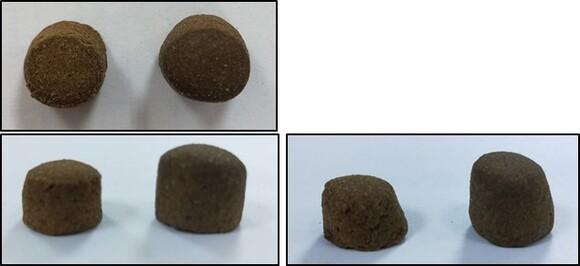

We trial products with high fat. The fat before extruding around 7-8%. Using a single screw with high shear screw configuration and with die design for floating fish. The issue with the product is the size between the front and end is not symmetrical. What is the root cause of this issue? Is that from machine process or raw material?

Related topics:
Authors:
Tanatat
Inteqc group
Influencers who recommended :
Sankaran Suresh Sundaram
Recommend
Comment
Share
Faizan Ali
20 de diciembre de 2021

What's the moisture of the mix before extrusion?

Recommend
Reply
Tanatat
Tanatat
Author
Inteqc group
21 de diciembre de 2021
Faizan Ali The moisture before extrusion 22-26% after extrusion 18-22%
Recommend
Reply
Faizan Ali
21 de diciembre de 2021

Tanatat. Could you please state the moisture of the mix before the preconditioner? Have you included any starch source for firm texture?

Recommend
Reply
Tanatat
Tanatat
Author
Inteqc group
24 de diciembre de 2021
Faizan Ali The mix moisture around 8%. The starch source we use normally starch like from corn.
Recommend
Reply
Faizan Ali
24 de diciembre de 2021
Tanatat you can play with the potato or topioca starch for more firm structure of pellet or texture with 1 to 2 % and see results..
Recommend
Reply
Sankaran Suresh Sundaram
12 de marzo de 2022
I should think the die design could be the problem in the cutter, If extrusion process is complete and cooking has taken place to the desired extent then the vagaries of pellet shape front being larger than the rear might not have anything to the recipe. Dry Extrusion can process recipe vontsining just 7 to 8 % without any problem. Also the thickness of the die plate would be minimal and therefore the time taken for the extrudate will not alter unless the moisture content various in the feed stock. The only way it can happen is when the die has a taper where each hole for drilled has a taper in the wrong direction. Usually a taper is provided but if the product expands then the die holes need to be looked into
Recommend
Reply
Sankaran Suresh Sundaram
12 de marzo de 2022
Sankaran Suresh Sundaram On extrusion cooking being completed the starch should bind the product string enough not allow any variation in expansion. However it is very unlikely that product expansion alone is the problem. One would have to look at the die plate and die holes more closely. Take a product like kurkure, which has multiple expandable starches will surely have this same variation.
Recommend
Reply
Tanatat
Tanatat
Author
Inteqc group
2 de junio de 2022
Sankaran Suresh Sundaram For the die plate I'm not sure that which factor is the main one that i should change to solve this issue. Like the picture above we use die diameter 7 mm with 33 holes and the die land about 4 mm. thckness.
Recommend
Reply
D.V.Sambasivarao
23 de diciembre de 2021
I think that shape variations will be come due to die hole land position may be wornout or land height is not sufficient for bigger dia extruder pellets..
Recommend
Reply
Tanatat
Tanatat
Author
Inteqc group
24 de diciembre de 2021
D.V.Sambasivarao Land height you mean same as land length right? Do you have number criteria for big diameter to be sufficient? We used diameter around 7 mm.
Recommend
Reply
D.V.Sambasivarao
25 de diciembre de 2021
Tanatat Yes..land height is nothing but a land vertical length..need to use land height more than normal for bigger dia pellets....and also it will depend on fat level and type of extruder ( single or twin screw)...you can use 5 mm land for 7 mm dia die in fat levels between 4% to 6%..
Recommend
Reply
Tanatat
Tanatat
Author
Inteqc group
29 de diciembre de 2021
D.V.Sambasivarao Ok thanks for your information. If the fat in formula is more(more than 6%) i have to increase the land length more right?
Recommend
Reply
D.V.Sambasivarao
25 de diciembre de 2021
Yes
Recommend
Reply
Tanatat
Tanatat
Author
Inteqc group
2 de junio de 2022
D.V.Sambasivarao Last time i testing more with the longer land length from 4 mm to 6 mm but the issue not been solve.I'm not sure that other factor that i need to be checking more?
Recommend
Reply
