Effect of Different Sources and Levels of some Dietary Biological Additives on:III- Body Composition of Nile Tilapia Fish

The first probiotics tested in fish were commercial preparations devised for land animals. Though some effects were observed with such preparations, the survival of these bacteria was uncertain in aquatic environment. Most attempts to propose probiotics have been undertaken by isolating and selecting strains from aquatic environment. These microbes were Vibrionaceae, pseudomonads, lactic acid bacteria, Bacillus spp. and yeasts. The most promising prospects are sketched out, but considerable efforts of research will be necessary to develop the applications to aquaculture (Gatesoupe, 1999). Aquaculture is one of the fastest developing growth sectors in the world. However, disease outbreaks are constraint to aquaculture production, thereby affects both economic development of the country and socio-economic status of the local people in many countries. Disease control in aquaculture industry has been achieved by following different methods using traditional ways, synthetic chemicals and antibiotics. However, the use of such expensive chemotherapeutants for controlling diseases has been widely criticized for their negative impacts like accumulation of residues, development of drug resistance, immunosuppressants and reduced consumer preference for aqua products treated with antibiotics and traditional methods are ineffective against controlling new diseases in large aquaculture systems. Therefore, alternative methods need to be developed to maintain a healthy microbial environment in the aquaculture systems there by to maintain the health of the cultured organisms. Use of probiotics is one of such method that is gaining importance in controlling potential pathogens (Sahu et al., 2008). Therefore, the present research aimed to study the effect of dietary graded levels of three pre-and probiotics on Nile tilapia quality (chemical composition and muscular histometry).

The experimental period was 16 weeks after 2 weeks adaptation period. All the experimental conditions, diets, and facilities were as mentioned before in Abdelhamid et al. (2013a). The 1st and 2nd additives used were the prebiotic Aqua Superzyme and the probiotic Garlen Allicin, each at 0.01, 0.02, and 0.03% of the diet. The 3rd additive used was the probiotic Diamond V-Original XPC at 0.4, 0.5, and 0.6% of the diet, besides the control without additives.

At the end of experimental period, three fish/treatment were taken for body composition analysis. The whole-fish body from the beginning and the end of the experiment were analyzed in triplicates. Fish samples were weighed and killed. To obtain a homogenous material for chemical analysis, fish carcass of each group was homogenized by a mixer and stored at -20oC until analysis. Samples of the homogenized fish carcass materials were taken for determination of dry matter. Chemical analysis of fish carcass was carried out according to the methods described by A.O.A.C. (1990) for dry matter, crude protein, ether extract, and ash. Nitrogen free extract (carbohydrate) content was calculated by subtraction the total percentages of CP, EE, CF and ash from 100. The gross energy contents of the fish samples were calculated by using factors of 5.65, 9.45 and 4.2 Kcal/g of protein, lipid and carbohydrate, respectively (NRC, 1993).

At the end of the experiment, fish were sacrificed and dorsal muscles were sampled. Samples were fixed in 10% neutralized formalin solution followed by washing with tab water, then dehydrated by different grades of alcohol (70, 85, 96 and 99%). Samples were cleared by xylene and embedded in paraffin wax. The wax blocks were sectioned to six micron. The sections were stained by hematoxyline (H) and eosin (E) (Roberts, 2001), and then subjected to a histometric examination for dorsal muscles according to Radu-Rusu et al. (2009).

Data obtained were analyzed using one-way analysis of variance which was performed according to SAS (2006). Differences were subjected to Duncan’s (1955) multible range test.

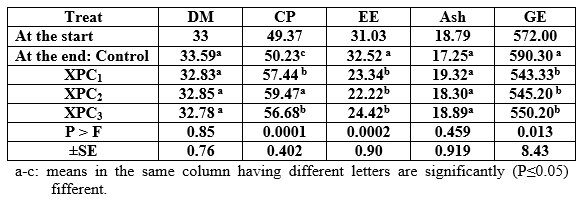

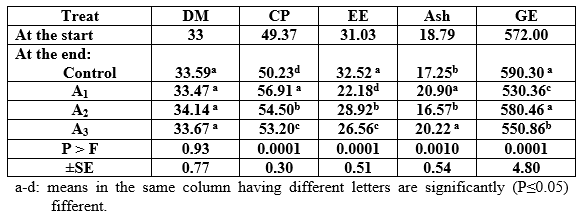

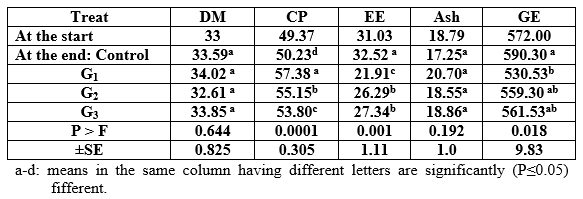

Data of chemical composition (% DM basis) of fish body at the start and at the end of the experimental period are shown in Tables 1-3 for those fed the Aqua Superzyme containing experimental diets, the Garlen Allicin probiotic containing experimental diets, and the Diamond V (Original XPC) probiotic containing experimental diets, respectively, concerning their dry matter (DM), crude protein (CP), ether extract (EE), and ash besides the energy content (GE).

The carcass composition concerning their DM, CP, and EE contents are increased by age advance, but the ash percentages decreas. At the end of the experiment, DM did not significantly (P≥0.05) influence by all dietary treatments; yet, A₁ and G₁ were responsable for the highest CP and ash percentages and the lowest EE and energy contents. Moreover, XPC₂ gave the highest (P≤0.05) level among its tested levels concerning CP and the lowest (P≤0.05) EE and energy contents, but ash was not affected (P≥0.05) as shon from Tables 1, 2 and 3, respectively. Table 4 shows that the best treatment (highest carcass crude protein and lowest ether extract percentages) was (3*2, XPC₂) by feeding fish the diet containing Diamond V-Original XPC at 0.5% of the diet.

El-Hadidy et al. (1993) studied die effect of experimental diets namely, brewers tefla, activated sludge, yeast and algae as maior contituents of Nile tilapia diets. Statistical analysis indicated that no significant differences were found in crude protein, lipids, ash, drymatter of the body as affected by experimental diets, except fish fed the sludge diet.

Noh et al. (1994) fed Isralli carp of 300 g body weight on basal diet composed of fish meal 9% soybean meal 47% wheat flour 36.05 maize gluten 3.6% and sardine oil 2% plus vitamins minerals supplements or that diet plus oxytetracyline 0.05% Nosiheptide, 0.1% Lactobacillus concentrate (Strepococcus faccium cencell 68), yeast culture (yeast culture on grain media) 0.5% or enzyme complex (alpha- amylase, beta glucanae, fluranase, pectinase endoprotease, exoprotease and cellulase) 0.05%. Increases in the body content of crude fat, crude fiber and niteogen freeextract were detected in case of treated groups.

Kobeisy and Hussein (1995) used Oreochromisniloticus to determine the effect of three concentrations of live yeast (5,10 or 20% of dietary DM) on body composition. The protein content of the fish body was significantly higher in fish fed diets containing yeast than in those fed control diets. Also, Adamek et al. (1996) found that the addition of the probiotic Ascogen at 0.62 and 2.5g/kg pelleted diet lo rainbow trout resulted in 11.2 and 12.1% in protein content of fish flesh, but reduced fat content of fish flesh by 42.9 and 45.8%, respectively compared with the basal diet given alone. Aseogen at 5g/kg diet had no positive effect on those values. Moreover, Khattab et al. (2004) and El-Haroun (2007) reported that dietary inclusion of Biogen^® significantlly increased crude protein content and decreased total lipids in whole fish body of Nile tilapia and African catfish, respectively.

 In an evaluation for the effects of graded levels of a new commercial probiotic Hydroyeast Aquaculture^® (0, 5, 10 and 15 g/Kg diet) on both sexes of adult Nile tilapia Oreochromisniloticus, on their carcass composition for 8 weeks, the obtained results showed that tested probiotic at level of 15 g /kg diet and 10 g /kg diet for adult males and females O.niloticus, respectively, realized slight improving of fish carcass composition. Hence, it could be concluded that Hydroyeast Aquaculture^® probiotic is useful at levels of 15 g /kg diet and 10 g /kg diet for enhancing production performance of adult males and females Nile tilapia (O. niloticus) respectively, so may be using of this probiotic led to economic efficiency especially, for fish farming and hatcheries (Khalil et al., 2013).

A negative relationship was noticed between CP and EE contents of fish body but a position relationship between CP and ash contents was recorded too (Abdelhamid et al., 2005 and 2007; and El-Ebiary and Zaki, 2003). Yet, El-Saidy et al. (1999) and El-Saidy and Gaber (2002) found that there was a positive correlation between crude protein and fat contents of the fish.

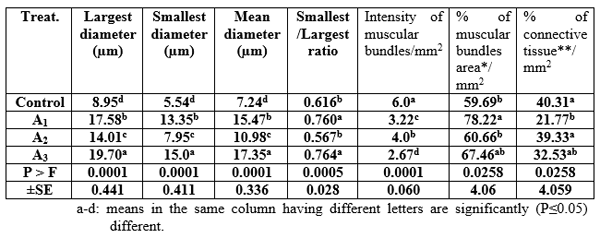

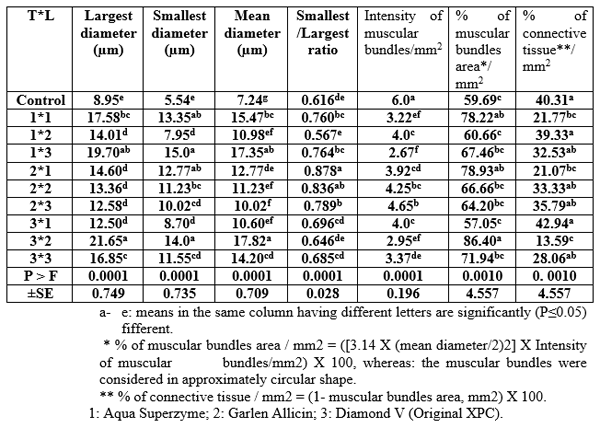

The following Tables 5-8 and Figures 1-3 present data of the histometric characteristics carried out on the dorsal muscles of experimental fish fed diets containing the pre-and probiotics Aqua Superzyme (A) prebiotic, Garlen Allicin (G), and Diamond V (Original XPC), respectively. All histomestic parameters were improved by the dietary inclusion of either pre-or probiotics. Yet, the best treatment realized improvement of these histometric characteristics of fish dorsal muscles compared with the control or other treatments was 3*2, i.e. the diet containing Diamond V (Original XPC) at 0.5% of the diet (Table 8).

 The results revealed that fish fed the high level of A prebiotic (A₃) followed by A₁ led to significantly (P≤0.05) increased the largest diameter (µm), smallest diameter (µm), mean diameter (µm), smallest/largest ratio and the percentage of muscular bundles area/mm² of dorsal muscles compared with the A₂ and control treatments, meanwhile, the intensity of muscular bundles/mm² significantly (P≤0.05) decreased in fish fed the A prebiotic compared with the control group. On the other hand, there was unclear trend in the percentageof interstitial connective tissue/mm² among all treatments (Table 5).

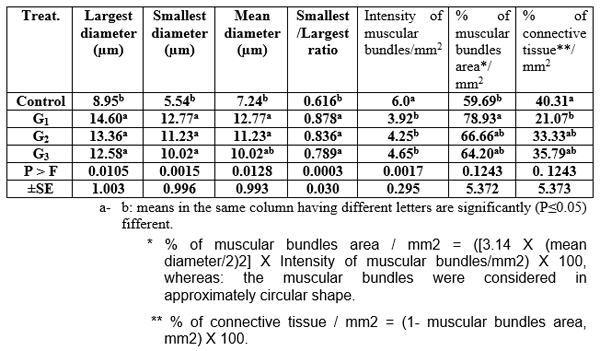

Also, Nile tilapia fed G probiotic significantly (P≤0.05) increased the largest diameter (µm), smallest diameter (µm), mean diameter (µm), smallest/largest ratio and the percentage of muscular bundles area/mm² of dorsal muscles compared with the control; however, the intensity of muscular bundles/mm² significantly (P≤0.05) decreased in fish fed the G compared with the control group. On the other hand, there was unclear trend in the percentageof interstitial connective tissue/mm² among all treatments (Table 6).

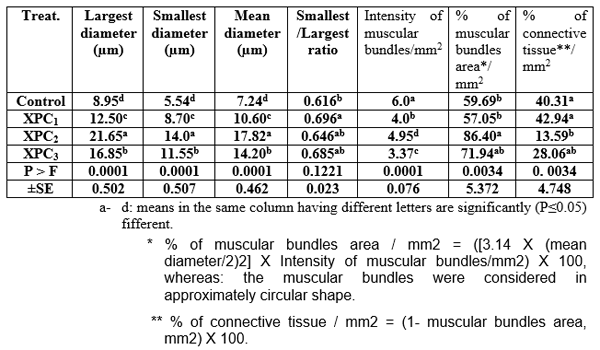

In addition, fish fed Diamond V (Original XPC)  probiotic revealed significantly (P≤0.05) increases in the largest diameter (µm), smallest diameter (µm), mean diameter (µm), and the percentage of muscular bundles area/mm² of dorsal muscles compared with the control treatment, meanwhile, the intensity of muscular bundles/mm² significantly (P≤0.05) decreased in fish fed the XPC prebiotic compared with the control group. On the other hand, there was unclear trend in smallest/largest ratio and the percentageof interstitial connective tissue/mm² among all treatments (Table 7).

Generally, it can be noted that dietary supplementation of experimental commercial pre- (A) and (G and XPC) probiotics led to improvement of the histometric characteristics of the dorsal muscles of fish compared with the control group, which fed the basal diet free from pre- or probiotics. These improvemrnts in the histometric parameters are positively corelated with the obtained results of different parameters concerning the growth performance, feed and nutrients utilization, difestibility, immunity, carcass composition, haematology, and economic evaluation. Also, these improvements are due to the contents of the tested pre-and probiotics, including: minerals, enzymes, amino acids, and benificial microorganisms (Abdelhamid et al., 2013a, b, and c).

Mean in the same column with different small superscripts letters are significantly (P≤0.05) different.

 * % of muscular bundles area / mm² = ([3.14 X (mean diameter/2)²] X Intensity of muscular bundles/mm²) X 100, whereas: the muscular bundles were considered in approximately circular shape.

** % of connective tissue / mm² = (1- muscular bundles area, mm²) X 100.



In this topic, the present findings are closed agree with those reported by Abdelhamid et al. (2004),they found that the O. niloticus group fed diet containing 1 kg Betafin^® / ton and 600 ml Biopolym^® / ton was the best treatment among all treatments concerning the muscular bundles and total surface area occupied by the muscular bundles/mm² mm² (least thickness of connective tissues between muscular bundles and thickness of skin and subcutaneous layer), and net return. Also, they added that the superiority of the histological structure of dorsal muscles in this treatment among all treatments was related with the high growth performance, feed and nutrients utilization and characteristics of fish production.

Moreover, Khalil et al. (2009) revealed that mono-sex O. niloticus fed diet containing 25% replacement of fish meal by supplemented jojoba meal Simmondsia chinensis with methionine and Biogen^® at level of 0.6 and 2.0 g/kg diet respectively (T₂), led to significantly (P ≤ 0.05) improved the histometric characteristics of the dorsal muscles of mono-sex O. niloticus compared with the control treatment (T₁).

Also, Mehrim (2009) reported that mono-sex O. niloticus fed basal diet supplemented with 3g Biogen^® Kg^-1 diet for 14 weeks significantly (P ≤ 0.05) improved histometric parameters of fish dorsal muscles among other treatments. In addition, Abdelhamid et al. (2009) found that African catfish fed diet containing 1 g T-Protphyt 2000 (a new patent local probiotic) / kg diet led to improvement of most histometric characteristics of the fish dorsal muscles compared with the control and other treatments.

 Also, Abdelhamid et al. (2009) showed that the diet containing 1 g/Kg probiotic reflected the best growth and feed utilization parameters. Increasing the probiotic level increased fish carcass protein, fat and energy contents, as well as RBCs, WBCs, and platelets.The same treatment led to improvement of most histometric characteristics of the dorsal muscles of African catfish compared with the control and other treatments. The results showed also positive effect of the probiotic at the two concentrations (120 & 240 mg) against all the tested bacteria (Aeromonas hydrophilla, Pseudomonas aeruginose, Pseudomonas fluorescent, Vibrio.sp, Klebsiella sp, Shigella sp, Salmonella sp, Proteus sp, and Escherichia coli).

 Fig. 3: Showing cross–section of muscular bundles and interstitial connective tissue of the dorsal muscles of mono-sex of Nile tilapia (O. niloticus) fed Diamond V (Original XPC)  probiotic, (a): control; (b): 0.04%; (c): 0.05%; (d): 0.06%  of the experimental diets. (X 400, H & E stains)

 REFERENCES

Abdelhamid, A. M.; Abd El-Khalek, A. E., Mostafa, M. A. A.,  Gomaah, S. A. A.  and  Khalil, F. F. M. (2004). Effect of using Betafin^® and/ or Biobolym® as natural additives in producing Nile tilapia fish in poly-culture semi-intensive system in earthen ponds. J. Agric. Sci. Mansoura Univ., 29: 3149 – 3162.

Abdelhamid, A.M.; El-Fadaly, H.A. and Ibrahim, S.M. (2007). Integrated aquaculture by bearing ducks on earthen fish ponds. Engormix. Com. Aquaculture Technical Articles.

Abdelhamid, A. M.;  Mehrim, A. I., El-Barbary, M. I.,  Ibrahim, S. M.  and Abdel-Wahab, A. I. (2009). Evaluation of a new Egyptian probiotic by African catfish fingerlings. Journal of Environmental Science and Technology, 2 (2): 133 – 145.

Abdelhamid, A.M., Salem, M.F.I. and Tolan, A.E. (2005).  Utilization of black seed meal (Nigella sativa) in Nile tilapia (Oreochromis niloticus) diets. J. Agric. Res. Tanta Univ., 31(3): 403-419.

Abdelhamid, A.M.; Seden, M.A.L. and Zenhom, O.A. (2013a). Effect of different sources and levels of some dietary biological additives on: I-  growth performance, feed utilization and digestibility besides the production economy of nile tilapia fish. Egypt. J. Animal and Poultry Production, Mansoura University, 4 (11): 615-634.

Abdelhamid, A.M.; M.E.A. Seden and O.A.Zenhom (2013b). Effect of different sources and levels of some dietary biological additives on: II- feed utilization by nile tilapia fish. J. Animal and Poultry Production, Mansoura University, 4 (11): 635-645.

Abdelhamid, A.M.; Refaey, M.M.A., M.E.A.Seden and Zenhom, O.A. (2013c). Effect of different sources and levels of some dietary biological additives on: IV-  immunity and haematology of nile tilapia fish. Egypt. J. Aquat. Biol. & Fish., (under publication).

Adamek,.Z.; Hamackova,J.; Kouril,J.; Vachta, R and Stibranyiova, I. (1996). Effect of Ascogen probiotics supplementation on farming success in rainbow trout (Oncorhynchus mykiss) and wels (Silurus glains) under conditions of intensive culture. Krmiva, 38: 11- 20.

A. O. A. C. (1990). Official Methods Analysis of Association of Official Analytical Chemists. 15^th  Ed .Published by the Association of the Analytical Chemists. North Nineteenth St. Auite 210 Arlingth, Virginia 2220 / USA.

Duncan, D. (1955). Multiple range tests and multiple F tests. Biometrics, II: 1-42.

El-Ebiary, E.H. and Zaki, M.A. (2003). Effect of supplementing active yeast to the diets on growth performance, nutrient utilization, whole body composition and blood constituents of monosex tilapia (Oreochromis niloticus). Egypt. J. Aquat. Biol. & Fish., 7(1): 127–139.

El-Hadidy, Z.A.; Abdullah, M.A.; Salama, D.A. and El-Kerdawey, A. (1993). Effect of untraditional dietary protein sources on some chemical compositions in Nile tilapia fish 4^th Conf. Agric. Dev. Res., Ain -Shams Univ., Cairo. 13-18.

EL-Haroun, E.R. (2007). Improved growth rate and feed utilization in farmed African catfish Clarias gariepinus (Burchell 1822) thought a growth promoter Biogen^® supplementation. Journal of Fisheries and Aquatic Science, 2: 319-327.

El-Saidy, D.M.S.D. and  Gaber, M.M.A. (2002).  Optimal dietary lipid levels for growth of Nile tilapia (Oreochromis niloticus L.) fry. Annals of Agric. Sci., Moshtohor, 40 (3): 1461 – 1473.

El-Saidy, D.M.S.D., Gaber, M.M.A. and Magouz, F.I. (1999).  Effect of dietary energy level on growth, feed conversion, body composition, digestibility coefficients and energy budget of Nile tilapia (Oreochromis niloticus). Egypt. J. Aquat. Biol. & Fish., 3 (3): 159–178.

Gatesoupe, F.J. (1999). The use of probiotics in aquaculture. Aquaculture, 180: 147 - 165.

Khalil, F.F., Farrag, F.H. and Mehrim, A.I. (2009). Evaluation of using Jojoba meal Simmondsia chinensis supplemented with methionine and Biogen^® instead of fish meal in diet for mono-sex Nile tilapia Oreochromis niloticus. Egyptian J. Nutrition and Feeds, 12 (1): 141-156.

Khalil, F.F.;  Mehrim, A.I. and Hassan, M.E.M. (2013). Effect of Hydroyeast Aquaculture as growth promoter for adult Nile tilapia Oreochromisniloticus. Engormix.com, 10 p.

Khattab, Y.A., Shalaby, A.M., Sharaf, S.M., El-Marakby, H.I.  and Rizk Alla, E.H. (2004). The physiological changes and growth performance of the Nile tilapia Oreochromis niloticus after feeding with Biogen^® as growth promoter. Egypt. J. Aquat. Biol. & Fish., 8 (2): 145 – 158. (ISSN: 1110-6131).

Kobeisy, M.A. and Hussein, S.Y. (1995). Influence of dietary live yeast on growth performance and some blood constituents in Oreochromis niloticus Proc.5^th Sci. Conf. Animal Nutrition, 12-12 Dec., P 417-425, Ismailia, Dec.

Mehrim, A.I. (2009). Effect of Dietary Supplementation of Biogen^® (Commercial Probiotic) on Mono-sex Nile tilapia Oreochromis niloticus Under Different Stocking Densities. Journal of Fisheries and Aquatic Science, 4 (6): 261-273.

National Research Council, (NRC) (1993). Nutrient Requirements of fish. National academy press. Washington. DC.

Noh, S.H.; Han, I.K.; Won. T.H. and Choi, Y.J. (1994). Effect of antibiotics, enzyme, yeast culture and probiotics on enzyme, yeast culture and probiotics on growth performance of Israeli Carp. Korean J. Animal Sci., 36: 480-486.

Radu-Rusu, R.M., Teusan, V. and Vacaru-Opris, I. (2009). Aspects Concerning The Histological Structure of The Biceps Brachialis Muscles in Chicken Broilers. Lucrari Stiintifice Seria Zootehnie, 52: 266 – 270.

Roberts, R.J. (2001). Fish pathology, 3^rd edn. WB. Saunders, Philadelphia, PA.

Sahu, M.K., Swarnakumar, N.S., Sivakumar, K., Thangaradjou, T. and Kannan, L. (2008). Probiotics in aquaculture: importance and future perspectives. Indian J. Microbiol., 10 p.

SAS (2006). SAS statistical guide for personal computer, SAS Institute Inc. Cary, NC.
