Effects of Cadmium Chloride and Glyphosate on Antioxidants as Biochemical Biomarkers in Nile Tilapia

Introduction

Fish was used as a bioindicators for the detection pollution of the aquatic environment [1]. Fish occupies the top of food chain and is the main source of protein without fats to keep people fit. Heavy metals transfer by water through fish causing diseases for consumers [2]. Nile tilapia is the most important and promising aquaculture fish species in Egypt, representing more than 80% of total tilapias production [3]. Egypt ranked the second in cultured tilapia's production directly after China [4]. Now, Oreochromis niloticus is the main cultured fish species in Egypt [5]. Tilapia species are a very important group of cultured fish for many causes as fast growth, adaptation with the least quality of water and salinity [6], Handling, food conversion, disease resistance and good consumer taste [7].

Bio-accumulation of heavy metals in aquatic organisms led to a strong threat to health [8]. Heavy metals from industries disturb the aquatic environment [9]. Laboratory and field studies illustrated that accumulation of heavy metals in tissues should depends on concentrations of metals, period of exposure and some environmental factors such as temperature of water, dissolved oxygen concentration, hydrogen ion concentration, hardness, salinity, alkalinity and dissolved organic carbon [10]. Cadmium is absorbed directly by organisms from water and accumulate in tissues of liver, stomach and gills of fish causing pathological changes [11].

Glyphosate, [N-(phosphoromethyl) glycine], is an herbicide used in agriculture to eliminate the growth of grasses, sedges and woodyshrubs [12]. It is used to eliminate aquatic weeds which, spread in the water of fish ponds, lakes and canals [13]. It is considered the most developed herbicide all over the world [14]. Glyphosate only has low toxic effect on aquatic organisms but commercial Roundup® has a more toxic effect due to the addition of polyoxyethylene amine (POEA) to its formulation [15]. POEA is responsible for ROS generation in freshwater fish Channa punctatus [16]. Glyphosate spreads in aquatic environment due to the crops along the water bodies. Thus, fish is considered as a bio-indicators for contamination with herbicide [17].

Oxidative stress means the difference between level of ROS “Reactive Oxygen Species” and the defensive ability of living organisms [18]. Antioxidants are chemical compounds contain monohydroxy and polyhydroxy phenol. They perform slow down the lipid peroxidation [19]. Herbicides led to damage the membrane lipids peroxidation causing injury and death of the cell [20]. Oxidation of polyunsaturated fatty acids is an important physiological process in cellular maturity called lipid peroxidation [21]. And lipid mobilization [22]. Xenobiotics caused cellular membrane damage as lipid peroxidation (LPO) [23]. Thus, LPO is considered as a bioindicator of oxidative damage of cellular components and ROS production cause oxidative damage for lipids and proteins [24]. Catalase is the most active antioxidant defence enzymes due to its easily combination with SOD and other H₂ O₂ producers. So, activity of CAT was analyzed in liver tissues of fish either by gel activity staining method or spectrophotometric biochemical method [25]. The activity of CAT high in almost all tissues, when compared with controls [26].

Superoxide dismutase is responsible for the dismutation of the superoxide anion radical to H₂ O₂ . Exposition of liver to pesticides or heavy metals led to inhibition activity of these enzymes [27]. Glutathione-S-transferase (GST) is an important enzyme to reduce glutathione and protect the cell against the effects of xenobiotics [28]. Xenobiotics, such as glyphosate induce redox cycling causing oxidative damage [29]. GST acts as catalytic agent in biotransformation process by conjugation of metabolites, as xenobiotic metabolites. Then, lipoperoxidation products with GSH convert toxic compound into other with low toxicity. Reduced glutathione (GSH) is considered as Non-enzymatic antioxidant in the cell and is a cofactor for the mechanism of GST and GPx [30]. Similarly, Shalaby et al., [31] showed that the biochemical changes in Nile tilapia after exposure glyphosate herbicide. The present study to evaluate the effects of CdCl₂ , glyphosate and their mixture on antioxidants as biomarkers in the Nile tilapia.

Materials and Methods

Determination of lethal concentration LC₅₀ through experiments

The freshwater fish Nile tilapia (Oreochromis niloticus) fingerlings were collected from a local farm of “Central Laboratory for Aquaculture Research”, Abo-Hammad, Sharkia, Egypt. The weight and the length were measured and scored of 32.0 ± 3.0g and 13.0 ± 2.0cm, respectively. Acclimatized fish were distributed in small aquaria to determine the 96h-LC₅₀ by OECD [32] and calculated by Weil [33]. The 96h-LC₅₀ were determined for CdCl₂ (132 mg/l), glyphosate (9.63 mg/l), CdCl₂ in mixture (41.30 mg/l) and glyphosate in mixture (2.75 mg/l), respectively were used in the first experiment. Second experiment used 1/4LC₅₀ in 8 days and 1/10LC₅₀ was used in 45 days through the third experiment. Three replicates were used for each experiment, as well as control.

The physicochemical parameters of experimental water

The physicochemical parameters of the water used during the experiment were: temperature 24-27° C, pH 7.81–7.89, nitrite 0.081– 0.242 mg/l, orthophosphate 0.042–0.17 mg/l, total ammonia 0.2–0.4 mg/l, dissolved oxygen concentration ranged from 7.3 to 7.8 mg/l, while total hardness ranged from 190 to 206 mg/l and total alkalinity ranged from 75 to 165 mg/l as CaCO₃. But the concentration of heavy metal in water was measured by atomic absorption apparatus such as Cu, Cd, Zn, Mn, Pb and Fe were 0.027 mg/l, 0.00 mg/l, 0.111 mg/l, 0.083 mg/l, 0.00 mg/l and 1.775 mg/l respectively. Where these results were within permissible limits.

Determination of oxidative parameters activity

Samples preparation: Fish homogenized with Teflon tissues. Homogenizing tissues on ice ensure that tissue remains cold. Fish sample liver and gills were homogenized in 10vol. (w/v) of ice cold 50mM potassium–phosphate buffer (homogenization buffer pH 7.4) with a stable number of strokes and centrifuged at 10000 rpm for 20 min. at 4° Cto obtain the supernatant for oxidative stress markers (SOD; MDA; GSH; GST and CAT).

Catalase activity in tissues: Catalase activity (CAT) in liver and gills tissues was determined according to the method of Aebi [34] in which the disappearance of hydrogen peroxide is followed spectrophotometrically at 240 nm where, the enzyme catalyzes the decomposition of H₂ O₂ into water and oxygen.

Superoxide dismutase activity in tissue: Superoxidedismutase (SOD) was determined according to the method of Marklund SL and Marklund G [35]. The method depends on the spontaneous autooxidation of pyrogallol at alkaline pH, and the production of superoxide anion radical O^2-. This enhances auto-oxidation of pyrogallol. Autooxidation is manifested by an increase in absorbance at 420 nm. The presence of SOD in the reaction medium leads to the removal of O^2-.

Determination of reduced glutathione: Reduced glutathione (GSH) was determined according to the method described by Beutler et al. [36] depends on the fact that both protein and non-protein SHgroup (mainly GSH) react with Ellman's reagent [5, 5'-dithiobis (2 nitrobenzoic acid)] (DTNB) to form a stable yellow color of 5-mercapto2-nitrobenzoic acid, which can be measured calorimetrically at 412nm.

Determination of glutathione S-transferase activity: The glutathione S-transferase activity was assayed spectrophotometrically using the method of Habig et al. [37] which is based on the measure of yellow color developed as a result of the conjugation of 1-choloro-2, 4-dinitrobenzen; (CDNB) with GSH at 340nm.

Determination of lipid peroxidation (MDA): Lipid peroxidation was assayed by the colorimetric method adopted by Ohkawa et al. [38]. This method defends on the reaction of lipid peroxides in liver and gill tissues with thiobarbituric acid at the optimum pH (3.5) at 95°C heating for 60 min. the produced red pigment then, estimated by the absorbance at 532 nm.

Statistical analysis

The experimental data were processed with SPSS 15.0 statistical software. One-way ANOVA (analysis of variance) was performed to estimate the differences between control and exposure fish to glyphosate or cadmium chloride and mixture. All data are presented as Mean ± S.E. (standard error of the mean). Statistically significant difference was set as p<0.05 [39].

Results and Discussion

Aquatic contamination by pesticides and heavy metals led to hazard effects on the growth, survival, reproduction of aquatic animals and cause mortality of fish in streams, lakes and ponds all over the world. Production of ROS can cause oxidative damage [40]. ROS can attack lipids, proteins and DNA in living cells led to disturbance in physiological cell processes [41,42]. So, data presented in Table 1 indicate that the effect of 96 h-LC₅₀ of glyphosate, CdCl₂ and mixture treatments on the activity of antioxidant enzymes due to oxidative stress on gills and liver of Oreochromis niloticus after 4 days.

Data of oxidative parameters for gills at short time of exposure 4 days with high concentration 96h-LC₅₀showed significantly reduced activity of SOD and CAT in mixture treatment followed by glyphosate and CdCl₂, respectively. High reduction activity of mixture treatment due to occurrence antagonistic effect between CdCl₂and glyphosate causing high oxidative stress. Reduction activity of glyphosate and CdCl₂due to short time exposure. Activity increased of GST in glyphosate treatment due to substance of POEA which added to glyphosate which causing oxidative stress but, nearly no significance in treatment of cadmium and mixture due to low oxidative stress. Also, no significance activity of GSH in all treatments due to short time of exposure. Activity of MDA significantly increased in glyphosate treatment followed by mixture and CdCl₂due to high oxidative stress where, oxidative stress of glyphosate due to high toxicity of emulsifier surfactant substance loaded but, in the case of mixture due to occurrence synergistic effect between CdCl₂and glyphosate herbicide also, activity of cadmium increased due to its high toxicity.

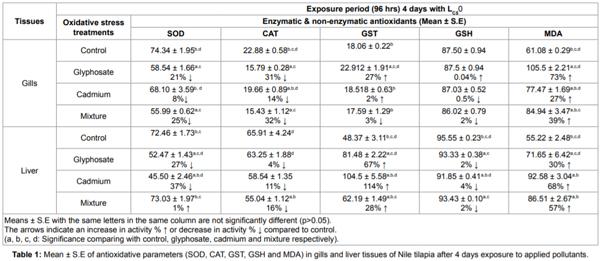

Effects of Cadmium Chloride and Glyphosate on Antioxidants as Biochemical Biomarkers in Nile Tilapia - Image 1

But, data of oxidative parameters for liver after short time of exposure 4 days with high concentration 96h-LC₅₀ showed significantly reduced activity of SOD, CAT and GSH in CdCl₂ treatment followed by glyphosate and mixture, respectively. Where, reduction activity due to short time of exposure and liver cells take long time to store toxicants. Activity of GST and MDA significantly increased in CdCl₂ treatment followed by glyphosate and mixture where, elevated activity due to high concentration of pollutants which represent LC₅₀.

Many studies through exposure period of 4 days to pollutants gave similar results to the result of this study such as inhibition activity of GST was observed in goldfish exposed for 96 hrs to Roundup® [43]. Also, significant reduction in serum GSH, increase in SOD, MDA of Nile tilapia via exposure period 96h-LC₅₀ concentration [44]. Gills of Labeo rohita exposed to 33.6, 67.1, and 100.6 mg/l of cadmium chloride at 96 hrs led to oxidative stress where activity of LPO increased in all treated groups but in case of catalase decreased [45]. CAT activity has been inhibited in fish species exposed to pesticides such as deltamethrin [23].

Although the activity of CAT increase in liver occurred in response to increased levels of ROS [46]. The increasing of catalase and lipid peroxidation activity in gills by using 116μg/L of Roundup® but the decreasing of superoxide dismutase activity in liver after 3 days of exposure of Anguilla anguilla fish [47].

Also, CAT and SOD activity increased significantly in muscle and brain tissues after exposure to different concentrations of Cd for 96 hrs compared with control [48]. After 96 hrs of exposure of Oreochromis mossambicus to endosulfan activities of CAT, SOD and GST in gill and liver cells showed significant increase in activity of all the three enzymes [49]. Also, exposed liver, kidney and gill cells of Oreochromis niloticus to 1/2 and 1/3 median lethal concentration (96 hrs-LC50) of di-n-butyl phthalate (DBP) through the period of 4 days showed that significant increase in activity of MDA and inhibition of SOD activity and GSH level in the group that was exposed to higher concentration of DBP [50].

So, data presented in Table 2 indicate that the effect of 1/4LC50 of glyphosate, CdCl₂ and mixture treatment on the activity of antioxidant enzymes is due to oxidative stress on gills and liver of Oreochromis niloticus after 8 days. Data of oxidative parameters for gills at moderate time of exposure 8 days with little high concentration 1/4LC₅₀ showed significantly reduced activity of SOD in CdCl₂ treatment followed by glyphosate and mixture, respectively. High reduction activity of SOD in CdCl₂ treatment is because that gills don’t keep sufficient amount of CdCl₂ which can cause oxidative stress. Reduction activity of CAT of glyphosate treatment is due oxidative stress was not very strong but, activity of CAT increased in treatment of mixture and CdCl2 is due to strong oxidative stress. Activity of GST and GSH nearly was not significant otherwise, activity of GST significantly increased in mixture treatment due to presence of synergistic effect between CdCl₂ and glyphosate which caused strong oxidative stress. Also, the little increasing of activity of GST in CdCl₂ was because of cadmium is nonessential element causes oxidative stress. Also, elevated activity of MDA in all treatments is due to quite long exposure period.

But data of oxidative parameters for liver at moderate time of exposure 8 days with rather high concentration 1/4LC₅₀ showed significantly reduced activity of SOD, CAT and GSH in CdCl₂ treatment followed by glyphosate and mixture, respectively. Where, reduction activity causing by the time of exposure considered short and oxidative stress altered gene expression of these antioxidant enzymes. But SOD activity significantly increased in mixture treatment is due to the synergistic effect between CdCl₂ and glyphosate which caused strong oxidative stress. Activity of GST and MDA significantly increased in glyphosate treatment followed by CdCl₂ and mixture. Where, elevated activity due to high concentration of pollutants which represent 1/4LC₅₀ and moderate exposure period.

Also, many studies illustrated that Oxidative stress in exposed gills of Nile tilapia to two types of glyphosate formulations through 3, 7, 14 days show increase activity of MDA but activity of SOD, CAT, GSH and GST decrease but in liver show increase activity of MDA and CAT but SOD, GSH and GST decrease [51]. Fish species which exposed to cadmium show variation of GSH activity due to the exposure period and the type of pollutant. Also, increasing and decreasing in GSH activity have been observed, depending on field and experimental conditions [52,53]. Thus, SOD and CAT levels changed in all tissues of fresh water fish Grass Carp, Ctenopharyngodon Idella after the exposed period 10 and 15 days with 1/10th (96 hrs of LC₅₀) of chlorantraniliprole. Superoxide dismutase (SOD) and Catalase (CAT) levels changed in all tissues, when compared to control groups at sublethal concentration [54]. Glutathione reductase was significantly increased in liver cells of juvenile brown trout exposed to glyphosate and Roundup for 14 days [55]. Oxidative stress specially SODS and CAT in liver tissues of Nile tilapia exposed to CdCl₂ for 15 days showed activity significantly increased [56]. The results of actual study differ from some studies where SOD activity significantly increased in gills and liver. CAT activity is little in liver and there was not any alteration in gills. MDA activity had no alterations in gills and reduced in liver compared to control of Nile tilapia exposed to parabens after 12 days [57]. Oxidative stress showed activity reduction of SOD and CAT but significant increasing of MDA in liver tissues of Nile tilapia which exposed to pendimethalin after 28 days [58]. So, data presented in Table 3 indicate that the effect of 1/10LC₅₀ of glyphosate, CdCl₂ and mixture treatment on the activity of antioxidant enzymes is due to oxidative stress on gills and liver tissues of Oreochromis niloticus after 45 days. Data of oxidative parameters for gills at long time of exposure 45 days with low concentration 1/10LC₅₀ showed significantly increased activity of SOD in CdCl₂ more than glyphosate treatment because of high toxicity of cadmium but happened very simple reduction activity in mixture treatment where, occurrence start of antagonistic effect between of CdCl₂ and glyphosate treatment. Significantly increased activity of CAT and MDA in glyphosate followed by mixture and CdCl₂ treatment due to the long of exposure period and took place high synergistic effect between CdCl2 and glyphosate herbicide. Activity increased of GST in CdCl₂ is due to its high toxicity and in glyphosate due to its formulation. But, reduction activity of GST in mixture treatment is due to occurrence of antagonistic effect between CdCl₂ and glyphosate. Reduction activity of GSH in glyphosate, CdCl₂ and mixture treatment nearly with equal portions causing by the low concentration of pollutants.

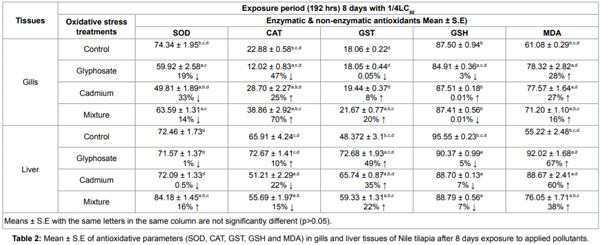

Effects of Cadmium Chloride and Glyphosate on Antioxidants as Biochemical Biomarkers in Nile Tilapia - Image 2

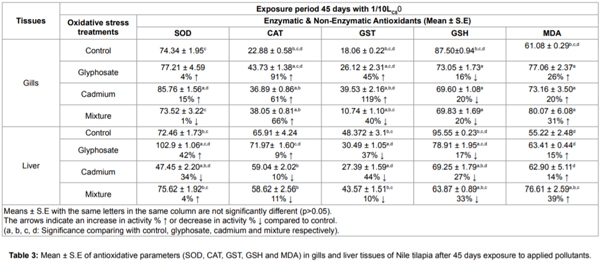

Effects of Cadmium Chloride and Glyphosate on Antioxidants as Biochemical Biomarkers in Nile Tilapia - Image 3

But, data of oxidative parameters for liver at long time of exposure 45 days with high concentration 1/10LC₅₀ showed significantly reduced activity of SOD in CdCl₂ treatment where, liver performing storage of Cd element causing oxidative stress led to reduced activity. But, increased activity of SOD in glyphosate treatment is because of POEA formulation causing high oxidative stress and in mixture treatment is due to start of synergistic effect between CdCl₂ and glyphosate herbicide. Significantly reduced activity of CAT, GST and GSH in all treatments is due to liver could store sufficient amount of pollutants causing strong oxidative stress cause reduction of activity. But simple significantly increased of CAT in glyphosate treatment due to long exposure period and low oxidative stress. Activity increased of MDA in mixture followed by glyphosate and cadmium due to low concentration of pollutants.

These results are similar to Rathnamma and Nagaraju [59] where, increasing the exposure period and toxicant concentration of chlorantraniliprole led to increase in SOD and CAT in all tissues of exposed freshwater fish Ctenopharyngodon Idella compared to control fish. In addition to the activity of GST decreased in liver of Nile tilapia exposed to glyphosate-based herbicide formulation of POEA which act as an oxidizing agent inhibiting activity of GST [60]. Oxidative stress on gills and liver of Nile tilapia exposed to cadmium (5 mg/liter water) through periods of 7, 21, 42 days showed that there are no significant changes of reduced glutathione in liver cells at 7 days of exposure and increased at 21 and 42 days but in gills, GSH levels no significantly at all periods. GST significantly increased in liver cells at 7, 21and 42 days but in gills, there was no significantly at all periods, also CAT activity in liver was no significant at 7 and 21 days of exposure period compared with the control. However, CAT activity increased significantly at 42 days of exposure period but in gills, were no significantly at all experimental periods. MDA activity in liver was significantly increased at all experimental periods but in gills, was significantly increased at 42 days only [61]. Exposed liver cells of Oreochromis niloticus to diclofenac (DCF) for 30 days showed activity of CAT inhibited, GSH level decreased and the increase in the activities of SOD and GST [62]. Results of actual study are different from other studies where serum malondialdehyde (MDA) activity was significantly reduced while activity of glutathione reductase significantly increased and no significant for CAT, SOD activity compared to control of Nile tilapia after 56 days [63]. N-acetyl cysteine (NAC) caused decreasing activity of MDA in liver, increasing activity of GST in plasma and activity of SOD increased in liver of Oreochromis niloticus after 8 weeks [64].

Conclusion

From the results it can be concluded that the activities and expression levels of antioxidant enzymes and oxidative stress can be used as biomarkers to evaluate the influence of CdCl₂ , glyphosate and their mixture on the biochemical pathway and enzymatic function in Nile tilapia that can be used for biological monitoring of environmental contamination.

This article was originally published in Journal of Aquaculture Research and Development 10(1), January 2019, DOI: 10.4172/2155-9546.1000561.
