PELLET MILL SZLH768 por pellet feed production

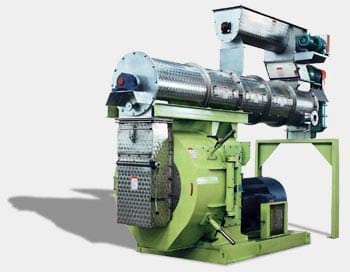

PELLET MILL SZLH768
Description of the product
See product description
1. Feeder adopts frequency conversion speed adjustment and structure of variable pitch and double screw.
2. Conditioner is thickened and lengthedned and adopts low rotational speed and structure of variable pitch and double screw;
3. dilute oil cooling and multiple-point lubricating device outside the machine forces the lubrication of all main bearings;
4. Pneumatic rolls’gap adjusting mechanism adjusts rolls?gap without stoppage of machine;
5. Multiple-piece quick removing die clamp fixes the die;
6. Application of overload protector and limit switch ensures safe operation.
Parameter
|
Model
|
Power Of Main Motor (kw)
|
Capacity (t/h)
|
Power Of Feeder Screw (kw)
|
Power of Conditioner (kw)
|
Die Dia (mm)
|
Pellit Sizes (mm)
|
|
SZLH768
|
250/280/315
|
10-35
|
2.2
|
11
|
￠673
|
￠2～￠18
|
