Introduction
Good quality air will provide a healthier environment for pigs and people. Improved
health will
mean improved profits and an easier production system to work with.
There has been a literal explosion of new products and technologies in the swine
industry
ventilation equipment industry over the last 15 years. In the midst of all this,
it is worth
reflecting on the original goal of a ventilation system to maintain indoor air
quality (IAQ):
1) In the winter provide fresh air (oxygen) uniformly and draft free, while
exhausting
stale, moisture-laden air.
2) In the summer, provide and direct enough air to flush out hot air to
provide cooling.
Fresh air consists primarily of Oxygen (at about 21%) and Nitrogen. Once inside
the barn, the
fresh air will achieve many purposes:
1) Oxygen for respiration and life,
2) A source to transfer CO2 and H2O, the byproducts of respiration,
3) Removal of moisture from manure and water spillage, etc.,
4) Removals of gases from manure, primarily NH3, are absorbed (See Table
1),
5) Removal of dust and other particulate matter from flooring, dander etc.,
6) If direct-fired heaters are used, then oxygen is used up and the air
absorbs the by-products
of combustion; CO2, H2O, CO and other partially burned combustion by-products,
7) A medium to transfer heat in the case of convective heat (forced air
or hot water pipes)
systems.
There are many different ventilation systems available to achieve the goal
of good IAQ; natural
ventilation; mechanical (fan) with inlets and fans in walls, ceilings or both;
pit exhaust; use of a
variety of heat systems; electronic controls with relative humidity sensing
and control.
All systems require good design, maintenance and management to ensure the system
can
perform. What checks can be made to ensure the fundamentals are being met, ensuring
proper
IAQ for both pigs and management?
The following are basic management steps:
1) The temperature must be reasonable for the pig. In many cases, particularly
in winter,
rooms for pigs tend to be too cool to start and too hot after a short time.
Since the pig is a
homoeothermic animal, it will choose a poor environment over a cool or hot temperature.
Anyone with partial slat barns can testify to this particular problem.
2) Check that the fan system has been designed and is controlled to maintain
continuous
winter ventilation to maintain adequate oxygen, CO2, RH and other gas levels.
In many
cases, the cold weather means a certain amount of heat is required, otherwise
an adequate
barn temperature will not be achievable.
3) Check to ensure minimum air flow requirements for hot weather are available
to ensure
adequate cooling. In many cases, the fan system may be sized but restrictions
occur at the soffit, the air inlet or preheat duct openings.
4) To further verify that temperature and fan setting s are correct, a system
performance
analysis and Standard Operations Manual is required.
5) Check that the fresh air supply, from the outside to the inside air inlet,
is adequate. Bird
screens may be too small at ¼" x ¼", when at least ¾"
x ¾" to 1" x 1" is required to
prevent clogging, choking air supply. Space between the underside of the roof
to the
insulation is sometimes 'squeezed.' Also, where the side wall fans exhaust air
close to
soffit openings, some stale air will cause frost build-up on soffit openings
and starve the
barn. This also creates the problem of stale air back into the barn.
6) Install a static pressure monitor, high to the outside, low to inside. Check
pressures for
0.06" to 0.08" water column static pressure for all but hot weather,
when the target is an
energy efficient 0.04".
7) Check for drafts and obstructions that interfere with air patterns. Any problems
result in
drafts on some pigs and stale air in other areas.
8) Check that air does not 'short circuit' from intake to exhaust fans. This
air has little value
to the pigs.
9) Set controls to match the season's requirements. Too rapid changes in fans
turning on or
off may appear to maintain close temperature control, but the effect of higher
air speeds
may cause the pig to feel chilled from the 'wind chill effect'. Proper controls
settings are
the second most common problem found on many farms.
10) Monitor the air quality with your nose as well as other equipment. An accurate
relative
humidity gauge, CO2 measuring devices, fast response hi/lo digital thermometers;
and
other gas checks including NH3 and CO (for direct fired gas heat systems) should
be part
of the regular monitoring and data collection procedures.
11) Air distribution and movement are very important components. The single
weakest link
in most ventilation systems is the air distribution (inlet) systems. They typically
experience the following deficiencies:
1) Undersized for summer air flow.
2) Non-uniform locations due to design, obstructions, etc., causing stale,
hot spots.
3) Insufficient maintenance so the inlet no longer closes evenly. This results
in cool,
drafty areas, and hot spots for long time periods, negatively affecting
performance.
4) No method to direct air into pens during extreme hot weather to provide
additional
cooling.
Minimum Air Flow Problems
1) Air is not distributed properly
2) Fans do not draw evenly due to excess spacing and cause non-uniform air distribution
3) Minimum Stage 1 fan is too fast or too slow
4) Minimum Stage 1 fan speed is not adjusted to compensate for the increased
respiration and
gases present as pigs grow
5) Compensation for the combusted air from unvented heaters is not made
Many sources now provide design services. The calculations are readily available
to estimate minimum and maximum airflow rates and choose equipment to provide
the minimum requirements. The design must take into account the facilities layouts
to ensure an optimum
system performance.
Locations of stage 1 (minimum ventilation) and stage two fans, air inlets and
heaters each have a large affect on winter IAQ. This is exacerbated by the use
of solid and semi solid floor systems and pen divider walls, common walls between
rooms and reducing the opportunity to locate fans optimally and by installing
only one inexpensive heater to heat a large area.
The Indoor Air Environment and Airborne
Diseases
Airborne disease organisms that are prevalent include bacteria, viruses, mould,
dust and fungi,
all of which can cause respiratory challenges. The number of airborne pathogens
present in
outside air is about 100 per cubic meter while inside air can be up to 1,000,000
per cubic meter.
Industry losses from poor IAQ include slower growth and expenses incurred to
combat
respiratory infection. Air quality improvements can reduce this loss by up to
80%.
Controlling airborne disease organisms is more easily accomplished if the systems
they require
to survive are understood. Disease organisms require moisture (humidity) to
remain viable
through airborne transmission. By lowering RH from 90% to 80% will reduce airborne
disease
organisms by 50%; the best range of RH for killing airborne pathogens is 50
to 70%. Normally,
a target of 60% when adjusting cold-weather ventilation fans is sufficient to
ensure proper
control of air borne contaminants. The use of convenient, accurate instruments
for measuring
RH is much easier today with the use of digital temperature/relative humidity

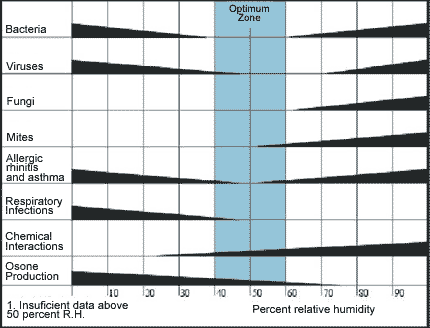

devices. Figure 1
shows contaminant concentration survival rates versus humidity for a number
of air borne
substances.
Relative humidity in an animal facility is a function of animal activity and
numbers, body
weight, manure systems, ventilation rate, and outdoor air relative humidity.
Since most of these
elements change from one day to the next, RH needs to be checked and ventilation
rate adjusted
accordingly. Weekly is usually frequent enough. Use a digital RH pen to check
RH, or consider
a temperature/RH data logger. If RH is above 70%, increase exhaust flow. If
RH is below 50%,
decrease fan speed. Note RH will range daily +/- 10% from a mean. Lows occur
during night
time and resting, highs during inspection/feed times in mid day.
In extreme cold weather, RH is much harder to maintain at the targeted 60%.
Extended cold
snaps may result in consistent RH as low as 35%, assuming adequate heat is available.
At this
point, additional monitoring to verify air quality includes CO2.
RH is of little consequence in warm or hot weather since the high ventilation
rates required to
keep air temperature under control usually dilute out a great majority of airborne
disease
organisms. Regardless of the RH, respiratory problems will be minimal during
warm or hot
weather due to simple dilution. Control of air temperature during warm or hot
weather should
be a function of exhaust fans on thermostats.
It is important to note that RH in production facilities increases as pigs grow
and from daily
changes in outside outdoor weather conditions. Check RH several times a week
through cold
weather and speed fans up or down as needed to keep RH between 50 and 70%. With
proper
measuring of all the various parameters and correlating these to environment,
fine-tuning and
adjustments can be made to further improve performance. Some of the parameters
and
relationships to environment control include:
RH - the RH in a building
can be maintained at optimum levels. This is dependent,
however, on manure management, dung habits, waterers, outside weather, etc.
Temperature- all pigs perform
best between a minimum and maximum temperature,
termed 'Upper' and 'Lower Critical Temperature'. The actual temperature
will depend on
many factors
Air Speed/Drafts - as pigs
grow and outside air temperatures rise, the effect of higher air
speeds decreases. However, too high an air speed can cause large drops in
performance.
A properly designed and operated ventilation system and controller can ensure
that
drafting potential is eliminated for very young pigs and increase drafts
for older pigs.
Radiation - This describes
the heat the pig may gain or lose from his surroundings.
These surroundings in include how many other pigs are in the pen, space
available,
insulation levels in building, etc.
Floor Type - the flooring
has an enormous effect on pig comfort. Cold concrete is much
cooler, at least initially, than plastic. However, concrete, once warm,
will remain warm.
Other Gases (NH3, CO, CO2, etc.)
- Many gases have an effect on the pigs health and
comfort level.
Threshold Limit Values-Time Weighted
Averages (TLV-TWA)
The time-weighted average is the concentration for a normal 8-hour period and
40 hour
workweek, to which workers may be continuously exposed, without adverse affect.
The
research for continued exposure affects on pigs is limited, but when available
shows that there
is negative effects. Table 1 shows some common gases and the effects on pigs
and humans.
The major gases of concern include ammonia, hydrogen sulfide, carbon dioxide,
methane and
carbon monoxide (when unvented heaters are used). The goal is to ensure that
adequate fresh air
is provided to animals for respiration; that gases and other contaminants are
removed; and that
the fresh air is provided in a way that does not cause drafts or other negative
events.
| Gas |
Concentration |
Effects (H=human, P=pigs) |
| Ammonia |
25 ppm |
* eye irritation
(H) (P) |
| 50 ppm |
* ADG / (P)
* Increased lung problems (H) (P)
* Headaches (H) |
| 100 ppm |
* ADG /(P)
* FI /(P)
* Nose and throat irritation |
| Hydrogen
Sulphide |
10 ppm |
* Eye irritation
(H) (P) |
| 20 ppm |
* Nervousness (P)
* Loss of appetite (H) (P) |
| 200 ppm |
* Breathing difficulty
(H) (P)
* Loss of consciousness (H) (P) |
| Carbon
Monoxide |
50 ppm |
* / Mortality (P)
* Headaches (H) |
| 50 to 100 ppm |
* FI / (P)
* gain / (P) |
| Carbon Dioxide |
>5000 ppm |
* FI / (P)
* gain /(P) |
Changes in Recommended Ventilation Rates
As pigs grow, the need for higher ventilation rates increases. An example would
be a 500-head
nursery:
Minimum ventilation 650 CFM @ 8 kg
Minimum ventilation 2000 CFM @ 30 kg
If the minimum fan is not set to provide the desired airflow, then problems begin
to arise:
Too high an exhaust flow wastes energy and dries air out while running the risk
of heat
shortages; too low an exhaust airflow rate and air quality suffers.
Figure 2 indicates the changing requirements for a typical 500-head nursery facility
over an 8-
week time period. Failure to adjust the minimum airflow will result in poor air
quality. The
effect on equipment life can be negative as well.
Where to set the minimum fan as pigs grow poses a problem. Most controllers read
out in %.
This % actually refers to a percentage of the amount of voltage being supplied
to the fan motor.
The fan motor uses the supplied voltage to turn the fan blade. Different fan and
motor
combinations then create different amounts of exhaust flow rate.
Figure 3 is from an actual Stage 1 variable speed fan/controller test. As can
be seen, the fan response to changes in % settings indicate a very non-linear
response, that can produce erratic control.
Also, by adjusting the % setting to change the desired CFM can have varying effects,
depending
on where it was initially and where it is set to. For example, changing from 30
to 40% can
double the CFM output. Changing from 50-60 % will only increase CFM 11%.
Figure 1.-
Figure 2.-
Figure 3.-
Conclusions
Minimum airflow management and indoor air quality have a large impact on pig and
human
health. Performance alone justifies the costs of properly designing, calibrating,
setting and
reviewing adequate air to the facility. Longer-range implications include human
factors as well.
An understanding of the fundamentals of indoor air quality is necessary for producers.
Proper
IAQ pays for both pigs and producers short and long term health and production
efficiency.
