Distillers grains (DG) originating from the corn-based fuel ethanol industry are an excellent source of energy and non-rumen degradable protein, and are an effective ingredient for dairy cattle diets. However, in spite of competitive price when compared to other protein sources and their high availability in the market, DG are not always sought as a dietary ingredient by some nutritionists and dairy producers. In a recent survey conducted in South Dakota by South Dakota State University Dairy Extension, where 28% of all Grade A dairy producers replied (Unpublished. 2011), many confirmed they did not use DG in their dairy cattle diets.
Survey of attitudes
In another survey on the use of DG, sent to 10 nutritionists specializing in dairy cattle (0wens, F. 2009), their high fat content was the main reason why DG inclusion was restricted in dairy diets. Half of those surveyed (5 out of 10), agreed that the high concentrations of unsaturated fatty acids (FA) in DG reduced fat content in milk. Nine out of ten of the dairy consultants indicated that the level of DG inclusion in diets could be increased if a portion of the fat in DG was removed. In addition, these nutritionists agreed that the cost of DG as a feed ingredient should be reduced proportionally to the energy content reduction as a result of fat extraction. Estimations as to what degree the cost of DG should be reduced varied from 2% to 50%, with an average of 24%.
In another survey (Unpublished, 2011), individual South Dakota dairy producers were asked if they used DG in their diets, and to rank from 1 to 4 the degree of importance of fat content in DG (1 = no importance; 2 = low importance; 3 = average importance; and 4 = high importance). Results indicated an average importance of 3.3. This parallels another survey, published by the National Agricultural Statistics Service (NASS, 2007), which showed that variation in DG fat content was a concern to dairy producers. On a scale of 1 to 4 (similar to the aforementioned study), the average was slightly higher at 3.6. Thus, results obtained from all these surveys provide considerable evidence that the high fat content in DG, together with high concentrations of unsaturated fatty acids, can be a matter of worry for dairy consultants and producers alike.
Fat in distillers grains
Several publications have reported the nutrient composition of a large number of distillers dried grains with solubles (DDGS) samples, and have indicated fat content values between 10.9% and 12.6% on a dry basis (DM; Table 1). Coefficients of variation (CV) for published fat content values are typically not extremely high within a given study, with published values of approximately 6.6% (Belyea et al. 2004) and 7.8% (Spiehs et al. 2002). Results published by the New York State Dairy One Lab (4819 samples in 2011), however, showed an average fat content in DDGS of 12.6% (DM), but with a range of values from 9.4 to 15.7%, and a CV above 25%. These results indicate very high variability in DDGDS fat content.
The nutrient composition of corn DDGS, published in different books and nutrition guides, also show high variability. The NRC (2001) reports a fat content of 10%, on a dry basis, which is similar to nutrient composition tables of the Spanish Foundation for the Development of Animal Nutrition (FEDNA) at 10.9%. The nutrient composition of feedstuffs tables of the Institut National de la Recherche Agronomique (INRA, 2004), however, published a value of 4.4%. This wide range in published data suggests that the information in books about the fat content in DDGS cannot be completely trusted, so it is suggested to formulate diets based on actual chemical analyses of ingredients, rather than using tabular values.
One of the major causes of DDGS fat variation is the amount of condensed distillers solubles (CDS) added back to the nonfermented wet cake prior to drying (which then produces DDGS). The amount of fat in the condensed solubles is greater than in the wet cake, and can represent almost a 21.5% of the DM in the CDS (Schingoethe et al. 2010). Ganesan et al. (2005) evaluated the effect of the fat content in DDGS as the proportion of CDS inclusion increased. The fat level in DDGS increased from 8.8% up to 11.8% of the DM when the CDS increased from 10 to 25%. Noll et al. (2007) also documented an increase in DDGS fat content with an increase of CDS addition.
The fat in DDGS is mainly composed of unsaturated FA; this profile is reflected in six research trials summarized in Table 2. Linoleic (C18:2) and oleic (C18:1), are the most abundant FA, with an average of almost 50% (CV=14.2%) and 25% (CV=28.9%) of the total FA, respectively. The high CV observed could be the result of the analyses being performed by different labs, and also maybe because of variations in extraction methods and analyses. The average values for the most abundant FA are similar to those reported by Moreau et al. (2011). These authors found that the linoleic and oleic content of DDGS from three different ethanol plants were 53.7 and 25.6%, respectively; the CV, however, were substantially lower at 1.7% and 1.3% for linoleic and oleic, respectively. In addition, this trial determined the variations in the FA profile during the ethanol production process by analyzing corn grain, DDGS and seven intermediate products (Table 3). Although with some slight differences in the exact values between different fractions, the FA profile varied little during the production process, with the exception of the predominant FA, which generally remained constant.
Bauman and Griinari (1998) demonstrated that there are two conditions which can reduce milk fat. One of them is the presence of unsaturated FA in the rumen; the other is an altered rumen environment that would cause incomplete bio-hydrogenation. Under certain conditions, the pathways for rumen biohydrogenation are altered and through alternative routes, intermediaries are produced, some of which, like trans-10-cis-12 CLA, are potent inhibitors of milk fat synthesis in the mammary gland (Griinari et al. 2001). The concentration of the unsaturated FA in the rumen can be a key factor that contributes to changes in microbial population and an increase in the CLA isomer trans- 10-cis-12 (Jenkins et al. 2009).
In addition to the degree of FA unsaturation, the rumen concentration of free FA (FFA) should also be considered. This fat fraction may have greater capacity to produce negative effects in rumen fermentation than other fractions, as for example, saturated FFA or triglycerides (TG; Jenkins et al. 1993). Chalupa et al. (1984) evaluated the production of volatile FA in vitro in terms of long chain FA (palmitic, stearic, and oleic) in the form of FFA or TG. The FA supplied as TG did not produce any significant changes in rumen fermentation. However, when the FA were supplied as FFA, there was an increased production of propionic acid, and a reduction in the production of acetic, butyric, and total VFA. The authors concluded that the FFA affected fermentation more than the TG, and that their antimicrobial activity increased with their degree of unsaturation.
The FFA content in corn and various co-products from seven ethanol plants are in Table 4. (Moreau et al. 2011). The FFA content in the oil extracted from corn grain was 2.28% (as-is basis). In DDGS, however, the average FFA content increased to 9.1% (as-is basis). In addition, DDG (distillers dried grains) and thin stillage, both fractions obtained after centrifugation, also contain high concentrations of FFA (7.4 and 9.4%, respectively). These results agree with those published by Noureddini et al. (2009; Table 5), with FFA values close to 7.5% for DDGS, whole stillage, and condensed solubles. These authors separated FFA into saturated (palmitic and stearic) and unsaturated (oleic, linoleic and linolenic) components. The unsaturated FFA represented between 75 and 80% of the total FFA, while the TG were 91% of the total fat content of the coproducts (Table 5). Vegetable oils are, in general, low in FFA (typically ~ 0.5 – 1.5%). The TG are protected by protein membranes in whole seeds with very little lipolytic activity until germination (Quettier and Eastmond. 2009). The reason why it increases in DG is unknown at the moment, but possible reasons could be lipase activity in corn or yeasts, continuous pH changes, and the high temperatures used during evaporation and drying (Winkler- Moser, 2011).
In recent years there has been growing interest by many ethanol plants to extract a portion of the oil from DDGS or other process streams as a means of increasing plant profitability. Several technologies are available to recover the oil either before or after fermentation. One method consists of fractionating corn into three different fractions before fermentation: the endosperm (starch-rich), germ (oil rich), and bran (fiber rich). The bran is used as a high fiber feedstuff, mainly for ruminants. The germ, which has a high fat content, can be de-oiled (and the oil used for human foods) and the resultant co-product is called germ meal. This process allows for only the endosperm, with a high starch concentration, to be fermented into ethanol. The DG obtained by this process will have high protein content (35- 55%), but lower concentrations of fat and fiber (Table 6); these DG are generally labeled high protein distillers grains or HPDDG.
In recent years there has been increased interest in extracting the oil from different fractions after the fermentation process, but before drying. Different commercial processes have been developed to extract the oil from thin stillage, semi-concentrated stillage and even condensed solubles. The majority of the methods are based on physical separation techniques, using different separation columns or centrifuges, and they are capable of extracting between 30% and 70% of the oil contained in the co-product (Rosentrater et al. 2011). Another possibility is the chemical extraction with solvents of the oil in DG. Some examples of commercial DDGS obtained through these postfermentation processes appear in Table 7. When part of the oil is removed, the rest of the nutrients increase proportionately. The final fat content is variable, depending on the method used by each company, and it ranges between 2.5 and 7.5% (DM); these DG are, in general, called low fat DG. Due to their greater FFA content, the oil obtained after fermentation is presently used as animal feed or a substrate for biodiesel production.
The high concentration of unsaturated FA in DG, together with high FFA content, can sometimes lead to milk fat depression in dairy cattle fed diets that include high levels of coproducts. In a meta-analysis of 24 experiments, Kalscheur (2005) found that use of DG caused milk fat depression only when diets had less than 50% forage or less than 22% NDF from forage. Thus, new ethanol co-products which have lower fat content will have less capacity to modify the rumen environment and reduce milk fat concentration and yield.

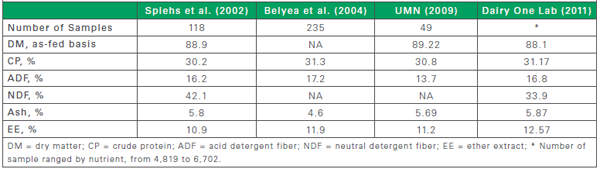

Table 1. Typical DDGS composition (% dry matter basis)

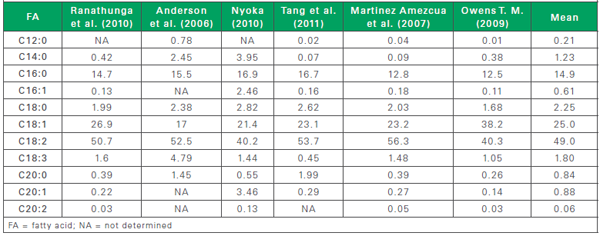

Table 2. Fatty acid composition in DDGS g/100 g of total fatty acids)
Table 3. Fatty acid composition of 9 fractions during the ethanol fermentation process manufacturing (% dry weight basis)

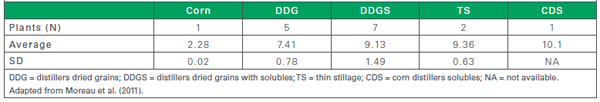

Table 4. Free fatty acid content in corn and corn co-products (% fresh weight basis)

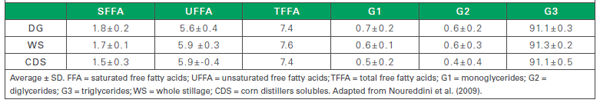

Table 5. Fat composition from different corn co-products (% fresh weight basis).

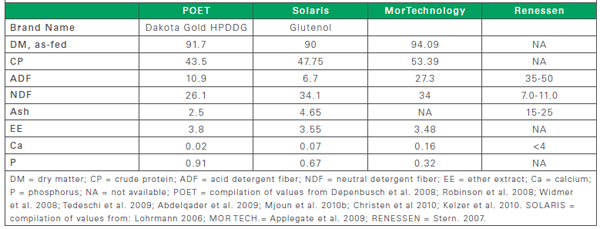

Table 6. Nutrient composition of high protein distillers grains (HPDDG) (% dr y basis)

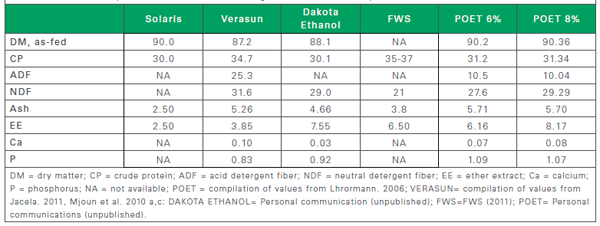

Table 7. Nutrient composition of low fat distillers grains (LFDDG) (% dr y basis)
Abdelqader, M.M., A.R., Hippen, K.F. Kalscheur, D.J. Schingoethe, A.D. Garcia. 2009. Isolipidic additions of fat from corn germ, corn distillers grains, or corn oil in dair y cow diets. J. Dair y Sci., 92: 5523-5533.
Anderson, J.L., D.J . Schingoethe, K.F. Kalscheur, A.R. Hippen. 2006. Evaluation of dried and wet distillers grains included at two concentrations in the diets of lactating dair y cows. J. Dair y Sci., 89:3133-3142
Applegate, T. J., C. Troche, Z. Jiang, T. Johnson. 2009. The nutritional value of high-protein corn distillers dried grains for broiler chickens and its effect on nutrient excretion. Poultr y Sci.,88:354–359.
Bauman, D.E., J. M. Griinari. 2001. Regulation and nutritional manipulation of milk fat: low-fat milk syndrome. Livest. Prod. Sci., 70:15–29
Belyea, R. L., K. D. Rausch, and M. E. Tumbleson. 2004. Compositionof corn and distillers dried grains with solubles from dr y grind ethanol processing. Bioresour. Technol., 94:293–298.
Chalupa, W., B. Rickabaugh, D. S. Kronfeld, and D. Sklan. 1984. Rumen fermentation in vitro as influenced by long chain fatty. J. Dair y Sci., 67:1439-1444.
Christen, K.A., D.J .,Schingoethe, K.F., Kalscheur, A.R. Hippen, K. Karges, M. L. Gibson. 2010. Response of lactating dair y cows to high protein distillers grains or three other protein supplements. J. Dair y Sci., 93: 2095-2104.
Dairy One Forage Lab. 1Valores acumulados desde el 01/05/2000 hasta el 30/04/2011. Disponible online: http://www.dairyone.com . Acceso noviembre 2011.
Depenbusch, B.E., E.R. Loe, M.J. Quinn, M.E. Corrigan, M.L. Gibson, K.K. Karges, J.S. Drouillard. 2008. "Corn Distiller´s Grain with Solubles Derived from a Traditional or Partial Fractionation Process: Growth Performance and Carcass Characteristics of Finishing Feedlot Heifer." J. Anim. Sci., 86:2338–2343.
Ganesan, V., K.A. Rosentrater, K. Muthukumarappan. 2005. "Effect of Moisture Content and Soluble Levels on the Physical and Chemical Properties of DDGS."
ASAE Paper No. 056110. American Society of Agricultural and Biological Engineers, St. Joseph, MI.
Griinari, J. M., D.A. Dwyer, M.A., McGuire, D.E. Bauman, D.L. Palmquist, K. V. V. Nurmela. 1998. Trans-octadecenoic acids and milk fat depression in lactating dair y cows. J. Dair y Sci., 81:1251–61
FEDNA (Federacion Espanola para el Desarrollo de la Nutricion Animal). 2003. Tablas FEDNA de composición y valor nutritivo de alimentos para la fabricación de piensos compuestos (2ª edición). Madrid, España. 423 pp.
FWS. 2011. The FWS corn fractionation system: Are you getting only a fraction of your profit potential? Disponible online: http:// www.fwstl.com/pdfs/fwst_presentation.pdf. Acesso en noviembre de 2011.
INRA (Institut National de la Reserche Agronomique). 2004. Tables of composition and nutritional value of feed materials. Wageningen, Netherlands, Wageningen Academic Publishers. 304 pp.
Jacela, J. Y., J. M. DeRouchey, S. S. Dritz, M. D. Tokach, R. D. Goodband, J. L. Nelssen, R. C. Sulabo, R. C. Thaler, L. Brandts, D. E. Little and K. J. Prusa. 2011. Amino acid digestibility and energy content of deoiled (solvent-extracted) corn distillers dried grains with solubles for swine and effects on growth performance and carcass characteristics. J. Anim. Sci. 89:1817–1829.
Jenkins, T. C. 1993. Symposium: Advances in ruminant lipid metabolism. J. Dair y Sci., 76:3851-3863
Jenkins, T. C., C. M. Klein, G. D. Mechor. 2009. Managing Milk Fat Depression: Interactions of Ionophores, Fat Supplements, and other Risk Factors. Proceeding 20 TH Annual Florida Ruminant Nutrition Symposium. Gainesville, Florida.
Kalscheur, K.F. 2005. Impact of feeding distillers grains on milk fat, protein, and yield. Proc. Distillers Grains Technology Council, 9th Annual Symposium, Louisville, Kentucky, USA.
Kelzer, J.M., P.J. Kononoff, A.M. Gehman, L.O.Tedeschi, K. Karges, M. L. Gibson. 2009. Effects of feeding three types of corn- milling co-products on milk production and ruminal fermentation of lactating Holstein cattle. J. Dair y Sci., 92: 5120-5132.
Lhrormann, T. 2006. Rethinking ethanol coproducts. Distillers Grains Quarterly 1(4): 23- 24.
Martinez Amezcua, C., C.M. Parsons, and S.L. Noll. 2004. "Content and Relative Bioavailability of Phosphorus in Distillers Dried Grains with Solubles in Chicks." Poultr y Sci., 83: 971-976.
Mjoun, K., K.F. Kalscheur, A.R. Hippen., D.J. Schingoethe. 2010a. Performance and amino acid utilization of early lactating cows fed regular or reduced-fat dried distillers grains with solubles. J. Dair y Sci., 93: 3176-3191.
Mjoun, K., K.F. Kalscheur, A.R. Hippen., D.J. Schingoethe. 2010b. Ruminal degradability and intestinal digestibility of protein and amino acids in soybean and corn distillers grains products. J. Dair y Sci., 93: 4144-4154.
Mjoun, K., K.F. Kalscheur, A.R. Hippen., D.J. Schingoethe, D.E. Little. 2010c. Lactation performance and amino acid utilization of cows fed increasing amounts of reduced-fat dried distillers grains with solubles. J. Dair y Sci., 93: 288-303
Moureau, R. A., K. Liu., J. K. Winkler-Moser, V. Singh. 2011. Changes in Lipid Composition During Dr y Grind Ethanol Processing of Corn. J. Am. Oil Chem. Soc., 88:435–442.
NASS (National Agricultural Statistics Ser vice Agricultural Statistics Board, U.S.). Department of Agriculture (2007). Ethanol Co- Products Used for Livestock Feed.
National Research Council. 2001. Nutrient Requirements for Dair y Cattle. 7th rev. ed. Natl. Acad. Sci., Washington, DC, USA.
Noll, S., C. Parsons, B. Walters. 2006. "What´s New since September 2005 in Feeding Distillers Co-products to Poultry." Proceedings of the 67th Minnesota Nutrition Conference and University of Minnesota Research Update Session: Livestock Production in the New Millennium, pp. 149-154.
Noureddini, H., S. R. P. Bandlamudi, E. A. Guthrie. 2009. A Novel Method for the Production of Biodiesel from the Whole Stillage- Extracted Corn Oil. J. Am. Oil Chem. Soc., 86:83–91
Nyoka, R. 2010. Fat and rumen undegradable protein for grazing cows: effect on composition of milk and quality of cheese. M.Sc. Thesis. South Dakota State University.
Owens, F. (2009). Nutrition & Health: Dairy. Cattle nutritionists. Feedstuffs, pg 22 – 25.
Owens, T.M. 2009. Risk of milk fat depression for dair y cows fed high moisture corn and distillers grains in diets containing monensin. Ph.Sc. Thesis. South Dakota State University.
Quettier, A. L., P. J. Eastmond. 2009. Storage oil hydrolysis during early seedling growth. Plant Physiology and Bioch. 47 (6):485 – 490.
QTI. 2011. Quality Technology International. Glutenol for ruminants. Disponible online en: http://www.qtitechnology.com/PDF%20Files/Glutenol%20for%20Ruminants%202-09.pdf. Acceso en noviembre de 2011.
Ranathunga, S.D., K.F. Kalscheur, A.R. Hippen., D.J. Schingoethe. 2010. Replacement of starch from corn with nonforage fiber from distillers grains and soyhulls in diets of lactating dair y cows. J. Dair y Sci., 93: 1086-1097.
Robinson, P. H., K. Karges, M.L. Gibson. 2008. Nutritional evaluation of four co-product feedstuffs from the motor fuel ethanol distillation industry in the Midwestern USA. Anim. Feed Sci. and Tech., 146:345-352.
Rosentrater, K. A., K.M. Ileleji, D. B. Johson. 2011. Manufacturing of Fuel Ethanol and Distiller Grains – Current and Evolving Processes. Capitulo 5. Distillers Grains: Production, Properties, and Utilization. Editado por KeShun Liu and Kurt A. Rosentrater. CRC Press, Florida. Pg. 73 – 102.
Spiehs, M. J., M. H. Whitney, and G. C. Shurson. 2002. Nutrient database for distillers dried grains with solubles produced from new ethanol plants in Minnesota and South Dakota. J. Anim. Sci., 10:2639-2645.
Stern, M. 2007. The Renessen Corn Processing System: Rebalancing the Bioenergy/Feed Equation. Innovation to Commercialization. Chicago, Illinois; Illinois Biotechnology Industr y Organization.
Tang, S. C., I. Zulkifli, M. Ebrahimi, A.R. Alimon, A.F. Soleimani, K. Filer. 2011. Effects of Feeding Different Levels of Corn Dried Distillers Grains with Solubles on Growth Performance, Carcass Yield and Meat Fatty Acid Composition in Broiler Chickens. Int. J. Anim. Vet. Adv., 3(3): 205-211.
Tedeschi, L. O., P. J. Kononoff, K. Karges, and M. L. Gibson. 2009. Effects of chemical composition variation on the dynamics of ruminal fermentation and biological value of corn milling (co) products. J. Dair y Sci., 92:401–413.
UMN. 2009. Distillers Grains By-products in Livestock and Poultr y Feeds. University of Minnesota. U.S. average compared to DDGS produced in Canada, China, Spain. Disponible online: http://www.ddgs.umn.edu/profiles.htm
Widmer, M.R., L.M. McGinnis, D.M. Wulf, and H.H. Stein. 2008. "Effects of Feeding Distillers Dried Grains with Solubles, High Protein Distillers Dried Grains, and Corn
Germ to Growing-Finishing Pigs on Pig Performance, Carcass Quality, and the Palatability of Pork." J. Anim. Sci. 1910. doi: 10.2527/ jas.2007-0594.
Winkler-Moser, J. K. 2011. Lipids in DDGS. Capitulo 9. Distillers Grains: Production, Properties, and Utilization. Editado por KeShun Liu and Kurt A. Rosentrater. CRC Press, Florida. Pg. 73 – 102.
